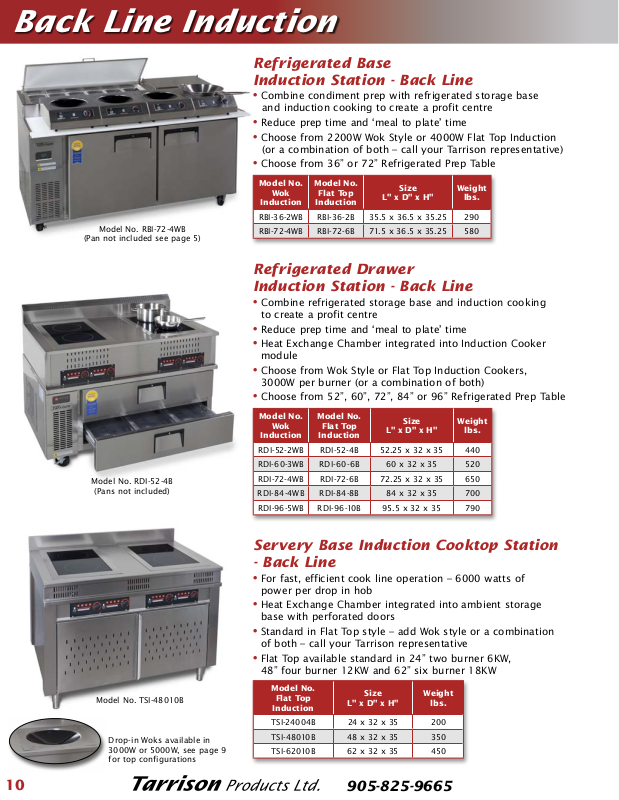

Tarrison RBI-36-2B User Manual

Back Line Induction

Refrigerated Base
Induction Station - Back Line

• Combine condiment prep with refrigerated storage base

and induction cooking to create a profit centre

• Reduce prep time and ‘meal to plate’ time

• Choose from 2200W Wok Style or 4000W Flat Top Induction

(or a combination of both – call your Tarrison representative)

• Choose from 36” or 72” Refrigerated Prep Table

Model No. RBI-72-4WB

(Pan not included see page 5)

Model No. RDI-52-4B

(Pans not included)

Model No.

Wok

Induction

RBI-36-2WB RBI-36-2B 35.5 x 36.5 x 35.25 290

RBI-72-4WB RBI-72-6B 71.5 x 36.5 x 35.25 580

Model No.

Flat Top

Induction

Size

L" x D" x H"

Weight

lbs.

Refrigerated Drawer
Induction Station - Back Line

• Combine refrigerated storage base and induction cooking

to create a profit centre

• Reduce prep time and ‘meal to plate’ time

• Heat Exchange Chamber integrated into Induction Cooker

module

• Choose from Wok Style or Flat Top Induction Cookers,

3000W per burner (or a combination of both)

• Choose from 52”, 60”, 72”, 84” or 96” Refrigerated Prep Table

Model No.

Wok

Induction

RDI-52-2WB RDI-52-4B 52.25 x 32 x 35 440

RDI- 60 -3WB RDI-60-6B 60 x 32 x 35 520

RD I-72- 4WB RDI -72-6B 72.25 x 32 x 35 650

RDI-84-4WB RDI-84-8B 84 x 32 x 35 700

RDI-96-5WB RDI -96-10B 95.5 x 32 x 35 790

Model No.

Flat Top

Induction

Size

L" x D" x H"

Weight

lbs.

10

Model No. TSI-48010B

Drop-in Woks available in
3000W or 5000W, see page 9
for top configurations

Servery Base Induction Cooktop Station

- Back Line

• For fast, efficient cook line operation – 6000 watts of

power per drop in hob

• Heat Exchange Chamber integrated into ambient storage

base with perforated doors

• Standard in Flat Top style – add Wok style or a combination

of both – call your Tarrison representative

• Flat Top available standard in 24” two burner 6KW,

48” four burner 12KW and 62” six burner 18KW

Model No.

Flat Top

Induction

TSI-2400 4B 24 x 32 x 35 200

TSI-48010B 48 x 32 x 35 350

TSI - 62010B 62 x 32 x 35 450

Size

L" x D" x H"

Weight

lbs.

905-825-9665
