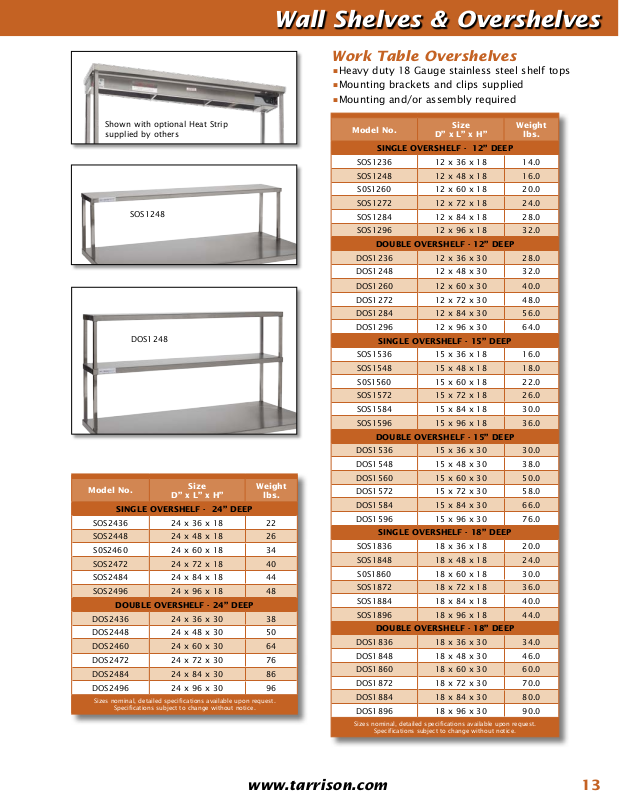

Wall Shelves & Overshelves
Work Table Overshelves
•Heavy duty 18 Gauge stainless steel shelf tops
•Mounting brackets and clips supplied
•Mounting and/or assembly required
Shown with optional Heat Strip
supplied by others
SOS1248
DOS1248
Model No.
SINGLE OVERSHELF - 24” DEEP
SOS2436 24 x 36 x 18 22
SOS2448 24 x 48 x 18 26
S0S2460 24 x 60 x 18 34
SOS2472 24 x 72 x 18 40
SOS2484 24 x 84 x 18 44
SOS2496 24 x 96 x 18 48
DOUBLE OVERSHELF - 24” DEEP
DOS2436 24 x 36 x 30 38
DOS2448 24 x 48 x 30 50
DOS2460 24 x 60 x 30 64
DOS2472 24 x 72 x 30 76
DOS2484 24 x 84 x 30 86
DOS2496 24 x 96 x 30 96
Sizes nominal, detailed specifications available upon request.
Specifications subject to change without notice.
Size
D” x L” x H”
Weight
lbs.
Model No.
SINGLE OVERSHELF - 12” DEEP
SOS1236 12 x 36 x 18 14.0
SOS1248 12 x 48 x 18 16.0
S0S1260 12 x 60 x 18 20.0
SOS1272 12 x 72 x 18 24.0
SOS1284 12 x 84 x 18 28.0
SOS1296 12 x 96 x 18 32.0
DOUBLE OVERSHELF - 12” DEEP
DOS1236 12 x 36 x 30 28.0
DOS1248 12 x 48 x 30 32.0
DOS1260 12 x 60 x 30 40.0
DOS1272 12 x 72 x 30 48.0
DOS1284 12 x 84 x 30 56.0
DOS1296 12 x 96 x 30 64.0
SINGLE OVERSHELF - 15” DEEP
SOS1536 15 x 36 x 18 16.0
SOS1548 15 x 48 x 18 18.0
S0S1560 15 x 60 x 18 22.0
SOS1572 15 x 72 x 18 26.0
SOS1584 15 x 84 x 18 30.0
SOS1596 15 x 96 x 18 36.0
DOUBLE OVERSHELF - 15” DEEP
DOS1536 15 x 36 x 30 30.0
DOS1548 15 x 48 x 30 38.0
DOS1560 15 x 60 x 30 50.0
DOS1572 15 x 72 x 30 58.0
DOS1584 15 x 84 x 30 66.0
DOS1596 15 x 96 x 30 76.0
SINGLE OVERSHELF - 18” DEEP
SOS1836 18 x 36 x 18 20.0
SOS1848 18 x 48 x 18 24.0
S0S1860 18 x 60 x 18 30.0
SOS1872 18 x 72 x 18 36.0
SOS1884 18 x 84 x 18 40.0
SOS1896 18 x 96 x 18 44.0
DOUBLE OVERSHELF - 18” DEEP
DOS1836 18 x 36 x 30 34.0
DOS1848 18 x 48 x 30 46.0
DOS1860 18 x 60 x 30 60.0
DOS1872 18 x 72 x 30 70.0
DOS1884 18 x 84 x 30 80.0
DOS1896 18 x 96 x 30 90.0
Sizes nominal, detailed specifications available upon request.
Specifications subject to change without notice.
Size
D” x L” x H”
Weight
lbs.
www.tarrison.com
13
