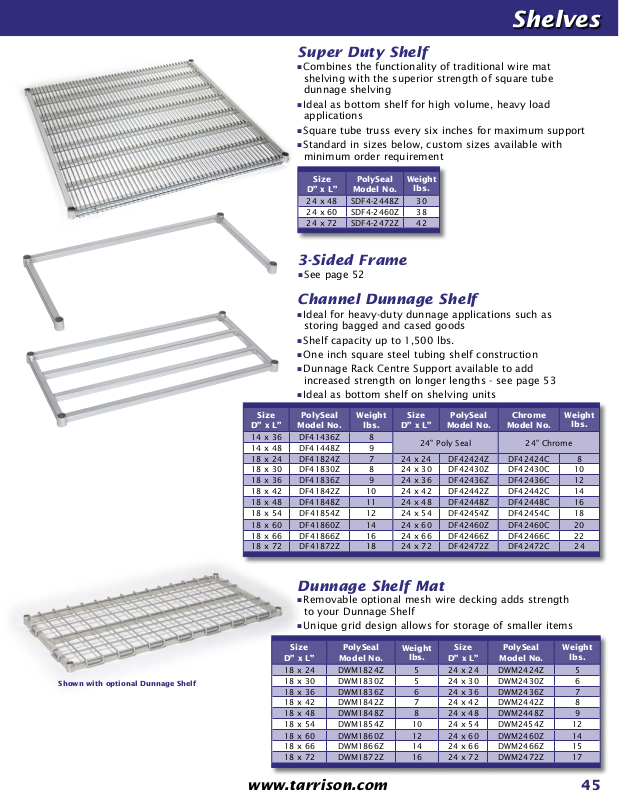

Tarrison DF41824Z User Manual

Shelves
Super Duty Shelf
Combines the functionality of traditional wire mat
shelving with the superior strength of square tube dunnage shelving
Ideal as bottom shelf for high volume, heavy load
applications
Square tube truss every six inches for maximum support
Standard in sizes below, custom sizes available with
minimum order requirement
Size
D” x L”
24 x 48 SDF4-2448Z 30 24 x 60 SDF4-2460Z 38 24 x 72 SDF4-2472Z 42
PolySeal
Model No.
Weight
lbs.
3-Sided Frame
See page 52
Channel Dunnage Shelf
Ideal for heavy-duty dunnage applications such as
storing bagged and cased goods
Shelf capacity up to 1,500 lbs.
One inch square steel tubing shelf construction
Dunnage Rack Centre Support available to add
increased strength on longer lengths - see page 53
Ideal as bottom shelf on shelving units
Size
D” x L”
14 x 36 DF41436Z 8 14 x 48 DF41448Z 9 18 x 24 DF41824Z 7 24 x 24 DF42424Z DF42424C 8 18 x 30 DF41830Z 8 24 x 30 DF42430Z DF42430C 10 18 x 36 DF41836Z 9 24 x 36 DF42436Z DF42436C 12 18 x 42 DF41842Z 10 24 x 42 DF42442Z DF42442C 14 18 x 48 DF41848Z 11 24 x 48 DF42448Z DF42448C 16 18 x 54 DF41854Z 12 24 x 54 DF42454Z DF42454C 18 18 x 60 DF41860Z 14 24 x 60 DF42460Z DF42460C 20 18 x 66 DF41866Z 16 24 x 66 DF42466Z DF42466C 22 18 x 72 DF41872Z 18 24 x 72 DF42472Z DF42472C 24
PolySeal
Model No.
Weight
lbs.
Size
D” x L”
24" Poly Seal 24" Chrome
PolySeal
Model No.
Model No.
Weight
lbs.
Shown with optional Dunnage Shelf
Dunnage Shelf Mat
Removable optional mesh wire decking adds strength
to your Dunnage Shelf
Unique grid design allows for storage of smaller items
Size
D” x L”
18 x 24 DWM1824Z 5 24 x 24 DWM2424Z 5 18 x 30 DWM1830Z 5 24 x 30 DWM2430Z 6 18 x 36 DWM1836Z 6 24 x 36 DWM2436Z 7 18 x 42 DWM1842Z 7 24 x 42 DWM2442Z 8 18 x 48 DWM1848Z 8 24 x 48 DWM2448Z 9 18 x 54 DWM1854Z 10 24 x 54 DWM2454Z 12 18 x 60 DWM1860Z 12 24 x 60 DWM2460Z 14 18 x 66 DWM1866Z 14 24 x 66 DWM2466Z 15 18 x 72 DWM1872Z 16 24 x 72 DWM2472Z 17
PolySeal
Model No.
www.tarrison.com
Weight
lbs.
Size
D” x L”
PolySeal
Model No.
Weight
lbs.
45
