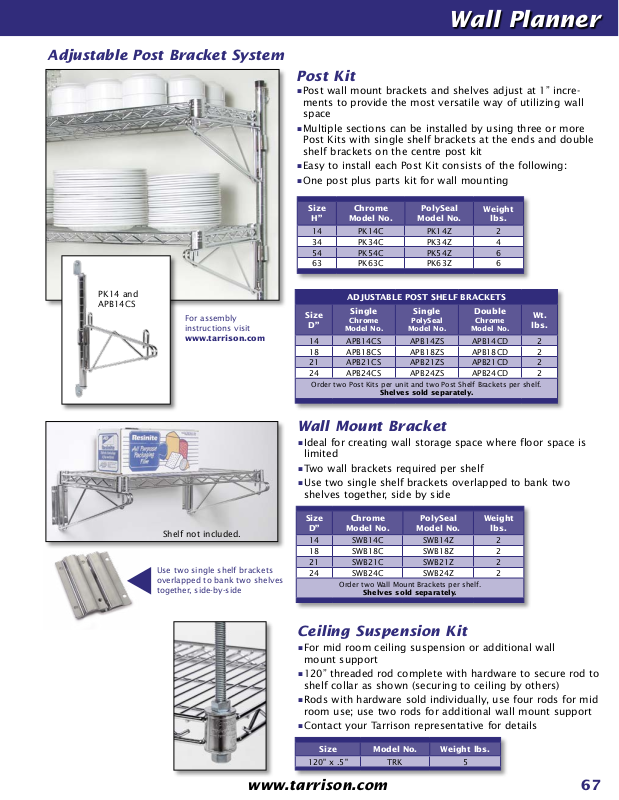

Tarrison APB14CS User Manual
Adjustable Post Bracket System
Wall Planner
Post Kit
•Post wall mount brackets and shelves adjust at 1” incre-
ments to provide the most versatile way of utilizing wall
space
•Multiple sections can be installed by using three or more
Post Kits with single shelf brackets at the ends and double
shelf brackets on the centre post kit
•Easy to install each Post Kit consists of the following:
•One post plus parts kit for wall mounting
PK14 and
APB14CS
For assembly
instructions visit
www.tarrison.com
Size
H”
14 PK14C PK14Z 2
34 PK34C PK34Z 4
54 PK54C PK54Z 6
63 PK63C PK63Z 6
Size
D”
14 APB14CS APB14ZS APB14CD 2
18 APB18CS APB18ZS APB18CD 2
21 APB21CS APB21ZS APB21CD 2
24 APB24CS APB24ZS APB24CD 2
Order two Post Kits per unit and two Post Shelf Brackets per shelf.
Chrome
Model No.
ADJUSTABLE POST SHELF BRACKETS
Single
Chrome
Model No.
Shelves sold separately.
PolySeal
Model No.
Single
PolySeal
Model No.
Weight
lbs.
Double
Chrome
Model No.
Wt.
lbs.
Wall Mount Bracket
•Ideal for creating wall storage space where floor space is
limited
•Two wall brackets required per shelf
•Use two single shelf brackets overlapped to bank two
shelves together, side by side
Shelf not included.
Use two single shelf brackets
overlapped to bank two shelves
together, side-by-side
www.tarrison.com
Size
D”
14 SWB14C SWB14Z 2
18 SWB18C SWB18Z 2
21 SWB21C SWB21Z 2
24 SWB24C SWB24Z 2
Chrome
Model No.
Order two Wall Mount Brackets per shelf.
Shelves sold separately.
PolySeal
Model No.
Weight
lbs.
Ceiling Suspension Kit
•For mid room ceiling suspension or additional wall
mount support
•120” threaded rod complete with hardware to secure rod to
shelf collar as shown (securing to ceiling by others)
•Rods with hardware sold individually, use four rods for mid
room use; use two rods for additional wall mount support
•Contact your Tarrison representative for details
Size Model No. Weight lbs.
120" x .5" TRK 5
67
