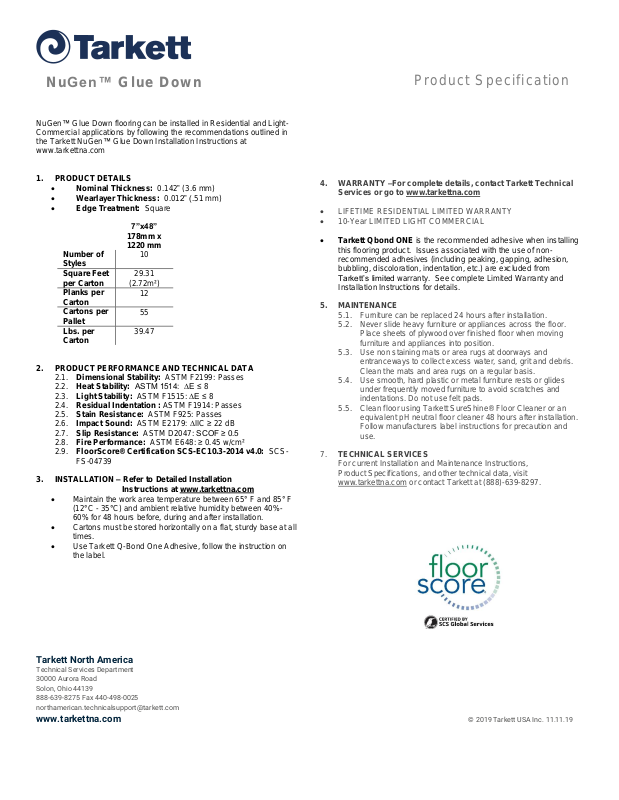

NuGen™ Glue Down
Product Specification
7”x48”
178mm x
1220 mm
Number of
Styles
10
Square Feet
per Carton
29.31
(2.72m²)
Planks per
Carton
12
Cartons per
Pallet
55
Lbs. per
Carton
39.47
Tarkett North America
Technical Services Department
30000 Aurora Road
Solon, Ohio 44139
888-639-8275 Fax 440-498-0025
[email protected]
www.tarkettna.com © 2019 Tarkett USA Inc. 11.11.19
NuGen™ Glue Down flooring can be installed in Residential and LightCommercial applications by following the recommendations outlined in
the Tarkett NuGen™ Glue Down Installation Instructions at
www.tarkettna.com
1. PRODUCT DETAILS
Nominal Thickness: 0.142” (3.6 mm)
Wearlayer Thickness: 0.012” (.51 mm)
Edge Treatment: Square
2. PRODUCT PERFORMANCE AND TECHNICAL DATA
2.1. Dimensional Stability: ASTM F2199: Passes
2.2. Heat Stability: ASTM 1514: ∆E ≤ 8
2.3. Light Stability: ASTM F1515: ∆E ≤ 8
2.4. Residual Indentation : ASTM F1914: Passes
2.5. Stain Resistance: ASTM F925: Passes
2.6. Impact Sound: ASTM E2179: ∆IIC ≥ 22 dB
2.7. Slip Resistance: ASTM D2047: SCOF ≥ 0.5
2.8. Fire Performance: ASTM E648: ≥ 0.45 w/cm²
2.9. FloorScore® Certification SCS-EC10.3-2014 v4.0: SCS-
FS-04739
3. INSTALLATION – Refer to Detailed Installation
Instructions at www.tarkettna.com
Maintain the work area temperature between 65° F and 85° F
(12°C - 35°C) and ambient relative humidity between 40%60% for 48 hours before, during and after installation.
Cartons must be stored horizontally on a flat, sturdy base at all
times.
Use Tarkett Q-Bond One Adhesive, follow the instruction on
the label.
4. WARRANTY –For complete details, contact Tarkett Technical
Services or go to www.tarkettna.com
LIFETIME RESIDENTIAL LIMITED WARRANTY
10-Year LIMITED LIGHT COMMERCIAL
Tarkett Qbond ONE is the recommended adhesive when installing
this flooring product. Issues associated with the use of nonrecommended adhesives (including peaking, gapping, adhesion,
bubbling, discoloration, indentation, etc.) are excluded from
Tarkett’s limited warranty. See complete Limited Warranty and
Installation Instructions for details.
5. MAINTENANCE
5.1. Furniture can be replaced 24 hours after installation.
5.2. Never slide heavy furniture or appliances across the floor.
Place sheets of plywood over finished floor when moving
furniture and appliances into position.
5.3. Use non staining mats or area rugs at doorways and
entranceways to collect excess water, sand, grit and debris.
Clean the mats and area rugs on a regular basis.
5.4. Use smooth, hard plastic or metal furniture rests or glides
under frequently moved furniture to avoid scratches and
indentations. Do not use felt pads.
5.5. Clean floor using Tarkett SureShine® Floor Cleaner or an
equivalent pH neutral floor cleaner 48 hours after installation.
Follow manufacturers label instructions for precaution and
use.
7. TECHNICAL SERVICES
For current Installation and Maintenance Instructions,
Product Specifications, and other technical data, visit
www.tarkettna.com or contact Tarkett at (888)-639-8297.
