Targus Wireless Keypad Mini Optical Mouse User Manual
Targus Wireless Keypad
& Mini Optical Mouse
Making Your Mobile Life Easier.
Features and specifications are subject to change without notice.
BRUSSELS HANNOVER BARCELONA TOKYO MILANO AMSTERDAM SINGAPORE LONDON PARIS NEW YORK LOS ANGELES TORONTO HONG KONG SYDNEY
© 2003 Targus Group International and Targus, Inc..
Visit our Web site at: www.targus.com
400-0139-001A
®
Making Your Mobile Life Easier.
USER’S GUIDE
®
TARGUS WIRELESS
KEYPAD &
MINI OPTICAL MOUSE
Introduction
Congratulations on your purchase of the Targus Wireless
Keypad and Mini Optical Mouse Combo Set. This combo
set offers the latest technology for interference-free
operation with 27MHz wireless connection and 4,096 IDs
per channel. Both keypad and mouse feature on/off switch
and auto power saving management for effective power
conservation.
This user’s guide describes how to connect the receiver to
your computer, install default software drivers and set up
the radio link.
Contents
In addition to this user’s guide, this package contains:
›Targus Wireless Keypad
› Targus Wireless Mini Optical Mouse
› USB Receiver
› USB extension cable
› 4 AAA batteries (2 for mouse, 2 for keypad)
› Carrying pouch
2
Targus Wireless Keypad & Mini Optical Mouse
System Requirements
To use the keypad and mouse, your computer must meet
the following hardware requirements and run one of the
operating systems listed below.
Hardware
• PC with an Intel® Pentium® processor or equivalent
• USB 1.1 interface
Operating System
•Windows® 98SE/Me/2000/XP
NOTE: The third button and the scrolling wheel of
the mouse only work with the operating systems listed
above. If you use the mouse with a different operating
system, it will lose its enhanced features and function
as a standard, two-button mouse.
Installing the Batteries
Optical Mouse
1 Remove the battery cover from the top of the mouse by
pressing the top center (over the Targus logo) and
sliding it back..
Removing the battery cover
2 Insert the supplied batteries, making sure that the
positive (+) and negative (-) ends of each battery match
the polarity indicators inside the battery housing.
3
Targus Wireless Keypad & Mini Optical Mouse
WARNINGS: When replacing the batteries, you may use
alkaline or other heavy-duty NiMH batteries. Never
combine an alkaline with a NiMH battery in a device.
Avoid mixing new and used batteries in a device.
3 Slide the battery cover back into position until it “clicks”
firmly into place.

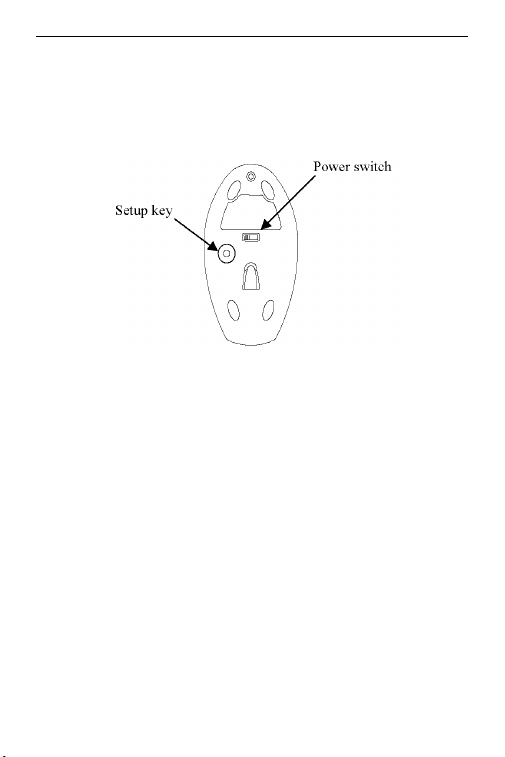

4 Turn on the mouse by sliding the on/off switch on the
bottom of the mouse to the “on” position.
The optical sensor, located on the bottom of the mouse,
glows red.
Wireless Keypad
1 Remove the battery cover located on the bottom of the
keypad.
2 Insert the supplied batteries, making sure that the
positive (+) and negative (-) ends of each battery match
the polarity indicators inside the battery housing.
3 Turn on the keypad by sliding the Power switch on the
right side of the keypad to the “on” position.
4
Targus Wireless Keypad & Mini Optical Mouse
Connecting the Receiver
To connect the receiver:
1 Plug the USB receiver into an available USB port on
your computer.
2 Follow any on-screen instructions to complete the
default driver installation.
The “Lock LED” light turns on.
You are now ready to set the identification code to establish
a communication link with the receiver.
Setting the Identification Code
After your computer detects the USB receiver and the
driver software is installed, you must set the ID code
between the receiver and the mouse as well as between the
receiver and the keypad BEFORE you can use them. To do
this, do the following:
NOTE: Make su re that yo ur compu te r is turned on and
has detected the USB receiver before you set the ID
code.
5
