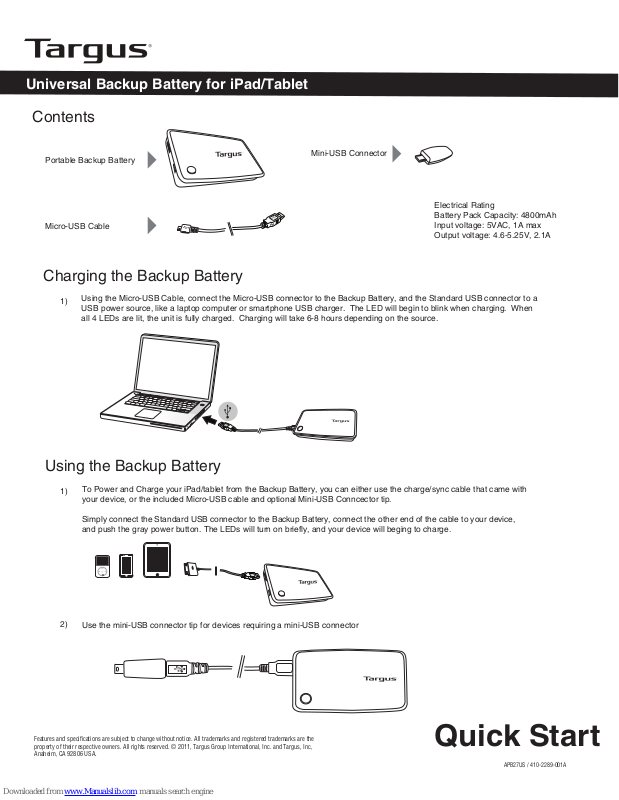

Targus Universal Backup Battery for iPad/Tablet Quick Start Manual

Universal USB Output Portable Battery Pack

Universal Backup Battery for iPad/Tablet

Electrical Rating
Battery Pack Capacity: 4800mAh
Input voltage: 5VAC, 1A max
Output voltage: 4.6-5.25V, 2.1A

APB27US / 410-2289-001A

Contents

STOP

Quick Start

Features and specifications are subject to change without notice. All trademarks and registered trademarks are the
property of their respective owners. All rights reserved. © 2011, Targus Group International, Inc. and Targus, Inc,
Anaheim, CA 92806 USA.

Mini-USB Connector

Portable Backup Battery

Charging the Backup Battery

1)

Using the Micro-USB Cable, connect the Micro-USB connector to the Backup Battery, and the Standard USB connector to a
USB power source, like a laptop computer or smartphone USB charger. The LED will begin to blink when charging. When
all 4 LEDs are lit, the unit is fully charged. Charging will take 6-8 hours depending on the source.

1)

To Power and Charge your iPad/tablet from the Backup Battery, you can either use the charge/sync cable that came with
your device, or the included Micro-USB cable and optional Mini-USB Conncector tip.

Simply connect the Standard USB connector to the Backup Battery, connect the other end of the cable to your device,
and push the gray power button. The LEDs will turn on briefly, and your device will beging to charge.

2)

Use the mini-USB connector tip for devices requiring a mini-USB connector

Using the Backup Battery

Micro-USB Cable

fi

MENU

Technical Support

For technical questions, please visit:

US

Internet: www.targus.com/support.asp

Product Registration

Targus recommends that you register your Targus accessory shortly after purchasing it. To register your Targus accessory, go to: http://www.targus.com/registration.asp
You will need to provide your full name, email address, country of residence and product information.

Warranty

Targus warrants this product to be free from defects in materials and workmanship for two years. If your Targus accessory is found to be defective within that time, we will promptly
repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to a
computer; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. This warranty does
not affect your statutory rights.

Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.

FCC Statement

Tested to Comply

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance
with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna;

• Increase the separation between the equipment and receiver;

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;

• Consult the dealer or an experienced radio/TV technician for help;

Changes or modifications not authorized by the party responsible for compliance could void the user’s authority to operate this product.

APB27US / 410-2289-001A

Quick Start

Universal Backup Battery for iPad/Tablet

Features and specifications are subject to change without notice. All trademarks and registered
trademarks are the property of their respective owners. All rights reserved. © 2011, Targus Group
International, Inc. and Targus, Inc, Anaheim, CA92806 USA.

Battery Capacity Chart

1 LED

2 LED

3 LED

4 LED

1-25%

25-50%

50-75%

75-100%

3)

To check the battery level, simply press the gray power button, and the LEDs will indicate the remaining power level.
