PA492S(US) / 410-0222-101A
USER GUIDE
30
Visit our Website at www.targus.com Features a nd
specifications subject to cha nge without notice.
© 2006 Targus Group International, Inc. and Targus, Inc.
Universal
Security DEFCON®
Serialized VPCL
Combination
Cable Lock
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . 2
Serialized Combination . . . . . . . . . . . . 2
Connecting the Pass-through Cable . . 3
Securing the Cable to an Object . . . . . 3
Locking the VPCL Combination Lock . . . . . 4
Unlocking and Removing the Cable Lock . . 5
Using the Defcon PC Lock . . . . . . . 5
Using the Defcon Security Base Plate . . . .6
Technical Support . . . . . . . . . . . . . . . . 8
Product Registration . . . . . . . . . . . . . . 8
Warranty . . . . . . . . . . . . . . . . . . . . . . . 8
Your Serialized Combination . . . . . . . . . 9
1
UNIVERSAL SECURITY
DEFCON® SERIALIZED VPCL
COMBINATION CABLE LOCK
Introduction
Thank you for purchasing a Defcon Serialized VPCL - Combination
Cable Lock to help protect your valuable computer from theft. The
VPCL is a 6-foot 5-inch vinyl coated, stainless steel cable with a preset
4-digit combination lock. It attaches to your computer, monitor or
projector via the VGA port by using the included pass-through video
cable. This allows you to continue using the video port while protecting
your computer.
Serialized Combination
The DEFCON Serialized VPCL Combination Cable lock is assigned a
unique combination and serial number. The serial number and the
combination for this cable lock appear on a sticker that is attached to
the form at the back of this user's guide. We recommend that your IT
Administrator keep the form in case the combination number is
forgotten, misplaced, or lost.
2
Universal security Defcon® serialized VPCL combination cable lock
Connecting the Pass-through Cable
1 Turn off your computer (if it is turned on).
2 Remove the current video cable, if there is one, from your
computer.
3 Connect one end of the supplied pass-through cable to the video
port on your computer and the other end to your video device.
4 Turn on your computer.
NOTE: FOR BEST RESULTS, TEST THE COMBINATION BEFORE ATTACHING THE LOCK
TO YOUR COMPUTER VIA THE PASS-THROUGH CABLE. TO DO THIS:
1 Slide the combination lock onto the pass-though cable’s
elongated security screws.
2 Turn the dials to disguise the combination and engage the lock.
3 Return to the combination you set.
4 Slide the combination lock off the security screws.
Securing the Cable to an Object
Select an object in the room to which you will secure your computer
with the Universal Security Defcon Seralized VPCL- combination
cable lock. Choose a large, heavy piece of furniture such as a table
or desk, or an immovable fixture such as a closet hanging bar.
3
Universal security Defcon® serialized VPCL combination cable lock
Wrap the looped end of the cable around part of the selected
object.
Make sure you use a part of the object that will prevent an intruder
from slipping the cable off (for example, a table or desk leg with a
cross bar, or a drawer handle).
Feed the lock through the looped end of the cable. As Shown.
1.
2.
0
0
0
0
Securing the Defcon Serialized VPCL to an object
Locking the Serialized VPCL
Combination Cable Lock
1 Enter the correct combination.
2 Slide the lock onto the pass-through cable’s elongated security
screws. As shown in diagram.
3 Turn the dials to conceal your combination. The Defcon Serialized
VPCL is now locked.
4
Universal security Defcon® serialized VPCL combination cable lock

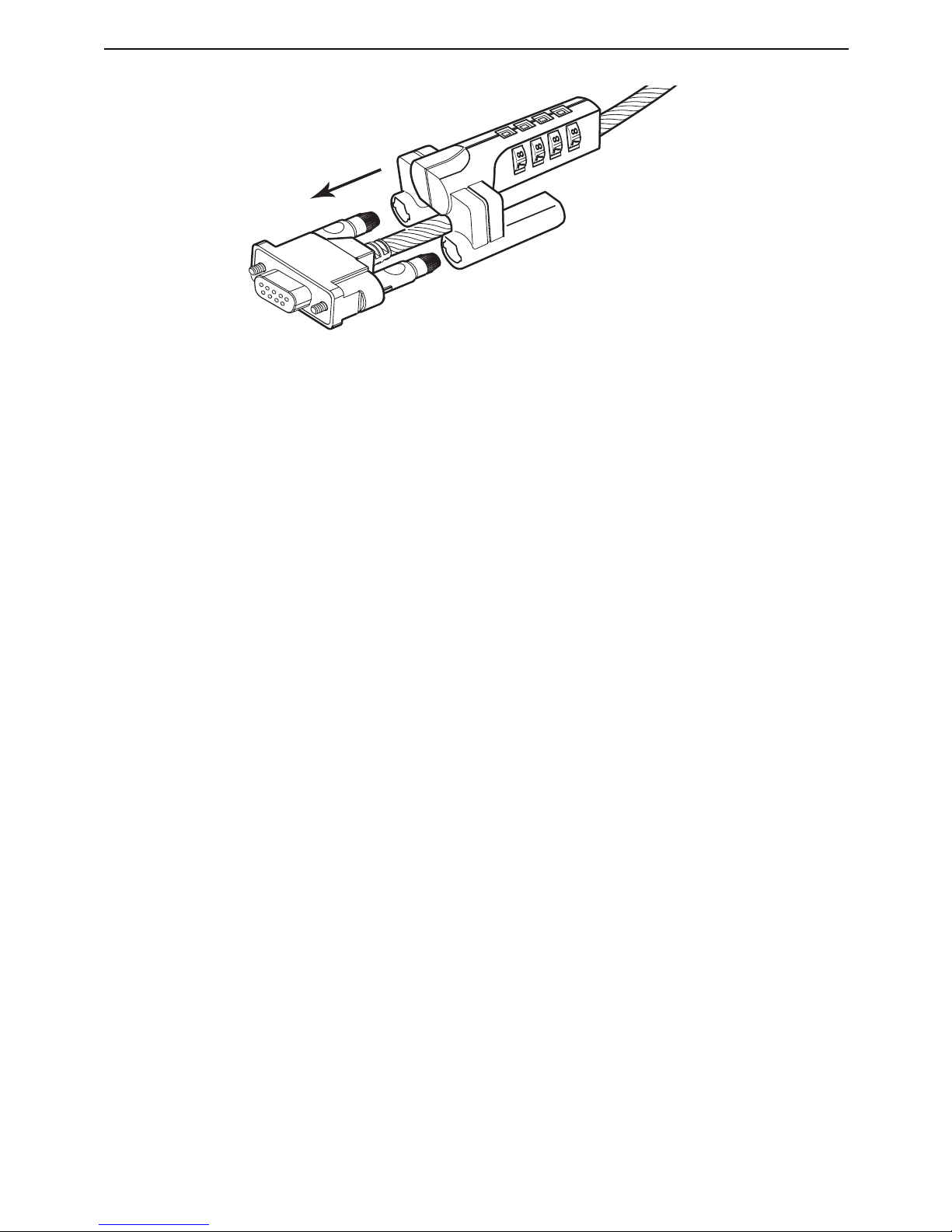

Unlocking and Removing the
Defcon Serialized VPCL comnination cable lock
1 Enter the correct combination.
2 Slide the combination lock off the security screws.
Attaching the DEFCON VPCL to the
security screw
DEFCON PC Lock and Security
Base Plate
Included with your DEFCON Seralized VPCL is the PC Lock and
Security Base Plate for the security of desktop computers.

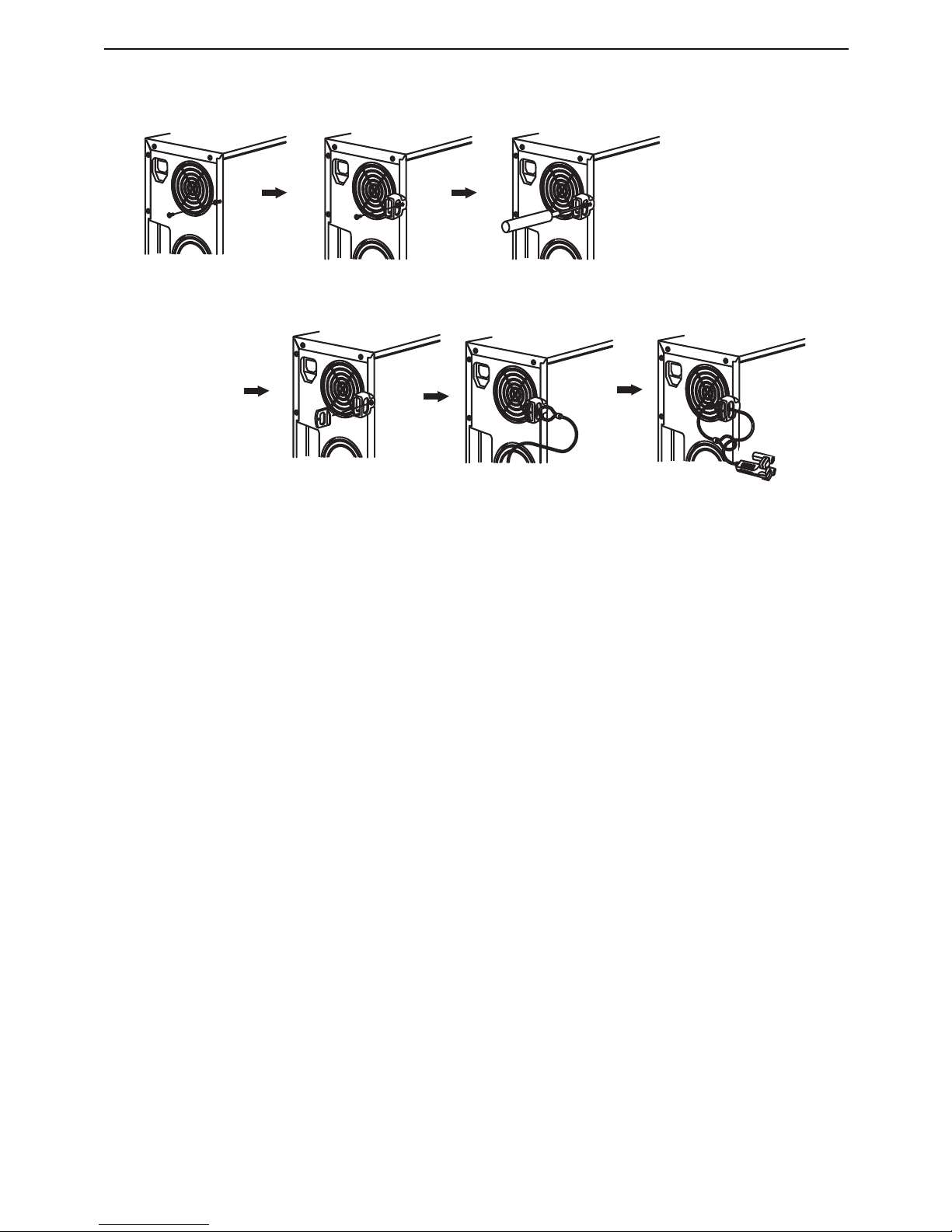

Using the DEFCON PC Lock
The PC Lock consists of a lock base, an attachment screw, and a
security plate. When attached to a desktop computer, the lock
provides a convenient anchorage point for your DEFCON PC Lock or
a notebook computer lock. The PC Lock does not require tools for
installation. However, you may want to use a screwdriver to securely
fasten the lock to your computer. You can use either a Philips or flat
head screwdriver. Avoid overtightening the screw as doing so may
cause damage to the screw’s threading, making it difficult to remove.
5
Universal security Defcon® serialized VPCL combination cable lock
0
0
0
0
Using the DEFCON Security Base
Plate
1. Choose a solid location to attach the DEFCON Security Base
Plate: a piece of furniture, or metal cabinet. If you plan to use the
two screws, you can use the base plate as a template to pre-drill
the holes.
2. Use the abrasive pad, then the alcohol wipe to prepare the area
when you will attach the DEFCON Security Base Plate.
3. After the alcohol dries, remove the backing on the base plate to
expose the adhesive and place it on the prepared location. If
desired, secure the base with the two screws.
6
Universal security Defcon® serialized VPCL combination cable lock
NOTE: When using the adhesive backing, apply at room temperature - 60oF (16oC),
and allow it to bond for more than 24 hours. Not recommend for to use in outdoor or
high humidity environment. Bonding to glass, ceramic tile, water-absorbent materials,
copper, brass, or plasticized vinyl without primer surface are not recommended.
Targus recommends using both adhesive and screw to provide maximum security.
Using only the adhesive provides marginal security.
4. Place the DEFCON Security Base Plate cover as shown and slide
it to the left or right to secure it in place.
5. Insert your DEFCON cable lock.
7
Universal security Defcon® serialized VPCL combination cable lock
Technical Support
DEFCON is a trademark of Targus Group International. Features and specifications are subject to change without notice.
All trademarks and registered trademarks are the property of their respective owners. © 2006, Targus Group International,
Inc. and Targus, Inc.
Targus warrants this product to be free from defects in materials and
workmanship for one year. If your Targus accessory is found to be
defective within that time, we will promptly repair or replace it. This
warranty does not cover accidental damage, wear and tear, or
consequential or incidental loss. Under no conditions is Targus liable
for loss of, or damage to a computer; nor loss of, or damage to,
programs, records, or data; nor any consequential or incidental
damages, even if Targus has been informed of their possibility. This
warranty does not affect your statutory rights.
Warranty
Targus recommends that you register your Targus accessory shortly
after purchasing it. To register your Targus accessory, go to:
http://www.targus.com/registration.asp
You will need to provide your full name, email address, phone
number, and company information (if applicable)
Product Registration
For technical questions, please visit:
US
Internet: http://www.targus.com/support.asp
Australia
Internet: www.targus.com/au
Email: infoaust@targus.com
Telephone: 1800-641-645
New Zealand
Telephone: 0800-633-222
8
Universal security Defcon® serialized VPCL combination cable lock
Your Serialized Combination
Targus assumes no responsibility for lost, misplaced or forgotten
combinations. Store this information in a secure place and /or store this
combination electronically, in a secure location away from your
notebook computer.
This is your combination code.
Place sticker here
9
