Targus APD752, APD752EU User Manual

USB WALL CHARGER &

POWER BANK

User Guide

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

1 2

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Table of Contents

GB – English

USB Wall Charger & Power Bank ..................................................................3

DE – Deutsch

USB-Wandladestation und Power Bank .......................................................10

ES – Español

Cargador USB a pared y batería de alimentación ............................................17

FR – Français

Chargeur mural USB et batterie externe par Targus ......................................24

IT – Italiano

Caricabatterie USB da muro e power bank ................................................ 31

NL – Nederlands

USB-stekker en powerbank ..........................................................................38

PT – Português

Carregador de Parede e Power Bank USB .................................................... 45

TR – Türkçe

Duvar tipi USB şarj cihazı ve güç bankası ................................................... 52

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

3 4

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Features

- Universal input voltages

(100~240V AC)

- 2100mAh lithium polymer battery inside

- Over current protection

- Over power protection

- LED indicator

- Short circuit protection

- High e󰘲ciency

Plugs included

Speci󰄈cation

Input: AC 100V~240V 50/60Hz 0.18A
USB Power Output: DC 5V 1A
Dimensions: 76.5 x 36.5 x 27mm

For your safety

To prevent injury, death or device damage, please read the following operating instruc­tion before using this device. Keep this operating instruction for your reference when
needed.

Safety notice

In case of *emergency, please unplug from the mains. Consult your dealer.

*Emergency cases while in use

- Smoke emitted from the unit

- Shape changed or deformed

- Liquid leaking from the unit

- Dropped & broken

Operating Temperature: 0ºC - + 40ºC
Storage Temperature: -20ºC - + 60ºC
Battery Capacity: 2100mAH

Overview

Interchangeable Plug

Depress the button to remove the wall plug.

1. This unit is for indoor use only.

2. Ensure correct AC plug is used. If in doubt consult your dealer.

3. Keep this unit dry.

4. This unit should not be placed in a con󰘰ned space such as a bookcase or
rack, unless proper ventilation is provided.

5. Never place the unit near or over radiators or other heat sources.

6. The appliance is not intended for use by young children or in󰘰rm persons
without supervision.

7. Do not attempt to repair or modify this unit.

Caution

USB Port

Insert USB cable here to charge devices including
tablets, phones, wearable tech.

Depress Button

GB

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

5 6

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Interchangeable Plug

1. Use a tool to press the button in the diagram above. Suggested to use the
EU plug as a tool

Unplug the AU Plug

Plug AU Plug

2. While pressing the button, pull the plug head out.

1. Simply push the plug head in the connector hole.

Interchangeable Plug

1. Unplug device from wall. Depress the button as per the diagram above.

Changing the AC Plug

2. With the button depressed, remove the plug.

3. Select correct plug and insert.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

7 8

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Battery Mode

LED Indication

Press the button to check battery
capacity.

1 light < 25%
2 lights < 50%
3 lights < 75%
4 lights < = 100%

AC Mode

1. 2.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

9 10

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

DE

Übersicht

Austauschbare Stecker

Drücken Sie auf die Taste, um den Wandstecker zu
entfernen.

1. Diese Einheit dient nur zur Verwendung im Innenbereich.

2. Stellen Sie sicher, dass der richtige Netzstecker verwendet wird. Wenn Sie
sich nicht sicher sind, fragen Sie Ihren Händler.

3. Halten Sie diese Einheit trocken.

4. Diese Einheit darf nicht an einem engen Standort wie ein Bücherregal
aufgestellt werden, es sei denn er verfügt über ausreichend Belüftung.

5. Stellen Sie die Einheit nie in der Nähe oder über einer Heizung oder
anderen Wärmequellen auf.

6. Kinder oder geschwächte Personen dürfen das Gerät nur unter Aufsicht
anwenden.

7. Versuchen Sie nicht, diese Einheit zu reparieren oder zu verändern.

Achtung

USB-Anschluss

Stecken Sie hier das USB-Kabel ein, um Geräte wie
Tablets, Smartphones und andere tragbare technische
Geräte aufzuladen.

Taste drücken

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

11 12

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Austauschbare Stecker

1. Trennen Sie das Gerät von der Wandsteckdose. Drücken Sie wie in der

Abbildung oben gezeigt auf die Taste.

Auswechseln des Netzsteckers

2. Entfernen Sie den Stecker bei gedrückter Taste.

3. Wählen Sie den korrekten Stecker und fügen Sie ihn ein.

Produktmerkmale

- Universaleingangsspannung

(100~240 V AC)

- Lithium-Polymer-Akku mit 2.100
mAh enthalten

- Überstromschutz

- Überlastungsschutz

- LED-Anzeige

- Kurzschlusssicherung

- Hohe E󰘲zienz

Stecker im Lieferumfang enthalten

Spezi󰄈kation

Eingang: AC 100~240 V 50/60 Hz 0,18 A
USB-Ausgang: DC 5V 1A
Abmessungen: 76,5 x 36,5 x 27 mm

Für Ihre Sicherheit

Bitte lesen Sie die folgende Bedienungsanleitung vor Verwendung dieses Geräts, um
Verletzungen, Tod oder Materialschäden zu vermeiden. Bewahren Sie die Bedienung­sanleitung zur späteren Referenz auf.

Sicherheitshinweis

Trennen Sie das Gerät im Notfall* von der Stromquelle. Wenden Sie sich an
Ihren Händler.

*Notfälle bei Verwendung

- Rauch tritt aus der Einheit aus

- Form hat sich verändert

- Aus der Einheit tritt Flüssigkeit aus

- Heruntergefallen und beschädigt

Betriebstemperatur: 0º C bis 40º C
Lagertemperatur: -20º C bis 60º C
Akkukapazität: 2.100 mAH

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

13 14

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

AC-Modus

1. 2.

Austauschbare Stecker

1. Drücken Sie wie in der Abbildung oben gezeigt mithilfe eines Werkzeugs
auf die Taste. Es wird empfohlen den EU-Stecker als Werkzeug zu verwen­den.

Trennen des AU-Steckers

Einstecken des AU-Steckers

2. Ziehen Sie bei gedrückter Taste den Stecker heraus.

1. Drücken Sie den Kopf des Steckers
einfach in das Loch des Anschlusses.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

15 16

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Akkumodus

LED-Anzeige

Drücken Sie auf die Taste, um die
Akkukapazität zu prüfen

1 Leuchte < 25%
2 Leuchten < 50%
3 Leuchten < 75%
4 Leuchten < = 100%

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

17 18

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Características

- Voltajes de entrada universales

(100~240V de CA)

- Contiene una batería de 2100 mAh
de polímeros de litio

- Protección frente a sobretensiones

- Protección contra subidas de tensión

- Indicador LED

- Protección frente a cortocircuitos

- Alto rendimiento

Enchufes incluidos

Especi󰄈caciones

Entrada:
CA 100V~240V 50/60Hz 0,18A
Salida de alimentación USB:
CC 5V 1A
Dimensiones: 76,5 x 36,5 x 27 mm

Para su seguridad

A 󰘰n de evitar daños, algún percance o incluso la muerte, lea atentamente las siguien­tes instrucciones antes de usar este dispositivo. Conserve estas instrucciones para
consultarlas cuando lo necesite.

Aviso de seguridad

En caso de *emergencia, desconecte el enchufe de la toma de corriente. Consulte
al vendedor.

*Casos de emergencia mientras se utiliza

- Sale humo de la unidad

- Si está deformada o alterada

- Sale líquido de la unidad

- Se ha caído y se ha roto

Temperatura de funcionamiento:
0ºC - + 40ºC
Temperatura de almacenamiento

-20ºC - + 60ºC
Capacidad de la batería: 2100 mAH

ES

Descripción

Enchufe intercambiable

Despulse el botón a 󰘰n de extraer el enchufe
de la pared.

1. Esta unidad es únicamente para uso en interiores.

2. Asegúrese de usar el enchufe de CA correcto. En caso de duda, consulte
con el distribuidor.

3. Mantenga seca esta unidad.

4. Esta unidad no debería ser colocada en un espacio cerrado como una
librería o estantería, a no ser que cuente con la ventilación adecuada.

5. No coloque nunca la unidad cerca o encima de radiadores u otras fuentes
de calor.

6. El dispositivo no ha sido diseñado para ser usado por niños pequeños o
personas discapacitadas sin supervisión.

7. No intente reparar o modi󰘰car esta unidad.

Atención

Puerto USB

Introduzca el cable USB aquí para cargar dispositivos tales
como tablets, teléfonos, wearables.

Despulse el botón

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

19 20

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Enchufe intercambiable

1. Use una herramienta para pulsar el botón en el diagrama que aparece
encima. Sugerimos usar el enchufe UE como herramienta.

Desconecte el enchufe AU

Conecte el enchufe AU

2. Mientras se presiona el botón, extraiga el cabezal del enchufe.

1. Pulse simplemente el cabezal del enchufe en el hueco de conexión.

Enchufe intercambiable

1. Desenchufe el dispositivo de la pared. Despulse el botón tal y como se
muestra en el diagrama que aparece encima.

Cómo cambiar el enchufe de CA

2. Saque el enchufe cuando el botón no está pulsado.

3. Seleccione el enchufe correcto e insértelo.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

21 22

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Modo de batería

Indicador LED

Pulse el botón para comprobar la
capacidad de la batería

1 luz < 25%
2 luces < 50%
3 luces < 75%
4 luces < = 100%

Moco de CA

1. 2.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

23 24

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

FR

Aperçu

Prise interchangeable

Appuyez sur le bouton pour retirer la prise murale.

1. Cet appareil n’est prévu que pour un usage en intérieur.

2. Véri󰘰ez qu’une prise Secteur conforme est utilisée. En cas de doute,
consultez votre revendeur.

3. Maintenez l’appareil au sec.

4. Cet appareil ne doit pas être placé dans un espace con󰘰né comme une
bibliothèque ou une étagère, à moins de disposer d’une bonne ventilation.

5. Ne placez jamais l’appareil à proximité de radiateurs ou d’autres sources
de chaleur.

6. L’appareil n’est pas prévu pour être utilisé par de jeunes enfants ou des
personnes in󰘰rmes sans supervision.

7. N’essayez pas de réparer ou de modi󰘰er ce dispositif.

Attention

Port USB

Insérez le câble USB ici pour charger vos appareils
tels que des tablettes, téléphones, appareils por­tables.

Appuyez sur le bouton

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

25 26

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Prise interchangeable

1. Débranchez l’appareil du mur. Appuyez sur le bouton conformément au

schéma ci-dessus.

Changement de la prise secteur

2. Maintenez le bouton enfoncé et retirez la prise.

3. Sélectionnez la prise appropriée et insérez-la.

Caractéristiques

- Tensions d’entrée universelles

(100~240 V CA)

- Batterie au lithium-polymère 2100
mAh à l’intérieur

- Protection contre les surintensités

- Protection contre les surpuissances

- Indicateur à LED

- Protection contre les courts-circuits

- Haut rendement

Prises incluses

Caractéristiques :

Entrée :
CA 100 V~240 V 50/60 Hz 0,18 A
Puissance de sortie USB :
DC 5V 1A
Dimensions : 76,5 x 36,5 x 27 mm

Pour votre sécurité

Pour éviter les risques de blessures ou de décès, ou les dommages à l’appareil,
veuillez lire le mode d’emploi suivant avant d’utiliser cet appareil. Conservez ce mode
d’emploi à pour vous y référer quand vous en avez besoin.

Avis de sécurité

En cas d’urgence*, débranchez du secteur. Consultez votre revendeur.

*Situations d’urgence en cours d’utilisation

- Fumée émise par l’appareil

- Forme modi󰘰ée ou déformée

- Fuite de liquide du dispositif

- Chute et casse

Température d’exploitation : 0º C - + 40º C
Température de stockage : -20º C - + 60º C
Capacité de la batterie : 2100 mAH

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

27 28

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Mode CA

1. 2.

Prise interchangeable

1. Utilisez un outil pour appuyer sur le bouton selon le schéma ci-dessus. Il est

suggéré d’utiliser la prise EU comme outil.

Débranchez la prise AU

Branchement de la prise AU

2. Tout en appuyant sur le bouton, tirez sur la tête de la prise.

1. Enfoncez simplement la tête de la prise

dans le trou du connecteur.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

29 30

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Mode batterie

Indications à LED

Appuyez sur le bouton pour véri󰘰er
la capacité de la batterie

1 voyant < 25%
2 voyants < 50%
3 voyants < 75%
4 voyants < = 100%

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

31 32

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Caratteristiche

- Tensioni di ingresso universali

(100~240V CA)

- Batteria interna ai polimeri di litio
2100mAh

- Protezione contro la sovracorrente

- Protezione contro la sovrapotenza

- Indicador LED

- Protezione contro i cortocircuiti

- E󰘲cienza elevata

Connettori inclusi

Speci󰄈che

Ingresso:
CA 100V~240V 50/60Hz 0.18A
Potenza erogata UBS: CC 5V 1A
Dimensioni: 76,5 x 36,5 x 27 mm

Per la vostra sicurezza

Al 󰘰ne di prevenire lesioni, morte o danni al dispositivo, si prega di leggere
le seguenti istruzioni di funzionamento prima di usare questo dispositivo.
Conservare queste istruzioni di funzionamento per futura consultazione in caso
di necessità.

Istruzioni di sicurezza

In caso di *emergenza, scollegare dalla rete di alimentazione elettrica. Consultare il
rivenditore.

*Casi di emergenza durante l’uso

- Fumo emesso dal dispositivo

- Forma cambiata o deformata

- Fuoriuscita di liquido dal dispositivo

- Caduta e rottura del dispositivo

Temperatura di funzionamento:
da 0 ºC a + 40 ºC
Temperatura di immagazzinaggio:
da -20 ºC a + 60 ºC
Capacità batteria: 2100mAH

IT

Panoramica

Connettore intercambiabile

Premere il pulsante per rimuovere il connettore
da muro.

1. Questo dispositivo è destinato esclusivamente all’utilizzo in ambienti interni.

2. Veri󰘰care che venga utilizzato il connettore CA corretto. In caso di dubbi,
consultare il rivenditore.

3. Mantenere il dispositivo asciutto.

4. Questo dispositivo non deve essere collocato in uno spazio con󰘰nato come
una libreria o uno sca󰘯ale, a meno che non sia presente una ventilazione
adeguata.

5. Non posizionare mai il dispositivo vicino o al di sopra di radiatori o altre fonti
di calore.

6. Questo dispositivo non è destinato ad essere utilizzato da bambini piccoli o
persone con disabilità senza supervisione.

7. Non tentare di riparare o modi󰘰care questo dispositivo.

Attenzione

Porta USB

Inserire qui il cavo USB per caricare dispositivi inclusi
tablet, telefoni, dispositivi tecnologici indossabili.

Premere il pulsante

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

33 34

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Connettore intercambiabile

1. Usare un attrezzo per premere il pulsante ra󰘲gurato in alto. Il connettore
EU può essere usato come attrezzo.

Scollegare il connettore AU

Collegare il connettore AU

2. Mentre si preme il pulsante, estrarre la testa del connettore.

1. È su󰘲ciente spingere la testa del connettore nel foro del connettore.

Connettore intercambiabile

1. Scollegare il dispositivo dal muro. Premere il pulsante come nella 󰘰gura in
alto.

Sostituzione del connettore CA

2. Con il pulsante premuto, rimuovere il connettore.

3. Scegliere il connettore corretto e inserire.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

35 36

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Modalità batteria

Indicazione LED

Premere il pulsante per controllare la
capacità della batteria

1 luce < 25%
2 luci < 50%
3 luci < 75%
4 luci < = 100%

Modalità CA

1. 2.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

37 38

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

NL

Overzicht

Verwisselbare plug

Druk de knop in om de muurplug te verwijderen

1. Dit apparaat is alleen voor gebruik binnen.

2. Controleer of u de juiste AC-plug gebruikt. Raadpleeg bij twijfel uw dealer.

3. Zorg dat dit apparaat niet nat wordt.

4. Dit apparaat mag niet in een beperkte ruimte als een boekenkast of -rek
geplaatst worden, tenzij er voldoende ventilatie is.

5. Plaats het apparaat nooit in de buurt van of op een radiator of andere
warmtebronnen.

6. Het apparaat is niet bedoeld voor gebruik zonder toezicht door jonge kinderen
of onbekwame personen.

7. Probeer dit apparaat niet te repareren of aan te passen.

Voorzichtig

USB-poort

Plaats de UBS-kabel hier om apparaten op te laden,
zoals een mobiele telefoon, draagbare apparaten.

Knop indrukken

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

39 40

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Verwisselbare plug

1. Trek de stekker uit het stopcontact. Druk de knop in, zoals in bovenstaand
diagram te zien is.

De AC-plug vervangen

2. Verwijder de plug met de knop ingedrukt.

3. Selecteer de juiste plug en plaats hem.

Bijzondere kenmerken

- Universele ingangsspanning
(100~240V wisselstroom)

- 2100mAh lithium polymeerbatterij

- Overspanningsbeveiliging

- Bescherming tegen oververmogen

- LED-lampje

- Bescherming tegen kortsluiting

- Hoge e󰘲ciëntie

Meegeleverde pluggen

Speci󰄈catie

Ingang: AC 100V~240V 50/60Hz 0,18A
USB-vermogensuitgang:
Gelijkstroom 5V 1A
Afmetingen: 76,5 x 36,5 x 27mm

Voor uw veiligheid

Om verwondingen, overlijden of schade aan apparaten te voorkomen, moet u de
volgende gebruiksinstructie lezen voor gebruik van het apparaat. Bewaar deze
gebruiksinstructie voor referentie in de toekomst.

Veiligheidsopmerking:

In geval van *noodcondities, trek uit het stopcontact. Raadpleeg uw dealer.

*Noodcondities wanneer in gebruik:

- Er komt rook uit het apparaat

- Vorm verandert of apparaat is vervormd

- Er lekt vloeistof uit het apparaat

- Apparaat is gevallen en gebroken

Gebruikstemperatuur: 0ºC - + 40ºC
Opslagtemperatuur: -20ºC - + 60ºC
Batterijcapaciteit: 2100mAH

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

41 42

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Wisselstroommodus

1. 2.

Verwisselbare plug

1. Gebruik een gereedschap om de knop in te drukken, zoals in bovenstaand
diagram te zien is. Gebruik de EU-plug als gereedschap.

Trek de AU-plug eruit

Plug AU-plug

2. Trek de plug eruit terwijl de knop is ingedrukt.

1. Druk op de plug in het aansluitingsgat.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

43 44

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Batterijmodus

LED-indicatielampje

Druk op de knop om de batterijca­paciteit te controleren

1 lampje < 25%
2 lampjes < 50%
3 lampjes < 75%
4 lampjes < = 100%

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

45 46

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Características

- Tensão de entrada universal

(100~240 V CA)

- Bateria de polímero de lítio de 2100
mAh no interior

- Proteção de picos de tensão

- Proteção de excesso de alimentação

- Indicador LED

- Proteção de curto-circuito

- Elevada e󰘰ciência

Fichas incluídas

Especi󰄈cação

Entrada:
CA 100 V~240 V 50/60 Hz 0,18 A
Saída de energia USB: CC 5V 1A
Dimensões: 76,5 x 36,5 x 27 mm

Para sua segurança

Para evitar o risco de ferimentos, morte ou danos nos dispositivos, leia as instruções de
utilização que se seguem antes de usar este dispositivo. Guarde estas instruções de
utilização para sua referência sempre que necessário.

Aviso de segurança

Em caso de *emergência, desligue da corrente. Contacte o revendedor do
equipamento.

*Emergências durante a utilização

- A unidade emite fumo

- Alteração do formato ou deformação

- A unidade liberta líquidos

- A unidade caiu e partiu-se

Temperatura de funcionamento:
0º C - + 40º C
Temperatura de armazenamento:

-20º C - + 60º C
Capacidade da bateria: 2100 mAh

PT

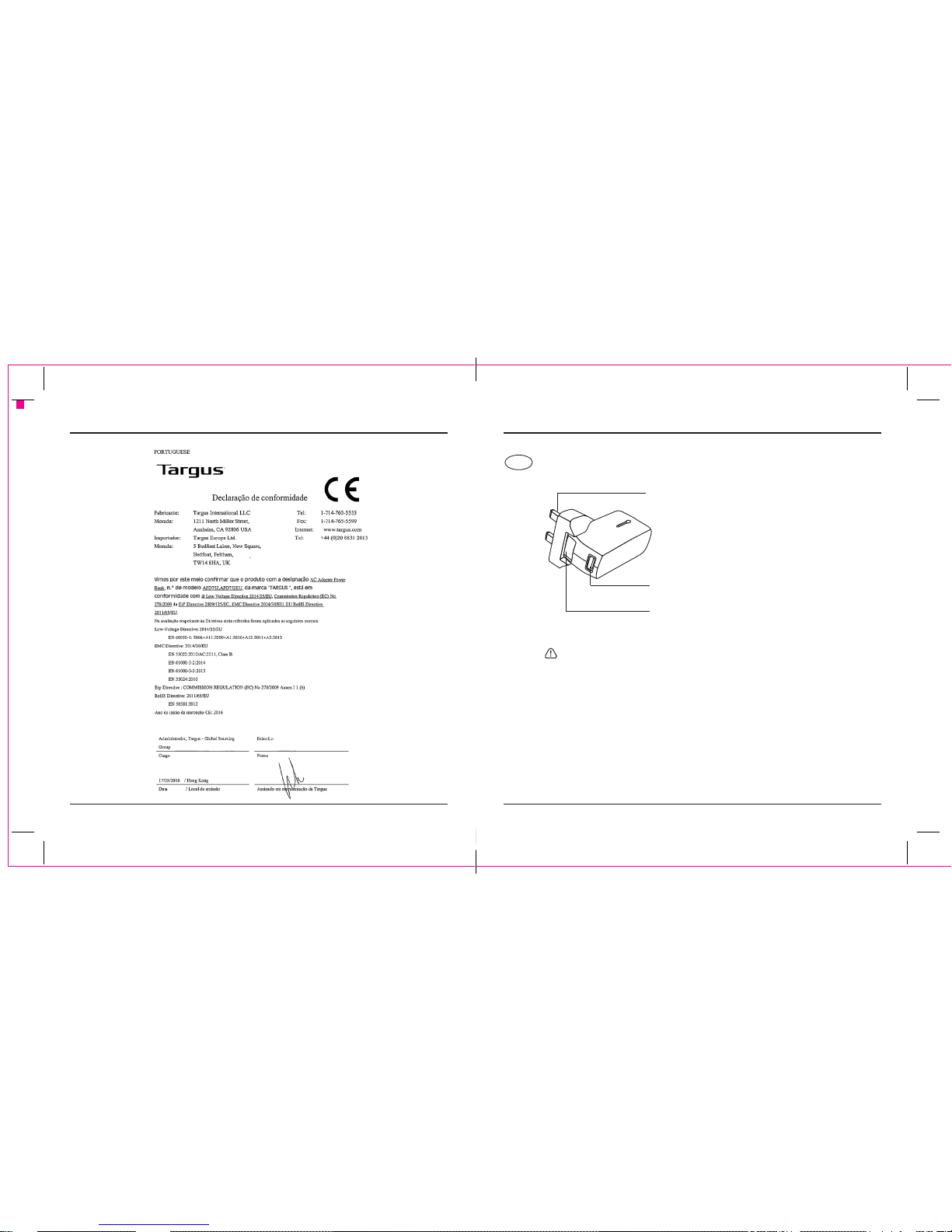

Descrição geral

Ficha permutável

Pressione o botão para retirar a 󰘰cha de parede.

1. Esta unidade destina-se a ser utilizada apenas em espaços interiores.

2. Assegure-se de que é utilizada a 󰘰cha CA correta. Em caso de dúvida,
contacte o revendedor do equipamento.

3. Mantenha esta unidade seca.

4. Esta unidade não deve ser colocada num espaço fechado, como uma estante
ou um armário, a não ser que disponha de ventilação adequada.

5. Nunca coloque a unidade junto ou em cima de radiadores ou outras fontes
de calor.

6. O aparelho não se destina a ser utilizado por crianças ou pessoas que não
estejam na posse de todas as suas capacidades intelectuais sem supervisão.

7. Não tente reparar ou modi󰘰car esta unidade.

Atenção

Porta USB

Insira o cabo USB aqui para carregar dispositivos como
tablets, telefones e dispositivos tecnológicos de usar junto
ao corpo.

Pressione o botão

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

47 48

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Ficha permutável

1. Utilize uma ferramenta para pressionar o botão ilustrado no diagrama
anterior. Sugere-se a utilização da 󰘰cha EU como ferramenta.

Remover a 󰘰cha AU

Aplicar a 󰘰cha AU

2. Mantendo pressionado o botão, retire a cabeça da 󰘰cha.

1. Basta inserir a cabeça da 󰘰cha no orifício do conector.

Ficha permutável

1. Desligue a 󰘰cha do dispositivo da parede. Pressione o botão conforme
ilustrado no diagrama anterior.

Trocar de 󰘰cha CA

2. Mantendo o botão pressionado, retire a 󰘰cha.

3. Selecione a 󰘰cha correta e insira-a.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

49 50

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Modo da bateria

Indicação LED

Prima o botão para veri󰘰car a
capacidade da bateria

1 luz < 25%
2 luzes < 50%
3 luzes < 75%
4 luzes < = 100%

Modo CA

1. 2.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

51 52

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

TR

Genel Bakış

Değişken Giriş

Duvar prizini çıkarmak için düğmeye basın.

1. Bu cihaz sadece iç mekanlarda kullanıma uygundur.

2. Doğru AC prizinin kullanılmasına dikkat edin. Tereddütleriniz için satıcınıza
danışın.

3. Bu cihazı kuru tutmalısınız.

4. Bu cihaz, yeterli havalandırma sağlanmadığı takdirde kitap dolabı veya raf, gibi
kapalı bir alana konmamalıdır.

5. Bu cihaz, radyatörlerin veya diğer ısı kaynaklarının yakınına veya üzerine
kesinlikle konmamalıdır.

6. Cihaz, küçük çocuklar veya yetersiz kişilerin gözetimsiz kullanımı için uygun
değildir.

7. Bu cihazı onarmaya veya modi󰘰ye etmeye çalışmayın.

Dikkat

USB Bağlantı Noktası

Tabletler, telefonlar, giyilebilir teknoloji ürünleri gibi
cihazları şarj etmek için USB kablosunu buraya takın.

Düğmeye basın

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

53 54

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Değişken Giriş

1. Cihazın 󰘰şini elektrik prizinden çıkarın. Yukarıda verilen şemaya göre

düğmeye basın.

AC Girişi Değiştirme

2. Düğme basılı durumdayken girişi çıkarın.

3. Doğru girişi seçin ve takın.

Özellikler

- Üniversal giriş voltajları

(100~240V AC)

- İçerisinde 2100 mAh lityum
polimer pil bulunmaktadır

- Aşırı akım koruması

- Aşırı güç koruması

- LED gösterge

- Kısa devre koruması

- Yüksek verimlilik

Sağlanan girişler

Teknik Özellikler

Giriş: AC 100V~240V 50/60Hz 0.18A
USB Güç Çıkışı: DC 5V 1A
Boyutlar: 76,5 x 36,5 x 27mm

Güvenliğiniz için

Yaralanma, ölüm veya cihaz hasarlarını önlemek için lütfen bu cihazı kullanmaya
başlamadan önce aşağıda verilen işletim talimatlarını okuyun. Bu işletim talimatlarını
gerektiğinde başvurmak üzere muhafaza edin.

Güvenlik uyarısı

*Acil durumda lütfen şebekeden ayırın. Satıcınıza danışın.

*Kullanım esnasındaki Acil Durumlar

- Cihazdan duman çıkması

- Cihazın biçiminin değişmesi veya bozulması

- Cihazdan sıvı sızıntısı

- Cihazın düşürülmesi ve kırılması

Çalışma sıcaklığı: 0ºC - + 40ºC
Depolama sıcaklığı: -20ºC - + 60ºC
Pil kapasitesi: 2100mAH

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

55 56

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

AC modu

1. 2.

Değişken Giriş

1. Yukarıda verilen şemaya göre, düğmeye basmak için bir alet kullanın. Alet
olarak EU girişinin kullanılması önerilir.

AU Girişini Çıkarma

AU Girişini Takma

2. Düğme basılı durumdayken giriş başlığını çekerek ayırın.

1. Giriş başlığını konnektör deliğine itin.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

57 58

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Pil modu

LED gösterge

Pil kapasitesini görmek için
düğmeye basın

1 ışık < 25%
2 ışık < 50%
3 ışık < 75%
4 ışık < = 100%

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

59 60

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Warranty

Targus warrants this product to be free from defects in materials
and workmanship for two years. If your Targus accessory is found
to be defective within that time, we will promptly repair or replace
it. This warranty does not cover accidental damage, wear and
tear, or consequential or incidental loss. Under no conditions
is Targus liable for loss of, or damage to, a computer or other
device(s); nor loss of, or damage to, programs, records, or data;
nor any consequential or incidental damages, even if Targus has
been informed of their possibility. This warranty does not a󰘯ect
your statutory rights.

Regulatory Compliance (applicable to products
with electronic circuitry/parts only)

This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
notcause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.

Technical Support

For technical questions, please visit: www.targus.com/support.asp

English
French
German
Spanish
Italian

Internet

Austria

Belgium
Denmark
Finland
France
Germany
Italy
Netherlands

Telephone

http://www.targus.com/uk/support.asp
http://www.targus.com/fr/support.asp
http://www.targus.com/de/support.asp
http://www.targus.com/sp/support.asp
http://www.targus.com/it/support.asp

[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]

Norway
Portugal
Spain
Sweden
Switzerland
United Kingdom
Eastern Europe

& others

[phone]
[phone]
[phone]
[phone]
[phone]
[phone]

[phone]

Product Registration

Targus recommends that you register your Targus accessory shortly
after purchasing it. To register your Targus accessory, go to:

http://www.targus.com/registration.asp

You will need to provide your full name, email address, country of
residence and product information.

Targus USB Wall Charger & Power Bank Targus USB Wall Charger & Power Bank

61 62

folding line
2 staples here (saddle stitching)

folding line
2 staples here (saddle stitching)

Open size: 7.75”W x 3.875”H Folded Size: 3.875”W x 3.875”H Material: 80gsm woodfree paper Color: Grayscale

Diecut

Declaration of Conformity
(applicable to wireless products only)

Targus Group International hereby declares that this device is in
compliance with the essential requirements and other relevant
provisions of Directive 2014/30/EU.

Targus Recycling Directive

At the end of this product’s useful life please dispose at an
appropriate recycling collection point provided in your country.
Targus recycling policy is available for viewing at www.targus.

com/recycling

FCC Statement
Tested to Comply

This equipment has been tested and found to comply with the limits
of a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o󰘯 and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna;

• Increase the separation between the equipment and receiver;

• Connect the equipment into an outlet on a circuit di󰘯erent from that

to which the receiver is connected;

• Consult the dealer or an experienced radio/TV technician for help

Changes or modi󰘰cations not authorized by the party responsible for
compliance could void the user’s authority to operate this product.

©2016 Manufactured or imported by Targus Europe Ltd., Feltham, Middlesex, TW14 8HA,
UK. All rights reserved. Targus is either a registered trademark or trademark of Targus Group
International, Inc. in the United States and/or other countries. Fea tures and specications are
subject to change without notice. Windows and Windows Vista are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries. All trademarks
and registered trademarks are the property of their respective owners.

410-3470-003A / APD752EU

2 YEAR LIMITED WARRANTY: We pride ourselves on the
quality of our products. For complete warranty details and a
list of our worldwide o󰘲ces, please visit www.targus.com

All trademarks and registered trademarks are the property of
their respective owners. ©2016

Manufactured or imported
by Targus Europe Ltd., Feltham, Middlesex, TW14 8HA,
UK. All rights reserved.
