Targus 000007 Users Manual

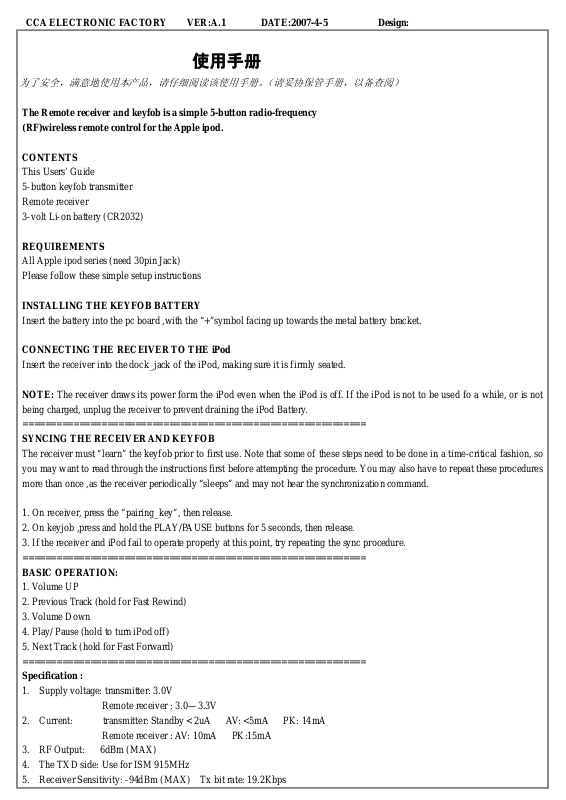

CCA ELECTRONIC FACTORY VER:A.1 DATE:2007-4-5 Design:

为了安全，满意地使用本产品，请仔细阅读该使用手册。（请妥协保管手册，以备查阅）

The Remote receiver and keyfob is a simple 5-button radio-frequency
(RF)wireless remote control for the Apple ipod.

CONTENTS

This Users’ Guide
5-button keyfob transmitter
Remote receiver
3-volt Li-on battery (CR2032)

REQUIREMENTS

All Apple ipod series (need 30pin Jack)
Please follow these simple setup instructions

INSTALLING THE KEYFOB BATTERY

Insert the battery into the pc board ,with the “+”symbol facing up towards the metal battery bracket.

CONNECTING THE RECEIVER TO THE iPod

Insert the receiver into the dock_jack of the iPod, making sure it is firmly seated.

NOTE: The receiver draws its power form the iPod even when the iPod is off. If the iPod is not to be used fo a while, or is not
being charged, unplug the receiver to prevent draining the iPod Battery.
=============================================================

SYNCING THE RECEIVER AND KEYFOB

The receiver must “learn” the keyfob prior to first use. Note that some of these steps need to be done in a time-critical fashion, so
you may want to read through the instructions first before attempting the procedure. You may also have to repeat these procedures
more than once ,as the receiver periodically “sleeps” and may not hear the synchronization command.

1. On receiver, press the “pairing_key”, then release.

2. On keyjob ,press and hold the PLAY/PAUSE buttons for 5 seconds, then release.

3. If the receiver and iPod fail to operate properly at this point, try repeating the sync procedure.
=============================================================

BASIC OPERATION:

1. Volume UP

2. Previous Track (hold for Fast Rewind)

3. Volume Down

4. Play/ Pause (hold to turn iPod off)

5. Next Track (hold for Fast Forward)
=============================================================

Specification :

1. Supply voltage: transmitter: 3.0V

Remote receiver : 3.0—3.3V

2. Current: transmitter: Standby < 2uA AV: <5mA PK: 14mA
Remote receiver : AV: 10mA PK:15mA

3. RF Output: 6dBm (MAX)

4. The TXD side: Use for ISM 915MHz

5. Receiver Sensitivity: -94dBm (MAX) Tx bit rate: 19.2Kbps

使用手册

=============================================================

The user is cautioned that changes or modifications not expressly approved
by Chaney Instruments Co. could void the user's authority to operate the
equipment.

For a Class B digital device or peripheral, the instructions furnished the
user shall include the following or similar statement, placed in a prominent
location in the text of the manual:
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference recei v ed,
including interference that may cause undesired operation.
