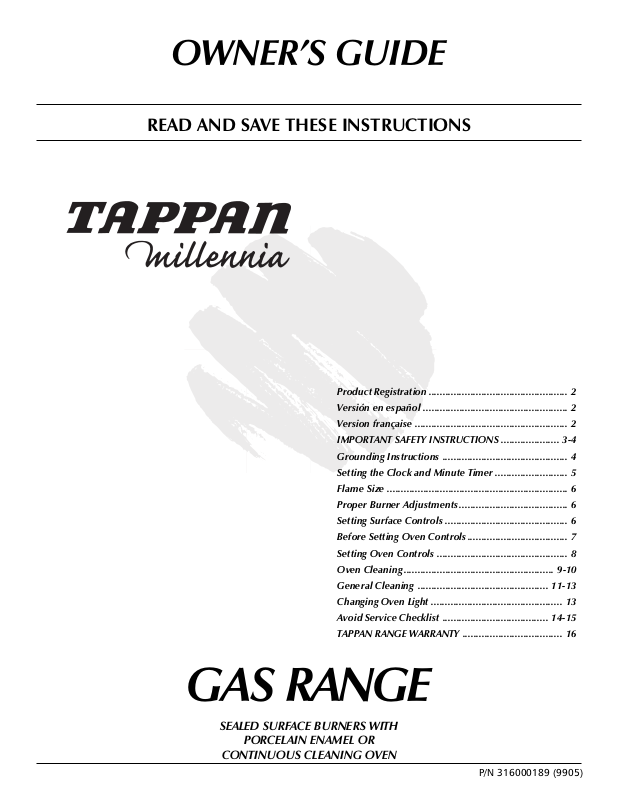

Tappan 316000189 User Manual
OWNERS GUIDE
READ AND SAVE THESE INSTRUCTIONS
Product Registration .................................................. 2
Versión en español .................................................... 2
Version française ....................................................... 2
IMPORTANT SAFETY INSTRUCTIONS ..................... 3-4
Grounding Instructions ............................................. 4
Setting the Clock and Minute Timer .......................... 5
Flame Size ................................................................. 6
Proper Burner Adjustments....................................... 6
Setting Surface Controls ............................................ 6
Before Setting Oven Controls.................................... 7
Setting Oven Controls ............................................... 8
Oven Cleaning...................................................... 9-10
General Cleaning ............................................... 11-13
Changing Oven Light ............................................... 13
Avoid Service Checklist ...................................... 14-15
TAPPAN RANGE WARRANTY .................................... 16
GAS RANGE
SEALED SURFACE BURNERS WITH
PORCELAIN ENAMEL OR
CONTINUOUS CLEANING OVEN
P/N 316000189 (9905)
Product Registration
Register Your Product
The self-addressed PRODUCT
REGISTRATION CARD should be filled
in completely, signed and returned to
Frigidaire Home Products.
Thank you for choosing this appliance. The information contained within
this Owner's Guide will instruct you on how to properly operate and care for
your range. Please read through the information contained in your literature
pack to learn more about your new appliance.
Record Your Model and Serial Numbers
Record in the space provided below the model and serial numbers found on the
right side of the oven front frame in the storage compartment or on the oven
floor shield.
Model Number: _____________________________________________________
Serial Number: ______________________________________________________
Date of Purchase: ___________________________________________________
Versión en español
Si desea obtener una copia en español
de este Manual del Usuario, sírvase
escribir a la dirección que se incluye a
continuación.
Solicite la P/N316000189S.
Version française
Si vous désirez obtenir un exemplaire
de la version française de ce "Guide de
l'utilisateur," faites-en la demande par
écrit à l'adresse indiquée ci-dessous.
Exigez qu'on vous livre le N° de pièce
316000189F.
French Owner's Guides -OR-
Spanish Owner's Guides (please specify)
Frigidaire Company
P. O. Box 9061
Dublin, Ohio 43017-0961
This Owner's Guide contains general operating instructions for your range
and feature information for several models. Your range may not have all the
described features.
Note: The instructions appearing in this Owner's Guide are not meant to
cover every possible condition and situation that may occur. Common sense
and caution must be practiced when installing, operating and maintaining
any appliance.
If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or death.
© 1998 White Consolidated Industries
All rights reserved
FOR YOUR SAFETY:
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone
in your building.
Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, servicer or the gas supplier.
2
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
This guide contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
Here is a brief explanation of the use of these symbols.
This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
This symbol will help alert you to situations that may cause bodily injury or property damage.
Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the range.
Never allow children to play with packaging material.
Proper Installation-Be sure your appliance is properly installed
and grounded by a qualified technician in accordance with
the National Fuel Gas Code ANSI Z223.latest edition, or in
Canada CAN/CGA B149.1, and CAN/CGA B149.2, and the
National Electrical Code ANSI/NFPA No. 70latest edition, or
in Canada CSA Standard C22.1, Canadian Electricl Code Part
1, and local code requirements. Install only per installation
instructions provided in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power to
the range at the circuit breaker or fuse box in case of an
emergency.
User servicingDo not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified technician,
This may reduce the risk of personal injury and damage to the
range.
Never modify or alter the construction of a range by removing
leveling legs, panels, wire covers, anti-tip brackets/screws, or
any other part of the product.
All ranges can tip.
Injury to persons could result.
Install anti-tip device packed with range.
See Installation Instructions.
To reduce the risk of tipping,
the range must be secured by properly installed
anti-tip bracket provide with the range. To
check if the bracket is installed properly, visually
check that rear leveling leg is inserted into and
fully secured by the anti-tip bracket by removing
lower panel or storage drawer. For models
with a warmer drawer or broiler drawer, grasp
the top rear edge of the range and carefully
attempt to tilt it forward. Refer to the
Installation Instructions for proper anti-tip
bracket installation.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or
play around the range. The weight of a child on an open door may
cause the range to tip, resulting in serious burns or other injury.
Do not use the oven, broiler compartment or
warmer drawer for storage.
cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be seriously
injured.
Heating the Room.
Storage in or on ApplianceFlammable materials should not
be stored in an oven, warmer drawer, broiler compartment,
near surface burners, broiler compartment or in the storage
drawer. This includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as flammable liquids.
Do not store explosives, such as aerosol cans, on or near the
range.
Do Not Leave Children AloneChildren should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of the
appliance.
DO NOT TOUCH SURFACE BURNERS, AREAS NEAR THESE
BURNERS, OVEN BURNERS OR INTERIOR SURFACES OF THE
OVEN. Both surface and oven burners may be hot even though
flames are not visible. Areas near surface burners may become
hot enough to cause burns. During and after use, do not touch,
or let clothing or other flammable materials touch these areas
until they have had sufficient time to cool. Among these areas
are the cooktop, surfaces facing the cooktop, the oven vent
openings and surfaces near these openings, oven door and
window.
Wear Proper ApparelLoose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
Do Not Use Water or Flour on Grease FiresSmother the fire
with a pan lid, or use baking soda, a dry chemical or foamtype extinguisher.
When heating fat or grease, watch it closely. Fat or grease
may catch fire if allowed to become too hot.
Use Only Dry PotholdersMoist or damp potholders on hot
surfaces may result in burns from steam. Do not let potholders
touch hot heating elements. Do not use a towel or other bulky
cloth instead of a potholder.
Do Not Heat Unopened Food ContainersBuildup of pressure
may cause container to burst and result in injury.
Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANTELECTRIC IGNITION MODELS ONLY: Do not attempt
to operate the oven during a power failure. If the power fails,
always turn off the oven. If the oven is not turned off and the
power resumes, the oven will begin to operate again. Once the
power resumes, reset the clock and oven function.
3
Do not store items of interest to children in the
Never Use Your Appliance for Warming or
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOKTOP

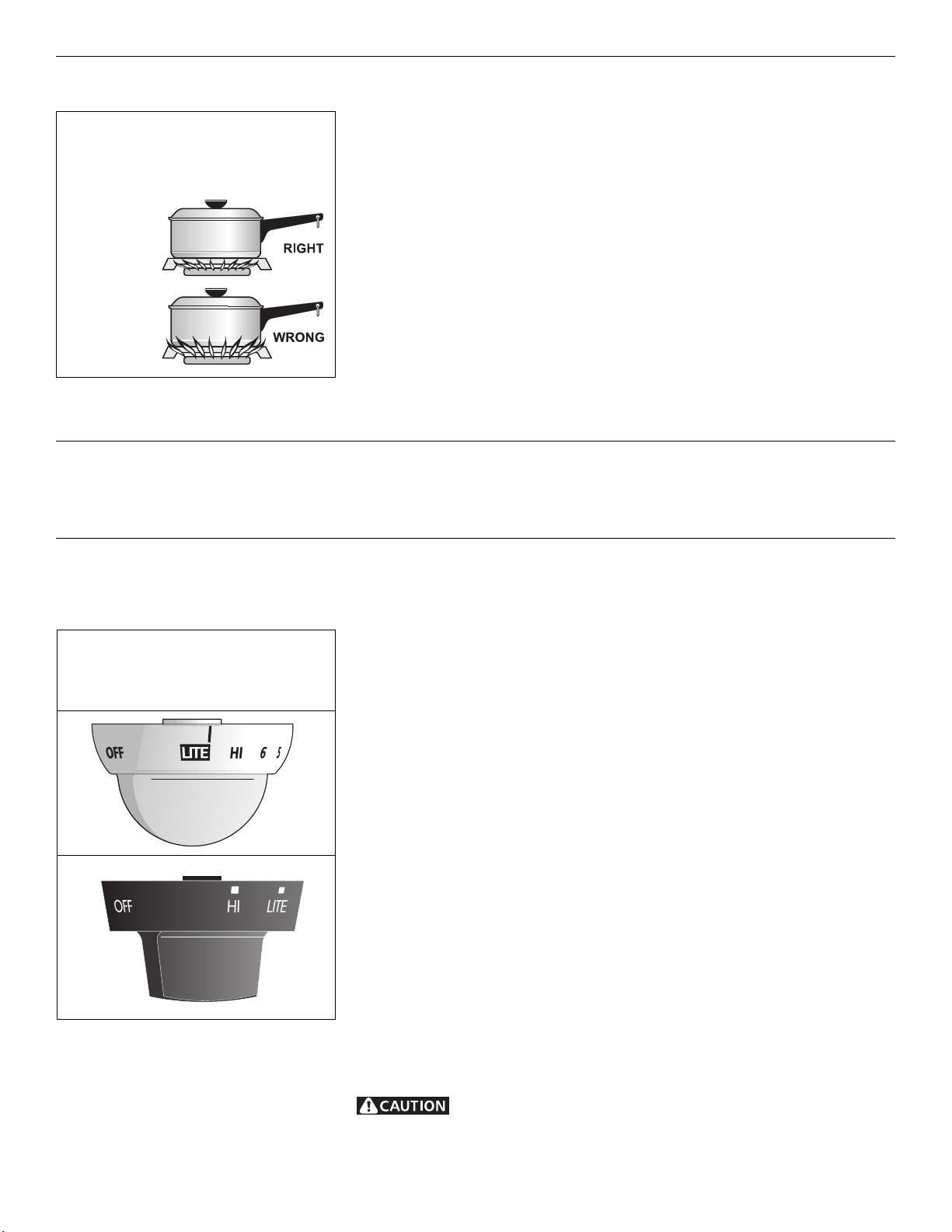

Use Proper Flame SizeAdjust flame size so it
does not extend beyond the edge of the utensil. The use of
undersized utensils will expose a portion of the burner flame to
direct contact and may result in ignition of clothing. Proper
relationship of utensil to flame will also improve efficiency.
Know which knob controls each surface burner. Place a pan
of food on the burner before turning it on, and turn the burner
off before removing the pan.
Always turn knob to the full LITE position when igniting top
burners. Visually check that burner has lit. Then adjust the
flame so it does not extend beyond the edge of the utensil.
Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface BurnersTo reduce the risk of burns,
ignition of flammable materials, and spillage due to unintentional
contact with the utensil, the handle of the utensil should be
positioned so that it is turned inward, and does not extend over
adjacent surface burners.
Never Leave Surface Burners Unattended at High Heat
SettingsBoilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
Protective LinersDo not use aluminum foil to line surface
burner pans, or oven bottom, except as suggested in this
manual. Improper installation of these liners may result in risk
of electric shock, or fire.
Glazed Cooking UtensilsOnly certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cooktop service without breaking due to the sudden
change in temperature. Check the manufacturers
recommendations for cooktop use.
SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
Use Care When Opening Oven Door or Warmer Drawer
Stand to the side of the range when opening the door of a hot
oven. Let hot air or steam escape before you remove or replace
food in the oven.

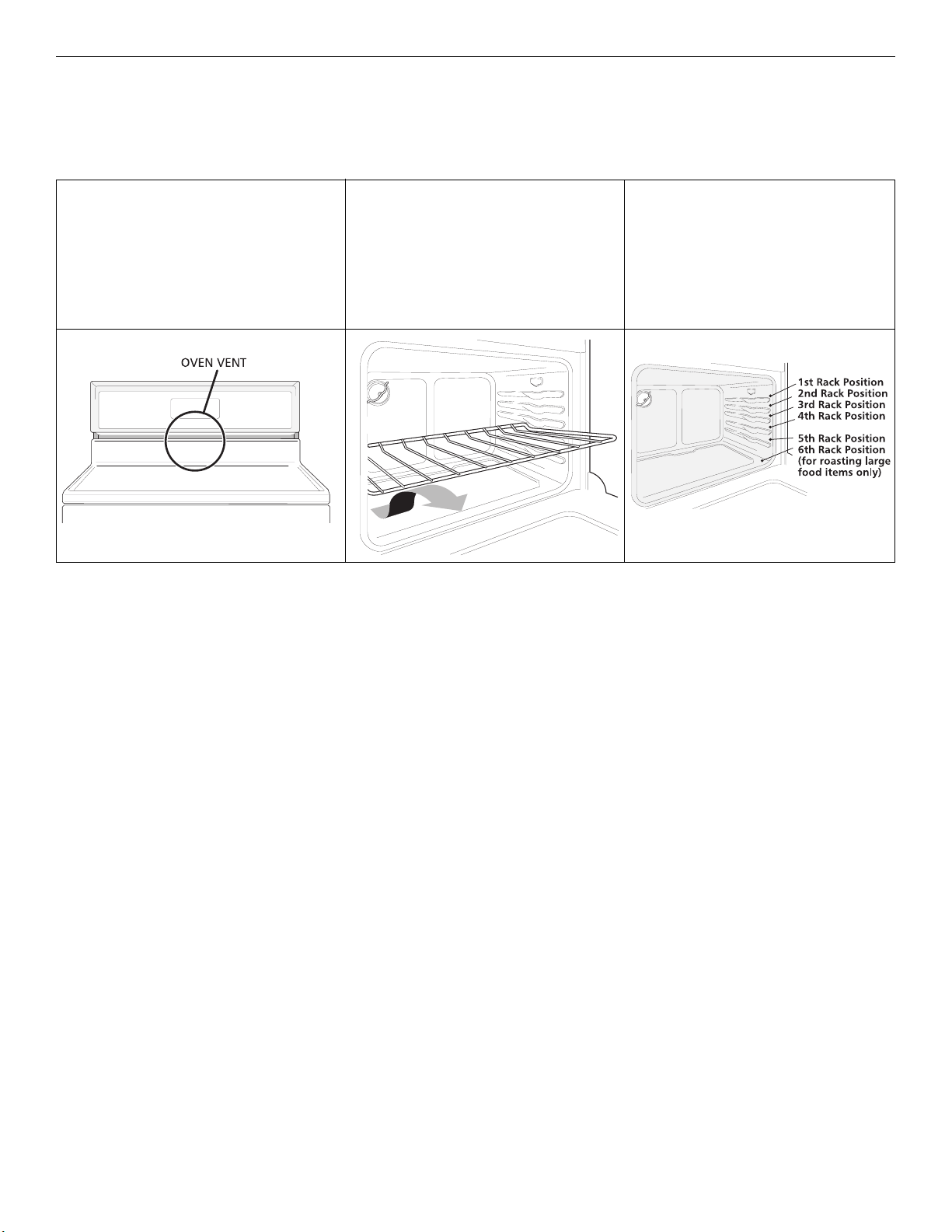

Keep Oven Vent Ducts Unobstructed. The oven vent is located
below the backguard. Touching the surfaces in this area when
the oven is operating may cause severe burns. Also, do not place
plastic or heat-sensitive items on or near the oven vent. These
items could melt or ignite.
Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with
both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
Do not use the broiler pan without its insert. The broiler pan
and its insert allow dripping fat to drain and be kept away from
the high heat of the broiler.
Do not cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
IMPORTANT INSTRUCTIONS FOR CLEANING YOUR
RANGE
Clean the range regularly to keep all parts free of grease that
could catch fire. Pay particular attention to the area underneath
each surface element. Do not allow grease to accumulate. Refer
to the hood manufacturers instructions for cleaning.
Kitchen cleaners and aerosolsAlways follow the
manufacturers recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
CONTINUOUS CLEANING OVENS
Do Not Use Oven Cleaners on the oven liner or any of the
continuous cleaning surfaces. Continuous cleaning surfaces
can be identified by their rough surface finish.
Grounding Instructions
(electric ignition models only)
Avoid fire hazard or electrical shock. Do not use
an adapter plug, an extension cord, or remove grounding prong
from electrical power cord. Failure to follow this warning can
cause serious injury, fire or death.
This appliance is equipped with a 3-prong
grounding plug for your protection against shock hazard and
should be plugged directly into a properly grounded receptacle.
DO NOT cut or remove the grounding prong from this plug.
For personal safety, the range must be properly grounded. For
maximum safety, the power cord must be plugged into an
electrical outlet that is correctly polarized and properly grounded.
DO NOT Operate the range using a 2-prong adapter or an
extension cord. If a 2-prong wall receptacle is the only available
outlet, it is the personal responsibility of the consumer to have it
replaced with a properly grounded 3-prong wall receptacle installed
by a qualified electrician.
See the INSTALLATION INSTRUCTIONS packaged with this range
for complete installation and grounding instructions.
4
Setting the Clock and Minute Timer
(some models)
: Flashing indicates
Minute Timer mode
Your model may be equipped with the clock shown below. Follow the
instructions to set the clock and minute timer on your range.
To Set the Clock
When the range is first plugged in, or when the power supply to the range has
been interrupted, "12:00" will flash in the display window.
1. Push .
2. Push and hold or until the correct time appears in the display.
Advances time, reverses time.
To Set the Minute Timer
1. Push , "0:00" will appear in the display window. The timer can be set
for any amount of time from 00:01 minute to 12:00 hours.
2. Push and hold until the correct amount of time appears in the display.
Advances time, reverses time. The minute timer will automatically
start when the button is released. The : will flash to indicate Minute
Timer mode.
3. When the set time has passed, the control will display "0:00" and beep three
times. The timer will continue to beep until is pressed.
4. Push to cancel the timer and return to the clock mode.
5
Loading...
