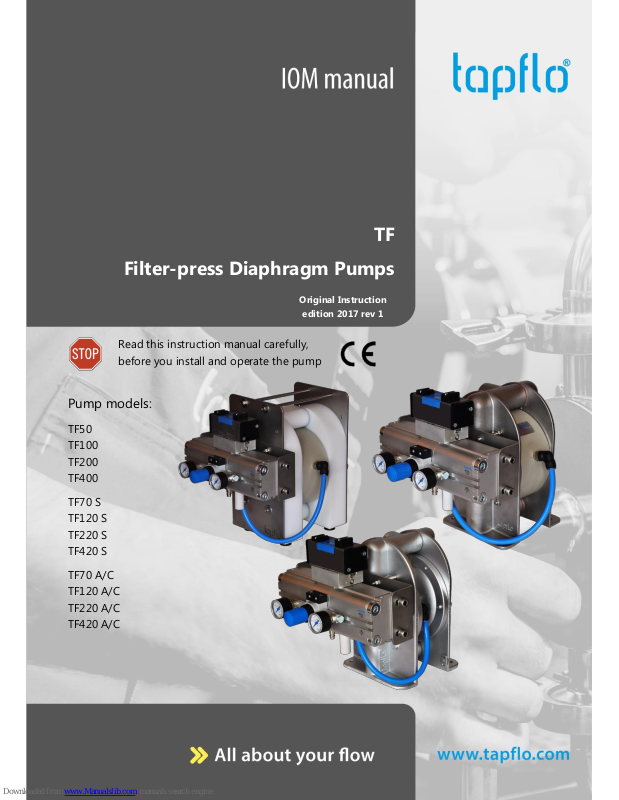

Filter-press Diaphragm Pumps

Original Instruction

edition 2017 rev 1

Read this instruction manual carefully, before you install and operate the pump

Pump models:

TF50 TF100 TF200 TF400

TF70 S TF120 S TF220 S TF420 S

TF70 A/C TF120 A/C TF220 A/C TF420 A/C

CONTENTS

IOM manual Tapflo TF series 1

0. GENERAL ......................................................................................................................................... 5

0.1. Introduction................................................................................................................................ 5

0.2. Warning symbols ....................................................................................................................... 5

0.3. Qualification and training of personnel ................................................................................... 5

1. INSTALLATION ............................................................................................................................... 6

1.1. Operation principle .................................................................................................................... 6

1.2. Receiving inspection .................................................................................................................. 6

1.3. Lifting and transportation ......................................................................................................... 7

1.4. Storage ........................................................................................................................................ 7

1.5. Foundation ................................................................................................................................. 7

1.6. Suction and discharge piping ................................................................................................... 7

1.6.1. Rotary connections ............................................................................................................ 8

1.6.2. Connection of suction pipe ............................................................................................... 8

1.6.3. Connection of discharge pipe ........................................................................................... 8

1.7. Health and safety ....................................................................................................................... 8

1.7.1. Protection ........................................................................................................................... 8

1.7.2. Explosion hazardous environments – ATEX ..................................................................... 9

1.7.3. Air pressure ......................................................................................................................... 9

1.7.4. Noise level ........................................................................................................................ 10

1.7.5. Temperature hazards ....................................................................................................... 10

1.8. Air connection .......................................................................................................................... 11

1.8.1. Air treatment system ....................................................................................................... 11

1.8.2. Pressure ratio 2:1 ............................................................................................................. 11

1.9. Example of installation ............................................................................................................ 11

1.10. Scope of supply .................................................................................................................... 12

2. OPERATION .................................................................................................................................. 13

2.1. Before starting the pump ........................................................................................................ 13

2.2. Starting and operation ............................................................................................................ 13

2.2.1. Dry running ...................................................................................................................... 13

2.2.2. Optimization of the pump lifetime ................................................................................ 13

2.2.3. Booster operation conditions ......................................................................................... 14

2.3. Pump stopping ......................................................................................................................... 14

3. MAINTENANCE ............................................................................................................................ 15

3.1. When the pump is new or reassembled ................................................................................. 15

CONTENTS

IOM manual Tapflo TF series 2

3.1.1. Performance test .............................................................................................................. 15

3.2. Routine inspection ................................................................................................................... 15

3.3. Complete inspection ................................................................................................................ 15

3.4. Location of faults ..................................................................................................................... 16

3.5. TF50-TF400 – Disassembly of the pump (PE & PTFE) ........................................................... 17

3.5.1. Before the disassembly procedure ................................................................................. 17

3.5.2. Disassembly procedure .................................................................................................... 17

3.6. TF50-TF400 – assembly of the pump (PE & PTFE) ................................................................ 20

3.6.1. Test run ............................................................................................................................. 21

3.7. TF70 – TF420 – disassembly pf the pump (Stainless Steel) .................................................. 21

3.7.1. Before the disassembly procedure ................................................................................. 21

3.7.2. Disassembly procedure .................................................................................................... 21

3.8. TF70 – TF420 - assembly of the pump – Stainless Steel ....................................................... 23

3.8.1. Test run ............................................................................................................................. 24

3.9. TF70 – TF420 – disassembly pf the pump (A/C) .................................................................... 24

3.9.1. Before the disassembly procedure ................................................................................. 24

3.9.2. Disassembly procedure .................................................................................................... 24

3.10. TF70 – TF420 - assembly of the pump – A/C ..................................................................... 26

3.10.1. Test run ............................................................................................................................. 27

4. STANDARD AND OPTIONS ......................................................................................................... 28

4.1. Standard ................................................................................................................................... 28

4.2. SMC booster ............................................................................................................................. 28

4.3. Booster without manometers and regulator ......................................................................... 28

4.4. Air treatment system ............................................................................................................... 29

4.5. Pump prepared for booster assembly .................................................................................... 29

4.6. Pump with reinforcement plates ............................................................................................ 29

4.7. Pump with aluminium centre body ........................................................................................ 30

5. SPARE PARTS ................................................................................................................................ 31

5.1. Plastic pumps ........................................................................................................................... 31

5.2. Plastic pumps – Additional / other spare parts list ............................................................... 31

5.3. Stainless steel pumps ............................................................................................................... 31

5.4. Stainless steel pumps – Spare parts list ................................................................................. 31

5.5. Aluminium / cast iron pumps ................................................................................................. 32

5.6. Aluminium / cast iron pumps – Spare parts list .................................................................... 32

5.7. Stocking recommendation ...................................................................................................... 32

5.8. How to order parts................................................................................................................... 33

CONTENTS

IOM manual Tapflo TF series 3

5.9. Pump code ................................................................................................................................ 33

6. DATA ............................................................................................................................................. 34

6.1. Capacity curves......................................................................................................................... 34

6.2. Capacity changes ...................................................................................................................... 35

6.3. Technical data .......................................................................................................................... 36

6.4. Dimensions ............................................................................................................................... 37

6.4.1. Plastic pumps ................................................................................................................... 37

6.4.2. Stainless steel pumps ....................................................................................................... 38

6.4.3. Aluminium / cast iron pumps ......................................................................................... 39

6.5. Tightening torques .................................................................................................................. 40

6.6. Permitted loads on manifolds ................................................................................................. 40

7. WARRANTY .................................................................................................................................. 42

7.1. Warranty form .......................................................................................................................... 42

7.2. Returning parts ........................................................................................................................ 43

7.3. Warranty ................................................................................................................................... 43

EC DECLARATION OF CONFORMITY 01/EC/TF/2017

Series:

TF(…)

Serial numbers:

2013 - … (from 1301-…)

Manufactured by:

Tapflo AB Filaregatan 4 4434 Kungälv, Sweeden

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Object of declaration: FILTER PRESS AIR OPERATED DIAPHRAGM PUMPS

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

 Directive 2006/42/EC of European Parliament and of the Council of 17 May 2006 on

machinery, amending Directive 95/16/EC;

Mr Michał Śmigiel is authorized to compile the technical file. Tapflo Sp. z o.o. ul. Czatkowska 4b 83-110 Tczew

Signed for and on behalf of Tapflo AB

Håkan Ekstrand

Managing director

Tapflo AB, 02.03.2017r

0. GENERAL

IOM manual Tapflo TF series 5

0. GENERAL

0.1. Introduction

The Tapflo Air Operated Diaphragm Pump range is a complete series of pumps for industrial applications. The pumps are designed to be safe, simple and easy to use and maintain. The construction is seal-less and without rotating parts. The pumps are suitable for almost all different chemicals used by the industry today.

With proper attention to maintenance, Tapflo Pumps will give efficient and trouble free operation. This instruction manual will familiarise operators with detailed information about installing, operating and maintaining of the pump.

The Tapflo pump for filter press feeding is a very compact unit that can be mounted directly to the filter press. The design and function allows the user a straightforward pressing of slurries.

A pressure regulator is already mounted on the unit. The pumps are based on standard metal and plastic Tapflo pumps. An external pressure booster doubles the delivery pressure. For example, with available air pressure of 7 bar, the delivery pressure will be maximum 14 bar.

When installing, operating and maintaining of the pump unit you must strictly follow the IOM manual. Otherwise injury or life hazard may occur.

0.2. Warning symbols

The following warning symbols are present in this instruction manual. This is what they say:

This symbol stands next to all safety instructions in this instruction manual where danger to life and limb may occur. Observe these instructions and proceed with utmost caution in these situations. Inform also other users of all safety instructions. In addition to the instructions in this instruction manual, the general safety and accident prevention regulations must be observed.

This signal stands at points in this instruction manual of particular importance for compliance with regulations and directives, for correct work flow and for the prevention of damage to and destruction of the complete dampener or its subassemblies.

0.3. Qualification and training of personnel

The personnel in charge of installation, operation and maintenance of the pumps we produce must be qualified to carry out the operations described in this manual. Tapflo shall not be held responsible for the training level of personnel and for the fact that they are not fully aware of the contents of this manual.

1. INSTALLATION

IOM manual Tapflo TF series 6

1. INSTALLATION

1.1. Operation principle

The Tapflo diaphragm pump is driven by compressed air. The two diaphragms are connected by a diaphragm shaft and pushed back and forth by alternately pressurising the air chambers behind the diaphragms using an automatically cycling air valve system.

The Suction Cycle:  Suction

One diaphragm creates a suction action in one chamber (right side) when being pulled back from the housing.

 Discharge

The other diaphragm simultaneously transmits the air pressure to the liquid in the second chamber (left side) of the housing, pushing it towards the discharge port.

During each cycle the air pressure on the back of the discharging diaphragm is equal to the head pressure on the liquid side. Tapflo diaphragm pumps can therefore be operated against a closed discharge valve with no negative effect to the life of the diaphragms.

1.2. Receiving inspection

Although precaution is taken by us when packing and shipping, we urge you to carefully check the shipment on receipt. Make sure that all parts and accessories listed on the packing list are accounted for. Immediately report any damage or shortage to the transport company and to us.

1. INSTALLATION

IOM manual Tapflo TF series 7

1.3. Lifting and transportation

Before handling the pump check the weight of the pump (see 6.3. Technical data). Refer to Your local standards on how to handle the pump. If the weight is excessive to transport by hand it must be lifted using slings and a suitable lifting device e.g. a crane or forklift. Always use at least two slings and make sure they are secured in such a way to prevent the pump from slipping and that the pump unit is hanging straight. Never lift the pump with only one sling. Incorrect lifting can cause serious injury and/or damage to the pump.

Never lift the pump under pressure. Be careful that nobody passes under the pump when lifted. Never try to lift the pump by the manifolds or hoses attached to the pump. As an option pumps can be equipped with lifting eyebolts connected with the pump pinscrews.

1.4. Storage

If the equipment is to be stored prior to installation, place it in a clean location. The pump

should be stored in an ambient temperature of 15°C (59°F) to 25°C (77°F) and relative humidity

below 65%. It should not be exposed to any heat source e.g. radiator, sun as this could result in a negative way on the tightness of the pump. Do not remove the protective covers from the suction, discharge and air connections which have been fastened to keep pump internals free of debris. Clean the pump thoroughly before installation.

1.5. Foundation

Plastic pumps are equipped with vibration absorbing rubber feet. The pumps will operate properly without being fixed to a foundation. If fixation is needed for installation purposes, make sure the foundation is able to absorb vibrations. It is essential for the operation of the pump to mount the pump with the feet in a downward direction.

1.6. Suction and discharge piping

Suction and discharge piping should be fully supported and anchored near to but independent of the pump. The piping to the pump should be a hose, to prevent undue stress and strain on the pump connections and the piping.

1. INSTALLATION

IOM manual Tapflo TF series 8

1.6.1. Rotary connections

The suction and discharge connections can be rotated 180°. This simplifies the assembly and installation of the pump. If you wish to rotate the connections, screw a threaded nipple into the connection and rotate it. On the larger models TF200 and TF400 it will be easier if the housing nuts are slightly released while turning the connections.

1.6.2. Connection of suction pipe

Remember that the suction pipe/connection is the most critical point, especially if the pump is priming. Just a small leakage will dramatically reduce the suction capability of the pump. When connecting the suction pipe, the following is recommended:

For satisfactory operation, use a reinforced hose (the suction power may otherwise shrink the hose) or other flexible piping. The internal diameter of the hose should be the same as on the suction connection (at the bottom of the pump) to have best suction capability.

Make sure that the connection between the hose and the pump is completely tight, otherwise the suction capability will be reduced.

Always use as short suction pipe as possible. Avoid air pockets which can emerge within long piping.

1.6.3. Connection of discharge pipe

For this connection it is only recommended to have a simple and positive flow connection. Use a hose or flexible piping (minimum one meter) between the discharge connection and any rigid fixed piping. Coil the hose at least one turn. All components (hose, pipe, valves etc.) on the discharge piping must be designed for minimum PN 16.

1.7. Health and safety

The pump must be installed according to local and national safety rules.

The pumps are constructed for particular applications. Do not use the pump on applications different from that for which it was sold without consulting us to ascertain its suitability.

1.7.1. Protection

In the interest of health and safety it is essential to wear protective clothing and safety goggles when operating, and/or working in the vicinity of Tapflo pumps.

1. INSTALLATION

IOM manual Tapflo TF series 9

1.7.2. Explosion hazardous environments – ATEX

The standard PE, PTFE and SS series pumps are not allowed to operate in environments where there is danger of explosion. Static electricity may occur in the pump under operation, which may cause explosion and injury. Special conductive TXF pumps are available for such applications. All our aluminium and cast iron pumps are by standard ATEX approved. Follow below instructions and local/national rules for safe use. For use in explosion hazardous environment a special booster is required (see chapter 4.2). Booster ATEX classification is II 3 GD c T6. Please contact us for more details. As a general rule it is recommended to install the booster outside of the hazardous area. ATEX (directive 94/9/EC) classification of Tapflo TX pumps:

ATEX II 2 GD IIB c T4

Equipment group: II – all other explosive areas than mines; Category group: 2 – high level of protection (can be used in zone 1); Atmosphere: G – gas; D – dust; Explosion group: IIB – such as ethylene; Type of protection: c – constructional safety; Temperature class: T4 – in the event of a malfunction, the maximum temperature of a surface that may be exposed to gas T4 = 135 °C.

Earth connection of the pump and other equipment

Connect a suitable earth wire to the stainless steel earth connection that is placed on the inside of one of the pump housings. Connect the other end of the earth wire to earth and also make sure that other equipment like hoses/pipes/containers etc. are properly earthed/connected.

1.7.3. Air pressure

The maximum air feed pressure for Tapflo TF pumps is 8 bar for sizes TF50, TF70, TF100 and TF120, 7 bar for TF220 and 6 bar for sizes TF200, TF420 and TF400. This is the air pressure that is supplied to the pressure booster. As a result the pump will be supplied with 16 bar, 14 bar and 12 bar respectively. To withstand this high pressure the pumps, as a standard, are equipped with a special, hybrid air valve which is equipped with a PET piston and in case of plastic pumps, two stainless steel reinforcement plates. Higher air pressure can damage the pump and may cause injury to personnel in vicinity of the pump. If you intend to apply a higher air pressure than 8 bar, please consult us.

1. INSTALLATION

IOM manual Tapflo TF series 10

1.7.4. Noise level

At tests, the noise level from a Tapflo pump has not exceeded 85 dB(A). Under some circumstances, for example if the pump is operating under high air pressure at low discharge head, the noise can be inconvenient or hazardous for personnel staying for long periods in the vicinity of the pump. This hazard can be prevented by:

 using suitable ear protection;  lowering the air pressure and/or raising the discharge head;  leading out the outgoing air from the room by connecting a hose to the muffler

connection of the pump;

 using elastomer valve balls (EPDM, NBR or polyurethane) instead of PTFE, ceramic or

stainless steel, provided that the elastomer is compatible with the pumped liquid.

1.7.5. Temperature hazards

 Raised temperature can cause damage on the pump and/or piping and may also be

hazardous for personnel in the vicinity of the pump/piping. Avoid quick temperature changes and do not exceed the maximum temperature specified when the pump was ordered. See also general max temperatures based on water in chapter 5 “DATA”.

 When the pump is exposed to ambient temperature variations or if there is big difference

between the temperature of the product and the surrounding, the tightening torques of the housing nuts should be checked periodically as part of preventive maintenance.

 If a hot product is pumped, the pump should not stand still when filled for a longer period

of time. This could cause leakage from the valves and contamination and/or damage of the air valve.

 Below 0°C (32°F) plastic materials become more fragile what can cause accelerated wear of

parts made of these materials. This is a hazard that has to be accepted when pumping such cold products. Also in such case, when a pump is not operational it should be drained of all liquid.

 Bear in mind that the viscosity of the product changes with temperature. This has to be

taken into consideration when selecting the pump.

1. INSTALLATION

IOM manual Tapflo TF series 11

1.8. Air connection

Screw the air hose into the air intake on the booster. For best efficiency, use the same hose diameter as the internal diameter of the connection on the air intake.

1.8.1. Air treatment system

The air valve is constructed for oil-free air. Lubrication of the air is not allowed. However, if the air is very dry (laboratory air), the air may be lubricated with water. As prevention purpose, a filtration of the air by means of a 5 micron filter or finer is recommended. Recommended air quality according to PN-ISO8573-1:2010 is particles class 6, water class 4 and oil class 4. Dirt in the air can under unfortunate circumstances be the cause of a breakdown. If a compressor used to generate compressed air is not fitted with an air dryer it is recommended to use a water separator to remove the extent of water from the prepared air.

To facilitate the operation of the pump we recommend an air treatment system connected to the air supply. These components should be included:

1) Regulator to adjust the air pressure;

2) Manometer to read the actual pressure;

3) Needle valve to adjust the air flow (especially when operating the pump in the lower range of performance); It is recommended to install the needle valve between the booster and pump

4) Filter. These components are included in Tapflo’s Air treatment system which can be ordered from us.

1.8.2. Pressure ratio 2:1

The pressure booster has the function to transmit the primary pressure (from air supply) to an output pressure of up to twice as much. The pressure ratio between the input and output side is, by default, set to 2:1.

1.9. Example of installation

NOTE! Do not exceed 0,7 bar suction pressure! Higher pressure may cause premature diaphragm failure and irregular pump operation.

1. INSTALLATION

IOM manual Tapflo TF series 12

1.10. Scope of supply

As a standard the pump is supplied with the following items:

1. Complete pressure booster: a. Quick air connection for air supply b. Muffler c. Pressure regulator d. Two manometers – input and output pressure

2. Reinforcement plates (plastic pumps only)

3. Mounting plate with screws

4. Air connection between the pump and the booster

NOTE!

Even if all above safety instructions are met and complied with, there still exists a minor danger in the event of a leakage or mechanical damage of the pump. In such case the pumped product can emerge on sealing areas and connections.

2. OPERATION

IOM manual Tapflo TF series 13

2. OPERATION

2.1. Before starting the pump

 Make sure the pump is installed according to the installation instruction (chapter 1).

 Filling of the pump with liquid before start is not necessary.

 When installation is new or reinstalled, a test run of the pump with water should be

conducted to make sure that the pump operates normally and does not leak.

 When installation is new or reinstalled, check the pump housing nuts tightening torque

(see chapter 5.5 “Tightening torques”). After approximately one week of operation, the torque should be checked again. This is important to prevent possible leakage.

2.2. Starting and operation

 Open the discharge valve.  Note! Considering the suction capacity when air is still in the suction pipe, it is

recommended to start with low air pressure/flow (slowly) at the beginning. This is not necessary if the pump is filled with liquid before start.

 When the pump has been filled with liquid, the air pressure/flow may be raised in order

to increase the suction capacity of the pump. Remember that suction capacity is higher when pump runs slowly.

 The performance of the pump can be adjusted through the air supply by using a needle

valve and a pressure regulator. The performance can also be adjusted by normal flow control on the discharge side of the system.

2.2.1. Dry running

Although the pump is prepared for dry running it is important to have in mind that long periods of dry run may cause damage to the air valve and circlips. What is more, an empty pump should operate at low speeds – controlled by a needle-valve.

2.2.2. Optimization of the pump lifetime

 Running at full frequency (maximum air pressure/flow) continuously will cause

premature wear of the components. As a general rule, we recommend to run at half of the maximum capacity of the pump. For instance, a TF100 pump should run continuously at maximum 50 l/min.

 As stated in chapter 1.8.1 Tapflo recommends to use an appropriate air treatment

system in order to extend the pump’s lifetime.

 If the air humidity is high, use of a water separator or air dryer is recommended.

Otherwise on the air discharge side due to decompression, icing on the muffler may appear causing it to shrink and eventually it can shoot out of its socket.

 If the ambient air is humid, icing can occur outside of the muffler. In such case it is

recommended to use a longer exhaust of the compressed air (ca. 500 mm / 19,7’’).

2. OPERATION

IOM manual Tapflo TF series 14

 If there is possibility of freezing at the air exhaust, it is good to pre-heat the air before it

reaches the air intake in order to raise the dew point of the air. NOTE! Make sure that the air temperature does not exceed 50°C (122°F).

 If icing / freezing is still a problem with the standard muffler, we recommend using our

heavy duty metal muffler. Contact us for more information.

2.2.3. Booster operation conditions

In principal the booster is designed for intermittent operation. It cannot be used as a replacement for a compressor. During continuous work the lifetime is significantly decreased due to overheating of the device and increased wear of the seals.

 In order to obtain optimal lifetime it is advised that the discharging frequency be

not higher than 0,33 Hz (once pressure discharge per 3 seconds). The exact rest periods cannot be determined generally because they depend on the discharge frequency and heat removal conditions.

 It is recommended that for every hour of booster operation at least a 5 minute rest

period is foreseen. If these conditions are difficult or impossible to fulfil, it is recommended to use an air reservoir in the installation.

 To increase the booster lifetime a bypass installation can be used in order to relieve

the booster at lower pressures when the filter press is not yet filled.

 Maximum temperature of air supplier to the booster cannot be higher than 25 ºC.  Recommend air quality is 6:4:4 according to PN-ISO8573-1:2010.

2.3. Pump stopping

The pump can be stopped in two ways:

1) By closing of the discharge valve. The pressure from the system will stop the pump

automatically. The pump restarts easily when the valve is opened again. NOTE! When using this method keep in mind that air must be supplied to the pump. This is essential to keep the diaphragms in balance what protects them from premature failure.

2) By cutting off the air supply. NOTE! When using this method make sure that the discharge valve is opened to relief the pumps pressure.

3. MAINTENANCE

IOM manual Tapflo TF series 15

3. MAINTENANCE

3.1. When the pump is new or reassembled

If the pump is new or reassembled after maintenance it is important to retighten the pump housing nuts (pos. 37) after a few days of operation.

Make sure to use the right torque – see chapter 5.5 “Tightening torques”.

3.1.1. Performance test

When installation is new, a test run of the pump should be conducted. Gauge the capacity at specific air pressure/flow. This information is useful for checking performance in the future as wear takes place. You will be able to set schedules for maintenance of the pump and to select spare parts to be kept on stock.

3.2. Routine inspection

Frequent observation of the pump operation is recommended to detect problems. A change in sound of the running pump can be an indication of wearing parts (see chapter 3.4 "Location of faults" below). Leaking liquid from the pump and changes of performance may also be detected. Routine inspections should be conducted frequently.

3.3. Complete inspection

The intervals for a complete inspection depend upon the operation conditions of the pump. The characteristics of the liquid, temperature, materials used in the pump and running time decide how often a complete inspection is necessary. If a problem has occurred, or if the pump is in need of a complete inspection, refer to chapters 3.4 "Location of faults" and 3.5, 3.7 "Dismantling of the pump". You are of course warmly welcome to consult us for further help. Parts that are subject to wear should be kept in stock, see our recommendations in chapter

4.7 “Stocking recommendation”.

3. MAINTENANCE

IOM manual Tapflo TF series 16

3.4. Location of faults

PROBLEM

POSSIBLE ISSUE

POSSIBLE SOLUTION

The pump does not run

The air pressure is to low

Increase air pressure via a filter-regulator

The air connection is blocked

Check / clean air supply connection

Muffler is blocked

Check / clean / replace muffler

Air valve is defective

Clean / replace complete air valve

Dirt in the pump chamber

Remove debris from the chambers

Diaphragm breakdown

Replace diaphragm

The suction is bad

Suction connection is not tight

Tighten the suction line

Suction connection is blocked

Clean suction line

Muffler is blocked

Check / clean / replace muffler

Valve balls are blocked or damaged

Check dimensions and shape of valve balls

Valve seats are worn Pump starts with high pressure Air in suction / discharge line Dry suction against discharge pressure

Check dimensions and shape of valve seats Start the pump slowly (see chapter 2.2) Vent suction / discharge line Wet the pump / start without discharge pressure

The pump runs irregular

Valve balls are blocked

Check dimensions and shape of valve balls

Sealing in centre block Air valve is defective

Replace sealing Clean / replace air valve

Diaphragm breakdown Valve seats are worn Icing on the muffler

Replace diaphragm Check dimensions and shape of valve seats Improve air quality (see chapters 1.7.1 and 2.2.2)

Bad flow/pressure

Pressure fall in air supply Pressure losses on suction side Air supply / air valve leaking

Increase air pressure via a filter-regulator Check/change installation on suction side Check / repair / replace air supply / air valve

Suction or air connection blocked

Check / clean air supply / suction connection

Muffler is blocked

Check / clean / replace muffler

Valve ball worn or broken Valve seats are worn

Check dimensions and shape of valve balls Check dimensions and shape of valve seats

Air in liquid

Seal suction line; check / refill container

Diaphragm breakdown Icing on the muffler

Check / replace diaphragms Improve air quality (see chapters 1.7.1 and 2.2.2)

Liquid leaks from the pump

Screws on the housing not properly tightened O-rings on manifolds damaged Damaged diaphragm Tension / stress form the installation

Check tightening torques of the screws

Replace O-rings Check / replace diaphragms Adjust installation, eliminate stress, when using a dampener provide separate support for it (see dampener IOM manual).

Liquid comes out of the muffler

Diaphragm breakdown

Replace diaphragm

Diaphragm breakdown

Wrong selection of material Too high pressure in the installation Long periods of dry running Too high pressure on suction side

Contact us for information on material selection Use air treatment system for protection When dry, run pump slowly (see chapter 2.2) Make sure there is pressure balance between the air and liquid side of the diaphragm

Booster issues

Too small output pressure

Too small flow Booster does not start

Check input pressure; Rotate knob counterclockwise; Too high air consumption Check if connections are of correct size Booster malfunction / valve in mid-position – contact us for more information

3. MAINTENANCE

IOM manual Tapflo TF series 17

3.5. TF50-TF400 – Disassembly of the pump (PE & PTFE)

The numbers put in brackets, refer to the part numbers in the spare part drawings and spare part lists in chapter 4 “SPARE PARTS”.

3.5.1. Before the disassembly procedure

Be sure to drain all liquid from the pump. Cleanse or neutralize the pump thoroughly. Disconnect the air supply and then the suction and discharge connections.

3.5.2. Disassembly procedure

Fig. 3.5.1

Disconnect the air hose from the booster and from the pump.

Fig. 3.5.2

Unscrew and remove the booster [99] from the mounting plate [990].

Fig. 3.5.3

Unscrew four nuts [37] holding the mounting plate [990] and remove it from the pump.

Fig. 3.5.4

Unscrew the remaining nuts [37] and carefully remove the pin screws [147].

3. MAINTENANCE

IOM manual Tapflo TF series 18

Fig. 3.5.5

Lay down the pump on one side and lift one of the housings [11].

Fig. 3.5.6

Lift the loose manifolds [13] and centre block [12] from the second housing [11].

Fig. 3.5.7

To remove the spacer sleeve [19], use a plastic rod and a hammer to knock it out. NOTE! Be careful not to deform the spacer sleeve.

Fig. 3.5.8

Insert our special tool or pin screw [14] into the orifice in the spacer sleeve [19], rotate it.

Fig. 3.5.9

Pull out the spacer sleeve [19].

Fig. 3.5.10

Pull out the lower sleeve [212], valve seat [222] and O-ring [43].

3. MAINTENANCE

IOM manual Tapflo TF series 19

Fig. 3.5.11

Pull out the upper sleeve [202] alongside with the valve seat [222], O-ring [43] and the blocking pin [2021].

Fig. 3.5.12

Unscrew the diaphragm [15] from one side of the pump.

Fig. 3.5.13

Take out the second diaphragm [15] along with the shaft [16].

Fig. 3.5.14 TF/TXF50, TF100

Using pliers remove both circlips [27] from the centre block [12]. Attention! While doing this, cover yourself with your other hand, as the circlip easily flips away

Fig. 3.5.15 TF/TXF50, TF100

Press out the air valve [61] by means of a pressing device. Be careful not to damage the brass edges of the air valve.

Fig. 3.5.16 TXF100, TF/TXF200, TF/TXF400

Unscrew plate screws [2711] from both sides of the centre body [12] and take out the left and right plate [271].

3. MAINTENANCE

IOM manual Tapflo TF series 20

Fig. 3.5.17 TXF100, TF/TXF200, TF/TXF400

Press out the air valve [61] by means of a pressing device. Be careful not to damage the brass edges of the air valve.

The pump is now completely disassembled. Check all components for wear or damage and replace if necessary. When air valve is removed from the centre body check the external O-rings (6 x pos. 30) condition and replace if necessary.

3.6. TF50-TF400 – assembly of the pump (PE & PTFE)

The assembly procedure is done in the reverse order to the disassembly. Nevertheless there are a few things that you have to remember in order to assemble the pump correctly.

Fig. 3.6.1

When putting the air valve [61] into the centre block [12], apply some water or alcohol on the O-rings to provide smooth insertion of the air valve. It is recommended to use a pressing device for this operation.

Fig. 3.6.2

When there is need to replace the diaphragm pin screw [1652], while screwing it into the diaphragm [15] make sure the pin screw goes all the way.

Fig. 3.6.3

3. MAINTENANCE

IOM manual Tapflo TF series 21

Fig. 3.6.4

When fastening the nuts, remember to do it according to the tightening procedure and with the appropriate torque. NOTE! After a few weeks of operation retighten the nuts with the appropriate torque.

3.6.1. Test run

We recommend you to conduct a test run of the pump before installing it in the system, so no liquid gets wasted if the pump leaks or perhaps does not start accordingly to wrong assembly of the pump.

After a few weeks of operation retighten the nuts with appropriate torque.

3.7. TF70 – TF420 – disassembly pf the pump (Stainless Steel)

The numbers put in brackets, refer to the part numbers in the spare part drawings and spare part lists in chapter 4 “SPARE PARTS”.

3.7.1. Before the disassembly procedure

Be sure to drain all liquid from the pump. Cleanse or neutralize the pump thoroughly. Disconnect the air supply and then the suction and discharge connections.

3.7.2. Disassembly procedure

Fig. 3.7.1

Disconnect the air hose from the pressure booster and from the pump’s air intake.

Fig. 3.7.2

Unscrew and remove the booster from the mounting plate [990].

3. MAINTENANCE

IOM manual Tapflo TF series 22

Fig. 3.7.3

Unscrew and remove four nuts and take off the mounting plate [990].

Fig. 3.7.4

Unscrew the housing nuts [37].

Carefully remove the “loose housing” [11] and lift of

the in/outlets [13]. Pull up the centre block assembly. NOTE! Be careful not to damage he diaphragms against the pin screw thread.

Fig. 3.7.5

Unscrew the allen screws [227] from ball stop assemblies [22]. Carefully remove the screws and the half rods.

Fig. 3.7.6 TF/TXF 70; TF120;

Using pliers remove both circlips [27] from the centre block [12]. Attention! While doing this, cover yourself with your other hand, as the circlip easily flips away

Fig. 3.7.7 TF/TXF 70; TF120

Press out the air valve [61] by means of a pressing device. Be careful not to damage the brass edges of the air valve.

3. MAINTENANCE

IOM manual Tapflo TF series 23

Fig. 3.7.8 TXF 120; TF/TXF 220; TF/TXF 420

Unscrew the plate screws [2711] from both sides of the centre body [12] and take out the left and right plate [271].

Fig. 3.7.9 TXF 120; TF/TXF 220; TF/TXF 420 Press out the air valve [61] by means of a pressing device. Be careful not to damage the brass edges of the air valve.

The pump is now completely disassembled. Check all components for wear or damage and replace if necessary. When air valve is removed from the centre body, the external O-rings (6 x pos. 30) have to be replaced before assembly.

3.8. TF70 – TF420 - assembly of the pump – Stainless Steel

The assembly procedure is done in the reverse order to the disassembly. Nevertheless there are a few things that you have to remember in order to assemble the pump correctly.

Fig. 3.8.1

Fig. 3.8.2

When there is need to replace the diaphragm pin screw [1652], while screwing it into the diaphragm [15] make sure the pin screw goes all the way.

3. MAINTENANCE

IOM manual Tapflo TF series 24

Fig. 3.8.3

When screwing in the diaphragms [15] on the shaft [16], the holes in the diaphragms must align with the holes in the centre block [12]. Sometimes it is necessary to turn the diaphragm back a little bit in order to align the holes. When putting in the pin screws [14] take extra care not to damage the diaphragms [15] with the pin screw thread.

Fig. 3.8.4

When fastening the nuts, remember to do it according to the tightening procedure and with the appropriate torque. NOTE! After a few weeks of operation retighten the nuts with the appropriate torque.

3.8.1. Test run

We recommend you to conduct a test run of the pump before installing it in the system, so no liquid gets wasted if the pump leaks or perhaps does not start accordingly to wrong assembly of the pump.

After a few weeks of operation retighten the nuts with appropriate torque.

3.9. TF70 – TF420 – disassembly pf the pump (A/C)

The numbers put in brackets, refer to the part numbers in the spare part drawings and spare part lists in chapter 4 “SPARE PARTS”.

3.9.1. Before the disassembly procedure

Be sure to drain all liquid from the pump. Cleanse or neutralize the pump thoroughly. Disconnect the air supply and then the suction and discharge connections.

3.9.2. Disassembly procedure

Fig. 3.9.1

Unscrew and remove the booster from the mounting plate [990].

3. MAINTENANCE

IOM manual Tapflo TF series 25

Fig. 3.9.2

Unscrew and remove four nuts and take off the mounting plate [990].

Fig. 3.9.3

Unscrew four pins [147] from the pump casing [11].

Fig. 3.9.4

Unscrew the rest of the screws [37] from one side of the pump housing [11]. Carefully lift off the housing. Take off the manifolds[13]. Turn the pump around and unscrew the second housing.

Fig. 3.9.5

In order to take out the valve balls [23] unscrew the valve ball stop [22] from the housing.

Fig. 3.9.6

Unscrew one of the diaphragms [15] while pressing the other one towards the centre block. Then pull out the second diaphragm with the diaphragm shaft [16]

3. MAINTENANCE

IOM manual Tapflo TF series 26

Fig. 3.9.7

Using pliers remove both circlips [27] from the centre block [12]. Attention! While doing this, cover yourself with your other hand, as the circlip easily flips away.

Fig. 3.9.8

Press out the air valve [61] by means of a pressing device. Be careful not to damage the brass edges of the air valve.

3.10. TF70 – TF420 - assembly of the pump – A/C

The assembly procedure is done in the reverse order to the disassembly. Nevertheless there are a few things that you have to remember in order to assemble the pump correctly.

Fig. 3.10.1

Fig. 3.10.2

When there is need to replace the diaphragm pin screw [1652], while screwing it into the diaphragm [15] make sure the pin screw goes all the way.

3. MAINTENANCE

IOM manual Tapflo TF series 27

Fig. 3.10.3

Fig. 3.10.4

When fastening the screws, remember to do it according to the tightening procedure and with the appropriate torque. NOTE! After a few weeks of operation retighten the screws with the appropriate torque.

3.10.1. Test run

We recommend you to conduct a test run of the pump before installing it in the system, so no liquid gets wasted if the pump leaks or perhaps does not start accordingly to wrong assembly of the pump.

After a few weeks of operation retighten the screws with appropriate torque.

4. OPTIONS

IOM manual Tapflo TF series 28

4. STANDARD AND OPTIONS

4.1. Standard

As a standard Tapflo TF pump is equipped with a Festo pressure booster equipped in two manometers and a pressure regulator. By using the knob we can regulate the output pressure. Maximum pressure increase is 2:1. Differential pressure must be at least 2 bar.

Art. No

Pumps

6-050-99

TF50, TF70

6-100-99

TF100, TF120

6-200-99 6-400-99

TF200, TF220 TF400, TF420

4.2. SMC booster

If the client should require we offer also SMC boosters as alternative. SMC offers also ATEX marked boosters which can be used in zone 2:

ATEX II 3 GD c T6

If you wish to order TF pump with SMC booster please use “19S” at the end of the pump code, e.g. TF120 STT-19S. IMPORTANT! The SMC boosters for pump sizes T100, T200 and T400 are rated only up to 10 bar.

Additional / different parts:

Art. No

Pumps

Art. No

Pumps

6-050-99 SMC

TF50, TF70

6-050-99 SMC X

TF50, TF70

6-100-99 SMC

TF100, TF120

6-100-99 SMC X

TF100, TF120

6-200-99 SMC 6-400-99 SMC

TF200, TF220 TF400, TF420

6-200-99 SMC X 6-400-99 SMC X

TF200, TF220 TF400, TF420

4.3. Booster without manometers and regulator

If a client’s air supply line is already equipped with air treatment system (filter-regulator, manometers etc.) it is

possible to order the pump with “plain” booster without

additional equipment. In such case, the output pressure is always doubled in comparison to input pressure. For this option, please use “19D” in pump code, e.g. TF100

PTT-19D.

Additional / different parts:

Art. no

Pumps

6-050-99-D

TF50, TF70

6-100-99-D

TF100, TF120

6-200-99-D 6-400-99-D

TF200, TF220 TF400, TF420

4. OPTIONS

IOM manual Tapflo TF series 29

4.4. Air treatment system

If one decides to order booster without additional equipment, we can offer air treatment systems as alternative:

Art. no

Pumps

Description

6-050-001F

TF50, TF70

Filter-regulator + manometer + mounting bracket

6-200-001F

TF100, TF200,

TF120, TF220

Filter-regulator + manometer + mounting bracket

6-400-001F

TF400, TF420

Filter-regulator + manometer + mounting bracket

6-050-0F

TF50, TF70

Needle valve

6-200-0F

TF100, TF200,

TF120, TF220

Needle valve

6-400-0F

TF400, TF420

Needle valve

6-050-002F

TF50, TF70

Filter-regulator + manometer + water separator + mounting bracket

6-200-002F

TF100, TF200,

TF120, TF220

Filter-regulator + manometer + water separator + mounting bracket

6-400-002F

TF400, TF420

Filter-regulator + manometer + water separator + mounting bracket

4.5. Pump prepared for booster assembly

Tapflo pumps can be fitted only with reinforcement plates prepared for booster assembly but without the booster itself. The pump will also have assembled the hybrid air valve with PET piston. This way the pump is prepared for high pressure applications and the end user can install the booster on the pump by himself. For this option, please use “11F” in pump code, e.g. T100 PTT-11F.

4.6. Pump with reinforcement plates

Tapflo pumps can be supplied only with plain, stainless steel reinforcement plates to make the construction more robust. This way the pump is prepared for high pressure applications and the end user can supply the pump with compressed air from his installation. For this option, please use “11S” in pump code, e.g. T100

PTT-11S.

4. OPTIONS

IOM manual Tapflo TF series 30

4.7. Pump with aluminium centre body

To increase pump lifetime for high applications we recommend to use pumps with aluminium centre body. This material is more resistant to high pressure than our standard PP.

For this option, please use “6A” in pump code, e.g. T100 PTT-6A.

5. SPARE PARTS

IOM manual Tapflo TF series 31

5. SPARE PARTS

5.1. Plastic pumps

5.2. Plastic pumps – Additional / other spare parts list

Pos.

Q-ty

Description

Material

Booster

990

Booster mounting plate

AISI 304

996

Booster mounting screw

A4-70

997

Booster mounting washer

A4-80

1171

Reinforcement plate

AISI 304

Additional nuts

A4-70

Additional washers

A4-70

Additional nut cover

147

Pin screws for TF pump (shorter)

A4-80

1471

Pin screws for TF pump (longer)

A4-80

5.3. Stainless steel pumps

5.4. Stainless steel pumps – Spare parts list

Pos.

Q-ty

Description

Material

Booster - 990

Booster mounting plate

AISI 304

996

Booster mounting screw

A4-70

997

Booster mounting washer

A4-80

Additional nuts

A4-70

Additional washers

A4-70

147

Pin screws with long thread

A4-80

5. SPARE PARTS

IOM manual Tapflo TF series 32

5.5. Aluminium / cast iron pumps

5.6. Aluminium / cast iron pumps – Spare parts list

Pos.

Q-ty

Description

Material

Booster

990

Booster mounting plate

AISI 304

996

Booster mounting screw

A4-70

997

Booster mounting washer

A4-80

Additional nuts

A4-70

Additional washers

A4-70

147

Special pin screw

AISI 316L

5.7. Stocking recommendation

Even at normal operation some elements in the pump will be worn. In order to avoid expensive breakdowns we recommend having a few spare parts in stock.

Depending on the severity of the operation and the importance of assuring continuous work we offer three different spare part for plastic pumps: KIT LIQ and KIT VAL includes parts on pump wetted side, KIT AIR includes parts on the pump air side and that are subject to wear and two spare part kits for metal pumps: KIT LIQ and KIT AIR. Please refer to specific series IOM manual for further details on the contents of each KIT and contact Tapflo for KIT pricing.

It is also available to purchase spare part KITs for our FESTO pressure boosters:

SET

Description

Contents

KIT 6-050-99

Set of wearing parts

Piston module, retaining rings, seals and O-rings, sliding piece, compression spring, perforated disk

KIT 6-100-99

Set of wearing parts

O-rings and seals, countersunk screw, lip ring, retaining rings, distance sleeves, cone, compression spring, , sealing piston, guiding band

KIT 6-200-99

Set of wearing parts

O-rings and seals, lip ring, retaining rings, cone, compression spring, , sealing piston, guiding band, stop, cartridge

5. SPARE PARTS

IOM manual Tapflo TF series 33

5.8. How to order parts

When ordering spare parts for Tapflo pumps, please let us know what is the model number and serial number from the pump centre body or housing. Then just indicate

the part numbers from the spare parts list and quantity of each item.

5.9. Pump code

The model number on the pump and on the front page of this instruction manual tells the pump size and materials of the pump. I. Tapflo diaphragm pump

IV. Material of wetted metal parts

II. Basic options

V. Material of diaphragms

III. Max capacity [l/min]

VI. Material of valve balls

VII. Special executions

100

T T -7PV

I. T = Tapflo diaphragm pump

II. Basic options:

B = Backup diaphragm pump D = Drum pump F = Filter-press pump T = Twin inlet/outlet pump X = ATEX approved, group II, cat. 2

IV. Material of wetted metal parts:

P = PE T = PTFE S = Stainless steel AISI316L A = Aluminium C = Cast Iron

V. Material of diaphragms:

E = EPDM N = NBR (nitrile rubber) T = PTFE B = PTFE TFM 1705b V = FKM (T50 and T70 only)

VI. Material of valve balls:

E = EPDM N = NBR (nitrile rubber) T = PTFE S = AISI 316 stainless steel P = PU (polyurethane) K = Ceramic V = FKM B = PTFE TFM 1635

VII. Special executions:

1 = Optional in/outlet material 2 = Valve seat insert 3 = Optional connection type 4 = Backup diaphragm system configuration 5 = Other special executions 6 = Optional material of centre body 7 = Optional material of air valve 8 = Optional material of pos. 18 seals 9 = Optional material of housing pin screws 11 = Housing reinforcement plates 13 = Twin in-/outlet options 14 = Optional pump feet 19 = Filter press pumps special options

6. DATA

IOM manual Tapflo TF series 34

6. DATA

6.1. Capacity curves

The performance curves are based on water at 20°C. Other circumstances might change the performance. See below how the capacity will change at different viscosities and suction lifts.

6. DATA

IOM manual Tapflo TF series 35

Recommended flow is half of the max flow, e.g. recommended flow for a TF50 is 25 l/min.

6.2. Capacity changes

Capacity changes at different suction lifts

Capacity changes at different viscosities

6. DATA

IOM manual Tapflo TF series 36

6.3. Technical data

TECHNICAL DATA

PUMP SIZE

TF50

TF100

TF200

TF400

Max capacity* [l/min] / [US GPM]

55 / 14.5

110 / 29

200 / 53

400 / 106

Volume per stroke** [ml] / [cu in]

87.5 / 5.34

280 / 17.1

933 / 56.9

2300 / 140.3

Max discharge pressure [bar] / [psi]

16 / 232

12 / 174

Max air pressure [bar] / [psi]

8 / 116

6 / 87

Max suction lift dry*** [m] / [Ft]

2.5 / 8

3.5 / 11

4 / 13

Max suction lift wet [m] / [Ft]

8 / 26

Max size of solids ø in [mm] / [in]

4 / 0.16

6 / 0.24

10 / 0.39

15 / 0.59

Max temp. pump in PE [°C] / [°F]

70 / 158

Weight of pump in PE [kg] / [lb]

8 / 17.6

21.6 / 47.6

49 / 108

78 / 172

TECHNICAL DATA

PUMP SIZE

TF70

TF120

TF220

TF420

Max capacity* [l/min] / [US GPM]

55 / 14.5

110 / 29

200 / 53

400 / 106

Volume per stroke** [ml] / [cu in]

87.5 / 5.34

280 / 17.1

933 / 56.9

2300 / 140.3

Max discharge pressure [bar] / [psi]

16 / 232

14 / 203

12 / 174

Max air pressure [bar] / [psi]

8 / 116

7 / 101.5

6 / 87

Max suction lift dry*** [m] / [Ft]

3 / 9.8

4 / 13

Max suction lift wet [m] / [Ft]

8 / 26

Max size of solids ø in [mm] / [in]

4 / 0.16

6 / 0.24

10 / 0.39

15 / 0.59

Max temperature with EPDM/NBR [°C] / [°F]

80 / 176

Max temperature with PTFE [°C] / [°F]

110 / 230

Weight in aluminium [kg] / [lb]

11 / 24.3

16.3 / 35.9

35 / 77.2

51.6 / 113.8

Weight in AISI 316 [kg] / [lb]

16 / 35.3

23.5 / 51.8

51.6 / 113.8

69 / 152.1

* = Max flow is obtained when using a bypass around the pressure booster at low pressure. ** = Based on pumps with EPDM diaphragms. Pumps with PTFE diaphragms have about 15% less volume. *** = With stainless steel valve balls, other materials may reduce suction. Please consult us in this matter.

6. DATA

IOM manual Tapflo TF series 37

6.4. Dimensions

Dimensions in mm (where other is not indicated)

Dimensions in inch (where other is not indicated)

General dimensions only, ask us for detailed drawings. Changes reserved without notice.

6.4.1. Plastic pumps

DIM

PUMP SIZE

100

200

400 A 172

319

398

6.77

12.56

15.67

150

200

270

350

5.91

7.87

10.63

13.78

167

274

341

405

6.57

10.79

13.43

15.94

196

260

360

436

7.72

10.24

14.17

17.17

276

444

620

691

10.87

17.48

24.41

27.20

343

364

500

610

10.35

14.33

19.69

24.02

352

351

501

583

13.86

13.82

19.72

22.95 F 15

0.59

1.18

116

140

210

290

4.57

5.51

8.27

11.42

130

155

254

322

5.12

6.10

10.00

12.68 I 20

0.79

1.10

1.50

1.89

190

252

345

440

7.48

9.92

13.58

17.32 J 1/2"

1 1/2"

1/2 1 1 1/2

2 K 25

7.48

9.92

13.58

17.32

M8x25

M8x20

G1/8" /

DN10

G1/4" /

DN10

G1/2" /

DN10

G1/2" /

DN10

G1/8 /

DN10

G1/4 /

DN10

G1/2 /

DN10

G1/2 / DN10

6. DATA

IOM manual Tapflo TF series 38

6.4.2. Stainless steel pumps

DIM

PUMP SIZE

120

220

420 A 172

319

398

6.77

12.56

15.67

150

200

272

352

5.91

7.87

10.71

13.86

160

239

342

389

6.30

9.41

13.46

15.31

156

205

282

347

6.14

8.07

11.10

13.66

253

407

560

624

9.96

16.02

22.05

24.57

229

309

422

529

9.02

12.17

16.61

20.83

165

332

464

551

6.50

13.07

18.27

21.69

116

160

210

280

4.57

6.30

8.27

11.02

129

158

214

284

5.08

6.22

8.43

11.18

0.75

1.06

1.50

1.73

192

257

348

443

7.56

10.12

13.70

17.44

1/2"

1 1/2"

1/2 1 1 1/2

1.57

2.05

2.76

3.15

8.5

0.33

0.39

G1/8" /

DN10

G1/4" /

DN10

G1/2" /

DN10

G1/2" /

DN10

G1/8 /

DN10

G1/4 /

DN10

G1/2 /

DN10

G1/2 / DN10

6. DATA

IOM manual Tapflo TF series 39

6.4.3. Aluminium / cast iron pumps

DIM

PUMP SIZE

120

220

420

172

319

398

6.77

12.56

15.67

151

200

275

356

5.94

7.87

10.83

14.02

167

198

267

342

6.57

7.80

10.51

13.46

265

405

542

637

10.43

15.94

21.34

25.08

222

302

418

539

8.74

11.89

16.46

21.22

167

331

467

559

6.57

13.03

18.39

22.01 G 116

160

220

280

4.57

6.30

8.66

11.02

129

158

210

280

5.08

6.22

8.27

11.02 I 22

0.87

1.06

1.34

1.85

190

252

346

448

7.48

9.92

13.62

17.64 J 1/2"

1 1/2"

1/2 1 1 1/2

2 K 29

1.14

1.30

1.77

3.15 L 10

0.39

G1/8" /

DN10

G1/4" /

DN10

G1/2" /

DN10

G1/2" /

DN10

G1/8 /

DN10

G1/4 /

DN10

G1/2 /

DN10

G1/2 / DN10

6. DATA

IOM manual Tapflo TF series 40

6.5. Tightening torques

The following tightening torques are recommended.

PUMP SIZE

MOUNTING TORQUE [Nm]

TF50, TF70 S

TF100, TF120 S

TF200, TF220 S

TF400, TF420 S

TF70 A/C

TF120 A/C

TF220 A/C

TF420 A/C

6.6. Permitted loads on manifolds

We recommend not to exceed the following loads and forces reacting on the manifolds.

TF50

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

5,3

TF100

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

6,1

TF200

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

7,4

TF400

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

9,6

6. DATA

IOM manual Tapflo TF series 41

TF70

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

6,3

TF120

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

7,3

TF220

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

8,8

TF420

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

11,5

6. WARRANTY

IOM manual Tapflo TF series 42

7. WARRANTY

7.1. Warranty form

Company:

Telephone:

Fax:

Address:

Country:

Contact Name:

E-mail:

Delivery Date:

Date of pump installation:

Pump type:

Serial No (see name plate or stamped on pump housing):

Description of the fault:

The installation:

Liquid:

Temperature [°C]:

Viscosity [cPs]:

Spec grav. [kg/m3]:

pH-value:

Content of particles:

%, of max size [mm]:

Flow [l/min]:

Duty [h/day]:

No of starts per day:

Discharge head [mWC]:

Suction head / lift [m]:

Air pressure [bar]:

Quality of the air (filter, micron, lubrication):

Other:

Place for sketch of installation:

6. WARRANTY

IOM manual Tapflo TF series 43

7.2. Returning parts

When returning parts to Tapflo please follow this procedure:

 Consult Tapflo for shipping instructions.  Cleanse or neutralize and rinse the part/pump. Make sure the part/pump is

completely empty from liquid.

 Pack the return articles carefully to prevent any damage during transportation.

Goods will not be accepted unless the above procedure has been complied with.

7.3. Warranty

Tapflo warrants products under conditions as stated below for a period of not more than 5 years from installation and not more than 6 years from date of manufacturing.

1. The following terms and conditions apply to the sale of machinery, components and

related services and products, of Tapflo (hereinafter “the products”).

2. Tapflo (the manufacturer) warrants that:

a. its products are free of defects in material, design and workmanship at the time of

original purchase;

b. its products will function in accordance with Tapflo operative manuals; Tapflo does

not guarantee that the product will meet the precise needs of the Customer, except for those purposes set out in any invitation to render documents or other documents specifically made available to Tapflo before entering into this agreement;

c. high quality materials are used in the construction of the pumps and that machining

and assembly are carried out to the highest standards.

Except as expressly stated above, Tapflo makes no warranties, express or implied,

concerning the products, including all warranties of fitness for a particular purpose.

3. This warranty shall not be applicable in circumstances other than defects in material,

design, and workmanship. In particular warranty shall not cover the following:

a. Periodic checks, maintenance, repair and replacement of parts due to normal wear

and tear (seals, O-rings, rubber items, diaphragms, air valves etc..);

b. Damage to the product resulting from:

b.1. Tampering with, abuse or misuse, including but not limited to failure to use the

product for its normal purposes as stated at the time of purchase or in accordance with Tapflo instructions for use and maintenance of the product, or the installation or improper ventilation or use of the product in a manner inconsistent with the technical or safety standard in force;

b.2. Repairs performed by non-skilled personnel or use of non-original Tapflo parts;

6. WARRANTY

IOM manual Tapflo TF series 44

b.3. Accidents or any cause beyond the control of Tapflo, including but not limited

to lightning, water, fire, earthquake, and public disturbances, etc.;

4. The warrantee shall cover the replacement or repairing of any parts, which is documented

faulty due to construction or assembling, with new or repaired parts free of charges delivered by Tapflo. Parts subjected to normal tear and wear shall not be covered by the warranty. Tapflo shall decide as to whether the defective or faulty part shall be replaced or repaired.

5. The warrantee of the products shall be valid for a period in accordance to the current law

from the date of delivery, under the condition that notice of the alleged defect to the products or parts thereof be given to Tapflo in written within the mandatory term of 8 days from the discovery. Repair or replacement under the terms of this warranty shall not give a right to an extension to, or a new commencement of, the period of warranty.

6. Repair or replacement under the terms of this warranty shall not give a right to an

extension to, or a new commencement of, the period of warranty. Repair or replacement under the terms of this warranty may be fulfilled with functionally equivalent reconditioned units. Tapflo qualified personnel shall be solely entitled to carry out repair or replacement of faulty parts after careful examination of the pump. Replaced faulty parts or components will become the property of Tapflo.

7. The products are built in accordance with standard CE normative and are tested (where

applicable) by Tapflo. Approval and tests by other control authority are for the customer’s account. The products shall not be considered defective in materials, design or workmanship if they need to be adapted, changed or adjusted to conform to national or local technical or safety standards in force in any country other than that for which the unit was originally designed and manufactured. This warranty shall not reimburse such adaptations, changes or adjustments, or attempt to do so, whether properly performed or not, nor any damage resulting from them, nor any adaptation, change or adjustments to upgrade the products from their normal purpose as described in the products operative manual without the prior written consent of Tapflo.

8. Installation, including electric and other connections to utility mains according to Tapflo

drawings, is for the cost and responsibility of the customer, unless otherwise agreed in writing.

9. Tapflo will not be liable on any claim, whether in contact, tort, or otherwise, for any

indirect, special, incidental, or consequential damages, caused to the customer or to third parties, including loss of profits, arising by any possible infringement of par. 3 above or by the customer or third parties being in the impossibility of using the products.

Steady the above, Tapflo liability to the customer or third parties from any claim, whether in contract, tort, or otherwise, shall be limited to the total amount paid by the customer for the product that caused the damages.

Tapflo Group Companies

Austria

Tapflo Austria Tel: +43 732 27292910 sales@tapflo.at

Azerbaijan

Tapflo Azerbaijan LLC Tel: +994 502660799 sales@tapflo.az

Baltic States

Tapflo Latvia Tel: +371 67472205 sales@tapflo.lv

Belarus

Tapflo Belarus Tel: +375 17 3934609 sales@tapflo.by

Bulgaria

Tapflo EOOD Tel: +359 (2) 974 18 54 office@tapflo.org

Canada

Tapflo Canada Tel: +1 514 813 5754 canada@tapflo.com

Croatia

Tapflo GmbH Tel: +385 91 4884 666 sales@tapflo.hr

Czech Republic

Tapflo s.r.o. Tel: +420 513033924 tapflo@tapflo.cz

China

Tapflo (Wuxi) Tel: +86 510 8241 7602 sales@tapflo.cn

Denmark

Tapflo Danmark Tel: +45 36 454600 info@tapflo.dk

France

Tapflo France Tel: +33 1 34 78 82 40 info@tapflo.fr

Georgia

Tapflo Georgia Tel: +995 577 463010 sales@tapflo.ge

India

Tapflo Fluid Handling India Pvt Ltd Tel: +91 20 65000215 ad@tapflo.in

Ireland

Tapflo Ireland Ltd Tel: +353 1 2011911 info@tapflo.ie

Italy

Tapflo Italia Tel: +39 0362307698 info@tapfloitalia.com

Japan

Tapflo Japan K.K. Tel: +81-3-6240-3510 tapflojp@tapflo.co.jp

Kazakhstan

Tapflo Kazakstan Tel: +7 727 3278347 sales@tapflo.kz

Poland

Tapflo Sp. z o.o. Tel: +48 58 530 42 00 info@tapflo.pl

Romania

S.C. Tapflo Rom. S.r.l. Tel: +40 21 3451255 sales@tapflo.ro

Russia

Tapflo Company Tel: +7 495 232 18 28 sales@tapflo.com.ru

Serbia

Tapflo d.o.o. Tel: +381 21 44 58 08 sales@tapflo.rs

Slovakia

Tapflo s.r.o. Tel: +421 911 137 883 tapflo@tapflo.sk

Slovenia

Tapflo GmbH Tel: +386 68 613 474 sales@tapflo.hr

Spain

Tapflo Iberica Tel: +34 91 8093182 avives@tapfloiberica.es

South Africa

Tapflo (Pty) Ltd Tel: +27 31 701 5255 sales@tapflo.co.za

Turkey

Tapflo Makina Ltd Tel: +90 216 467 33 11 sales@tapflo.com.tr

Ukraine

TOB Tapflo Tel: +380 44 222 68 44 sales@tapflo.com.ua

Uzbekistan

Tapflo Uzbekistan Tel.: +998 712370940 sales@tapflo.uz

United Kingdom

Tapflo (UK) Ltd Tel: +44 2380 252325 sales@tapflopumps.co.uk

TAPFLO AB

Sweden

Filaregatan 4 | S-442 34 Kungälv

Tel: +46 303 63390 Fax: +46 303 19916

E-mail addresses: Commercial questions: sales@tapflo.com Orders: order@tapflo.com Tech support: support@tapflo.com

Tapflo products and services are available in 75 countries on 6 continents.

Tapflo is represented worldwide by own Tapflo Group Companies and carefully selected distributors assuring highest Tapflo service quality for our customers’ convenience.

TapFlo TF50, TF100, TF120 S, TF220 S, TF420 S Original Instruction

Specifications and Main Features

Frequently Asked Questions

User Manual
