0. GENERAL

IOM manual CTM mag drive pumps 4

0. GENERAL

0.1. Introduction

CTM is a compact and reliable magnetically driven centrifugal pump made in PP and PVDF.
With proper attention to maintenance, CTM pumps will give efficient and trouble free
operation. This instruction manual will familiarise operators with detailed information about
installing, operating and maintaining the pump.

0.2. Warning symbols

The following warning symbols are present in this instruction manual. This is what they say:

This symbol stands next to all safety instructions in this instruction manual
where danger to life and limb may occur. Observe these instructions and
proceed with utmost caution in these situations. Inform also other users of all
safety instructions. In addition to the instructions in this instruction manual, the
general safety and accident prevention regulations must be observed.

This signal stands at points in this instruction manual of particular importance
for compliance with regulations and directives, for correct work flow and for the
prevention of damage to and destruction of the complete pump or its
subassemblies.

This symbol indicates possible danger caused by strong magnetic field in the
vicinity of the pump.

This symbol signals possible danger caused by the presence of electric fields or
live wires.

0.3. Qualification and training of personnel

The personnel in charge of installation, operation and maintenance of the pumps we
produce must be qualified to carry out the operations described in this manual. Tapflo shall
not be held responsible for the training level of personnel and for the fact that they are not
fully aware of the contents of this manual.

1. INSTALLATION

IOM manual CTM mag drive pumps 5

1. INSTALLATION

1.1. Operation principle

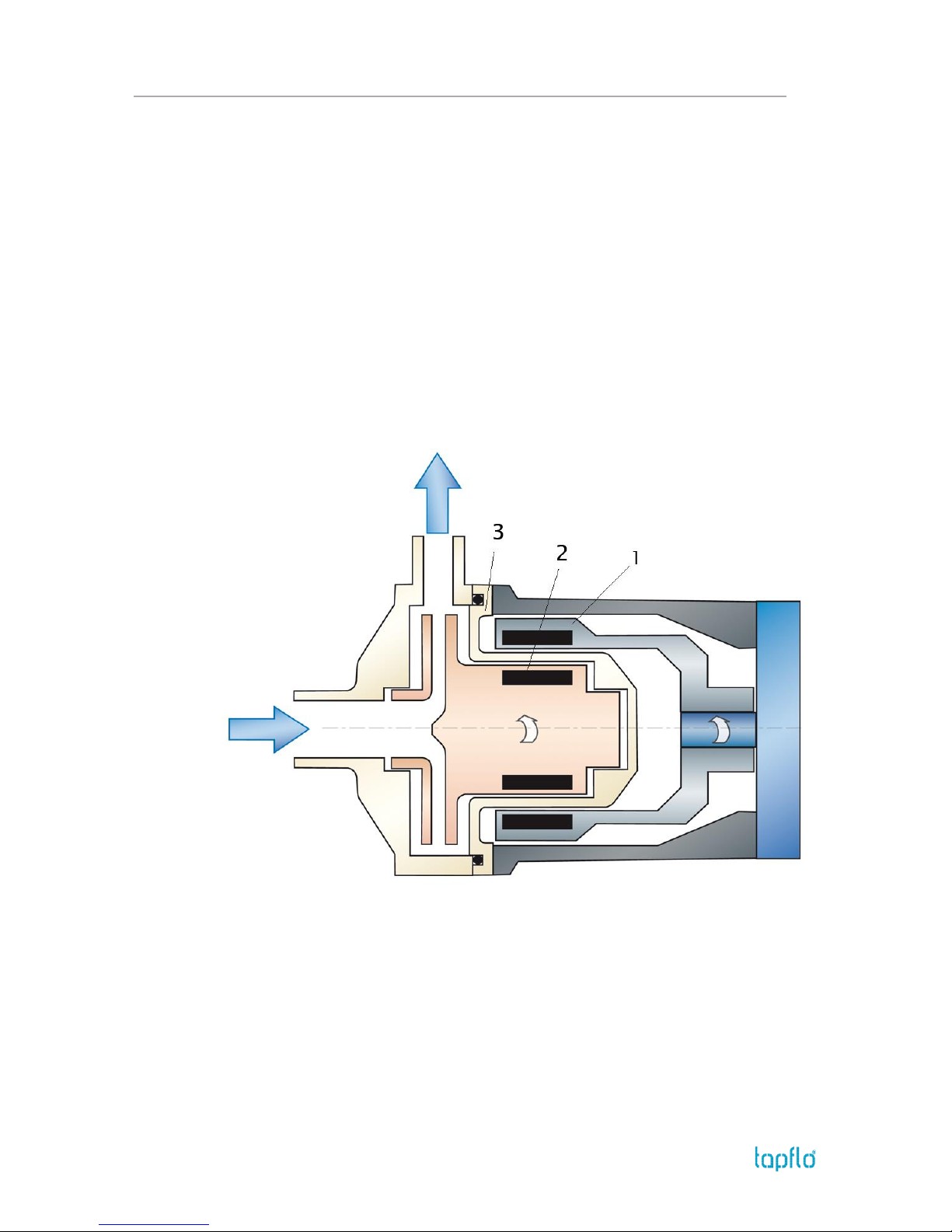

In the CTM pump the torque from the motor shaft is transmitted to the impeller by means
of a magnetic coupling. The drive magnet (1) is fixed on the motor shaft. The magnets
installed in the drive magnet and in the impeller/magnet assembly (2) have different polarity.
When the pump is at rest, the magnets of both parts are aligned. When the motor is started
and the drive magnet starts to rotate, the magnets create an attraction and repulsion force
thus forcing the impeller to rotate. If the impeller gets blocked or the pumped liquid will be
too dense and too much torque will be generated on the motor shaft, the magnet will de­couple and no damaged will be done to the motor. When the pump will come to a stop, the
magnets will re-couple. Between both magnet assemblies there is located an isolation shell
(3) that separates the liquid side from the motor side.

1.2. Receiving inspection

Although precaution is taken by us when packing and shipping, we urge you to carefully
check the shipment on receipt. Make sure that all parts and accessories listed on the packing
list are accounted for. Immediately report any damage or shortage to the transport company
and to us.

1. INSTALLATION

IOM manual CTM mag drive pumps 6

1.3. Storage

If the equipment is to be stored prior to installation, place it in a clean location. Clean the
pump thoroughly before installation.

1.4. Foundation

The pump-motor unit must stand on and be fixed to a sufficiently rigid structure that can
support the entire perimeter on which the unit stands. The foundation on a firm bottom is
the most satisfactory. Once the pump is in position, adjust level with metal shims between
the feet and the surface on which it stands. Check that the feet of the pump-motor unit stand
well on each of them. The surface on which the foundation stands must be flat and horizontal.
If the unit is fitted on a steel structure, make sure that it is supported so that the feet do not
warp. In any case, it is advisable to fit some anti-vibration rubber pieces between the pump
and the brickwork.

For close-coupled type, pump motor alignment is not required.

1.5. Environment

➢ There should be enough space in the vicinity of the pump in order to operate, maintain

and repair it.

➢ The area in which the pump is operated, must be sufficiently ventilated. Excessive

temperature, humidity or dirt may affect the pump operation.

➢ Behind the cooling fan of the motor there must be sufficient room for the hot air to

escape the motor.

1.6. Suction and discharge piping

A pump is generally part of a piping system that can include a number of components such
as valves, fittings, filters, expansion joints, instruments, etc. The way the piping is arranged
and the positioning of the components has a great influence on the operation and the
lifetime of the pump. The pump cannot be used as a support for the components connected
to it.

The flow of liquid from the pump must be as even as possible. It is advisable to avoid any
tight bends or drastic reductions of diameters that may cause flow resistance in the
installation. In case of diameter reduction, it is advisable to use appropriate conical reductions
(possibly eccentric on suction side and concentric on discharge side) at changes of diameter
and at a minimum distance from pump connections of five diameters.

1.6.1. Connection of discharge pipe

A shut-off / regulation valve is normally fitted on the discharge side. It cuts off the pump
from the line and adjusts the output. Never adjust flow rate using the valve on the suction
pipe.

1. INSTALLATION

IOM manual CTM mag drive pumps 7

1.6.2. Connection of suction pipe

The suction piping is very important for the correct operation of the pump assembly. It must
be as short and as direct as possible. If a longer suction line is unavoidable, the diameter
should be large enough, i.e. at least as the inlet connection on the pump, to ensure less flow
resistance. In any case, suction must be carried out properly avoiding any air locks.

The CTM pumps are single-stage centrifugal type, thus non self-priming. It will therefore
always be necessary to install a bottom valve in all cases when the static height of the liquid
is lower than the suction height of the pump. The suction piping must be without air inlets
that are more probable with long suction lines or if suction occurs with negative head. Critical
points in these terms are also the seals between flanges and the seals of the valve stems.
Even a bit of air let into the suction line can cause serious operating problems that can make
the pump stop.

1.7. Health and safety

The pump must be installed according to local and national safety rules.

The pumps are constructed for particular applications. Do not use the pump on
applications different from that for which it was sold without consulting us to ascertain
its suitability.

1.7.1. Protection

In the interest of health and safety it is essential to wear protective clothing and safety
goggles when operating, and/or working in the vicinity of Tapflo pumps.

1.7.2. Electrical safety

Do not carry out any maintenance or/and operation on the pump while it is running or before
it has been disconnected from the power supply. Avoid any danger caused by electric power
(for details see current regulations in force). Check that electrical specifications on the motor
nameplate are equivalent to the power supply to which it will be connected.

1.7.3. Chemical hazard

Whenever the pump is to be used for pumping a different liquid, it is essential to clean the
pump beforehand in order to avoid any possible reaction between the two products.
Before pump disassembly clean it thoroughly.

1.7.4. Dry running

Do not start nor carry out running tests before filling the pump with liquid. Always avoid dry
operation of the pump. Start the pump when it is completely filled and with the valve on the
discharge side almost completely closed.

1. INSTALLATION

IOM manual CTM mag drive pumps 8

1.7.5. Noise level

CTM pumps, including the motor, in normal operating conditions produce a sound level
below 80 dB(A). The major sources of noise are: liquid turbulence in the installation, cavitation
or any other abnormal operation that is independent from the pump construction nor the
pump manufacturer. The user must provide suitable protective means if the sources of noise
could produce a harmful noise level for operators and for the environment (in compliance
with current local regulations).

1.7.6. Temperature hazards

Raised temperature can cause damage on the pump and/or piping and may also be
hazardous for personnel in the vicinity of the pump/piping. The hot or cold parts of the
machine must be protected to avoid accidental contacts

1.7.7. Rotating parts

Do not tamper with the protection of the rotating parts, do not touch or approach rotating
parts in movement.

1.7.8. Powerful magnetic field

Magnetically driven pumps use high intensity magnets. All pacemaker carriers must not
approach magnetic components; intense magnetic field can disturb heart pace.

1.8. Solids

It is not recommended to use liquid with suspended solids, especially if sensitive to
magnetism. In case dirty liquids are to be pumped and this was not mentioned at the time
of ordering, it is necessary to contact Tapflo technical service before activating the pump.
Acceptable solid size for all CTM pumps is 0,1 mm (100 microns).
Maximum solids concentration by weight is 2%.

1. INSTALLATION

IOM manual CTM mag drive pumps 9

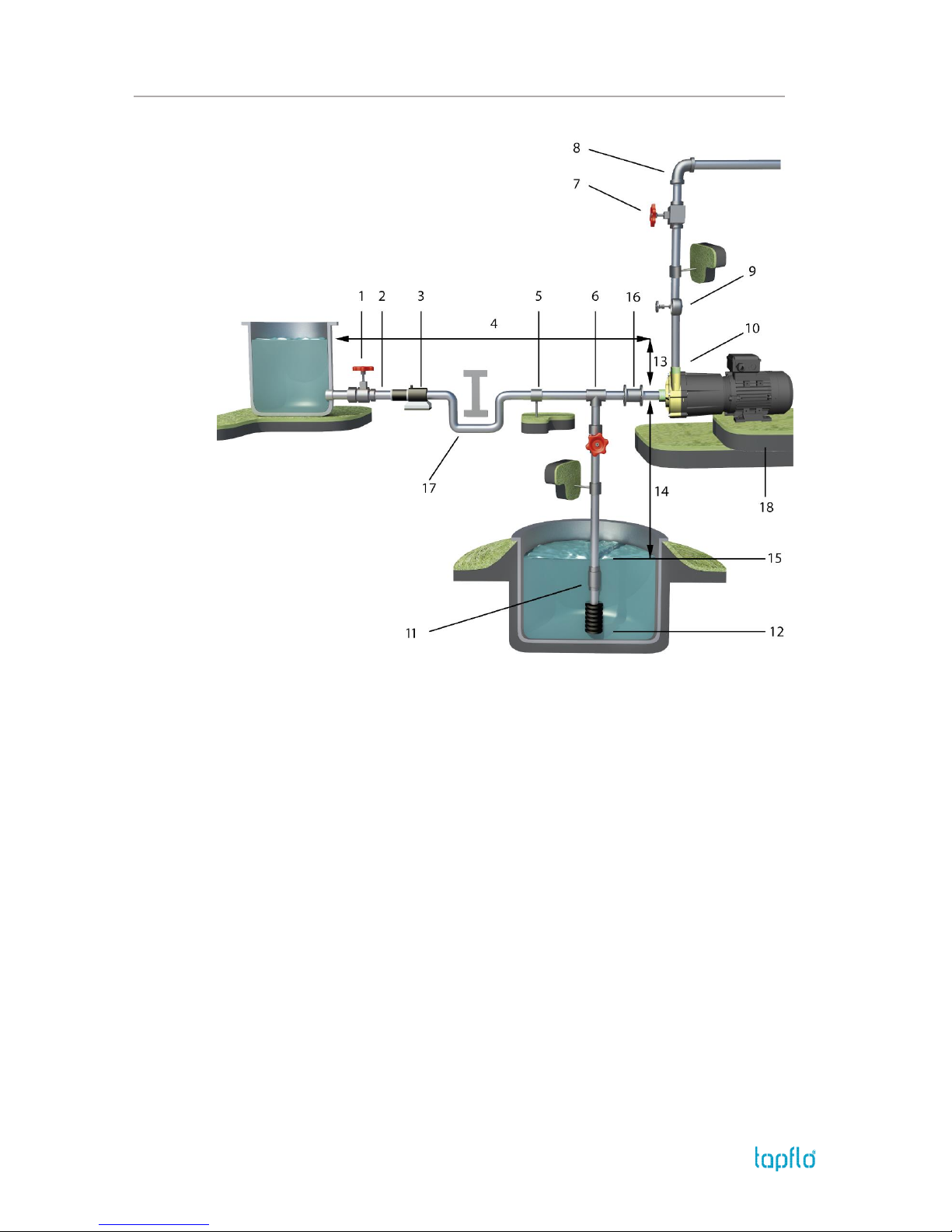

1.9. Example of installation

1) YES: Gate valve (may also be near pump in case of long piping)

2) With positive head: tilt of piping towards pump

3) YES: line strainer if particles are present

4) NO: air pockets – the circuit must be short and straight

5) YES: pipe fastening

6) Suction line as short and direct as possible

7) YES: adjusting gate valve on outlet

8) Bends placed after valves and instruments

9) YES: attachment for gauge or safety pressure switch

10) NO: elbow joints (and other parts) on the pump (discharge and suction lines)

11) YES: check valve (with negative suction lift)

12) YES: strainer if particles are present

13) Suction head varies according to flow in order to prevent windage

14) Suction head

15) Immersion depth

16) YES: expansion joint (necessary with long pipes or hot liquids) and/or anti-vibration

facility during discharge and suction; anchored near to pump

17) YES: overcoming obstacles at lower depths

18) Fix the pump by the fixing holes provided: the supports must be level

1. INSTALLATION

IOM manual CTM mag drive pumps 10

1.10. Instruments

In order to ensure a proper control of the performance and the conditions of the installed
pump, we recommend using the following instruments:

- a pressure-vacuum gauge on the suction piping;

- a pressure gauge on the discharge piping.
The instruments must be installed on straight pieces of piping at a distance not bigger than
five diameters of the pipeline from the pump connections. The pressure gauge on discharge
must always be fitted between the pump and the shut-off / regulation valve. The output can
be read on the pressure gauge, transformed into meters and then compared with the typical
curves.

1.10.1. Electric power

The electric power absorbed by the motor can be measured by means of a wattmeter.

1.10.2. Optional instruments

The optional instruments can indicate if pump is working in an abnormal way. The abnormal
conditions can be caused by: accidentally closed valves, lack of pumped liquid, overloads,
etc.

1.10.3. Thermometer

If the temperature of the pumped liquid is a critical parameter, provide the installation with
a thermometer (preferably on the suction side).

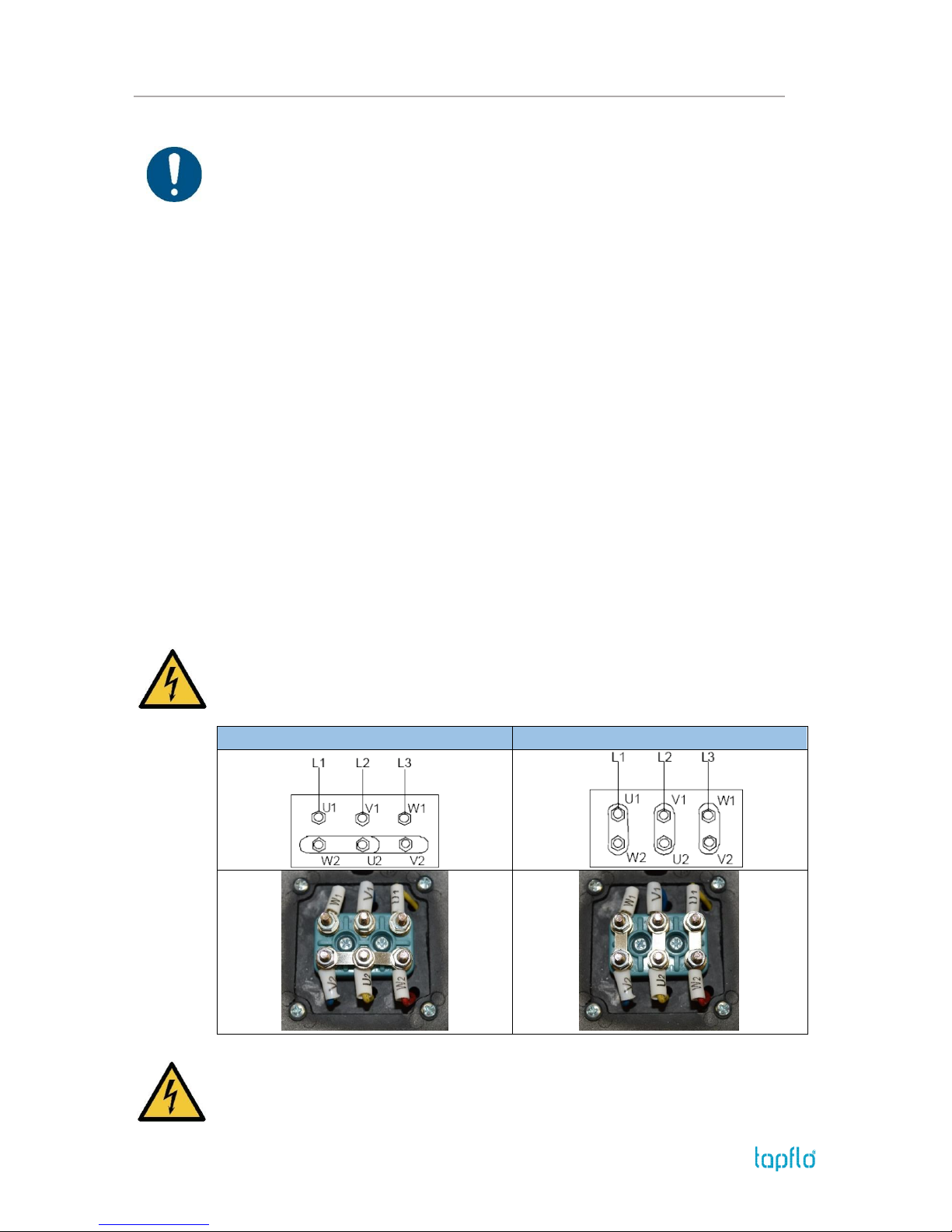

1.11. Motor connection

An expert electrician must always carry out the electrical connection. Compare the power
supply with the data plate specifications and then choose a suitable connection. The type of
connection is stated on the motor data plate and can be Y (star) or D (Delta), according to
the power supply of the motor (see table below).

STAR

DELTA

Follow the connection standard used in the plant. In no case connect the electrical motor
directly to supply network but use a suitable electric switchboard equipped with a knife
switch and suitable safety devices (e.g. motor breaker switches) in the power circuit. Safety

1. INSTALLATION

IOM manual CTM mag drive pumps 11

devices against overloads must also protect the motors. Make sure that the motor has
suitable grounding and that it has been connected properly.

2. OPERATION

2.1. Start-up

➢ Check manually that the motor is free to turn by moving the motor cooling fan.

➢ Make sure that the piping is not clogged and is free from residues or foreign objects.

Make sure that the liquid flows regularly into the pump.

➢ The pump and piping connected to it, at least the suction pipe, must be full of liquid.

Any air or gas must be carefully released. In case of suction with negative head, fill the
suction piping and check how the bottom valve works. It must guarantee that the liquid
must not flow back, emptying therefore the suction pipe and eventually disconnection
of the pump.

➢ The suction shut-off valve (if any) must be completely open.

➢ The shut-off / regulation valve on the discharge side must be completely closed.

➢ The motor must turn in the same direction as the arrow shown on the pump. The

direction of rotation is always clockwise looking at the pump from the motor side; check
by starting briefly, then looking at the direction of rotation of the motor fan through the
fan lid. If it is wrong, the motor must be stopped immediately. Change the connection
to the terminals of the electric motor (chapter 1.11 “Motor connection”) and repeat the
procedure described above.

➢ Any auxiliary connections must all be connected.

2.1.1. Starting the pump

Start the electric motor and open the discharge adjustment/shutoff valve gradually until the
desired output has been reached. The pump must not turn more than two or three minutes
with discharge closed. A longer operation in these conditions can damage the pump
seriously.

If the pressure shown on the pressure gauge on the discharge piping does not increase, turn
off the pump immediately and release pressure carefully. Repeat the connection procedure.

If there are changes of flow rate, head, density, temperature or viscosity of the liquid, stop
the pump and get in touch with our technical service.

2. OPERATION

IOM manual CTM mag drive pumps 12

2.1.2. Restarting after power shut-off

In case of accidental stopping, make sure that the non-return valve has prevented backflow
and check that the motor cooling fan has stopped. Start the pump again following the
instructions of chapter 2.1.1 ”Starting the pump”.

2.2. Stopping the pump

It is advisable to close the discharge shut-off / regulation valve gradually and stop the motor
immediately after. The reverse sequence is not recommended, especially with larger pumps
or longer delivery piping. That is to avoid any problems due to water hammering. If a suction
shutoff valve has been installed, it is advisable to close it completely.

3. MAINTENANCE

IOM manual CTM mag drive pumps 13

3. MAINTENANCE

Maintenance work on electrical installations must be performed by qualified
personnel and only when the power supply has been shutoff. Follow the local
and national safety regulations.

3.1. Inspections

The CTM range pumps have been designed and tested to run for 5000 hours in ideal
working conditions. Please note that it is a conservative figure since the actual duty point of
your pump can substantially modify this value. Additional factors such as intermittent
operation, type of pumped liquid and installation in the plant may affect the life of
components that are subject to wear. In any case, Tapflo advises to service pumps every
year, even when used in ideal operating conditions.

➢ Periodically check suction and discharge pressures.
➢ Inspect the motor according to the instructions from the motor manufacturer.

3. MAINTENANCE

IOM manual CTM mag drive pumps 14

3.2. Location of faults

Leakage form the pump

Insufficient flow rate or pressure in

pump

No pressure on the

discharge

side

Irregular discharge flow /

pressure Noise and vibrations The pump gets clogged Overheating of the pump Abnormal wear Bushing life too short

Possible reason

Solution

X X X

Wrong direction of rotation

Invert the direction of rotation

X X X X

Insufficient suction head (NPSH)

Increase available NPSH:

X

Pump is clogged

Clean the pump

X X X X X

Cavitation

Increase suction pressure

X X X X

The pump sucks air

Make sure all connections are tight

X X X

Suction pipe is blocked

Check pipes / valves and filters on the suction
line

X X

Discharge pressure too high

Reduce the head by increasing pipe diameter
and/or reduce number of valves and bends

X X

Flow rate too high

Reduce the flow:

X X X X X X

Liquid temperature too high

Cool the liquid

X X

Pump runs dry

Always fill pump before start-up

X

Wrong material of bushings for the liquid

Mount bushings in other material (contact us)

X X

Loads on the pipes

Connect the pipes independent of the pump

X X X X

Foreign objects in the liquid

Use a filter on the suction side

X

Shut-off valve closed on suction side

Check and open the valve

X

Discharge pressure too low

Increase the pressure – install an impeller with
a bigger diameter (contact us)

X X

Pump is not filled with liquid

Fill pump with liquid

X X

Liquid parameters different than calculated

Check pumped liquid parameters

X X

Magnetic coupling damaged or insufficient

Check and replace magnet assemblies

X

Rotating unit out of balance

Check and replace magnet assemblies

X X

Inner bushes worn or damaged

Check bushing and replace if necessary

3. MAINTENANCE

IOM manual CTM mag drive pumps 15

3.3. Disassembly of the pump

The disassembly should only be performed by qualified personnel.

Each operation carried out on the machine must always be carried out once all the electrical
contacts have been disconnected. The pump-motor unit must be placed in a position where
it cannot be started unintentionally.

Before servicing in any way the parts that come in contact with the pumped liquid, make sure
that the pump has been fully emptied and washed. When draining the liquid, make sure that
there is no danger for people or the environment.

The static and rotating bushings are usually made from very fragile sintered material and
therefore have to be handled with extreme care.

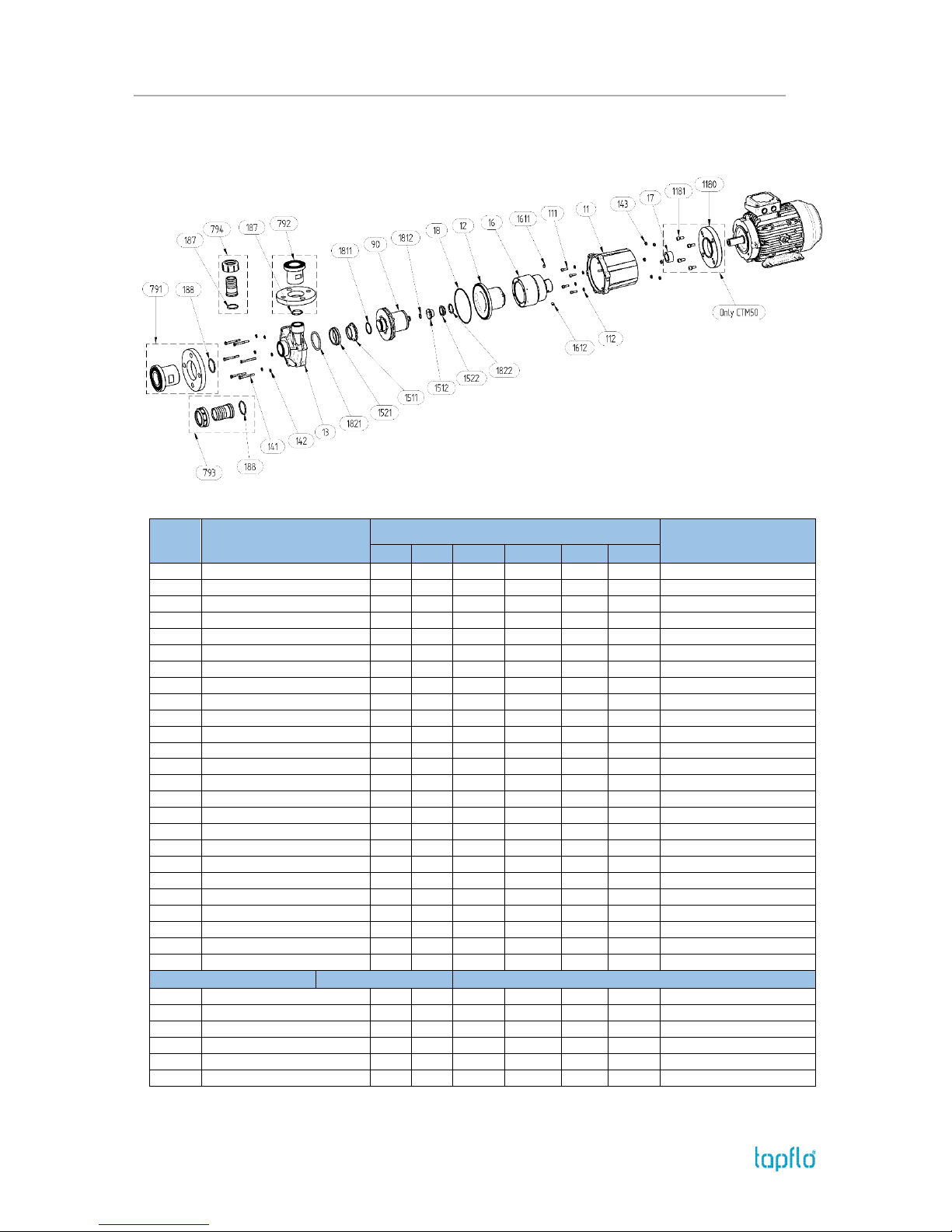

The numbers put in brackets, refer to the part numbers in the spare part drawings and spare
part lists in chapter 4 “Spare parts”.

3.3.1. Disassembly procedure

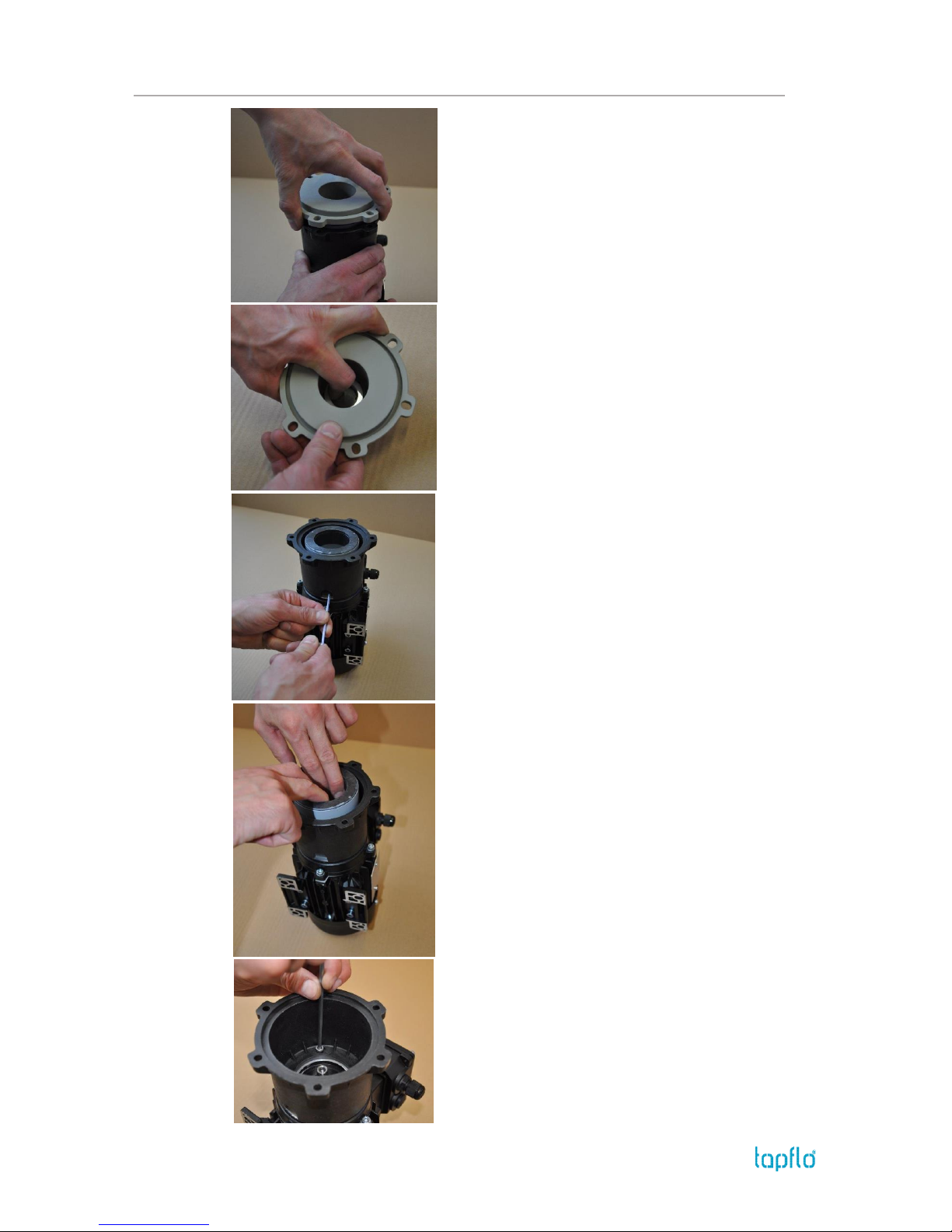

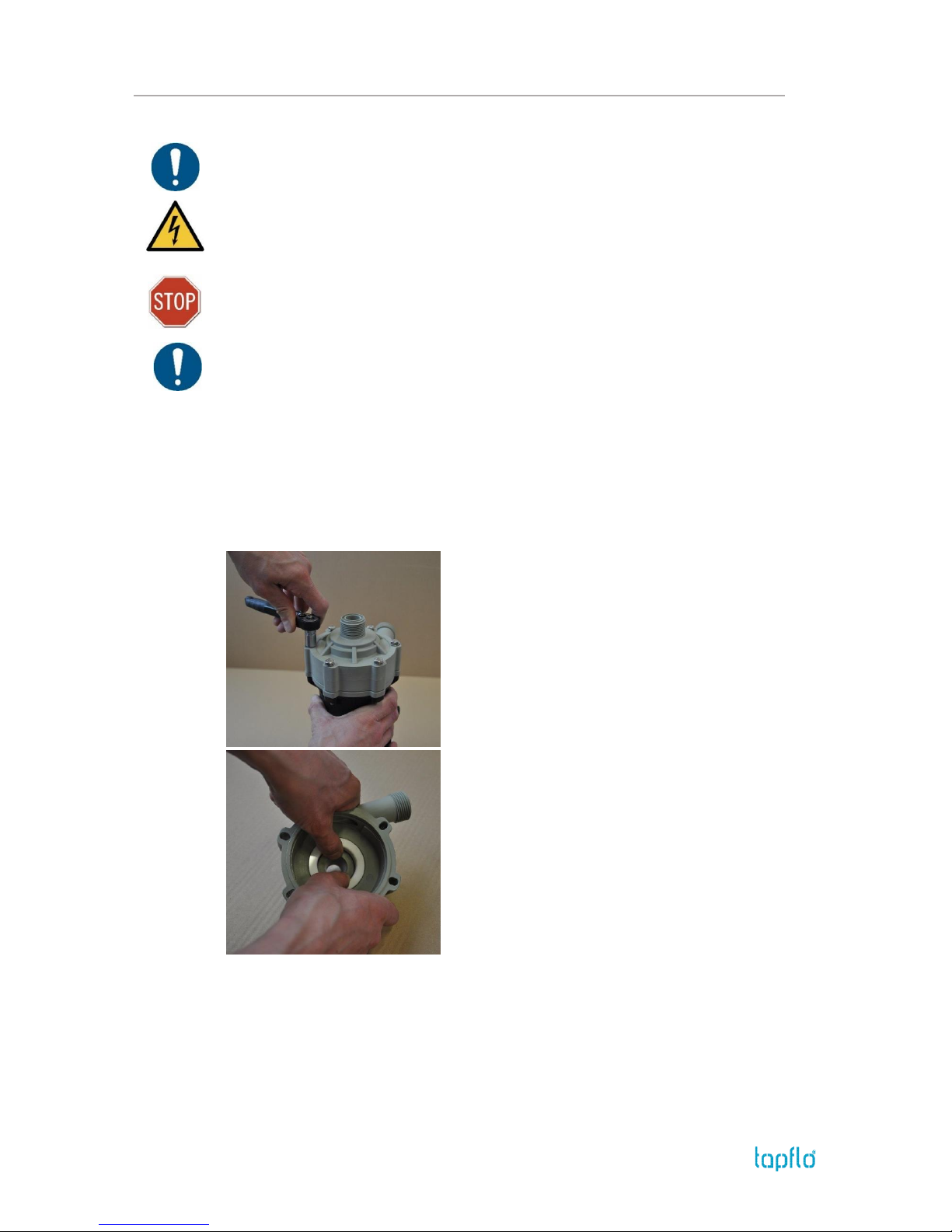

Fig. 3.3.1

Unscrew the casing mounting screws [141] and take off
the pump casing [13].

Fig. 3.3.2

Pull out the front static bushing [1521] along with the
O-ring [1821].

3. MAINTENANCE

IOM manual CTM mag drive pumps 16

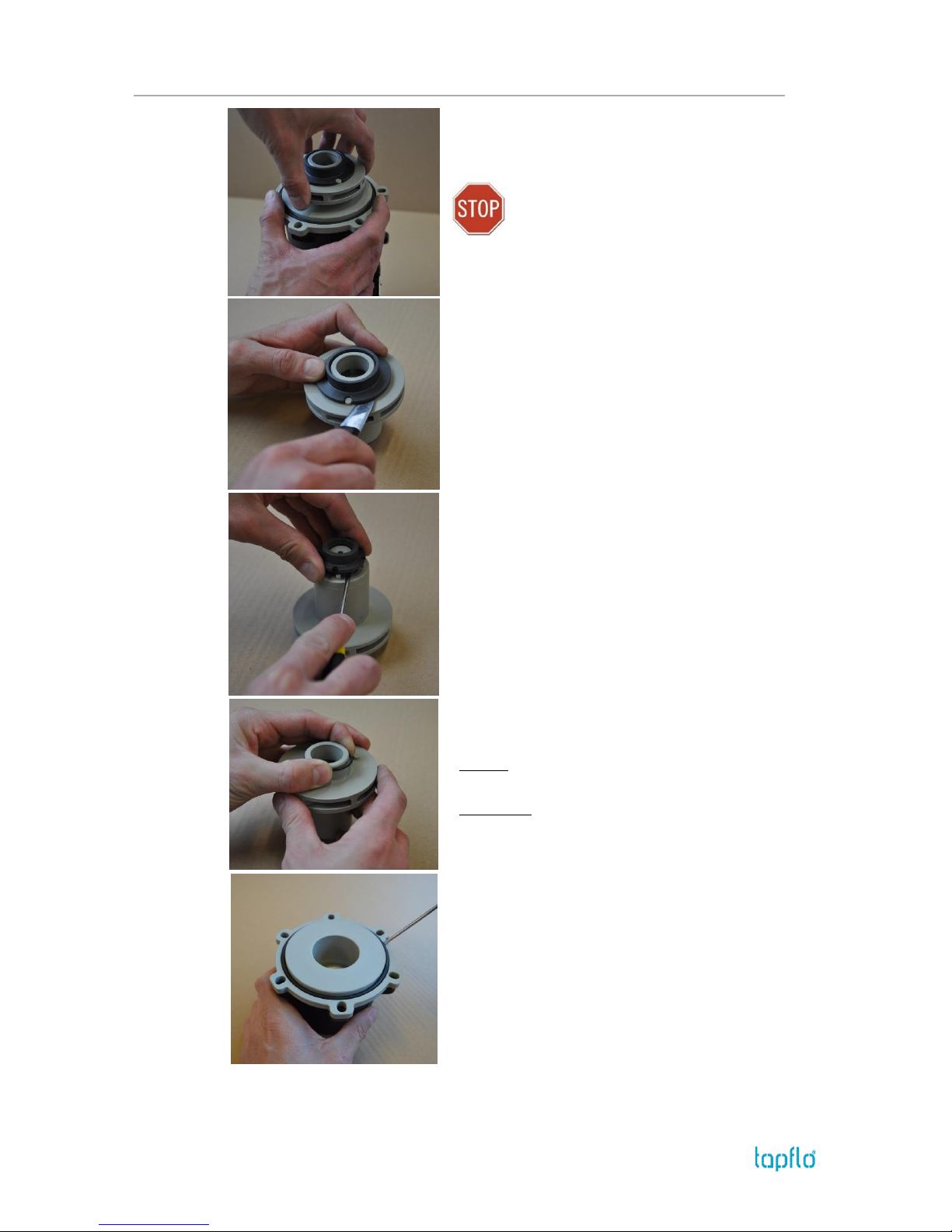

Fig 3.3.3

Pull out the impeller / magnet assembly [90] from the
isolation shell [12].

NOTE! Take extra care while proceeding with
this point. The magnetic field generated by the

magnets can cause finger seizure between the
impeller and the impeller [90] and isolation
shell [11].

Fig 3.3.4

Using a sharp tool take off the front rotating bushing
[1511].
NOTE! Level the bushing equally on each side.

Fig 3.3.5

Using a sharp tool take off the rear rotating bushing
[1512].
NOTE! Level the bushing equally on each side.

Fig 3.3.6
CTM20 – Remove the O-ring [1812] from the impeller /

magnet assembly.
CTM25/32 – Remove the O-rings [1811, 1812] from the
impeller / magnet assembly.

Fig 3.3.7

Remove the casing O-ring [18] form the isolation shell
[12].

3. MAINTENANCE

IOM manual CTM mag drive pumps 17

Fig 3.3.8
Take out the isolation shell [12] form the lantern [11].

Fig 3.3.9

Pull out the rear static bushing [1522] along with the O­ring [1822].

Fig 3.3.10

Loosen the lock screws (2 x [161] on CTM20/25; 1 x
[1611] and 2 x [1612] on CTM32).

Fig 3.3.11

Take out the external magnet assembly [16] form the
lantern [11].

Fig 3.3.12

Unscrew the motor mounting screws [111] and remove
the lantern [11] form the motor.

3. MAINTENANCE

IOM manual CTM mag drive pumps 18

The pump is now completely disassembled. Check all components, especially the O-rings and
bushings, for wear or damage and replace if necessary.
The components that can affect the correct operation of the pump if not regularly replaced,

are:

CTM 20-7

➢ Casing O-ring (18)
➢ Rotating bushes (1511) + (1512)
➢ Static bushes (1521) + (1522)
➢ O-rings (1821) + (1812) + (1822)

CTM 25-8, 25-10, 32-12,5, 40-12,5 and 50-12,5

➢ Casing O-ring (18)
➢ Rotating bushes (1511) + (1512)
➢ Static bushes (1521) + (1522)
➢ O-rings (1811) + (1821) + (1812) + (1822)

For spare part kits see chapter 4.3 Recommended spare parts.

3.4. Assembly of the pump

The assembly procedure is done in the reverse order to the disassembly.
Nevertheless there are a few things that you have to remember in order to assemble the
pump correctly.

Fig. 3.4.1

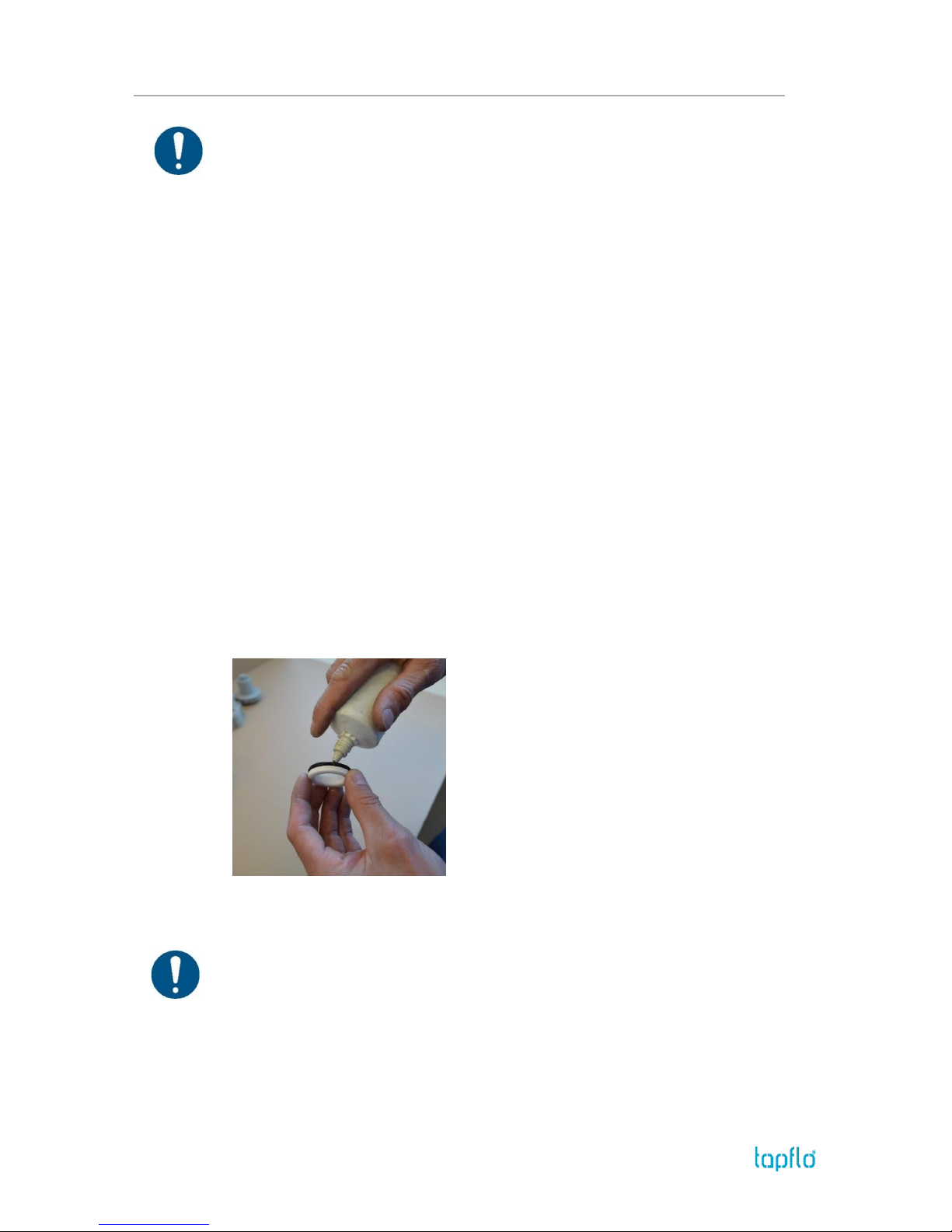

Wet the O-rings with alcohol before assembly to make
the procedure easier.

3.4.1. Test run

We recommend you to conduct a test run of the pump before installing it in the system, so
no liquid gets wasted if the pump leaks or perhaps does not start accordingly to wrong
assembly of the pump.
After a few weeks of operation retighten the screws with appropriate torque.

4. SPARE PARTS

IOM manual CTM mag drive pumps 19

4. SPARE PARTS

4.1. Spare parts drawing

4.2. Spare parts list

Pos.

Description

Pump model

Material

20-7

25-8

25-10

32-12,5

40-12,5

50-12,5

11

Lantern

1 1 1 1 1 1 PP-GF (30%)

111

Motor mounting screw

4 4 4 4 4 4 A4-70

112

Motor mounting washer

- - - 4 4 4 A4-70

1180

Motor adaptive flange

- - - - - 1 Aluminium

1181

Flange mounting screw

- - - - - 4 A4-70

12

Isolation shell (rear casing)

1 1 1 1 1 1 PP-GF (30%), PVDF

13

Pump casing

1 1 1 1 1 1 PP-GF (30%), PVDF

141

Casing mounting screw

6 6 6 6 6 6 A4-70

142

Casing mounting washer

6 6 6 6 6 6 A4-70

143

Casing mounting nut

6 6 6 6 6 6 A4-70

1511

Front rotating bushing

1 1 1 1 1 1 PTFE – graphite, SiC

1512

Rear rotating bushing

1 1 1 1 1 1 PTFE – graphite, SiC

1521

Front static bushing

1 1 1 1 1 1 Al2O3 (ceramic), SiC

1522

Rear static bushing

1 1 1 1 1 1 Al2O3 (ceramic), SiC

16

External magnet assembly

1 1 1 1 1 1 Cast iron / NdFeB

161

Lock screw

2 2 2 - - - St 45H

1611

Lock screw

- - - 1 1 1 St 45H

1612

Lock screw

- - - 2 2 2 St 45H

17

Spacer sleeve

- - - - - 1 Aluminium

18

Casing O-ring

1 1 1 1 1 1 EPDM, FKM

1811

O-ring - 1 1 1 1 1

EPDM, FKM

1812

O-ring 1 1 1 1 1 1

EPDM, FKM

1821

O-ring 1 1 1 1 1 1

EPDM, FKM

1822

O-ring 1 1 1 1 1 1

EPDM, FKM

90

Impeller

1 1 1 1 1 1 PP / NdFeB, PVDF / NdFeB

OPTIONS

187

O-ring

2*

2*

2* 1 1 1 EPDM, FKM

188

O-ring - - - 1 1 1

EPDM, FKM

791

Flange connection on inlet

2*

2*

2* 1 1 1 PP, PVDF

792

Flange connection on outlet

- - - 1 1 1 PP, PVDF

793

Hose connection on inlet

2*

2*

2* 1 1 1 PP, PVDF

794

Hose connection on outlet

- - - 1 1 1 PP, PVDF

* CTM20/25 has the same size of inlet/outlet

4. SPARE PARTS

IOM manual CTM mag drive pumps 20

4.3. Recommended spare parts

Depending on the nature of the liquid and temperature etc., some parts of the pump are
subject to wear and have to replaced. We recommend having the following parts in stock:

➢ O-ring KIT (xx-y – pump size, e.g. 25-10; z – material, E for EPDM, V for FKM):

CTMxx-y zOR KIT

Pos.

Description

Q-ty

18

Casing O-ring

1

1811

O-ring

1

1812

O-ring

1

1821

O-ring

1

1822

O-ring

1

➢ WETEND (xx-y – pump size, e.g. 25-10; z – material, P for PP, K for PVDF):

WETEND-CTMxx-yz

Pos.

Description

Q-ty

12

Isolation shell (rear casing)

1

13

Pump casing

1

141

Casing mounting screw

6

142

Casing mounting washer

6

143

Casing mounting nut

6

1511

Front rotating bushing

1

1512

Rear rotating bushing

1

1521

Front static bushing

1

1522

Rear static bushing

1

18

Casing O-ring

1

1811

O-ring

1

1812

O-ring

1

1821

O-ring

1

1822

O-ring

1

90

Impeller

1

4.4. How to order parts

When ordering spare parts for Tapflo pumps. please let us know what is the model number
and serial number from the pump’s name plate. Then just indicate the part numbers from
the spare parts list and quantity of each item.

5. DATA

IOM manual CTM mag drive pumps 21

5. DATA

5.1. Pump code

The model number on the pump and on the front page of this instruction manual tells the
pump size and materials of the pump.
I. Tapflo magnetically driven centrifugal pump

V. Motor power

II. Pump size

VI. Motor options

III. Pump housing material

IV. Pump options

CTM

25-10

P

-1V

-05

P

I. CTM = Tapflo magnetically driven centrifugal pump

II. Pump size:

20-7
25-8
25-10
32-12.5
40-12.5
50-12.5

III. Pump housing material:

P = PP (Polypropylene)
K = PVDF (Polyvinylidene fluoride)

IV. Pump options:

1. Casing O-ring:

blank* = EPDM for PP, FKM for PVDF pump
F = FEP / Silicone
V = FKM

2. Static bushing:
blank* = Al2O3 (ceramic)
S = SiC (silicone carbide)

3. Rotating bushing:
blank* = PTFE-graphite
S = SiC (silicone carbide)

4. Connection options:
blank* = BSP external thread

F = Flnage DIN PN10 (CTM20, CTM25);
PN16 (CTM32, CTM40, CTM50)
H = Hose connection

V. Motor power / IEC mechanical size:

01 = 0.12 kW / 56
02 = 0.25 kW / 63
05 = 0.55 kW / 71
07 = 0.75 kW / 80
11 = 1.1 kW / 80
15 = 1.5 kW / 90
22 = 2.2 kW / 90
30 = 3.0 kW / 100
40 = 4.0 kW / 112

VI. Motor options

P = 1-phase motor (220/230 VAC)
V = 500 V motor
T = PTC motor protection
F60 = 60 Hz motor

* = standard execution

5. DATA

IOM manual CTM mag drive pumps 22

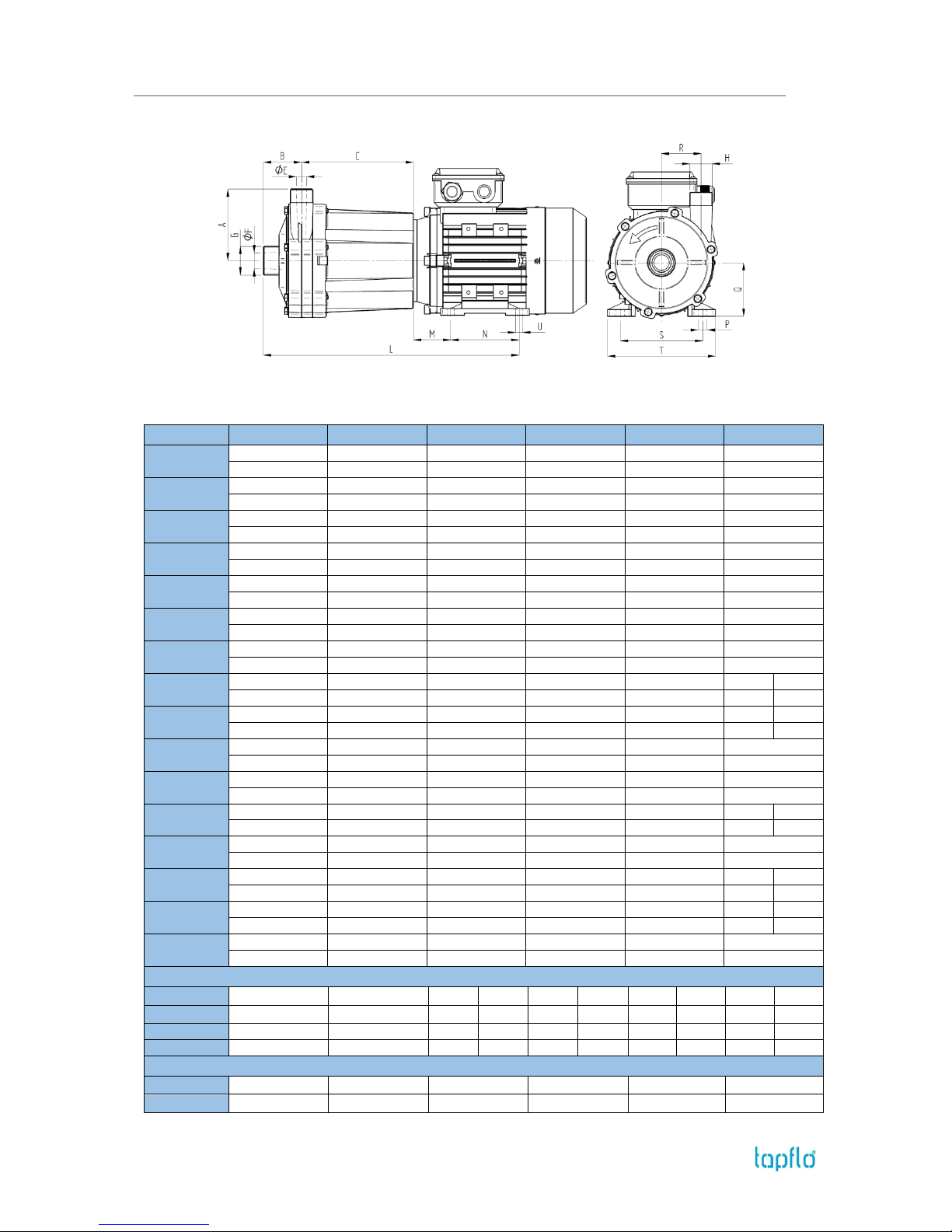

5.2. Dimensions

Dimensions in mm (where other is not indicated)

Dimensions in inch (where other is not indicated)

General dimensions only, ask us for detailed drawings. Changes reserved without notice.

MODEL

CTM20-7

CTM25-8

CTM25-10

CTM32-12.5

CTM40-12.5

CTM50-12.5

A

70

90

100

105

105

110

2.76

3.54

3.94

4.13

4.13

4.33 B 48

58.50

63

56

56.5

54

1.89

2.30

2.48

2.20

2.22

2.13 C 93.5

100.5

136.5

164

165

189

3.68

3.96

5.37

6.46

6.50

7.44

ØE

15

18

18

15

23

30.8

0.59

0.71

0.71

0.59

0.91

1.21

ØF

15

18

18

23

30.5

42

0.59

0.71

0.71

0.91

1.20

1.65 G ¾”

1”

1”

1 ¼”

1 ½”

2” ¾ 1 1 1 ¼

1 ½

2 H ¾”

1”

1”

1”

1 ¼”

1 ½” ¾ 1 1 1

1 ¼

1 ½ L 248.5

279

334.5

374.5

402.5

446

453

9.78

10.98

13.17

14.74

15.85

17.56

17.83 M 36

40

45

54.5

56

63

70

1.42

1.57

1.77

2.15

2.20

2.48

2.76

N*

71

80

80

100

125

140

2.80

3.15

3.15

3,94

4.92

5.51

P*

9

10

10

13

14

15

0.22

0.28

0.28

0.51

0.55

0.59 Q 56

63

71

80

90

100

112

2.20

2.48

2.80

3.15

3.54

3.94

4.41 R 35

39.5

43.5

58.5

58.5

52

1.38

1.56

1.71

2.30

2.30

2.05

S*

90

100

112

125

140

160

190

3.54

3.94

4.41

4.92

5.51

6.30

7.48 T 112

126

141

160

170

200

230

4.41

4.96

5.55

6.30

6.69

7.87

9.06

U*

5,5 7 7

10

10

12

0.22

0.28

0.28

0.39

0.39

0.47

MOTOR

POWER

0.12 kW

0.25 kW

0.55 kW

0.75 kW

0.75 kW

1.1 kW

1.5 kW

2.2 kW

3.0 kW

4.0 kW

SIZE

56

63

71

71

80

80

90

90

100

112

WEIGHT PP [kg]

4.3

5.7

8.75 9 11.7

15.7

24

25.5

31.55

-

WEIGHT PVDF

4.45

5.9

9.2

9.4

12.2

16.2

24.65

26.2

32.15

-

OPTIONAL CONNECTIONS

FLANGE

-

DN25

DN25

DN32 / DN25

DN40 / DN32

DN50 / DN40

HOSE

-

Ø25

Ø25

Ø32 / Ø25

Ø40 / Ø32

Ø50 / Ø40

5. DATA

IOM manual CTM mag drive pumps 23

*The dimension may vary depending on motor brand

5.3. Materials, data and limits

Casing and isolation shell

PP-GF (30%) or PVDF

Impeller

PP or PVDF

Lantern (not wetted)

PP-GF (30%)

Static bushings

Ceramic (standard) or SiC

Rotating bushings

PTFE-graphite (standard) or SiC

O-rings

FKM, EPDM, FFKM, FEP/Silicone

Magnets

NdFeB

Motor

IEC standard, 3x400 VAC (other on request), 2900 rpm,
IP55, B34 frame

Pressure rating

CTM20:

PP pumps: PN4 at 20°C, PN2 at 70°C
PVDF pumps: PN4 at 20°C, PN2 at 80°C

CTM25, CTM32, CTM40 and CTM50:

PP pumps: PN6 at 20°C; PN2 at 70°C
PVDF pumps: PN6 at 20°C; PN2 at 90°C

Temperature

PP pumps: 0°C - 70°C
PVDF pumps: 0°C - 80°C (CTM20);
0°C - 90°C (CTM25, 32, 40, 50)

Kinematic viscosity

200 cSt (max)

Dynamic viscosity

10 cP (max)

5.4. Mounting torques and dimensions of screws/nuts

The following tightening torques are recommended :

Screw /

nut type

Description

Pump model

CTM 20-7

CTM 25-8

CTM 25-10

CTM 32-12,5

CTM 40-12,5

CTM 50-12,5

Pos. 141 hexagonal screw

Mounting torque [Nm]

Thread

6

M5

9

M6

9

M6

9

M6

9

M6

9

M6

Pos. 143 hexagonal nut

Mounting torque [Nm]

Thread

6

M5

9

M6

9

M6

9

M6

9

M6

9

M6

Pos. 111 allen screw

Mounting torque [Nm]

Thread

6

M5

6

M5

9

M6

9

M6

14

M8

9

M6

Pos. 1181 allen screw

Mounting torque [Nm]

Thread

-

-

-

-

-

-

-

-

-

-

14

M8

5. DATA

IOM manual CTM mag drive pumps 24

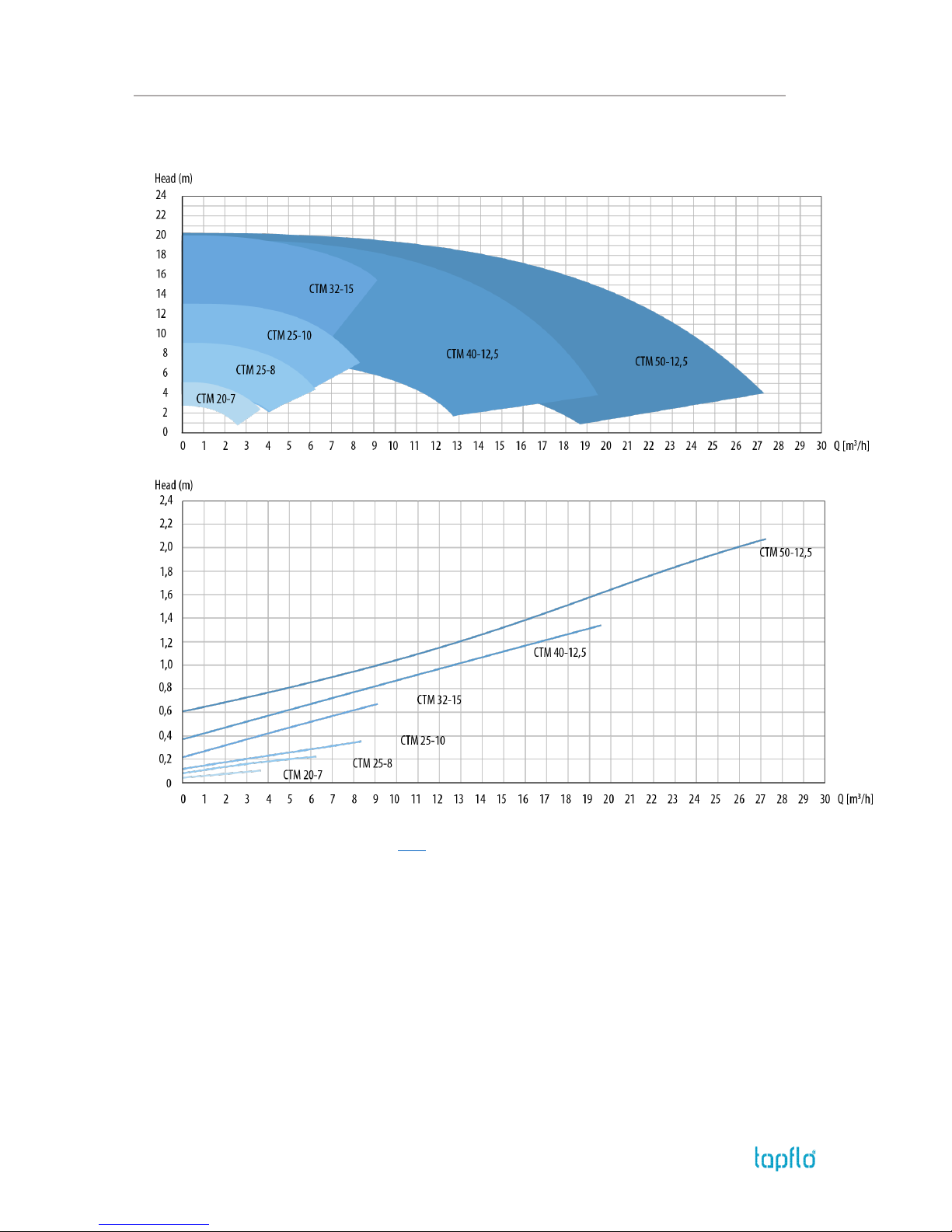

5.5. Performance curves

The performance curves are based on water at 20°C. Speed 2900 rpm.

See Tapflo Infopack for detailed curves here.

5. DATA

IOM manual CTM mag drive pumps 25

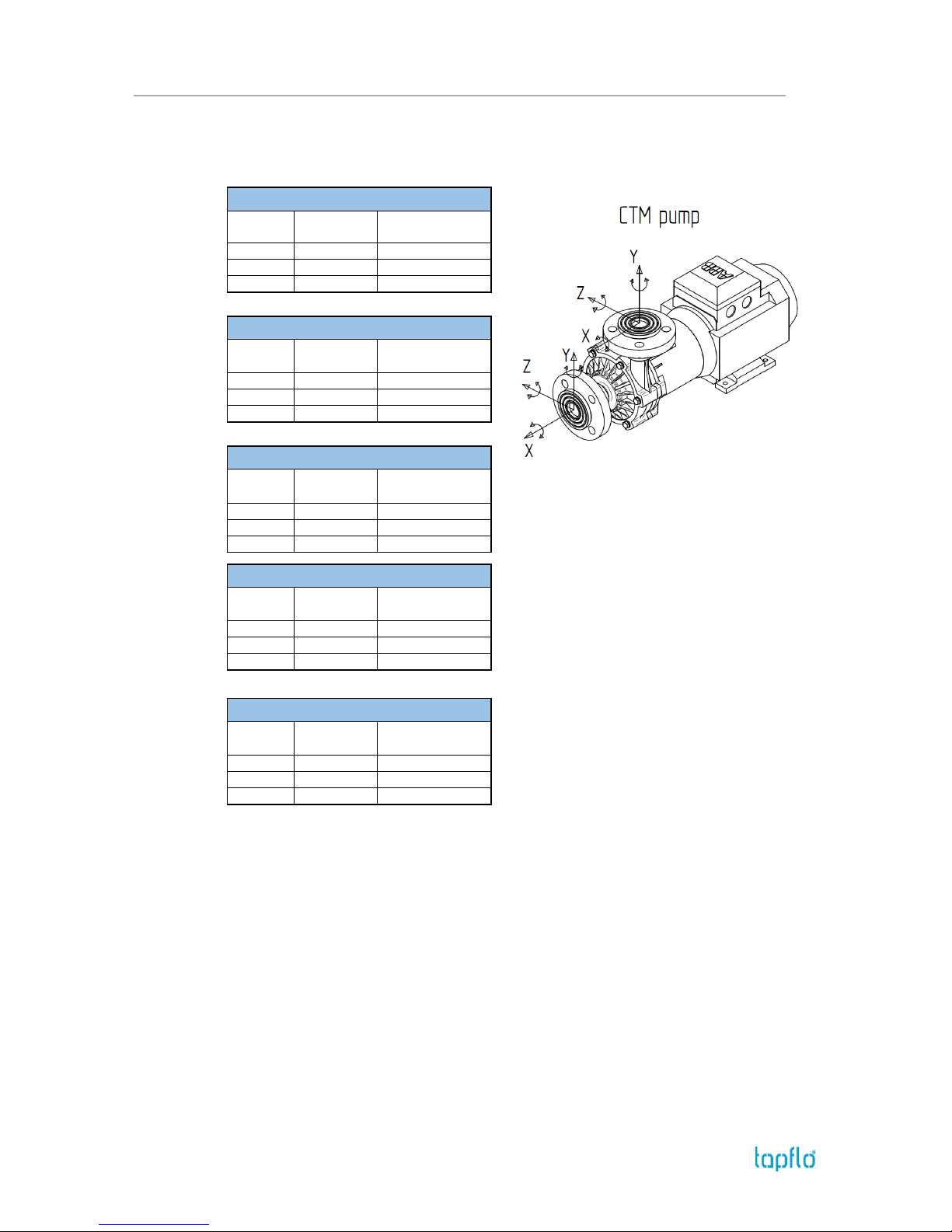

5.6. Permitted loads on inlet and outlet

We recommend not to exceed the following loads and forces reacting on the inlet and
outlet.

CTM 20

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

X

15 3 Y

20 4 Z

15

3

CTM 25

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

X

15 3 Y

20 4 Z

15

3

CTM 32

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

X

15 3 Y

20 4 Z

15

3

CTM 40

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

X

15 3 Y

20 4 Z

15

3

CTM 50

Direction

Load [N]

(inlet/outlet)

Moment of force

(inlet/outlet) [Nm]

X

15 3 Y

20 4 Z

15

3

6. WARRANTY

IOM manual CTM mag drive pumps 26

6. WARRANTY

6.1. Returning parts

When returning parts to Tapflo please follow this procedure:

➢ Consult Tapflo for shipping instructions.
➢ Cleanse or neutralize and rinse the part/pump. Make sure the part/pump is

completely empty from liquid.

➢ Pack the return articles carefully to prevent any damage during transportation.

Goods will not be accepted unless the above procedure has been complied with.

6.2. Warranty

Tapflo warrants products under conditions as stated below for a period of not more than 12
months from installation and not more than 24 months from date of manufacturing.

1. The following terms and conditions apply to the sale of machinery. components and

related services and products. of Tapflo (hereinafter “the products”).

2. Tapflo (the manufacturer) warrants that:

a. its products are free of defects in material. design and workmanship at the time of

original purchase;

b. its products will function in accordance with Tapflo operative manuals; Tapflo does

not guarantee that the product will meet the precise needs of the Customer. except
for those purposes set out in any invitation to render documents or other documents
specifically made available to Tapflo before entering into this agreement;

c. high quality materials are used in the construction of the pumps and that machining

and assembly are carried out to the highest standards.

Except as expressly stated above. Tapflo makes no warranties. express or implied.

concerning the products. including all warranties of fitness for a particular purpose.

3. This warranty shall not be applicable in circumstances other than defects in material.

design. and workmanship. In particular warranty shall not cover the following:

a. Periodic checks. maintenance. repair and replacement of parts due to normal wear

and tear (seals. O-rings. rubber items. bushings. etc..);

b. Damage to the product resulting from:

b.1. Tampering with. abuse or misuse. including but not limited to failure to use the

product for its normal purposes as stated at the time of purchase or in accordance
with Tapflo instructions for use and maintenance of the product. or the installation
or improper ventilation or use of the product in a manner inconsistent with the
technical or safety standard in force;

6. WARRANTY

IOM manual CTM mag drive pumps 27

b.2. Repairs performed by non-skilled personnel or use of non-original Tapflo parts;
b.3. Accidents or any cause beyond the control of Tapflo. including but not limited to

lightning. water. fire. earthquake. and public disturbances. etc.;

4. The warrantee shall cover the replacement or repairing of any parts. which is documented

faulty due to construction or assembling. with new or repaired parts free of charges delive­red by Tapflo. Parts subjected to normal tear and wear shall not be covered by the
warranty. Tapflo shall decide as to whether the defective or faulty part shall be replaced
or repaired.

5. The warrantee of the products shall be valid for a period in accordance to the current law

from the date of delivery. under the condition that notice of the alleged defect to the
products or parts thereof be given to Tapflo in written within the mandatory term of 8
days from the discovery. Repair or replacement under the terms of this warranty shall not
give a right to an extension to. or a new commencement of. the period of warranty.

6. Repair or replacement under the terms of this warranty shall not give a right to an

extension to, or a new commencement of, the period of warranty. Repair or replacement
under the terms of this warranty may be fulfilled with functionally equivalent
reconditioned units. Tapflo qualified personnel shall be solely entitled to carry out repair
or replacement of faulty parts after careful examination of the pump. Replaced faulty parts
or components will become the property of Tapflo.

7. The products are built in accordance with standard CE normative and are tested (where

applicable) by Tapflo. Approval and tests by other control authority are for the customer’s
account. The products shall not be considered defective in materials. design or
workmanship if they need to be adapted. changed or adjusted to conform to national or
local technical or safety standards in force in any country other than that for which the
unit was originally designed and manufactured. This warranty shall not reimburse such
adaptations. changes or adjustments. or attempt to do so. whether properly performed or
not. nor any damage resulting from them. nor any adaptation. change or adjustments to
upgrade the products from their normal purpose as described in the products operative
manual without the prior written consent of Tapflo.

8. Installation. including electric and other connections to utility mains according to Tapflo

drawings. is for the cost and responsibility of the customer. unless otherwise agreed in
writing.

9. Tapflo will not be liable on any claim. whether in contact. tort. or otherwise. for any

indirect. special. incidental. or consequential damages. caused to the customer or to third
parties. including loss of profits. arising by any possible infringement of par. 3 above or
by the customer or third parties being in the impossibility of using the products.

Steady the above. Tapflo liability to the customer or third parties from any claim. whether in
contract. tort. or otherwise. shall be limited to the total amount paid by the customer for the
product that caused the damages

6. WARRANTY

IOM manual CTM mag drive pumps 28

6.3. Warranty form

Company:

Telephone:

Fax:

Address:

Country:

Contact Name:

E-mail:

Delivery Date:

Date of pump installation:

Pump type:

Serial No (see name plate):

Description of the fault:

The installation:

Liquid:

Temperature [°C]:

Viscosity [cPs]:

Spec grav. [kg/m3]:

pH-value:

Content of particles:

%, of max size [mm]:

Flow [l/min]:

Duty [h/day]:

No of starts per day:

Discharge head [mWC]:

Suction head / lift [m]:

Other:

Place for sketch of installation:

TAPFLO AB

Sweden

Filaregatan 4 | S-442 34 Kungälv

Tel: [phone]
Fax: [phone]

E-mail addresses:
Commercial questions: [e-mail]
Orders: [e-mail]
Tech support: [e-mail]

Tapflo products and services are available in 75 countries on 6 continents.

Tapflo is represented worldwide by own Tapflo Group Companies and carefully selected distributors assuring highest Tapflo service
quality for our customers’ convenience.

AUSTRALIA | AUSTRIA | AZERBAIJAN | BAHRAIN | BELARUS | BELGIUM | BOSNIA & HERZEGOVINA | BRAZIL | BULGARIA |
CANADA | CHILE | CHINA | COLOMBIA | CROATIA | CZECH REPUBLIC | DENMARK | ECUADOR | EGYPT | ESTONIA | FINLAND |
FRANCE | GREECE | GEORGIA | GERMANY | HONG-KONG | HUNGARY | ICELAND | INDIA | INDONESIA | IRAN | IRELAND | ISRAEL |
ITALY | JAPAN | JORDAN | KAZAKHSTAN | KUWAIT | LATVIA | LIBYA | LITHUANIA | MACEDONIA | MALAYSIA | MEXICO |
MONTENEGRO | MOROCCO | THE NETHERLANDS | NEW ZEALAND | NORWAY | POLAND | PORTUGAL | PHILIPPINES | QATAR |
ROMANIA | RUSSIA | SAUDI ARABIA | SERBIA | SINGAPORE | SLOVAKIA | SLOVENIA | SOUTH AFRICA | SOUTH KOREA | SPAIN |
SUDAN | SWEDEN | SWITZERLAND | SYRIA | TAIWAN | THAILAND | TURKEY | UKRAINE | UNITED ARAB EMIRATES |
UNITED KINGDOM | USA | UZBEKISTAN | VIETNAM

Tapflo Group Companies

Austria

Tapflo Austria
Tel: [phone]
[e-mail]

Azerbaijan

Tapflo Azerbaijan LLC
Tel: [phone]
[e-mail]

Baltic States

Tapflo Latvia
Tel: [phone]
[e-mail]

Belarus

Tapflo Belarus
Tel: [phone]
[e-mail]

Bulgaria

Tapflo EOOD
Tel: [phone]
[e-mail]

Canada

Tapflo Canada
Tel: [phone]
[e-mail]

Croatia

Tapflo GmbH
Tel: [phone]
[e-mail]

Czech Republic

Tapflo s.r.o.
Tel: [phone]
[e-mail]

China

Tapflo (Wuxi)
Tel: [phone]
[e-mail]

Denmark

Tapflo Danmark
Tel: [phone]
[e-mail]

France

Tapflo France
Tel: [phone]
[e-mail]

Georgia

Tapflo Georgia
Tel: [phone]
[e-mail]

India

Tapflo Fluid Handling India
Pvt Ltd
Tel: [phone]
[e-mail]

Ireland

Tapflo Ireland Ltd
Tel: [phone]
[e-mail]

Italy

Tapflo Italia
Tel: [phone]
[e-mail]

Japan

Tapflo Japan K.K.
Tel: [phone]
[e-mail]

Kazakhstan

Tapflo Kazakstan
Tel: [phone]
[e-mail]

Poland

Tapflo Sp. z o.o.
Tel: [phone]
[e-mail]

Romania

S.C. Tapflo Rom. S.r.l.
Tel: [phone]
[e-mail]

Russia

Tapflo Company
Tel: [phone]
[e-mail]

Serbia

Tapflo d.o.o.
Tel: [phone]
[e-mail]

Slovakia

Tapflo s.r.o.
Tel: [phone]
[e-mail]

Slovenia

Tapflo GmbH
Tel: [phone]
[e-mail]

Spain

Tapflo Iberica
Tel: [phone]
[e-mail]

South Africa

Tapflo (Pty) Ltd
Tel: [phone]
[e-mail]

Turkey

Tapflo Makina Ltd
Tel: [phone]
[e-mail]

Ukraine

TOB Tapflo
Tel: [phone]
[e-mail]

Uzbekistan

Tapflo Uzbekistan
Tel.: [phone]
[e-mail]

United Kingdom

Tapflo (UK) Ltd
Tel: [phone]
[e-mail]
