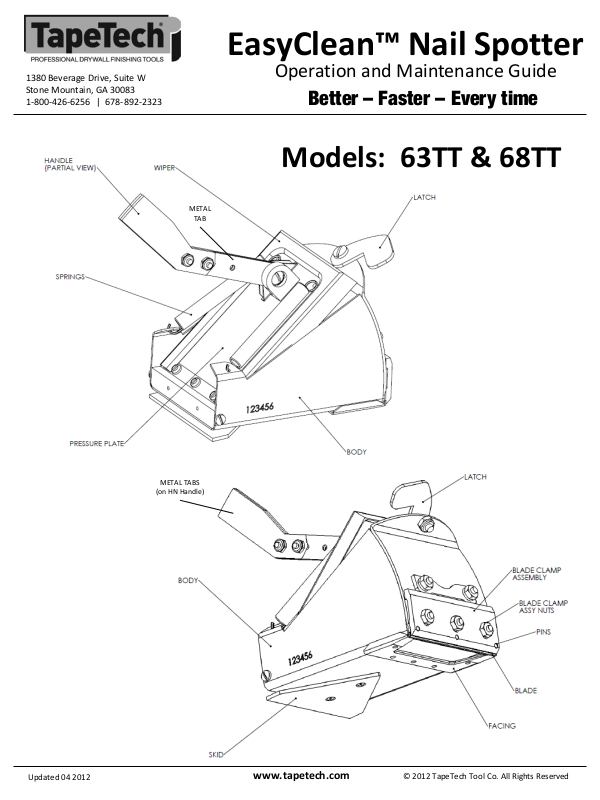

EasyClean™ Nail Spotter
1380 Beverage Drive, Suite W
Stone Mountain, GA 30083
1-800-426-6256 | 678-892-2323
Operation and Maintenance Guide
Better – Faster – Every time
Models: 63TT & 68TT
METAL
TAB
Updated 04 2012
METAL TABS
(on HN Handle)
www.tapetech.com
© 2012 TapeTech Tool Co. All Rights Reserved
EasyClean™ Nail Spotter
1380 Beverage Drive, Suite W
Stone Mountain, GA 30083
1-800-426-6256 | 678-892-2323
Models: 63TT & 68TT
Operation and Maintenance Guide
Better – Faster – Every time
Operation
Available in 2” and 3” (50 & 75mm) widths, the EasyClean Nail Spotter fills
nail and screw head depressions with joint compound. Each row of dimples
can be filled in one pass with a nail spotter. Walls and ceilings may be done
while working from the floor.
Use the EasyClean® Pump with the box and slot adapter to fill the nail spotter, making sure the joint
compound is well mixed and lump free. Normally, no water needs to be added to thin the compound
mixture.
Attach the nail spotter body to the nail spotter fiberglass handle (Model HN) by inserting the metal tab
of the nail spotter handle between the two metal tabs on the back of the nail spotter. Insert the two
screws and tighten the locking nuts.
Press the Nail Spotter flat against the wallboard surface at the beginning of the row of fasteners. Move
the tool smoothly along the entire row, applying moderate pressure to force the compound onto the
wallboard surface. The nail spotter blade skims off excess compound and leaves a slight crown directly
over each dimple as the tool floats along the skid. After passing over the last dimple, gradually break
contact with the surface using a sweeping motion. This will give you properly filled dimples without
leaving excess compound to be removed by hand.
Maintenance
Clean thoroughly after every use with a brush and water (or a water hose). Lift up the release on the
back of the tool, pull the pressure plate open and wash. Pay close attention that all joint compound is
removed. Complete the clean-up by lightly oiling all wear points with Ames® Bazooka® Oil or any light
machine oil.
Common Wear Parts
2” Carbide Blade (for 63TT): 600005F 3” Carbide Blade (for 68TT): 650005F
2” Wiper (for 63TT): 630015 3” Wiper (for 68TT): 680015
Blade Replacement
Although the nail spotter blade is precision ground and specially hardened, it can be chipped by an
exposed nail or screw head or become worn from use. To replace the blade, unscrew the blade clap
assembly nuts on the top of the blade clamp, lift off the used blade and replace it. Be certain to press
the blade firmly against the middle support while tightening the nuts. The middle of the blade should
be slightly lower than the ends to leave a slight center crown over the nail or screw.
Updated 04 2012
www.tapetech.com
© 2012 TapeTech Tool Co. All Rights Reserved
