TapeTech 15TTE User Manual
Corner Roller
1380 Beverage Drive, Suite W
Stone Mountain, GA 30083
1-800-426-6256 | 678-892-2323
Operation and Maintenance Guide
Better – Faster – Every time
Model: 15TTE
Updated 04 2012
www.tapetech.com
© 2012 TapeTech Tool Co. All Rights Reserved

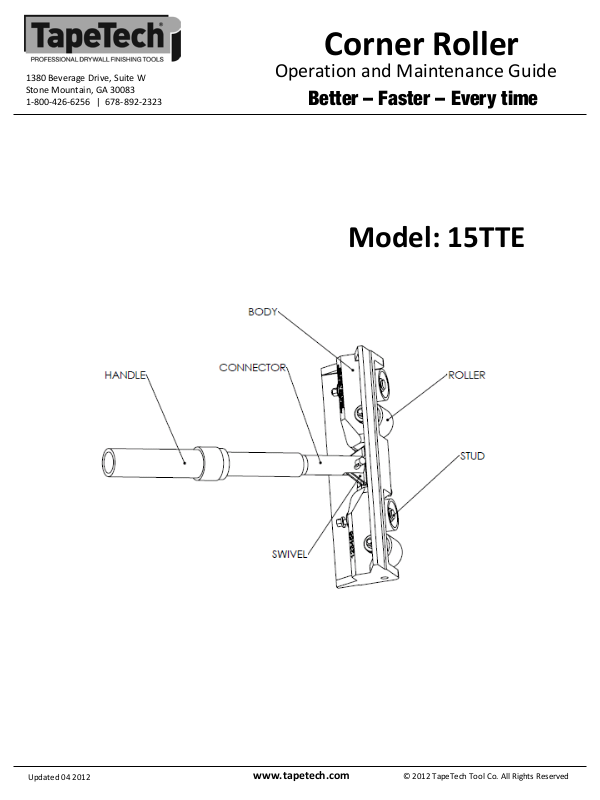

Corner Roller
1380 Beverage Drive, Suite W
Stone Mountain, GA 30083
1-800-426-6256 | 678-892-2323
Model: 15TTE
Operation and Maintenance Guide
Better – Faster – Every time
Operation
After applying joint tape and compound into the inside angles, embed the
tape into the compound using the corner roller (model 15TTE).
Four rollers will embed and smooth the tape while forming a sharp corner.
For best results, start in the middle of the angle joint and, with light pressure, roll
towards both ends. Then, again from the middle, work towards both ends with firm
pressure. This will force the excess compound from under the tape and prepare the
angle for the corner finisher.
The corner roller should be used in conjunction with the automatic taper and the adjustable corner
finisher for an efficient, systematic and consistent taping system.
Maintenance
Clean thoroughly after every use, with a brush and water (or a water hose) to remove all joint
compound from the tool. Then, after the tool is clean, lightly oil the rollers with Ames® Bazooka® Oil
or any light machine oil
Updated 04 2012
www.tapetech.com
© 2012 TapeTech Tool Co. All Rights Reserved
