Thanks for your purchase of TAPfuture TAPpad sieres MID, the device is convenient for

portable use, let you learn, work or play games outside of the door.

Please read this manual before using the device, and attention safety precautions so that you

are using the device safely and correctly.

*This manual instructions built on the Google Android OS default setting, maybe there are

some difference between the screenshots/images and what you are using. The performance of

this product is improving. And we are sorry for no offering more information if it is improved.

I f you have any questions please consult your dealer or local service.

*Applications and their functions may vary by country , region or hardware. Zhongxiang

Technology is not responsible for performance issues caused by third-party applications .

*You can access www. tapfuture.com to upgrade the device, or consult your dealer.

* Please keep this manual for future reference.

3

Copyrights

This user manual is protected under international copyright laws.

No part of this user manual may be reproduced, distributed, translated, or transmitted in any

form or by any means, electronic or mechanical, including photocopying, recording, or storing

i n any information storage and retrieval system, without the prior written permission of

Zhongxiang Technology Co., Ltd.

Trademarks

TAPFUTURE and

TAP

logo is trademark of Shenzhen Zhongxiang Technology Co., Ltd.

* Android and relative logo s are trademarks of Google, Inc. .

* Java ™ is trademark of Sun Microsystems, Inc.

* Wi-Fi • ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the

Wi-Fi Alliance.

* All other various trademarks, brand names and logos not mentioned here are for reference

purposes only, and not for sale, the marks are the property of the respective owners.

4

Contents

Contents ：

Product package …………………………………………………………………… ..

Product instruction ………………………………………………………………… ..

Application ………………………………………………………………………… ..

P roduct upgrade …………………………………………………………………… ..

5

Please

Please check

check

check your

your

your package

package

package box

box

box for

for

for the

the

the following

following

following items.

items.

MID device

Power adapter

PC data cable

User Manual

Warranty Card

*

You

can buy other accessories from local dealer.

Attention:

Don ’ t disassemble.

Avoid overloading.

Avoid extreme humidity, extreme heat and direct sunlight .

Avoid object and liquid entry.

Don ’ t use the parts and accessories that have not been provided by the manufacturer,

unauthorized substitution may cause trouble.

6

Charge

Charge the

the

the battery

battery

The device has a built in battery, before using the device for first time, you must charge the

battery.

*Use only approved chargers by Zhongxiang Technology Co.,Ltd, unauthorized chargers may

cause batteries to explode or damage your device.

* When your battery is low, the device will emit a warning tone and display a low battery

message. The battery icon will also be empty and turn red. If the battery level becomes too

low, the device will automatically power off. Recharge your battery to continue using your

device.

7

Key

Key Instruction

Instruction

1 2

12

3

9

10 4

11 5

6

7

8

1,ON/OFF 2, V olume +/- 3,MicroSD Slot 4,USB jack 5,Reset

6, USB jack 7,Earphone jack 8,Backspace 9,Menu 10,Home

11,MIC 12,Camera

8

ON/OFF

ON/OFF KEY:

KEY:

KEY: L ong press ON/OFF key, Tablet PC turns on/ off . When it is open, press

ON/OFF key to lock screen and entering sleeping mode. Long press ON/OFF key, then it will

popup mode selection window, there are silent mode and shut down for option.

Volume

Volume Key:

Key:

Key: Press + to increase the volume, p ress – to reduce the volume.

B

B ackspace

ackspace

ackspace key:

key:

key: Press backspace key to back to the previous operation or previous interface.

Menu

Menu Key:

Key:

Key: Press Menu Key to display Menu lists, press menu key again to close Menu lists.

Long press Menu key to open/close virtual key. When the screen is locked, press menu key to

startup screen; Press it again to unlock the screen . ( If you have set the unlock mode, you

should unlock the screen according to your settings.)

Home

Home key:

key:

key: In option program, menu or webpages, press home key to back the main interface.

Long press Home key, then display the applications opened recently.

Reset:

Reset: R ecovery factory Settings . * Before reset, please backup your files.

9

I

I nterface

nterface

nterface Instruction

Instruction

P

P rompt

rompt

rompt message

message

Status

Status bar

bar

Application

Application list

list

list key

key

Applications

B

B rowser

rowser

rowser key

key

Setting

Setting key

key

Widget

10

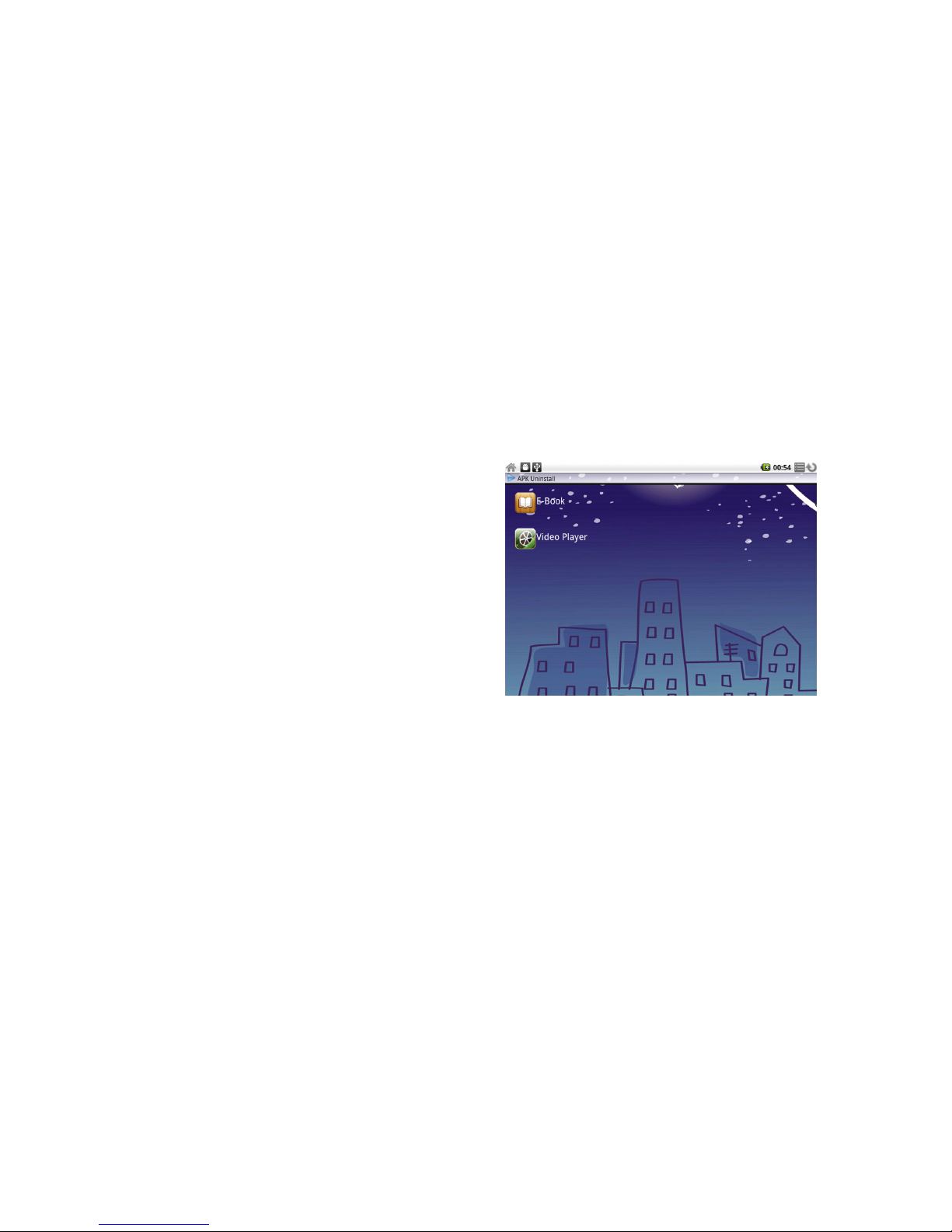

Main interface equal to the computer desktop, you can place application shortcuts and widgets.

1,

1, Message

Message

Message notification

notification

notification bar:

bar:

bar: The status bar on the top of screen , icons show on the left, it

means to remind you what application is running now. Slide down to check system tips.

* Reading tips. When prompting message displayed on status bar, click it and open notification

list on the screen with your finger. C lick selection window to open prompt message,click clear

notification on the top of the tip column to read the full message,c lose the tip column.

2,

2, Status

Status

Status bar:

bar:

bar: Icons show on the right to remind you about alarm setting, WiFi connection and

battery charge, etc .

3,

3, Application:

Application:

Application: Press and hold down the application. The delete button will appear in the

application list button place. Drag the application to the delete button and you can delete the

application.

4,

4, Widgets:

Widgets:

Widgets: Press the space of main inferface last 1-2 seconds, then display ” Add to main

interface ” , select widgets to add application or other operations.

5,

5, Setting

Setting

Status bar icon instructions

11

mute charging

U ploading & downloading

finished downloading

3G service connecting &

data exchanging

W i-Fi service connected &

available

A larm clock

P laying music

S D card shortage of

capacity

B attery power changes

12

Application

Application list

list

Click application list key to pop out the application interface. Here will show all the

applications.You can click any application by your finger and enter it.

Press and hold down the application icon and the shortcut will be added to the main interface.

Press “ Home ” key in the application list interface to back to the main interface.

Home

Home key

key

*Click to back to the main interface.

13

Language

Language settings

settings

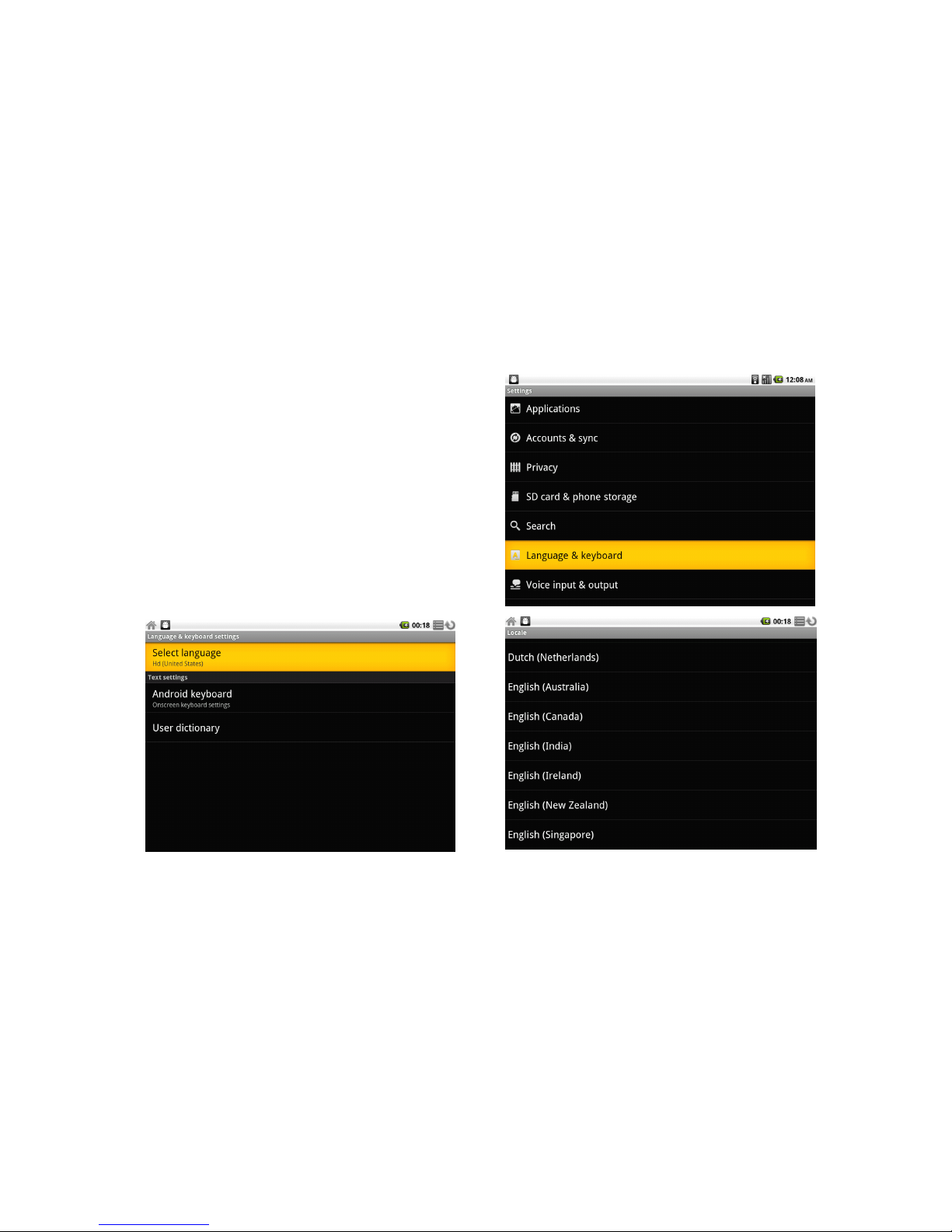

1, Click “ Setting ” icon,

2, Click “ Language & keyboard ” .

3, Select “ Select language ” .

4,Click to select the language in the list.

14

Screen

Screen brightness

brightness

brightness settings

settings

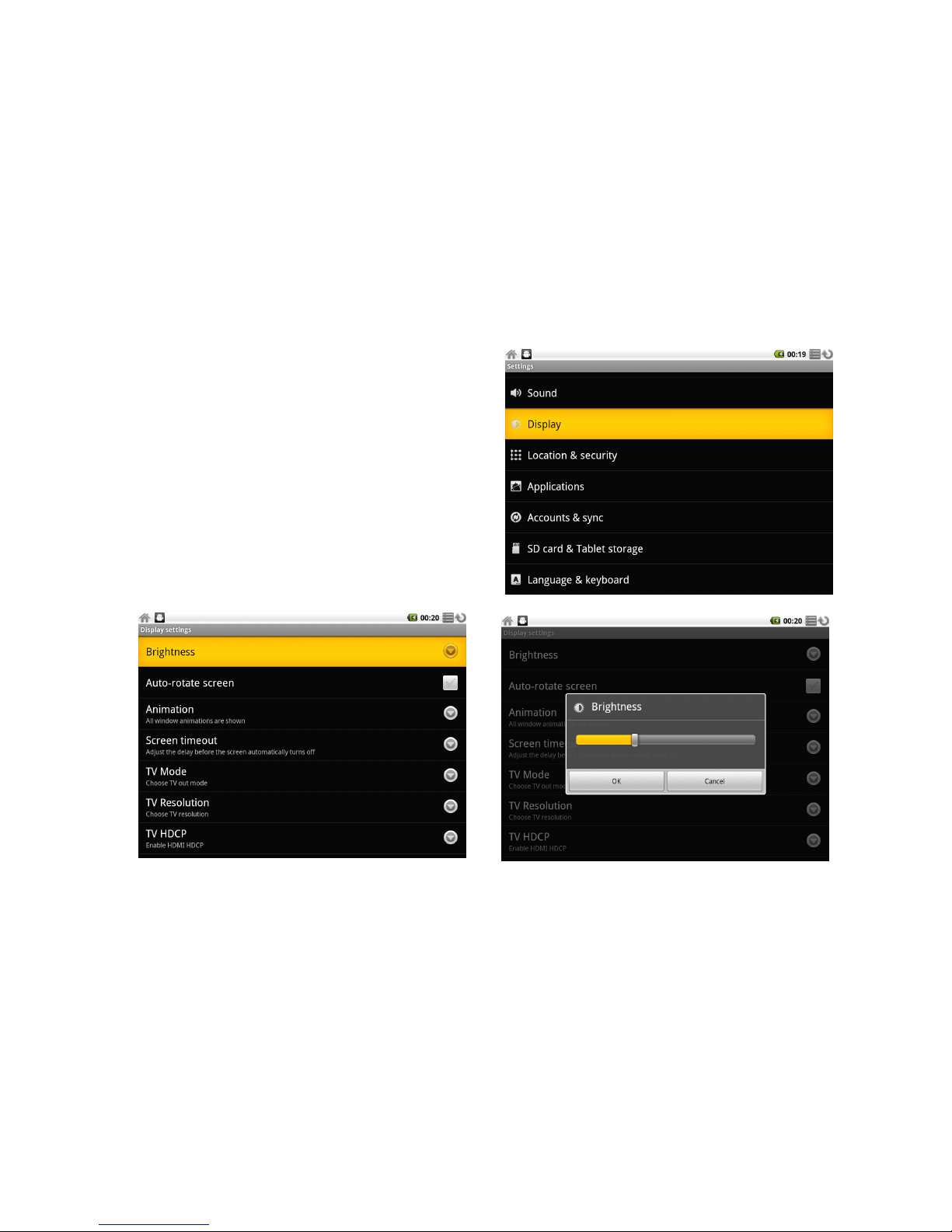

1, Click “ Settings ” icon

2, Click “ Display ”

3, Click “ Brightness ”

*The users can adjust the brightness

according to the need

15

Screen

Screen standby

standby

standby Settings

Settings

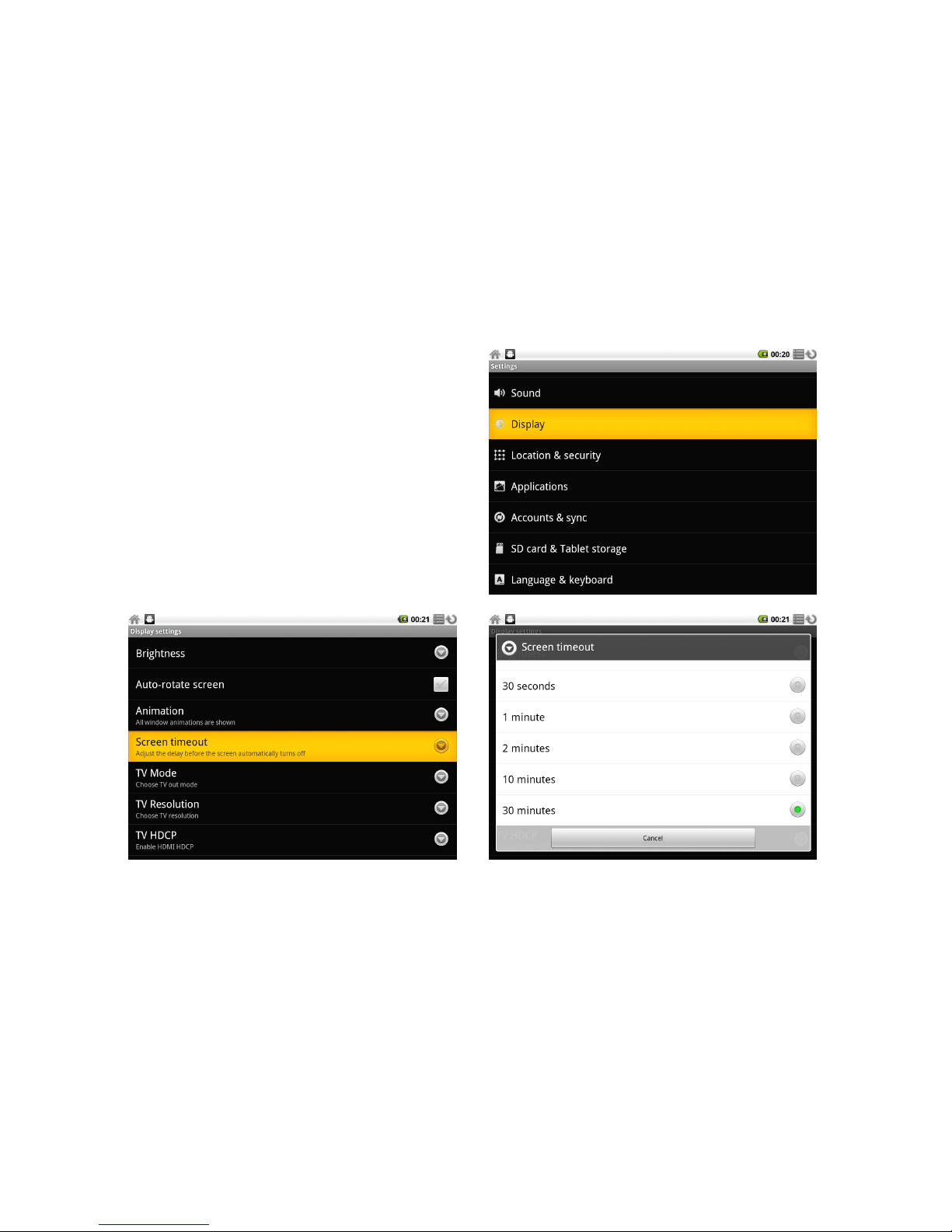

1, Click “ Settings ” icon

2, Click “ Display ”

3, Click ” screen timeout ”

*You can select the screen timeout

according to need.

16

SD

SD card

card

card mount

mount

mount &

&

& unmount

unmount

When SD card is correctly connected with device.

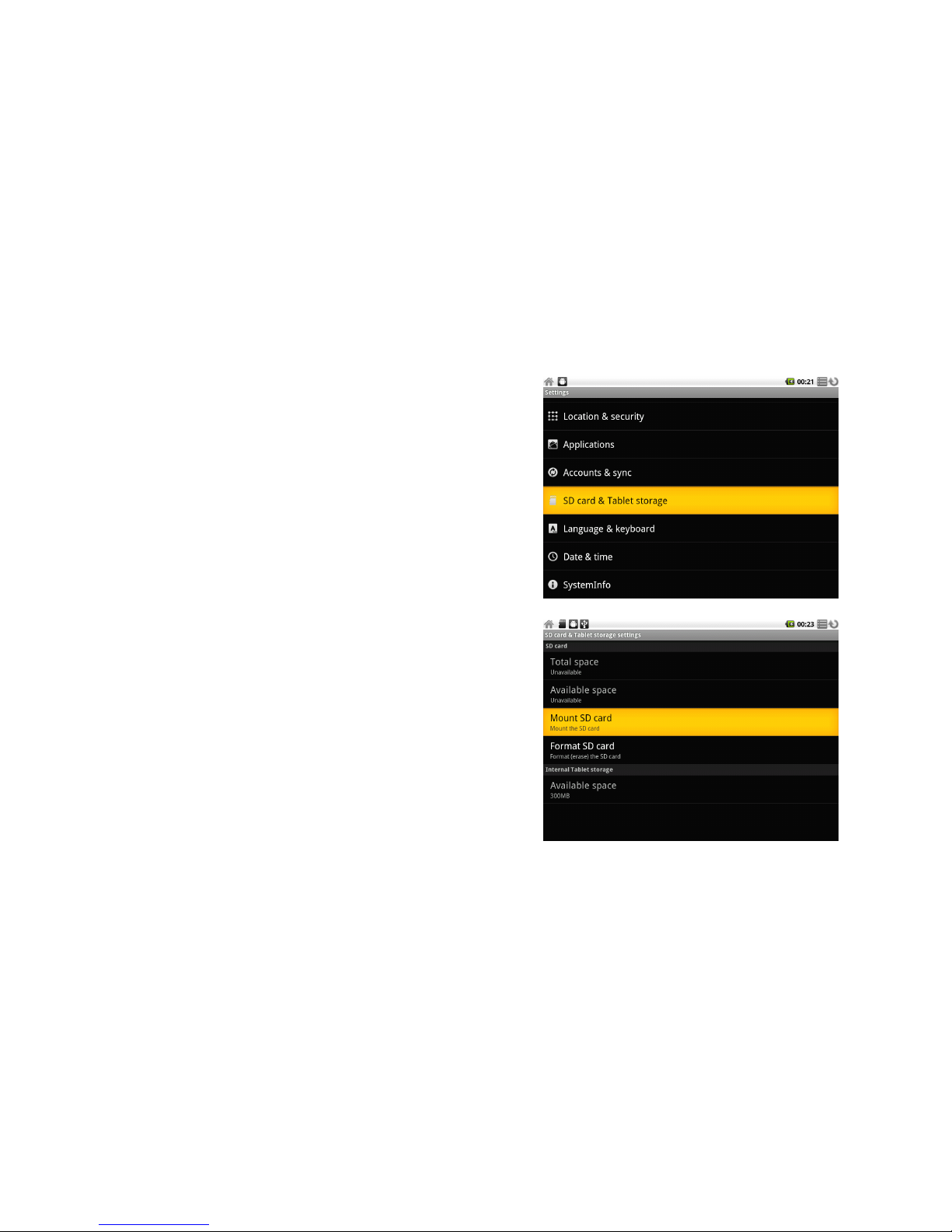

1, Click “ setting ” key

2, Click ” SD card and MID storage ” to check

c onnection status of SD card.

SD

SD card

card

card installation

installation

Select “ Mount SD card ” to mount the SD card .

* select “ format SD card ” , then format SD card .

17

Unmount

Unmount SD

SD

SD card

card

select “ unmount SD card ” and unmount SD card.

*HDMI

*HDMI device

device

device output

output

output (For

(For

(For HDMI

HDMI

HDMI version)

version)

1, Click setting � Display

18

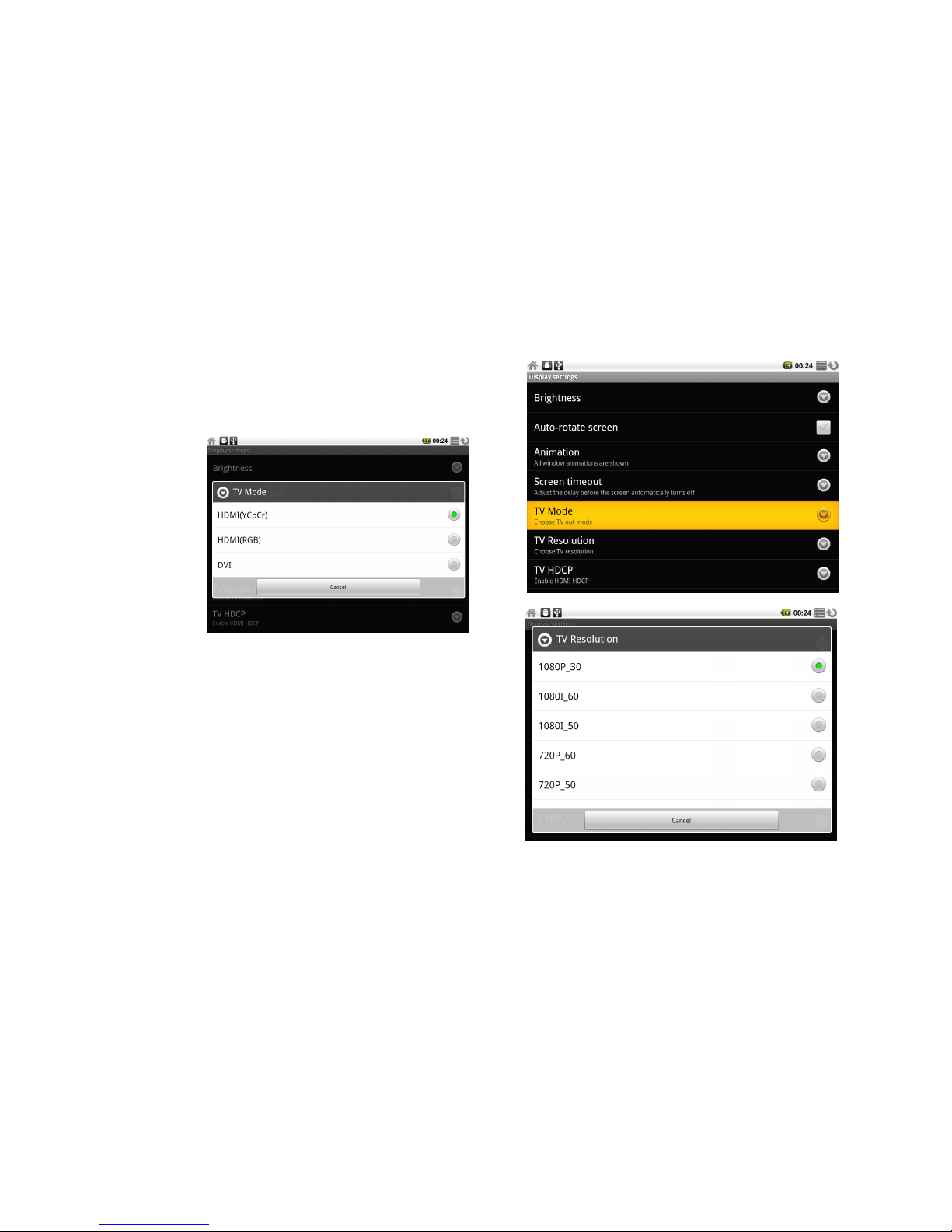

2, On screen interface can find TV output option.

Click “ TV Mode ” , choose vedio output mode.

4, Click ” TV Resolution ” , set TV resolution .

19

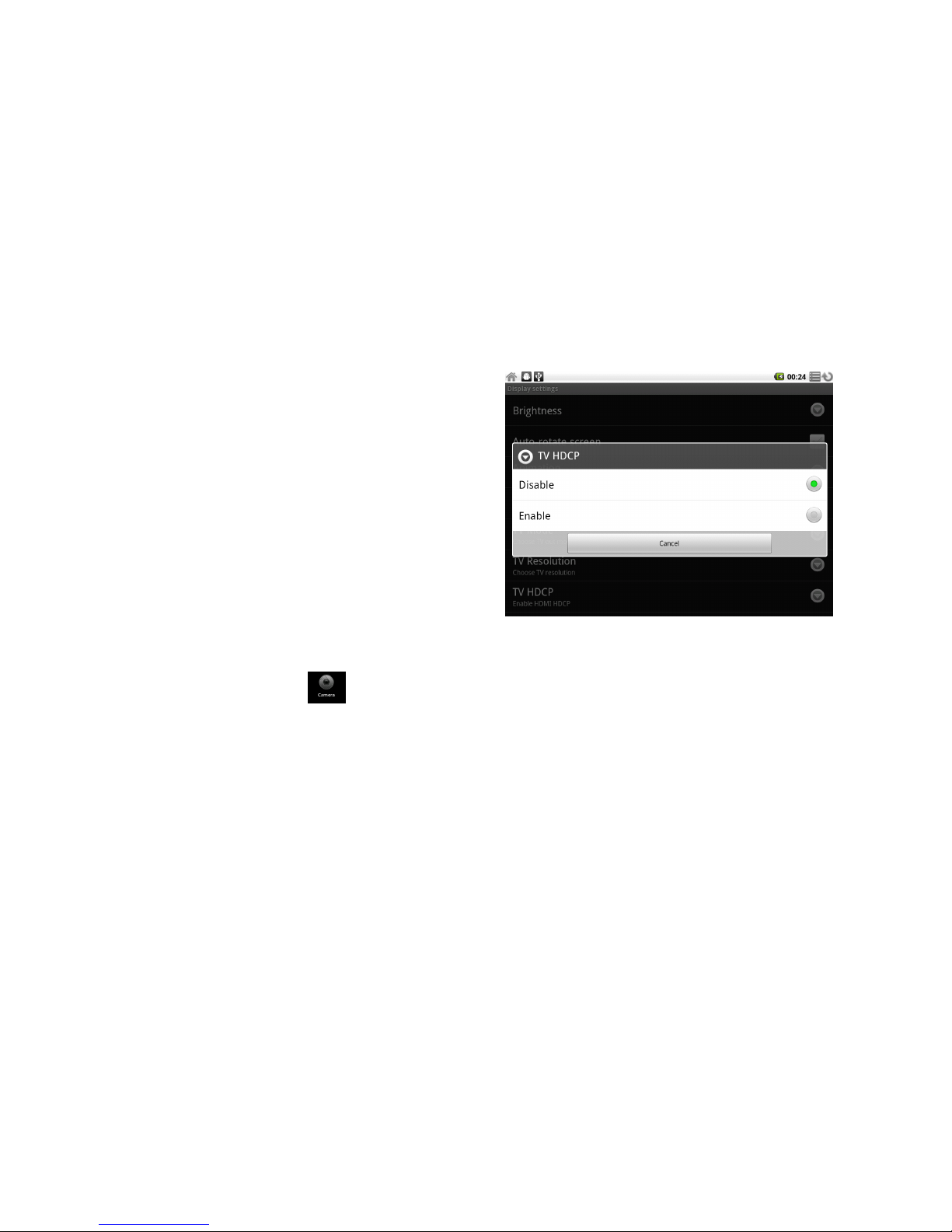

5, Click ” TV HDCP ” , choose TV supports.

C

C amera/Camcorder

amera/Camcorder

amera/Camcorder setting

setting

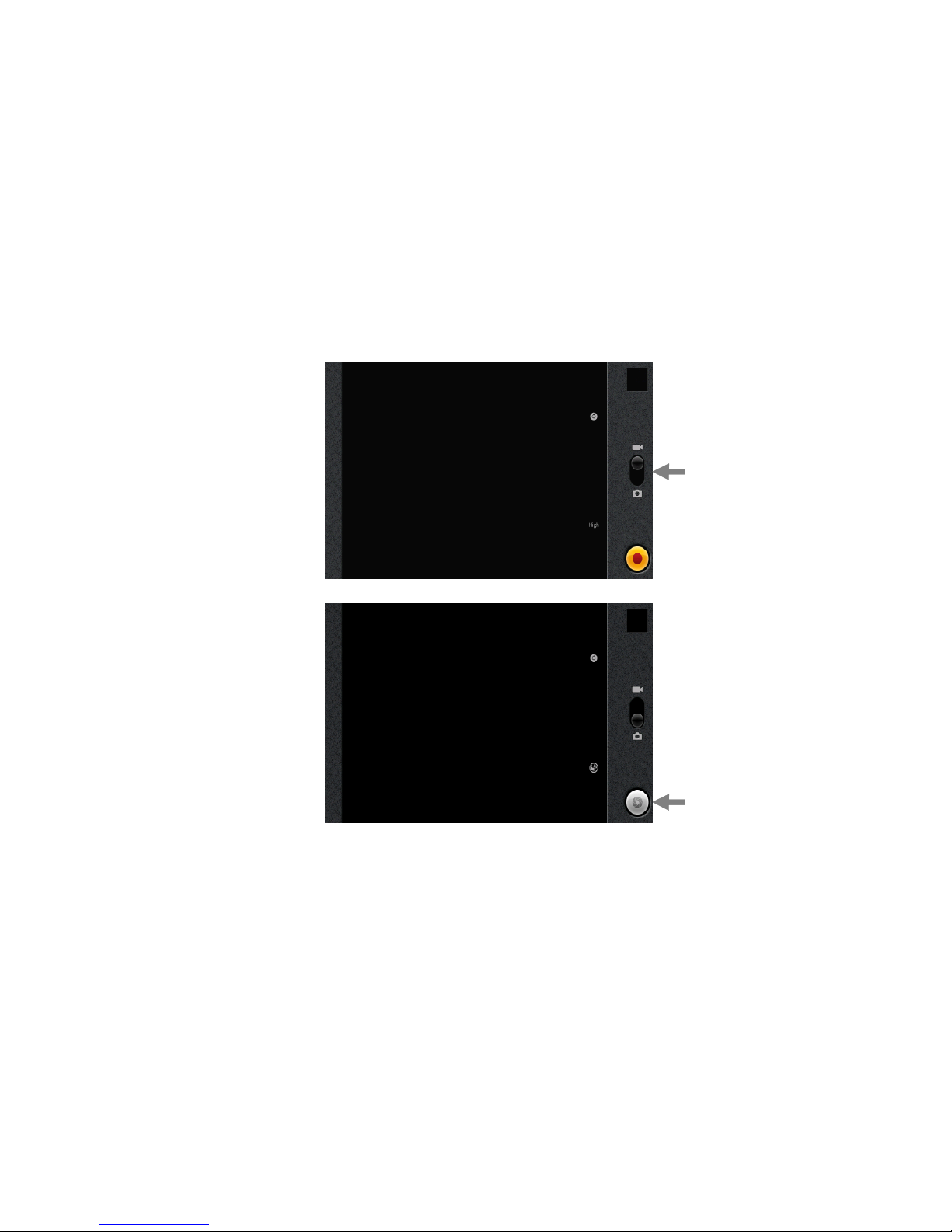

Click “ Camera icon ” in application lists to enter

*Note: Please make sure you have inserted SD card when using.

Select C amera or camcorder mode to take picture or camcorder.

20

*

* Camcorder

Camcorder

Camcorder Mode

Mode

*

* Camera

Camera

Camera Mode

Mode

C amera/camcorder

m ode switch

T

ake picture

21

U

U SB

SB

SB Connection

Connection

Connection Setting

Setting

1, It will display this icon when an USB is connected.

2, When USB is connected, following works more

if need to use files saved in SD card by computer.

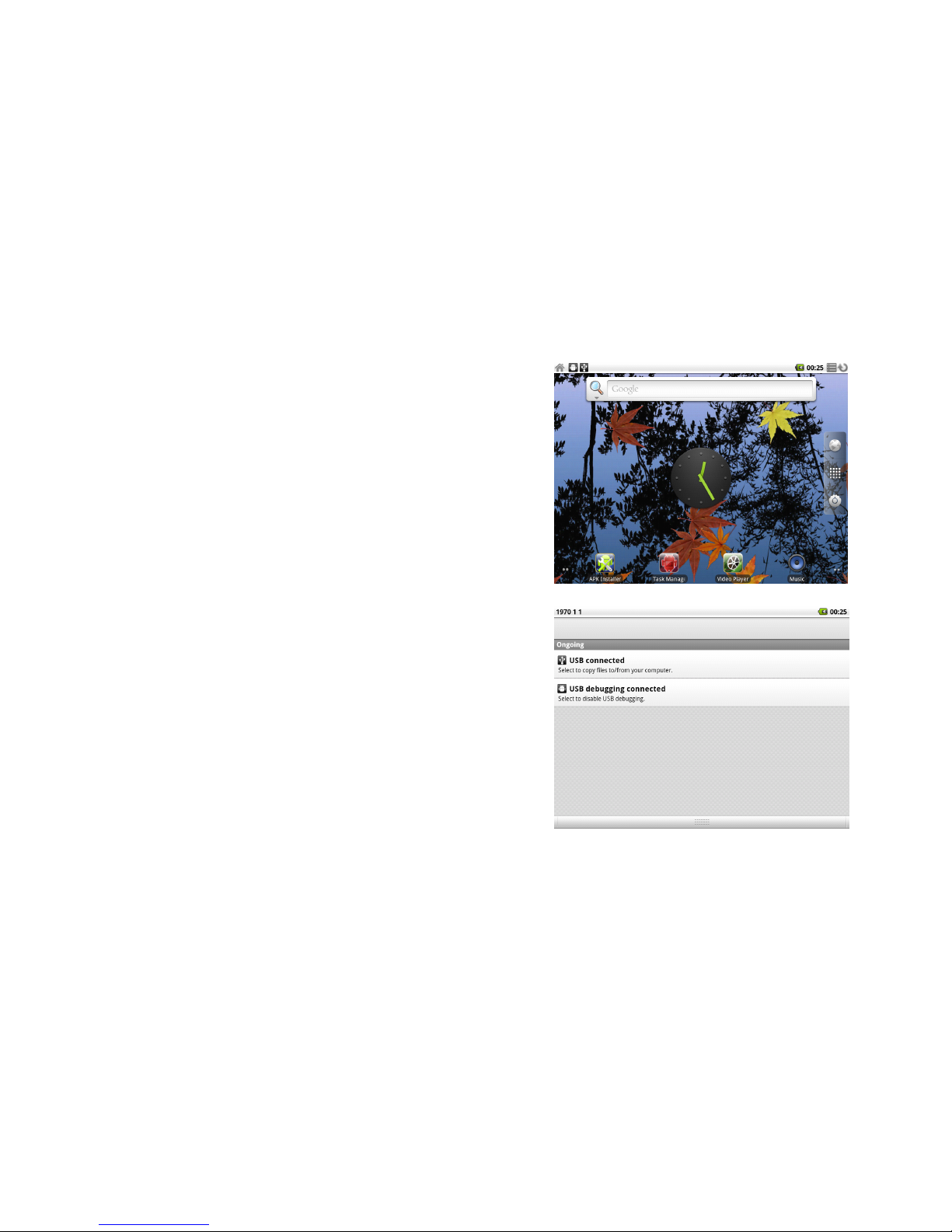

2.1,Press status bar and drag down, then following

information will be showed:

22

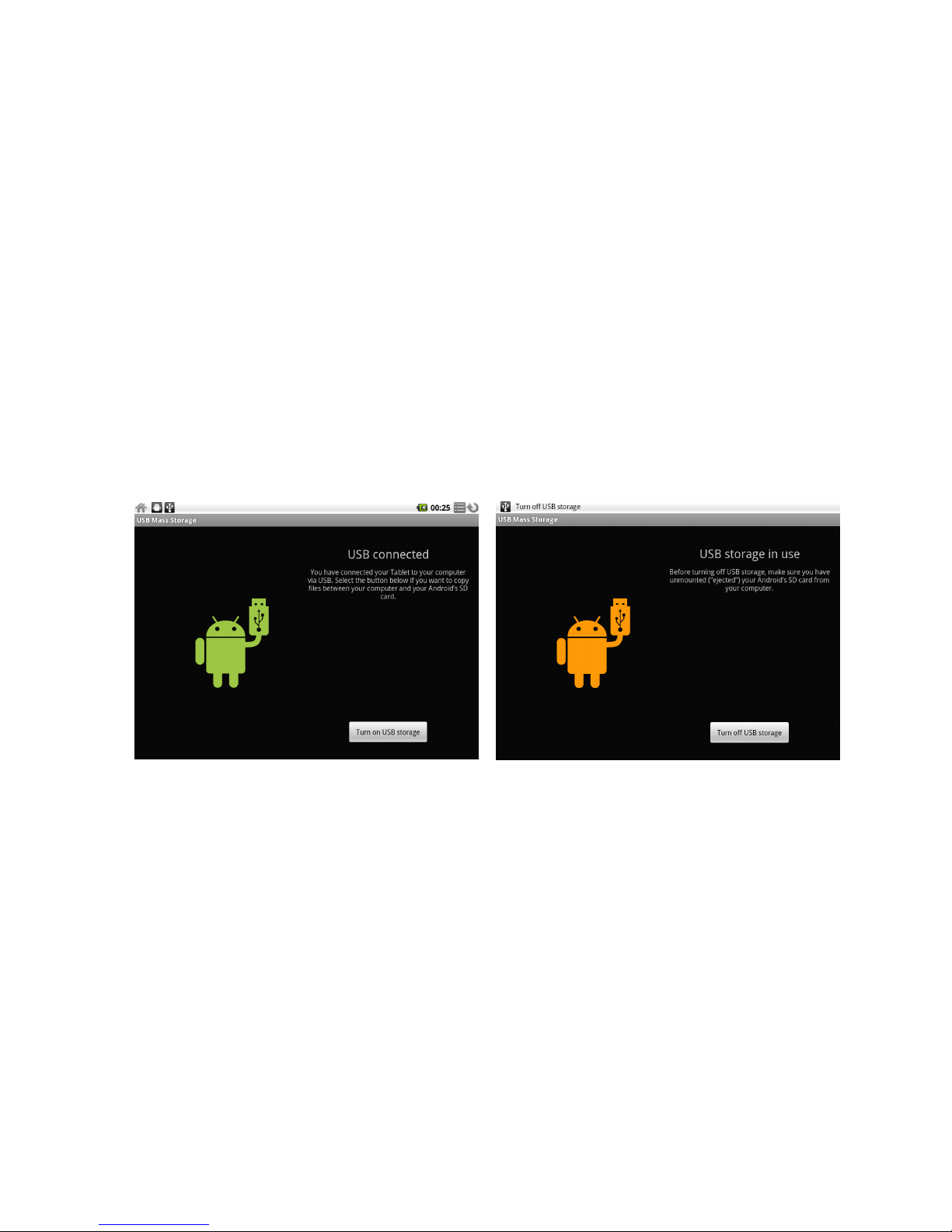

2.2, Select ” USB connected ” , the following information will be showed.

* Attention : One is built-in memory, the other is SD card.

2.3, Click “ turn on USB storage device ” to install, then can use USB device via computer.

The picture is for correct connection.

2.4, When need to remove USB device, click “ close USB storage device ” to remove safely.

Wi-Fi Setting

23

WiFi

WiFi Setting

Setting

Click “ WIFI setting ” from application lists to enter WIFI setting interface.

Or click memu key to open, then select ” Wireless & Networks ” enter into WIFI setting

interface.

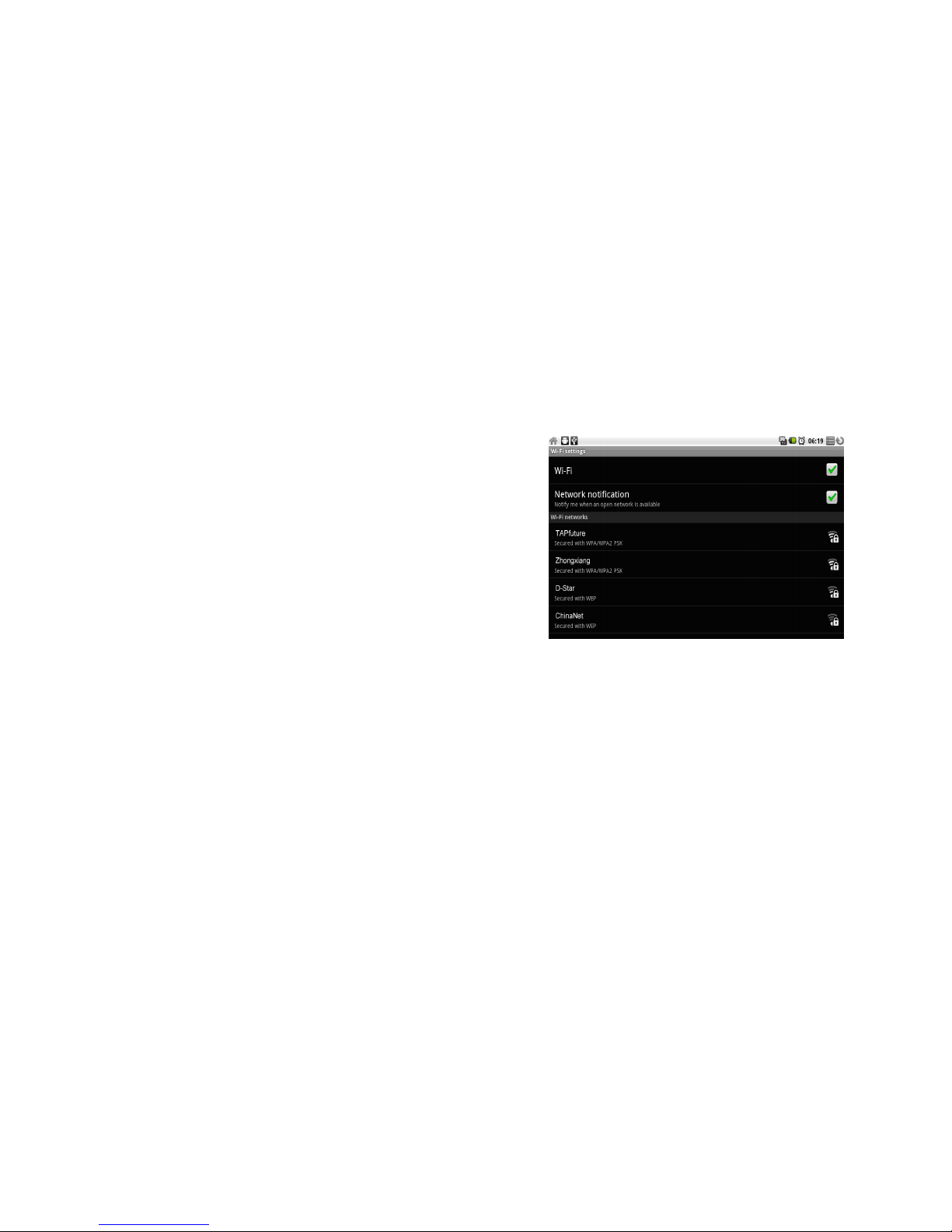

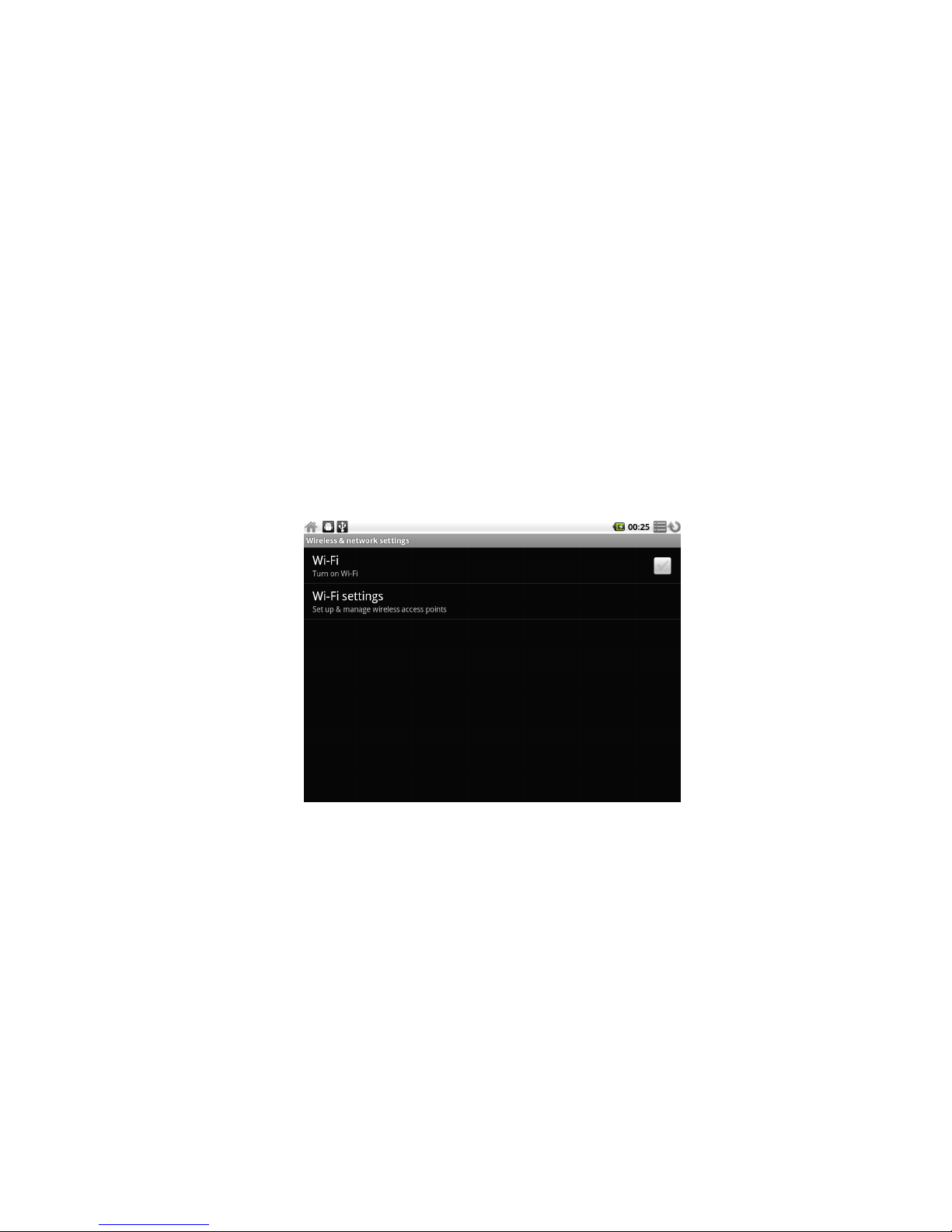

1, Click Wi-fi to open

24

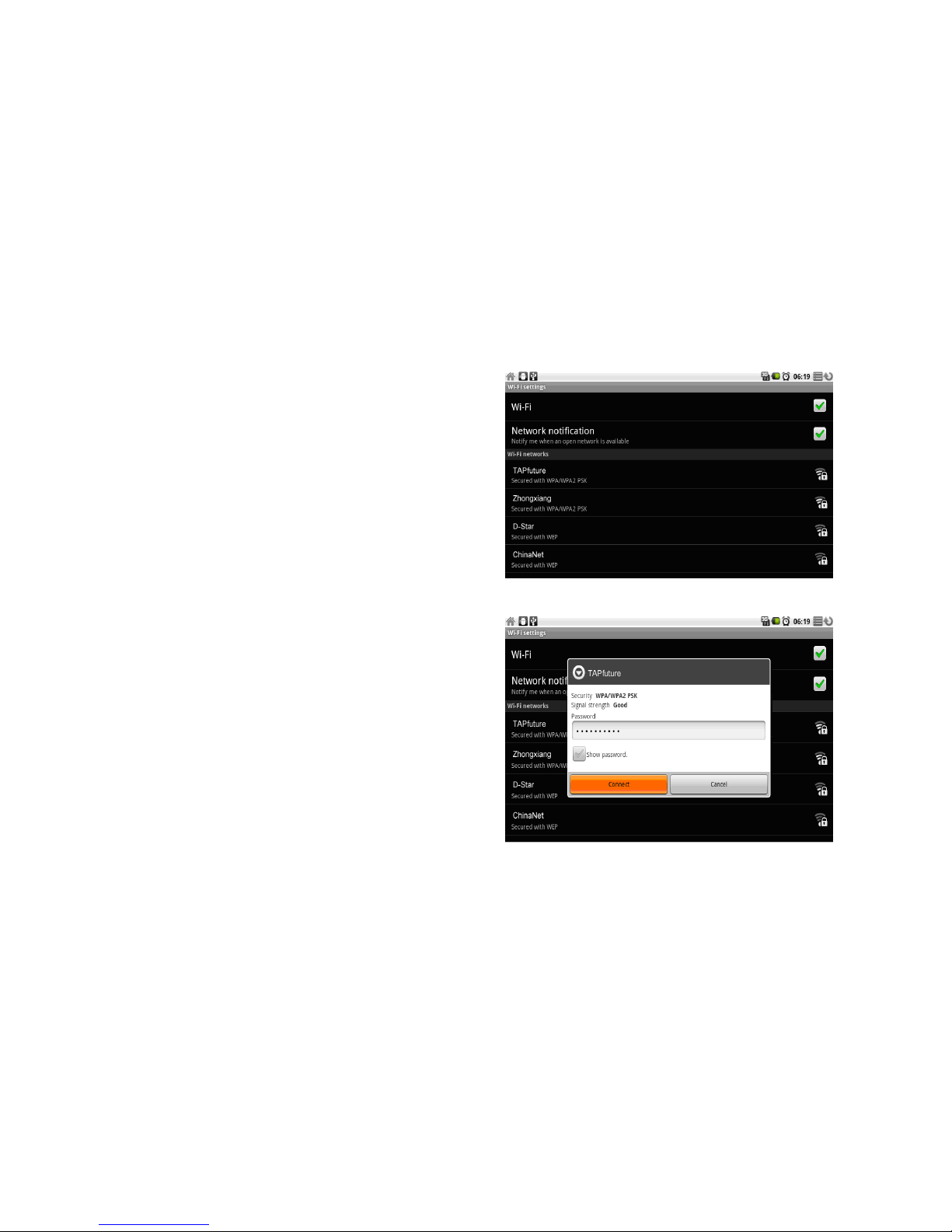

2, Click “ Wi-Fi setting ” , automatically

search the available wireless networks.

3 ， Input wireless network password and

click “ Connect ” .

25

*Tablet PC connect to Wi-Fi with the following way:

1, Enter into main inferface to click Menu Key

2, Click setting

3, Click “ Wireless & networks ” key to open ” Wi-Fi ”

network

4, Click “ Wi-Fi setting ” , automatically search the

available wireless networks

5, Select Wi-Fi network to connect

6, Input password to enter

7, Click “ connect ” .

*Attention ：

Tablet PC will consume much power when connecting Wifi, please close Wifi when don't use

it.

26

Web

Web browsing

browsing

Attention: before using browser, please make sure Wifi service is open.

Click “ Browser ” icon to enter into interface, input website to enjoy internet

Install

Install application

application

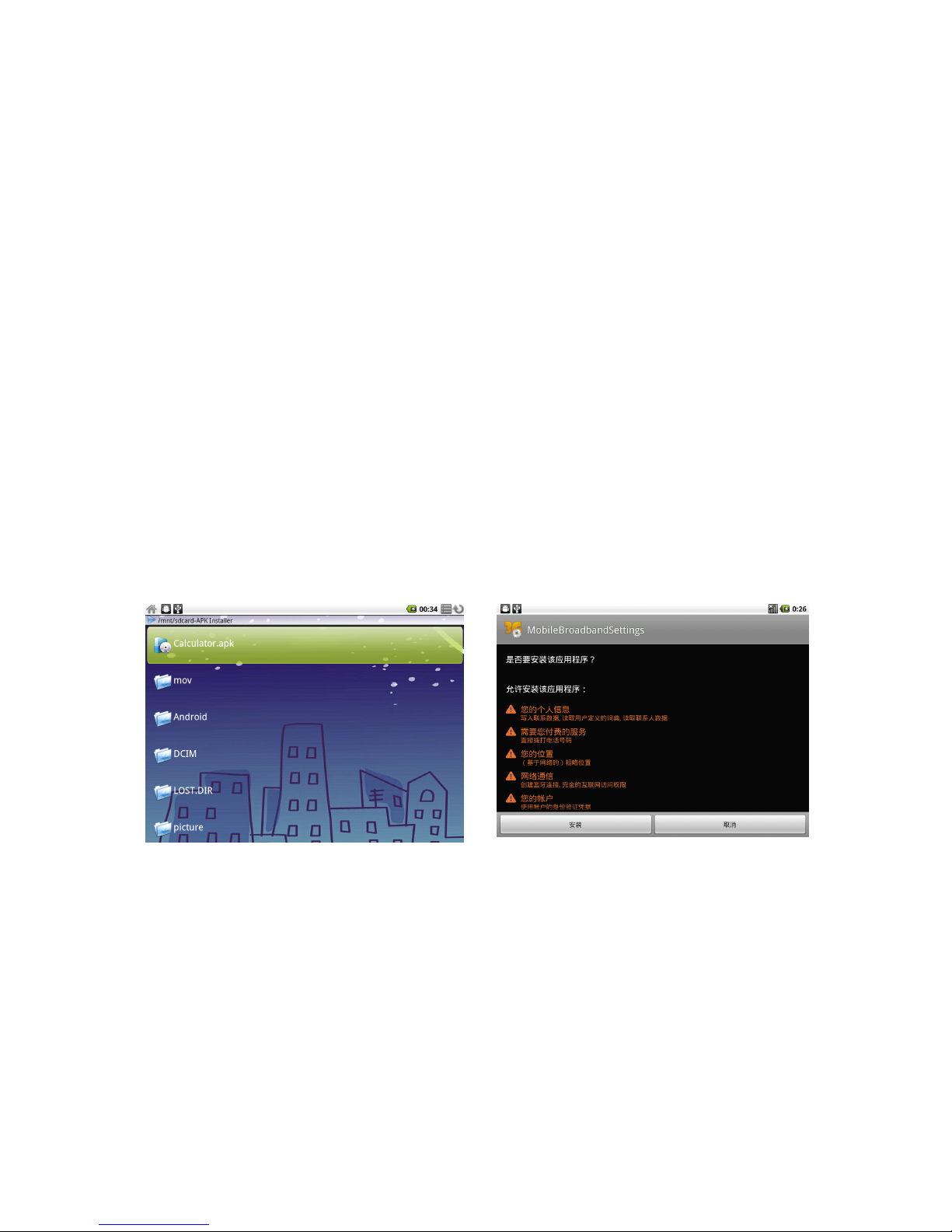

Open the file browser and find the application on the storage, then click to install according to

the tips.

uninstallation interface

27

Uninstall

Uninstall application

application

Click ” Setting ” � ” application ” � ” Manage application ” � then Click ” Uninstall ” to uninstall

application.

28

Music

Music Player

Player

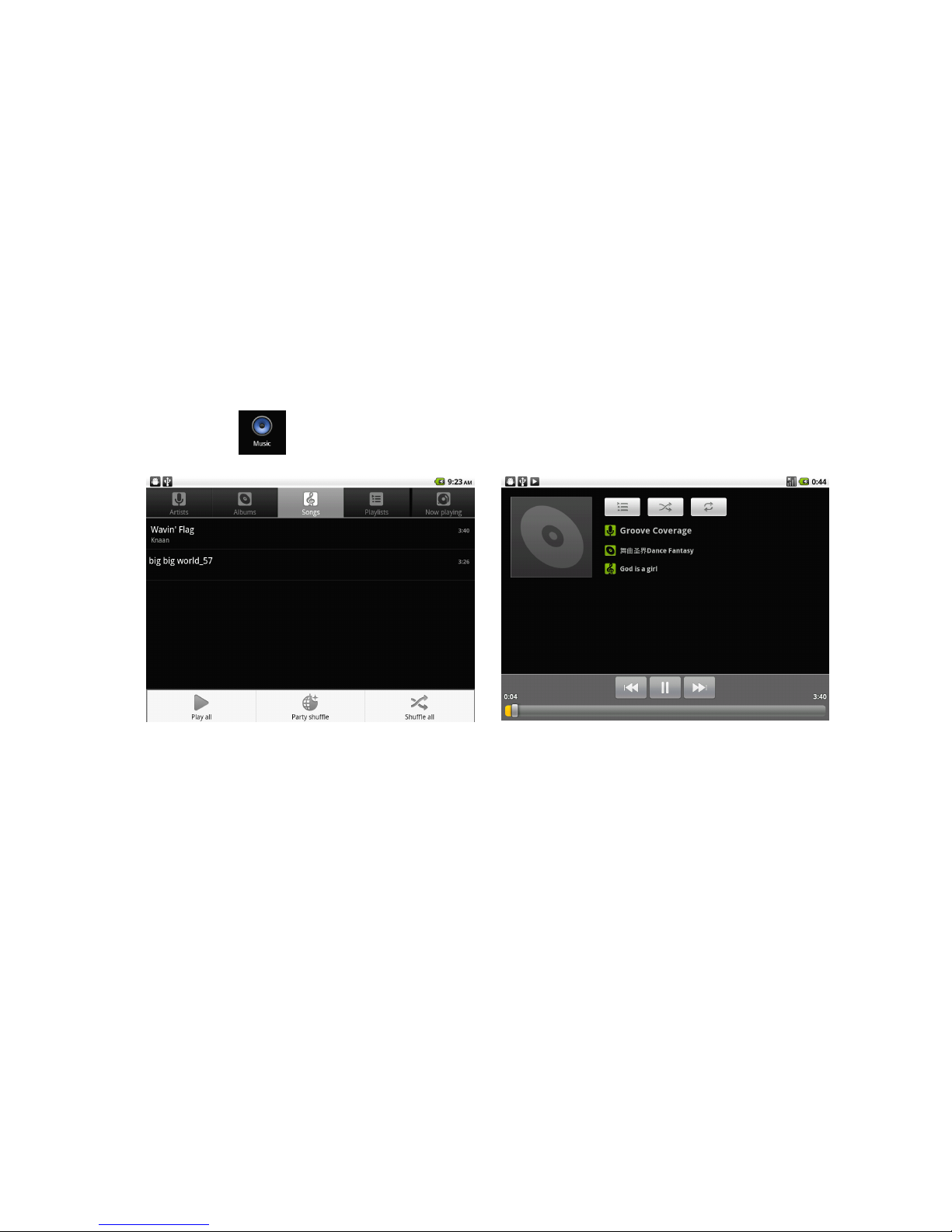

Music player

29

V

V ideo

ideo

ideo Player

Player

Video player

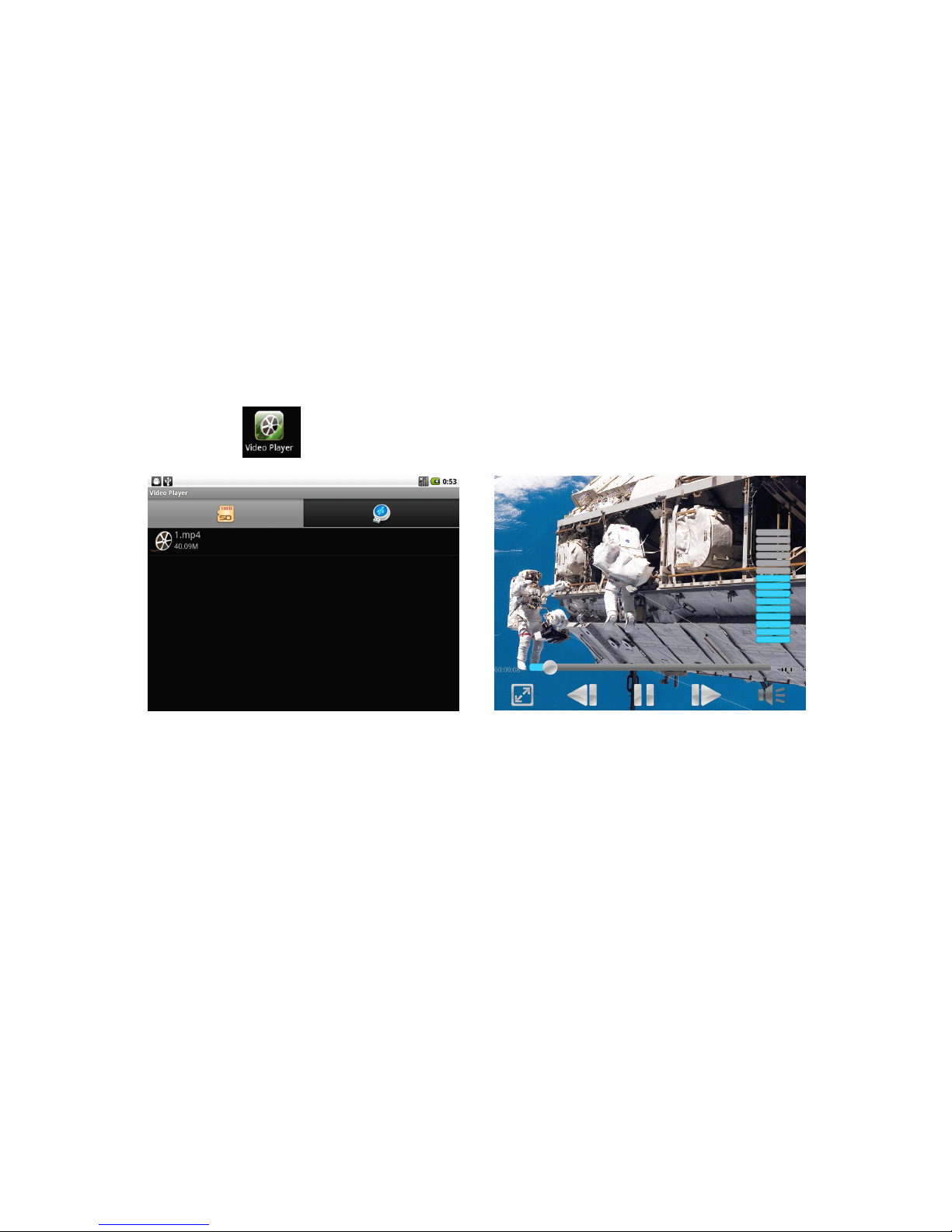

Enter display interface. Long press the interface to pause the play and short press to turn to the

control interface.

Click “ video size ” to switch between the full screen and the original size. Long press the

volume key to enter the silent mode.

30


Picture Brower

Brower

P icture browser

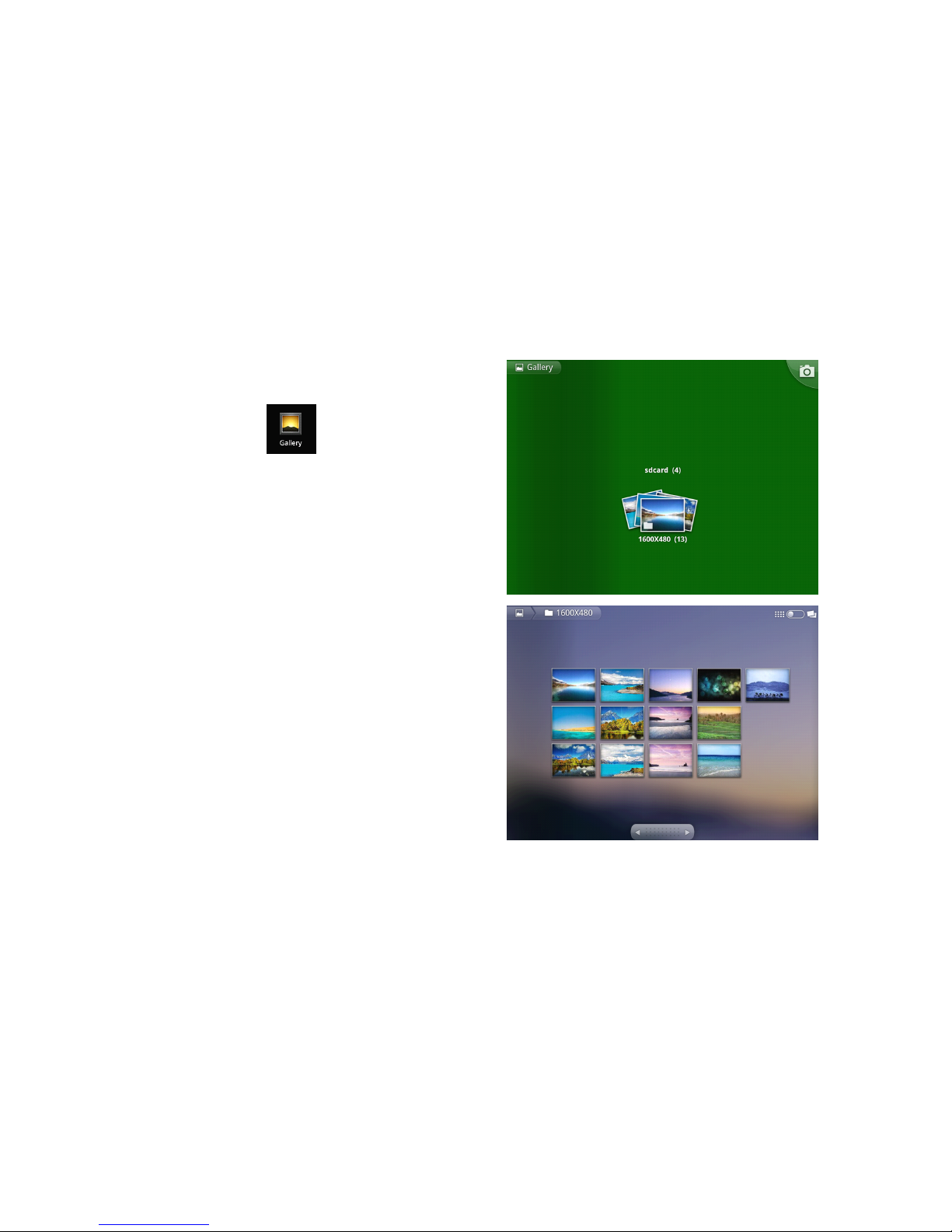

1, Click to enter the gallery interface, It will

automatically scan out the pictures and

videos in the SD card.

2, Click the picture to the picture browser

interface.

31

3, Click to open the picture

Email

Email Settings

Settings

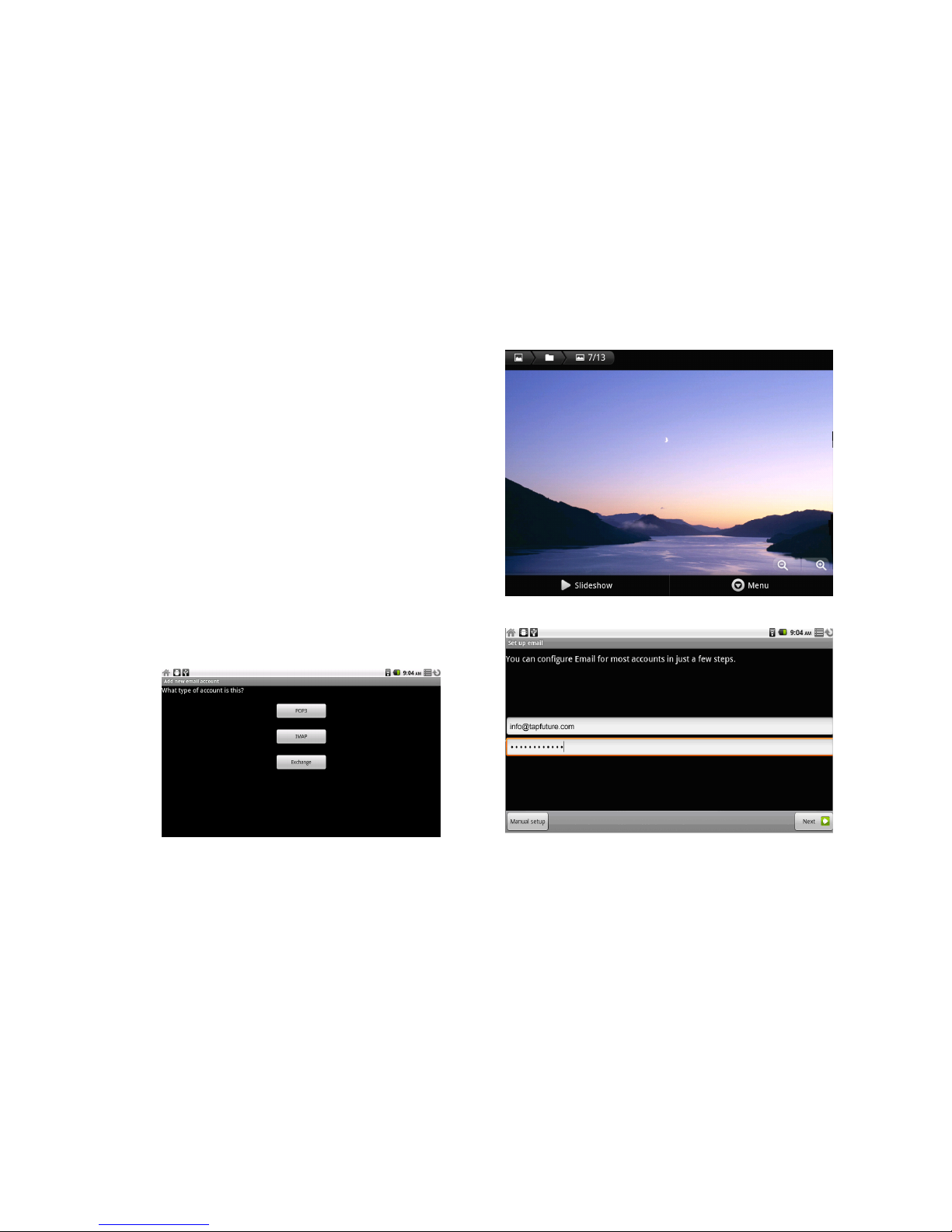

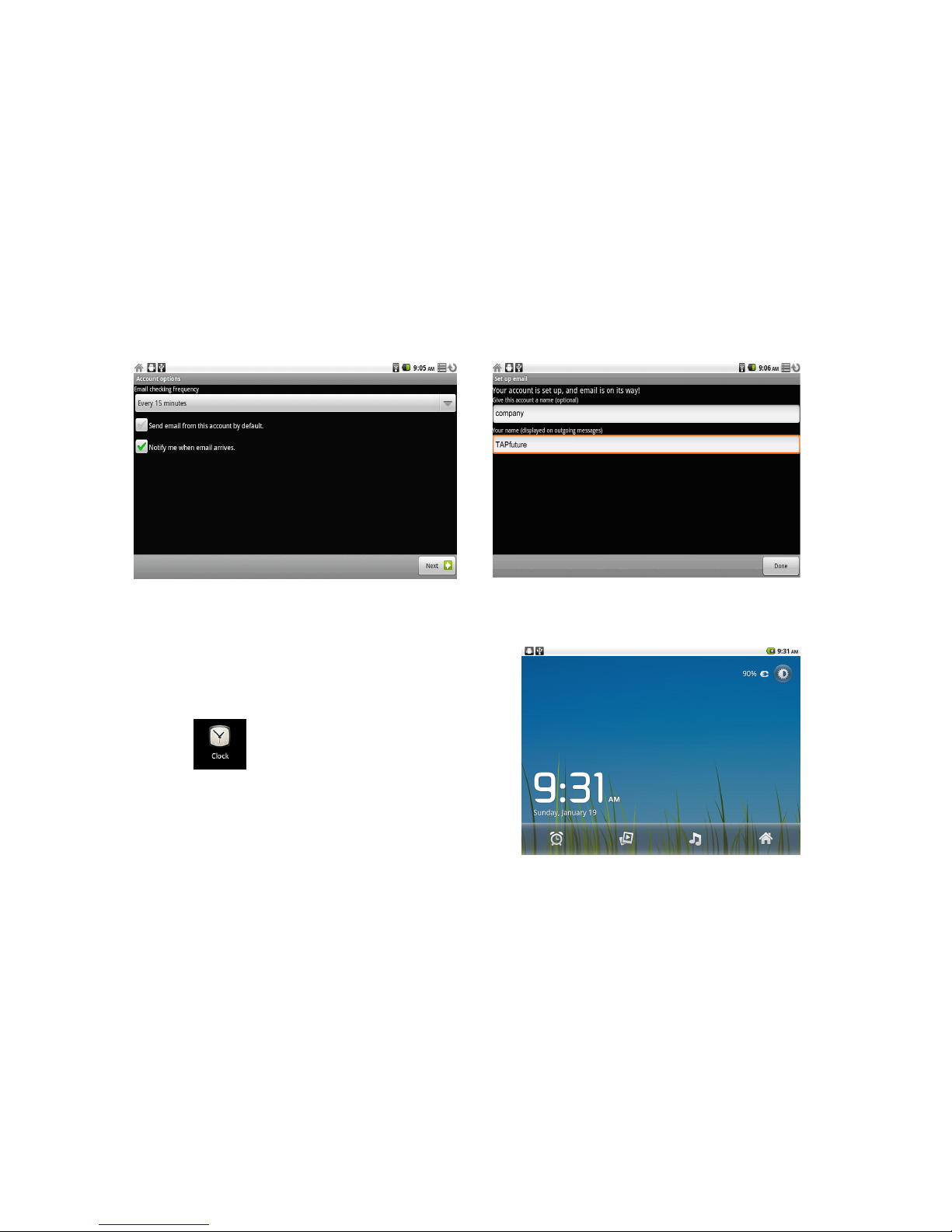

1, Click EMAIL icon to enter the interface.

32

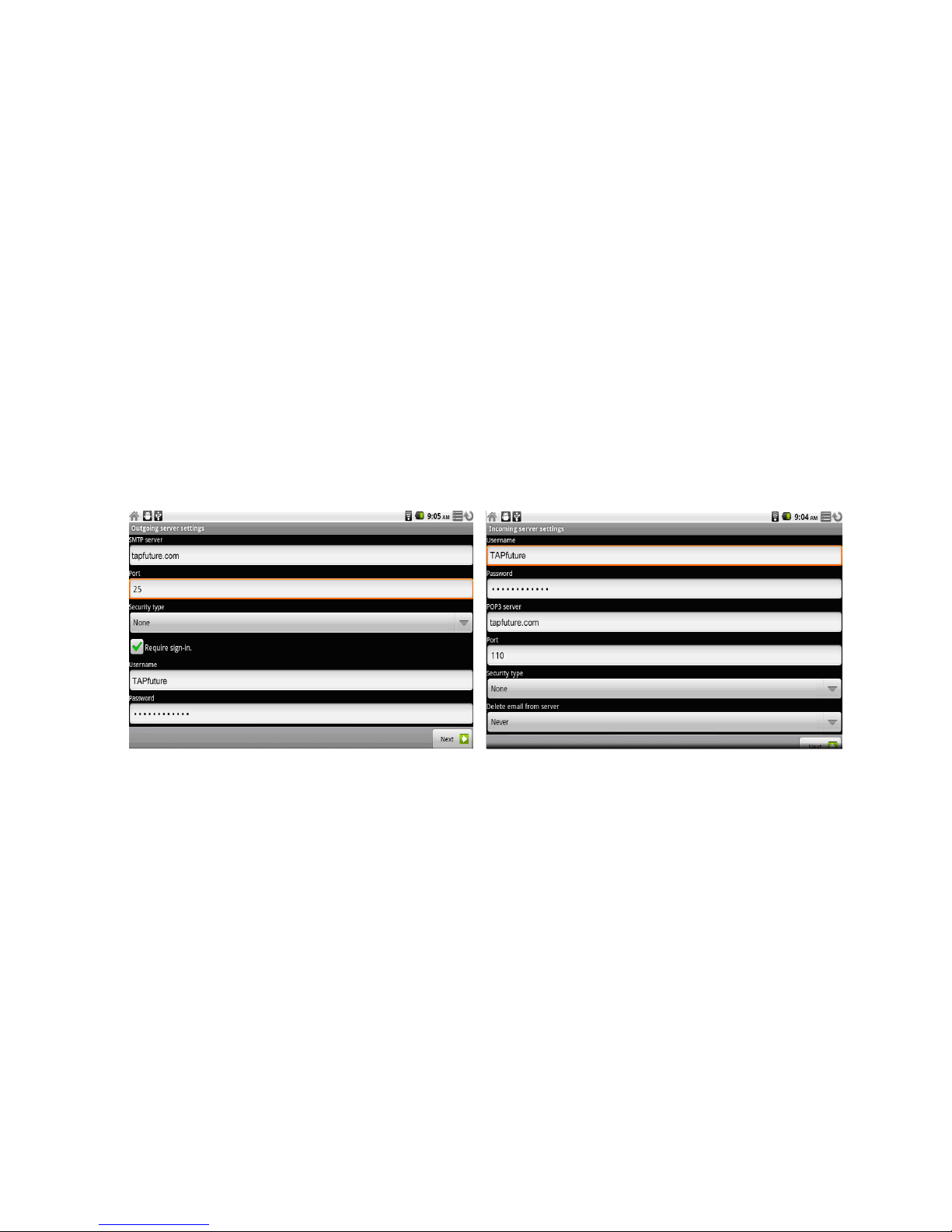

2, Input the account and password. Click “ Next ” . Set all the items according to the prompt.

Then you can login the mail box to receive and send emails.

3, Select the account type.

33

* Notice: Above setting operation is for reference only. Users should set according to actual

situation.

Clock

Clock Settings

Settings

1, Clock

34

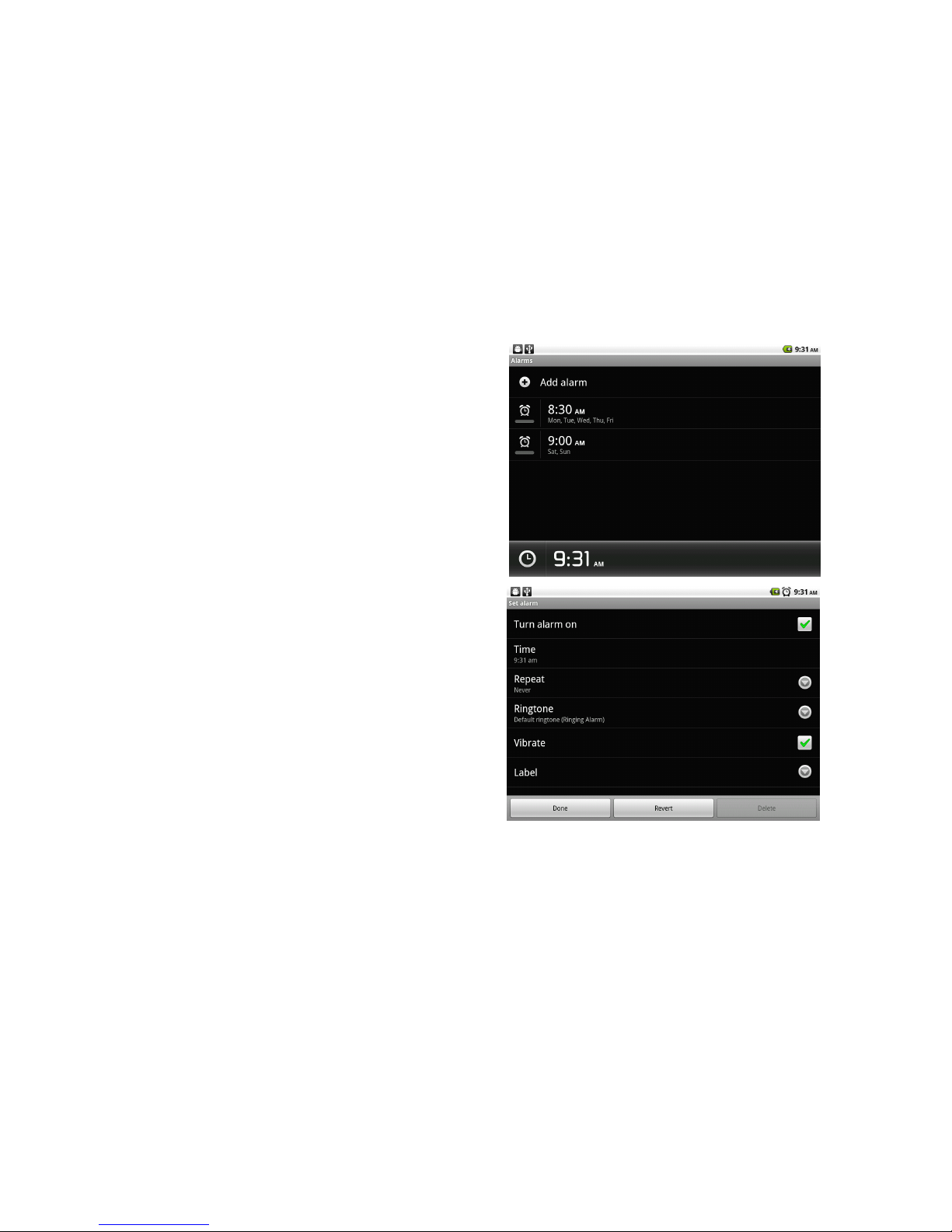

2. C lick “ Alarm Setting ” and enter the

following interface.

3.Add alarm. C lick “ Add alarm ” and

enter the following interface to set

correctly.

35

System

System upgrade

upgrade

Thanks for using our products.

We will release system plug-in or system upgrade file to optimize our products. A ccording to

your use, if you wana update the device, please check official website www.tapfuture.com to

download the upgrade files, and then upgrade as below steps. I f questions you can contact us

or your local dealer.

1, Copy the upgrade files to root of the MicroSD card.

2, Put the MicroSD card into the MicroSD slot of the device.

3, Press the “ V olume + ” and press “ ON/OF ” key at the same time.

4, Upgrade screen shows on the device, wait few seconds until the upgrade completed.

5, Turn off the device according to the notification after finish upgrade. A nd then turn on,

the device working on updated system.

36

Specification

CPU NEC EV2 Dual Core

Screen

Display 7inch LCD

Resolution 800x480

Memory

Flash ROM NAND Flash , support 4GB/8GB/16GB/32GB

RAM 512 MB Mobile DDR II

Antenna Built in antenna

Wifi 802.11 b/g/n

3G 3G dongle WCDMA/EVDO

G-sensor

Yes

Camera Front camera 0.3Mega pixels

Audio format support mp3,wma,ogg,aac,flac,ape,wav, etc.

Video format support

H.263 ,H.264,mpeg2,mpeg4, wmv9, mvb,avi,dat,vob,

mkv, ts, flv, etc.

37

Picture jpg,jpeg,gif,png, etc.

Input/Output

Touch panel IPS capacitive touch screen

Speaker B uilt in

Earphone 3.5mm Jack

MIC B uilt in

SD / MMC Support MicroSD card, max32GB

USB USB 2.0 (Mini Port) x1 , USB2.0 Host (Mini Port) x 1

Keys

1. ON/OFF, Reset

2. V olume +, V olume -

3. Backspace, Home, Menu

Battery

Type Built in 3.7V 4100mhA Li-Po

Working time 5- 8hours

Adapter Output Mini USB, DC-Jack , 5V , 2A

Certification 3C, CE,FCC, RoHS
