INSTALL GUIDE
TUNet
PP
-
1316
Sept 18, 2011
KT-109967
®
ITRON SENTINEL® METER
READER
Tantalus Systems Corp.
301– 3480 Gilmore Way Burnaby BC V5G 4Y1 Canada
p 604.299.0458 | f 604.451.4111
www.tantalus.com
L E G A L N O T I C E S
This Guide, and any associated software, is being provided to you only as a licensee pursuant to legal agreements with
Tantalus Systems Corp. that govern your rights and all other aspects of the relationship, and prevail over the legal notices
herein to the extent of any inconsistency.
INFORMATION SUBJECT TO CHANGE The products and methods described in this Guide are the subject of continuous
development and so the information contained herein may change without notice.
REGULATORY AND SAFETY The products and methods described in this Guide are to be handled and/or performed
only by properly trained personnel who understand and strictly follow the instructions of this Guide, including all the
regulatory and safety rules. Failure to so follow may void your legal remedies and regulatory authorizations, amongst
other legal effects.
INTELLECTUAL PROPERTY
Copyright Notice © 2011 Tantalus Systems Corp. All rights reserved.
The copyright notice on this Guide does not indicate any actual or intended publication of any confidential information or
trade secrets contained in or embodied by any associated software.
No part of this Guide, or any associated software, may be reproduced, adapted, translated, stored, or transmitted in any
form or by any means except with prior written permission of Tantalus Systems Corp. or as explicitly allowed by copyright
laws applicable to your situation. This Guide contains proprietary information of Tantalus Systems Corp. that may be
disclosed only to your permitted contractors and customers who need to know.
Trademarks Tantalus, TUNet, Tantalus Utility Network, the stylized T logo, and the names of the products and services
offered therewith, are trademarks of Tantalus Systems Corp. All other product and brand names referenced herein may
be trademarks of their respective owners.
Patents The information and technology described in this Guide, and any associated products, methods, or software,
may be the subject of patents and pending applications of Tantalus Systems Corp. and/or its licensees.
WARRANTY
LIMITATION OF LIABILITY. THE INFORMATION IN THIS GUIDE IS PROVIDED "AS IS" WITH NO WARRANTY
WHATSOEVER AND TANTALUS SYSTEMS CORP. SPECIFICALLY DISCLAIMS ANY WARRANTIES, CONDITIONS,
OR REPRESENTATIONS (EXPRESS OR IMPLIED, ORAL OR WRITTEN) WITH RESPECT TO THE GUIDE OR ANY
PART THEREOF, INCLUDING ANY OR ALL WARRANTIES, CONDITIONS OR REPRESENTATIONS OF TITLE,
MERCHANTABILITY, NON-INFRINGEMENT FITNESS FOR A PARTICULAR PURPOSE (WHETHER OR NOT
TANTALUS SYSTEMS CORP. KNOWS, HAS REASON TO KNOW, HAS BEEN ADVISED, OR IS OTHERWISE IN
FACT AWARE OF ANY SUCH PURPOSE), WHETHER ALLEGED TO ARISE BY LAW, EQUITY, STATUTE OR
GOVERNMENTAL POLICY, BY REASON OF CUSTOM OR USAGE IN THE TRADE, OR BY COURSE OF DEALING. IN
NO EVENT WILL TANTALUS SYSTEMS CORP. BE LIABLE FOR ANY DAMAGES OR COSTS WHATSOEVER OR
ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL AND CONSEQUENTIAL DAMAGES, OR ANY LOST PROFITS OR
LOST SAVINGS, EVEN IF IT HAS BEEN ADVISED OF THE POSSIBILITY THEREOF. THE AGGREGATE LIABILITY
OF TANTALUS SYSTEMS CORP. AND ITS REPRESENTATIVES (INCLUDING ITS EMPLOYEES, OFFICERS,
DIRECTORS, AGENTS, LICENSORS, DISTRIBUTORS AND SUPPLIERS) IN CONNECTION WITH THIS GUIDE
(WHETHER IN TORT, CONTRACT OR OTHERWISE) IS LIMITED ACCORDING TO THE GOVERNING LEGAL
AGREEMENTS. THESE LIMITATIONS SHALL APPLY WHETHER OR NOT THERE IS A FUNDAMENTAL BREACH OF
CONTRACT. SOME JURISDICTIONS CURTAIL OR PROHIBIT LIMITATIONS OF LIABILITIES, AND THEREFORE THE
ABOVE LIMITATIONS MAY NOT APPLY TO YOUR SITUATION.
EXPORT CONTROL Export of this Guide and its information may be controlled by the laws of the United States of
America, Canada and the laws that govern you. Export in contravention of such laws is strictly prohibited.
S A F E T Y N O T I C E
Warning
Energized meters, meter sockets and distribution lines present the risk of electrical shock.
All work on this equipment should be performed by qualified metering specialists or
industrial electricians.
Personnel working with this equipment should follow all utility company established
operation and safety procedures.
R E G U L A T O R Y N OT I C E S
F C C P a r t 1 5 No t i c e , U SA
The transceiver described herein complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. The device may not cause harmful interference.
2. The device must accept any interference received, including interference that may cause undesired operation.
The device is specifically designed to be used under Section 15.247 of the FCC Rules and Regulations. Any unauthorized
modification or changes to this device without the express approval of Tantalus Systems Corp. may void the user’s
authority to operate this device.
Furthermore, this device is intended to be used only when installed in accordance with the instructions outlined in the
installation manual. Failure to comply with these instructions may also void the user’s authority to operate this device.
I C R S S - G E N N o t i c e , C a n a da
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
R a d i o a n d T e l e v i s i o n I n te r f e r e n c e
The installation guidelines are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, you are encouraged to try and correct the interference by one of more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment on an electrical circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
T a b l e o f C o n te n t s
1 :: Product Description.............................................................................................................................. 1
1.1 Product Specification: PP-1316 C&I Meter Reader ................................................................... 2
2 :: Installing the PP-1316........................................................................................................................... 3
2.1 Equipment Required.................................................................................................................. 3
2.2 Installing PP-1316 Components................................................................................................ 4
2.2.1 Installing PP-1316 Components into the Itron SENTINEL® Meter................................ 5
2.3 Configuring the Meter................................................................................................................ 9
3 :: Contact Information............................................................................................................................ 10
1 :: Product Description
The Tantalus PP-1316 Itron SENTINEL® Meter Reader joins the wireless connectivity of an Itron
SENTINEL® Commercial and Industrial 3 phase meter to the metering features of the TUNet
communication system fixed network. The PP-1316 adds wireless, two-way communications and
advanced monitoring capabilities including:
• Peak Demand Reset on request, or by schedule, or by custom date and time as commanded by
the TUNet Network Server
• at Peak Demand Reset, provide non-coincident peak kW, kVAR & kVA, as calculated by the
Sentinel meter
• kW, kVAR and kVA intervals for trending and profiling purposes
• voltage on all phases upon request, or by interval
• Upon request:
o co-incident values to the peaks (kW / kVA / kVAR) if configured in the meter
o cumulative kWh, kVAh, kVARh,
o the current values for non-coincident peak kW, kVAR & kVA
The PP-1316 Meter Reader configures the Itron SENTINEL® data for transport via the network to
the Tantalus NS-2000 series Network Server.
Figure 1: Itron SENTINEL® Commercial and Industrial 3 Phase Meter
TUNet PP-1316 Install Guide page 1
Doc No. KT-109967
1.1 Product Specification: PP-1316 C&I Meter Reader
900 MHz Antenna (Part 15)
Frequency Range
Operating Temperature
Modulation
Power Consumption
Operating Humidity
Standards
902-928 MHz frequency hopping, license exempt
-22 to 140°F (-30 to +60°C)
FSK
Active Power: 2 watts
5% to 95% non-condensing
Antenna within sealed meter not accessible to installer/operator.
• FCC CFR Title 47 Part 15c (Intentional Radiators)
• ANSI C12.1:2008 Compliant
• CFR Title 47 Part 15b (Unintentional Radiators)
Page 2 Tantalus Systems Corp.
Released 18/09/2011
2 :: Installing the PP-1316
Before the PP-1316 can be installed, the Itron SENTINEL® must be programmed with initial
configuration settings.
Energized meters, meter sockets and distribution lines present the risk of
electrical shock. All work on this equipment should be performed by qualified
Warning
metering specialists or industrial electricians. Personnel working with this
equipment should follow all utility company established operation and safety
procedures.
2.1 Equipment Required
The following equipment is required to program the Itron SENTINEL®:
• Meter socket (or equivalent) to power up the meter to be programmed
• ANSI Type 2 optical coupler
• Itron Communication Manager Version 9.5 or later
• Windows XP compatible computer
TUNet PP-1316 Install Guide page 3
Doc No. KT-109967
2.2 Installing PP-1316 Components
P P - 1 3 1 6 C o m p o n e n t s L i s t ( Se p a r a t e As se m b l i e s )
The PP-1316 is compatible with all Itron SENTINEL® meter forms. The following parts are supplied
with the PP-1316 installation kit:
1. Tantalus communication module, P/N 120-0215
2. Tantalus antenna bracket, P/N 260-0055
P P - 1 3 1 6 C o m p o n e n t s L i s t ( Si n g l e A s se m b l y )
1. Tantalus communication module, P/N 120-0215-A
Page 4 Tantalus Systems Corp.
Released 18/09/2011
2.2.1 Installing PP-1316 Components into the Itron SENTINEL® Meter
1. Remove the outer plastic cover from the Itron SENTINEL®.
2. Unclip the Itron SENTINEL® display housing from its base by gently lifting the snap features in
two locations.
3. Slightly tilt the display housing away from the base to disengage the two pieces.
4. Locate the set of four parallel ridges inside the display housing.
TUNet PP-1316 Install Guide page 5
Doc No. KT-109967
5. Insert the Tantalus communications module ribbon cable between the two outer ridges. The
ribbon cable should fit snugly between the two ridges.
6. Firmly press the ribbon cable connector against the mating header underneath the Itron
SENTINEL® communications board. To ensure proper connectivity, verify that the ribbon
cable connector is inserted as shown in the following figure:
Note: If the connector was not engaged properly, there will be a visible row of crimps on the blue
ribbon cable connector, as shown in the following figure:
Page 6 Tantalus Systems Corp.
Released 18/09/2011

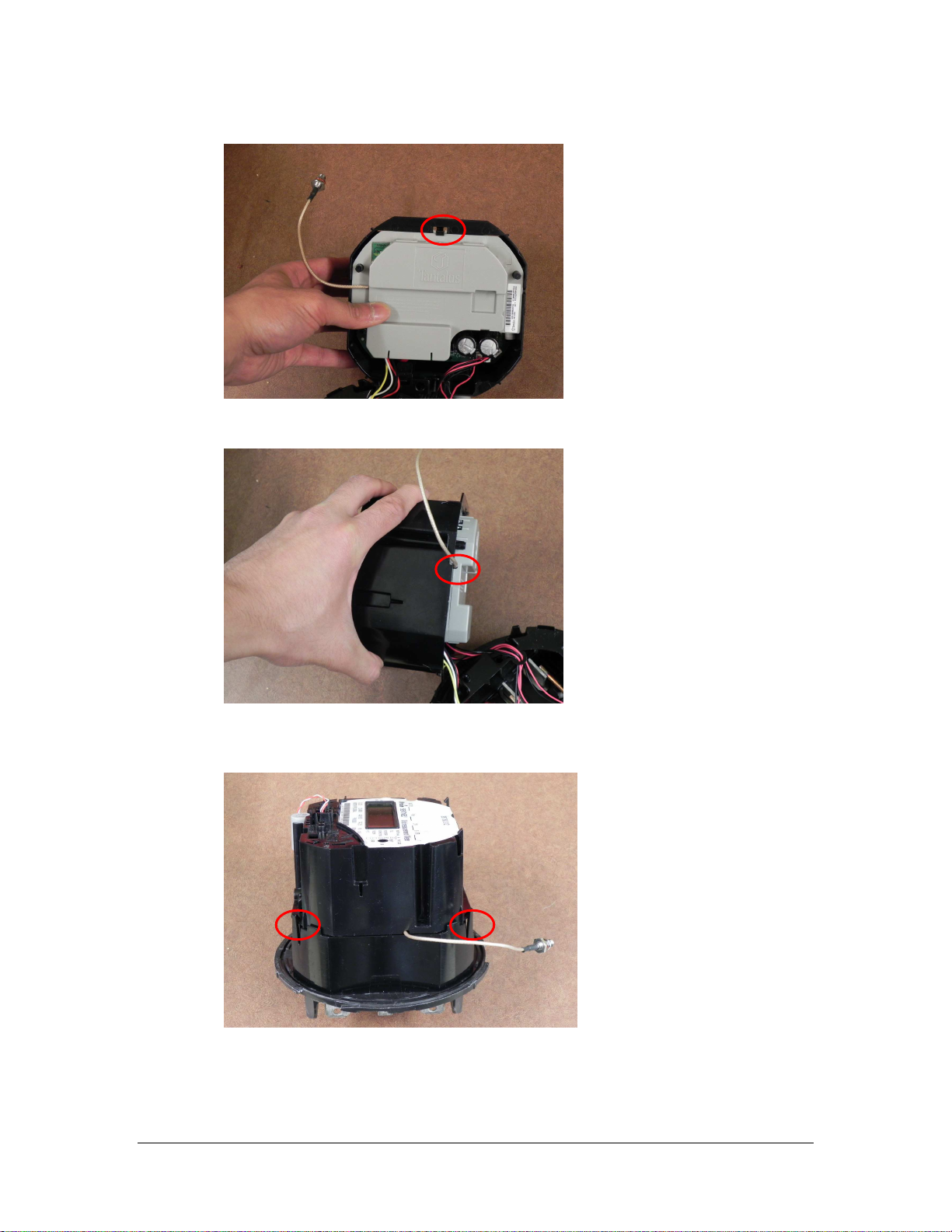

7. Situate the PP-1316 module within the cavity inside the display housing. Ensure that the clip
on the top of the display housing is used to lock down the PP-1316 module.
8. Ensure that the coaxial cable falls within the hole on the side of the display housing.
9. Snap the display housing back on the base of the meter. Ensure that all four outer snaps are
engaged.
TUNet PP-1316 Install Guide page 7
Doc No. KT-109967
10. Snap the Tantalus bracket on the top of the meter. Also, there is a clip on the side of the
bracket which guides the coaxial cable. Ensure the coaxial cable is placed inside the clip. If
the coaxial cable has SMA RF connectors, mate them together.
11. Place the outer cover back over the Itron SENTINEL® meter.
Page 8 Tantalus Systems Corp.
Released 18/09/2011
2.3 Configuring the Meter
**** TBD ****
TUNet PP-1316 Install Guide page 9
Doc No. KT-109967
3 :: Contact Information
T a n t a l u s S ys te m s C o r p .
Tantalus Systems Corp.
301 – 3480 Gilmore Way
Burnaby, BC Canada V5G 4Y1
T/ 604.299.0458
F/ 604.451.4111
TECHNICAL SUPPORT
TantalusTechSupport@tantalus.com
GENERAL ENQUIRIES
Info@tantalus.com
