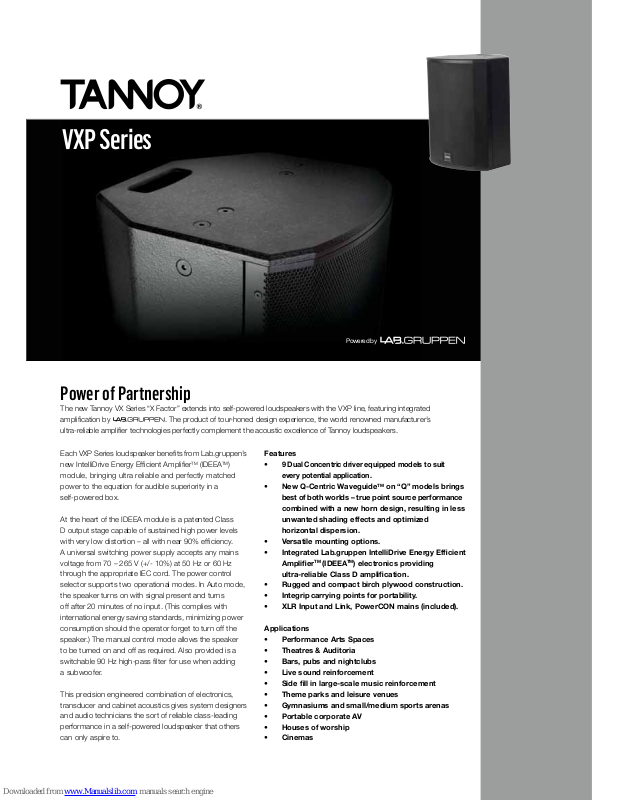

Tannoy VXP Series, VXP 6, VXP 8, VXP 8.2, VXP 12Q Technical Specifications

VXP Series

Power of Partnership

The new Tannoy VX Series “X Factor” extends into self-powered loudspeakers with the VXP line, featuring integrated

amplication by . The product of tour-honed design experience, the world renowned manufacturer’s
ultra-reliable amplier technologies perfectly complement the acoustic excellence of Tannoy loudspeakers.

Each VXP Series loudspeaker benets from Lab.gruppen’s
new IntelliDrive Energy Efcient Amplier

TM

(IDEEATM)
module, bringing ultra reliable and perfectly matched
power to the equation for audible superiority in a
self-powered box.

At the heart of the IDEEA module is a patented Class
D output stage capable of sustained high power levels
with very low distortion – all with near 90% efciency.
A universal switching power supply accepts any mains

voltage from 70 – 265 V (+/- 10%) at 50 Hz or 60 Hz

through the appropriate IEC cord. The power control
selector supports two operational modes. In Auto mode,

the speaker turns on with signal present and turns

off after 20 minutes of no input. (This complies with

international energy saving standards, minimizing power
consumption should the operator forget to turn off the

speaker.) The manual control mode allows the speaker
to be turned on and off as required. Also provided is a
switchable 90 Hz high-pass lter for use when adding
a subwoofer.

This precision engineered combination of electronics,
transducer and cabinet acoustics gives system designers
and audio technicians the sort of reliable class-leading

performance in a self-powered loudspeaker that others

can only aspire to.

Features

•

9 Dual Concentric driver equipped models to suit

every potential application.

• New Q-Centric WaveguideTM on “Q” models brings
best of both worlds – true point source performance
combined with a new horn design, resulting in less
unwanted shading effects and optimized
horizontal dispersion.

• Versatile mounting options.

• Integrated Lab.gruppen IntelliDrive Energy Efcient
Amplier

TM

(IDEEATM) electronics providing

ultra-reliable Class D amplication.

• Rugged and compact birch plywood construction.

• Integrip

carrying points for portability.

• XLR Input and Link, PowerCON mains (included).

Applications

• Performance Arts Spaces

• Theatres & Auditoria

• Bars, pubs and nightclubs

• Live sound reinforcement

• Side ll in large-scale music reinforcement

• Theme parks and leisure venues

• Gymnasiums and small/medium sports arenas

• Portable corporate AV

• Houses of worship

• Cinemas

Powered by

Specifications

VXP 8

200 mm (8”) Dual Concentric

­90 degrees conical
64 Hz – 45 kHz
113 dB (average) 119 dB (peak)

<0.5 W
10 W

70-265 V
388 mm x 280 mm x 275 mm

(15.3” x 11.0” x 10.8”)

10.0 kg (22 lbs)

Driver Complement

Dispersion

Freq Range (-10 dB)

Rated Max SPL

Stan dBy Power

Idle Power

Operating Voltage

Dimensions (HxWxD)

Net Weight

VXP 12.2Q

305 mm (12”) Dual Concentric
QCW, 305 mm (12”) Bass

75 x 40 degrees
47 Hz – 30 kHz
126 dB (average) 132 dB (peak)

<0.5 W
10 W

70-265 V
780 mm x 370 mm x 360 mm

(30.7” x 14.6” x 14.1”)

35.0 kg (77.2 lbs)

VXP 12

305 mm (12”) Dual Concentric

­90 degrees conical
55 Hz – 38 kHz
120 dB (average) 126 dB (peak)

<0.5 W
10 W

70-265 V
486 mm x 370 mm x 360 mm

(19.1” x 14.6” x 14.1”)

19.0 kg (41.9 lbs)

Driver Complement

Dispersion

Freq Range (-10 dB)

Rated Max SPL

Stan dBy Power

Idle Power

Operating Voltage

Dimensions (HxWxD)

Net Weight

VXP 15Q

380 mm (15”) Dual Concentric
Q-Centric Waveguide

75 x 40 degrees
47 Hz – 30 kHz
126 dB (average) 132 dB (peak)

<0.5 W
10 W

70-265 V
590 mm x 450 mm x 420 mm

(23.2” x 17.7” x 16.5”)

29.0 kg (63.9 lbs)

Driver Complement

Dispersion

Freq Range (-10 dB)

Rated Max SPL

Stan dBy Power

Idle Power

Operating Voltage

Dimensions (HxWxD)

Net Weight

VXP 6

150 mm (6”) Dual Concentric

­90 degrees conical
80 Hz – 45 kHz
111 dB (average) 117 dB (peak)

<0.5 W
10 W

70-265 V
333 mm x 225 mm x 215 mm

(13.1” x 8.9” x 8.5”)

7.0 kg (15.4 lbs)

VXP 12Q

305 mm (12”) Dual Concentric
Q-Centric Waveguide

75 x 40 degrees
60 Hz – 30 kHz
124 dB (average) 130 dB (peak)

<0.5 W
10 W

70-265 V
486 mm x 370 mm x 360 mm

(19.1” x 14.6” x 14.1”)

23.0 kg (50.7 lbs)

VXP 12HP

305 mm (12”) Dual Concentric

PowerDual
75 degrees conical
60 Hz – 30 kHz
124 dB (average) 130 dB (peak)

<0.5 W
10 W

70-265 V
486 mm x 370 mm x 360 mm

(19.1” x 14.6” x 14.1”)

23.5 kg (51.8 lbs)

Driver Complement

Dispersion

Freq Range (-10 dB)

Rated Max SPL

Stan dBy Power

Idle Power

Operating Voltage

Dimensions (HxWxD)

Net Weight

VXP 8.2

200 mm (8”) Dual Concentric

200 mm (8”) Bass
90 degrees conical
60 Hz – 45 kHz
115 dB (average) 121 dB (peak)

<0.5 W
10 W

70-265 V
590 mm x 280 mm x 275 mm

(23.2” x 11.0” x 10.8”)

17.5 kg (38.6 lbs)

Driver Complement

Dispersion

Freq Range (-10 dB)

Rated Max SPL

Stan dBy Power

Idle Power

Operating Voltage

Dimensions (HxWxD)

Net Weight

VXP 15HP

380 mm (15”) Dual Concentric

PowerDual
75 degrees conical
47 Hz – 30 kHz
126 dB (average) 132 dB (peak)

<0.5 W
10 W

70-265 V
590 mm x 450 mm x 420 mm

(23.2” x 17.7” x 16.5”)

29.0 kg (63.9 lbs)

Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [e-mail]

TCGI (ROW sales) T: 00 45 8742 7000 E: [e-mail]

TCGA (Americas sales) T: 00 1 [phone] E: [e-mail]

Tannoy Middle East T: 00 971 (04) 4401208 E: [e-mail]

tannoy.com

Tannoy adopts a policy of continuous improvement and product specication is subject to change.

Dual Concentric, Integrip and Q-Centric Waveguide are trademarks of Tannoy Limited. IntelliDrive Energy Efcient Amplier is a trademark of Lab.gruppen AB.

All other trademarks remain the property of their respective owners. Copyright (c) 2011 Tannoy Limited. All rights reserved.
