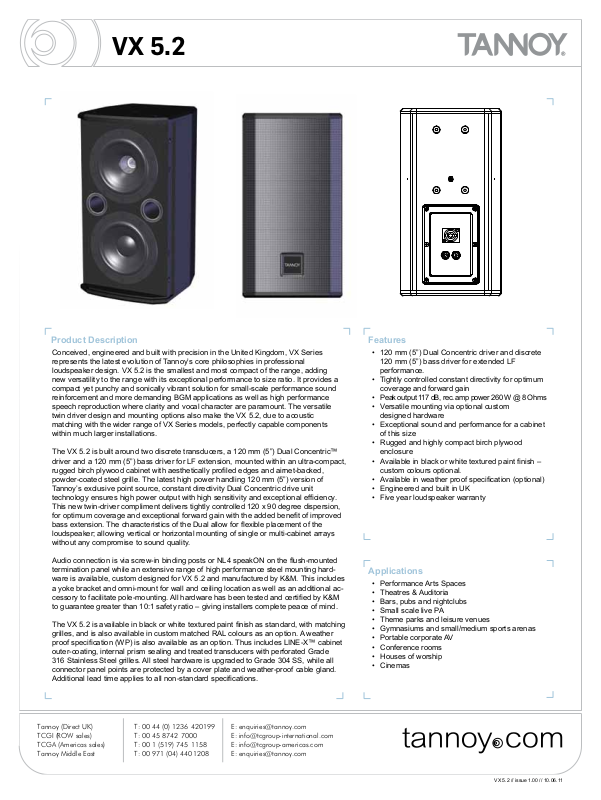

VX 5.2
Product Description
Conceived, engineered and built with precision in the United Kingdom, VX Series represents the latest evolution of Tannoy’s core philosophies in professional loudspeaker design. VX 5.2 is the smallest and most compact of the range, adding new versatility to the range with its exceptional performance to size ratio. It provides a compact yet punchy and sonically vibrant solution for small-scale performance sound reinforcement and more demanding BGM applications as well as high performance speech reproduction where clarity and vocal character are paramount. The versatile twin driver design and mounting options also make the VX 5.2, due to acoustic matching with the wider range of VX Series models, perfectly capable components within much larger installations.
The VX 5.2 is built around two discrete transducers, a 120 mm (5”) Dual Concentric™ driver and a 120 mm (5”) bass driver for LF extension, mounted within an ultra-compact, rugged birch plywood cabinet with aesthetically profiled edges and airnet-backed, powder-coated steel grille. The latest high power handling 120 mm (5”) version of Tannoy’s exclusive point source, constant directivity Dual Concentric drive unit technology ensures high power output with high sensitivity and exceptional efficiency.
This new twin-driver compliment delivers tightly controlled 120 x 90 degree dispersion, for optimum coverage and exceptional forward gain with the added benefit of improved bass extension. The characteristics of the Dual allow for flexible placement of the loudspeaker; allowing vertical or horizontal mounting of single or multi-cabinet arrays without any compromise to sound quality.
Audio connection is via screw-in binding posts or NL4 speakON on the flush-mounted termination panel while an extensive range of high performance steel mounting hardware is available, custom designed for VX 5.2 and manufactured by K&M. This includes a yoke bracket and omni-mount for wall and ceiling location as well as an additional accessory to facilitate pole-mounting. All hardware has been tested and certified by K&M to guarantee greater than 10:1 safety ratio – giving installers complete peace of mind.
The VX 5.2 is available in black or white textured paint finish as standard, with matching grilles, and is also available in custom matched RAL colours as an option. A weather proof specification (WP) is also available as an option. Thus includes LINE-X™ cabinet outer-coating, internal prism sealing and treated transducers with perforated Grade 316 Stainless Steel grilles. All steel hardware is upgraded to Grade 304 SS, while all connector panel points are protected by a cover plate and weather-proof cable gland.
Additional lead time applies to all non-standard specifications.
Features
•120 mm (5”) Dual Concentric driver and discrete
120 mm (5”) bass driver for extended LF performance.
•Tightly controlled constant directivity for optimum coverage and forward gain
•Peak output 117 dB, rec. amp power 260 W @ 8 Ohms
•Versatile mounting via optional custom designed hardware
•Exceptional sound and performance for a cabinet of this size
•Rugged and highly compact birch plywood enclosure
•Available in black or white textured paint finish – custom colours optional.
•Available in weather proof specification (optional)
•Engineered and built in UK
•Five year loudspeaker warranty
Applications
•Performance Arts Spaces
•Theatres & Auditoria
•Bars, pubs and nightclubs
•Small scale live PA
•Theme parks and leisure venues
•Gymnasiums and small/medium sports arenas
•Portable corporate AV
•Conference rooms
•Houses of worship
•Cinemas
Tannoy (Direct UK) |
T: 00 44 |
(0) 1236 420199 |
E: enquiries@tannoy.com |
TCGI (ROW sales) |
T: 00 45 |
8742 7000 |
E: info@tcgroup-international.com |
TCGA (Americas sales) |
T: 00 1 (519) 745 1158 |
E: info@tcgroup-americas.com |
|
Tannoy Middle East |
T: 00 971 (04) 4401208 |
E: enquiries@tannoy.com |
|
|
|
|
|
VX 5.2 // issue 1.00 // 10.06.11
VX 5.2
TECHNICAL SPECIFICATIONS
System |
VX 5.2 |
|
|
|
|
|
|
|
|
|
|
Frequency Response (-3dB) (1) |
87 Hz - 35 kHz |
|
|
|
|
|
|
|
|
|
|
Frequency Range (-10dB) (1) |
65 Hz - 45 kHz |
|
|
|
|
|
|
|
|
||
System Sensitivity (1W @1m) (2) |
90 dB (1 W = 2.83 V for 8 Ohms) |
||||
|
|
|
|||
Dispersion (-6dB) |
120 degrees (H) x 90 degrees (V) |
||||
|
|
|
|||
Driver Complement |
1 x 125 mm (5.00”) constant |
||||
|
directivity Dual Concentric™ |
||||
|
1 x 125 mm (5.00”) bass driver |
||||
|
|
|
|
|
|
Crossover |
Passive 2.0 kHz with |
|
|
|
|
|
dynamic HF protection |
||||
|
|
|
|||
Directivity Factor (Q) |
7.3 (averaged 1 kHz to 8 kHz) |
||||
|
|
|
|||
Directivity Index (DI) |
8.6 dB (averaged 1 kHz to 8kHz) |
||||
|
|
|
|||
Rated Maximum SPL (2) |
111 dB (average) 117 dB (peak) |
||||
|
|
|
|
|
|
Power Handling |
Average |
Programme |
Peak |
||
|
130 W |
260 W |
520 W |
||
|
|
|
|
|
|
Recommended Amplifier Power |
260 W @ 8 ohms |
|
|
|
Construction
Enclosure |
6.7 litre birch plywood, vented and |
|
|
internally braced. |
|
|
|
|
Finish |
Textured black or white paint, |
|
|
with custom colours on request. |
|
|
Powder coated perforated steel grille, |
|
|
Airnet cloth behind |
|
|
|
|
Connectors |
1 x Speakon NL4MP, 2 x 4 mm |
|
|
binding posts |
|
|
|
|
Fittings |
4 x M6 flying inserts, 2 x M6 |
|
|
yoke bracket inserts |
|
|
|
|
Dimensions |
333 x 180 x 200 mm (HxWxD) |
|
|
13.1 x 7.1 x 7.9” (HxWxD) |
|
|
|
|
Net Weight |
TBA |
|
|
|
|
Shipped weight |
TBA |
|
|
|
|
Packed quantity |
2 |
|
|
|
|
Notes
(1) Average over stated bandwidth. Measured at 1 metre on axis in an anechoic chamber
Nominal Impedance |
8 ohms |
|
|
|
|
|
|
Distortion |
|
|
|
10% Full Power (10.2 V) |
2nd Harmonic |
3rd Harmonic |
|
250 Hz |
2.85% |
0.52% |
|
1 kHz |
0.56% |
0.31% |
|
10 kHz |
1.24% |
0.15% |
|
1% Full Power (3.23 V) |
2nd Harmonic |
3rd Harmonic |
|
250 Hz |
0.70% |
0.17% |
|
1 kHz |
0.08% |
0.26% |
|
10 kHz |
0.41% |
0.10% |
|
|
|
|
|
(2)Unweighted pink noise input, measured at 1 metre in an anechoic chamber
A full range of measurements, performance data, and Ease™ Data can be downloaded from www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications, which Tannoy reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.
Ordering Information
PART NUMBER |
MODEL NAME |
COLOUR |
PACKED QUANTITY |
8001 6310 |
VX 5.2 |
BLACK |
2 |
8001 6311 |
VX 5.2 |
WHITE |
2 |
