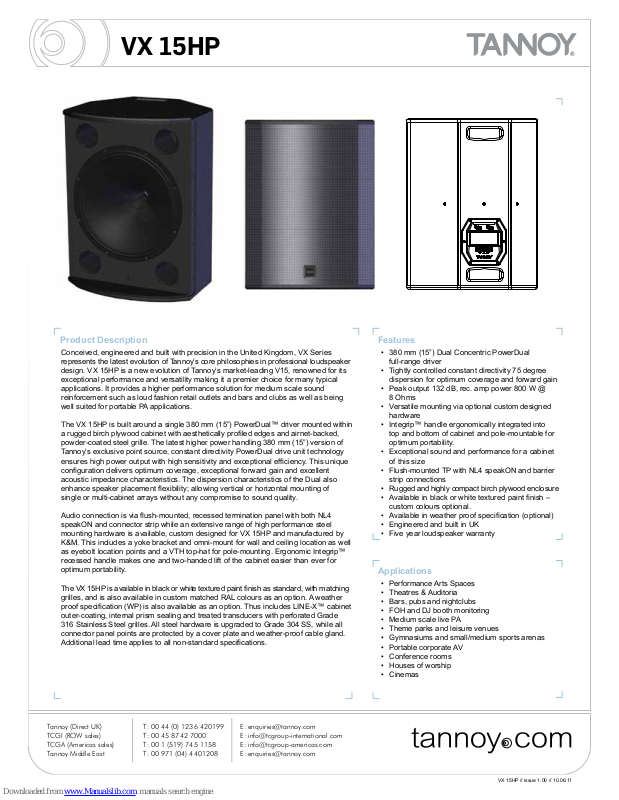

Tannoy VX 15HP Technical Specifications

VX 15HP

Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [e-mail]
TCGI (ROW sales) T: 00 45 8742 7000 E: [e-mail]
TCGA (Americas sales) T: 00 1 [phone] E: [e-mail]
Tannoy Middle East T: 00 971 (04) 4401208 E: [e-mail]

VX 15HP // issue 1.00 // 10.06.11

Product Description

Conceived, engineered and built with precision in the United Kingdom, VX Series
represents the latest evolution of Tannoy’s core philosophies in professional loudspeaker
design. VX 15HP is a new evolution of Tannoy’s market-leading V15, renowned for its
exceptional performance and versatility making it a premier choice for many typical
applications. It provides a higher performance solution for medium scale sound
reinforcement such as loud fashion retail outlets and bars and clubs as well as being
well suited for portable PA applications.

The VX 15HP is built around a single 380 mm (15”) PowerDual™ driver mounted within

a rugged birch plywood cabinet with aesthetically proled edges and airnet-backed,

powder-coated steel grille. The latest higher power handling 380 mm (15”) version of
Tannoy’s exclusive point source, constant directivity PowerDual drive unit technology

ensures high power output with high sensitivity and exceptional efciency. This unique
conguration delivers optimum coverage, exceptional forward gain and excellent

acoustic impedance characteristics. The dispersion characteristics of the Dual also

enhance speaker placement exibility; allowing vertical or horizontal mounting of
single or multi-cabinet arrays without any compromise to sound quality.

Audio connection is via ush-mounted, recessed termination panel with both NL4
speakON and connector strip while an extensive range of high performance steel

mounting hardware is available, custom designed for VX 15HP and manufactured by
K&M. This includes a yoke bracket and omni-mount for wall and ceiling location as well
as eyebolt location points and a VTH top-hat for pole-mounting. Ergonomic Integrip™
recessed handle makes one and two-handed lift of the cabinet easier than ever for
optimum portability.

The VX 15HP is available in black or white textured paint nish as standard, with matching
grilles, and is also available in custom matched RAL colours as an option. A weather
proof specication (WP) is also available as an option. Thus includes LINE-X™ cabinet

outer-coating, internal prism sealing and treated transducers with perforated Grade

316 Stainless Steel grilles. All steel hardware is upgraded to Grade 304 SS, while all

connector panel points are protected by a cover plate and weather-proof cable gland.

Additional lead time applies to all non-standard specications.

Features

Applications

• Performance Arts Spaces

• Theatres & Auditoria

• Bars, pubs and nightclubs

• FOH and DJ booth monitoring

• Medium scale live PA

• Theme parks and leisure venues

• Gymnasiums and small/medium sports arenas

• Portable corporate AV

• Conference rooms

• Houses of worship

• Cinemas

• 380 mm (15”) Dual Concentric PowerDual

full-range driver

• Tightly controlled constant directivity 75 degree

dispersion for optimum coverage and forward gain

• Peak output 132 dB, rec. amp power 800 W @
8 Ohms

• Versatile mounting via optional custom designed

hardware

• Integrip™ handle ergonomically integrated into

top and bottom of cabinet and pole-mountable for
optimum portability.

• Exceptional sound and performance for a cabinet
of this size

• Flush-mounted TP with NL4 speakON and barrier

strip connections

• Rugged and highly compact birch plywood enclosure

• Available in black or white textured paint nish –

custom colours optional.

• Available in weather proof specication (optional)

• Engineered and built in UK

• Five year loudspeaker warranty

VX 15HP

Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [e-mail]
TCGI (ROW sales) T: 00 45 8742 7000 E: [e-mail]
TCGA (Americas sales) T: 00 1 [phone] E: [e-mail]
Tannoy Middle East T: 00 971 (04) 4401208 E: [e-mail]

VX 15HP // issue 1.00 // 10.06.11

TECHNICAL SPECIFICATIONS

System VX 15HP

Frequency Response (-3 dB)

(1)

70 Hz - 25 kHz

Frequency Range (-10 dB)

(1)

58 Hz - 30 kHz

System Sensitivity (1 W @ 1 m)

(2)

Passive - Full Range 99 dB (1 W = 2.83 V for 8 Ohms
Biamp (LF) 100 dB
Biamp (HF) 106 dB

Dispersion (-6 dB) 75 degrees

Driver Complement 1 x 380 mm (15.00”) PowerDual™

Crossover Passive 1.3 kHz

Product can be recongured for bi-amped operation. Bi-amp system parameters in user manual

Directivity Factor (Q) 9.7 (averaged 1 kHz to 8 kHz)

Directivity Index (DI) 9.9dB (averaged 1 kHz to 8 kHz)

Rated Maximum SPL

(2)

Passive - Full Range 125 dB (average) 131 dB (peak)
Biamp (LF) 126 dB (average) 132 dB (peak)
Biamp (HF) 125 dB (average) 131 dB (peak)

Power Handling Average Programme Peak

Passive - Full Range 400 W 800 W 1600 W
Biamp (LF) 400 W 800 W 1600 W
Biamp (HF) 80 W 160 W 320 W

Recommended Amplier Power

Passive - Full Range 800 W @ 8 ohms
Biamp (LF) 800 W @ 8 ohms
Biamp (HF) 160 W @ 8 ohms

Nominal Impedance

Passive - Full Range 8 ohms
Biamp (LF) 8 ohms
Biamp (HF) 8 ohms

Distortion

10% Full Power (17.9 V) 2nd Harmonic 3rd Harmonic
250 Hz 1.0% 0.56%
1 kHz 1.4% 1.0%
10 kHz 3.9% 1.8%

1% Full Power (5.66 V) 2nd Harmonic 3rd Harmonic
250 Hz 0.31% 0.45%
1 kHz 0.45% 0.79%
10 kHz 3.16% 0.32%

Ordering Information

PART NUMBER MODEL NAME COLOUR PACKED QUANTITY
8001 6390 VX 15HP BLACK 1
8001 6391 VX 15HP WHITE 1

Construction

Enclosure 54.9 litre, 18 mm birch plywood,

vented and internally braced.

Finish Textured black or white paint,

with custom colours on request.

Powder coated perforated steel grille,
Airnet cloth behind

Connectors 2 x speakON NL4MP and Barrier strip

Fittings 8 x M10 Flying inserts (portrait or

landscape mounting),
8 x M10 yoke bracket inserts,

2 x Integrip carrying handles,
Blanking plate for optional VTH

pole mount

Dimensions 590 x 450 x 420 mm (HxWxD)

23.2 x 17.7 x 16.5” (HxWxD)

Net Weight TBA

Shipped weight TBA

Packed quantity 1

Notes

(1) Average over stated bandwidth. Measured at 1 metre on axis in an
anechoic chamber

(2) Unweighted pink noise input, measured at 1 metre in an anechoic chamber

A full range of measurements, performance data, and Ease™ Data can be
downloaded from www.tannoy.com

Tannoy operates a policy of continuous research and development. The introduction

of new materials or manufacturing methods will always equal or exceed the
published specications, which Tannoy reserves the right to alter without prior
notice. Please verify the latest specications when dealing with critical applications.
