User Manual
CONTENTS
1. Introduction
2. Unpacking
3. Connectors/Cabling
4. Polarity Checking
5. Amplification & Power Handling
6. Crossovers
7. Equalisation
8. Arraying
9. Dimensions
10. Performance Data
11. Technical Specifications
12. Rigging & Suspension
12.1 General Safety Advice

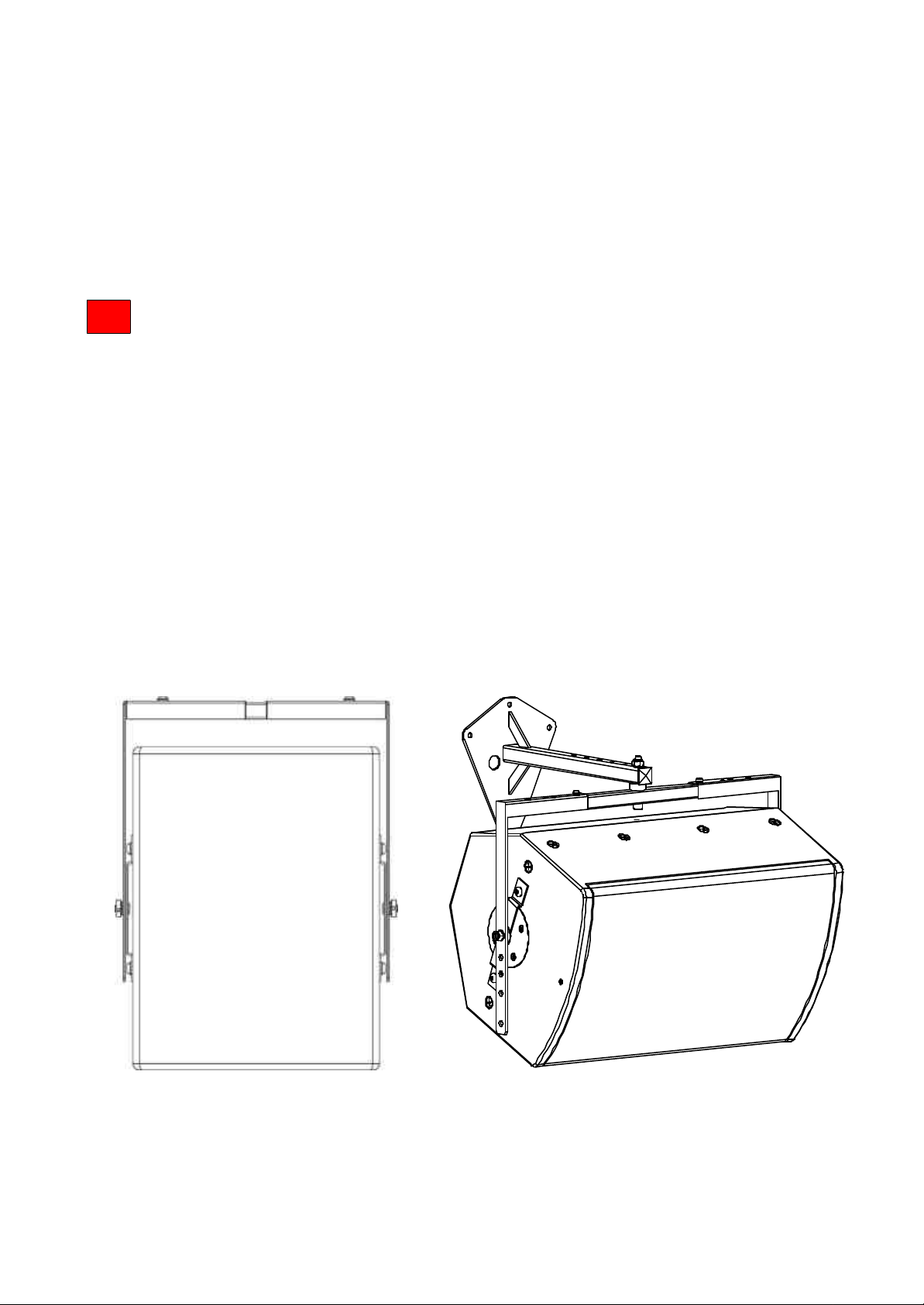

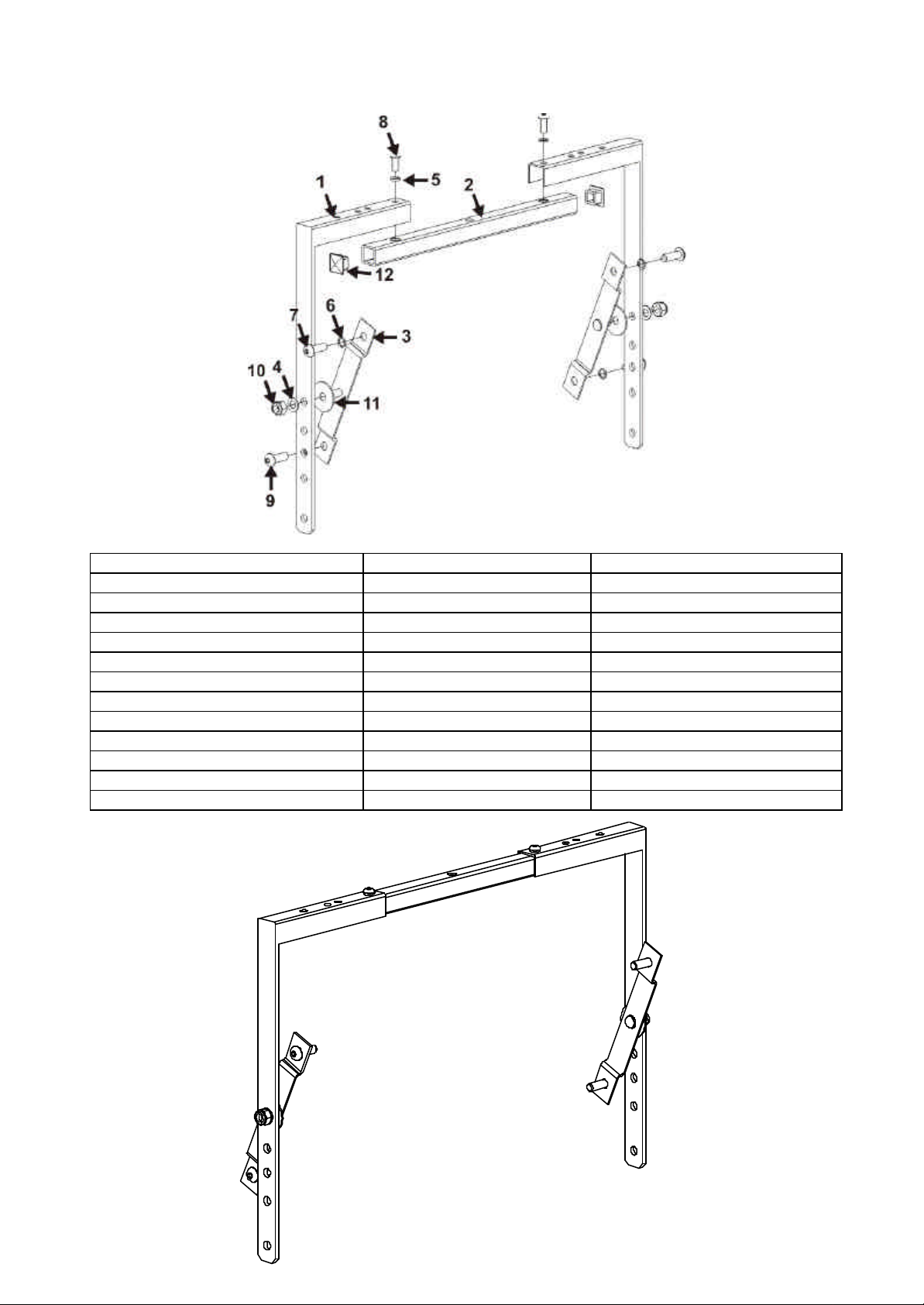

12.2 Secur – ET VMY Yoke bracket
12.3 Secur – ET VMB Wall mounting Bracket

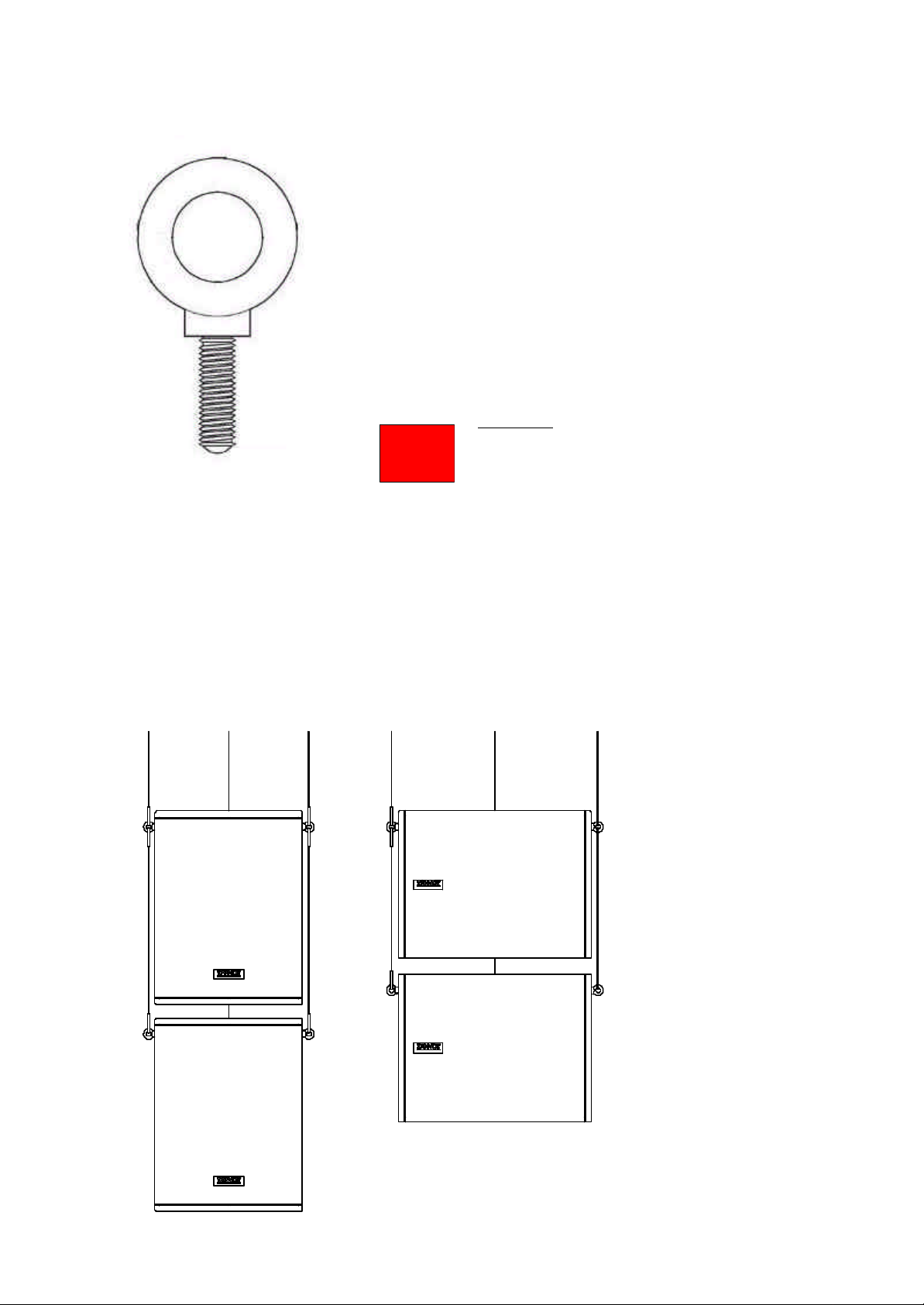

12.4 Secur – ET VEB Eyebolts
12.5 Secur – ET VTH Pole mount
12.6 Secur – ET VCS Cei ling Saddle
12.7 Secur – ET VPC Pole Clamp
13. System Configuration & OEM Controllers
14. V12 Recommended Service Parts & Accessories
15. Warranty
16. Declaration of Conformity
1. Introduction
The Tannoy V12 professional loudspeaker has been designed for a wide variety of sound
reinforcement applications requiring extended frequency response from a powerful yet compact
system, capable of delivering high sound pressure levels with extremely low distortion, resulting in
outstanding clarity, definition and detail.
The V12 comprises one 12 inch Dual Concentric driver in which the low frequency (LF) and high
frequency (HF) sources are coincidentally aligned to a point source, resulting in a smooth uniform
frequency response over a wide area of coverage either as a portable stand alone system or in a
multi-cabinet array. The sophisticated CAD designed waveguide combines 90 degree conical
dispersion and excellent acoustic impedance characteristics. As the system is a point source,
clusters and arrays have minimal lobing. These features are inherent and achieved without the use of
any electronic signal processing.
The asymmetric cabinet profile allows flexible and discreet installation. As a foreground system,
installation is made simple with a range of Secur-ET mounting hardware, designed specifically for the
V series – or the system can be flown using the integral M10 inserts.
For portable stage use the birch ply cabinet has a recessed carrying handle on the rear of the cabinet
and a blanking plate, which can be removed to install an optional pole mount. As a versatile low
profile stage monitor, the conical coverage pattern gives the performer greater freedom of movement
than allowed by conventional horn loaded designs.
The V12 has been designed for use with the Tannoy TX2 controller, which will equalise the system
resulting in improved bass performance as well as providing a 2-way crossover function, operating at
100Hz, for use with separate sub-bass systems.
2. Unpacking
Every Tannoy V12 product is carefully tes ted and inspected before being packaged and leaving the
factory. After unpacking your loudspeaker, please inspect for any exterior physical damage, and save
the carton and any relevant packaging materials in case the loudspeaker again requires packing and
shipping. In the event that damage has been sustained in transit notify your dealer immediately.
3. Connectors/Cabling
The V12 is fitted with 4-pole Neutrik Speakon connectors. Speakon has the following advantages
over EP and XLR type connectors: All terminations are solderless; this makes life easier at the time
of installation or when field servicing is required. Contacts will accept 6 sq. mm wire with an outside
diameter of up to 15mm and a current rating of 30 Amps. The pins of the 2 Speakon sockets
identified input/output on the rear of the input panel are paralleled within the enclosure. Tannoy have
adopted the conventional wiring standard for the V12 product :-
Pin 1+ is Positive
Pin 1- is Negative
For a worldwide list of Neutrik distribut ors see http://www.neutrik.com/
Cable choice consists mainly of selecting the correct cross sectional area in relation to the cable
length and the load impedance. A small cross sectional area would increase the cables series
resistance, inducing power loss and response variations (damping factor).
Connectors should be wired with a minimum of 2.5 sq. mm (12 gauge) cable. This will be perfectly
satisfactory under normal conditions. In the case of very long cable runs the wire size should exceed
this, refer to the following table for guidance: -
CABLE RUN
(m)
10 2.5
25 2.5
50 2.5
100 2.5
4. Polarity Checking
It is most important to check the polarity of the wiring before the speaker system is flown. A simple
method of doing this without a pulse based polarity checker for LF units is as follows: Connect two
wires to the +ve and -ve terminals of a PP3 battery. Apply the wire which is connected to the +ve
terminal of the battery to the speaker cable leg which you believe to be connected to pin 1+ of the
speaker connector and likewise the -ve leg of the battery to pin 1-.
If you have wired it correctly the LF drive unit will move forward, indicating the wiring is correct. All
that remains now is to connect the +ve speaker lead to the +ve terminal on the amplifier and the -ve
lead to the -ve terminal on the amplifier. If however the LF driver moves backwards, the input
connections need to be inverted.
If problems are encountered, inspect the cable wiring in the first instance. It should also be noted that
different amplifier manufacturers utilise different pin configurations and polarity conventions, if you are
using amplifiers from more than one manufacturer, check the polarity at the amplifiers as well as the
loudspeakers.
C.S.A. OF EACH
CONDUCTOR (mm)
4.0
6.0
4.0
6.0
4.0
6.0
4.0
6.0
CABLE
RESISTANCE ΩΩ
0.14
0.09
0.06
0.35
0.22
0.14
0.69
0.43
0.29
1.38
0.86
0.58
% POWER LOSS
INTO 8ΩΩ LOAD
1.7
1.1
0.73
4.3
2.7
1.8
8.6
5.4
3.6
17.0
11.0
7.2
% POWER LOSS
INTO 4ΩΩ LOAD
3.5
2.2
1.5
8.6
5.4
3.6
17.0
11.0
7.2
35.0
22.0
14.0
5. Amplification & Power Handling
As with all professional loudspeaker systems, the power handling is a function of voice coil thermal
capacity. Care should be taken to avoid running the amplifier into clip (clipping is the end result of
overdriving any amplifier). Damage to the loudspeaker will be sustained if the amplifier is driven into
clip for any extended period of time. Headroom of at least 3dB should be allowed. When evaluating an
amplifier, it is important to take into account its behaviour under low impedance load conditions. A
loudspeaker system is highly reactive and with transient signals it can require more current than the
nominal impedance would indicate.
Generally a higher power amplifier running free of distortion will do less damage to the loudspeaker
than a lower power amplifier continually clipping. It is also worth remembering that a high powered
amplifier running at less than 90% of output power generally sounds a lot better than a lower power
amplifier running at 100%. An amplifier with insufficient drive capability will not allow the full
performance or the loudspeaker to be realised. (See technical specifications section for
recommended amplifier power)
It is important when using different manufacturers amplifiers in a single installation that the have very
closely matched gains, the variation should be less than +/- 0.5dB. This precaution is important to
the overall system balance when only a single active crossover is being used with multiple cabinets; it
is therefore recommended that the same amplifiers be used throughout.
6. Crossovers
The V12 is supplied as standard for passive operation via the internal crossover network. If higher
peak outputs and additional low frequency output is required then the V12 can be used in conjunction
with the Tannoy TX2 controller/crossover which provides high pass filtering and a degree of parametric
equalisation, as well as a fixed crossover point for use with sub-bass loudspeakers (See the TX2 user
manual for further information). The Tannoy TDX2 Digital controller will also perform the above
functions with additional control and features including limiting and delay (See the relevant literature
on the TDX2 for further information).
7. Equalisation
The V12 loudspeakers are designed to need no equalisation or correction to overcome system
limitations. As a result, it will only need equalisation to compensate for difficult acoustic
environments.
Over equalisation can reduce system headroom, and introduce phase distortion resulting in greater
problems than cures. If equalisation is required then it should be applied gently and smoothly. The
V12 loudspeaker is a point source, phase coherent designs and violent equalisation will be
detrimental to the overall sound quality.
When a loudspeaker is used in close proximity to another, comb filtering effects can create coverage
problems, comb filtering creates an uneven frequency response across the coverage area due to
constructive and destructive interference effects between the sources. The amount of comb filtering is
affected by the spacing of the relative sound sources. Minimising this effect cannot be cured by
equalisation (see the following section for more details).
