Tannoy MICROSAT Technical Specifications

SIDE DETAIL

FRONT DETAIL

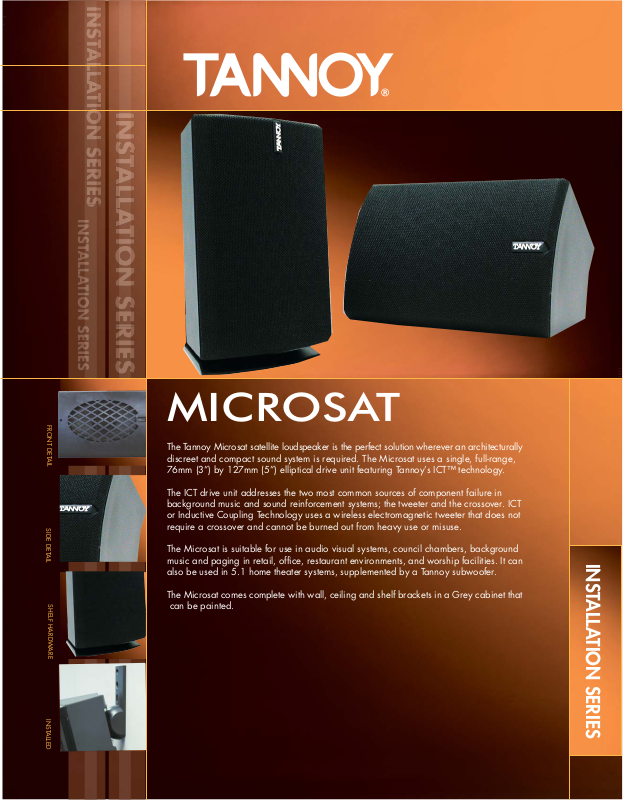

MICROSAT

The Tannoy Microsat satellite loudspeaker is the perfect solution wherever an architecturally
discreet and compact sound system is required. The Microsat uses a single, full-range,
76mm (3”) by 127mm (5”) elliptical drive unit featuring Tannoy’s ICT™ technology.

The ICT drive unit addresses the two most common sources of component failure in
background music and sound reinforcement systems; the tweeter and the crossover. ICT
or Inductive Coupling Technology uses a wireless electromagnetic tweeter that does not
require a crossover and cannot be burned out from heavy use or misuse.

The Microsat is suitable for use in audio visual systems, council chambers, background
music and paging in retail, office, restaurant environments, and worship facilities. It can
also be used in 5.1 home theater systems, supplemented by a Tannoy subwoofer.

INSTALLATION SERIES

SHELF HARDWARE

INSTALLED

The Microsat comes complete with wall, ceiling and shelf brackets in a Grey cabinet that
can be painted.

MICROSAT

SYSTEM

REAR ELEVATION

TECHNICAL SPECIFICATIONS

System Type
Frequency Response +/- 3dB

(1)

Recommended Amplifier Power
Power Handling

(2)

Sensitivity 2.83 Volts @ 1 meter (3)

Maximum SPL

Impedance
Dispersion

Driver Complement

CONSTRUCTION

Enclosure

Finish

Connectors
Fittings
Mounting Options

Dimensions

Weight (each)
Shipping

Wall, Ceiling

Shelf

Quantity

Weight

Pack Dimensions

Satellite Loudspeaker
220Hz - 20kHz

-10dB

180Hz
Up to 60 Watt / 8½

Peak

Peak

30 Watt
60 Watt
120 Watt

87dB
90dB

105dB
108dB

Average

Programme

Anechoic

Half Space

Average

8½

See Beamwidth Plot

120˚ horizontal x 90˚ vertical
1 - 76 x 127mm (3” x 5”)
Point Source ICT™

.5 litre moulded plastic infinite
baffle, with cloth grille

Textured Grey paint

- paintable

Spring Clip
1 x M5 inserts
Mount bracket (included)

Bracket (included)
110 x 166 x 90mm

5

9

/

(4 x 6 x 3 “)

16

9

/

/

16

16

0.9kg (2lbs)
4

3.75kg (8.25lb)
193 x 360 x 205mm

3

1

/

(7 x 14 x 8“)

/

4

4

TOP ELEVATION

MOUNTING BRACKETS

Wall / Ceiling

16

/

5

110mm ( 4 “)

9

166mm ( 6 “)

57mm ( “)

38mm ( “)

Shelf

/

6

1

NOTES: (1) Average over stated bandwidth. Measured at 1 meter on axis. (2) Long term power handling capacity as defined in EIA standard RS - 426A.

A full range of measurements, performance data, and Ease™ Data can be downloaded from www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications, which Tannoy

reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.

APPLICATIONS

• Custom home installations

• Audio visual rooms

• Conference rooms

• Pubs, clubs and discos

• Religious facilities

• Museums

• Public address & paging systems

• Restaurants

• Cruise ships

• Theme parks

(3) Unweighted pink noise input, measured at 1 meter in an anechoic chamber

FEATURES

• 3 x 5” ICT™ point source driver

• Light weight and compact

• Mounts on walls, ceilings or stands alone

• Delivers excellent sound quality

• Virtually indestructable high frequency

• Optimum performance recognized when

used in conjunction with one the Tannoy
subwoofer products.

• Five year loudspeaker warranty

ARCHITECTURAL SPECIFICATIONS

The satellite loudspeaker system shall consist of 1 - 3 x 5” ICT point source
driver. Performance of the Microsat shall meet or exceed the following criteria;
The system shall have a nominal coverage pattern of 120˚ x 90˚. Frequency
response measured at 1m on axis with swept sine wave shall be 220Hz to
20kHz (+/- 3dB). Sensitivity shall be at least 87dB (anechoic) for 2.83 Volt
@ 1 meter. The system shall have a nominal impedance of 8½, maximum
power handling shall be 60 Watts (programme).

The plastic enclosure shall be of an infinite baffle design, finished in Grey, the
front of the cabinet shall be covered by a cloth grille. Ceiling, wall and shelf
brackets shall be included. The enclosure shall not exceed the following
dimensions:110 x 166 x 90mm or 4 x 6 x 3 “ (H x W x D)

The loudspeaker system shall be the Tannoy...Microsat.

5

9

/

/

16

16

MICROSAT
