the manual
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
2
iPod is a trademark of Apple, Inc.,
registered in the U.S. and other countries.
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
3
IMPORTANT SAFETY INSTRUCTIONS
Read and follow these instructions to use your
Tannoy i30 safely.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Only use attachments/accessories specified by the
manufacturer.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
4
11. Unplug this apparatus during lightning storms
or when unused for long periods of time.
12. Refer all servicing to qualified service
personnel. Servicing is required when the ap
apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
13. Do not expose this apparatus to dripping or splashing
and ensure that no objects filled with liquids, such as
vases, are placed on the apparatus.
14. To completely disconnect this apparatus from the AC
Mains, disconnect the power supply cord plug from the
AC receptacle.
15. The mains plug of the power supply cord shall remain
readily operable.
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
5
16. Do not expose batteries to excessive heat such as sun
shine, fire or the like.
17. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
18. Do not place naked flame sources, such as lighted
candles, on or near the apparatus.
19. This apparatus has no on/off switch. To disconnect this
apparatus from power, you must disconnect the power
cord. Make sure the power cord is always easily accessible.
20. The power cord included with this apparatus is for indoor
use only.
21. Do not move the apparatus if another device, such as an
iPod or other audio device, is connected to it.
22. To avoid damaging the speakers, do not place the
apparatus face down on any surface.
23. Information such as model number, electrical rating, and
other classifications is located on the bottom of the apparatus.
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
6
WARNING: Failure to follow these safety instructions could
result in fire, electric shock, or other injury or damage.
WARNING: To reduce the risk of fire or electric shock, do not
expose this apparatus to rain, liquids, moisture, excessive
heat, or naked flame.
The lightning ash with arrowhead symbol within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage " within the
product's enclosure that may be of sucient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
7
FCC STATEMENT AND WARNING:
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept interference, including interference
that may cause undesired operation of the device.
IC STATEMENT AND WARNING:
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept interference, including interference
that may cause undesired operation of the device.
MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
MANUFACTURER COULD VOID THE USER AUTHORITY TO
OPERATE THE EQUIPMENT UNDER FCC RULES.
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
8
WEEE STATEMENT AND WARNING:
At the end of its useful life this equipment must be disposed of
according to Waste Electrical and Electronic Equipment (WEEE) rules
in your country. Please seek advice from your retailer or the
manufacturer.
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
9
CONTENTS
10. Introduction
11. What's in the box
12. Product Identification
13. Set Up
15. Powering up your Tannoy i30
16. Using your Tannoy i30
20. How to fit the optional wall bracket
21. Specifications
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
10
INTRODUCTION
Thank you for choosing the Tannoy i30, an iPod docking
station developed in the UK by our dedicated team of design and
acoustics engineers.
With a reputation for delivering great looking, high performance
audio systems to discerning users of professional, studio and
residential speaker systems around the globe, Tannoy has drawn
upon its undisputed expertise in the reproduction of sound to
bring iPod listeners music as it was intended to be.
Enjoy the experience
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
WHATS IN THE BOX
7 x Dock Adaptors
Remote Control
Power Cable i30
Stereo mini-jack
audio cable
11
Note: Your i30 is supplied with a mains cord appropriate to your country.
For UK and European countries please select the mains cord which suits your
mains supply socket.
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P

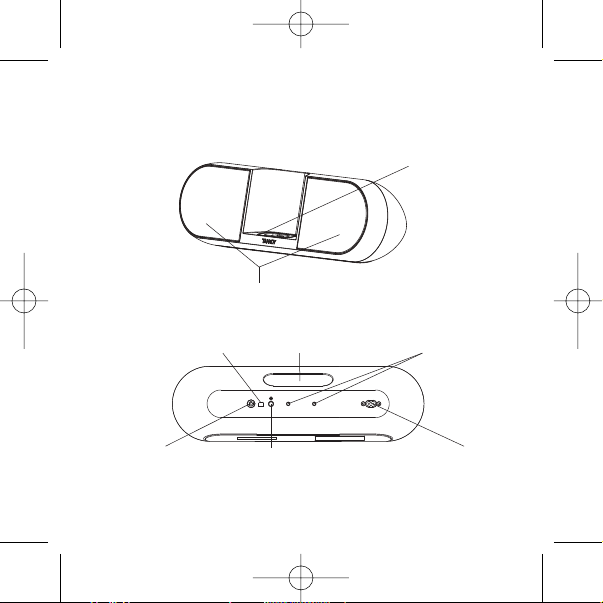

PRODUCT IDENTIFICATION
12
Grills (not removable)
iPod Dock
USB Socket
3.5mm Stereo
mini-jack socket
Video-out socket Power cord socket
Port tube Wall bracket fixing points
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
SET UP
How to insert Dock Adaptors:
You need to install the appropriate dock
adaptor in the dock to allow your iPod to
correctly fit the i30 music system. The dock
inserts are supplied with the product and are
labeled accordingly:
iPodmini
3
4GB, and 6GB
iPodnano iPodclassic
1GB, 2GB, and 80GB and160GB
4GB
(SecondGeneration) withvideo
(ThirdGeneration)
iPodwith
video
30GB
60GB and 80GB
9
10
iPodnano iPodnano iPodtouch
11 13 14
2GB, 4GB 4GB, 8GB
and8GB
8
8GB, 16GB
10
13
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
Locate the appropriate dock adaptor for your
iPod and then fit it to the dock by pressing on
both sides of the insert until it sits firmly in place.
Note: If there is no dock adapter for your model of iPod
included with your Tannoy i30 you can
purchase one at www.apple.com/ipodstore.
If you have an iPod shuffle or an older iPod that
does not have a dock connector on the bottom,
you can use the supplied audio cable to connect
it to the audio input socket at the rear
of the product. (See page 16)
14
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
Connect the Tannoy i30 music system to a power outlet by pluging
the small connector end of the power cable into the socket at back
of the i30. Plug the other end of this cable into the wall outlet.
POWERING UP YOUR TANNOY i30
15
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
USING YOUR TANNOY i30
Now that you have docked your iPod, you are ready to start playing
your music!
Just browse for a song on your iPod, then press Play – it’s that
simple! You can use the buttons on your iPod or on the included
i30 remote control.
How to use the remote control…
Play / Pause
On / Off
Mute
Skip
Back
Volume up
Volume
Down
16
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
How to connect an iPod shuffle or other audio devices to your
Tannoy i30 music system
If your iPod doesn’t have a dock connector (e.g. if you have an
iPod shuffle), you can use the supplied stereo mini-jack audio
cable to connect it to the audio input socket at the rear of the i30.
This audio socket also allows any mp3 player or line-level source
signal to be connected to your Tannoy i30.
WARNING:
Distortion may occur if you connect your
Tannoy i30 to a device with an output higher than 2V (volts) RMS.
Do not connect your Tannoy i30 to the speaker
outputs from another device as this would damage your
Tannoy i30.
3.5mm Stereo Mini-Jack socket
17
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
How to connect your Tannoy i30 to your computer
The Tannoy i30 has a USB socket at the rear which allows you to
synchronise your iPod with iTunes while the iPod is docked in the
i30 docking station. To use this feature, simply
connect a USB (A) male to USB (B) male cable (not supplied)
between your computer and Tannoy i30.
USB socket
18
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
How to use the Video-out feature
If your iPod supports video you can use your television to
view your videos stored on your iPod. To do this, simply dock
your iPod in the i30 docking station then connect a phono
(RCA) cable between the video-out socket on the
Tannoy i30 and the Video-In socket on your television or
AV receiver.
Note: RCA cable not supplied.
Video-out socket
19
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
20
1
2
Attach wall bracket to Tannoy
i30 using screws and washers
provided.
Using provided template and
fixings appropriate to your
wall, fix the product to your
wall using the picture hook
fixing points on the bracket.
HOW TO FIT THE OPTIONAL WALL BRACKET
An i30 wall bracket is available as an optional accessory. If
you have purchased an i30 wall bracket please follow these
installation instructions.
Safety note: The user is responsible for fixing the hardware to the surface
to ensure safe operation. The fixings must support the weight of the
product - please consult the user manual’s specification page for the
appropriate weight.
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
21
SYSTEM i30
Frequency Response (-6dB) 60Hz – 22kHz
Driver 2 x 100mm (4”) ICT™
Polypropylene cone
Protection Circuitry Thermal
Soft Limiting
Supply 100 - 240V AC, 50 – 60Hz
Power Consumption 1A maximum
CONSTRUCTION
Connectors RCA Video out
USB (B type) to sync with iTunes
3.5mm Stereo jack for external
audio sources
Mains inlet IEC type C7
Dimensions (H x W x D) 136.0 x 456.0 x 138.0mm
5.38 x 18.0 x 5.5”
Weight 3.70kg (8.2lbs)
SPECIFICATIONS
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
Tannoy United Kingdom T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
Tannoy North America T: 00 1 (519) 745 1158 E: inquiries@tannoyna.com
Tannoy Deutschland T: 00 49 (180) 1111 881 E: anfragen@tannoy.com
Tannoy France T: 00 33 (0)1 7036 7473 E: ventes@tannoy.com
Tannoy adopts a policy of continuous improvement
and product specification is subject to change.
REVISION DATE: 04/12/07 6481 0513
i30 manual Dec 07 AW -EN.qxp:Layout 1 5/12/07 12:51 P
Loading...
