Definition Install iw60 EFX data file // issue 1.06 // 15.01.08

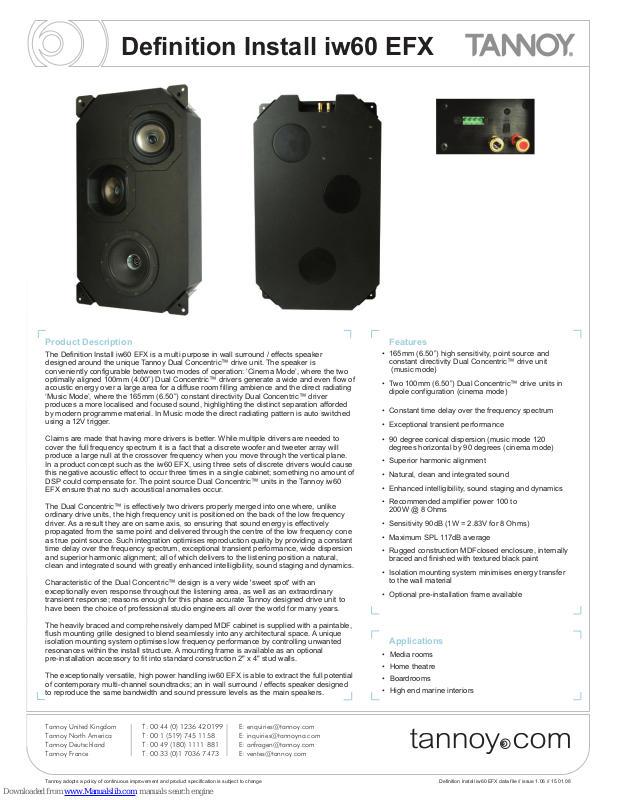

The Definition Install iw60 EFX is a multi purpose in wall surround / effects speaker
designed around the unique Tannoy Dual Concentric™ drive unit. The speaker is
conveniently configurable between two modes of operation: ‘Cinema Mode’, where the two
optimally aligned 100mm (4.00”) Dual Concentric™ drivers generate a wide and even flow of
acoustic energy over a large area for a diffuse room filling ambience and the direct radiating
‘Music Mode’, where the 165mm (6.50”) constant directivity Dual Concentric™ driver
produces a more localised and focused sound, highlighting the distinct separation afforded
by modern programme material. In Music mode the direct radiating pattern is auto switched
using a 12V trigger.

Claims are made that having more drivers is better. While multiple drivers are needed to
cover the full frequency spectrum it is a fact that a discrete woofer and tweeter array will
produce a large null at the crossover frequency when you move through the vertical plane.
In a product concept such as the iw60 EFX, using three sets of discrete drivers would cause
this negative acoustic effect to occur three times in a single cabinet; something no amount of
DSP could compensate for. The point source Dual Concentric™ units in the Tannoy iw60
EFX ensure that no such acoustical anomalies occur.

The Dual Concentric™ is effectively two drivers properly merged into one where, unlike
ordinary drive units, the high frequency unit is positioned on the back of the low frequency
driver. As a result they are on same axis, so ensuring that sound energy is effectively
propagated from the same point and delivered through the centre of the low frequency cone
as true point source. Such integration optimises reproduction quality by providing a constant
time delay over the frequency spectrum, exceptional transient performance, wide dispersion
and superior harmonic alignment; all of which delivers to the listening position a natural,
clean and integrated sound with greatly enhanced intelligibility, sound staging and dynamics.

Characteristic of the Dual Concentric™ design is a very wide 'sweet spot' with an
exceptionally even response throughout the listening area, as well as an extraordinary
transient response; reasons enough for this phase accurate Tannoy designed drive unit to
have been the choice of professional studio engineers all over the world for many years.

The heavily braced and comprehensively damped MDF cabinet is supplied with a paintable,
flush mounting grille designed to blend seamlessly into any architectural space. A unique
isolation mounting system optimises low frequency performance by controlling unwanted
resonances within the install structure. A mounting frame is available as an optional
pre-installation accessory to fit into standard construction 2" x 4" stud walls.

The exceptionally versatile, high power handling iw60 EFX is able to extract the full potential
of contemporary multi-channel soundtracks; an in wall surround / effects speaker designed
to reproduce the same bandwidth and sound pressure levels as the main speakers.

Product Description

• 165mm (6.50”) high sensitivity, point source and
constant directivity Dual Concentric™ drive unit

(music mode)

• Two 100mm (6.50”) Dual Concentric™ drive units in
dipole configuration (cinema mode)

• Constant time delay over the frequency spectrum

• Exceptional transient performance

• 90 degree conical dispersion (music mode 120
degrees horizontal by 90 degrees (cinema mode)

• Superior harmonic alignment

• Natural, clean and integrated sound

• Enhanced intelligibility, sound staging and dynamics

• Recommended amplifier power 100 to
200W @ 8 Ohms

• Sensitivity 90dB (1W = 2.83V for 8 Ohms)

• Maximum SPL 117dB average

• Rugged construction MDFclosed enclosure, internally
braced and finished with textured black paint

• Isolation mounting system minimises energy transfer
to the wall material

• Optional pre-installation frame available

• Media rooms

• Home theatre

• Boardrooms

• High end marine interiors

Features

Applications

Definition Install iw60 EFX

Tannoy United Kingdom
Tannoy North America
Tannoy Deutschland
Tannoy France

T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473

E: [e-mail]
E: [e-mail]
E: [e-mail]
E: [e-mail]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

Definition Install iw60 EFX data file // issue 1.06 // 15.01.08

TECHNICAL SPECIFICATIONS

F

requency Response

(

1)(4)

1

10Hz - 23kH

Frequency Range

(

1)(4)

74Hz - 27kHz

System Sensitivity (1W @1m)

(

2)(4)

90dB (1W = 2.83V for 8 Ohms)

Nominal Coverage Angle 90 degrees conical

in music mode

Coverage Angle (1kHz to 6kHz) 120 degrees horizontal x 90

d

egrees in cinema mode

Directivity Factor (Q) 3.50 averaged 1kHz to 6kHz

Directivity Index (DI) 5.50 averaged 1kHz to 6kHz

Rated Maximum SPL

(3)

Average 110dB
Peak 116dB

Power Handling

(3)

Average 100W
Programme 200W
Peak 400W

Recommended Amplifier Power 200W @ 8 Ohms

Nominal Impedance 8 Ohms in music mode

4 Ohms in cinema mode

Distortion

10% Full Power (8.94V) 2nd Harmonic 3rd Harmonic

250Hz 1.84% 0.30%
1kHz 0.34% 0.61%
10kHz 0.91% 0.17%

1% Full Power (2.83V) 2nd Harmonic 3rd Harmonic
250Hz 0.19% 0.35%
1kHz 0.40% 0.32%
10kHz 0.46% 0.89%

Crossover 1.6kHz

Notes:
(1) Average over stated Bandwidth. Measured in an IEC baffle in an Anechoic Chamber
(2) Unweighted Pink noise input, measured at 1m on axis
(3) Long term power handling capacity as defined in EIA - 426B test
(4) Music mode
(5) Cinema mode. For music mode refer to iW63 data

A full range of measurements, performance data, CLF and Ease™ Data can be
downloaded from www.tannoy.com

Full independent verification of published specifications carried out by NWAA Labs,
California can also be obtained from the downloads section of www.tannoy.com

Tannoy operates a policy of continuous research and development. The introduction
of new materials or manufacturing methods will always equal or exceed the
published specifications, which Tannoy reserves the right to alter without prior
notice. Please verify the latest specifications when dealing with critical applications.

Music mode 1 x 165mm (6.5”) constant directivity

Dual Concentric™

Cinema mode 2 x 100mm (4.0”) Dual Concentric™

i

n dipole configuration

Construction

Enclosure 11.5 litre (net total volume),

c

losed and internally

braced MDF enclosure

F

inish Textured black paint

White powder coated perforated
s

teel grille, foam behind

Connectors Gold plated spring terminals

C

ontrols Mode selection input (12V DC relay

activated via Dinkle connector)

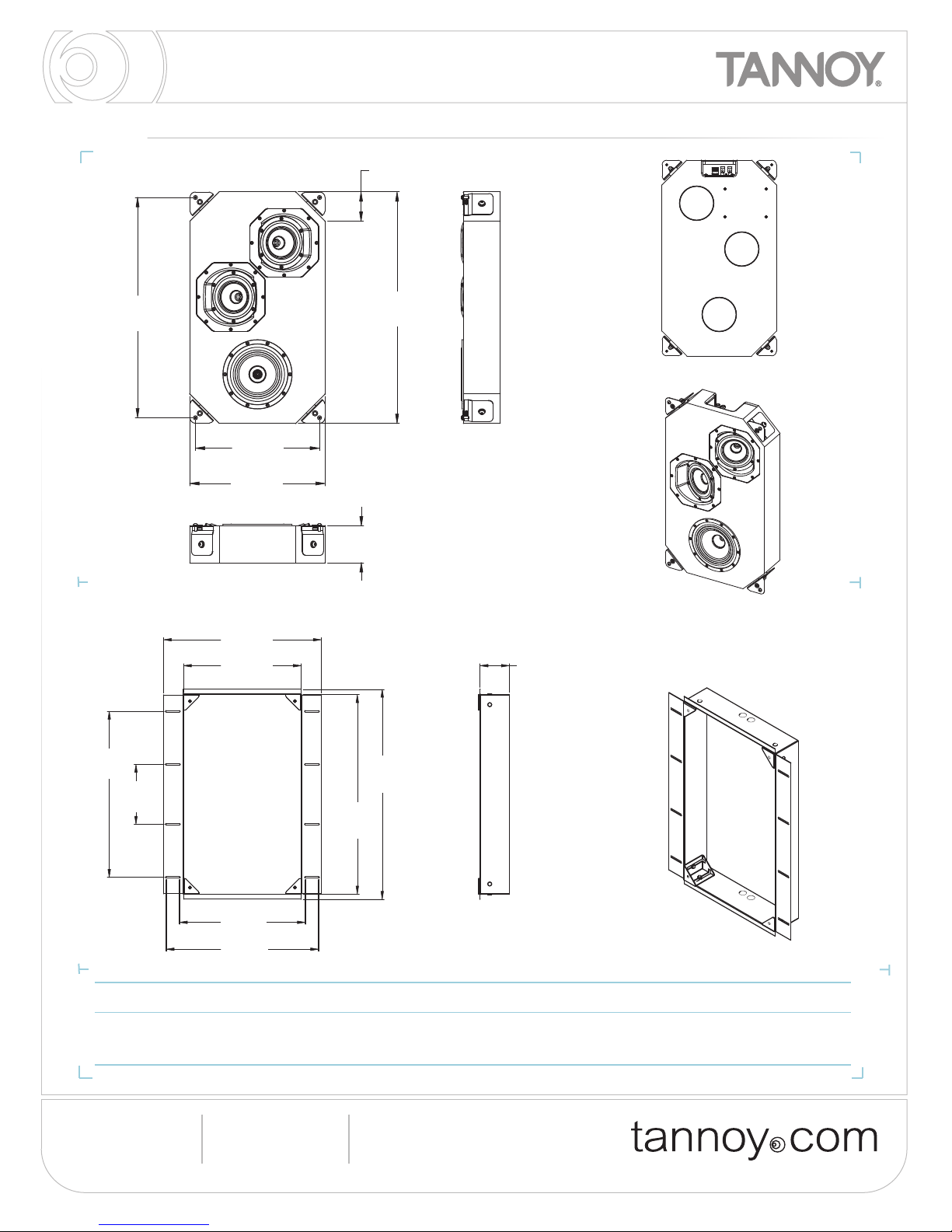

Dimensions 590 x 345 x 94mm (H x W x D)

(23.23 x 13.58 x 3.70 ") (H x W x D)

Optional Accessory Pre-installation mounting frame

NET Weight 9.50Kg (20.94lbs)

System Definition Install iw60 EFX

Transducers

8000 5270 Definition Install iw63 EFX Black 1

PART NUMBER PACKED QUANTITYCOLOURMODEL NAME

Ordering Information

Definition Install iw60 EFX

Tannoy United Kingdom
Tannoy North America
Tannoy Deutschland
Tannoy France

T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473

E: [e-mail]
E: [e-mail]
E: [e-mail]
E: [e-mail]

Tannoy adopts a policy of continuous improvement and product specification is subject to change

Definition Install iw60 EFX data file // issue 1.06 // 15.01.08

PERFORMANCE MEASUREMENTS

50

60

7

0

8

0

90

00

00000100001000100101

0

5

1

0

15

2

0

2

5

30

10 100 1000 10000 100000

Music mode
Cinema mode

50

60

70

80

90

100

00000

1000

01

000

1

0

010

1

0 deg
10 deg
20deg
30deg
40deg

A

NECHOIC
FREQUENCY
RESPONSE

IMPEDANCE

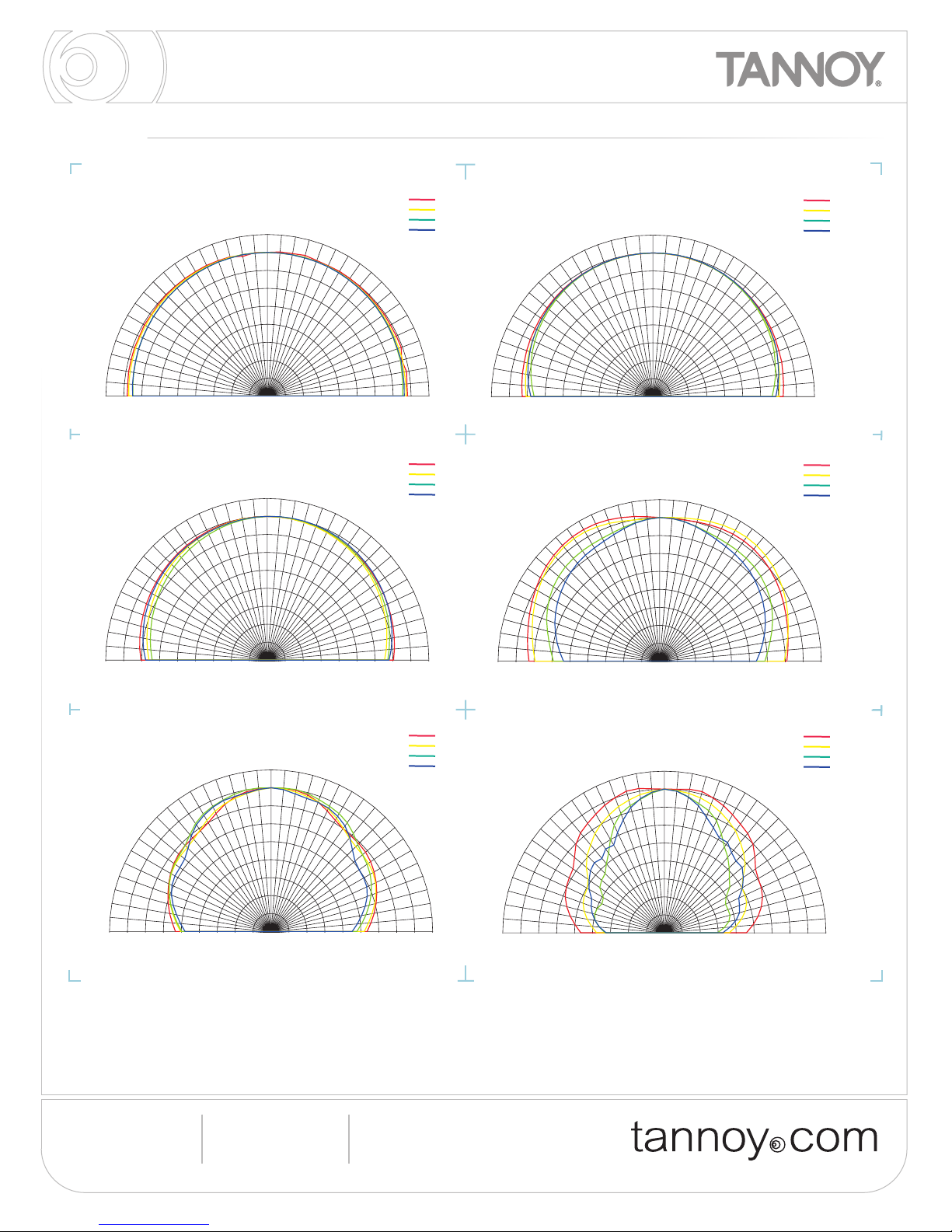

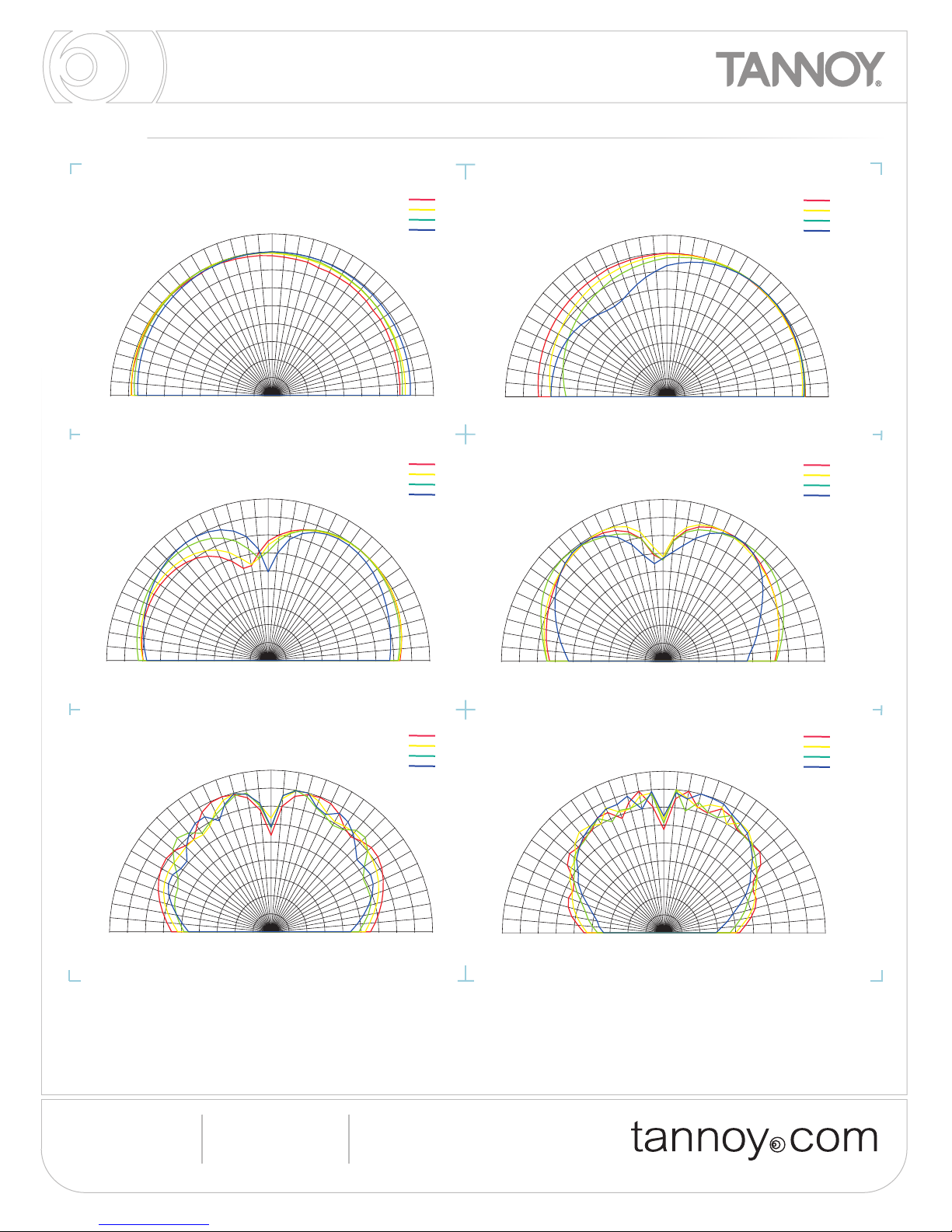

OFF AXIS
RESPONSE

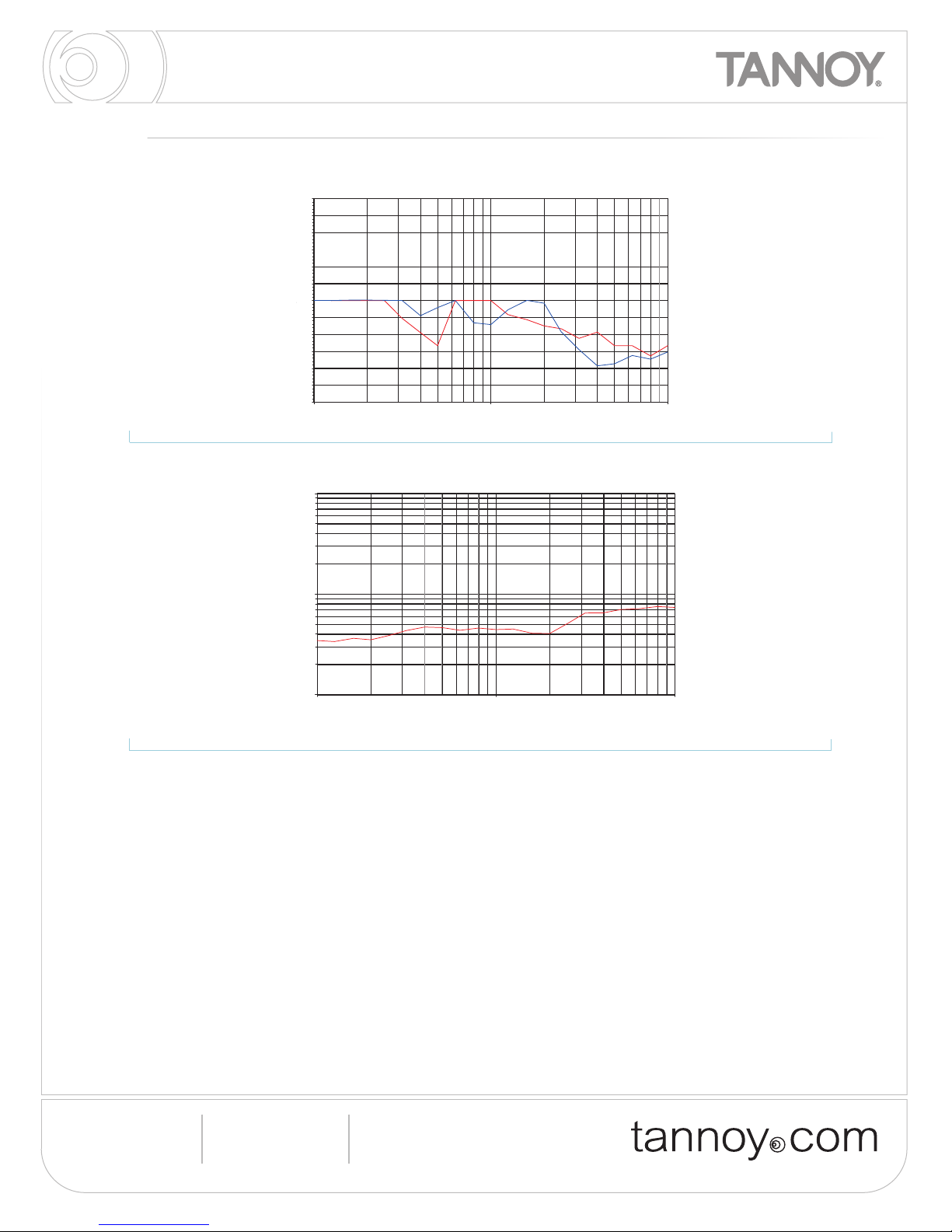

1m on-axis frequency response

frequency (Hz)

SPL, 1W/1m (dB)

frequency (Hz)

Impedance vs frequency

frequency (Hz)

Impedance (ohms)

Level (dB)
