Tannoy CVS-4 Brochure

CVS 4

Product Description

The Tannoy CVS4 is a full bandwidth ceiling speaker system comprising a 100mm (4.00”)
mid bass driver with a coaxially mounted 19mm (0.75”) high frequency section mounted in
a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant
UL94V-0 ABS material.

The mineral loaded polypropylene cone material and nitrile rubber surround enhance dura­bility and long-term reliability. This compact unit is specifically designed for all applications
requiring the combination of excellent sonic quality for music and speech reinforcement
and exceptional reliability.

The CVS4 is equipped with a low insertion loss 30W line transformer easily configurable to
the following settings via front baffle mounted rotary tapping switch:

70V systems: 30W / 15W / 7.5W / 3.75W / OFF & low Impedance operation
100V systems: 30W / 15W / 7.5W / OFF & low Impedance operation

The CVS4 is supplied with an integral zinc-plated steel back can, with recessed termination
box, to satisfy the vast majority of installation application requirements. The removable
locking connector has screw terminals for secure wire termination and "loop through" facil­ity. Strain relief is provided by a clamping mechanism for use with plenum rated cable or
conduit. Security toggle clamps make for quick and easy installation, while two tile support
rails and one C-ring are also included in the package. A plaster (mud) ring is available as
an optional accessory.

Features

• Coaxially mounted 100mm (4.00") mineral loaded

woofer with rubber surround and 19mm (0.75") soft

dome diffraction loaded tweeter.

• High power & high sensitivity with extended frequency

response and very low distortion

• Wide, controlled constant directivity dispertion for

optimum coverage.

• UV/weather resistant UL94V-0 ABS front baffle

• Easily accessible tapping switch on front baffle.

• Low insertion loss 30W line transformer

• Ferrofluid cooled neodymium HF

• Packaged with tile rails and C-ring for quick & easy

installation and simple stocking logistics

Applications

• Multi-zone foreground music & paging systems

• Boardrooms & offices

• Business music systems

• Airports, convention centres, hotels

• Reception / waiting rooms

• Houses of worship

• Retail outlets / shopping malls

• Lounges / bars

• Cruise ships

• Courtrooms

Tannoy United Kingdom
Tannoy North America
Tannoy Deutschland
Tannoy France

T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473

E: [e-mail]
E: [e-mail]
E: [e-mail]
E: [e-mail]

CVS 4 data file // issue 1.06 // 15.01.08

CVS 4

TECHNICAL SPECIFICATIONS

System CVS4

1)

requency Response (-3dB)

F

Frequency Range (-10dB)

ystem Sensitivity (1W @1m)

S

Nominal Coverage Angle 90 Degrees Conical

overage Angle (1kHz to 6kHz) 102 Degrees Conical

C

Directivity Factor (Q) 5.6 averaged 1kHz to 6kHz

irectivity Index (DI) 7.1 averaged 1kHz to 6kHz

D

Rated Maximum SPL 103dB (average)

Power Handling

Average 40W
Programme 80W
Peak 160W

Recommended Amplifier Power 80@ 6Ω

Nominal Impedance 6Ω

Transformer Taps
(via front rotary switch)

70V 30W / 15W / 7.5W / 3.75 / OFF

100V 30W / 15W / 7.5W / OFF

Distortion

10% Full Power 2nd Harmonic 3rd Harmonic

250Hz 0.231% 0.112%
1kHz 0.229% 0.253%
10kHz 0.163% 0.025%

1% Full Power 2nd Harmonic 3rd Harmonic
250Hz 0.99% 0.169%
1kHz 0.816% 0.027%
10kHz 0.444% 0.07%

Crossover 2.7kHz

(

5Hz - 19kHz

8

(1)

77Hz - 22kHz

(

2)

7dB (1W = 2.45V for 6Ω)

8

09dB (peak)

1

& Low Impedance operation

& Low Impedance operation

Transducers

Low Frequency 100mm (4.00") mineral loaded cone

igh Frequency 19mm (0.75") soft dome

H

Physical

ystem Type Ceiling speaker with integral

S

nclosure

E

Backcan Zinc plated steel
Baffle Reflex loaded UL 94V-0 rated ABS

rille Steel, with weather resistant coating

G

afety Features Safety ring located at rear of enclosure

S

Clamping Design Security Toggle Clamp

in / Max Clamping Range 9.00mm (0.35") / 34.00mm (1.34")

M
Recommended Clamp Torque 1.5Nm

Cable Entry Options Cable clamp & squeeze connector for

Connectors Removable locking connector with screw

Safety Agency Rating

CVS4 Hole Cutout Diameter 180mm (7.09")

Dimentions

Bezel Diameter 213mm (8.39")

Front of Ceiling to
Rear of Backcan 202.5mm (7.97")

Front of Ceiling to
top of safety loop 214.9mm (8.46")

Included Accessories C Ring, tile bridge, paint mask,

Optional Accessories Plaster (Mud) Ring

(blind mount) Back can

for load bearing safety bond

conduit up to 22mm

terminals with "loop through" facility

(pending)

UL-1480, UL-2043, CE

cutout template, grille

Notes
(1) Average over stated bandwidth. Measured at 1 metre on axis.
(2) Unweighted pink noise input, measured at 1 metre in an anechoic chamber

A full range of measurements, performance data, and Ease™ Data can be
downloaded from www.tannoy.com

Tannoy operates a policy of continuous research and development. The introduction
of new materials or manufacturing methods will always equal or exceed the
published specifications, which Tannoy reserves the right to alter without prior
notice. Please verify the latest specifications when dealing with critical applications.

Ordering Information

PART NUMBER

8001 4011

Tannoy United Kingdom
Tannoy North America
Tannoy Deutschland
Tannoy France

MODEL NAME

CVS 4

T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473

COLOUR

White

E: [e-mail]
E: [e-mail]
E: [e-mail]
E: [e-mail]

PACKED QUANTITY

2

PACKED WEIGHT

2.6kg (5.72lbs)

CVS 4 data file // issue 1.06 // 15.01.08

50

60

70

80

9

0

100

10 100 1000 10000 100000

0

5

10

15

20

25

1 10 100 1000 10000 100000

50

60

70

80

90

100

10 100100010000 100000

0 deg

10 deg

20deg

30deg

40deg

NECHOIC

A
FREQUENCY
RESPONSE

CVS 4

PERFORMANCE MEASUREMENTS

m on-axis frequency response

1

SPL, 1W/1m (dB)

frequency (Hz)

Impedence vs Frequency

Impedance (ohms)

frequency (Hz)

IMPEDANCE

Horizontal off-axis response

Level (dB)

OFF AXIS
RESPONSE

frequency (Hz)

Tannoy United Kingdom
Tannoy North America
Tannoy Deutschland
Tannoy France

T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473

E: [e-mail]
E: [e-mail]
E: [e-mail]
E: [e-mail]

CVS 4 data file // issue 1.06 // 15.01.08

0

3

0

60

90

120

1

50

180

210

2

40

2

70

300

330

3

60

100 1000 10000

1

10

100

100 100010000

Q

BEAMWIDTH

CVS 4

PERFORMANCE MEASUREMENTS

eamwidth vs Frequency

B

Degrees

frequency (Hz)

DI vs Frequency

Q

DIRECTIVITY INDEX

Tannoy United Kingdom
Tannoy North America
Tannoy Deutschland
Tannoy France

T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473

E: [e-mail]
E: [e-mail]
E: [e-mail]
E: [e-mail]

frequency (Hz)

CVS 4 data file // issue 1.06 // 15.01.08

CVS 4

-

48

-36

-

24

-12

0

0

30

60

90270

300

330

-48

-36

-24

-12

0

0

30

60

90270

300

330

-48

-36

-24

-12

0

0

3

0

60

90270

300

3

30

-48

-36

-24

-12

0

0

3

0

60

90270

300

3

30

-48

-36

-24

-12

0

0

30

60

90270

300

330

-48

-36

-24

-12

0

0

30

60

90270

300

330

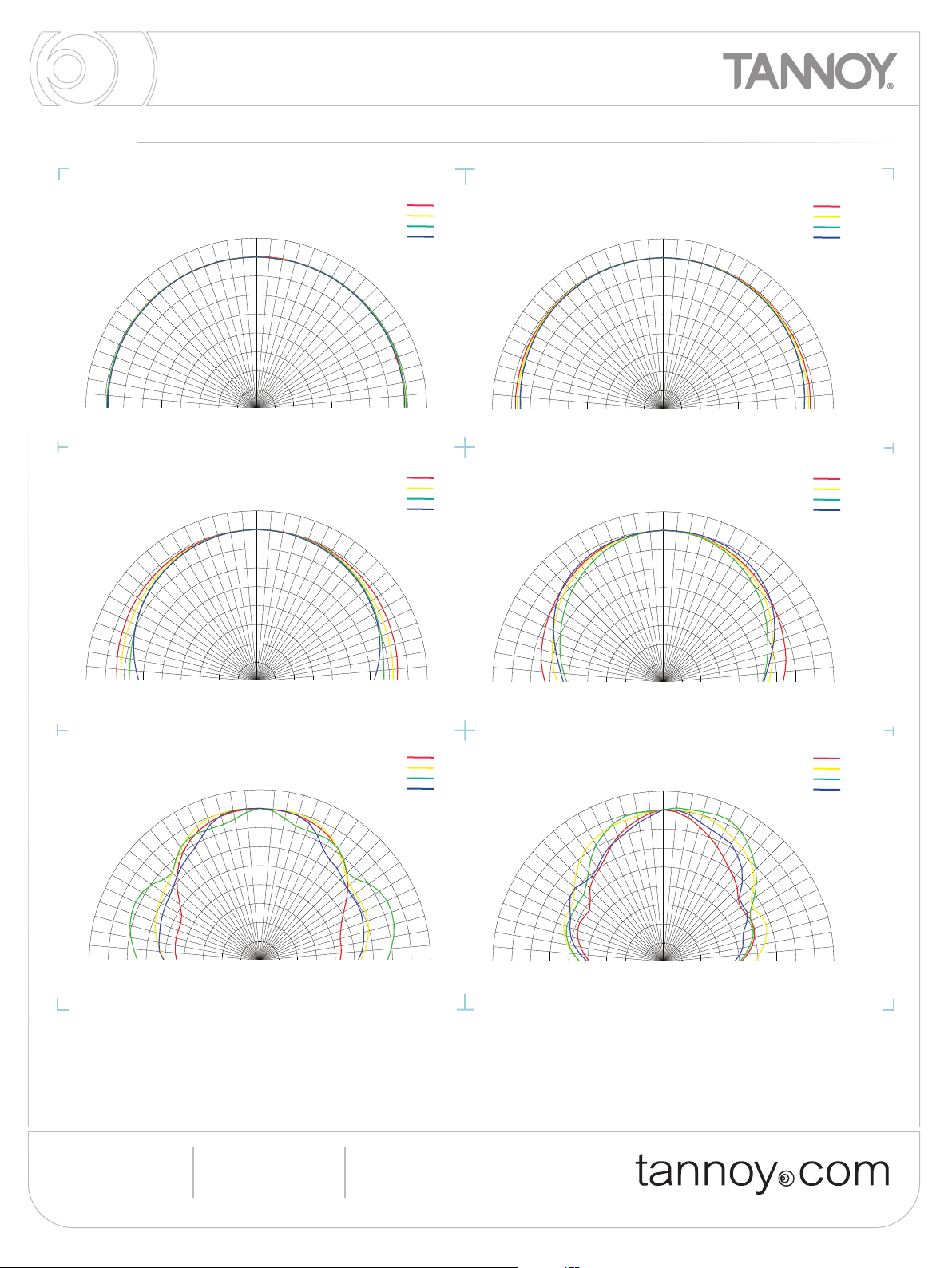

PERFORMANCE MEASUREMENTS POLAR PLOTS (1/3 OCTAVE)

100 Hz
125 Hz
160 Hz

00 Hz

2

630 Hz

630 Hz
800 Hz

800 Hz
1 kHz

1 kHz

1.25 kHz

1.25 kHz

250 Hz
315 Hz
400 Hz
500 Hz

1.6 kHz

1.6 kHz
2 kHz

2 kHz

2.5 kHz

2.5 kHz

3.15 kHz

3.15 kHz

Tannoy United Kingdom
Tannoy North America
Tannoy Deutschland
Tannoy France

T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473

4 kHz
5 kHz

6.3 kHz
8 kHz

10 kHz

12.5 kHz
16 kHz
20 kHz

E: [e-mail]
E: [e-mail]
E: [e-mail]
E: [e-mail]

CVS 4 data file // issue 1.06 // 15.01.08

174.8

[6.88"]

14.
7

[

0.58"]

2

02.

5

[7.97"]

2

14.

9

[8.46"]

213.0

[8.39"]

TEMPLATE HOLE CUTOUT SIZE - 180mm (7.09)

CVS4

27.00

[1.06]

15.00

[0.59]

16.00 [0.63]

4.50 [0.18]

SUPPLIED ACCESSORIES

C-RING

OPTIONAL ACCESSORIES

PLASTER (MUD) RING

60.00

[2.36]

180.00 [7.09]

205.00 [8.07]

230.00 [9.06]

255.00 [10.04]

280.00 [11.02]

305.00 [12.01]

650.00 [25.59]

10.00
[0.39]

188.00 [7.40]

254.00 [10.00]

134.50 [5.96]

188.00
[7.40]

254.00
[11.34]

80.00

[3.15]

134.50 [5.96]

CVS 4

DIMENSIONAL SKETCHES

Tannoy United Kingdom
Tannoy North America
Tannoy Deutschland
Tannoy France

T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473

E: [e-mail]
E: [e-mail]
E: [e-mail]
E: [e-mail]

CVS 4 data file // issue 1.06 // 15.01.08

CVS 4

Architectural specifications

he Ceiling Speaker System shall consist of a 100mm (4.00") mineral loaded mid bass driver with coaxially mounted 19mm (0.75") high frequency unit and

T

assive frequency dividing network mounted in a vented, injection moulded, paintable front baffle in UL94V-0 ABS material.

p

The backcan shall be constructed of zinc plated steel. A recessed termination box shall be integrated with the backcan, a removable locking connector with

screw terminals for secure wire termination with "loop through" facility shall be provided. Strain relief will be provided by a clamping mechanism for use with

plenum rated cable or conduit. A safety ring is located on the rear of the backcan for a load bearing safety bond.

Performance of the ceiling speaker shall meet or exceed the following criteria: The system shall have a conical coverage pattern of 102 degrees (1kHz to

6kHz). Frequency response measured on axis shall be 77Hz -22kHz (-10dB from rated sensitivity, measured in an IEC baffle in an anechoic chamber) with

no equalization. Sensitivity shall be 87dB (1W @ 1m). Long term power handling capacity as defined in EIA-426B test shall be 40W, recommended amplifier

power 80W. The nominal system impedance shall be 6 Ohms (in low impedance setting).

he ceiling speaker shall be equipped with a 30W high performance line transformer for use in 70.7 or 100 Volt distributed audio systems with 30, 15, 7.5,

T

.75 Watt taps available. An easily accessible rotary switch located on the front baffle shall be available for selecting transformer and low impedance set-

3

tings. A weather resistant perforated steel grille covers the transducer and switch.

Two support rails and one C-Ring shall be included with the ceiling monitor system. The front face diameter shall not exceed 213mm (8.39"), overall depth

from the front of the ceiling to the top of the safety loop shall not exceed 214.90mm (8.46"). The template cut out diameter shall be 180mm (7.09")

The Ceiling Monitor System shall be the.....CVS4

*70 Volt only

Tannoy United Kingdom
Tannoy North America
Tannoy Deutschland
Tannoy France

T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473

E: [e-mail]
E: [e-mail]
E: [e-mail]
E: [e-mail]

CVS 4 data file // issue 1.06 // 15.01.08

CVS 4

NOTES
