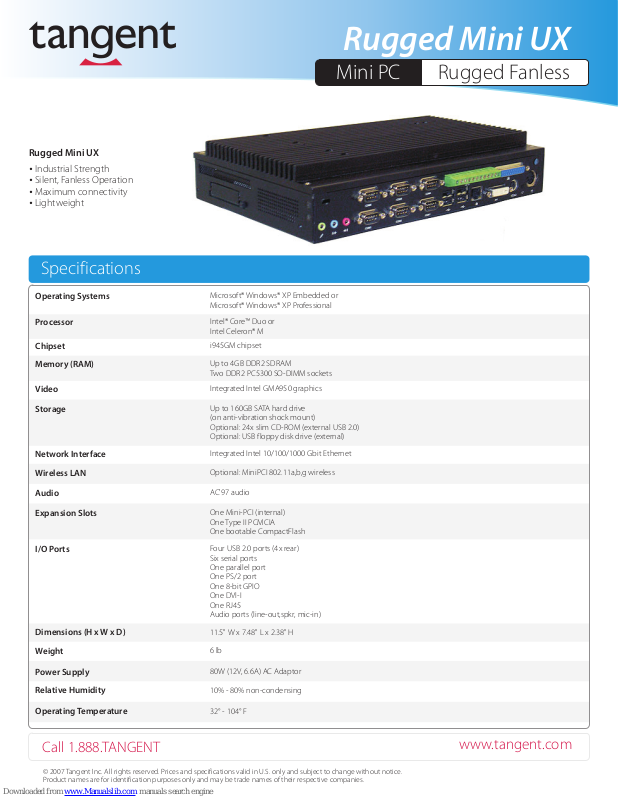

Tangent Rugged Mini UX Datasheet

Rugged Mini UX

? Industrial Strength

Silent, Fanless Operation

?

Maximum connectivity

?
? Lightweight

Specifications

Rugged Mini UX

Rugged FanlessMini PC

Operating Systems

Processor

Chipset

Memory (RAM)

Video

Storage

Network Interface

Wireless LAN

Audio

Expansion Slots

I/O Ports

Microsoft® Windows® XP Embedded or
Microsoft® Windows® XP Professional

Intel® Core™ Duo or
Intel Celeron® M

i945GM chipset

Up to 4GB DDR2 SDRAM
Two DDR2 PC5300 SO-DIMM sockets

Integrated Intel GMA950 graphics

Up to 160GB SATA hard drive
(on anti-vibration shock mount)
Optional: 24x slim CD-ROM (external USB 2.0)
Optional: USB floppy disk drive (external)

Integrated Intel 10/100/1000 Gbit Ethernet

Optional: MiniPCI 802.11a,b,g wireless

AC'97 audio

One Mini-PCI (internal)
One Type II PCMCIA
One bootable CompactFlash

Four USB 2.0 ports (4x rear)
Six serial ports
One parallel port
One PS/2 port
One 8-bit GPIO
One DVI-I
One RJ45
Audio ports (line-out,spkr, mic-in)

Dimensions (H x W x D)

Weight

Power Supply

Relative Humidity

Operating Temperature

Call 1.888.TANGENT

© 2007 Tangent Inc. All rights reserved. Prices and specifications valid in U.S. only and subject to change without notice.
Product names are for identification purposes only and may be trade names of their respective companies.

11.5" W x 7.48" L x 2.38" H

6 lb

80W (12V, 6.6A) AC Adaptor

10% - 80% non-condensing

32° - 104° F
