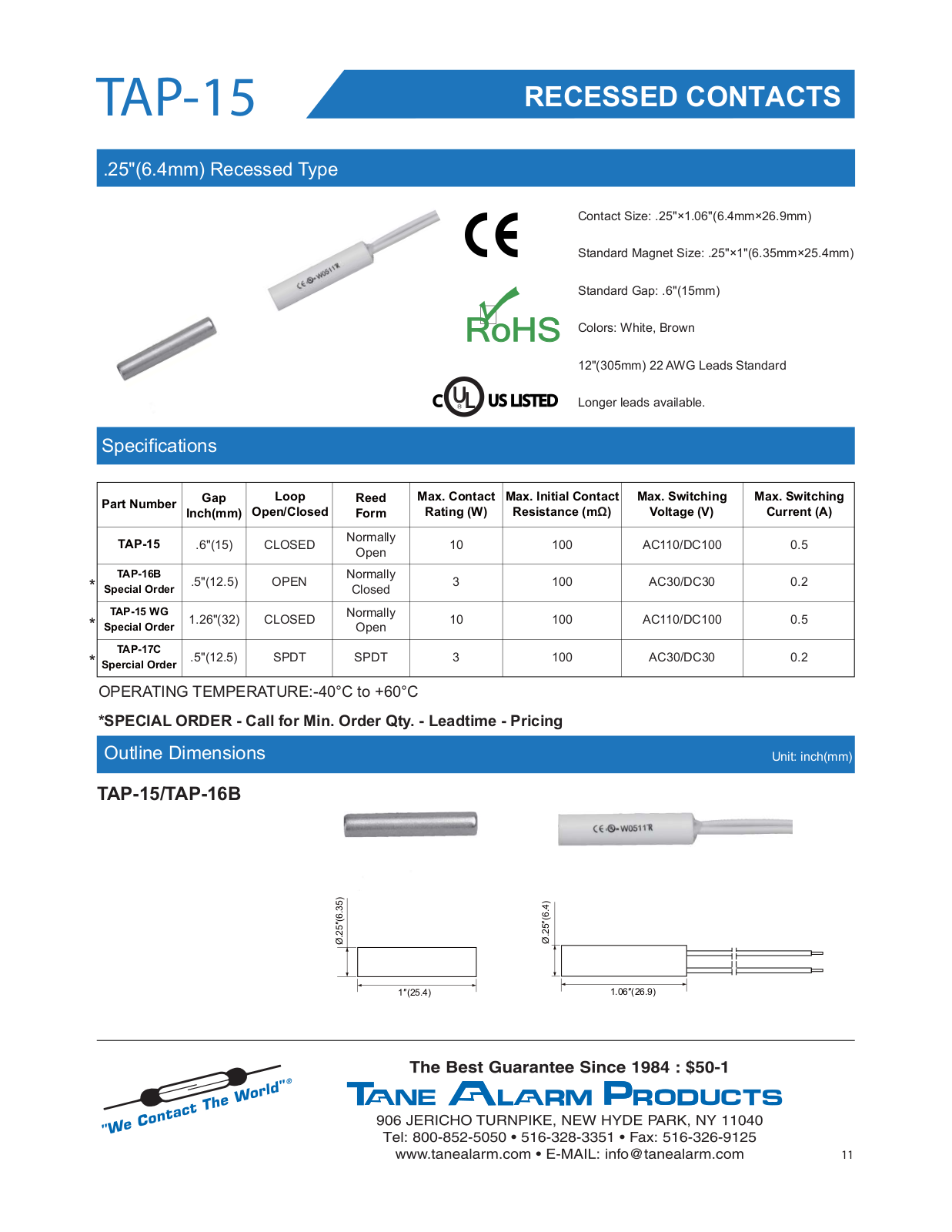

TAP-15

.25"(6.4mm) Recessed Type

RECESSED CONTACTS

Contact Size: .25"×1.06"(6.4mm×26.9mm)

Standard Magnet Size: .25"×1"(6.35mm×25.4mm)

Standard Gap: .6"(15mm)

RoHS

US

LISTED

R

Specifications

Part Number

TAP-15

TAP-16B

*

Special Order

TAP-15 WG

*

Special Order

TAP-17C

*

Spercial Order

Gap

Inch(mm)

.6"(15)

.5"(12.5)

1.26"(32)

.5"(12.5)

Loop

Open/Closed

CLOSED

OPEN

CLOSED

SPDT

Reed
Form

Normally

Open

Normally

Closed

Normally

Open

SPDT

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER - Call for Min. Order Qty. - Leadtime - Pricing

Max. Contact

Rating (W)

10

3

10

3

Max. Initial Contact

Resistance (mΩ)

Outline Dimensions

Colors: White, Brown

12"(305mm) 22 AWG Leads Standard

Longer leads available.

Max. Switching

Voltage (V)

100

100

100

100

AC110/DC100

AC30/DC30

AC110/DC100

AC30/DC30

Max. Switching

Current (A)

0.5

0.2

0.5

0.2

Unit: inch(mm)

TAP-15/TAP-16B

Ø.25″(6.35)

1″(25.4)

Ø.25″(6.4)

1.06″(26.9)

11

TAP-15

RECESSED CONTACTS

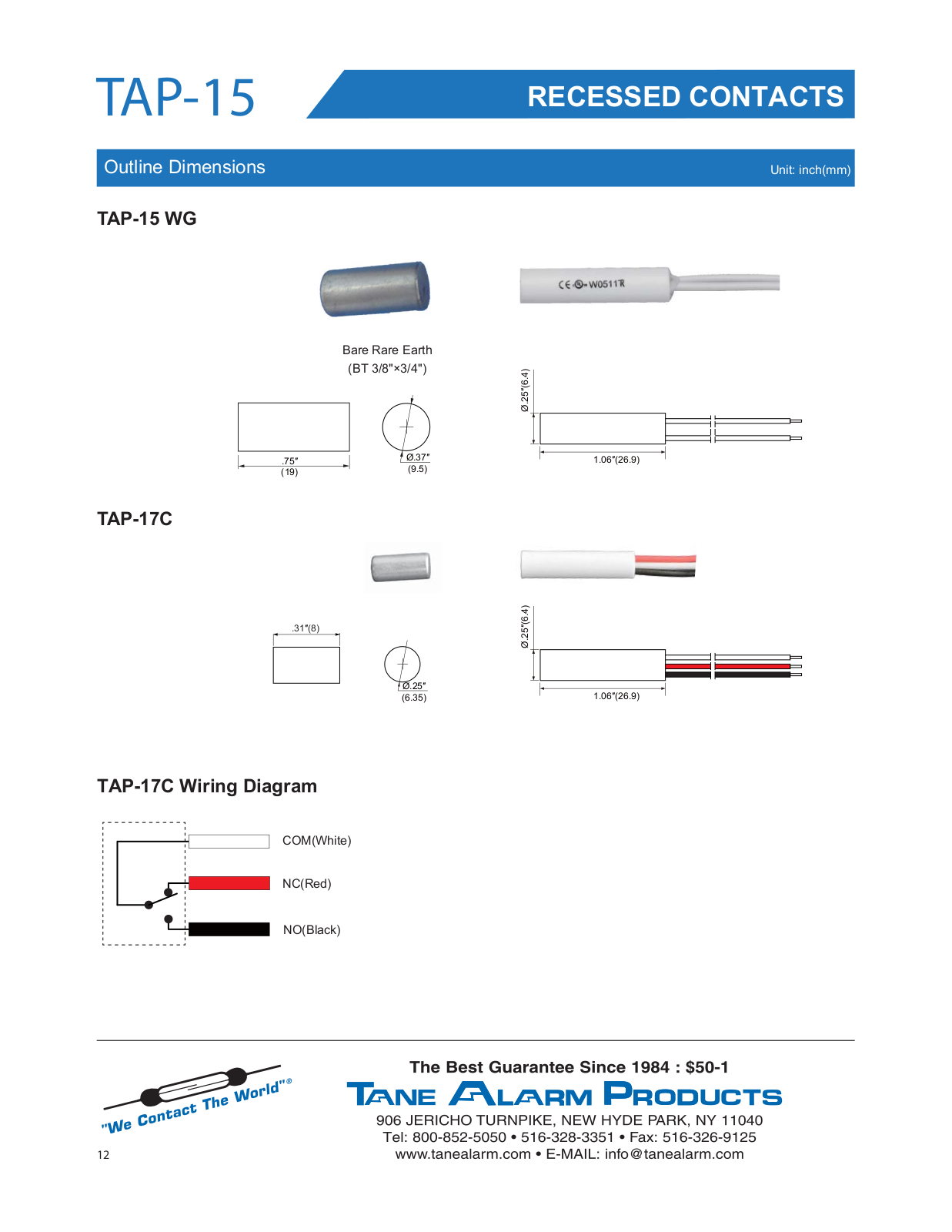

Outline Dimensions

TAP-15 WG

TAP-17C

.75″

(19)

Bare Rare Earth

(BT 3/8"×3/4")

Ø.37″

(9.5)

Unit: inch(mm)

Ø.25″(6.4)

1.06″(26.9)

.31″(8)

TAP-17C Wiring Diagram

COM(White)

NC(Red)

NO(Black)

Ø.25″

(6.35)

Ø.25″(6.4)

1.06″(26.9)
