Tane TANE-22-TC, TANE-22 Specsheet
RoHS

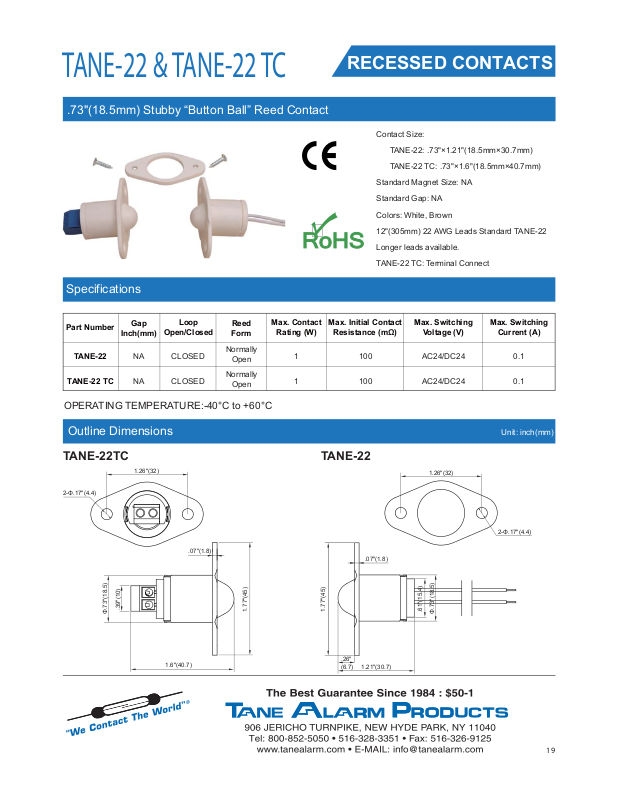

TANE-22 & TANE-22 TC
.73"(18.5mm) Stubby “Button Ball” Reed Contact
RoHS
Specifications
RECESSED CONTACTS
Contact Size:
TANE-22: .73"×1.21"(18.5mm×30.7mm)
TANE-22 TC: .73"×1.6"(18.5mm×40.7mm)
Standard Magnet Size: NA
Standard Gap: NA
Colors: White, Brown
12"(305mm) 22 AWG Leads Standard TANE-22
Longer leads available.
TANE-22 TC: Terminal Connect
Part Number
TANE-22
TANE-22 TC
Gap
Inch(mm)
NA
NA
Loop
Open/Closed
CLOSED
CLOSED
Reed
Form
Normally
Open
Normally
Open
Max. Contact
Rating (W)
1
1
Max. Initial Contact
Resistance (mΩ)
100
100
OPERATING TEMPERATURE:-40°C to +60°C
Outline Dimensions
TANE-22TC TANE-22
1.26"(32)
2-Φ.17"(4.4)
.07"(1.8)
.39"(10)
Φ.73"(18.5)
1.77"(45)
1.77"(45)
.07"(1.8)
Max. Switching
Voltage (V)
AC24/DC24
AC24/DC24
1.26"(32)
.61"(15.4)
Φ.73"(18.5)
Max. Switching
Current (A)
0.1
0.1
Unit: inch(mm)
2-Φ.17"(4.4)
1.6"(40.7)
.26"
(6.7)
1.21"(30.7)
19
