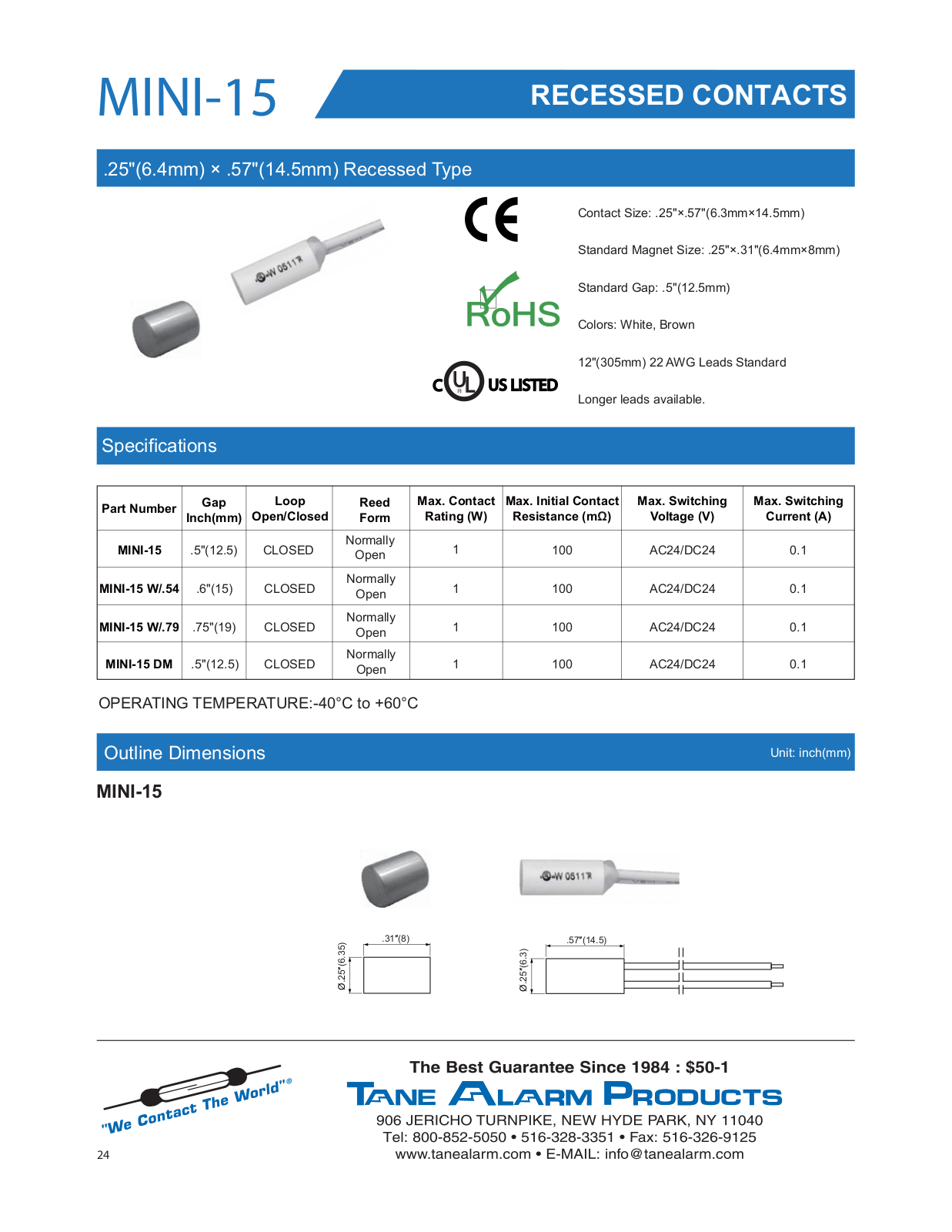

MINI-15

.25"(6.4mm) × .57"(14.5mm) Recessed Type

Specifications

RECESSED CONTACTS

RoHS

US

LISTED

R

Contact Size: .25"×.57"(6.3mm×14.5mm)

Standard Magnet Size: .25"×.31"(6.4mm×8mm)

Standard Gap: .5"(12.5mm)

Colors: White, Brown

12"(305mm) 22 AWG Leads Standard

Longer leads available.

Part Number

MINI-15

MINI-15 W/.54

MINI-15 W/.79

MINI-15 DM

Gap

Inch(mm)

.5"(12.5) CLOSED

.6"(15)

.75"(19)

.5"(12.5)

Loop

Open/Closed

CLOSED

CLOSED

CLOSED

Reed
Form

Normally

Open

Normally

Open

Normally

Open

Normally

Open

OPERATING TEMPERATURE:-40°C to +60°C

Outline Dimensions

MINI-15

.31″(8)

Max. Contact

Rating (W)

1

1

1

1

Max. Initial Contact

Resistance (mΩ)

100

100

100

100

.57″(14.5)

Max. Switching

Voltage (V)

AC24/DC24 0.1

AC24/DC24

AC24/DC24

AC24/DC24

Max. Switching

Current (A)

0.1

0.1

0.1

Unit: inch(mm)

24

Ø.25″(6.35)

Ø.25″(6.3)

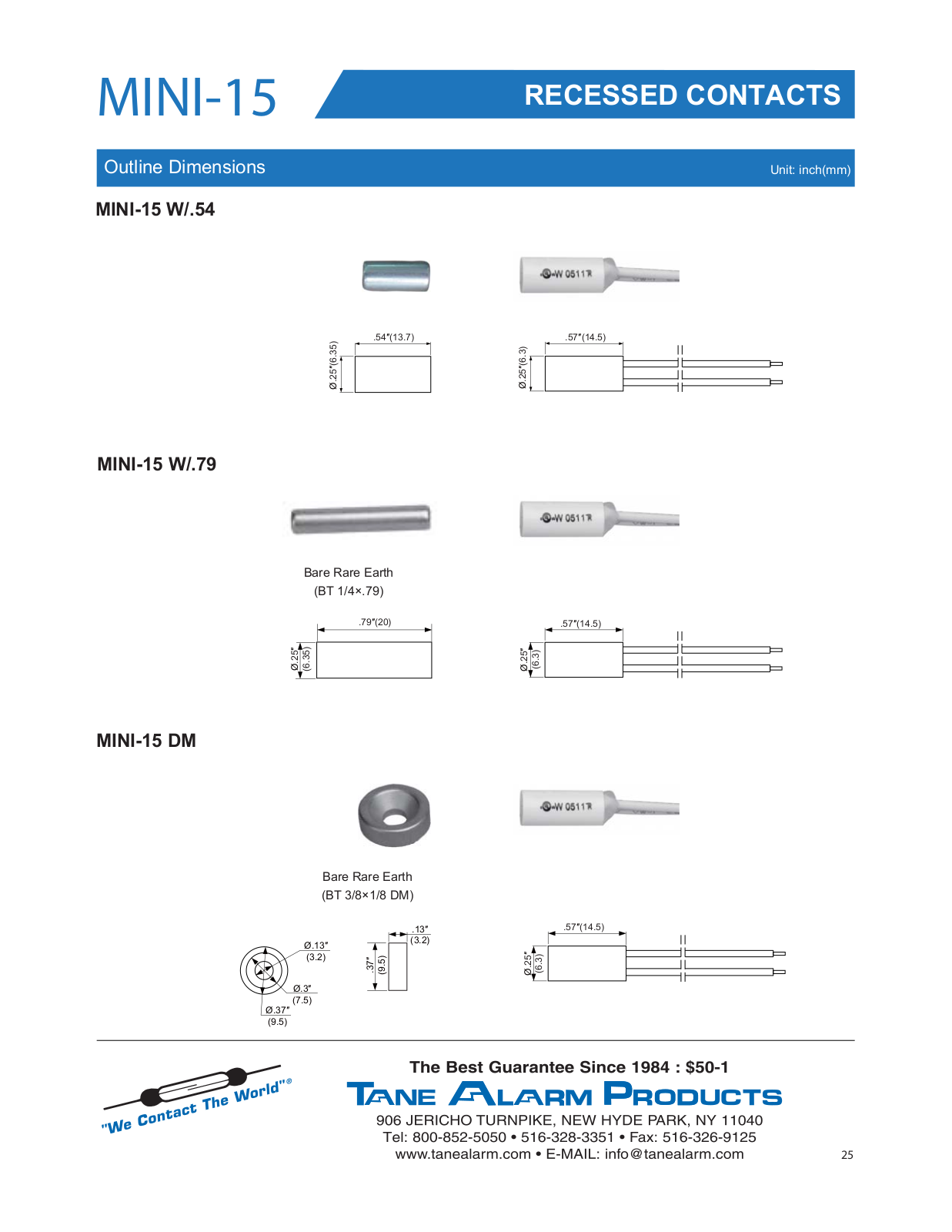

MINI-15

RECESSED CONTACTS

Outline Dimensions

MINI-15 W/.54

MINI-15 W/.79

.54″(13.7)

Ø.25″(6.35)

Bare Rare Earth

(BT 1/4×.79)

Unit: inch(mm)

.57″(14.5)

Ø.25″(6.3)

MINI-15 DM

Ø.37″

(9.5)

Ø.25″

(6.35)

Bare Rare Earth

(BT 3/8×1/8 DM)

Ø.13″

(3.2)

Ø.3″

(7.5)

.79″(20)

.37″

(9.5)

.13″

(3.2)

.57″(14.5)

(6.3)

Ø.25″

.57″(14.5)

(6.3)

Ø.25″
