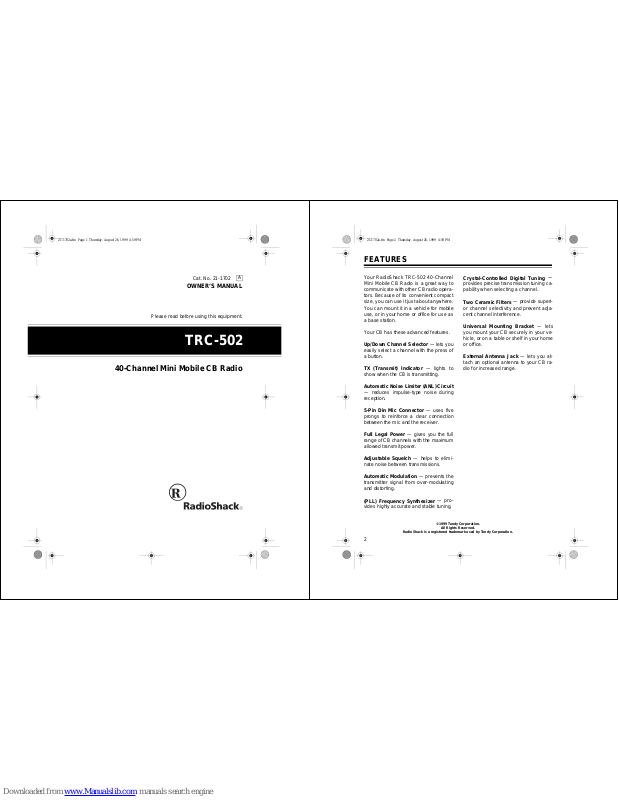

Page 1
Cat. No. 21-1702
OWNER’S MANUAL
Please read before using this equipment.
TRC-502
40-Channel Mini Mobile CB Radio
A
21-1702a.fm Page 1 Thursday, August 26, 1999 4:59 PM
2
FEATURES
Your RadioShack TRC-502 40-Channel
Mini Mobile CB Radio is a great way to
communicate with other CB radio operators. Because of its convenient compa ct
size, you can use it just ab out a nyw here .
You can mount it in a vehicle for mo bile
use, or in your home or office for us e as
a base station.
Your CB has these advanced features.
Up/Down Channel Selector
— lets you
easily select a channel with the press of
a button.
TX (Transmit) Indicator
— lights to
show when the CB is transmitting.
Automatic Noise Limiter (ANL) Circuit
— reduces impulse-type noise during
reception.
5-Pin Din Mic Connector
— uses five
prongs to reinforce a clear connection
between the mic and the receiver.
Full Legal Power
— gives you the full
range of CB channels with the maximum
allowed transmit power.
Adjustable Squelch
— helps to elimi-
nate noise between transmissions.
Automatic Modulation
— prevents the
transmitter signal from over-modulating
and distorting.
(PLL) Frequency Synthesizer
— pro-
vides highly accurate and stable tuning.
Crystal-Controlled Digital Tuning
—
provides precise transmission tuning capability when selecting a channel.
Two Ceramic Filters
— provide superior channel selectivity and prevent adjacent channel interference.
Universal Mounting Bracket
— lets
you mount your CB securely in your vehicle, or on a table or shelf in your home
or office.
External Antenna Jack
— lets you attach an optional antenna to your CB radio for increased range.
© 1999 Tandy Corporation.
All Rights Reserved.
RadioShack is a registered trademark used by Tandy Corporation.
21-1702a.fm Page 2 Thursday, August 26, 1999 4:59 PM
Page 2
3
FCC INFORMATION
The Federal Communications Commission (FCC) does not require you to have
a license to operate this CB radio. However, you must know Part 95 of
FCC
Rules
. These rules apply to the operation of a Class D CB. We have provided
a copy of these regulations with your CB
radio.
Warning
: Do not open your CB radio to
make any internal adjustments. A CB radio is set up to transmit a regulated sig nal on an assigned frequency. It is
against the law to alter or adjust the s et tings inside the unit to exceed these limitations.
To be safe and sure:
• never open your CB radio’s cases.
• never change or replace anything in
your CB radio.
Your CB radio might cause TV or radio
interference even when it is op erating
properly. To determine whether your CB
radio is causing the interference, turn off
your CB radio. If the interference goe s
away, your CB is causing it. Try to eliminate the interference by:
• moving your CB radio away from the
TV or radio
• contacting your local RadioShack
store for help
If you cannot eliminate the interference,
the FCC requires that you stop using
your CB radio.
This device complies with Part 95 of
FCC Rules
. Operation is subject to the
following two conditions: 1) this devi ce
may not cause harmful interference, and
2) this device must accept any interference received, including interference
that may cause undesired operation.
21-1702a.fm Page 3 Thursday, August 26, 1999 4:59 PM
4
CONTENTS
Installation ..................................................................... .......................................... 5
Mounting the Microphone Holder ....................................................................... 5
Mounting the CB ................................................................................................. 5
Connecting an Antenna ...................................................................................... 6
Connecting the Microphone ................................................................................ 7
Using Vehicle Battery Power .............................................................................. 8
Using the CB as a Base Station ......................................................................... 8
Operation ....................................................................... ........................................ 10
Receiving Transmissions and Adjusting Squelch ............................................. 10
Transmitting .............................................................. ........................................ 11
Operational Hints .................................................................................................. 12
Common Uses for a CB .................................................................................... 12
Personal Uses ............................................................................................ 12
Business Uses ........................................................................................... 12
Transmission Courtesy ................................................................................... .. 12
Using Common 10-Codes ................................................................................ 13
Maximum Range .............................................................................................. 14
Reducing Noise ................................................................................................ 14
Troubleshooting .................................................................................................... 15
Care and Maintenance .......................................................................................... 16
Replacing the Fuse ........................................................................................... 17
Specifications ................................................................ .......................... .............. 18
21-1702a.fm Page 4 Thursday, August 26, 1999 4:59 PM
Page 3
5
INSTALLATION
MOUNTING THE
MICROPHONE HOLDER
You can mount the microphone holder
to either side of the CB or to another lo cation near your receiver.
Caution
: Do not mount the CB microphone holder where it could damage or
interfere with the operation of any passive restraint safety device (an airbag o r
seat belt).
To mount the holder to either side of the
CB, use the two supplied
1
/8-inch (3-mm)
tapered-tip screws, plain washers, and
spring washers as shown to secure the
holder.
To mount the holder near the receiver in
another location in your vehicle (such as
a dashboard), or somewhere in your
home or office, such as a nearby wall,
follow these steps.
1. Using the holder as a template,
mark the positions for the screw
holes at the desired location.
2. At e ach mar ked position, dr ill a ho le
slightly smaller than the mounting
screws.
Caution
: Be careful not to dril l into
anything behind the mounting surface.
3. M ount the holde r using the m achine
screws, spring washers, plain washers and nuts.
Note
: If you cannot reach behind the
mounting surface to attach the nuts to
the machine screws, use the two supplied
1
/8-inch (3-mm) tapered-tip screws
and plain washers.
MOUNTING THE CB
The most common mounting location for
this CB is under a vehicle’s dashboa rd.
However, if you use the TRC-502 as a
base station in your home or office, yo u
can place it on a desk, shelf, or table
(see “Using the CB as a Base Station”
on Page 8).
If you are mounting the CB in a vehicle,
choose a location where:
• you can easily reach the CB.
• wires and cables are clear of the
vehicle’s pedals and other moving
parts.
Mounting Surface
21-1702a.fm Page 5 Thursday, August 26, 1999 4:59 PM
6
• the CB is not directly in front of heating vents.
• all wires and cables can reach their
connection point.
Cautions
:
• If you use the CB in a vehicle, mount
it securely to avoid damage to the
CB or vehicle or injury to pa ssengers.
• Do not mount the CB where it could
damage or interfere with the operation of any passive restraint safety
device (an airbag or seatbelt).
Follow these steps to mount the CB using the supplied hardware.
1. Using the mounting bracket as a
template, mark the positions for the
screw holes on the mounting surface.
2. In each mar ked location, drill a hole
slightly smaller than the two
1
/5-inch
(5-mm) mounting screws.
Caution
: Be careful not to drill into
objects behind the mounting surface.
3. M ount the bracket to the mounting
surface with the
1
/5-inch (5-mm)
mounting screws, spring washers,
plain washers, and nuts.
Note
: If you cannot reach behind the
mounting surface to attach the nuts
on the bolts, use the
1
/5-inch (5-mm)
mounting screws and plain washers
to secure the bracket.
4. Attach the CB to the mounting
bracket using the two rubber washers and mounting knobs.
CONNECTING AN
ANTENNA
There are many different types of antennas for mobile CBs, each with its own
benefits. You can choose one that best
fits your needs. Your local RadioS hack
store sells a wide variety of antennas.
Note
: If you are using this CB as a base
station, see “Using the CB as a Base
Station” on Page 8.
Mounting
Surface
21-1702a.fm Page 6 Thursday, August 26, 1999 4:59 PM
Page 4
7
When you choose an antenna, keep in
mind that, for the best performance, you
should mount the antenna:
• as high as possible on your vehicle,
home or building
• as far as possible from sources of
electrical noise
•vertically
Once you choose an antenna, follow its
mounting instructions. Then route the
cable to the CB and connect the cable to
ANTENNA
on the back of the CB.
Cautions
:
• Avoid routing the cable next to sharp
edges or moving parts which might
damage the cable.
• Do not run the cable next to power
cables or other radio antenna
cables.
• Do not run the cable through a vehicle’s engine compartment or other
areas that produce extreme heat.
To take advantage of your radio’s maximum range, adjust the antenna’s Standing Wave Ratio (SWR) using an SWR
meter available at your local RadioShack store.
Follow the instructions supplied with the
SWR meter and antenna to adjust your
antenna’s SWR to the lowest possible
value. SWR values of 2.0:1 are generally acceptable, with readings of 1.5:1 or
lower being more desirable.
CONNECTING THE
MICROPHONE
1. P ress the plastic tab on the top of
the supplied microphone’s plug and
align the 5-pin DIN microphone plug
with the corresponding pin holes in
the CB’s
MIC
jack. Then push the
plug into the mic jack.
2. Slide the microphone onto the
microphone holder.
To disconnect the microphone from th e
CB, press the plastic tab on the side of
the plug, then pull out the plug.
Caution
: Never pull on the microphone
cable.
Tab
21-1702a.fm Page 7 Thursday, August 26, 1999 4:59 PM
8
USING VEHICLE BATTERY
POWER
Follow these steps to connect the CB to
vehicle battery power.
1. Connect the red wire (with in-line
fuse holder) to a point in your vehicle’s fuse block that has power only
when the ignition is in the ACC or
ON position.
2. Connec t the black wire to a metal
part of the vehicle’s frame (chassis
ground).
Caution
: Do not connect the black
wire to a non-metallic (plastic) par t,
or to any part insulated from the
vehicle’s chassis by a non-metallic
part.
USING THE CB AS A
BASE STATION
Although this CB radio is designed
mainly for mobile use, you can also use
it as a base station with an AC power
source. For base station installation, you
need these items:
• a 13.8V DC power supply that can
supply at least 1.5 amps — available
from RadioShack.
Caution
: Most 13.8V DC power
supplies plug into a standard AC
outlet to produce DC power. Before
connecting your CB to a 13.8V DC
power supply, read and follow the
instructions included with the power
supply.
• base station antenna — available
from RadioShack.
• coaxial antenna cable and connector — available from RadioShack.
Warning
: Use extreme caution when
you install or remove a ba se station CB
antenna. If the antenna starts to fall, let it
go! It could contact overhead power
lines. If the antenna touches the po wer
line, contact with the antenna, mast, cable or guy wires can cause electrocution
and death. Call the power company to
remove the antenna. Do not attempt to
remove it yourself!
Red Wire to
Switched ACC
Terminal
Black Wire to
Ground
21-1702a.fm Page 8 Thursday, August 26, 1999 4:59 PM
Page 5
9
Follow these steps to install the CB as a
base station.
1. Mount th e base station antenna as
described in it’s owner’s manual.
2. Connect the antenna to
ANTENNA
.
3. Connec t the CB’s black power wire
to the negative (–) terminal on the
DC power supply.
4. Connect the CB’s red wire to the
positive (+) terminal on the DC
power supply.
5. Connec t the DC power supply to a
standard AC outlet.
Caution
: To prevent damage to the CB,
be sure you connect an antenna and the
microphone before you use the CB.
Black Wire
to Negative
Red Wire
to Positive
Antenna
Terminal of
DC Power
Terminal of
DC Power
Supply
Supply
Wire
21-1702a.fm Page 9 Thursday, August 26, 1999 4:59 PM
10
OPERATION
Before you use your CB, you should
know how to use it effectively and courteously. “Operational Hints” on P age 12
contains information that will help you
get more enjoyment from our CB.
RECEIVING
TRANSMISSIONS AND
ADJUSTING SQUELCH
1. Turn
SQUELCH
fully counterclock-
wise.
2. Turn on the CB by turning
VOLU ME
clockwise until it clicks. The channel
display lights and the channel number appears.
3. Press or on the base
to select the desired channel.
4. Adjust
VOLUME
to a comfortable lis-
tening level.
5. To cut out background noise
between transmissions, wait until
there is no signal, then slowly turn
SQUELCH
clockwise until the back-
ground noise stops.
Note
: To receive very weak signals,
turn
SQUELCH
counterclockwise.
You hear noise between transmissions, but you also hear weak transmissions.
6. To turn off the CB, turn
VOLU ME
counterclockwise until you hear it
click. The channel display turns off.
21-1702a.fm Page 10 Thursday, August 26, 1999 4:59 PM
Page 6
11
TRANSMITTING
Note
: We recommend you try receiving
before you transmit.
1. Follow Steps 1–5 in “Receiving
Transmissions and Adjusting
Squelch” on Page 10.
2. To transmit, press
PUSH TO TALK
on
the microphone. The red TX indicator lights. Hold the microphone 2–3
inches from your mouth and speak
in a normal tone of voice.
3. To turn off the CB, turn
VOLU ME
counterclockwise until you hear it
click. The channel display turns off.
PUSH
TO
TALK
21-1702a.fm Page 11 Thursday, August 26, 1999 4:59 PM
12
OPERATIONAL HINTS
Like most activities, CB radio has its
customs and courtesies. The following
tips will help you get the most enjoyment
from your CB.
COMMON USES FOR A CB
Personal Uses
• Keep in touch with home while driving to work, to the store, or to a
social activity. Let your family know
you are tied up in traffic or that you
will stop by the store on the way
home.
• If you are a two-car (or more) family,
CB radios are great for communicating with family members while they
are in their cars.
• Contact friends or neighbors — find
out “what’s happening” or plan a
get-together.
• Ever have car trouble or run out of
gas on the highway? What an assurance it is to be able to radio for
assistance!
• Camping, fishing, and other spor ts
are more fun with a CB radio. Locate
a buddy or find out “what’s cooking”
back at camp.
Business Uses
• For security officers, a CB is more
than a convenience — it is a must
for both safety and efficiency.
• Truck drivers and delivery personnel
can learn road and traffic conditi ons
and get assistance in locat ing des tinations. A CB radio is also good
company on those “long hauls.”
• On construction crews, a CB radio
quickly pays for itself when you are
calling for additional materials or
coordinating the activities of different work crews.
TRANSMISSION
COURTESY
Please follow these guidelines of radi o
courtesy when using your CB.
• Wait for a pause in someone else’s
transmission before you ask for a
break.
• If you do not receive an answer to
your call after a second attempt,
sign off and wait several minutes
before trying again.
• Do not hold down
PUSH TO TALK
when you are not talking. (This is
called
dead keying
.)
• Assist callers with directions, in formation about road conditions, and
any other reasonable requests.
21-1702a.fm Page 12 Thursday, August 26, 1999 4:59 PM
Page 7
13
USING COMMON 10CODES
Citizen’s band operators and CB radio
users have largely adopted the 10codes for standard questions and answers. These codes permit faster communication and better intelligibility in
noisy areas.
This table lists codes adopted by the Associated Public Safety Communicat ions
Officers (APCO).
Note:
Although this table lists the 10codes’ meanings in the form of a statement, they can also be phrased as
questions (10-6: Are you busy?, 10- 20:
What is your location?).
Code Meaning
10-1 Your signal is bad.
10-2 Your signal is good.
10-3 Stop transmitting.
10-4
Message received and under-
stood.
10-5 Relay information to _____.
10-6 I am busy or are you busy?
10-7 Out of service.
10-8 In service.
10-9 Repeat last message.
10-10 Negative (NO).
10-11 _____ in service.
10-12 Stand by.
10-13
Report road/weather condi-
tions.
10-14 Information.
10-15 Message delivered.
10-16 Reply to message.
10-17 En route.
10-18 Urgent.
10-19 Contact _____.
10-20 What is your location?
10-21 Call _____ by telephone.
10-22 Cancel last message.
10-23 Arrived at the scene.
10-24 Assignment complete.
10-25 Meet _____.
10-26
Estimated time of arrival is
_____.
10-30 Use caution.
10-31 Pick up.
10-33
Emergency traffic. Clear the
channel.
10-34 What time is it?
10-41 Switch to Channel xx.
10-62 Cannot understand.
Code Meaning
21-1702a.fm Page 13 Thursday, August 26, 1999 4:59 PM
14
MAXIMUM RANGE
The maximum range and quality of CB
radio transmissions vary dependi ng on
the following conditions:
• the type and quality of antenna used
• the height of the antenna’s mounting
location — the higher the antenna,
the better the signal’s range
• the surrounding terrain — mountains and tall buildings limit the
range
• weather conditions
• the number of nearby radios operating on the same channel
• standing wave ratio (SWR) between
the antenna and the CB
Note
: Your CB radio’s transmission
range is generally line-of-sight.
REDUCING NOISE
Because your CB is exceptionally quiet,
any noise you hear is probably from an
external source in your vehicle su ch as
an alternator, another radio or spark
plugs.
The transceiver uses an ANL (Automatic
Noise Limiter) circuit to reduce noise.
However, if possible, try to eliminate the
noise by finding its source.
You can determine the noise’s source
by turning off the engine and operating
the CB with your vehicle’s ignition set to
ACC (or ON). If the noise is reduced, the
problem is in your vehicle’s ig nition or
electrical system.
Here are a few hints to help you reduc e
or eliminate such noise.
• Make all CB power and antenna
wires as short as possible.
• Route the power wires away from
the antenna wires.
• Be sure that the chassis ground
connection is secure.
• Replace old ignition wires with new,
high-voltage, noise suppression
wires.
• Install noise suppressors on your
spark plugs, or install new spark
plugs that have built-in noise suppressors.
• If problems persist, check your alternator/generator and regulator
gauges. You can reduce the noise
from these sources by using bypass
capacitors at the various output voltage points.
Your local RadioShack store has a wide
selection of noise suppression acce ssories.
21-1702a.fm Page 14 Thursday, August 26, 1999 4:59 PM
Page 8
15
TROUBLESHOOTING
If your CB is not working as it should, follow these suggestions to see if you can eliminate the problem. If you cannot, take the CB to yo ur local Rad ioShack store for assistance.
Symptom Check/Try
CB has trouble receiving. Turn CB power on.
Microphone connected? Secure connections.
Antenna connected? Secure connections.
Too much squelch? Adjust as needed.
Radio not on an operating channel? Switch to an
active channel.
Adjust
VOLUME
.
CB has trouble transmitting.
Turn power on.
Antenna connected? Secure connections.
All connections free of corrosion? Clean and tighten.
Microphone connector loose? Firmly press connector
into MIC jack.
Radio not on an operating channel? Switch to an
active channel.
PUSH TO TALK
fully pressed? Press completely.
Radio does not work at all. Power connected? Secure connections.
Microphone connected? Secure connections.
Antenna connected? Secure connections.
Fuse needs replacing? Replace with identical fuse.
See “Replacing the Fuse” on Page 17.
Cannot select a channel.
PUSH TO TALK
pressed? Release
PUSH TO TALK
.
21-1702a.fm Page 15 Thursday, August 26, 1999 4:59 PM
16
CARE AND MAINTENANCE
Your RadioShack TRC-502 40-Channel Mini Mobile CB Radio is an example of superior design and craftsmanship. The follow ing suggestions wi ll help you ca re for your
CB so you can enjoy it for years.
Keep the CB dry. If it gets wet, wipe it dry imme diately. Li quids might
contain minerals that can corrode the electronic circuits.
Use and store the CB only in normal tempera tur e e nvir on men ts. Temperature extremes can shorten the life of electronic devices, and distort
or melt plastic parts.
Keep the CB away from dust and dirt, which can cause premature wear
of parts.
Handle the CB gently and carefully. Drop ping it can damage circuit
boards and cases and can cause the CB to work improperly.
Wipe the CB with a damp cloth occasionally to keep it looking new. Do
not use harsh chemicals, cleaning so lvents, or strong detergents to
clean the CB.
Modifying or tampering with the CB’s internal co mponents can cause a malfun ction
and invalidate its warranty and void your FCC authorization to operate it. If your CB is
not performing as it should, take it to your local RadioShack store for assistance.
21-1702a.fm Page 16 Thursday, August 26, 1999 4:59 PM
Page 9
17
REPLACING THE FUSE
The TRC-502’s 2-amp in-line fuse helps
protect your CB from power surges and
short circuits. When replacement is required, use a 2-amp, slow-blow glass
fuse, such as Cat. No. 270-1023.
Caution
: Do not use a fuse with ratings
other than those specified here. Doing
so might damage your CB.
Follow these steps to replace the fuse.
1. Make sure the power source and CB
are both off.
2. Hold th e fuse holder by both ends,
push the ends together, twist one
end counterclockwise, then pull
them apart.
3. Remove the old fuse and inspe ct its
condition. If it is not blown, reinsert
it. If it is blown, insert a new one of
the same type and rating.
4. Pu sh the fuse holder ends toge ther
and twist one end clockwise.
21-1702a.fm Page 17 Thursday, August 26, 1999 4:59 PM
18
SPECIFICATIONS
RECEIVER
Frequency Coverage ..................... All 40 Channels (Class D) 26.965 to 27.405 MHz
Sensitivity .................................................................... 0.5 uV or Better for 10 dB S/N
Squelch Sensitivity ................................... From 0.5 uV to 1 mV Adjustable (Nominal)
Frequency Response .......................................................... – 6 dB 450 Hz to 2.5 kHz
Adjacent Channel Selectivity .................................................... 45 dB at 10 kHz Away
Audio Output Power .......................................................................................... 1 Watt
Cross Modulation .............................................................................................. 50 dB
TRANSMITTER
Frequency Coverage ..................... All 40 Channels (Class D) 26.965 to 27.405 MHz
Frequency Tolerance ................................................................. +/– 100 Hz (Nominal)
Output Power .............................................................................. 3.7 Watts (Nominal)
Modulation Type ..................................................................................................... A3
Antenna Impedance ....................................................................................... 50 Ohm
Spurious Emission ........................................................................... – 67 dB or Better
Modulation Capability ........................................................................................... 90%
Current Drain ............ 1.1 Amps with no modulation; 1.5 Amps with 80% modulation
Power Requirements ..................................................... 13.8 V DC, Negative Ground
GENERAL
Dimensions ........................................ 6 6/8 × 4 2/8 × 1 3/8 Inches (171 × 108 × 35 mm)
Weight (with microphone) ..................................................................... 21 0z. (595 g)
Specifications are typical, individu al units might vary. Specifications are subject to
change and improvement without notice.
21-1702a.fm Page 18 Thursday, August 26, 1999 4:59 PM
Page 10
19
NOTES
21-1702a.fm Page 19 Thursday, August 26, 1999 4:59 PM
RadioShack
A Division of Tandy Corporation
Fort Worth, Texas 76102
811081350B
08A99 Printed in China
Limited Ninety-Day Warranty
This product is warranted by RadioShack against man ufacturing defe cts in material and workmanship under normal use for ninety (9 0) days from the date of p urchase from RadioShack co mpanyowned stores and authorized RadioShack franchis ees and dealers. EXCEPT AS PROVIDED
HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES,
INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES
CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE
OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow the limitations on how long an implied warranty lasts or the exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
In the event of a product defect during the warranty peri od, take the prod uct and the Radi oShack
sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, unless otherwise provided by law: (a) correct the defect by product repair wi tho ut char ge for pa rts and
labor; (b) replace the product with one of the same or similar design; or (c) refund the pur chase
price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditi oned parts an d products may b e used in the p erformance of
warranty service. Repaired or repla ced parts and pr oducts are wa rranted for the remainder of th e
original warranty period. You will be charged for repair or replacement of the product made after the
expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse,
accident, misuse, improper or abnor mal usage, failure to follow instructions , im pro pe r insta lla tion o r
maintenance, alteration, lightning or other incidence of e xcess voltage or current ; (b) any repairs
other than those provided by a RadioShack Authorize d Service Facility; (c) consumab les such as
fuses or batteries; (d) cosmetic damage; (e) trans portatio n, shippi ng or in suranc e costs; or ( f) costs
of product removal, installation, set-up service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights whic h vary from
state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102
We Service What We Sell
04/99
21-1702a.fm Page 20 Thursday, August 26, 1999 4:59 PM
Loading...
