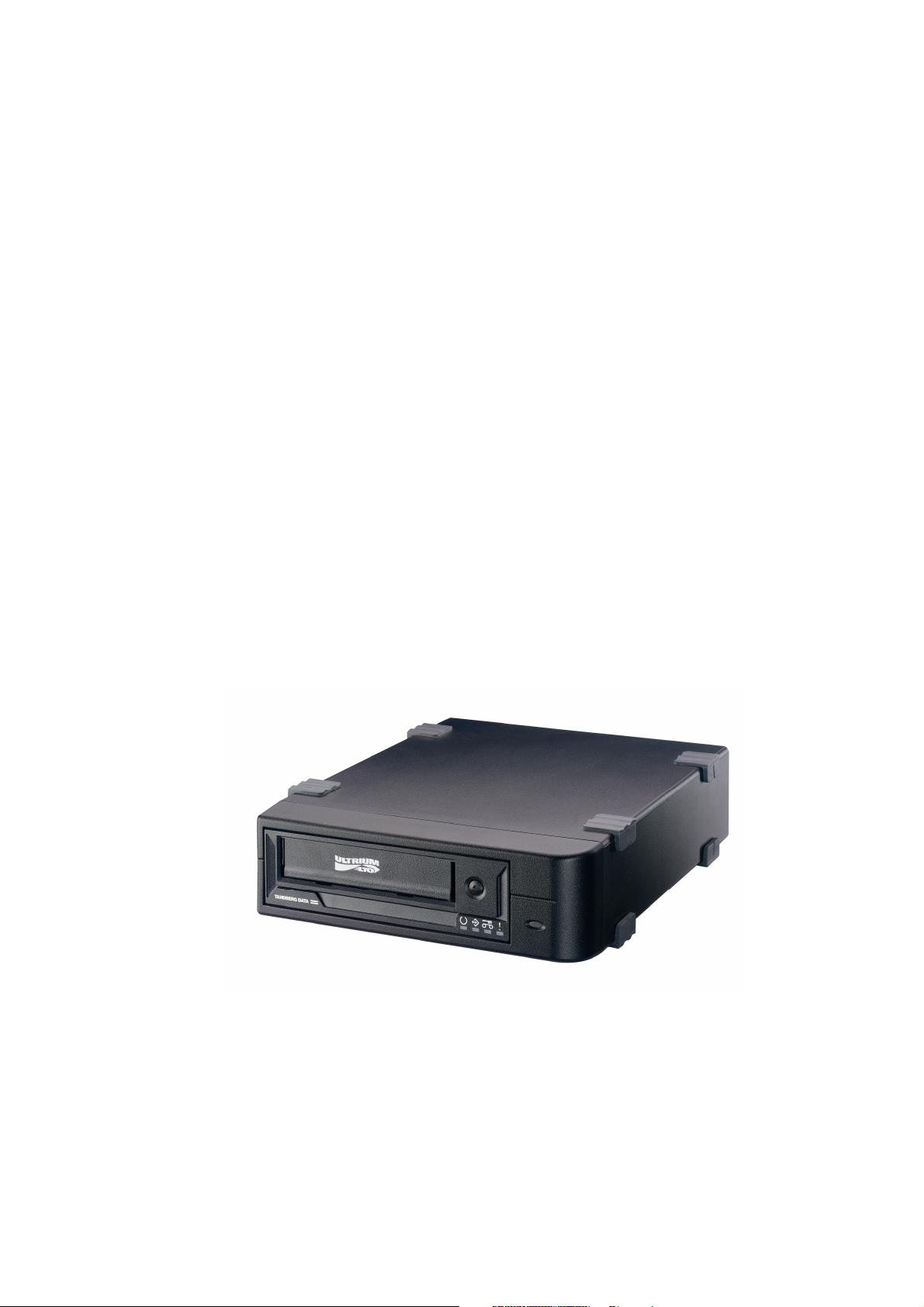

Tandberg Data LTO-1 HH, LTO-3 HH, LTO-2 HH User Manual
Tandberg LTO HH
Tandberg LTO-1 HH, LTO-2 HH, LTO-3 HH
(220LTO, 420LTO, 820LTO)
Half Height Tape Drives
INSTALLATION AND USER MANUAL
TANDBERG DATA ASA
www.tandbergdata.com
© Tandberg Data ASA
Part No. 433280-03
August 2007
Change log
Date Author Chapter Change
22-Aug-05 WAJo 3.10 Added termination to the internal drive
16-Feb-06 WAJo All Added the Tandberg LTO-1 HH tape drive and TDkit.
Minor corrections
17-Aug-07 WAJo All Added in LTO-3HH (820LTO) and using Tandberg LTO
HH where all three products are covered.
Trademarks
LTO™ is a registered trademark of International Business Machines, Hewlett-Packard and Certance.
Windows 2000/2003/XP, Windows 95, Windows 98, MS-DOS, Windows
are registered trademarks of Microsoft Corporation in the United States.
All other trademarks are registered marks of their respective owners.
This publication may describe designs for which patents are granted or pending. By publishing this
information, Tandberg Data ASA conveys no license under any patent or any other rights.
Every effort has been made to avoid errors in text and diagrams. However, Tandberg Data ASA
assumes no responsibility for any errors, which may appear in this publication.
It is the policy of Tandberg Data ASA to improve products as new techniques and components
become available. Tandberg Data ASA therefore reserves the right to change specifications at any
time.
We would appreciate any comments on this publication.
Table of Contents
1. Introduction ....................................................................................................................... 1
1.1 Introduction to Tandberg LTO HH (Half Height) Series of Products ................... 1
1.2 Features and Benefits ............................................................................................ 1
1.3 How to Contact Tandberg Data Technical Support............................................... 2
2 Specifications ..................................................................................................................... 3
2.1 Tape Drive Capacity and Performance.................................................................. 3
2.2 Media Specifications and Compatibility ............................................................... 3
2.3 Mechanical Dimensions ........................................................................................ 3
2.4 Power Requirements.............................................................................................. 3
2.5 Heat Dissipation .................................................................................................... 4
2.6 Data Compression ................................................................................................. 4
3 Tape Drive Installation ..................................................................................................... 5
3.1 Solution Contents .................................................................................................. 5
3.2 Tape Backup Software Installation ....................................................................... 5
3.3 Installation of Software Device Drivers ................................................................ 6
3.4 Mechanical Installation Internal Tape Drive ......................................................... 6
3.5 Mounting Screw Requirements ............................................................................. 6
3.6 SCSI Bus Interface ................................................................................................ 7
3.7 SCSI Controller Board Installation ....................................................................... 7
3.8 SCSI Configuration ............................................................................................... 8
3.8.1 SCSI-ID Selection Tandberg LTO HH Internal Tape Drive.................. 8
3.8.2 SCSI-ID Selection Tandberg LTO HH External Tape Drive................. 9
3.9 SCSI-bus Termination........................................................................................... 9
3.9.1 Termination in General ......................................................................... 9
3.9.2 SCSI-bus Termination – Internal Tape Drives .................................... 10
3.9.3 SCSI-bus Termination – External Tape Drives ................................... 10
3.10 Installation Internal Tape Drive .......................................................................... 11
3.11 External Tape Drive Installation ......................................................................... 11
3.12 Verifying Tape Drive Operation ......................................................................... 12
4 Tape Drive Operation ..................................................................................................... 13
4.1 Front LED Indicators .......................................................................................... 13
4.2 Tape Cartridge Operation.................................................................................... 13
4.2.1 Write Protecting the Cartridge ............................................................ 14
4.2.2 Loading a Data Cartridge Into a Tandberg LTO HH ......................... 14
4.2.3 Ejecting a Data Cartridge From a Tandberg LTO HH....................... 15
4.3 Cleaning the Tape Drive...................................................................................... 15
4.3.1 Recommended Cleaning Interval......................................................... 15
4.3.2 Cleaning Procedure............................................................................. 15
4.3.3 Cleaning Cartridge Replacement ........................................................ 16
4.4 Handling and Storing LTO Cartridges ................................................................ 16
4.4.1 Handling LTO Cartridges ................................................................... 16
4.4.2 Storing LTO Cartridges....................................................................... 16
4.4.3 Storage Condition................................................................................ 16
5 Software Installation ....................................................................................................... 17
5.1 Windows 2000/2003/XP ..................................................................................... 17
5.1.1 Windows Tape Driver.......................................................................... 17
5.1.2 Windows Tape Driver Installation....................................................... 17
5.1.3 Windows Embedded Backup Application ............................................ 17
5.2 SCO Open Server ................................................................................................ 18
5.2.1 Host Adapter........................................................................................ 18
5.2.2 SCO Open Server System Commands.................................................. 18
5.2.3 SCO Open Server Backup Manager.................................................... 19
5.3 SCO UnixWare ................................................................................................... 19
Tandberg LTO HH Installation and User Manual
Tandberg Data Contents
5.3.1 Host Adapter........................................................................................ 19
5.3.2 Installation........................................................................................... 19
5.3.3 SCO UnixWare System Command....................................................... 19
5.4 Sun Solaris .......................................................................................................... 20
5.4.1 Tape Drive Installation........................................................................ 20
5.4.2 Sun System Command.......................................................................... 20
5.5 IBM AIX ............................................................................................................. 21
5.5.1 Tape Drive Installation........................................................................ 21
5.5.2 IBM AIX System Command ................................................................. 21
5.5.3 IBM AIX Storage Manager.................................................................. 21
5.6 HP/UX................................................................................................................. 22
5.6.1 Tape Drive Installation........................................................................ 22
5.6.2 HP/UX System Command .................................................................... 22
5.7 Linux ................................................................................................................... 23
5.7.1 SCSI Host Adapter............................................................................... 23
5.7.2 Tape Drive Installation........................................................................ 23
5.7.3 Linux System Command ...................................................................... 23
5.8 Tape Drive Utilities............................................................................................. 24
5.8.1 FlashIt – Firmware Upgrade Utility ................................................... 24
5.8.2 TDkit – Tool for Testing and Downloading Firmware........................ 24
6 Troubleshooting............................................................................................................... 25
6.1 Hardware Checking............................................................................................. 25
6.2 Software Checking .............................................................................................. 25
6.3 Verifying Recent Changes................................................................................... 25
6.4 Standalone Diagnostics ....................................................................................... 25
6.4.1 Starting the Test................................................................................... 26
6.4.2 Test Sequence ...................................................................................... 26
6.4.3 Failure Indication................................................................................ 26
6.5 Media Management Reporting ........................................................................... 27
6.5.1 Cleaning is required ............................................................................ 27
6.5.2 Degraded Media.................................................................................. 27
6.6 Problem Situations .............................................................................................. 28
6.6.1 Dead on Arrival................................................................................... 28
6.6.2 Damaged Front Bezel.......................................................................... 28
6.6.3 Drive Not Detected by the Operating System (OS).............................. 29
6.6.4 Will Not Insert/Hold Media /Media is Not Recognized ....................... 29
6.6.5 Noisy Tape Drive ................................................................................. 29
6.6.6 Cartridge is Stuck Inside the Drive ..................................................... 30
6.6.7 Fault LED Flashes Amber and the Activity LED is Off....................... 30
6.6.8 Fault LED Is Flashing Amber and the Activity LED Is Flashing ........ 30
6.6.9 Cleaning LED Is ON ........................................................................... 31
6.6.10 Incorrect Data Compression ............................................................... 31
6.6.11 Slow Performance ............................................................................... 31
6.6.12 Intermittent Failures............................................................................ 31
6.6.13 Tape Removal Procedure .................................................................... 32
7 Glossary of Terms............................................................................................................ 33
8 App. A. LED-Indicator Behavior ................................................................................... 35
8.1 LED-behavior During Normal Operation............................................................ 35
Tandberg LTO HH Installation and User Manual
1. Introduction
Congratulations on your new Tandberg LTO HH tape storage solution!
Tandberg Data ASA is a leading global supplier of advanced, tape-based information data storage
products for the professional market. The company offers a wide range of products and solutions for
data protection and other user applications within data storage management.
Tandberg Data supplies tape drives and tape storage solutions to the world's leading OEMs and
through a worldwide channel sales network.
Total customer satisfaction is of the most importance to Tandberg Data. We guarantee that this
product left our premises defect free. If you are not satisfied with the quality of this product, please
contact your distributor, dealer or the nearest Tandberg Data office to have your problem resolved
quickly.
If you need technical support or have any problem with your LTO HH tape storage solution, phone,
fax and addresses can be found under
On the following pages, before the installation guide starts, there is some brief information about the
Tandberg LTO HH tape storage solutions. Also listed is what is included with the Tandberg Data
product you have purchased.
All documentation referred to in this document is available as a downloadable PDF file from the
Tandberg Data web site:
www.tandbergdata.com SUPPORT.
www.tandbergdata.com
1.1 Introduction to Tandberg LTO HH (Half
Height) Series of Products
Tandberg Data now offers a whole rang of LTO tape and automation storage solutions from 200 GB
to 64 TB capacity and 115 GB/hr up to 864 GB/hr all assuming 2:1 data compressing. Please visit
www.tandbergdata.com for the complete offerings and for more details.
The LTO HH product range consists of:
• LTO-1 HH (220LTO): 200 GB, 115 GB/hr
• LTO-2 HH (420LTO): 400 GB, 173 GB/hr
• LTO-3 HH (820LTO): 800 GB, 216 GB/hr
Designed for the SMB sector, Tandberg's LTO HH products are the ideal synthesis of efficiency,
modern innovation and maximum price/performance ratio. LTO's 6 generation roadmap, with 4
generations available today, makes it a clear choice for budget constrained small to medium
businesses. Choose a technology with future and guaranteed trouble-free data storage.
1.2 Features and Benefits
• Up to 800 GB capacity and 216 GB per hour transfer rate.
• Ultra160 SCSI interface provides ultimate performance of the SCSI bus
• The LTO tape drives are backward compatible with oll older LTO formats. Coupled with the
LTO roadmap, this provides the best investment protection
• Tandberg LTO-1 HH is a very affordable entry into the open standard LTO technology
offered by four manufacturers.
• Embedded quality monitoring and test features provide preventive maintenance information
for reduced down time.
Tandberg LTO HH Installation and User Manual 1
Tandberg Data Introduction
• Low heat dissipation, small half-height 5.25-inch form factor with several mounting
capabilities for easy and trouble free integration into servers and workstations
1.3 How to Contact Tandberg Data Technical
Support
If you need technical support or have any problem with your LTO-1 HH or LTO-2 HH tape storage
solution, phone, fax and addresses can be found under
www.tandbergdata.com SUPPORT.
2 Tandberg LTO HH Installation and User Manual
2 Specifications
2.1 Tape Drive Capacity and Performance
Tape Drive
Model
Tandberg
LTO-3 HH
Tandberg
LTO-2 HH
Tandberg
LTO-1 HH
1) Capacity and transfer rate given in native/compressed (assuming 2:1 compression)
Tape Format Capacity1) Sustained Transfer
Ultrium Gen. 3
Ultrium Gen. 2
Ultrium Gen. 1
Ultrium Gen. 2
Ultrium Gen. 1
Ultrium Gen. 1 100/200 GB 16/32 MByte/sec Ultra 160
400/800GB
200/400GB
100/200 GB
200/400 GB
100/200 GB
Rate1)
30/60 MByte/sec
24/48 MByte/sec
16/32 MByte/sec
24/48 Mbyte/sec
16/32 MByte/sec
Interface Type
Ultra160
Ultra160
Ultra160
Ultra160
Ultra160
2.2 Media Specifications and Compatibility
Drive
Model
Tandberg
LTO-3 HH
Tandberg
LTO-2 HH
Media Name Tape
LTO Ultrium Generation 3 (Native format)
LTO Ultrium Generation 2 (Read/Write compatible)
LTO Ultrium Generation 1 (Read compatible)
LTO Ultrium Generation 2 (Native format)
LTO Ultrium Generation 1 (Read/Write compatible)
Length
680 m
609 m
609 m
609 m
609 m
Capacity
(Native)
400 GByte
200 GByte
100 GByte
200 GByte
100 GByte
Ordering
no.
43 32 16
43 27 44
43 26 30
43 27 44
43 26 30
Tandberg
LTO-1 HH
LTO Ultrium Generation 1 (Native format) 609 m 100 GByte 43 26 30
2.3 Mechanical Dimensions
Standard drive mounting:
Fits in a 5.25-inch half-height (“slim-line”) enclosure for diskette, CD/DVD-rom or disk drive.
Standard mounting holes as for a half-height drive.
Dimensions (max.):
Height/width/depth: 41.3/146.0/214 mm (1.625/5.75/8.4 inch)
2.4 Power Requirements
Tandberg LTO-1, LTO-2, LTO-3 in external tabletop enclosure:
AC Input: 100 VAC / 0.6 A or 240 VAC / 0.3 A, 50-60 Hz
Tandberg LTO as standalone: LTO-1/LTO-2 LTO-3
DC Input (typical operation) 5 VDC 2.1 A 0.8 A
DC Input (typical operation) 12 VDC 0.6 A 0.7 A
Tandberg LTO HH Installation and User Manual 3
Tandberg Data Specifications
2.5 Heat Dissipation
Tandberg LTO as standalone: LTO-1/LTO-2 LTO-3
Operating: 18 W 13 W
Sleep mode with cartridge inserted: 9 W 6 W
2.6 Data Compression
Data Compression is a way to increase capacity on a storage device. Compression ratios are normally
specified to be 2:1, meaning that it is possible to store twice as much data on the tape as without data
compression. However, the compression rate is depending on the type of data, e.g. ordinary text files
can be compressed in a much higher rate than program- and picture files.
There are two ways to compress data, hardware compression and software compression. Hardware
compression means that the data compression is done by the electronics in the storage device.
Software compression means that an application program in the host computer is compressing the
data before it is sent to the storage device. Hardware compression is much more efficient, and works
much faster than software compression.
The Tandberg LTO HH tape drives uses SLDC hardware compression to compress data. This feature
is enabled per default but the user may turn off data compression through the application software.
Note:
If the data are compressed by software in the host computer, and then sent to a device that does
hardware compression, the data have a tendency to expand instead of being compressed.
Be sure to turn the software data compression off if using the Tandberg LTO HH - which has
embedded hardware compression.
4 Tandberg LTO HH Installation and User Manual
3 Tape Drive Installation
3.1 Solution Contents
Note:
Please Check the Package Contents before Beginning the Installation and please check the label on
packing box for the actual content.
For Bare Drive:
• Internal Tandberg LTO HH tape drive
• Quick Installation Guide
• Warranty card
For the Internal Kit and Solution:
• Internal Tandberg LTO HH or LTO-3 HH tape drive
• Internal SCSI cable
• Removable LVD/SE terminator
• Data cartridge (1 or 5 depending on type of kit/solution)
• Application software (optional)
• Quick Installation Guide
• Warranty card
For the External Tabletop Kit and Solution:
• Tabletop Tandberg LTO-1 HH or LTO-2 HH tape drive with power cord
• External SCSI cable
• External LVD/SE SCSI terminator
• Data cartridge (1 or 5 depending on type of kit/solution)
• Application software (optional)
• Quick Installation Guide
• Warranty card
3.2 Tape Backup Software Installation
You will need to install tape backup application software that supports the Tandberg LTO HH tape
drive. For the latest supported software version, please go to www.tandbergdata.com and select
SUPPORT, the actual LTO tape drive and select Compatibilities – or to the backup application
software vendor’s Web site.
For installation of tape backup application software, please refer to the software vendor’s installation
guide. Please also see section 5 in this document for installation of backup features embedded in the
operating systems.
Tandberg LTO HH Installation and User Manual 5
Tandberg Data Tape Drive Installation
3.3 Installation of Software Device Drivers
If the backup application software does not detect the tape drive, or obtain the latest operating system
drivers and upgrades, please visit
www.tandbergdata.com.
3.4 Mechanical Installation Internal Tape Drive
For mechanical mounting specifications, see Figure 3.2.
Allowed mounting position is either horizontal with the indicator LEDs to the right, or vertical with
the indicator LEDs up (see Figure 3.1).
Figure 3.1 Allowed mounting orientations
The drive occupies a half-height 5.25-inch slot with mounting screws on both sides
of the drive chassis or at the bottom of the drive.
Figure 3.2 Mounting specifications
3.5 Mounting Screw Requirements
• Only M3 (metric) screws must be used for mounting the drive
• Maximum permitted screw penetration: 2.5 mm
• Minimum required screw penetration: 2.0 mm
• Screw torque, mounting screws: 0.5 Nm
• Screws are supplied with all the Tandberg LTO HH drive variants
• Bag with 4 screws and 4 SCSI-ID jumpers (Ordering no. 43 32 65)
6 Tandberg LTO HH Installation and User Manual
Tandberg Data Tape Drive Installation
Wall of server
Do not use longer screws or higher screw torquethan specified!
Longer screws will bottom and not fasten the drive!
Safe penetration of mounting
screws: min 2 mm, max 2.5 mm
chassis
Tape drive's
mounting screw
Tape drive's
casting
Figure 3.3 Mounting screw details
3.6 SCSI Bus Interface
The Tandberg LTO HH tape drive is designed to operate on an Ultra160 low voltage differential
SCSI bus (LVD) with a burst transfer rate up to 160 MB/sec. The Ultra160 SCSI interface is
backward compatible with older SCSI interfaces. Thus all Ultra Wide may be used.
The tape drive features a high density 68-pin (HD-68) connector for attachment to the server or to the
interface connector in an external tabletop cabinet.
Attachment to the host computer is described below.
3.7 SCSI Controller Board Installation
Note:
Before any SCSI device can be installed it is necessary to have a SCSI controller board installed.
Please pay attention to the following points.
• Make sure your computer is turn off before proceeding to the installation.
• If you computer is equipped with an onboard SCSI controller, before proceeding with the
installation, you must first locate the SCSI connector on the computer motherboard.
Tandberg LTO HH Installation and User Manual 7
Tandberg Data Tape Drive Installation
SCSI Connector
Service
C
onnector
Power
Connector
• Refer to the documentation provided with your computer to find out where this connector is
located.
• If multiple SCSI connectors are available, you can choose any of them, except if your
computer documentation mentions something different.
• When done, firmly connect the SCSI connector to the Main-board connector and refer to
section 3.8 SCSI Configuration and 3.9 SCSI-bus Termination.
• If your PC/Server needs a separate SCSI controller, you need to make sure it is properly
installed before connecting your Tandberg LTO HH tape drive.
• You will also need a software driver from the SCSI controller vendor to activate the SCSI
Controller. Please make sure you have the latest software driver for your SCSI controller
loaded, and that the SCSI controller board is properly installed. Software drivers can be
downloaded from the vendors' web site. Refer to the README file for installation.
• Please refer to the PC/Server documentation for further information on how to install
additional boards in the PC/Server. Or ask your local dealer for assistance.
3.8 SCSI Configuration
All devices on a SCSI-bus need their own unique identification, called SCSI-ID. If a SCSI-ID conflict
exists, some of the SCSI devices will not be recognized by your system. In many systems it is
common to use the SCSI-bus for the hard-drive and CD-ROM, as well as the tape drive. Remember
that the SCSI Controller uses SCSI-ID 7.
3.8.1 SCSI-ID Selection Tandberg LTO HH Internal Tape
Drive
The SCSI-ID on the Tandberg LTO HH is set by jumpers. From the table below, you can “read out”
which SCSI-ID the device has been set up for. All SCSI device ID's are displayed on the screen
during system startup.
Figure 3.4 Drive connectors, internal model
8 Tandberg LTO HH Installation and User Manual
