Tanaka TBC-4001 User Manual

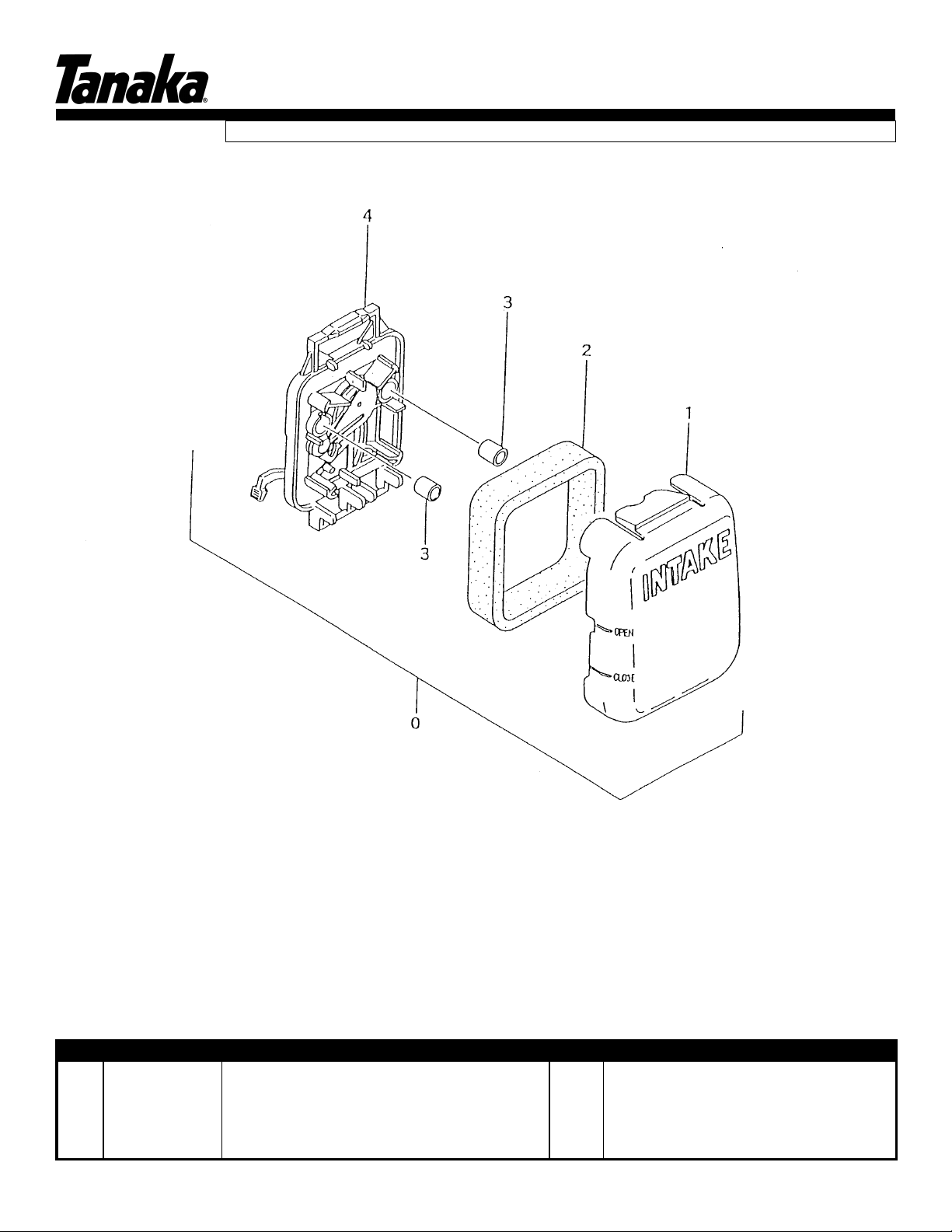

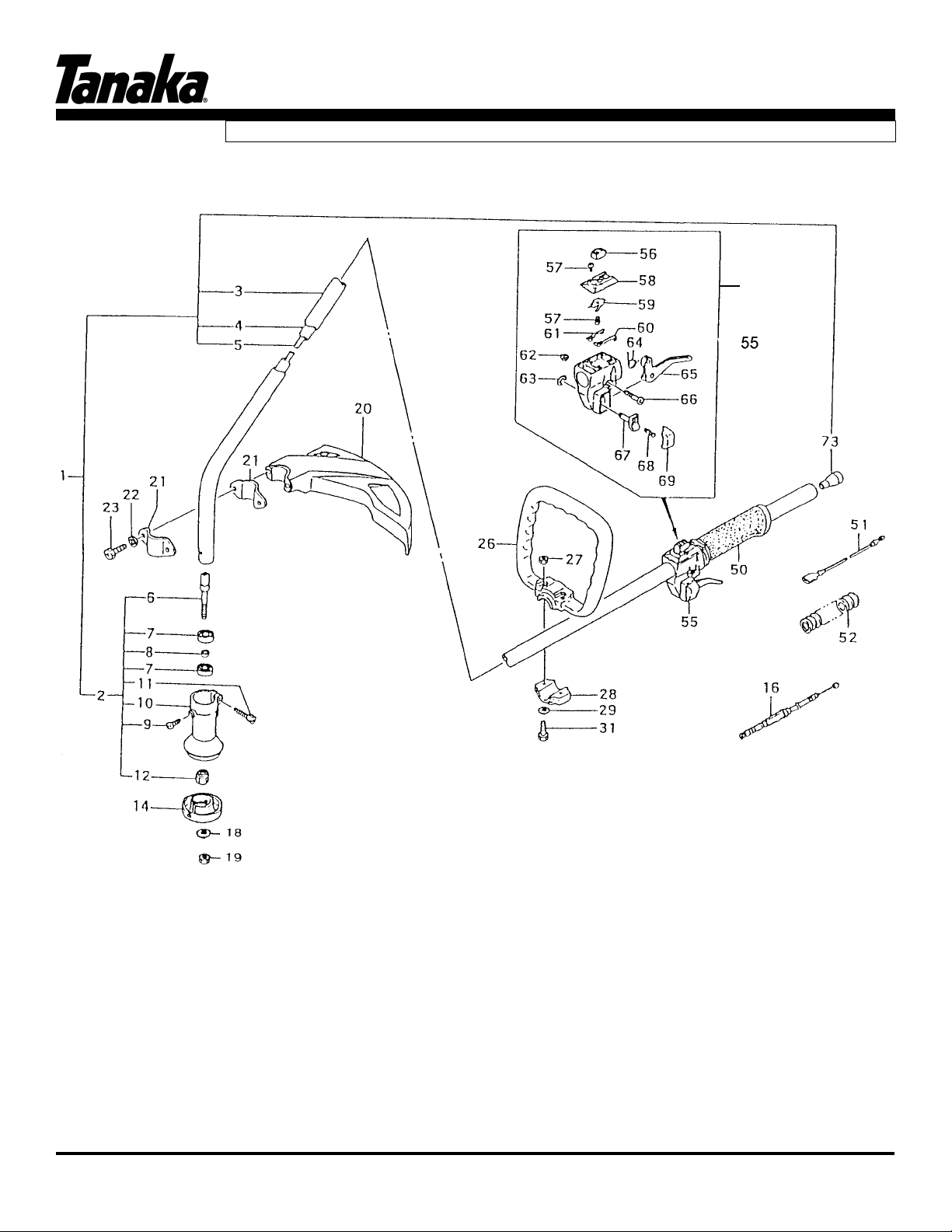

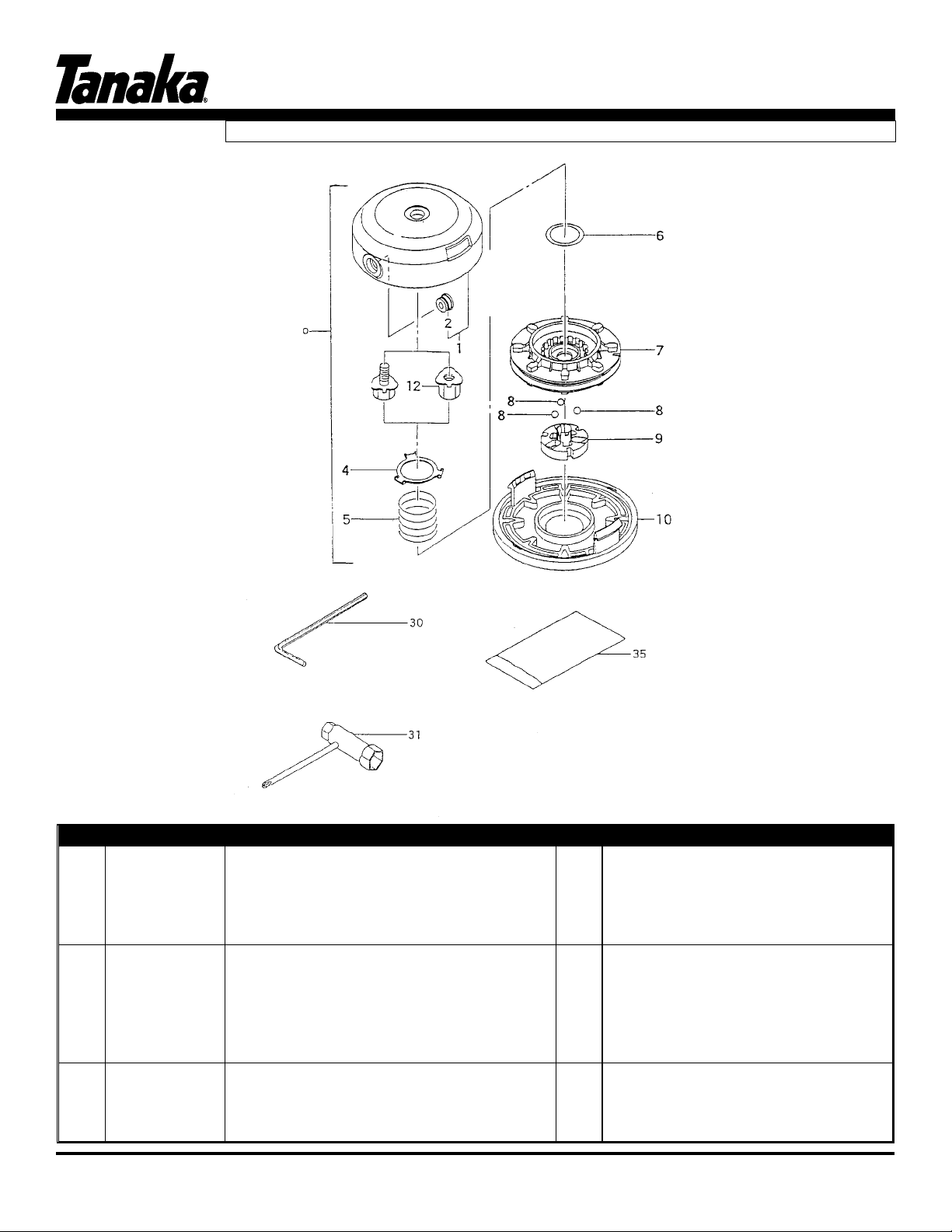

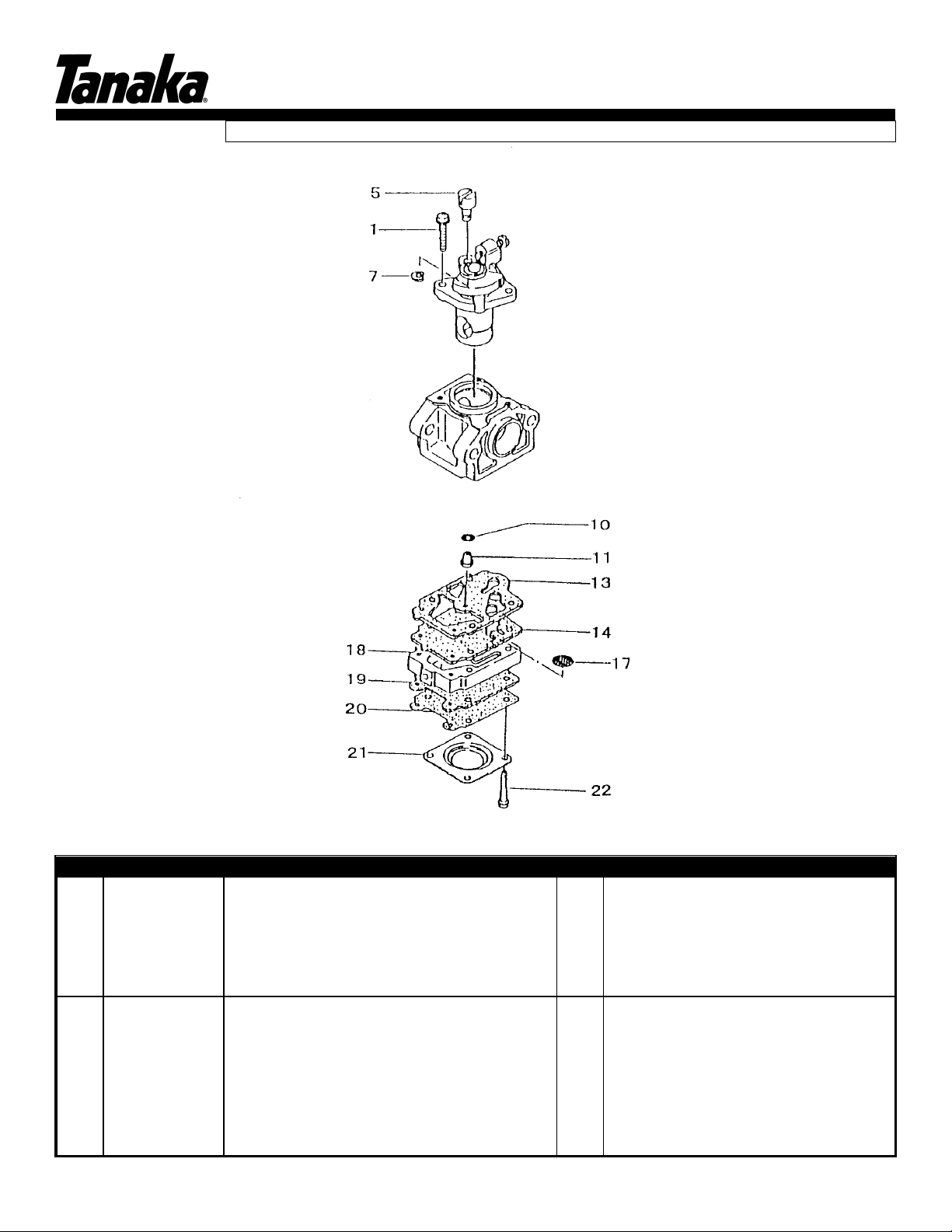

Illustrated Parts ManualIllustrated Parts Manual
Model Number:
TBC-4001
20cc Curved Shaft Grass Trimmer
P/N 27731
Rev 000
Date 8/2/99
PARTS INFORMA TION
CYLINDER, PISTON, CRANKSHAFT • FIGURE 1
TBC-4001
www.tanaka-usa.com
Page 1
custsvc@tanaka-ism.com
PARTS INFORMATION
TBC-4001
CYLINDER, PISTON, CRANKSHAFT • FIGURE 1
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
1 157-01570-900 CAP,SPARK PLUG,ASS'Y 1
2 018-11660-21 PLUG,SPARK 1
3 001-00045-90 SET,CYLINDER 1 Includes cylinder gasket
4 994-16050-221 SCREW,5X22/WS 2
6 017-00025-200 GASKET,CYLINDER 1
7 041-00000-21 RING,PISTON 1
8 030-00045-90 SET,PISTON 1 Includes ring and circlips
9 039-06100-200 CIRCLIP,PISTON PIN 2
10 037-06097-20 PIN,PISTON 1
12 046-00025-80 CRANKSHAFT 1
13 061-00025-800 ROD,CONNECTING 1
21 077-00025-21 CRANKCASE 1
23 999-66152-511 SEAL,OIL,#VE15X25X7 1
24 999-61600-200 BEARING,BALL,#6002 1
30 994-16040-201 SCREW,4x20 WS 2
31 155-21522-91 ROTOR,MAGNETO 1 Includes pawl and pawl spring
32 790-00025-200 SPRING,PAWL 1
33 788-00025-200 PAWL,STARTER 1
37 992-01120-011 WASHER,12 1
38 991-11120-011 NUT,12 1
50 178-00024-80 CORD 1
52 167-21533-80 COIL,IGNITION ASSY 1
