Model Number:

TBC-2510

GRASS TRIMMER

P/N 26714
Rev 002
Date 8-31-06

Supplier T o The Outdoor Power Equipment Industry

Tanaka America • 1028 4th Street SW Ste “B” • Auburn, WA 98001 • Phone: [phone] • Fax: [phone]

[e-mail]

PRODUCT INFORMATION

PRODUCT INFORMATION

TBC-2510

Grass Trimmer / Brush Cutter

New Low Profile Guard

Features / Benefits

24cc, 1.3 hp engine features two piston rings and a stress relieved, chrome plated
cylinder for long engine life.

Bearing supported, solid steel drive shaft provides smooth and efficient power transfer
from the engine to the cutting head.

Re-designed cutting guard provides a less restricted cutting view while conforming to
ANSI standards.

Heavy-duty anti-vibration system includes a padded front handle and heavy-duty
rubber mount between the engine and shaft.

1/ 2 / 5 Warranty Coverage provides One-Year coverage for professionals, Two-
Year Coverage for Homeowners, and Five Years on the Electronic Ignition Module.

Specificatio ns

Engine Displacement cc (cu. in.) 24 (1.4)
Power (h.p.) 1.3
Cylinder Chrome Plated, Stress Relieved
Carburetion Walbro Diaphragm wit h Primer
Ignition System Transistorized Electronic
Fuel Tank Capacity / fl. oz. (cc) 25.8 (780)
Anti-Vibration Heavy-Duty Engine Mount
Clutch System Heavy-Duty Centrifugal
Shaft Support 5 Shaft Bearings
Drive System 7mm Solid Steel Shaft
Standard Cutting Head 5" Semi-Automatic Feed (.095" Line)
Dry Weight / lbs. (kg) w/head 12 (5.4)

* May require blade guard kit

ISM, Inc. • 1028 4th St. Sw, Suite B • Auburn, WA 98001 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail]

Optional Accessories:

ORDER # DESCRIPTION

746251 BRAIN® Auto feed head (TH-95)
746751 BRAIN® Auto feed head (TH-97)
746280 Aluminum fixed line head
746290 Aluminum manual feed head
746551 4” manual feed head
746191 Single shoulder strap
746291 Deluxe shoulder harness
Varies Assorted brush & weed blades
748501 Blade conversion kit*
748502 Dual handle kit
TMC-200 Cultivator attachment
TPS-200 Pole Saw attachment
TPH-200 Pole Hedge Trimmer attachment
Varies Perfect Mix 2-Cycle Engine Oil

All data and specifications are subject to change without notice

For more information, contact:

PRODUCT INFORMATION

PRODUCT INFORMATION

Grass Trimmer Attachments

TPS-200

Pruning Saw Attachment

The versatile TPS-200 Pruning Saw attachment easily
converts Tanaka straight shaft grass trimmers /

brushcutters into a powerful pruning saw.

TPS-200 Features:

• 24” Shaft Provides a 98”
Overall Length when mounted

• 10” Oregon® Bar & Chain

• Easy-Mount Coupler

To be used with the
following Tanaka models:

• AST-7000 / 7000S / 210

• TBC-4500 / 4501 / 2211

• TBC-220 / 240

• TBC-250 / 2501 / 2510 / 265

• TBC-270PF/PN

TPS-EXT Pruning Saw Extension (Part # 748511)
Add an extra two feet of reach with this pruning saw
extension that will fit on both the TPS-2510 and TPS­270PN Pruning Saws. In addition, it can be added to
Tanaka straight shaft grass trimmers that utilize the
TPS-200 Pole Saw Attachment.

TPH-200

Pole Hedge Trimmer Attachment

For added reach and maneuverability , the TPH-200
Pole Hedge Trimmer attachment can be added to
several Tanaka straight shaft grass trimmers /
brushcutters.

TPH-200 Features:

• 22” Double Sided Cutting Blades

• Articulating / Pivoting Cutting Angle
up to 130 degrees.

TMC-200

Mini-Cultivator

This simple, easy to install attachment is ideal for quick garden / flower bed
weeding and cultivation. For maximum depth, the TMC-200 can dig up to 4
inches into the ground and 6” wide.
With a 49:1 reduction ratio,
this heavy duty gear box
gives you more tilling power.

To be used with the
following Tanaka models:

• AST-7000 / 7000S / 210

• TBC-4500 / 4501 / 2211

• TBC-220 / 240

• TBC-250 / 2501 / 2510 / 265

• TBC-270PF/PN

To be used with the
following Tanaka models:

• AST-7000 / 7000S / 210

• TBC-4500 / 4501 / 2211

• TBC-220 / 240

• TBC-250 / 2501 / 2510 / 265

• TBC-270PF/PN

• TBC-300 / 3010

• TBC-420PF

All data and specifications are subject to change without notice

ISM, Inc. • 1028 4th St. Sw, Suite B • Auburn, WA 98001 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail]

For more information, contact:

PARTS INFORMA TION

ENGINE / CYLINDER, PISTON, CRANKSHAFT • FIGURE 1

TBC-2510

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

1-1 1570097A900 CAP,SPARK PLUG ,A SS’Y 1
1-2 0181166021 PLUG,SPARK 1
1-6 0010099F90 SET,CYLINDER 1 Includes cylinder gasket
1-7 99414050181 SCREW,S,5X18 4
1-9 01700980200 GASKET,CYLINDER 1
1-11 04101601200 RING,PISTON 2
1-12 0300099F90 SET,PISTON 1 Includes rings, and circlips
1-13 03901620200 CIRCLIP,PISTON PIN 2
1-14 0370160120 PIN,PISTON 1
1-16 0460631A81 CRANKSHAFT 1
1-17 99962081225 BEARING,NEEDLE,F-810 1
1-18 06810100200 KEY,WOODRUFF,3X13X4.5 1

www.tanaka-usa.com

Page 1

[e-mail]

PARTS INFORMA TION

TBC-2510

STARTER PAWL, FLYWHEEL, CRANKSHAFT, IGNITION • FIGURE 2

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

2-19 33000200210 SHIM,12.2X19X.10 V *Shims are "as needed" to obtain
2-19 33000200220 SHIM,12.2X19X.15 V correct side clearance
2-19 33000200230 SHIM,12.2X19X.20 V
2-19 33000200240 SHIM,12.2X19X.30 V
2-22 79806500900 PULLEY,STARTER,ASS’Y1
2-23 7880650020 PAWL,STARTER 1
2-24 79006097200 SPRING,STARTER PAWL 1
2-26 35910112203 WASHER,CLUTCH B 1
2-31 07200980900 CRANKCASE,ASS’Y 1 *Crankcase assy includes bearings, seals
2-32 99966122206 SEAL,OIL,#TC12227 2 and gasket.
2-33 99961600100 BEARING,BALL,#6001 2
2-34 09006097200 GASKET,CRANKCASE 1
2-36 99414050251 SCREW,5X25 4
2-41 1780655080 CORD,STOP,180mm 1
2-46 99416050201 SCREW,5X20/WS 2
2-50 1672052190 COIL,IGNITION 1
2-51 1552050880 ROTOR,MAGNETO 1
2-52 99201070011 WASHER,7 1
2-54 06600000200 NUT,FLYWHEEL 1
2-55 56020517200 CAP,RUBBER 1
2-56 26420516200 LEAD,HIGH T E NSION 1

www.tanaka-usa.com

Page 2

[e-mail]

PARTS INFORMATION

TBC-2510

FUEL SYSTEM • FIGURE 3

96

96

96

www.tanaka-usa.com

Page 3

[e-mail]

PARTS INFORMATION

TBC-2510

FUEL SYSTEM • FIGURE 3

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

3-41 4030631A20 GASKET,INLET MANIFOLD 1
3-42 4040099F90 SET,CARB INSULATOR 1
3-45 99416050221 SCREW ,5X22/W S 2
3-46 4020602K21 GASKET,CARBURETOR 1
3-50 4554728090 CARBURETOR,ASS'Y 1 Before S/N R007264
3-50 4554728690 CARBURETOR,ASS'Y 1 From S/N R007265 through S/N S283570
3-50 4550099M90 CARBURETOR,ASS'Y 1 S/N S283571 and after
3-53 4360162V20 BASE,CLEANER 1
3-54 52800980200 PLATE,CHOKE 1
3-55 99967008012 O-RING,S-8 1
3-56 4700602N200 COLLAR,CLEANER 1
3-57 4230637C800 BODY,CLEANER 1
3-58 99200050011 WASHER,SMALL,5 2
3-60 99414050571 SCREW ,5X57,S 2
3-61 4460637C200 ELEMENT,CLEANER 1
3-62 0510099F90 SET,CLEANER COVER 1
3-63 3800637C200 BOLT,CLEANER COVER 1
3-70 44225143800 PUMP,PRIMING ASS'Y 1 S/N S283571 and after
3-71 5950650A90 TANK CAP 1 Before S/N T245220
3-71 5950656B90 CAP,FUEL BLACK,NON VENT 1 S/N T245221 and after
3-78 70002504080 PIPE,FUEL,2.5X4X80 2 S/N 283571 and after
3-79 53432710200 GROMMET,FUEL PIPE 1 S/N 283571 and after
3-86 2230162V900 PIPE,FUEL,ASS'Y 1
3-87 68000731201 CLIP 6.3 1
3-89 6750404280 FILTER,FUEL 1
3-91 5910635A200 TANK,FUEL 1 Before S/N S283570
3-91 5910645D20 TANK,FUEL 1 From S/N S283571 through T245220
3-91 5910099520 TANK,FUEL 1 S/N T245221 and after
3-96 65500940201 CUSHION,FUEL TANK 2
3-121 5640661190 VENT,AIR ASSY 1 S/N T245221 and after
3-122 4053615221 PIPE,AIR VENT 1 S/N T245221 and after
3-123 6463252L90 AIR VENT VALVE ASSY 1 S/N T245221 and after
3-124 68000731201 CLIP 6.3 1 S/N T245221 and after
3-125 5610007020 COVER,AIR VENT 1 S/N T245221 and after

www.tanaka-usa.com

Page 4

[e-mail]

PARTS INFORMATION

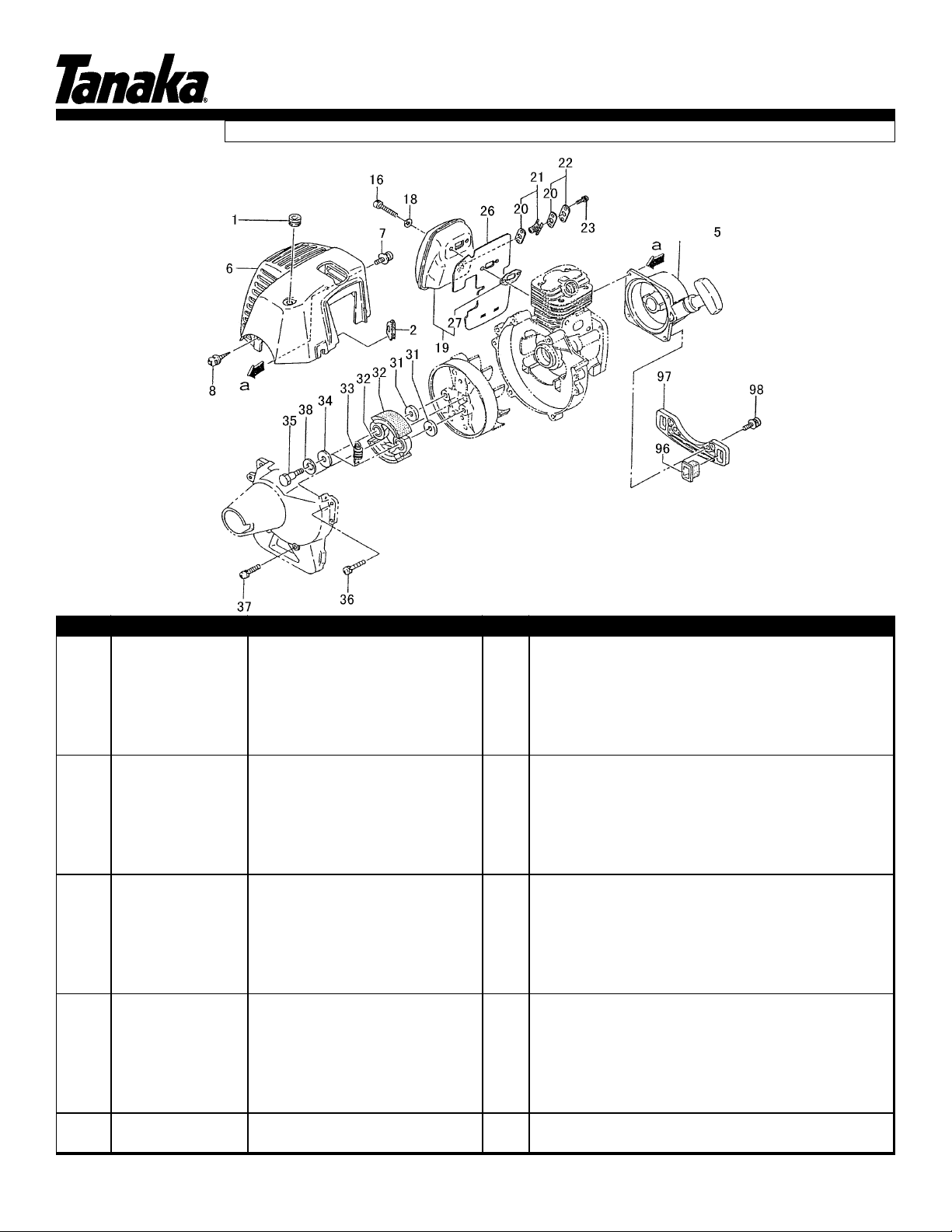

MUFFLER, COVER, CLUTCH • FIGURE 4

TBC-2510

ITEM PART NUMBER DESCRIPTI ON QTY COMMENTS

4-1 20201003201 GROMMET,SECONDARY CORD 1
4-2 2030631A200 GROMMET 1
4-6 7380631A201 PROTECTOR,MUFFLER 1
4-7 99415040222 SCREW ,PS,4X22 2
4-8 99072045164 SCREW ,TAPPING,4.5X16 2
4-16 99051050503 BOLT,HEX,5X50 2
4-18 99201050011 WASHER,5 2
4-19 7040099F90 SET,MUFFLER 1
4-20 75104200201 GASKET,MUFFLER 2
4-21 7320099F90 SET,SPARK ARRESTER 1
4-22 7340099F90 SET,TAIL PIPE 1 Before S/N R007264
4-22 7340099K90 PIPE,EXHAUST 1 S/N R007265 and after
4-23 99434040081 SCREW ,4X8/S 2
4-26 1330631A201 SHIELD,HEAT 1
4-27 7370610021 GASKET,MUFFLER 1
4-31 35902103200 WASHER,CLUTCH,B 2
4-32 29001620800 SHOE,CLUTCH 2
4-33 3420630B200 SPRING,CLUTCH 1
4-34 3480602R200 WASHER,CLUTCH A 2
4-35 3570075T200 BOLT,STEP 2
4-36 99416050202 SCREW ,5X20/W S 2
4-37 99416050422 SCREW ,5X42/W S 2
4-38 99205080030 WASHER,8 2
4-96 65500940201 CUSHION,FUEL TANK 2
4-97 6530631A200 BRACKET,TANK 1
4-98 99415040222 SCREW ,PS,4X22 4

www.tanaka-usa.com

Page 5

[e-mail]

PARTS INFORMA TION

RECOIL STARTER ASSEMBLY • FIGURE 5

TBC-2510

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

5-0 76206097902 STARTER,RECO IL ASS’Y1
5-1 77206097000 BODY,RECOIL STARTER 1
5-2 78006097200 SPRING,RECOIL 1
5-3 77406097200 PULLEY,STARTER 1
5-5 8390201020 SCREW,SET 1
5-7 78306097200 ROPE,STARTER 1
5-8 78506097200 HANDLE,STARTER 1

www.tanaka-usa.com

Page 6

[e-mail]

PARTS INFORMA TION

TBC-2510

CARBURETOR • FIGURE 6

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

6-0-1 4554728090 CARBURETOR,ASS’Y 1 Before S/N R007264
6-0-1 4554728690 CARBURETOR,ASS’Y (CA) 1 From S/N R007265 through S/N S283570
6-0 4550099M90 CARBURETOR,ASS’Y 1 S/N S283571 and aft er (pur ge ty pe)
6-1 51425100200 SCREW,THROTTLE SE T 2
6-4 54425120200 STAY,ADJUST, CAB LE 1 Before S/N R007264
6-4 54425164200 STAY,ADJUST, CAB LE 1 S/N R007265 and after
6-5 53925120200 SWIVEL 1
6-7 48925100200 RING,STOP 1
6-8 4882515480 VALVE,TH RO TTLE 1 Before S/N R007264
6-8 ~ ~ ~ VALVE,T H ROTTLE Not avai lable after S/ N R007265
6-10 55025100200 O-RING 1
6-11 5992000W 430 JET , M A IN,#43 1 Above 4000f t may need 5992000W410 Main Jet,#41
6-12 ~ ~ ~ *GASKET,PUMP 1 * Contained in Carb Repair Kit
6-13 ~ ~ ~ *DIAPHRAGM ,PUMP 1 P/N 650-25124-900 (Not available indiv idually)
6-16 ~ ~ ~ *SCREEN,I NLET 1
6-17 5752515280 BODY, PUM P 1 Bef or e S/N S283570
6-17 5752514780 BODY, PUM P 1 S/N S283571 and aft er
6-18 ~ ~ ~ *GASKET,DIAPHRAGM 1
6-19 ~ ~ ~ *DIAPHRAGM,METERING 1
6-20 47625004200 COVER,DIAPHRAGM 1
6-21 54825101200 SCREW,SET 4
6-22 61425137200 ADJUSTER,CABLE 1
6-23 99101060013 NUT,6 1
6-24 4310634C200 GASKET,CLEANER 1
6-41 5492516520 WASHER,THRUS T 1 S/N R007265 and after

www.tanaka-usa.com

Page 7

[e-mail]

PARTS INFORMATION

15-2

TBC-2510

CLUTCH CASE • FIGURE 7

5-1

From S/N R266792 to

S/N T245220

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

7-1 2890098080 DRUM,CLUTCH 1
7-3 99350012002 RING,STOP,C-12 EX 1
7-5-1 5990098020 CUSHION,RUBBER 1 Before S/N R266791
7-5 5990098021 CUSHION,RUBBER 1 S/N R266792 and after
7-6-1 99074045164 SCREW ,TAPPING 4.5x16 1 Before S/N T245220
7-6 99051050163 BOLT,HEX,5X16 1 S/N T245221 and after
7-8-1 99054050203 BOLT,HEX,5X20 1 Before S/N R266791
7-8-1 99054050253 BOLT,HEX 5x25 1 From S/N R266792 through S/N T245220
7-8 99461050254 BOLT,HEX HOLE,5X25S 1 S/N T245221 and after
7-9 99191050001 NUT,5 1 Before S/N T245220
7-11 1120098081 FAN CASE 1 Includes bearing
7-11 1120098000 SET,FAN CASE 1 Includes anti-vibe components
7-12 99072045164 SCREW ,TAPPING,4.5X16 3
7-15 3600099020 HOLDER,PIPE 1 S/N T245221 and after
7-15-1 3600098020 HOLDER,PIPE 1 Before S/N R266791
7-15-2 3600098021 HOLDER,PIPE 1 From S/N R266792 through S/N T245220
7-16 0910098020 SHIELD,HEAT 1
7-25 0960430020 COLLAR 6.3x18 1 Before S/N T245220
7-26 99201050061 WASHER,5 1 S/N T245221 and after
7-27 3243735020 WASHER,GEAR CASE 1 S/N T245221 and after
7-28 3610099020 FITTING,METAL 1 S/N T245221 and after

www.tanaka-usa.com

Page 8

Before S/N R266791

[e-mail]

PARTS INFORMA TION

HANDLES, THROTTLE LEVER, SHAFT • FIGURE 8

TBC-2510

www.tanaka-usa.com

Page 9

[e-mail]

PARTS INFORMATION

TBC-2510

HANDLE, THROTTLE LEVER, SHAFT • FIGURE 8

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

8-1 34337300200 SHAFT,DRIVE 1
8-2 3413761681 PIPE,DRIVE SHAFT 1
8-3 3473730090 BUSHING,ASS'Y 5
8-4 99101060041 NUT,6 2
8-5-1 50037300200 HANDLE,D 1 Before S/N R218470
8-5 5003728620 HANDLE 1 S/N R218471 and after
8-6 50637300200 BRACKET,HANDLE,A 1
8-7 99023060351 BOLT,6X35 PLUS 2
8-9 8853739480 WIRE,THROTTLE 1
8-10 99311052012 SCREW,TAPPING 5X20 1 S/N R218471 and after
8-11 36832350200 WASHER,BRAKE SHAFT 1 S/N R218471 and after
8-16 5033738E20 GRIP,HANDLE 1 S/N R218471 and after
8-25-1 87037300900 LEVER,THROTTLE ASSY 1 Before S/N S251510
8-25 8703728690 LEVER,THROTTLE ASS'Y 1 S/N S251511 and after
8-26 1623710120 SWITCH,STOP 1
8-27 99342030081 SCREW, TAPPING, 3X8 1
8-28 25937101200 BASE,STOP SWITCH 1
8-29 26237101200 SPRING,STOP SWITCH 1
8-30 17737101200 TERMINAL,EARTH B 1
8-31 17637101200 TERMINAL,EARTH A 1
8-32-1 99186050000 NUT,LOCK,5 1 Before S/N S251510
8-32 3153334020 NUT,SPECIAL 5MM 2 S/N S251511 and after
8-33 99355060001 RING,STOP,6 1
8-34 83237101200 SPRING,RETURN 1
8-35 88037101200 LEVER,THROTTLE 1
8-36-1 99431050251 SCREW,S.,5X25 1 Before S/N S251510
8-36 99431050201 SCREW,5X20 2 S/N S251511 and after
8-37 85337101200 SHAFT,LOCK BUTTON 1
8-38 95837101200 SPRING,LOCK,BUTTON 1
8-39 95637101200 BUTTON,LOCK 1
8-40 2603331720 BODY,STOP BUTTON,B 1 S/N S251511 and after
8-41 1783739480 CORD,STOP 430mm 2
8-47 1641001900 TUBE,PROTECTION 1
8-49 50437300200 GRIP,SHAFT 1

www.tanakapowerequipment.com

Page 10

[e-mail]

PARTS INFORMA TION

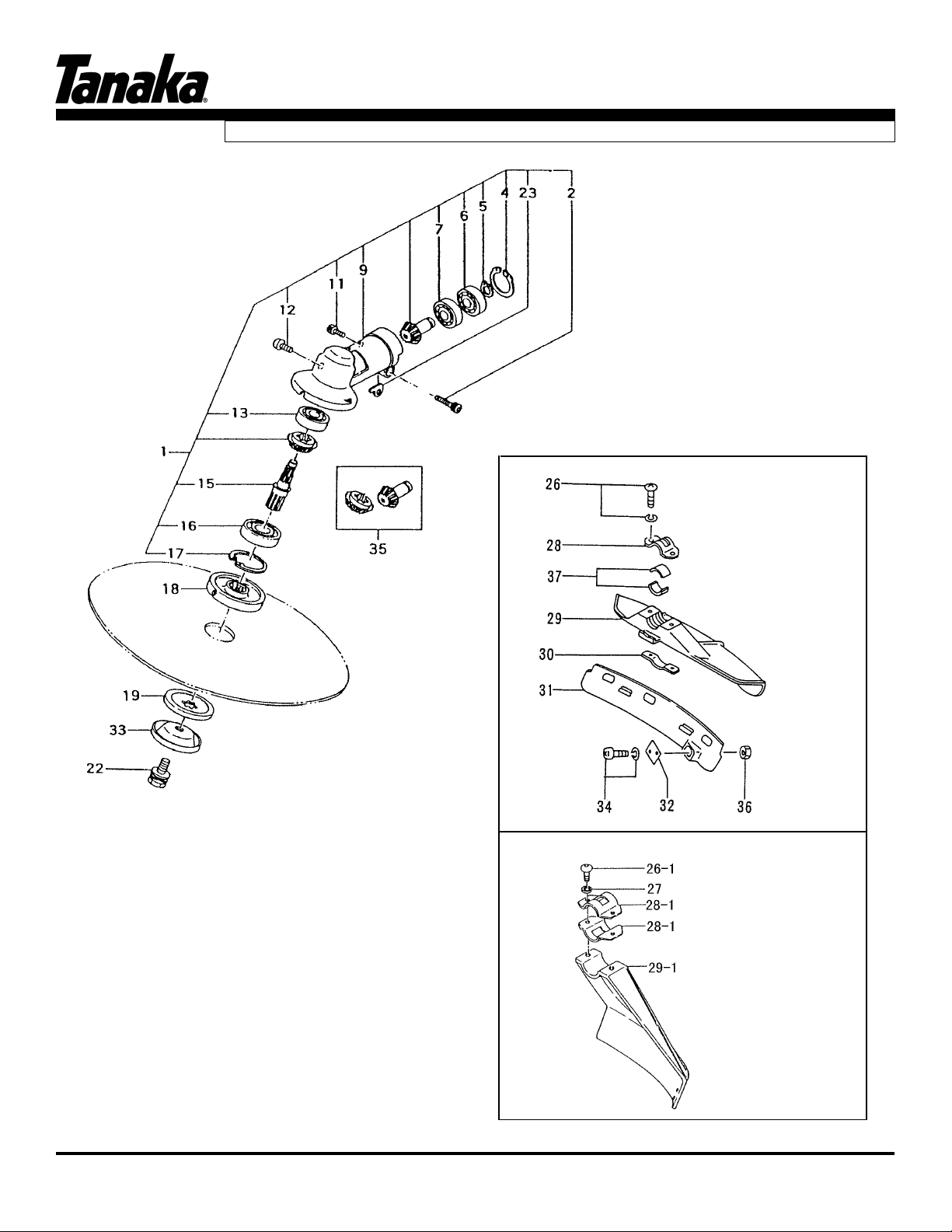

GEAR CASE, SAFETY GUARD • FIGURE 9A

TBC-2510

From S/N S25151 1

through S/N U215188

www.tanaka-usa.com

Page 11

Before S/N S251510

[e-mail]

PARTS INFORMA TION

TBC-2510

GEAR CASE, SAFETY GUARD • FIGURE 9A

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

9-1 3003741791 CASE, GEAR ASS’Y 1 Female Gear Case, Before S/N U215188
9-2 99461050254 BOLT,HEX HOLE,5X25S 1
9-4 99353022002 RING,STOP,R22 IN 1
9-5 99350010002 RING,STOP,C-10 EX 1
9-6 99961690001 BEARING,BALL,#6900ZZ 1
9-7 99961690000 BEARING,BALL,#6900 1
9-9 3003762320 CASE,GEAR 1
9-11 99051050103 BOLT,HEX.HOLE,5X10 1
9-12 99423080100 BOLT,8X10 1
9-13 99961626000 BEARING,BALL,#626 1
9-15 3043730720 SHAFT,GEAR 1
9-16 99961600104 BEARING,BALL,#6001DD 1
9-17 99351028002 RING,STOP,IN,C-28 1
9-18 3103810020 CUTT ER HOLDER 12X10X1 1
9-19 31137300203 CAP,CUTTER HOLDER 1 Before S/N S251510
9-22 3123338620 BOLT , FIXING,L.H.,FLANGED 1 Before S/N S251510
9-23 3243735020 WASHER,GEAR CASE 1
9-26 99023060161 BOLT,6X16 PLUS 2 Before S/N S251510
9-26 99481060254 SCREW, HEX HOLE 6X25 2 S/N S251511 and after
9-27 99210060062 WASHER,S, 6 2 Before S/N S251510
9-28 4423741720 BRACKET,SAFETY GUARD 2 Before S/N S251510
9-28 4423369921 BRACKET,SAFETY GUARD 1 S/N S251511 and after
9-29 44133905800 GUARD,SAFETY 1 Before S/N S251510
9-29 4413738020 GUARD,SAFET Y 1 S/N S251511 and after
9-30 4453738020 HOLDER,GUARD 1 S/N S251511 and after
9-31 4473738020 EXTENSION,GUARD 1 S/N S251511 and after
9-32 7973738021 LIMITER,LINE 1 S/N S251511 and after
9-33 31633410200 PROTECTOR,BOLT 1 Before S/N S251510
9-34 99414050121 SCREW,S ,5X12 1 S/N S251511 and after
9-35 3013730001 SET,GEAR/PINION 1
9-36 99101050011 NUT,5 1 S/N S251511 and after
9-37 44437609200 SPACER,BRACKET 2 S/N S251511 and after

www.tanaka-usa.com

Page 12

[e-mail]

PARTS INFORMA TION

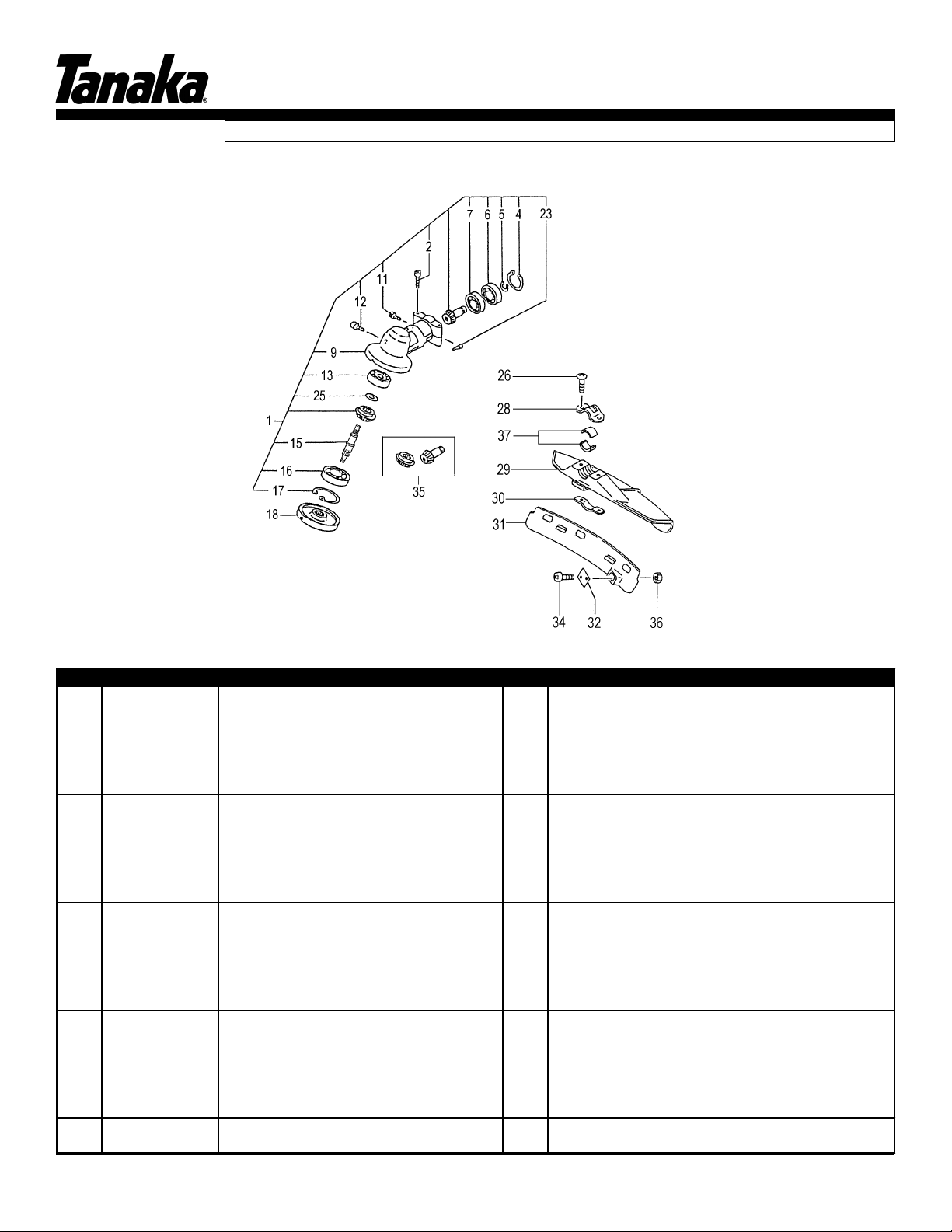

GEAR CASE, SAFETY GUARD • FIGURE 9B

S/N U215189 through S/N V243231

TBC-2510

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

9-1 3003728690 CASE,GEAR,ASS’Y 1 Male Gear Case, From S/N U215189 to V243231
9-2 99461050254 BOLT,HEX HOLE,5X25S 2
9-4 99351024002 RING,STOP,C-28,IN 1
9-5 99350009002 RING,STOP,C9 1
9-6 99961609002 BEARING,BALL,#609Z 1
9-7 99961609000 BEARING,BALL,#609 1
9-9 3003385020 CASE,GEAR 1
9-11 99051050103 BOLT,HEX.HOLE,5X10 1
9-12 99423080100 BOLT,8X10 1
9-13 99961628000 BEARING,BALL,#628 1
9-15 3043810020 SHAFT,GEAR 1
9-16 99961620103 BEARING,BALL #6201D 1
9-17 99351032002 RING,STOP,C-32 IN 1
9-18 3103810020 HOLDER,CUTTER 1
9-23 3243735020 WASHER,GEAR CASE 1
9-25 0673713420 WASHER,SPECIAL 1
9-26 99481060254 SCREW,HEX HOLE 6X25 2
9-28 4423369921 BRACKET,SAFET Y GUARD 1
9-29 4413738020 GUARD,SAFETY 1
9-30 4453738020 HOLDER,GUARD 1
9-31 4473738020 EXTENSION,GUARD 1
9-32 7973738021 LIMITER,LINE 1
9-34 99414050121 SCREW,S,5X12 1
9-35 3013713400 SET,G EAR PI NION 1
9-36 99101050011 NUT,5 1
9-37 44437609200 SPACER,BRACKET 2

www.tanaka-usa.com

Page 13

[e-mail]

PARTS INFORMA TION

GEAR CASE, SAFETY GUARD • FIGURE 9C

After S/N V243231

29

TBC-2510

441-37587-00 Guard Kit

This guard kit is designed to fit

all trimmers with 24 or 26 mm

pipes. This guard is NOT

approved for use with any

metal blade.

ITEM PART NUMBER DESCRIPTION Q TY COMMENTS

9-1 3003815990 CASE,GEAR,ASS'Y 1 TBC-270PN
9-2 99461050254 BOLT,HEX HOLE,5X25S 2
9-4 99351024002 RING,STOP,C-28,IN 1
9-5 99350010002 RING,STOP,C9 1
9-6 99961609002 BEARING,BALL,#609Z 1
9-7 99961609000 BEARING,BALL,#609 1
9-9 3003815020 CASE,GEAR 1
9-11 99461050124 BOLT,HEX.HOLE 1
9-12 3163815020 FITTING BOLT,M8 1
9-13 99961609000 BEARING,BALL,#609 1
9-15 3043810020 SHAFT,GEAR 1
9-16 99961620103 BEARING,BALL #6201D 1
9-17 99351032002 RING,STOP,C-32 IN 1
9-18 3103815020 HOLDER,CUTTER 1
9-23 3243735020 WASHER,GEAR CASE 1
9-26 99481060254 SCRE W,HEX HOLE 6X25 2
9-28 4423741720 BRACKET,COVER 1
9-29 4413758700 GUARD KIT 1 Guard kit includes mounting components as shown
9-30 4453815020 HOLDER,GUARD 1
9-32 7973815020 LIMITER,LINE 1
9-34 99317052002 SCREW 1
9-35 3013815000 SET,GEAR PINION 1
9-37 44437609200 SPACER,BRACKET 2
9-38 99461050124 SCREW 2 Not included in guard kit shown above
9-40 99101060011 NUT,6 2 Included but not required for male gear case units
9-41 99201060011 WASHER,6 2 Included but not required for male gear case units

www.tanakapowerequipment.com

Page 14

[e-mail]

PARTS INFORMA TION

TBC-2510

DECALS • FIGURE 10

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

10-1 95037503200 DECAL,PRO-FORCE A 1
10-2 9063728020 DECAL 1
10-4-1 92337400200 DECAL,LEVEL 1 Befor e S/N U215188
10-4 9233370020 DECAL,LEVE L 1 S/N U215189 and after
10-5-1 95131310200 DECAL, PRO-FORCE B 1 Bef or e S/N S251510
10-5 95137503200 DECAL,PRO-FORCE B 1 S/N S251511 and after
10-10 9193738F20 DECAL,CAUTION, A 1 S/N S251511 and after
10-16 9193728620 DECAL,CAUTION 1 Bef or e S/ N S251510
10-17 9203246620 DECAL,CAUTION 1 Bef or e S/ N S251510
10-18 9233728620 DECAL,LEVEL 1 S/N U215189 and after
10-20 93337301200 DECAL,SYMBOL 1 Before S/N S251510
10-26 9233738F20 DECAL,LEVEL 1 S/N S251511 and after

www.tanaka-usa.com

Page 15

[e-mail]

PARTS INFORMA TION

HEAD, CUTTING, TH-95 • FIGURE 11

TBC-2510

ITEM PART NUMBER DESCRIPTIO N QTY COMMENTS

0 746251 HEA D,BRAIN (TH-95) 1
1 78633004900 BODY,CUTTING,ASS’Y1
2 7893300421 CAP,BODY 1
3 78733004202 REEL,( R S M X) 1
5 3143367020 BOLT ,8X1.25 LH 1
6 79233004200 WASHER,REEL 4
7 79033004200 SLIDER,REEL 1
8 79133004200 HOOK ,REEL SLIDE R 1
9 6733560020 BALL,STEEL 4
10 7933391020 SPRING,REEL,SILVER 1
11 35802103200 WASHER,CLUTCH A 1
21 7883307120 EYELET 2

www.tanaka-usa.com

Page 16

[e-mail]

PARTS INFORMATION

HEAD, CUTTING, TH-97 • FIGURE 12

TBC-2510

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

746751 HEAD,BRAIN (TH-97) 1
1 7863381091 CUTTING BODY ASS'Y 1
2 7883307120 EYELET 1
3 7603381020 WASHER,MOUNTING 1
4 7853381020 BASE,ADJUSTMENT 1
5 7933381022 SPRING,REEL,YELLOW 1
6 7923381020 WASHER,ADJUSTMENT 1
7 7873381020 REEL 1
8 6733560020 BALL,STEEL 3
9 7903381020 SLIDER,REEL 1
10 7893381020 CAP,BODY 1
11 3143381280 MOUNTING BOLT 1 For female gear case
12 3153381080 MOUNTING NUT 1 For male gear case (2000 production)

www.tanaka-usa.com

Page 17

[e-mail]

PARTS INFORMA TION

HEAD, CUTTING, SEMI-AUTO • FIGURE 13

TBC-2510

ITEM PART NUMBER DESCRIPTIO N QTY COMMENTS

0 746451 HEA D,SEMI- A UTO 5" 1 After serial number V 24 3231
2 3563383B20 ADAPTER,10X1.25 LHF 1
3 78633830200 BODY,CUTTING 1
4 31533830200 NUT,SPECIAL 1
5 79333830200 SPRING 1
6 78733830200 REEL 1
7 78933830200 CAP,BODY 1
8 78833830200 EYELET 2
10 99201120011 WASHER ,12 1 After serial num ber V243231

www.tanaka-usa.com

Page 18

[e-mail]

PARTS INFORMA TION

WARNING! Read the owners manual and fol-

low all warnings and safety instructions. Fail­ure to do so can result in serious injury to the

18

operator and/or bystanders. Never attempt to
mount a steel blade to a machine that is not
specifically designed for that purpose. Never at­tempt to mount a steel blade without using all
components of the blade attachment kit, includ-

ing shoulder strap and barrier safety bar.

748504

BLADE KIT

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

1 30833410200 COVER,PROTECTION,B,8mm 1 8mm
1 3083786120 COVER,BOLT PROTECTOR,10mm 1 10mm
3 3113754720 CAP,CUTTER HOLDER,8mm 1 for use with 8x1.25 nut
3 3113815020 CAP,CUTTER HOLDER,10mm 1 for use with 10x1.25 nut
5 3123338620 BOLT,FLANGED,10x1.25,LH 1 10x1.25 bolt
6 3133754720 NUT,FIXING L.H. 8X1.25 1 8x1.25 nut
6 3133833220 NUT,FIXING L.H.,10X1.25 1 10x1.25 nut
8 3273718090 PIN,COTTER 2X20 (10 PACK) 1

9 44437609200 SPACER,BRACKET 1 for use with barrier bar, 24mm shafts
11 44437609200 SPACER,BRACKET 2
12 30060 KIT,BLADE GUARD 1
13 4413738020 GUARD,SAFETY 1
14 4423369921 BRACKET,SAFETY GUARD 1
15 4453738020 HOLDER,GUIDE 1
16 99481060254 SCREW,HEX HOLE 6X25 2
17 5203339820 BAR,BARRIER 26mm 1
18 746191 STRAP,SHOULDER,PSS-175 1 Includes mounting bracket/hardware

www.tanaka-usa.com

Page 1

[e-mail]
