Tanaka ECS-650, ECS-655 User Manual
Specifications and Main Features
- Model: ECS-650/655
- Engine Type: 2-Cycle
- Engine Oil: Perfect Mix® 2-Cycle Engine Oil.
- Length of Bars: 16 In, 20 In, 24 In
- Chains Options:
-Chain 72SG060X
-Chain 72SG070X
-Chain 72SG081X
- Bar Options:
-Bar 160PXDD176
-Bar 200PXDD176
-Bar 240RNDD176
- Depth Gauge: CDG-600
- Available Kits:
-Bar/Chain Kit 844005
-Bar/Chain Kit 844006
-Bar/Chain Kit 844007
- Various Special Tools:
-Flywheel Remover 006-29326-000
-Tachometer 001-29000-000
-Piston Pin Remover 009-29111-080
-Pressure Tester 070-2000W-500
-Carb. Tool Kit 070-2000W-501
- Owners manual : 34765
- Safety manual: 22206

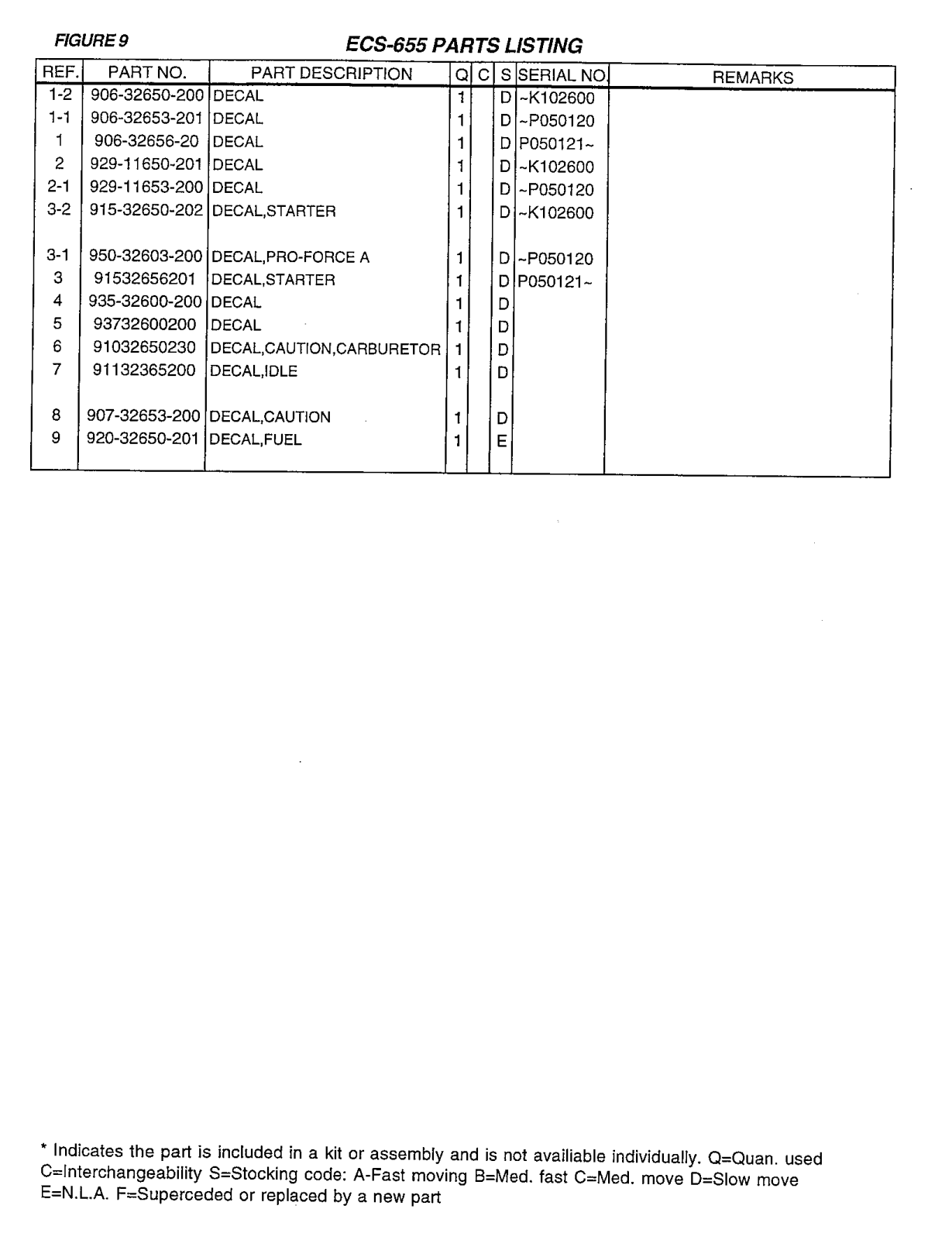

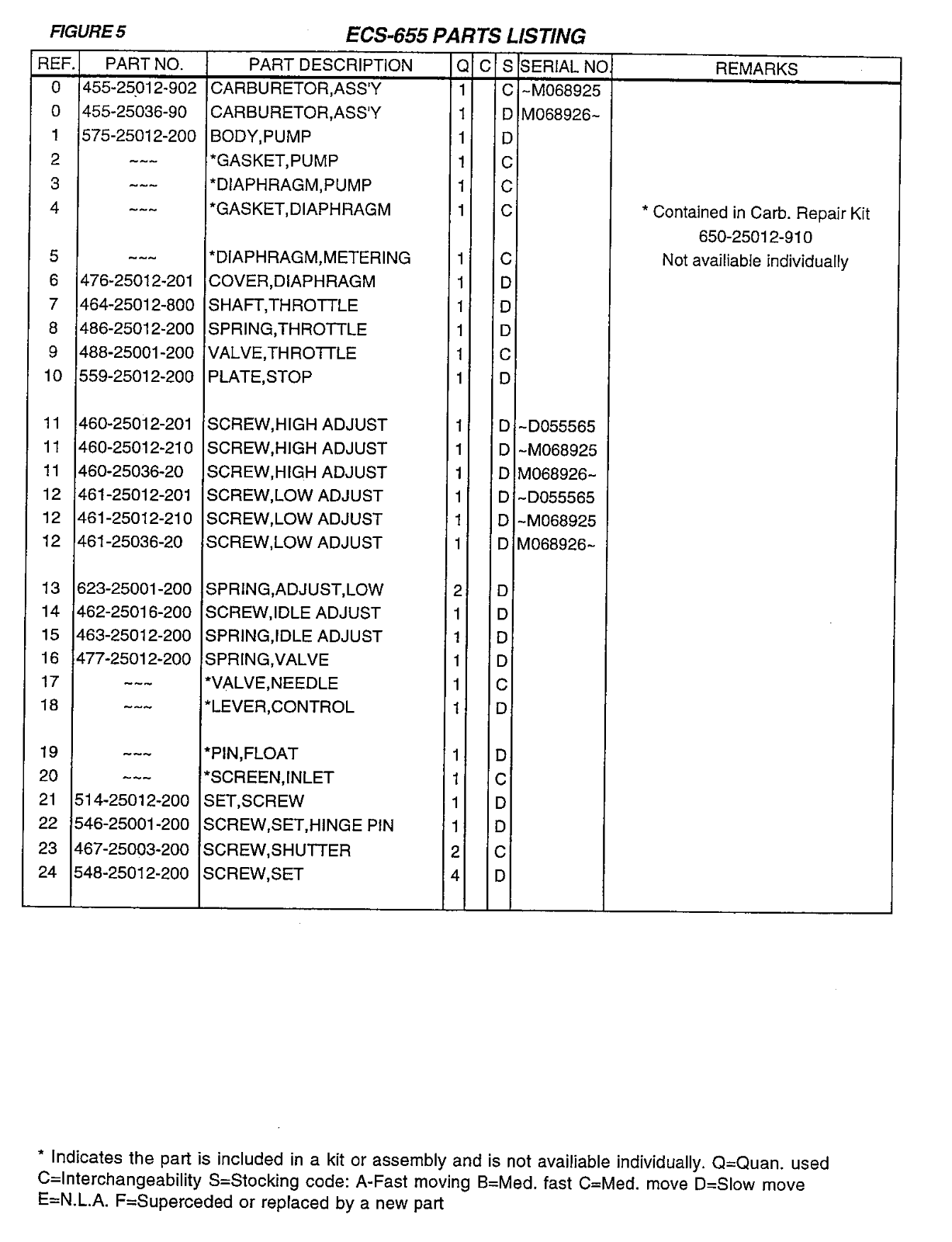

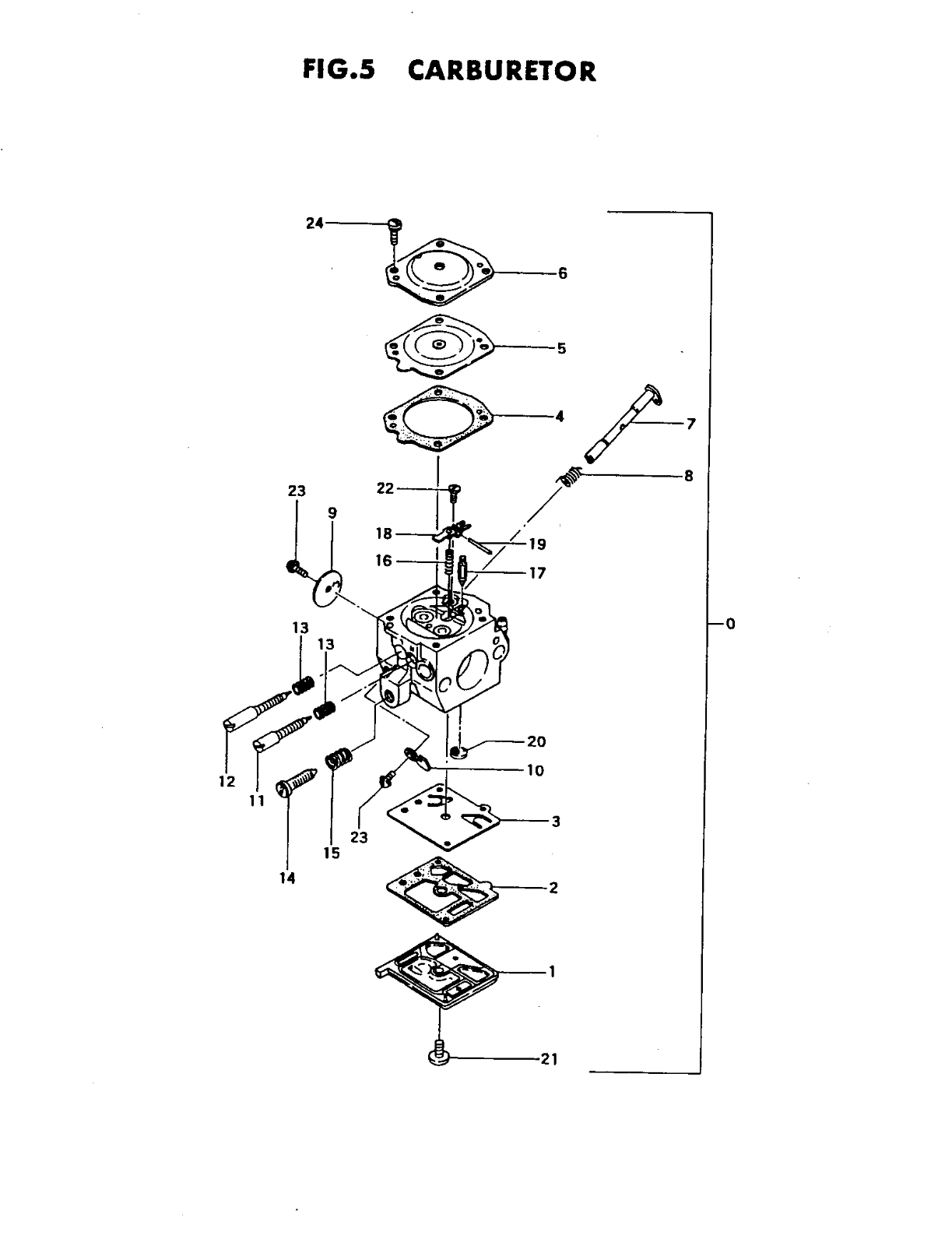

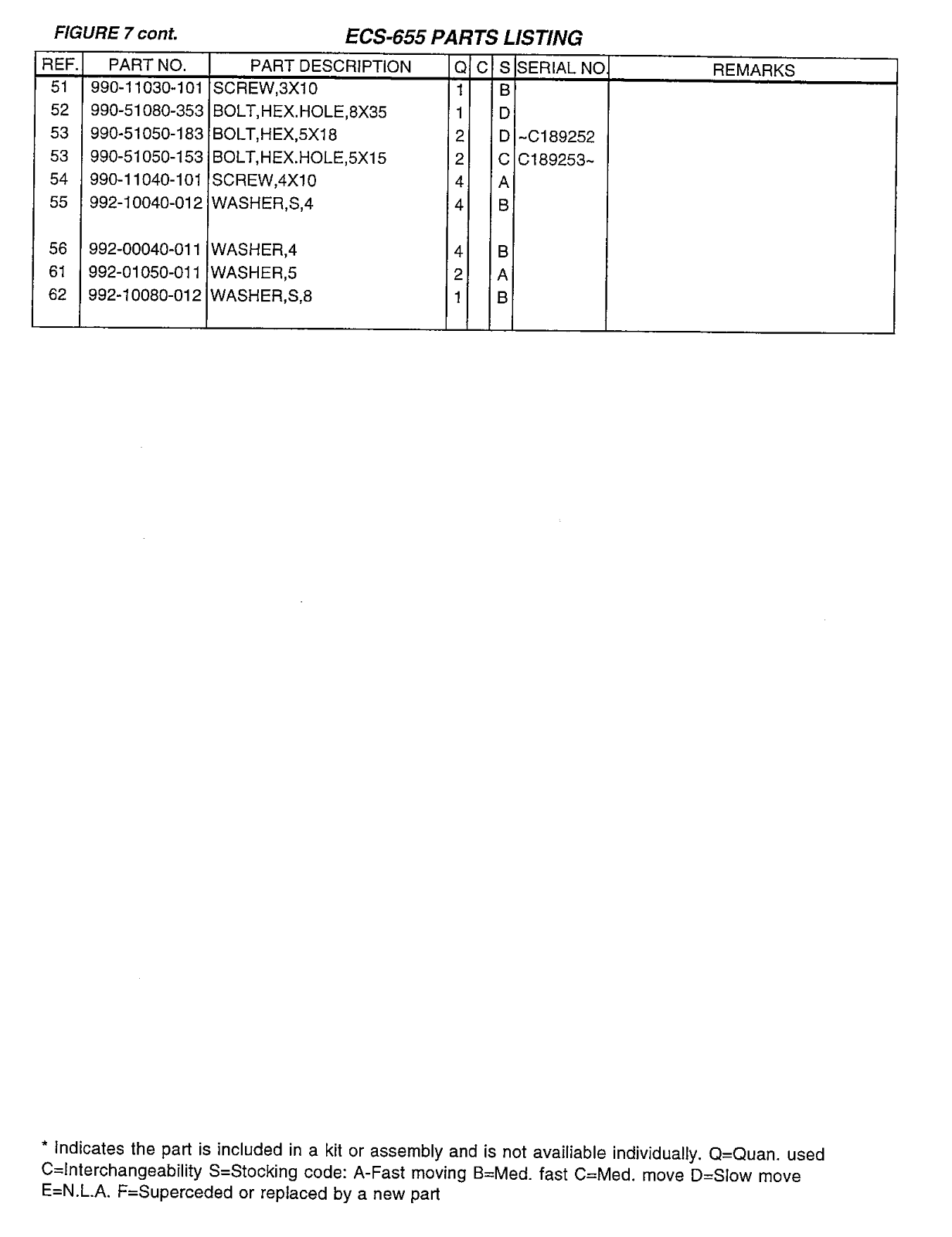

- Parts catalog: 11792
Frequently Asked Questions
Q: In case, I want to order an ECS 655, which oil do you recommend for use with it?
A: You should use Perfect Mix® 2-Cycle Engine Oil.
Q: What are the available lengths for the bars?
A: The available lengths for the bars are 16In, 20in and 24in.
Q: Can I replace the chains on the ECS 655?
A: Yes, you can replace the chains with options of Chain 72SG060X or Chain 72SG070X or Chain 72SG081X.
Q: Where can I find the owner’s manual for the ECS-655?
A: The owner’s manual can also be accessed with reference number 34765.
Q: What special tools are available for the ECS-655?
A: A Flywheel remover, Tachometer, Piston Pin remover, Pressure tester and Carb tool kit are examples of special tools.
