TAMUZ SPARROW HAWK LSM 124W, SPARROW HAWK LSM 127W, SPARROW HAWK LSM 132W, SPARROW HAWK LSM 137W, SPARROW HAWK LSM 142W Operation Manual

...

Download

Operation Manual

SPARROW HAWK series

LSM 124W - LSM 127W

LSM 132W - LSM 137W - LSM 142W - LSM 147W

LSM 152W - LSM 157W - LSM 165W - LSM 182W

TAMUZ LCD Video Monitors

D-24558 Henstedt-Ulzburg ~ Fon & Fax: ..49 - (0)700 - TAMUZLCD [82 689 523]

under use of electronic systems, in any form (print, photocopy, microfilm or other proceedings),

without written permission of the right owner.

oder anderen Verfahren) ohne schriftliche Genehmigung des Rechteinhabers reproduziert oder unter

Verwendung elektronischer Systeme verarbeitet, vervielfältigt oder verbreitet werden.

Concept, Publishing and Production: E.L.B.E medi@, Henstedt-Ulzburg

Printed in Germany

I. Issue LSM SPARROWHAWK Digital Broadcast Monitor

valid for Firmware Release 5.062 and above

TAMUZ - LCD Video Monitors

a division of

TAMUZ Broadcast GmbH

Fon & Fax: +49 - (0)700 TAMUZLCD [82 689 523]

eMail: info@tamuz.tv

www.tamuz.tv

Rights reserved to change specifications and design without notice

Technische und farbliche Änderungen vorbehalten

SPARROWHAWK Digital Broadcast Monitor

Table of Content

Introduction........................................................................5

LCD Video Monitor.........................................................5

SPARROWHAWK series Models........................................6

Differences in the series.................................................7

SPARROWHAWK Features.........................................7

ISO Product Quality........................................................8

Pixel Errors..................................................................8

Class of Usability.........................................................8

Class of Reflections.....................................................8

Wide Screen Format.......................................................9

Sampling the Video.................................................9

General Safety Instructions..............................................10

Limitation of the product..............................................10

Duty of care of the user................................................10

Safety symbols.............................................................10

Basic Safety Instructions..............................................11

Service and Maintenance..........................................11

Observe environmental protection prescriptions......11

Recycling......................................................................12

Recognition of the copyrights......................................12

Guarantee agreement:.....................................................13

Guarantee period......................................................13

Guarantee exceptions...............................................13

Guarantee Certification.............................................13

Warranty Card..................................................................14

Transport of the equipment.............................................15

Transportation..............................................................15

Weight.......................................................................15

Packing.........................................................................15

Return dispatch.........................................................15

Damages in transit....................................................15

Conformity Declaration....................................................16

Technical Data.................................................................17

System Hardware SPARROWHAWK series.................17

System Features SPARROWHAWK series...................18

Installation........................................................................19

First putting into Operation..........................................19

Mounting in 19“ Racks..............................................19

Mounting at VESA systems.......................................19

Ventilation.....................................................................19

Cleaning.......................................................................20

External Control Units...................................................20

Switching the Monitor on.............................................21

Power Save Mode.....................................................22

Suspend Mode......................................................22

Power Down Mode................................................22

Power Save Wake Up............................................22

Connections of the Monitor.............................................23

The Monitor Screen......................................................23

DC Voltage...................................................................24

Power Supply............................................................24

AC Voltage....................................................................24

Video Inputs at Version LSM 1xxW...........................25

DVI Inputs..................................................................25

Optional Input CCVS.............................................25

Signal Format............................................................25

Video Inputs at Version LSM 1xxW HD.....................26

DVI Inputs..................................................................26

Optional Input CCVS.............................................26

Signal Format........................................................26

HDTV Input................................................................27

VGA Input..................................................................28

Ethernet IP Interface.....................................................28

GPI/O Interface.............................................................29

Service Interface...........................................................30

Probe Interface.............................................................30

Operation.........................................................................31

Operation Elements at the SPARROWHAWK series....31

POWER Switch..........................................................31

Operation Buttons.....................................................31

Aspect Ratio Switch...............................................32

Size Switch............................................................34

R/G/B Switch..........................................................35

TALLY Indicator............................................................36

Option IR-Remote Controller........................................37

OSD Menu Operation......................................................38

OSD Menu....................................................................38

Main Menu ......................................................................39

Inputs Menu..............................................................40

Submenu Format for HDSDI inputs.......................41

Submenu HD Output..........................................42

Submenu HD Output - Testpattern....................42

Submenu HD Output – Rate Select.......................43

Submenu HD Output – Mode Search....................44

Submenu Format for SDI inputs............................45

Submenu WSS...................................................45

Submenu Format for CCVS inputs........................46

Submenu WSS...................................................46

Submenu Format for VGA inputs..........................47

Scaling Menu.........................................................48

Submenu Scan Mode............................................49

Submenu Mirror.....................................................50

Submenu Signal for HDSDI inputs........................52

Submenu P-I for interlaced HD-SDI Signals.......52

Submenu P-I for progressive HD-SDI Signals....54

Submenu Signal for SDI inputs.............................55

Submenu P-I interlaced for SD-SDI Signals.......55

Submenu Display..................................................58

Submenu Zoom.....................................................59

Submenu Reset.....................................................60

Image Menu..............................................................61

Submenu Gamma.................................................62

Submenu Color Temperature................................63

Submenu Color Adjustments................................65

Submenu B/W.......................................................66

Submenu Negative................................................67

Submenu R/G/B.....................................................68

Submenu Aperture................................................70

Keyboard Menu.........................................................71

SPARROWHAWK Digital Broadcast Monitor

Submenu Keyboard...............................................72

System Menu............................................................73

Submenu Power On..............................................74

Submenu Search...................................................75

Submenu Processing............................................76

Submenu Language..............................................77

Submenu OSD.......................................................78

Submenu Wall.......................................................79

Submenu RGB Adjust............................................80

Submenu Auto Color.............................................81

Submenu Probe Setup.......................................82

Submenu Calibrate............................................83

Submenu Brightness..........................................84

Submenu Measure.............................................85

Submenu Backlight...............................................86

Submenu Anti Sticking..........................................87

How to minimize the effect?...............................87

Service Menu...................................................................89

Submenu Info........................................................90

Submenu MTBFs...................................................91

Submenu Setup.....................................................92

Submenu No Signal..............................................93

Submenu Temperatures........................................94

Submenu Aux1 Configuration...............................95

Submenu Aux2 Configuration...............................96

Submenu Aux3 Configuration...............................97

Submenu Backlight...............................................98

Submenu Firmware...............................................99

Individual Adjustments and Setups...............................100

Aspect Ratio Setup.....................................................100

Setup Instructions.......................................................100

Setup VGA Signals..............................................100

Setup HDTV Signals............................................101

Setup SDI Signals...................................................101

Setup CCVS Signals............................................102

Reset the Monitor.......................................................102

Special Formats..........................................................103

Setup BARCO VIVALDI........................................103

Setup SONY BVE.................................................104

Interfacing the BVE 2000..................................104

Disturbed BVE Images ....................................105

Modification at the BVE 2000...........................105

Block Diagrams..............................................................106

Blockdiagramm TFT Panels................................106

SPARROWHAWK LSM 1xxW...........................107

Alignment of LCD Monitors............................................108

Advantage of the TAMUZ AAC Technology............109

Color Alignment......................................................110

Quantization the video signal..............................111

How to align a TAMUZ monitor..................................112

Environment............................................................112

Alignment Setup......................................................112

Getting starting the Alignment................................112

Password for Alignment.......................................113

The Color Alignment Procedure.............................113

Starting Color Calibration.................................115

Starting Brightness Alignment..........................116

Starting Manual Measurement.........................117

Service Section .............................................................118

Changing a faulty Fuse..............................................118

1. Step: Open the Monitor...................................118

2. Step: Exchange the Fuse................................118

3. Step: Reassemble the Monitor........................118

Was kann an einem LCD Monitor repariert werden?.....119

Bemerkungen:.........................................................123

Genereller Service:..............................................123

Reset (Wiederherstellen der Fabrikeinstellungen):

.............................................................................123

Defekte Hintergrundbeleuchtung:.......................123

Defekter Controller:..............................................123

Neues Display:.....................................................123

Frequently Asked Questions..........................................124

Safety Notice..................................................................125

Remarques de sécurité..................................................126

Indicaciones de seguridad............................................127

Instruções de segurança...............................................128

Norme di sicurezza........................................................129

Sikkerhedsanvisninger...................................................130

Säkerhetsinformationer..................................................131

Turvallisuusohjeet..........................................................132

Sikkerhetsanvisninger....................................................133

Öryggisleiðbeiningar......................................................134

Veiligheidsvoorschriften.................................................135

Introduction SPARROWHAWK

Introduction

LCD Video Monitor

The TAMUZ SPARROWHAWK series is a LCD monitor series with active TFT displays, designed as a wall mountable or desktop unit for various video applications in studio or field production environment. It covers wide horizontal and vertical viewing angles at it best.

The wide screen displays allows full screen presentation of standard 16:9 videos (with no black areas on top and bottom or left and right). In the user setup of the LSM xxxW HD version any other format is individual adjustable.

The operation of the system was formed simply and user friendly. The SPARROWHAWK series monitors offers as basic version with DVI inputs as model LSM 1xxWW and a fully equipped version with input ports for serial digital Standard-Definition and High-Definition video as model LSM 1xxWW HD.

All I/O ports are placed at the rear of the monitor, even the AC power connector for the integrated power supply. The SPARROWHAWK series monitors are equipped with a port for calibration probes. Therefore the unique AAC (Automatic Alignment and Calibration) is a standard feature within the SPARROWHAWK monitor series. Added option may be an Ethernet port for communication with external remote systems.

SPARROWHAWK series Models SPARROWHAWK

SPARROWHAWK series Models

The SPARROWHAWK series signal processor contains a set of micro computer controlled DSP's and scalers with native serial capability. Various models are available within the SPARROWHAWK series.

Model / Interface Type Freq-V Hz Aspect Ratio

Screen

Resolutions

Input 1 Input 2 Input 3 Input 4

LSM 124W 50 - 60 16 : 10 1920 x 1200 DVI-D N/A N/A VGA

LSM 124W HD 50 - 60 16 : 10 1920 x 1200 DVI-D SD/HD-SDI SD/HD-SDI VGA

LSM 127W 50 - 60 16 : 10 1920 x 1200 DVI-D N/A N/A VGA

LSM 127W HD 50 - 60 16 : 10 1920 x 1200 DVI-D SD/HD-SDI SD/HD-SDI VGA

LSM 132W 50 - 60 16 : 9 1366x768 DVI-D N/A N/A VGA

LSM 132W HD 50 - 60 16 : 9 1366x768 DVI-D SD/HD-SDI SD/HD-SDI VGA

LSM 137W 50 - 60 16 : 9 1920x1080 DVI-D N/A N/A VGA

LSM 137W HD 50 - 60 16 : 9 1920x1080 DVI-D SD/HD-SDI SD/HD-SDI VGA

LSM 142W 50 - 60 16 : 9 1920x1080 DVI-D N/A N/A VGA

LSM 142W HD 50 - 60 16 : 9 1920x1080 DVI-D SD/HD-SDI SD/HD-SDI VGA

LSM 147W 50 - 60 16 : 9 1920x1080 DVI-D N/A N/A VGA

LSM 147W HD 50 - 60 16 : 9 1920x1080 DVI-D SD/HD-SDI SD/HD-SDI VGA

LSM 152W 50 - 60 16 : 9 1920x1080 DVI-D N/A N/A VGA

LSM 152W HD 50 - 60 16 : 9 1920x1080 DVI-D SD/HD-SDI SD/HD-SDI VGA

LSM 157W 50 - 60 16 : 9 1920x1080 DVI-D N/A N/A VGA

LSM 157W HD 50 - 60 16 : 9 1920x1080 DVI-D SD/HD-SDI SD/HD-SDI VGA

LSM 165W 50 - 60 16 : 9 1920x1080 DVI-D N/A N/A VGA

LSM 165W HD 50 - 60 16 : 9 1920x1080 DVI-D SD/HD-SDI SD/HD-SDI VGA

LSM 182W 50 - 60 16 : 9 1920x1080 DVI-D N/A N/A VGA

LSM 182W HD 50 - 60 16 : 9 1920x1080 DVI-D SD/HD-SDI SD/HD-SDI VGA

SPARROWHAWK series Models SPARROWHAWK

Differences in the series

To include various custom features, multiple I/O modules are integrated to debut the SPARROWHAWK series. All types based on the unique Eagle or Falcon broadcast interface from TAMUZ.

SPARROWHAWK Features

The SPARROWHAWK series is equipped with a selected wide screen TFT panel from LG-Philips, CMO, Sharp or Samsung production line. These panel types are state-of-the-art high resolution panels which are available for the broadcast application at the market.

The LSM 1xxWW type has digital video signal (DVI) inputs for graphic sources as standard. The LSM 1xxWW HD type has universal SD/HD serial digital video signal (SD/HD-SDI) inputs with selected output as standard. All units have additionally a analog graphic signal (VGA) input as standard. Optionally a composite inputs is available.

All SPARROWHAWK series monitors may be equipped with an IP addressable interface port to allow remote communication from a PC network, see MRC software. Additionally a standard GPI/O port for closed contact remote is equipped. The monitors are DC voltage powered by an internal power supply. The housing is made of black powder coated aluminium.

SPARROWHAWK series Models SPARROWHAWK

ISO Product Quality

For the production of TAMUZ SPARROWHAWK series video monitors LCD panels are used which complies with the standard ISO 13406-2, error-class 1 or 2, only. This ISO standard 13406-2 defines the scales for ergonomic and picture quality.

The LCD panel manufactures itself (like AU, CMO, LG-Philips, NEC, Samsung, Sharp or Toshiba) don't guarantees absolute any errorlessness and don't guarantees that the LCD panels are free of sticking effects.

Pixel Errors

Following limited values which may not exceed are valid.

ISO 13406-2 Typ 1 Typ 2 Typ 3 max. Distance connected Defects

Class I 0 0 0

Class II 2 2 5 1 defect pixel within a circle of 5 mm

maximum 2 defective sub-pixel beside

each other

Class III 5 15 50 2 defect pixels within a circle of 5 mm

maximum 2 defective sub-pixel beside

each other

Class IV 50 150 500

Error-type #1 describes errors by a complete bright (white) pixel, error-type #2 describes errors by a complete dark (black) pixel, error-type #3 describes errors by defective sub-pixels of the colors red, green and blue, which are completely bright or dark.

A single LCD pixel is built by a set of three sub-pixels, one of red, green and blue.

Error class I contains highly selected panels with no pixel error anyway. Panels within this class are rare and very high priced. Panels from the error class II are the most common selection for high quality industry applications. The error class III defines the mass production selection for IT applications. TFT panels related to the error class IV are not useful for a LCD monitor at all.

Class of Usability

Next the standard ISO 13406-2 defines the classification of usability of LCD screens.

Usability Classification Description

Class 1 This permits several users to view the entire display area at the same time. This applies for intended

viewing distance (between 40 to 60 cm, depending on the size and resolution of the monitor) and for

a viewing angle within an 80° cone in front of the screen without any restriction of visual efficiency, in

such a way that brightness, contrast and color is maintained

Class 2 Permits a single user to view the entire area of the display. This applies for intended viewing distance

(between 40 to 60 cm, depending on the size and resolution of the monitor) from every position in

front of the screen, in such a way that brightness, contrast and color is maintained.

Class 3 Permits a single user to view the entire area of the display. This applies for intended viewing distance

(between 40 to 60 cm, depending on the size and resolution of the monitor) from one fixed position

in front of the screen, in such a way that brightness, contrast and color is maintained.

Class 4 Permits a single user to view the center area of the display. This applies for intended viewing

distance (between 40 to 60 cm, depending on the size and resolution of the monitor) from one fixed

position in front of the screen, in such a way that brightness, contrast and color is maintained.

All of the TAMUZ SPARROWHAWK series monitors comply with class 1.

Class of Reflections

The reflection characteristics of an LCD Screen are of particular importance in very bright ambient conditions or in an environment with multiple light sources. The ISO standard provides for three quality classes.

SPARROWHAWK series Models SPARROWHAWK

Reflection Classification Description

Class 1 General office conditions without special requirements as to workspace lighting. Class 2 Appropriate for most office conditions, with few exceptions. Class 3 Appropriate for office environments, with controlled luminance conditions.

All of TAMUZ SPARROWHAWK series monitors comply with class 1.

All of TAMUZ SPARROWHAWK series monitors are equipped with a anti-reflective anti-glare filter made of glass.

Wide Screen Format

All the TAMUZ SPARROWHAWK series are LCD monitors equipped with wide screen active TFT displays, developed to display 16:9 wide screen videos with a full screen image without any loss.

Their native screen aspect ratio is 16:9 or similar, so real full screen 4:3 video sources fills the monitor screen with black areas at left and right, if the monitor is switched to 4:3 mode.

Note: If you use the SPARROWHAWK series monitor in a real full screen mode for 16:9 sources, the aspect ratio of the displayed image is correct!

Some sources don't produce a real 16:9 signal.

The TAMUZ SPARROWHAWK series is able to handle different type of signals, see table below.

Format horizontal

Resolution

vertical

Resolution

Pixel Style Input Source Äquivalent

16 : 9 1920 1080 square DVI-D full wide screen - full resolution W-UXGA

16 : 9 1920 1080 square HD-SDI full wide screen - full resolution HDTV 1080 format

16 : 9 1280 720 square HD-SDI full wide screen - full resolution HDTV 720 format

4 : 3 720 576 rectangle SDI standard video – full resolution SD 625 format

16 : 9 720 576 rectangle SDI wide screen video – full resolution SD 625 format

4 : 3 720 480 rectangle SDI standard video – full resolution SD 525 format

16 : 9 720 480 rectangle SDI wide screen video – full resolution SD 525 format

Sampling the Video

TAMUZ develops special interfaces, labeled EAGLE and FALCON, to process the video to be displayed on a LCD Screen.

The EAGLE or FALCON interface operates within the SPARROWHAWK series is mainly a scaling mode. This is necessary to do, because there is a difference between the incoming SD or HD video signal formats and the panel resolutions.

The pixel-to-pixel mode takes place, only when the native resolution of the TFT fits to the video resolution. Each incoming pixel information will be transferred to its corresponding geometrical position at the display. This happens with computer signals from the DVI-D port and with High-Definition digital signals from the HD-SDI port too.

Most of the common SMPTE 274M and 296M HD formats are supported.

General Safety Instructions SPARROWHAWK

General Safety Instructions

Limitation of the product

The LCD technology itself and some LCD panels built-in the TAMUZ SPARROWHAWK LSM 1xxW series have limitations which the user have to understand and accept.

The user must accept that it is necessary



to avoid condensation of water within the SPARROWHAWK series. It may result in improper operation or disconnection of electrodes.



not to exceed the absolute maximum rating value. (input voltage variation, environmental temperature and so on) Otherwise the monitor may be damaged.



to avoid image sticking. If the monitor keeps displaying the same pattern for a long period of time without any movement, the image may be „sticked“ to the screen. It is recommended to use the „anti-sticking“ screen saver. See chapter Submenu Anti-Sticking



to handle the monitor carefully in order not to be stressed. The monitor is equipped with sensitive glass plates, light bulbs and electronics.



to add ultra-violet ray filters for outdoor operation.

Duty of care of the user

The SPARROWHAWK LSM 1xxW series was designed and built under the harmonized norms to be adhered as well as further technical specifications. It corresponds to the state of the art and ensures a maximum amount of safety.

However, this safety can only be reached, if all safety measures are taken in the operational practice. It is the duty of the SPARROWHAWK LSM 1xxW series user, to plan these measures and check their explanation.

The user must guarantee that



the SPARROWHAWK series is only used as agreed (cf. chapter product specification)



the SPARROWHAWK series is operated only in faultless, working condition and particularly the safety facilities are checked for their function efficiency regularly



the SPARROWHAWK series operator's manual always be placed in a complete and legible condition for disposal



only sufficiently qualified and authorized staff operates, maintains and repairs the

SPARROWHAWK series



staff is instructed to meet work safety and environmental protection regulation and knows the operator's manual as well as there particularly contained safety instructions



all appropriate safety and warning notes not being removed and remaining legible at the

SPARROWHAWK series

Constructive changes at the SPARROWHAWK series may be carried out only after written permission by the manufacturer!

Safety symbols

The following safety symbols are applied in this operator's manual. These symbols shall primarily draw the attention of the reader to the text of the accompanying safety note.

This symbol points out that there are dangers for life and health of persons.

General Safety Instructions SPARROWHAWK

This symbol indicates information which contributes for a better understanding of the function of the equipment.

This symbol points out that there are dangers for material and environment or the equipment himself.

Warning about dangerous electrical voltages to or within the equipment.

Basic Safety Instructions

The SPARROWHAWK series only may be used by persons who are trained, authorized and has knowledge of the operator's manual.

Before every production, check the SPARROWHAWK series for visible damages and make sure that it is operated in faultless condition! Report noticed deficiencies to the supervisor immediately or schedule to restore by qualified persons.

Service and Maintenance

Adhere to the specified inspection and maintenance intervals in the operator's manual!



Before maintenance and repair work it must be guaranteed that all parts of the SPARROWHAWK series have cooled down on space temperature!



Smear-, cool- or cleaning-fluids, endangering the environment, must be disposed duly!



Repair work on the electrical power supply of the SPARROWHAWK series system must be done by a trained electric qualified employee!



Damaged lines or cables have to be immediately replaced!

Released bolted joints must be checked for solid seat before putting into operation after maintenance or repair work and it must be guaranteed, that removed system-unit cover parts or filters were re-installed!

Observe environmental protection prescriptions

The legal duties for waste avoidance and proper utilization for elimination must be adhered at all work stations, also including the SPARROWHAWK.

During repair, installation and maintenance work, be aware of water endangering substances such as;



Lubricating greases and oil



Hydraulics oils



Coolant



solvent containing cleaning liquids

don't load the floor or reach into the sewage system!

Note: The valid environmental protection prescriptions must be observed.

These water endangering substances must be kept, transported, caught and disposed in suitable containers!

General Safety Instructions SPARROWHAWK

Recycling

If SPARROWHAWK series monitor no longer operates or is un-repairable, please do not dispose the monitor in the trash.

Please return the monitor to your local dealer or TAMUZ directly, we will grant the correct and suitable recycling of the old monitor.

Note: Don't waste unused, old or broken monitors. Follow your local environmental protection prescriptions.

Recognition of the copyrights

The user of the SPARROWHAWK series appreciates, that in the SPARROWHAWK series contains software programs as well as this documentation is subject to the copyright laws as well as copyright propriety and other protection rights and does not purchase this with the acquisition or the use of the SPARROWHAWK series system by any time. The user obtains rather merely the right for the exclusive use of the SPARROWHAWK series.

In the SPARROWHAWK series contained software as well as the accompanying documentation may not be changed, enlarged or adapted to other systems or translated into other languages, without written permission of the author. With the installation and use of the SPARROWHAWK series the user recognizes these license and use conditions.

Note: The SPARROWHAWK series system contains copyright protected software and documentation's.

Guarantee agreement: SPARROWHAWK

Guarantee agreement:

In the SPARROWHAWK LSM 1xxW series system contains software and the instructions are left to the user as they are. This means, the author of the software or the instructions doesn't assume any liability for the suitability of the software or the documentation to any special purpose. He particularly isn't liable for damages or sequential damages which indirectly deliberately or unintentionally arise f

rom the use of the SPARROWHAWK LSM 1xxW series or the documentation directly.

The SPARROWHAWK LSM 1xxW series system and the documentation can be changed and enlar- ged without previous announcement at any time. Rights for updates free of charge does not apply.

Guarantee period

TAMUZ - LCD Video Monitors, the manufacturer of the SPARROWHAWK LSM 1xxW series grants a guarantee period of 24 months on the faultless function of the system and its components.

Guarantee exceptions

Claims for defects shall not exist in cases of



natural wear and tear and damages, defects, reduced output, and changes of condition or operation of our product due to extraneous cause (for example impact, blows, agitation, water, fire), improper storage, treatment or erection, unusual climatic conditions, special conditions at receipt or operational conditions at the location of use, or force majeure;



defects due to construction and material deficiencies, as far as the customer has specified the construction or the material.



Image Sticking on the LCD-Panel, which is caused by permanent pictures as well as Gap Mura on the LCD-Panel.

Guarantee Certification

Please, send in the full guarantee certification upon receipt of the product to the manufacturer or suppliers within 21 working days. The manufacturer or supplier only then can grant possible rights to claim under guarantee in full size and transmitting current information about software updates and indications for expansions or for the operation of the equipment to you.

Note: Only if the guarantee card of the SPARROWHAWK LSM 1xxW series monitor has been returned intime to the manufacturer or supplier, rights to claim under guarantee can be asserted against the manufacturer or supplier.

Warranty Card SPARROWHAWK

Warranty Card

To come in the position to reclaim your warranty rights, send in this warranty card within 21 days to the manufacturer (TAMUZ - LCD Video Monitors, Germany) or your local dealer. Check the web site www tamuz.tv, www tamuz.de or www tamuz.us for the correct address.

Garantie Registrierungskarte - Warranty Registration Card

Model:

TAMUZ LSM

Type:

Seriennummer: Serial Number:

Dieses Gerät wurde gekauft bei: - The Unit was purchased from:

Händler:

Ort.

Land:

Dealer:

City:

Country:

Verkaufsdatum: Purchase Date:

Dieses Gerät wurde gekauft von: - The Unit was purchased by:

Kunde: Customer:

Ansprechpartner: Contact Person:

Firma: Company:

Strasse: Street:

PLZ: Zip Code:

Ort: City:

Land: Country:

Telefon: Phone:

Telefax: Fax:

Email: Email:

Dieses Gerät wird eingesetzt im: - This Unit will be used at:

Regieraum: Control Room:

Schaltraum: Distribution:

Studio: Studio:

Ü-Wagen: OB-Truck:

Kopieranlage: VTR-Dubbing:

Schnittplatz: Editing:

Sprecher-Raum: Off-Room:

Andere: Other:

Unser Bestreben ist es, unsere Produkte kundengerecht zu entwickeln und fertigen. Wir sind Ihnen dankbar, wenn Sie sich

Zeit für Anregungen oder Kommentare nehmen:

Our mutual interest is, to design and manufacture practical products. We appreciate you taking the time to note your

information and comments you may have.

Transport of the equipment SPARROWHAWK

Transport of the equipment

Transportation

The SPARROWHAWK LSM 1xxW series is a sensitive electronic product and should be transported with all caution. Throwing the equipment or hard pushes during the transport must be avoided.

Weight

The SPARROWHAWK LSM 1xxW series weights inclusive of the accessories and his packing more then 10 kg and should be carried under consideration of the accident prevention measures or transported with help of corresponding aids therefore by two persons.

Note: Observe the accident prevention prescriptions at the transport of the

SPARROWHAWK LSM 1xxW series to the avoidance of persons and damages to

property.

Packing

The SPARROWHAWK LSM 1xxW series is delivered in a special transport carton. It recommends it- self to keep this carton and the accompanying packaging. So in the case of a later necessary transport and dispatch the equipment can be packed and protect against damages as delivered to you.

Return dispatch

At a return dispatch without original packing to the supplier or manufacturer the liability is excluded.

Don't forget to ask for a RMA (return material authorization) number before you send any material back to the manufacturer. Check for a RMA the web-site www.tamuz.tv, www.tamuz.de or www.tamuz.us.

Damages in transit

Check the contents of the received transport carton with the delivery note or the invoice on completeness and inform your supplier if you have missing parts upon receipt of the product. Please contact within 5 working days. If you receive a delivery on which the transport carton or the contents is damaged, proceed after the known guidelines of the cargo shipper, (which as a rule is enclosed with the delivering papers). Perhaps stricter terms must be taken into account.

Note: Check before using the SPARROWHAWK LSM 1xxW series whether damages in transit have been happened and arrange a repair of these damages if necessary.

Conformity Declaration SPARROWHAWK

Conformity Declaration

to EMV/EMC guideline (89/336/EC)

to low-voltage guideline (73/23/EC chapter 10)

The manufacturer:

TAMUZ - LCD Video Monitors

Tiedenkamp 16

D-24558 Henstedt-Ulzburg

declares hereby, that the product:

Product name: LCD Video Monitor Model number: SPARROWHAWK LSM 1xxW series Year of construction: 2005

corresponds to the regulations of the guidelines described above:

The following harmonized norms were used:

EN 55011 ISM Equipment, Group 1, Class A EN 55022 Conducted Emissions, Class B EN 50081-2 Generic standard interference transmission, industry area EN 50082-2 Generic standard interference immunity, industry area prEN55103-1 EMV product family norm for Audio-, Video and audio-visual facilities

as well as for studio light control facilities for the professional usage,

-Part 1: Limiting values and measurement procedure for disturbing emissions

prEN55103-2 EMV product family norm for Audio-, Video and audio-visual facilities

as well as for studio light control facilities for the professional usage,

-Part 2: Requirements on the interference immunity

EN 61000-3-2 Power Factor Harmonic Correction EN 61000-3-3 Flicker & Voltage Fluctuation Limits EN 61000-4-2 Electrostatic Discharge Immunity EN 61000-4-3 Radiated Electromagnetic Fields EN 61000-4-4 Fast Transients-Burst Immunity EN 61000-4-5 Input Surge Immunity EM 61000-4-6 Conducted RFI EN 61000-4-11 Voltage Dips

The following national or international norms (or parts/clauses from this) and specifications were used:

DIN EN 6099 Verbindungsmaterial für Niederspannungsstromkreise für Haushalt

und ähnliche Zwecke; Teil 1: Allgemeine Anforderungen

IEC 127-6 Geräteschutzsicherungen

Henstedt-Ulzburg, 08.10.2005

CEO / President

Technical Data SPARROWHAWK

Technical Data

System Hardware SPARROWHAWK series

The hardware of the Video Monitor consists of the following components which are installed in an elegant and emission shielded full metal system-unit cover of high quality:

Item LSM 124W LSM 127W LSM 132W LSM 137W LSM 142W

System Frame LSM 124W LSM 127W LSM 132W LSM 137W LSM 142W

Dimensions 550 x 375 x 95 642 x 338 x 110 765 x 460 x 130 890 x 530 x 130 1015 x 611 x 130

Weight 10 kg 11 kg 17 kg 35 kg 39 kg

Mounting VESA 100 VESA 100 VESA 100 VESA 100 VESA 100

Display Size 24“ active matrix 27“ active matrix 32“W active matrix 37“W active matrix 42“ active matrix

Display Type

LTA240M2

LTA270M1 *

LTA320M1 *

V370H01 *

V420H01 *

Display Technology amorphous silicon amorphous silicon amorphous silicon amorphous silicon amorphous silicon

Resolution 1920 x 1200 1920 x 1200 1366 x 768 1920 x 1080 1920 x 1080

Dot Format RGB, square RGB, square RGB, square RGB, square RGB, square

Display Aspect Ratio 16 : 10 16 : 10 16 : 9 16 : 9 16 : 9

Color Format 24 bit full color 24 bit full color 24 bit full color 24 bit full color 24 bit full color

Luminance >300 cd/m

>400 cd/m

>700 cd/m

>400 cd/m

Contrast >600 : 1 >600 : 1 >600 : 1 >800 : 1 >600 : 1

Viewing Angle ±85° H, ±85° V ±85° H, ±85° V ±85° H, ±85° V ±85° H, ±85° V ±85° H, ±85° V

Viewing Direction 06:00 h 06:00 h 06:00 h 06:00 h 06:00 h

Display Classification ISO 13406-2 ISO 13406-2 ISO 13406-2 ISO 13406-2 ISO 13406-2

Pixel Error Class class 2 class 2 class 2 class 2 class 2

*1= or similar alternative, *2= optional feature

Item LSM 147W LSM 152W LSM 157W LSM 165W LSM 182W

System Frame LSM 147W LSM 152W LSM 157W LSM 165W LSM 182W

Dimension 1140 x 692 x 130 1252 x 748 x 140 1344 x 782 x 140 1622 x 922 x 150 1972 x 1180 x 150

Weight 40 kg 46 kg 49 kg 61 kg 77 kg

Mounting VESA 100/200 VESA 100/200 VESA 100/200 VESA 100/200 VESA 100/200

Display Size 47“ active matrix 52“ active matrix 57“W active matrix 65“W active matrix 82“ active matrix

Display Type

V470H02

V520H01 *

LTI570HS *

LK645D3 *

LTI820M01 *

Display Technology amorphous silicon amorphous silicon amorphous silicon amorphous silicon amorphous silicon

Resolution 1600 x 1200 640 x 480 1366 x 768 1920 x 1200 1920 x 1080

Dot Format RGB, square RGB, square RGB, square RGB, square RGB, square

Display Aspect Ratio 16 : 9 16 : 9 16 : 9 16 : 9 16 : 9

Color Format 24 bit full color 24 bit full color 24 bit full color 24 bit full color 24 bit full color

Luminance >400 cd/m

>400 cd/m

>600 cd/m

Contrast >700 : 1 >700 : 1 >1000 : 1 >1000 : 1 >1200 : 1

Viewing Angle ±85° H, ±85° V ±85° H, ±85° V ±85° H, ±85° V ±85° H, ±85° V ±85° H, ±85° V

Viewing Direction 06:00 h 06:00 h 06:00 h 06:00 h 06:00 h

Display Classification ISO 13406-2 ISO 13406-2 ISO 13406-2 ISO 13406-2 ISO 13406-2

Pixel Error Class class 2 class 2 class 2 class 2 class 2

Technical Data SPARROWHAWK

System Features SPARROWHAWK series

The video monitor SPARROWHAWK series is designed and equipped for the following requests, tasks and applications :

Item LSM 124W LSM 127W LSM 132W LSM 137W LSM 142W LSM 147W LSM 152W LSM 157W LSM 165W LSM 182W

Application Digital Broadcast Control Monitor, MultiSync Computer Monitor

Graphic Format WUXGA WUXGA WXGA HDTV HDTV HDTV HDTV HDTV HDTV HDTV

Graphic I/O SubD-HD15

Video Format SD or SD/HD-SDI, auto detection

Video Level 800 mVpp ±10% digital

Video I/O BNC 75 Ohm terminated Signal Format SD 1x SDI Signal Format HD 1x SD/HD-SDI

analog Video Format analog composite, PAL, NTSC, SECAM *

analog Video Level 1 Vpp

analog Video I/O BNC 75 Ohm active looped or terminated *

Power Requirements

DC 24 V ±20% @

XLR-5M

AC 100 - 240 V ±15% @ IEC320 3pin

Power Consumption

68 90 180 200 230 250 280 320 680 710

Line Voltage 85 – 264 V AC, 50-60 Hz, short circuit proofed

Mains Input I/O IEC320 3pin

Operation

Temperature

0°C to +50°C at max. 80% humidity

Storage Temperature -30°C to +60°C at max. 95% humidity

*1= or similar alternative, *2= optional feature

Installation SPARROWHAWK

Installation

First putting into Operation

The video monitor SPARROWHAWK series has an especially designed system-unit cover. It contains all components of the monitor and it is installed operational. Modification is not usually required by the user.

Take the monitor SPARROWHAWK from the packing and check it for possible damages in transit. Please, Indications of damage, please refer to transportation documents.

Mounting in 19“ Racks

The smaller sized SPARROWHAWK series (LSM 124W and LSM 127W) are prepared for mounting in standard 19“ or 23“ racks.

Therefore mount the optional brackets on the left and right side of the monitor.

The bigger sized SPARROWHAWK series is not prepared for mounting in a standard 19“ rack. These monitors are recommended for VESA mounting at walls, ceilings or customized systems.

Note: Use the optional brackets to mount the monitor in a 19“ rack only.

Check the packaging for the optional brackets and keep them in a safe place for future usage.

Mounting at VESA systems

Starting with the type LSM 124W from the SPARROWHAWK series the monitors are equipped with a set of VESA compatible treads at the rear.

On the rear side are treads for mounting some VESA 75/100/200 standard systems.

Ventilation

Depending on the type of installation, the equipment is a self ventilated device which has air ventilation openings at the rear. Regarding of the size, the smaller models have no integrated fans. The larger models, starting with the LSM 132W, are equipped with a slow running fan producing a continuous stream of cooling air.

Note: When required check the chassis for faultiness and clean them regularly.

Installation SPARROWHAWK

Cleaning

Remember the LCD screen itself is a sensitive device, Avoid scratching it. This device may be cleaned with usual household glass cleaning fluids only. Avoid scrapers and rub on screen surface.

Note: When required check the device for faultiness regularly and clean it with a gentle glass cleaner and soft cotton cloths. No acids or solvent may be used for cleaning.

External Control Units

External control units aren't necessary for the normal use of the monitor.

Note:ThemodelLSM xxxW is a digital display and didn't need any external control. It always displays the incoming input signal at it best.

In case of special modes or for service an optional IR remote controller (EAGLE WHISTLE)is available and necessary to obtain access to the OSD menu. This feature is available for all SPAR- ROWHAWK LSM 1xxWW monitors as an option.

Please ask your service department or dealer if necessary.

Installation SPARROWHAWK

Switching the Monitor on

Guarantee the connection with the external mains power at the rear ICE connector indicated as AC input at the adapted power supply.

Prove if the DC plug is connected to the DC inlet.

For switching the display of the monitor SPARROWHAWK LSM 1xxW series on: press the accompanying switch POWER at the rear.

The monitor starts test routines automatically and then represents the video on display.

The LED in the POWER switch illuminates, additionally the LEDs at the input selection illuminates in the last selected setup; here SDI input A.

Note: The video monitor SPARROWHAWK LSM 1xxW series is equipped with an internal universal power supply to work under any power circumstances.

During the test routines the TAMUZ logo appears shortly on the screen after clearing the memory.

Thereafter the monitor shows the signal from the selected input source (refer to the manual chapter Operation / Input Switch). If the source at this input port doesn't feed a signal into the monitor, an error message appears on the screen.

Check the cable connections or the feeding source itself.

Installation SPARROWHAWK

Power Save Mode

After a period of waiting (to refer the period length see chapter OSD menu / DPMS) for an incoming signal the monitor automatically switches to the POWER SAVE mode in two steps.

Suspend Mode

The first step of saving power is the SUSPEND mode. After a default five seconds period of waiting for an incoming signal, the micro processor switches the backlight down to a minimum brightness value. The screen becomes darker.

Power Down Mode

The second step of saving power is the POWER DOWN mode. Waiting for another fifteen seconds (default period), the micro processor switches the backlight off and stops processing for video signals. The screen becomes black and the power indicator LED at the front is still illuminated.

Power Save Wake Up

When the POWER SAVE mode is activated, a wake up will happen automatically when the internal micro processor recognize a video signal at the selected input.

The monitor comes back on and the incoming signal will be shown on the screen.

Connections of the Monitor SPARROWHAWK

Connections of the Monitor

The Monitor Screen

The video monitor SPARROWHAWK LSM 1xxW series contains a single, individual working, screen. The following instructions and steps apply to the screen.

All input connectors are placed at the rear.

Depending on the model, connections various. See above model SPARROWHAWK LSM 1xxW HD.

Model SPARROWHAWK LSM 1xxW is equipped with graphic inputs and remote ports only.

Model SPARROWHAWK LSM 1xxW is equipped with DVI input only.

Connections of the Monitor SPARROWHAWK

DC Voltage

The DC voltage to operate the SPARROWHAWK LSM 124W / LSM 127W video monitors will be supplied by an external Power Supply. The connection happens with a XLR 5pin port at the rear.

The pin-out of the XLR5M port is shown in following table:

Pin Function

1Ground

2NC

3NC

4NC

5 + 12 V DC

Power Supply

Interconnect the mains output using a reliable cord with the IEC port of the external Power Supply.

The pin-out of the IEC port is shown in following table:

Pin Function

1 (N) Neutral

2 (P) Phase

3 (GND) Ground

AC Voltage

The voltage to operate the SPARROWHAWK LSM 132W ./. LSM 182W video monitors will be supplied by an internal Power Supply. Interconnect the mains output using a reliable cord with the IEC port of the internal Power Supply.

The pin-out of the IEC port is shown in following table:

Pin Function

1 (N) Neutral

2 (P) Phase

3 (GND) Ground

Note: Warning about dangerous electrical voltages to or within the equipment. Take care to use the correct power cord depending to your local electricity safety system.

Connections of the Monitor SPARROWHAWK

Video Inputs at Version LSM 1xxW

The version LSM 1xxW of the SPARROWHAWK series was designed for digital graphic signals (DVI) and VGA graphic signals in any common or uncommon resolution. Optionally analog composite video signals for the formats PAL, SECAM or NTSC can be equipped.

DVI Inputs

Depending on the version of the device the allocation of the ports varies. The respectively DVI jack is described as input.

The allocation of the ports is shown in following table:

Model / Interface

Type

Series Format Input 1 Input 2 Input 3 Input 4 Input 5 Input 6

LSM 1xxW SPARROWHAWK Graphics CCVS CCVS DVI --- --- VGA

Connect your DVI graphic source using standard DVI-D cables to the input ports at the rear of the monitor.

This port accepts all common or uncommon analog graphic signals regarding his MultiFormat MultiSync capability. For supported formats check the chapter VGA Formats in the service section.

Optional Input CCVS

As an option of the LSM 1xxW of the SPARROWHAWK series a pair of BNC ports is defined as CCVS input, left as input 1 and right as input 2. This option has been equipped when ordered.

Signal Format

The video monitors LSM 1xxW of the SPARROWHAWK series are designed as a MultiFormat and MultiSync monitors to be used with signals in the format PAL/SECAM 625/50 or NTSC 525/60, regardless if analog or digital version.

As standard the integrated signal processor recognizes the video format automatically and adapts itself to this correspondingly. The picture aspect ratios should be adapted by adjusting H and V size to the video screen size if necessary (service available under service conditions only).

Usually the wide screen monitor type shows a full screen picture every time feeding 16:9 images. In case of a 4:3 aspect ratio image, select the 4:3 mode using the OSD menu.

Connections of the Monitor SPARROWHAWK

Video Inputs at Version LSM 1xxW HD

The version LSM 1xxW HD of the SPARROWHAWK series was designed for serial digital component (SDI) signals and serial digital High-Definition (HD-SDI) signals in the formats 1080i, 1035i, 24/25sf and 720p, or VGA graphic signals.

Connect your video source using standard 75 Ohm BNC cables to the input ports at the rear of the monitor. The inputs are internally 75 Ohm terminated. There is no need for an external standard 75 ohm terminating resistor. Connect your VGA graphic source using standard Sub-HD15 cables to the input ports at the rear of the monitor.

DVI Inputs

Depending on the version of the device the allocation of the ports varies. The respectively DVI jack is described as input.

The allocation of the ports is shown in following table:

Model / Interface

Type

Name Format Input 1 Input 2 Input 3 Input 4 Input 5 Input 6

LSM 1xxW HD SPARROWHAWK HD Graphics / HD CCVS CCVS DVI HDSDI HDSDI VGA

Connect your DVI graphic source using standard DVI-D cables to the input ports at the rear of the monitor.

This port accepts all common or uncommon analog graphic signals regarding his MultiFormat MultiSync capability. For supported formats check the chapter VGA Formats in the service section.

Optional Input CCVS

As an option of the LSM 1xxW HD of the SPARROWHAWK series a pair of BNC ports is defined as CCVS input, left as input 1 and right as input 2. This option has been equipped when ordered.

Signal Format

The video monitor SPARROWHAWK LSM 1xxW HD series are designed as a MultiFormat and MultiSync monitor to be used with signals in the format SD and HD, regardless of the format.

Usually the wide screen monitor type shows a full screen picture every time feeding 16:9 images. In case of a 4:3 aspect ratio image, select the 4:3 mode using the OSD menu step GEOMETRY.

For faster operation the button 16:9 / 4:3 opens the menu step directly.

Connections of the Monitor SPARROWHAWK

HDTV Input

At the LSM 1xxW HD of the SPARROWHAWK series the digital input ports are configured as HDTV inputs for 4:2:2 1.5 Gbit/s signals. They did not accept DualLink 4.2:2 signals.

elect the HDSDI source in the INPUT menu to show the HDTV signal on screen.

Most of the common HDTV formats are supported by the internal HD interface, see table below. The input signal format for HD is is the common SMPTE 274M HD-SDI stream with 1,5 Gbit/s data rate. The signal will be detected automatically.

Format Samples per line Active lines Frame rate Scanning format supported

2kp @ 24 2048 1080 24 Progressive YES

2kp @ 23,98 2048 1080 23.98 Progressive YES

2ksf @ 24 2048 1080 24 Progressive segmented frames YES

2ksf @ 23,98 2048 1080 23.98 Progressive segmented frames YES

1080p@60 1920 1080 60 Progressive YES

1080p@59,94 1920 1080 59.94 Progressive YES

1080p@50 1920 1080 50 Progressive YES

1080i@60 1920 1080 60 2:1 interlace YES

1080i@59,94 1920 1080 59.94 2:1 interlace YES

1080i@50 1920 1080 50 2:1 interlace YES

1080p@30 1920 1080 30 Progressiv YES

1080p@29,97 1920 1080 29.97 Progressiv YES

1080p@25 1920 1080 25 Progressiv YES 1080p@24 1920 1080 24 Progressiv YES

1080p@23,98 1920 1080 23.98 Progressiv YES

1080p@30sf 1920 1080 30 Progressive segmented frames YES

1080p@29,97sf 1920 1080 29.97 Progressive segmented frames YES

1080p@25sf 1920 1080 25 Progressive segmented frames YES 1080p@24sf 1920 1080 24 Progressive segmented frames YES

1080p@23,98sf 1920 1080 23.98 Progressive segmented frames YES

720p@60 1280 720 60 Progressive YES

720p@59,94 1280 720 59.94 Progressive YES

720p@50 1280 720 50 Progressive YES 720p@30 1280 720 30 Progressive YES

720p@29,97 1280 720 29.97 Progressive YES

720p@25 1280 720 25 Progressive YES 720p@24 1280 720 24 Progressive YES

720p@23,98 1280 720 23.98 Progressive YES

576i@50 720 576 50 2:1 interlace YES 480i@60 720 480 59.94 2:1 interlace YES

The list of currently supported formats may be changed without notice.

Connections of the Monitor SPARROWHAWK

VGA Input

As standard the LSM 1xxW HD of the SPARROWHAWK series is equipped with an analog graphic signal port, known as VGA port.

Connect your VGA graphic source using standard Sub-HD15 cables to the input ports at the rear of the monitor.

This port accepts all common or uncommon analog graphic signals regarding his MultiFormat MultiSync capability. For supported formats check the chapter VGA Formats in the service section.

Ethernet IP Interface

As added option TAMUZ SPARROWHAWK series models may have an Ethernet IP port built-in at the rear. SPARROWHAWK series monitors equipped with this IP addressable interface port allows to communicates via a PC network, see MRC software.

The pin-out of the Ethernet RJ45 port is shown in following table:

The image above shows the RJ45 port. There are two standards used for Ethernet cabling, TIA-568A and TIA-568B. Both are usable for a network to control the TAMUZ monitors.

Pin Function Color Code 568A Color Code 568B

1 Clear to send

2 Date send ready

3 Receive Data

4 Ground

5 Ground

6 Transmit Data

7 Data Termina Ready

8 Request to send

The IP port is standard at all SPARROWHAWK LSM 1xxW series monitors.

Connections of the Monitor SPARROWHAWK

GPI/O Interface

For some special application a so-called GPI/O interface is helpful to control the monitor by external events or get an information from or to external devices, like tally. Built-in at all SPARROWHAWK LSM 1xxW series monitors.

The pin-out of the GPI/O port is shown in following table:

Pin Function Pin Function

1 GPI Tally Green, closed contact + 9 GPO Input SDI 1 active, +5 V

2 GPI Tally Red, closed contact + 10 Ground (GND)

3 GPI 16:9 / 4:3, closed contact + 11 Not Connected

4 GPI Input SDI 1, closed contact + 12 Not Connected

5 GPI Input SDI 2, closed contact + 13 Not Connected

6 GPI Input SDI 3, closed contact + 14 Not Connected

7 GPO Input SDI 1 active, +5 V 15 Not Connected

8 GPO Input SDI 2 active, +5 V

The GPI/O feature is standard at all SPARROWHAWK LSM 1xxW series monitors.

Connections of the Monitor SPARROWHAWK

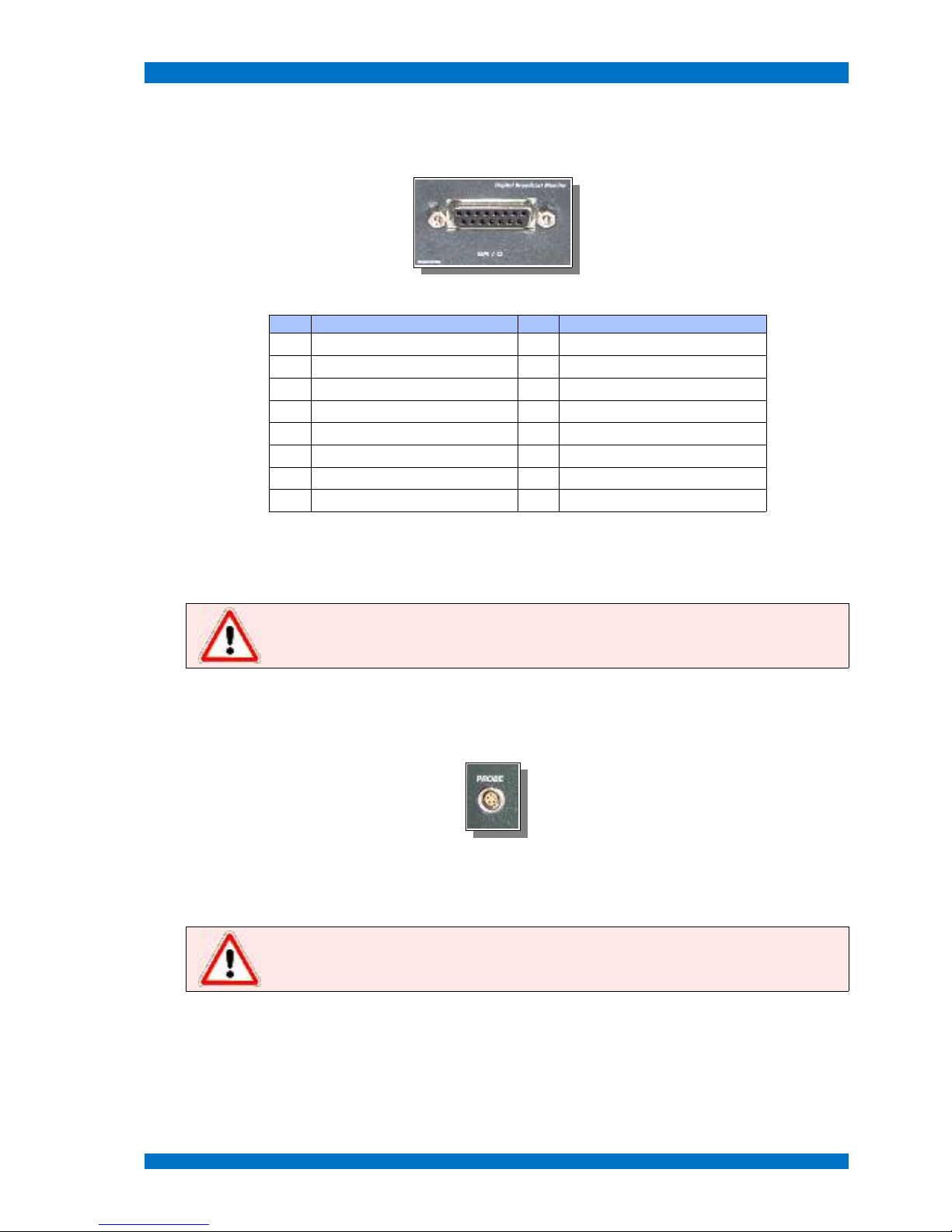

Service Interface

For some special application a so-called service interface is helpful to control or maintain the monitor firmware by external devices, like a PC system.

This service interface is built-in the GPI/O port. The pin-out is shown in following table:

Pin Function Pin Function

1 GPI Tally Green, closed contact + 9 GPO Input SDI 1 active, +5 V

2 GPI Tally Red, closed contact + 10 Ground (GND)

3 GPI 16:9 / 4:3, closed contact + 11 Not Connected

4 GPI Input SDI 1, closed contact + 12 Not Connected

5 GPI Input SDI 2, closed contact + 13 RS 232 +

6 GPI Input SDI 3, closed contact + 14 RS 232 -

7 GPO Input SDI 1 active, +5 V 15 Ground

8 GPO Input SDI 2 active, +5 V

This port is available for the SPARROWHAWK LSM 1xxW series monitor (factory built-in at order).

This service interface can be used by service technicians to update the firmware. A special adapter cable is necessary to connect to a PC RS232.

Note: Do not connect other equipment then the recommended RS232 adapter to this port. The monitor and the connected device may become destroyed.

Probe Interface

All TAMUZ SPARROWHAWK series models have a probe port built-in at the front for alignment applications. This port communicates with a color probe, like the TAMUZ AAC probe PM5639-T.

This port is standard at the SPARROWHAWK LSM 1xxW series monitors.

This service interface can be used by service technicians to align the monitor in colormetry and brightness.

Note: Do not connect other equipment then the recommended color analyzer probe to this port. The monitor and the connected device may become destroyed.
