English LSU
Table of contents
How to use this manual 21
Intended use 21
Safety instructions 22
EMC declaration 24
Operation overview 25
Circuit Diagram (Fig. 1)
Technical specifications 26
Checking the package contents 26
Required tools and consumables 26
Safe and correct soldering 27
Assembling the kit 28
Parts list / Printed Circuit Board (PCB) layout (Fig. 2)
Connecting the light signal switch 31
Connecting the signal (Fig. 3)
Connecting the train synchronisation (Fig. 4)
FAQ 34
Manufacturer's note 35
Certification 35
Conditional warranty 35
* The following manufacturers and their products are mentioned in this
manual:
Märklin & Cie. GmbH, Goeppingen, Germany
Viessmann Modellspielwaren GmbH, Germany
Page 20
LSU English
How to use this manual
This manual gives step-by-step instructions for safe and correct
assembly of the kit and fitting of the ready-built module, and operation.
Before you start, we advise you to read the whole manual, particularly
the chapter on safety instructions and the FAQ chapter. You will then
know where to take care and how to prevent mistakes which take a lot
of effort to correct.
Keep this manual safely so that you can solve problems in the future. If
you pass the kit or the ready-built module on to another person, please
pass on the manual with it.
Intended use
The kit or the ready-built module can be assembled and operated with
a model railway to control a signal using this manual. It has been
specially developed to control a Maerklin* Hobby light signal.
Any other use is inappropriate and invalidates any guarantees.
The kit and the ready-built module should not be assembled or fitted by
children under the age of 14.
Reading, understanding and following the instructions in this manual
are mandatory for the user.
Page 21
English LSU
Safety instructions
Mechanical hazards
Cut wires can have sharp ends and can cause serious injuries. Watch
out for sharp edges when you pick up the PCB.
Visibly damaged parts can cause unpredictable danger. Do not use
damaged parts: recycle and replace them with new ones.
Electrical hazards
§ Touching powered, live components,
§ touching conducting components which are live due to malfunction,
§ short circuits,
§ connecting the circuit to another voltage than specified,
§ impermissibly high humidity,
§ condensation build up
can cause serious injury due to electrical shock. Take the following
precautions to prevent this danger:
§ Never perform wiring on a powered module.
§ Assembling and mounting the kit should only be done in closed,
clean, dry rooms. Beware of humidity.
§ Only use low power for this module as described in this manual and
only use certified transformers.
§ Connect transformers and soldering irons only in approved mains
sockets installed by an authorised electrician.
§ Observe cable diameter requirements.
§ After condensation build up, allow a minimum of 2 hours for
dispersion.
§ Use only original spare parts if you have to repair the kit or the
ready-built module.
Page 22
LSU English
Fire risk
Touching flammable material with a hot soldering iron can cause fire,
which can result in injury or death through burns or suffocation.
Connect your soldering iron or soldering station only when actually
needed. Always keep the soldering iron away from inflammable
materials. Use a suitable soldering iron stand. Never leave a hot
soldering iron or station unattended.
Thermal danger
A hot soldering iron or liquid solder accidentally touching your skin can
cause skin burns. As a precaution:
§ use a heat-resistant mat during soldering,
§ always put the hot soldering iron in the soldering iron stand,
§ point the soldering iron tip carefully when soldering, and
§ remove liquid solder with a thick wet rag or wet sponge from the
soldering tip.
Dangerous environments
A working area that is too small or cramped is unsuitable and can cause
accidents, fires and injury. Prevent this by working in a clean, dry room
with enough freedom of movement.
Other dangers
Children can cause any of the accidents mentioned above because they
are inattentive and not responsible enough. Children under the age of 14
should not be allowed to work with this kit or the ready-built module.
Little children can swallow small components with sharp edges, with
fatal results! Do not allow components to reach small children.
In schools, training centres, clubs and workshops, assembly must be
supervised by qualified personnel.
In industrial institutions, health and safety regulations applying to
electronic work must be adhered to.
Page 23
English LSU
EMC declaration
This product is developed and tested in accordance with the European
standards EN 55014-1 and EN 61000-6-3 and meets the EC - directive
2004/108/EG and legal requirements.
To guarantee the electromagnetic tolerance in operation you must take
the following precautions:
§ Connect the transformer only to an approved mains socket installed
by an authorised electrician.
§ Make no changes to the original parts and accurately follow the
instructions, circuit diagram and PCB layut included with this
manual.
§ Use only original spare parts if you have to repair the kit or the
ready-built module.
Page 24
LSU English
100
Operation overview
The light signal switch is developed to control a Maerklin* Hobby-light
signal. Using it with Viessmann*-signal kits is possible as well. The
Viessmann*-signal kits have to be modified, you can order the manual
from us or you can download it from our homepage.
The light signal switch has to be connected between the light signal and
an external change-over switch which switches between the two signals
("red" and "green"). Using a switching decoder to switch between the
two signals is possible as well. Push-button switches as used e.g. to
switch points are not suitabe to switch between signals. In exactly the
same way as in real life, the light signal switch causes the LED switched
off to fade slowly and the LED switched on to brighten slowly.

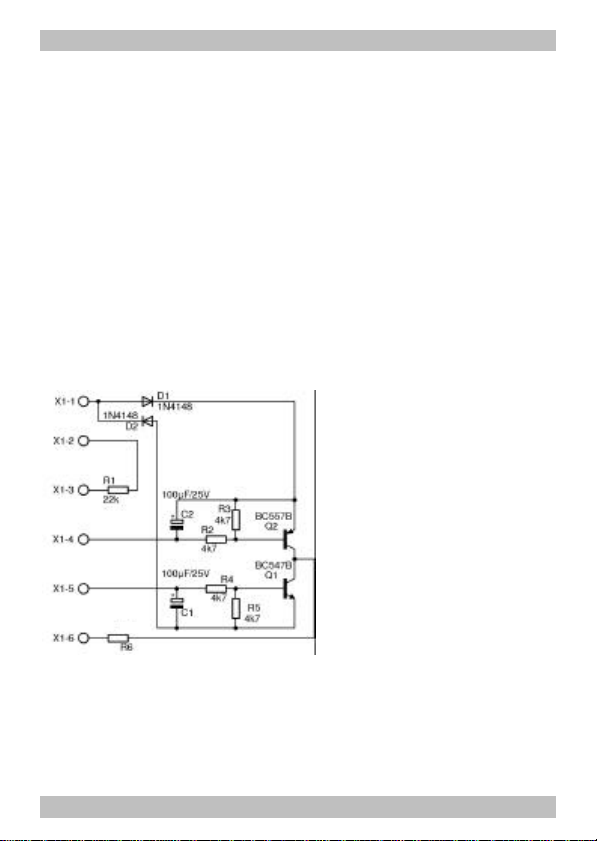

Fig. 1: Circuit diagram
Page 25
English LSU
Technical specifications
Supply voltage 12-18 Volt a.c. voltage
Current consumption approx. 1 mA (without loads)
Max. current at the output 50 mA
Protected to IP 00
Ambient temperature in use 0 - + 60 °C
Ambient temperature in storage -10 - + 80 °C
Comparative humidity allowed max. 85 %
Dimensions approx. 48 x 52 mm
Weight approx. 15 g
Checking the package contents
Check the contents of the package for completeness after unpacking:
§ one kit, containing the components listed in the parts and one PCB or
§ one ready-built module,
§ one manual.
Required tools and consumables
Make sure you have the following tools and materials ready for use:
§ an electronic soldering iron (max. 30 Watt) with a fine tip,
§ a soldering iron stand,
§ a tip-cleaning sponge,
§ a heat-resistant mat,
§ a small side cutter and wire stripper,
§ a pair of tweezers and long nose pliers (not necessary for the
ready-built module),
§ tin solder (0,5 mm. diameter),
§ wire (diameter: > 0,25 mm² for all connections),
§ a change-over switch (if necessary: bipolar).
Page 26
LSU English
!
Safe and correct soldering
Caution:
Incorrect soldering can cause dangers through fires and heat. Avoid
these dangers by reading and following the directions given in the
chapter Safety instructions. If you have had training in soldering you
can skip this chapter.
§ Use a small soldering iron with max. 30 Watt. Keep the soldering tip
clean so the heat of the soldering iron is applied to the solder point
effectively.
§ Only use electronic tin solder with flux.
§ When soldering electronic circuits never use soldering-water or
soldering grease. They contain acids that can corrode components
and copper tracks.
§ Solder quickly: holding the iron on the joints longer than necessary
can destroy components and can damage copper tracks or
soldering eyes.
§ Observe correct polarity orientation of semi-conductors, LEDs
electrolytic capacitors and integrated circuits before soldering and
ensure that the solder time does not exceed 5 seconds, otherwise
components can be damaged.
§ Apply the soldering tip to the soldering spot in such a way that the part
and the soldering eye are heated at the same time. Simultaneously add
solder (not too much). As soon as the solder becomes liquid take it
away. Hold the soldering tip at the spot for a few seconds so that the
solder flows into the joint, then remove the soldering iron.
§ Do not move the component for about 5 seconds after soldering.
§ To make a good soldering joint you must use a clean and
unoxidised soldering tip. Clean the soldering tip with a damp piece
of cloth, a damp sponge or a piece of silicon cloth.
§ Cut the wires after soldering directly above the PCB solder side with
a side cutter.
Page 27
English LSU
§ After placing the parts, please double check for correct polarity.
Check the PCB tracks for solder bridges and short circuits created
by accident. This would cause faulty operation or, in the worst
case, damage. You can remove excess solder by putting a clean
soldering tip on the spot. The solder will become liquid again and
flow from the soldering spot to the soldering tip.
Assembling the kit
You can skip this part if you have purchased a ready-built module.
Preparation
Put the sorted components in front of you on your workbench. The
separate electronic components have the following special features you
should take into account to prevent mistakes in assembling:

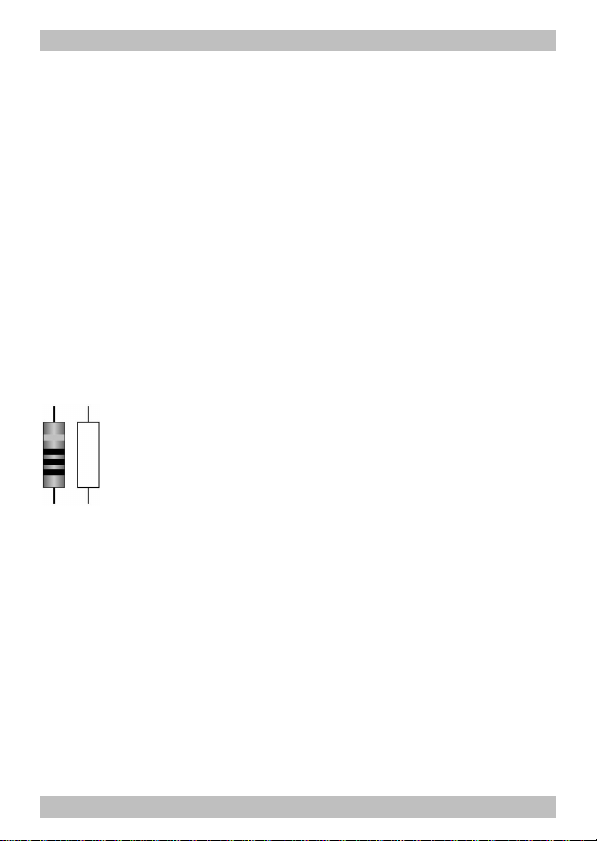

Resistors
Resistors reduce current. Their mounting orientation is of no
importance. The value of resistors for smaller power ratings
(under 5 W) is indicated through colour rings. Every colour
stands for another figure. The colour ring in brackets indicates
the tolerance of the resistor which here is of no importance.
Value Colour rings
100 Ω brown - black - brown (gold)
4,7 kΩ yellow - violet - red (gold)
22 kΩ red - red - orange (gold)
Page 28
LSU English
Electrolytic capacitors
Electrolytic capacitors are often used to store energy. In
contrast to ceramic capacitors they are polarized. One of the
two leads is marked with a minus sign which indicates the
mounting orientation. The value is given on the casing.
Electrolytic capacitors are available with different voltage
sustaining capabilities. Using an electrolytic capacitor with a
voltage sustaining capability higher than required is always
possible.
Diodes
Diodes allow the current to pass through in one direction only
(forward direction), simultaneously the voltage is reduced by
0,3 to 0,8 V. Exceeding of the limit voltage always will destroy
the diode, and allow current to flow in the reverse direction.
The diode type is printed on the body.
Diodes must be mounted in a given direction. The negative
end is marked with a ring. This is shown in the PCB layout.
Transistors
Transistors are current amplifiers which convert low signals
into stronger ones. They have three contacts. As they are
polarized, they have to be mounted in a certain direction.
BC-Types have a housing in form of a half cylinder (SOThousing). The cross section is shown in the PCB Layout which
determines the mounting orientation.
Terminal strips
Terminal strips are solder-in screw-type terminals. They provide a
solder-free and safe connection of the cables to the circuit, which can
still be seperated any time. When several terminal strips have to be
mounted side by side, they have to be put together before mounting.
Page 29
English LSU
Parts list
Resistors
Electrolytic capacitors C1, C2 100 µF
DiodenDiodes D1, D2 1N4148
Terminal strips X1 2 x 3-pin
R1 22 kΩ
R2, R3, R4, R5 4,7 kΩ
R6 100 Ω
Q1 BC 547 BTransistors
Q2 BV 557 B
Fig. 2: Printed Circuit Board
(PCB) layout
Page 30
LSU English
!
Assembling the kit
Start the assembly with the resistors and the diodes. First solder the
components on the solder side of the PCB and then cut the excess
wires with the side cutters, as short as possible. Continue the assembly
with the electrolytic capacitors and the transistors.
Caution:
Diodes, electrolytic capacitors and transistors must be placed in the
right direction! If you solder them the wrong way the affected parts can
be damaged when you connect the power. In the worst case the whole
circuit can be damaged. At the best, a wrongly connected part will not
function.
Finally solder the terminal strips. Join them together before soldering.
Performing a visual check
Perform a visual check after the assembly of the module and remove
faults if necessary:
§ Remove all loose parts, wire ends or drops of solder from the PCB.
Remove all sharp wire ends.
§ Check that solder contacts which are close to each other are not
unintentionally connected to each other. Risk of short circuit!
§ Check that all components are polarised correctly.
When you have remedied all faults, go on to the next part.
Connecting the light signal switch
The Maerklin* Hobby-light signals have two blue and one red
connecting wire with a connector. Break off the connector, you won’t
need it. In case you want to install an additional train synchronisation
you can use the red wire again.
Then make the connections according to the following list and the
connecting diagram (Fig. 3).
Page 31
English LSU
Connecting point Remark
Signal (blue wires) 6 and 2 The polarity is of no
importance.
Transformer 1 and 2 Do not connect the
transformer to the power
supply yet!
Change-over switch
(not included)
3, 4 and 5 Connect the middle
connecting point of the
change-over switch to
connecting point 3.
Change-over switch
With a bipolar switch:
switch "a"
TRANSFORMER
Fig. 3: Connecting the signal
Page 32
LSU English
After having connected the transformer to the power supply the LED
should light. As soon as you operate the change-over switch the LED
should fade slowly and the second LED should brighten slowly.
In case the LEDs do not light as described please check the module
with help of the chapter "FAQ".
Connecting the train synchronisation
It is possible to synronise a train with the signal. For that purpose you
need a bipolar change-over switch instead of a simple switch. Divide
the rail section for the train´s halt, from the rest of the rails as
described in the signal´s manual.
Follow the connecting diagram fig. 4. Connect the change-over switch
as follows:
Middle connecting point: Middle conductor of the rail section behind the
signal (in direction of travel).
Connecting point closed with a green signal: Middle conductor of the
divided rail section in front of the signal.
Switch "b" of the
bipolar change-over switch /
position "green signal"
Direction of travel
Fig. 4: Connecting the train synchronisation
Page 33
English LSU
!
FAQ
§ Parts are getting too hot and/or start to smoke.
Disconnect the system from the mains immediately!
Possible cause: one or more components are soldered incorrectly.
à Perform a visual check.
§ None of the LEDs lights.
Possible cause: Neither the connecting points 3 and 4 nor the
connecting points 3 and 5 are connected to each other when
applying the supply voltage. à Check the connections.
Possible cause: The assembly of the module is faulty (wrong
polarity of a component, "cold" soldering points, short circuit
between two adjacent soldering points). à Check the assembly.
Possible cause: The change-over switch is defective. à Exchange
the switch.
§ Both LEDs light at the same time.
Possible cause: The connecting points 4 and 5 are connected to
each other. à Check the connections.
Possible cause: The assembly of the module is faulty (wrong
polarity of a component, "cold" soldering points, short circuit
between two adjacent soldering points). à Check the assembly.
Possible cause: The change-over switch is defective. à Exchange
the switch.
If you cannot find the problem, please return the module for repair
(address on the cover page).
Page 34
LSU English
Manufacturer's note
The person who builds this kit or brings the circuit into operation is the
manufacturer of the product. If he sells the product to another person
he is responsible for passing on all the relevant papers. Domestic
appliances assembled from a kit are deemed industrial products and
must comply with health and safety regulations.
Certification
This product is developed and tested in accordance with the European
standards EN 55014-1 and EN 61000-6-3. This product conforms with
the EC- directive 2004/108/EG on electromagnetic radiation and is
therefore CE certified.
Conditions of warranty
This product is guaranteed for two years. The warranty includes the
correction of faults which can be proved to be due to material failure or
factory flaw. As we have no control over the correct and proper
assembly and mounting we can only guarantee the quality of the
components and the completeness of kits. We guarantee the function
of the parts according to the parameters in not mounted state as well
as the adherence to the technical specifications of the circuit when
assembled and connected according to the manual.
Other claims are excluded. By law, we are not responsible for damages
or secondary damages in connection with this product. We retain the
right to repair, make improvements, supply spare parts or return the
purchase price.
The following invalidate the warranty:
§ using an unsuitable soldering iron, solder containing liquid acids or
similar,
§ if the kit is assembled and soldered poorly, or if damage is caused
by not following the instructions in this manual,
Page 35
English LSU
§ if the ready-built module has been altered and repair attempts have
failed,
§ if arbitrary changes in the circuit are made,
§ if the circuitry is changed in any way, through adding or omitting
wiring or components, or through modifying the circuit board,
§ if parts other then the original ones delivered with this kit are used,
§ if the copper tracks or soldering eyes are damaged,
§ when components are mounted incorrectly, or if the components or
the circuit are poled incorrectly, also subsequent damage resulting
from these faults,
§ if damage occurs due to an overload of the module,
§ if connected to a incorrect voltage or current,
§ if damaged by other persons,
§ if damaged by faulty operation or if damaged by careless use or
abuse,
§ if damaged by touching components before electrostatic
discharging of the hands.
Page 36
n
n
n
Aktuelle Informationen und Tipps:
Information and tips:
Informations et conseils:
Actuele informatie en tips:
http://www.tams-online.de n
Garantie und Service:
Warranty and service:
Garantie et service:
Garantie en service:
Tams Elektronik GmbH
Rupsteinstraße 10
D-30625 Hannover
fon: +49 (0)511 / 55 60 60
fax: +49 (0)511 / 55 61 61
e-mail: modellbahn@tams-online.de
n
n
n
n
n
n
n
n
n
n
n
n
Loading...
