English Booster B-4
Table of contents
1. Why Boosters?............................................................................3
2. Getting started............................................................................4
3. Safety instructions.......................................................................6
4. Your B-4.....................................................................................7
5. Splitting your model railway layout.............................................13
6. Connecting the B-4....................................................................14
7. Settings....................................................................................17
7.1.Programming the B-4...........................................................18
7.2.Setting the B-4 with jumpers................................................21
8. Operation.................................................................................23
9. Check list for troubleshooting.....................................................25
10. Guarantee bond........................................................................28
11. EU declaration of conformity.....................................................29
12. Declarations conforming to the WEEE directive...........................29
© 09/2016 Tams Elektronik GmbH
All rights reserved. No part of this publication may be reproduced or
transmitted in any form or by any means, electronic or mechanical,
including photocopying, without prior permission in writing from Tams
Elektronik GmbH. Subject to technical modification.
RailCom® is the registered trademark of:
Lenz Elektronik GmbH | Vogelsang 14 | DE-35398 Gießen
To increase the text´s readability we have refrained from refering to
this point in each instance.
Page 2
tams elektronik
Booster B-4 English
1. Why Boosters?
The three essential functions of boosters are:
1. Supplying the power needed for the operation of digital controlled
locomotives and points and other digital consumers.
2. Bringing the voltage to the rails, in order to make sure that all
vehicle and accessory decoders receive the digital switching and
control commands.
3. Making sure the current is switched off in case of a short-circuit on
the layout (e.g. when a vehicle derails), in order to prevent
damages at rails and vehicles.
In layouts monitored by RailCom the booster also provides the so-called
RailCom-cutout needed to transfer RailCom-feedback data.
You can measure the power consumption as follows:
1 locomotive gauge N 600 mA
1 locomotive gauge H0 800 mA
1 locomotive gauge 0 1.000 mA
wagon light 50 - 200 mA
another consumer
(such as a sound module) 100 - 300 mA
reserve for points 10% of the calculated sum of
power consumption
The Booster B-4 can provide 2 to 5 A current depending on the
settings. If your overall power demand exceeds the capacity of one
booster you have to connect additional boosters according to the
special requirements of your layout.
Page 3
tams elektronik
English Booster B-4
2. Getting started
How to use this manual
This manual gives step-by-step instructions for safe and correct
connecting of the booster, and operation. Before you start, we advise
you to read the whole manual, particularly the chapter on safety
instructions and the checklist for trouble shooting. You will then know
where to take care and how to prevent mistakes which take a lot of
effort to correct.
Keep this manual safely so that you can solve problems in the future. If
you pass the booster on to another person, please pass on the manual
with it.
Intended use
The booster B-4 is designed to be operated according to the
instructions in this manual in model building, especially in digital model
railroad layouts. Any other use is inappropriate and invalidates any
guarantees.
The booster B-4 should not be mounted by children under the age of
14.
Reading, understanding and following the instructions in this manual
are mandatory for the user.
Checking the contents
Please make sure that your package contains:
Booster B-4, depending on the version
without display (item no. 40-90407) or
with display (item no. 40-90417);
one 3-pin and one 4-pin connector;
five short-circuit jumpers;
a CD (containing the manual and further information).
Page 4
tams elektronik
!
Booster B-4 English
Required materials
In order to connect the booster you need:
Wire. Recommended diameter:
for the connection to the transformer and the rails: > 1,5 mm²
for the connection to the digital control unit: > 0,25 mm²
A transformer. The recommended voltage and the minimum power
of the transformer depend on the desired settings.
Determining the transformer´s voltage
Desired track voltage Recommended transformer´s voltage
AC voltage DC voltage
10 – 12 V 12 V
desired track voltage
+ 2 V
12 – 15 V 15 V
15 – 18 V 16 V
18 – 22 V 18 V
> 22 V 20 V
Determining the transformer´s minimum power
desired track voltage x desired interrupting current
= minimum transformer´s power
Example: 18 V x 3 A = 54 VA
Please note:
Use a transformer with a nominal voltage not much higher than the
desired track voltage. The power resulting has to be dissipated as heat
by the booster otherwise. When this power is too high, the booster
overheats and switches off.
Page 5
tams elektronik
!
English Booster B-4
3. Safety instructions
Risk of fire
The booster is cooled by a ventilating fan to prevent overheating. Thus
be careful to allow the air to flow unhindered through the ventilation
slits at the booster´s top and back surface. If the vents are blocked
components can overheat and catch fire.
Risk of electric shock
Touching powered, live components,
touching conducting components which are live due to malfunction,
short circuits and connecting the circuit to another voltage than
specified,
impermissibly high humidity and condensation build up
can cause serious injury due to electrical shock. Take the following
precautions to prevent this danger:
Only operate indoors in a dry environment.
Wiring should only be carried out when the booster is disconnected.
Only use low power for this device as described in this manual and
only use certified transformers.
Only connect the transformer in an authorised manner to the house
power supply.
Use adequetly thick cable for all wiring. Too thin a cable can
overheat.
If the layout is exposed to condensation, allow at least two hours for
drying out.
Page 6
tams elektronik
Booster B-4 English
4. Your B-4
Technical specifications
Supply voltage 12 – 20 V AC voltage
12 – 26 V DC voltage
Maximum output current 2, 3, 4 or 5 A
Output voltage 10 – 24 volts digital voltage
Power max. 120 Watt
Digital formats DCC, Motorola,
mfx (control commands only)
Feedback log RailCom
Interface DCC-conforming booster port
(3-pole)
Track signal symmetrical
Protected to IP 00
Ambient temperature in use 0 ... +60 °C
Ambient temperature in storage -10 ... +80 °C
Comparative humidity allowed max. 85 %
Dimensions approx. 95 x 135 x 45 mm
Weight - without display
- with display
approx. 238 g
approx. 254 g
Page 7
tams elektronik
English Booster B-4
Front side of the B-4
1 LED
2 7- segment display
(item no. 40-19417)
Data formats and ports
The B-4 is a multi protocol booster and capable of amplifying data sent
in the Motorola or the DCC format. It transmits control commands in
mfx-format as well, but no mfx feedback signals.
It can be connected either to a DCC-conforming booster port or to the
rail output of the control unit.
RailCom
The booster B-4 can provide the so-called RailCom-cutout needed to
transfer RailCom-feedback data in RailCom-monitored sections.
When using the B-4 with control units sending a DCC signal but not
compatible to RailCom, providing the RailCom-cutout can cause
malfunction. Some older DCC vehicle decoders and current decoders
(especially of US American manufacturers) which are not designed for
use with Railcom, do not react to driving commands properly with the
RailCom cutout activated. With sound decoders not compatible to
RailCom interferences in the sound playback can occur.
Thus with the B-4 it is possible to switch RailCom on or off (at delivery
RailCom is switched on). With pure Motorola control units, malfunction
due to sending the RailCom-cutout is impossible on principle.
Page 8
tams elektronik
Booster B-4 English
Using the ABC-braking method
The booster amplifies the track signal completely symmetrically. This
allows the ABC-braking method to be used in DCC-controlled layouts.
The DCC-input of the booster B-4 is isolated through an opto-coupler.
Balanced track voltage
The booster B-4 provides a regulated track voltage, which can be set to
a value between 10 and 24 V in 1 V-steps. At delivery the track voltage
is set to 18 V.
Regulating the track voltage to a constant value prevents changes in
locomotive speeds and lighting brightness, resulting from voltage
variations.
Rated size Recommended track
voltage
Value in state of delivery
Z 12 V
N and TT 14 V
H0 18 V 18 V
0, I and II 20 - 24 V
Short-circuit protection
The Booster B-4 provides an intergrated short circuit breaking in shape
of an integrated current limitation. This causes the booster to switch off
automatically when a short circuit occurs at the track output and thus
prevents damages to the booster, the tracks and the vehicles.
When the short circuit feedback line is connected to the booster port of
the control unit, the B-4 sends a feedback to the DCC control unit when
a short circuit occurs and then the control unit switches off the booster.
The short circuit sensitivity or the interrupting current, can be set to 2,
3, 4 or 5 A. In order to prevent damage effectively when a short circuit
occurs, the short circuit sensitivity should not be set too high.
Page 9
tams elektronik
!
English Booster B-4
Rated size Recommended short
circuit sensivity
(= interrupting current)
Value in state of delivery
Z and N 2 A
TT and H0 3 A
0, I and II > 4 A 5 A
Please note:
The set short circuit sensitivity should not exceed the maximum
transformer´s current. In case the maximum interrupting current is
higher than the maximum transformer´s current, the booster cannot
detect an overcurrent and thus does not switch off the current to
protect electronic components, vehicles and the tracks from damage.
Risk of fire !
Automatic switching on after a short circuit
After a short circuit the B-4 switches on automatically after 4 to 10
seconds (adjustable). If the short circuit is still there, it switches off
again immediately.
In state of delivery, the automatic switching on will be interrupted for
one minute after the booster has been switched on and off five times.
This autostarting time can be set individually:
to the set autostarting time after a short circuit (4 to 10 seconds) or
to an individual autostarting time between 0 and 90 seconds
(adjustable in 10 sec.-steps).
Page 10
tams elektronik
Booster B-4 English
Short circuit warning
As a basis for a PC controlled booster management the B-4 can send a
short circuit warning when a limiting value underneath the set
interrupting current is exceeded. The PC control can switch off carriage
lighting in an overloaded booster section then, for example, when a
short circuit due to overload is imminent.
The limiting value for the short circuit warning can be set from a value
0 to 1.0 A below the set interrupting current. The short circuit warning
is sent as in form of a second pulse periodical switching on and off in
the short circuit feedback line.
Switching off at overtemperature
When overheating the booster switches off automatically for safety
reasons. Possible causes:
Hindrance to the flow of air through the ventilation slits at the
booster´s top and back surface.
Significantly higher rated voltage of the transformer than the set
track voltage in combination with a high current consumption.
Watchdog function
With this function the control unit (usually controlled by a PC software)
sends in intervalls of 5 seconds a DCC points switching command to an
address assigned to the B-4. As soon as the B-4 does not receive these
commands any longer, it switches off automatically.
After switching on the booster the watchdog function is initially inactive.
It will be activated by sending a switching command to the assigned
points address. This allows you to run the layout without a PC control
and without deactivating the watchdog function.
Page 11
tams elektronik
English Booster B-4
Switching on and off the B-4 with a DCC points switching
command
The B-4 can be switched on and off via a a DCC point switching
command sent to an assigned points address.
Points "straight" à B-4 on
Points "branch" à B-4 off
Page 12
tams elektronik
Booster B-4 English
5. Splitting your model railway layout
Split your model railway layout in several track sections electrically
isolating them from each other. Every section has to be supplied by a
booster of its’ own. In each section a maximum of three to five
locomotives should run at the same time. The following divisions are
useful:
station
engine sheds
the main lines (if necessary in several sections)
the branch lines (if necessary in several sections)
Make sure that section borders are not crossed too often.
Isolate the borders between the booster sections as follows:
With 2-rail systems: one rail. Be sure to isolate in all booster sections
on the same rail ("left" or "right"). In large confusing layouts it is
recommended to isolate both rails.
With 3-rail systems: the middle conductor.
Page 13
tams elektronik
English Booster B-4

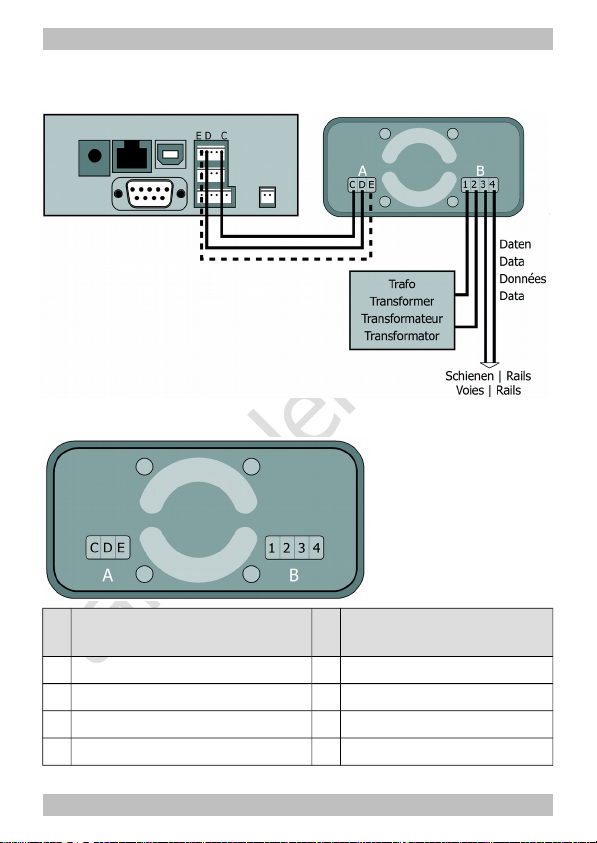

6. Connecting the B-4
Connections control unit
E Short circuit report wire
D Ground
C Data
Connections
Rear side of the B-4
A Connections to the control unit
and following boosters
B Connections to the
transformer and the tracks
C data (+) 1 transformer
D earth / data (-) 2 transformer
E short circuit feedback line 3 outer conductor / left rail
4 middle conductor / right rail
Page 14
tams elektronik
!
Booster B-4 English
In order to connect the cables to the booster use the enclosed
connectors which are designed to screw on the cables.
Please note:
Do not block the flow of air through the ventilation slits at the booster
´s top and back surface, otherwise the booster can overheat. Risk of
fire! You should never cover the ventilation slits. When connecting the
booster be sure to keep sufficient distance to other devices, walls, and
the like.
Connecting the control unit
You can connect the connection "A" of the booster either to
the control unit´s track output (connections C and D only) or
the control unit´s DCC booster connection.
Check that the pin assignment of the control unit´s booster interface
corresponds to that of the booster.
If you want the control unit to switch off the booster when a short
circuit occurs, you have to connect the short circuit feedback line. If
you do not connect the short circuit feedback line, the booster will be
switched off automatically when a short circuit occurs and automatically
on again after a set time.
Connecting an additional booster
In order to connect another booster connect an additional cable to each
of the three connections of "A" .
Hint: Only use boosters of one type and made by one manufacturer to
avoid problems such as:
Problems with data transfer to the decoders.
Current leakage that make locomotives move by themselves when
other locomotives cross the borders between two track sections.
Short circuits when crossing sections.
Page 15
tams elektronik
!
!
English Booster B-4
Connecting the tracks
Connect the booster´s track port to both rails (with 2-rail systems) or to
one rail and the middle conductor (with 3-rail systems). These
connections should be repeated every 2-3 meters, because the
resistance at the connection points of the tracks is quite high. When
choosing too high intervals, problems with the short circuit indication or
the power supply of the vehicles may occur.
Please note:
The connection order of the rails (or the rail and the middle conductor)
to the two poles of the track port is not significant, if you haven’t
already connected a booster to your layout. If you have then please
note:
The left pole of the second booster´s track port has to be connected
to the same rail as the left pole of the booster already connected. The
same goes of course for the right pole of the boosters´track ports. In
case the connections are mixed up short circuits will occur when
vehicles cross the boundries of the track sections.
Connecting the power supply
Connect the transformer to the booster´s transformer port. The
required voltage and the minimum power of the booster depend on the
desired track voltage and the desired interrupting current. See section
"Determining the necessary transformer´s voltage" on page 5.
Please note:
You must not interchange the connections to the tracks and to the
transformer. Interchanging these connections normally causes
damages at the booster, in the worst case beyond repair.
Page 16
tams elektronik
Booster B-4 English
7. Settings
The booster B-4 can be set to individual requirements by programming
on main (POM) or by inserting short-circuit terminations (jumpers).
Possible settings Manu-
facturers
settings
Setting
with
jumpers
Track voltage 10 – 24 V, to be set
in 1 V-steps
18 V yes,
16 – 22 V
Autostarting time
after a short circuit
4 – 10 Sek., to be
set in 1 sec.-steps
4 sec. 4 sec.or
10 sec.
Max. track current
(interrupting
current after a short
circuit)
2 – 5 A,
to be set in
1 A-steps
5 A yes
RailCom active or inactive active no
Switching off with a
DCC points
switching command
active or inactive /
assigning the points
address
inactive no
Watchdog active or inactive /
assigning the points
address
inactive no
Limiting value for
short circuit
warning
0,2 – 1 A,
to be set in
0,2 A-steps
0 A
inactive
no
Autostarting time
after 5 short circuits
10 – 100 sec. 60 sec. no
Page 17
tams elektronik
English Booster B-4
7.1. Programming the B-4
The booster B-4 is set by programming on main (POM). This is possible
only with control units supporting this programming mode.
In order to start programming the booster, input the value "62" for
CV#7 of any DCC locomotive address. Proceed as described in the
manual of your control unit. This input has no effect on a decoder with
the chosen address, as locomotive decoders do not allow setting a
value for CV#7 (= version).
After having started the programming mode (input the value "62" for
CV#7), the LED flashes quickly with a yellow light. You can now alter
the booster´s settings by choosing CV#7 again and inputting a value
from the following list.
If you do not input a value for CV#7 within 30 seconds, the
programming mode will be switched off. After setting the value the
programming mode is ended automatically. If you want to alter further
settings, you have to start the programming mode again by inputting
the value "62" for CV#7.
Page 18
tams elektronik
Booster B-4 English
Function Value for
CV#7
Settings / Remarks
Reset 8 Reset. Sets the values back to the
default values.
Track voltage
(output value)
Default value: 18 V
10 10 volts
11 11 volts
12 12 volts
... 13 ... 23 volts
24 24 volts
Autostarting time
after a short circuit
Default value:
4 sec.
34 4 seconds
35 5 seconds
36 6 seconds
... 7 ... 9 seconds
40 10 seconds
Max. track current
(interrupting
current)
Default value: 5 A
42 2 amperes
43 3 amperes
44 4 amperes
45 5 amperes
RailCom. Default
value: active
51 active
52 inactive
Switching off with a
DCC points
switching command
Default value:
inactive
71 active
72 inactive
73 Change over into the progr. mode.
When within 30 sec. a DCC points switching
command is set, the B-4 takes over the
corresponding points address to release the
switching off funtion.
Condition: Switching off function = "active".
Page 19
tams elektronik
English Booster B-4
Function Value
for
CV#7
Settings / Remarks
Watchdog
Default value:
inactive
74 active
75 inactive
76 Change over into the programming mode.
When within 30 sec. a DCC points switching command is
set, the B-4 takes over the corresponding points address
to release the watchdog funtion.
Condition: Watchdog funtion = "active".
Limiting value
for short circuit
warning
Default value:
0 A
81 0 A Hint: The short circuit warning will
be sent, when the set interrupting
current less the value is exceeded.
Example:
Interrupting current = 3 A
set = 0,2 A
à limiting value for the short
circuit warning = 2,8 A
82 0,2 A
83 0,4 A
84 0,6 A
85 0,8 A
86 1,0 A
Autostarting
time after 5
short circuits
Default value:
60 sec.
100 = set autostarting time after a short circuit
101 10 Sekunden
102 20 Sekunden
103 30 Sekunden
... 40 - 80 Sekunden
109 90 Sekunden
Page 20
tams elektronik
Booster B-4 English
7.2. Setting the B-4 with jumpers
With control units not supporting programming on main (POM) the
booster B-4 can be set by inserting short-circuit terminations (jumpers).
Please note: It is not possible to set the whole range of values by
inserting jumpers.
Before inserting the jumpers you have to open the booster´s housing.
In order to release the clips bolting the two red half shells of the
housing, press in the housing on it´s side above / underneath the
ventilations slits. It is recommend to release the clips on one side first
and then on the opposite side.
Assignment of the programming jumpers
Page 21
Set the jumpers on the PCB is shown in the figure. When no jumper
is inserted the programmed values are set.
tams elektronik
English Booster B-4
Jumper Settings
JP1 inserted, JP2 open Track voltage = 16 volts
JP1 + JP2 open Track voltage = 18 volts (in state of
delivery) or the last set value
JP2 inserted, JP1 open Track voltage = 20 volts
JP1 + JP2 inserted Track voltage = 22 volts
JP3 + JP4 inserted Max. track current (interrupting current)
= 2 amperes
JP3 inserted, JP 4 open Max. track current (interrupting current)
= 3 amperes
JP4 inserted, JP3 open Max. track current (interrupting current)
= 4 amperes
JP3 + JP4 open Max. track current (interrupting
current)= 5 amperes (in state of delivery)
or the last set value
JP5 open Autostarting time after a short circuit
= 4 seconds (in state of delivery) or the
last set value
JP5 inserted Autostarting time after a short circuit
= 10 seconds
Page 22
tams elektronik
Booster B-4 English
8. Operation
Shunting the boundry between two booster sections
You should take care not to allow locomotives or trains to halt directly
on the boundary between two sections. This would lead to a connection
between the outputs and possible damaging of the two connected
boosters. The short circuit indication does not work under these
circumstances.
LED
The LED on the front lights or flashes indicating the operation modes or
problems that occur.
LED Meaning
red – constantly lighting Short circuit at the track output.
red – quickly flashing Switching off after exceeding the
max. temperature.
yellow – constantly lighting Booster in operation.
yellow – slowly flashing
(approx. 1 sec. cycle)
No signal from the control unit.
yellow – quickly flashing Programming has been started.
yellow – 2x flashing | break |
2x flashing
The booster has been switched off by
a points switching command.
red – 2x flashing | break |
2x blinken
The watchdog has been released and
the booster has been switched off in
consequence.
Page 23
tams elektronik
English Booster B-4
Display
In the version art.-no. 40-19417 the booster B-4 has a two-digit 7segment display. During operation it shows the present current [A]. After
a short circuit the remining seconds till the re-switching on are displayed.
In addition, the display shows the following operating status:
Display Meaning
− −
− −
The booster has been switched off by a points
switching command.
− −
− −
The watchdog has been released and the booster
has been switched off in consequence.
This version also enables you to read out and display the current
booster´s settings.
In order to read out the settings, input the value "62" for CV#7 for any
DCC locomotive address. Proceed as described in the manual of your
control unit. After having chosen CV#7 again and set a value from the
following list for this value, the current setting is shown.
Value for CV#7 Currently set value
91 Autostarting time after 5 short circuits
92 Limiting value for short circuit warning [A]
93 Watchdog:"ON" = active, "OF" = inactive
94 Switching off command: "ON" = active, "OF" =
inactive
95 Software release
96 Autostarting time after a short circuit [sec.]
97 Railcom. "ON" = active, "OF" = inactive
98 Track voltage [V]
99 Max. track current (interrupting current) [A]
Page 24
tams elektronik
!
Booster B-4 English
9. Check list for troubleshooting
The booster is getting very hot and/or starts to smoke.
Disconnect the system from the mains immediately!
Possible reason: The connections to the track and the power supply
have been mixed up. à Alter the connections. Possibly the booster
has been damaged.
The LED at the booster does not light and the locomotives cannot be
driven.
Possible reason: The power supply has been interrupted. à Check
the connections to the power supply (transformer).
The LED flashes slowly in the colour yellow.
Possible reason: The control unit has been switched off or the
connection to the control unit has been interrupted. à Check the
control unit and the connections.
The booster switches off, the LED flashes quickly in the colour red.
Possible reason: The booster is poorly ventilated. à Ensure the
ventilation slits at the booster´s top and back surface allow the air to
flow unhindered.
Possible reason: The nominal voltage is a lot higher than the set
track voltage. The power resulting from the difference between the
real transformer´s voltage and the desired track voltage and the
taken current has to be dissipated as heat by the booster. If this
power is too high, the booster overheats and switches off due to
overtemperature. à Use a transformer with a nominal voltage
minimally higher than the set track voltage.
The LED on the booster lights alternatively red and yellow, then red
for appr. 1 minute, then alternatively red and yellow again.
Possible reason: There is a short circuit at the track output.
Therefore the booster switches off automatically and after the set
Page 25
tams elektronik
English Booster B-4
autostarting time automatically on again. In case the short circuit is
still there after autostarting, the booster switches off immediately.
This procedure is repeated five times, followed by a one minute
break. à Eliminate the short circuit.
The watchdog function is not active after switching on the booster
although it has been set active.
Possible reason: The watchdog function will only be activated after a
switching command has been sent to the assigned points address.
à Enter a switching command for the points address.
After a points switching command the booster has been switched off,
the LED flashes yellow.
Possible reason: The points address in question has been assigned to
the function "switching off by a DCC switching command". à Set
the function inactive or avoid to use the points address in question.
After a points switching command the booster has been switched off,
the LED flashes red.
Possible reason: The points address in question has been assigned to
the watchdog function, but there is no PC Control with this function
in use. à Set the function inactive or avoid to use the points
address in question.
Page 26
tams elektronik
Booster B-4 English
Hotline: If problems with your device occur, our hotline is pleased to
help you (mail address on the last page).
Repairs: You can send in a defective device for repair (address on the
last page). In case of guarantee the repair is free of charge for you.
With damages not covered by guarantee, the maximum fee for the
repair is 50 % of the sales price according to our valid price list. We
reserve the right to reject the repairing of a device when the repair is
impossible for technical or economic reasons.
Please do not send in devices for repair charged to us. In case of
warranty we will reimburse the forwarding expenses up to the flat rate
we charge according to our valid price list for the delivery of the
product. With repairs not covered by guarantee you have to bear the
expenses for sending back and forth.
Page 27
tams elektronik
English Booster B-4
10. Guarantee bond
For this product we issue voluntarily a guarantee of 2 years from the
date of purchase by the first customer, but in maximum 3 years after
the end of series production. The first customer is the consumer first
purchasing the product from us, a dealer or another natural or juristic
person reselling or mounting the product on the basis of selfemployment. The guarantee exists supplementary to the legal warranty
of merchantability due to the consumer by the seller.
The warranty includes the free correction of faults which can be proved
to be due to material failure or factory flaw. With kits we guarantee
the completeness and quality of the components as well as the function
of the parts according to the parameters in not mounted state. We
guarantee the adherence to the technical specifications when the kit
has been assembled and the ready-built circuit connected according to
the manual and when start and mode of operation follow the
instructions.
We retain the right to repair, make improvements, to deliver spares or
to return the purchase price. Other claims are excluded. Claims for
secondary damages or product liability consist only according to legal
requirements.
Condition for this guarantee to be valid, is the adherence to the
manual. In addition, the guarantee claim is excluded in the following
cases:
if arbitrary changes in the circuit are made,
if repair attempts have failed with a ready-built module or device,
if damaged by other persons,
if damaged by faulty operation or by careless use or abuse.
Page 28
tams elektronik
Booster B-4 English
11. EU declaration of conformity
This product conforms with the EC-directives mentioned below
and is therefore CE certified.
2004/108/EG on electromagnetic. Underlying standards: EN 55014-1
and EN 61000-6-3. To guarantee the electromagnetic tolerance in
operation you must take the following precautions:
Connect the transformer only to an approved mains socket installed
by an authorised electrician.
Make no changes to the original parts and accurately follow the
instructions, connection diagrams and PCB layout included with this
manual.
Use only original spare parts for repairs.
2011/65/EG on the restriction of the use of certain hazardous
substances in electrical and electronic equipment (ROHS). Underlying
standard: EN 50581.
12. Declarations conforming to the WEEE directive
This product conforms with the EC-directive 2012/19/EG on
waste electrical and electronic equipment (WEEE).
Don´t dispose of this product in the house refuse, bring it to the next
recycling bay.
Page 29
tams elektronik
English Booster B-4
Page 30
tams elektronik
Booster B-4 English
Page 31
tams elektronik
n
n
Information and tips:
n
n
http://www.tams-online.de
n
n
n
Warranty and service:
n
n
Tams Elektronik GmbH
n
Fuhrberger Straße 4
DE-30625 Hannover
fon: +49 (0)511 / 55 60 60
fax: +49 (0)511 / 55 61 61
e-mail: modellbahn@tams-online.de
n
n
n
n
Loading...
