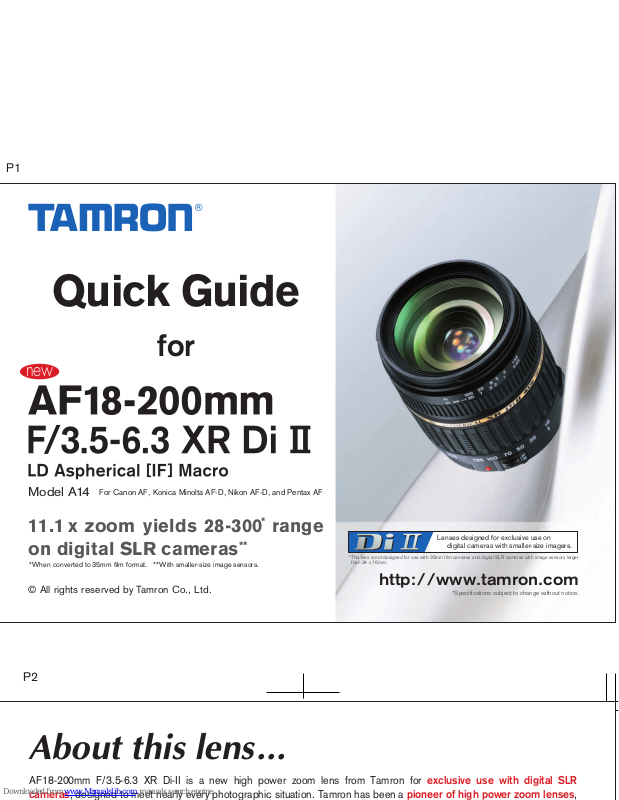

Model A14
For Canon AF, Konica Minolta AF-D, Nikon AF-D, and Pentax AF
11.1 x zoom yields 28-300* range
on digital SLR cameras
**
*When converted to 35mm film format. **With smaller-size image sensors.
new
http://www.tamron.com
Quick Guide
for
Lenses designed for exclusive use on
digital cameras with smaller-size imagers.
*This lens is not designed for use with 35mm film cameras and digital SLR cameras with image sensors larger
than 24 x 16mm.
*Specifications subject to change without notice.
© All rights reserved by Tamron Co., Ltd.
P1
P2
AF18-200mm F/3.5-6.3 XR Di-II is a new high power zoom lens from Tamron for exclusive use with digital SLR
cameras, designed to meet nearly every photographic situation. Tamron has been a pioneer of high power zoom lenses,
About this lens...
Page 2
1
AF18-200mm F/3.5-6.3 XR Di-II is a new high power zoom lens from Tamron for exclusive use with digital SLR
cameras, designed to meet nearly every photographic situation. Tamron has been a pioneer of high power zoom lenses,
which cover everything from wide-angle to ultra telephoto with just one lens, and its representative product, 28-300mm
XR, is a great hit all over the world, supported by a number of prestigious awards bestowed worldwide.
The new AF18-200mm lens is designed to cover the same range as the 28-300mm does on a 35mm film camera, when
used with a digital SLR camera
*
. *With smaller-size image sensor.
About this lens...
Why is it so convenient?

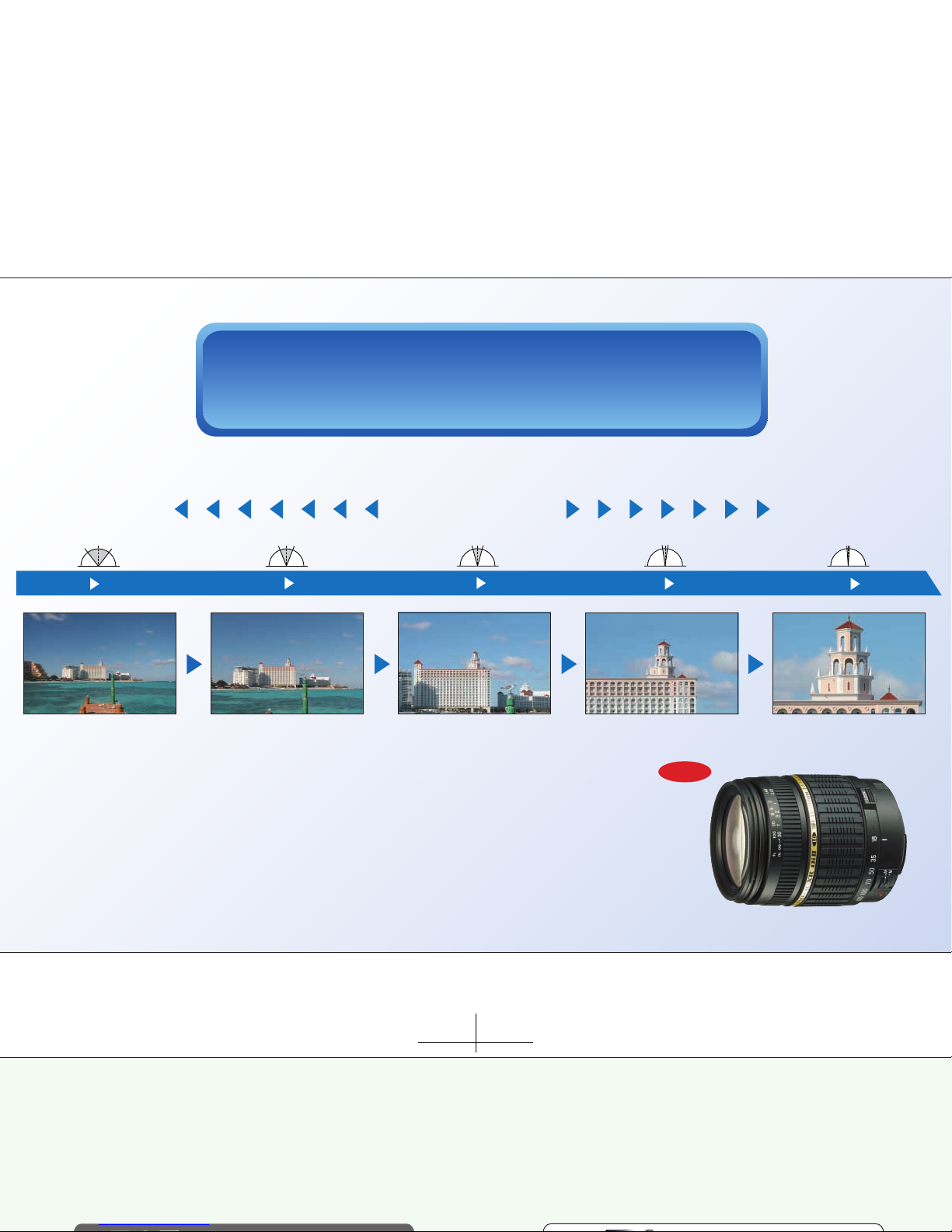

Indoor snap shots (wide-angle)
Close-ups of flowers etc. (macro capability)
Far-away subjects (ultra telephoto)
The lens covers nearly every photographic situation such as ...
Changing lenses is not necessary since it covers
nearly every photographic situation.
Wide-angle Zoom
Telephoto Zoom Super High Power Zoom
(For film) (For film)
(For film)
(Evclusively for digital)
18mm
50mm
100
mm
200
mm
28mm
Equivalent
78mm
Equivalent
35mm
54mm
Equivalent
155mm
Equivalent
300mm
Equivalent
Diagonal
75˚33'
Horizontal
65˚36'
Diagonal
31˚11'
Horizontal
26˚7'
Diagonal
15˚53'
Horizontal
13˚14'
Diagonal
7˚59'
Horizontal
6˚38'
Diagonal
43˚28'
Horizontal
36˚40'
Angles of View
Page 3
1
2
...Therefore, you won’t miss any shots, and chance of dust
or dirt getting in your camera on the CCD is minimized.
XR, is a great hit all over the world, supported by a number of prestigious awards bestowed worldwide.
The new AF18-200mm lens is designed to cover the same range as the 28-300mm does on a 35mm film camera, when
used with a digital SLR camera
*
. *With smaller-size image sensor.
Why is it so convenient?
Indoor snap shots (wide-angle)
Close-ups of flowers etc. (macro capability)
Far-away subjects (ultra telephoto)
The lens covers nearly every photographic situation such as ...
Changing lenses is not necessary since it covers
nearly every photographic situation.
Amazingly compact and lightweight.
You can comfortably carry it anywhere, anytime.
Ideal to bring along
on your travels!
weight
398g
(
14oz
.)
*
weight
665g
(
23.4oz
.)
*
*Values given are for the Nikon AF.
Wide-angle Zoom
Telephoto Zoom Super High Power Zoom
(For film) (For film)
(For film)
(Evclusively for digital)
18mm
50mm
100
mm
200
mm
28mm
Equivalent
78mm
Equivalent
35mm
54mm
Equivalent
155mm
Equivalent
300mm
Equivalent
Diagonal
75˚33'
Horizontal
65˚36'
Diagonal
31˚11'
Horizontal
26˚7'
Diagonal
15˚53'
Horizontal
13˚14'
Diagonal
7˚59'
Horizontal
6˚38'
Diagonal
43˚28'
Horizontal
36˚40'
Angles of View
28-80mm
70-300mm
Page 4
P4
For Nikon AF-D
For Konica Minolta AF-D
For Canon AF
For Pentax AF
Tamron offers the AF18-200mm F/3.5-6.3 XR Di-II in four different mounts.
Please be sure to select the appropriate mount for your digital SLR camera.
Does it fit my camera?
Tamron’s AF18-200mm F/3.5-6.3 XR Di-II is designed for exclusive use on digital SLR cameras
with smaller-size imagers. Please note it cannot be used with compact digital cameras, 35mm
film cameras and digital SLR cameras with image sensors larger than 24mm x 16mm.
Digital SLR
with image sensor
smaller than
24mm x 16mm
compact
digital camera
35mm
film camera
35mm
film camera
Page 5
(designed for exclusive use on digital SLR cameras
with smaller-size imagers)
What does
mean?
Page 6
P6

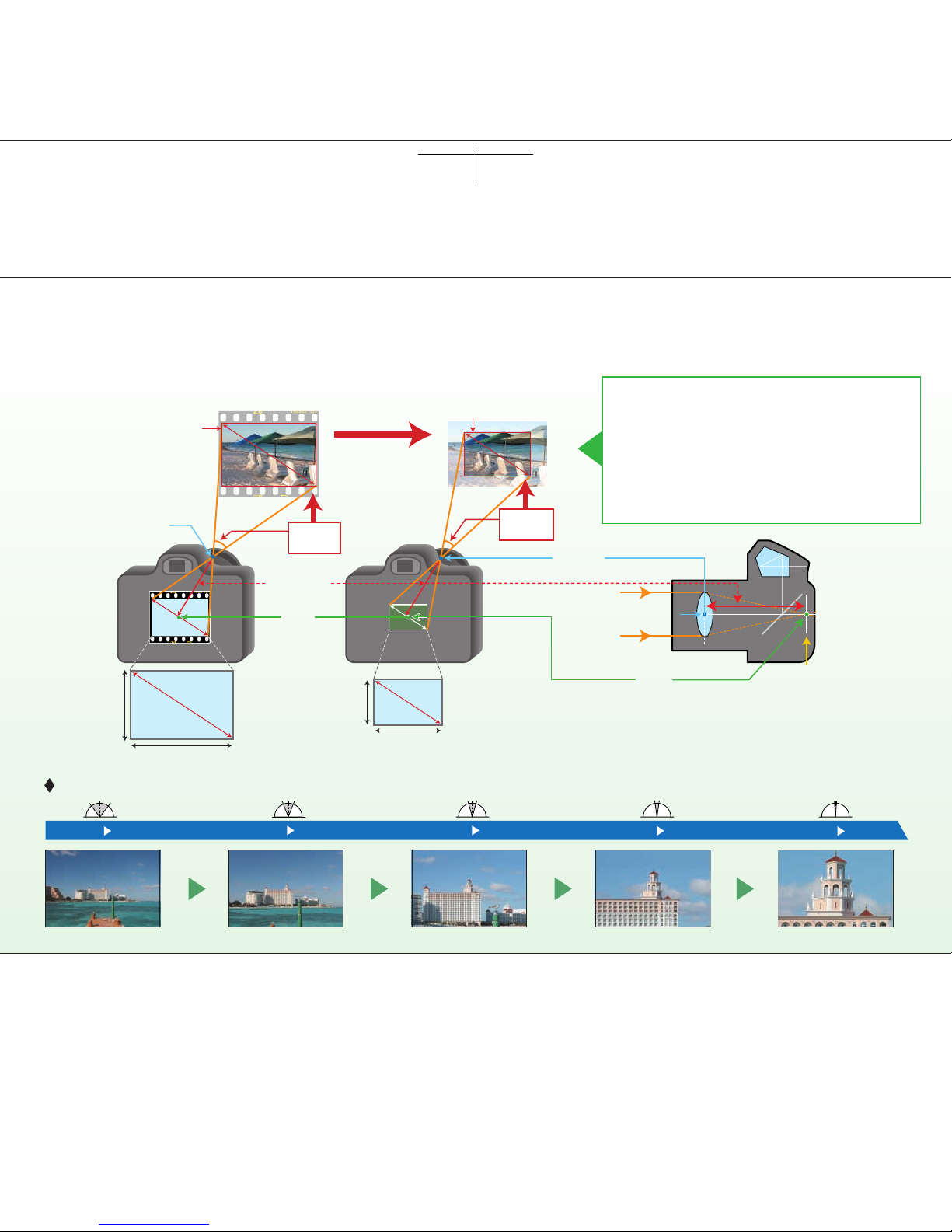

Designed to capture the optimum scope when used
with a digital SLR camera
36mm
24mm
43.27mm
Film
35mm Film
about 23.2mm
about 15.5mm
27.9mm
Digital SLR with smaller-size imager
35mm Film
Principal
point
Principal
point
Angle of view
75˚ 23'
Angle of view
52˚ 58'
Lights
Camera
Focal
point
Focal
point
Film/
Image Sensor
Same
Focal Length
28mm
Mirror
sensor
General
Image Sensor
Focal Length
Imgaer taken with a digital
SLR with a smaller-size
imager are actually cropped to about 70% scope.
*The general image sensors
(smaller-size imagers) are
about 24mm x 16mm.
However, the dimensions and
effective size differ depending
upon manufacturers.
18mm
28mm
Equivalent
50mm
78mm
Equivalent
35mm
54mm
Equivalent
100
mm
155mm
Equivalent
200
mm
300mm
Equivalent
Diagonal
75˚33'
Horizontal
65˚36'
Diagonal
31˚11'
Horizontal
26˚7'
Diagonal
15˚53'
Horizontal
13˚14'
Diagonal
7˚59'
Horizontal
6˚38'
Diagonal
43˚28'
Horizontal
36˚40'
Angles of View
Since the sizes of 35mm film format are different from
the image sensor of a digital camera, the scope of the
image captured is different even when focal lengths
are the same (i.e., angles of view differ).
The 18-200mm Di II is designed to capture optium
scope when used with a general digital SLR, especially at its wide angle side.
(designed for exclusive use on digital SLR cameras
with smaller-size imagers)
mean?
Page 7
P8
Film and Digital --
Angle of View and Focal Length
P7
Designed to fit smaller-size image sensors
in order to reduce its diameter
General
Image sensor
*When pictures taken with a
Di-II lens mounted on a 35mm
film camera or digital SLRs
with image sensor larger than
24mm x 16mm, image corners
become dark
( ie., vignetting
becomes noticeable).
Image circle
for Di II lenses
Vignetting when used
with a 35mm format camera
35mm Film

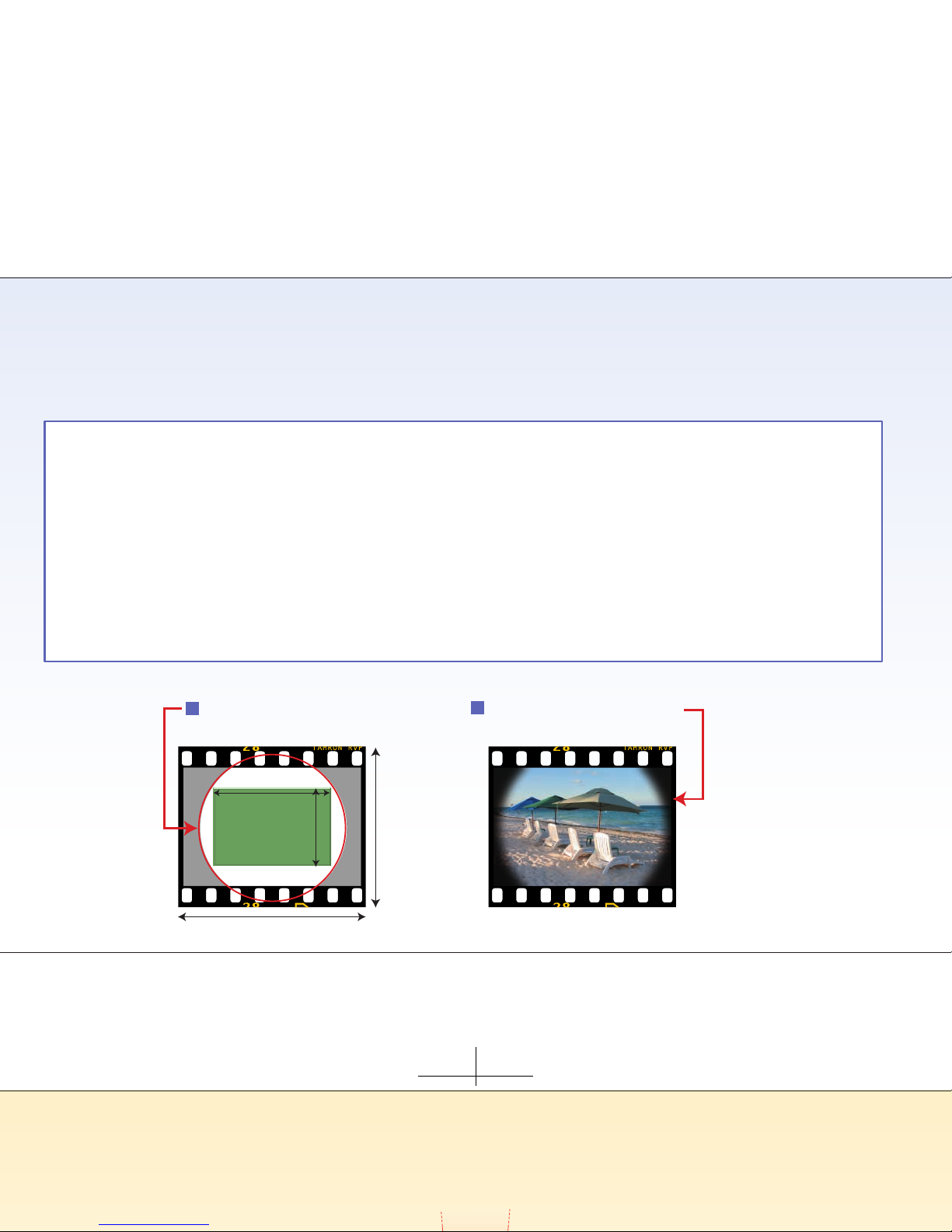

When designing a lens having a short focal length range (when designing a
wideangle lens), the diameter of the lens inevitably becomes large. However, in
designing the 18-200mm Di II lens, Tamron has successfully solved this problem
by using an image circle designed to match that of general image sensor (smaller-
size image sensor), achieving almost the same compactness as the 28-300mm
lens (A061), which offers the same angles of view produced in 35mm film format.
36mm
24mm
about 23.2mm
about 15.5mm
Page 8

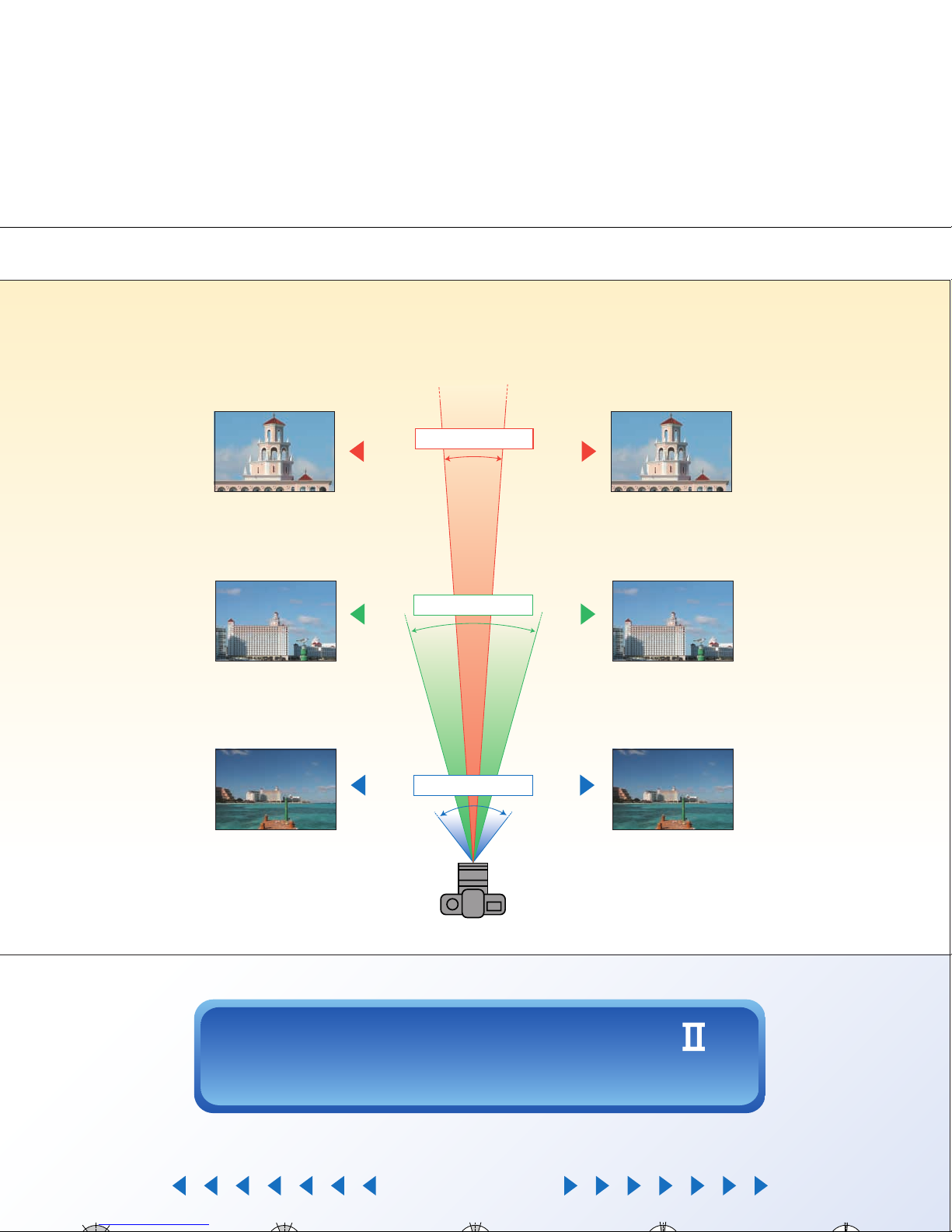

Film and Digital
--
Angle of View and Focal Length
Film : 300mm
Digital : 200mm
Digital : 50mm
Film : 78mm
Digital : 18mm
Film : 28mm
*Film = 35mm format.
Diagonal
Horizontal
Diagonal
AF18-200mm
Telephoto
7˚59'
Standard
31˚11'
Wide 75˚33'
*Digital = Digital cameras with smaller-size imagers.
Diagonal
Diagonal
Diagonal
Tamron 18-200mm Di
-
Different angles of view
-
Page 9
Tamron's Di
(
Digitally Integrated design)
lens series
P9
P10
Diagonal
75˚33'
Horizontal
65˚36'
35mm
54mm
Equivalent
Diagonal
43˚28'
Horizontal
36˚40'
AF18-200mm
18mm
28mm
Equivalent
50mm
78mm
Equivalent
Diagonal
31˚11'
Horizontal
26˚ 7'
100
mm
155mm
Equivalent
Diagonal
15˚53'
Horizontal
13˚14'
200
mm
300mm
Equivalent
Diagonal
7˚ 59'
Horizontal
6˚38'
AF18-200mm
Model A14
Tamron 18-200mm Di II
-
Different angles of view
-
new
Page 10
Tamron's Di
(
Digitally Integrated design)
lens series

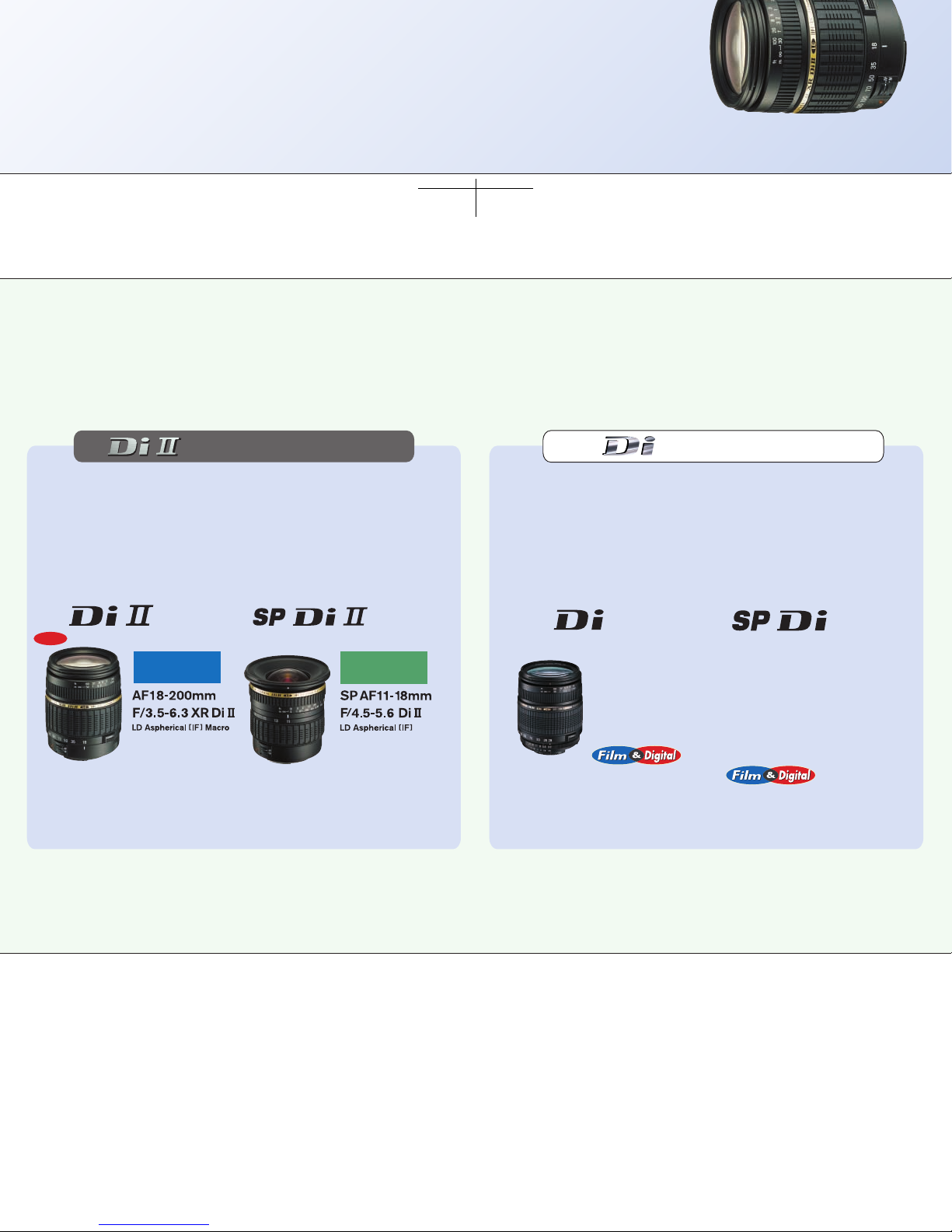

Lens Lens
Exclusively for digital
For film & digital
NOTE : Vignetting occurs when pictures are taken with a Di-II lens mounted on an 35mm film SLR camera or a digital
SLR camera with an image sensor larger than 24 x 16mm.
*The angles of view obtained by a "Di" lens mounted on a digital camera with smaller-size imagers differ from those
obtained by the same lens mounted on a 35mm format film camera.
High Power
Zoom
(Model A14)
Equivalent to 28-300mm
Wide-angle
Zoom
(Model A13)
Equivalent to 17-28mm
Designed for exclusive use on digital cameras
with smaller-size imagers.
Di-II lenses are designed exclusively for digital SLRs with smaller-size imagers.
This series of lenses is not designed for 35mm film format cameras and digital
SLR cameras with image sensors larger than 24 x 16mm.
Designed for use with both 35mm film SLR
and digital cameras.
Di lenses are designed to fit the characteristics of digital cameras as well as
film cameras by incorporating countermeasures against ghosting and flare
through such advances as special coatings
.
(Model A061)
SP AF17-35mm Di (Model A05)
SP AF28-75mm Di (Model A09)
SP AF90mm Di (Model 272E)
SP AF180mm Di (Model B01)
SP AF200 -500mm Di
(Model A08)
AF28-300mm
F
/
3.5-6.3 XR Di
LD Aspherical [IF] Macro
Super Performance
Super Performance
Lens
Lens
new
*
Available in late spring 2005.
P10
Diagonal
75˚33'
Horizontal
65˚36'
35mm
54mm
Equivalent
Diagonal
43˚28'
Horizontal
36˚40'
AF18-200mm
18mm
28mm
Equivalent
50mm
78mm
Equivalent
Diagonal
31˚11'
Horizontal
26˚ 7'
100
mm
155mm
Equivalent
Diagonal
15˚53'
Horizontal
13˚14'
200
mm
300mm
Equivalent
Diagonal
7˚ 59'
Horizontal
6˚38'
AF18-200mm
Model A14
new
Page 11
http://www.tamron.co.jp/
A14T-EG-111-A-05-0000
Manufacturer of precise and
sophisticated optical products
for a broad range of industries.
Quality Assurance Activities :At Tamron, quality management
activities are performed in compliance with ISO9001:2000 for the
purpose of not only assuring product quality but also for enhancing
customer satisfaction.
Environmental Protection :We recognize the significance of our social
responsibilities. Tamron promotes corporate activities that protect the
earth's environment through the establishment of a quality assurance
system that is compliant with ISO14001.
TAMRON CO., LTD.
TAMRON USA, INC.
TAMRON EUROPE GmbH.
*Specifications subject to change without notice. 2005.3
Head Office
17-11, 7-chome, Takinogawa, Kita-ku, Tokyo, Japan
TEL +81-(0)3-3916-0131 FAX +81-(0)3-3916-1860
10 Austin Boulevard, Commack, NY 11725, U.S.A. TEL +1-631-858-8400 FAX +1-631-543-3963
URL http://www.tamron.com
Robert Bosch-Str. 9,50769 Ko¨ ln, GERMANY TEL +49-221-970325-0 FAX +49-221-970325-4
URL http://www.tamron-europe.com
TAMRON FRANCE EURL.
5, avenue Georges Bataille F-60330 Le Plessis-Belleville Boite postale 31
TEL +33-3-44-60-73-00 FAX +33-3-44-60-23-34
TAMRON INDUSTRIES. (HONG KONG) LTD.
Sales Department
Units 931, 9F., Hong Kong International Trade & Exhibition Center, 1 Trademart Drive Kowloon Bay,
Hong Kong TEL +852-2721-7388 FAX +852-2311-7830
Purchase Department
Units 25, 27, 29 & 31, 9F., Hong Kong International Trade & Exhibition Center, 1 Trademart Drive
Kowloon Bay,
Hong Kong TEL +852-2721-7797 FAX +852-2620-1631
URL http://www.tamron.com.kh/
Overseas affiliates
TAMRON OPTICAL (FOSHAN) CO., LTD. Shanghai Office
No.1 Office (Overseas sales & marketing)
Room 1010, 10F Shanghai Times Square Office, 93 Huai Hai Zhong Road, Shanghai 200021, China
TEL +86-21-63910519 FAX +86-21-63910521
URL http://www.tamron.com.cn/
Loading...
