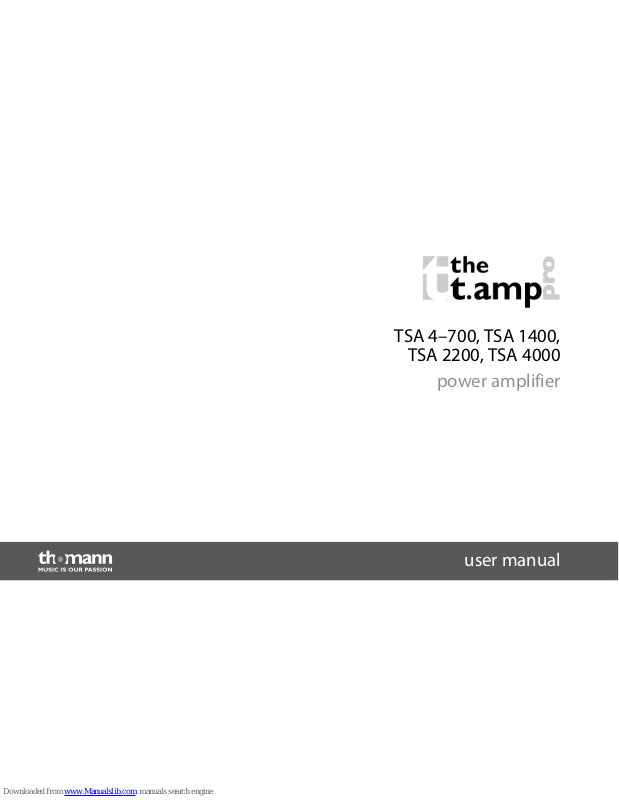

t.amp TSA 4–700, TSA 2200, TSA 400, TSA 1400 User Manual

TSA 4–700, TSA 1400,

TSA 2200, TSA 4000

power amplifier

user manual

Musikhaus Thomann e. K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de

13.12.2012

Table of contents

1 General notes............................................................................................................................................... 4

2 Safety notes.................................................................................................................................................. 7

3 Features....................................................................................................................................................... 12

4 Installation and operation.................................................................................................................. 13

4.1 Pin assignment.................................................................................................................................. 14

5 Connectors and controls...................................................................................................................... 16

6 Current consumption............................................................................................................................ 24

7 Technical data........................................................................................................................................... 27

8 Protecting the environment.............................................................................................................. 35

Table of contents

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

3

1

General notes

This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device, include the manual for
the next owner.

Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.

This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words

General notes

power amplifier

4

Signal word Meaning
DANGER! This combination of symbol and signal word

indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.

CAUTION! This combination of symbol and signal word

indicates a possible dangerous situation that
can result in minor injury if it is not avoided.

NOTICE! This combination of symbol and signal word

indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.

Warning signs Type of danger

Warning – high-voltage.

General notes

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

5

Warning signs Type of danger

Warning – danger zone.

General notes

power amplifier

6

2

Safety notes

This device amplifies electric audio frequency signals to operate passive speakers. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.

This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.

DANGER!
Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!

Never let children unattended use electrical devices.

Intended use

Safety

Safety notes

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

7

DANGER!
Electric shock caused by high voltages inside

Within the device there are areas where high voltages may be present. Never
remove any covers.

There are no user-serviceable parts inside.

DANGER!
Electric shock caused by short-circuit

Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.

Safety notes

power amplifier

8

CAUTION!
Possible hearing damage

The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.

Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use suffi‐
cient ear protectors.

NOTICE!
Risk of fire

Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.

Safety notes

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

9

NOTICE!
Operating conditions

This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.

NOTICE!
Power supply

Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.

Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.

Safety notes

power amplifier

10

NOTICE!
Magnetic fields

The device generates strong magnetic fields that can interfere with the function
of poorly shielded devices. The strongest magnetic fields are directly above and
below the power amplifier. Therefore, never place sensitive devices such as pre­amplifiers, radio transmission systems, or tape decks directly above or below the
power amplifier. When installing the power amplifier into a rack, you should place
it in the lowest position, and further equipment such as pre-amplifiers in the
highest position.

Safety notes

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

11

3

Features

Common features of all device models described here:

n built-in switched-mode power supply
n XLR inputs and outputs
n lockable NL4 output sockets
n protective circuits

– audio limiter
– thermal protection
– short-circuit protection

n suitable for 19" racks (2 rack units)

Device-specific features, see Ä Chapter 5 ‘Connectors and controls’ on page 16, Ä Chapter 6 ‘Cur‐
rent consumption’ on page 24 and Ä Chapter 7 ‘Technical data’ on page 27.

Features

power amplifier

12

4

Installation and operation

Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the device against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.

Establish all connections as long as the unit is switched off. Use the shortest possible high­quality cables for all connections.

Installation and operation

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

13

4.1

Pin assignment

XLR panel sockets are provided for signal inputs. XLR panel plugs are provided for signal out‐
puts. The figures and tables show the XLR pin assignment.

Balanced pinout:

1 Ground
2 Positive signal (+)
3 Negative signal (–)

Unbalanced pinout:

1 Ground
2 Signal
3 Jumpered with pin 1

XLR connections for signal
inputs/outputs

Installation and operation

power amplifier

14

The adjoining figure shows the pin assignment of the lockable NL4 panel connectors.NL4 panel connectors

Installation and operation

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

15

5

Connectors and controls

TSA 4-700 front panel

Connectors and controls

power amplifier

16

1 POWER

Mains switch to turn the device on/off.

2 LED indicators for channels CH-A … CH-D

These LEDs indicate the ready status of the device (Power), the input signal level (Signal / –20 / –15 / –10 / –5),
channel overdrive (Clip) and a fault condition (Fault).

3 CH-A … CH-D

Controls for input gain of channels CH-A to CH-D.

The Power LED is permanently lit during operation. The Signal / –20 / –15 / –10 / –5
LEDs respond to the input signal. If one of these LEDs is lit without an input signal
being present, disconnect the loudspeakers from the power amplifier and turn the
input gain control knobs of channels CH-A to CH-D to their minimum levels. If the
LEDs are still permanently lit, the device must be checked by an authorized technical
service centre.

Connectors and controls

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

17

TSA 4-700 rear panel

Connectors and controls

power amplifier

18

4 Plug for mains cable with fuse holder.
5 OUTPUT CH-A … CH-D

Signal outputs, designed as lockable NL4 panel sockets for connecting speakers.

6, 9, 10, 11 INPUT CH-A … CH-D

Signal input channels, designed as XLR socket pairs (input/output) for looping the signals through to other devices.

7 Stereo | Bridge selector switch

Switch for toggling between “Stereo” mode (all channels are operating independently of each other) and “Bridge”
mode (two channels are combined into a single one with double power output).

8 Lift | Ground selector switch

The Ground/Lift switch allows you to interrupt the connection between the device’s protective earth terminal and
signal ground in order to prevent hum loops (Lift/unpressed state: disconnected; Ground/pressed state: protective
earth terminal and signal ground are electrically connected).

Connectors and controls

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

19

TSA 1400, 2200, 4000 front
panel

Connectors and controls

power amplifier

20

1 POWER

Mains switch to turn the device on/off.

2 LED indicators for channels CH-A and CH-B

These LEDs indicate the ready status of the device (Power), the input signal level (Signal / –20 / –15 / –10 / –5),
channel overdrive (Clip) and a fault condition (Fault).

3 CH-A … CH-B

Controls for input gain of channels CH-A and CH-B.

The Power LED is permanently lit during operation. The Signal / –20 / –15 / –10 / –5
LEDs respond to the input signal. If one of these LEDs is lit without an input signal
being present, disconnect the loudspeakers from the power amplifier and turn the
input gain control knobs of channels CH-A and CH-B to their minimum levels. If the
LEDs are still permanently lit, the device must be checked by an authorized technical
service centre.

Connectors and controls

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

21

TSA 1400, 2200, 4000 rear panel

Connectors and controls

power amplifier

22

4 Plug for mains cable with fuse holder.
5 OUTPUT CH-A … CH-B

Signal outputs, designed as lockable NL4 panel sockets for connecting speakers.

6, 9 INPUT CH-A … CH-B

Signal input channels, designed as XLR socket pairs (input/output) for looping the signals through to other devices.

7 Stereo | Bridge selector switch

Switch for toggling between “Stereo” mode (all channels are operating independently of each other) and “Bridge”
mode (two channels are combined into a single one with double power output).

8 Lift | Ground selector switch

The Ground/Lift switch allows you to interrupt the connection between the device’s protective earth terminal and
signal ground in order to prevent hum loops (Lift/unpressed state: disconnected; Ground/pressed state: protective
earth terminal and signal ground are electrically connected).

Connectors and controls

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

23

6

Current consumption

The tables below list typical current consumption values as a function of the power output
level (A

RMS

values). All values are based on a 220 V mains voltage. With a 230 V mains voltage,

all values must be multiplied by 0.96. With a 120 V mains voltage, all values must be multiplied
by 1.83. With a 100 V mains voltage, all values must be multiplied by 2.2.

TSA 4-700

Load 1/8 power (pink

noise)

1/3 power (pink
noise)

full power (sine
wave)

(4 ×) 8 W

400 W / 3.1 A 860 W / 5.8 A 1400 W / 9.5 A

(4 ×) 4 W

650 W / 4.4 A 1500 W / 9.8 A 2450 W / 15.4 A

(4 ×) 2 W

950 W / 6.4 A 1800 W / 11.6 A 3100 W / 20 A

(2 ×) 8 W, bridged

620 W / 4.3 A 2450 W / 15 A 2450 W / 15 A

(2 ×) 4 W, bridged

870 W / 6.1 A 3300 W / 19.5 A 3300 W / 19.5 A

Current consumption

power amplifier

24

TSA 1400

Load 1/8 power (pink

noise)

1/3 power (pink
noise)

full power (sine
wave)

(2 ×) 8 W

330 W / 1.93 A 734 W / 4.4 A 1400 W / 7.74 A

(2 ×) 4 W

480 W / 2.86 A 1200 W / 6.9 A 2300 W / 12.2 A

(2 ×) 2 W

700 W / 4.1 A 1313 W / 7.2 A 3345 W / 17.3 A

8 W, bridged

500 W / 3.0 A 1200 W / 6.9 A 2300 W / 12.4 A

4 W, bridged

984 W / 5.4 A 2690 W / 14.2 A 3310 W / 17.2 A

TSA 2200

Load 1/8 power (pink

noise)

1/3 power (pink
noise)

full power (sine
wave)

(2 ×) 8 W

260 W / 1.69 A 400 W / 2.73 A 1700 W / 9.5 A

(2 ×) 4 W

680 W / 4.0 A 1180 W / 6.5 A 2800 W / 14.97 A

Current consumption

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

25

Load 1/8 power (pink

noise)

1/3 power (pink
noise)

full power (sine
wave)

(2 ×) 2 W

850 W / 5.0 A 1800 W / 9.8 A 4200 W / 21 A

8 W, bridged

680 W / 4.1 A 1200 W / 6.8 A 2850 W / 15.2 A

4 W, bridged

820 W / 4.5 A 1900 W / 10.1 A 4600 W / 23 A

TSA 4000

Load 1/8 power (pink

noise)

1/3 power (pink
noise)

full power (sine
wave)

(2 ×) 8 W

475 W / 3.7 A 974 W / 6.8 A 2732 W / 17 A

(2 ×) 4 W

708 W / 5.1 A 1640 W / 11 A 4018 W / 26 A

(2 ×) 2 W

– – –

8 W, bridged

677 W / 5 A 1520 W / 10.2 A 4346 W / 27 A

4 W, bridged

– – –

Current consumption

power amplifier

26

7

Technical data

TSA 4-700

Load impedance

8 W 4 W 2 W
Nominal power output (THD = 1 %, 1 kHz) 4 × 490 W 4 × 810 W 4 × 930 W
Max. power output, bridged mode

(THD = 1 %, 1 kHz)

2 × 1600 W 2 × 1800 W –

Max. voltage increase (RMS) (THD = 1 %, 1 kHz) 62.6 V
Slew rate (1 kHz)

38 V/ms
Total harmonic distortion (THD)

< 0,1 %
IMD-SMPTE (60 Hz, 7 kHz)

< 0,1 %
DIM 30 (3.15 kHz, 15 kHz)

< 0,1 %
Crosstalk (at 1 kHz, 10 % nominal power)

> 70 dB
Frequency response (at 1 kHz) 20 Hz … 20 kHz (0 – 2 dB)

Technical data

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

27

Input impedance (20 Hz – 20 kHz, balanced)

20 kW (balanced)

10 kW (unbalanced)
Input sensitivity (nominal power output, 1 kHz) 1 V
Damping factor (100 Hz / 1 kHz, 8 W) > 400
Signal-to-noise ratio (SNR) 105 dB (A-weighted)
Protective circuits Thermal, short circuit, limiter
Cooling from front to back
Mains power supply

230 V (AC), 50/60 Hz
Power consumption

see Ä Chapter 6 ‘Current consumption’ on page 24
Dimensions (W × H × D) 488 × 97 × 370 mm (19.21 × 3.28 × 14.57 inches)
Weight 10.7 kg (23.6 lbs)

Technical data

power amplifier

28

TSA 1400

Load impedance

8 W 4 W 2 W
Nominal power output (THD = 1 %, 1 kHz) 2 × 450 W 2 × 670 W 2 × 800 W
Max. power output, bridged mode

(THD = 1 %, 1 kHz)

2 × 1380 W 2 × 1600 W –

Max. voltage increase (RMS) (THD = 1 %, 1 kHz) 60 V
Slew rate (1 kHz)

35 V/ms
Total harmonic distortion (THD)

< 0,1 %
IMD-SMPTE (60 Hz, 7 kHz)

< 0,1 %
DIM 30 (3.15 kHz, 15 kHz)

< 0,1 %
Crosstalk (at 1 kHz, 10 % nominal power)

> 70 dB
Frequency response (at 1 kHz) 20 Hz … 20 kHz (0 – 2 dB)

Technical data

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

29

Input impedance (20 Hz – 20 kHz, balanced)

20 kW (balanced)

10 kW (unbalanced)
Input sensitivity (nominal power output, 1 kHz) 1 V
Damping factor (100 Hz / 1 kHz, 8 W) > 400
Signal-to-noise ratio (SNR) 105 dB (A-weighted)
Protective circuits Thermal, short circuit, limiter
Cooling from front to back
Mains power supply

230 V (AC), 50/60 Hz
Power consumption

see Ä Chapter 6 ‘Current consumption’ on page 24
Dimensions (W × H × D) 484 × 97 × 370 mm (19.05 × 3.28 × 14.57 inches)
Weight 10.6 kg (23.4 lbs)

Technical data

power amplifier

30

TSA 2200

Load impedance

8 W 4 W 2 W
Nominal power output (THD = 1 %, 1 kHz) 2 × 590 W 2 × 910 W 2 × 1200 W
Max. power output, bridged mode

(THD = 1 %, 1 kHz)

2 × 1800 W 2 × 2400 W –

Max. voltage increase (RMS) (THD = 1 %, 1 kHz) 68.7 V
Slew rate (1 kHz)

41 V/ms
Total harmonic distortion (THD)

< 0,1 %
IMD-SMPTE (60 Hz, 7 kHz)

< 0,1 %
DIM 30 (3.15 kHz, 15 kHz)

< 0,1 %
Crosstalk (at 1 kHz, 10 % nominal power)

> 70 dB
Frequency response (at 1 kHz) 20 Hz … 20 kHz (0 – 2 dB)

Technical data

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

31

Input impedance (20 Hz – 20 kHz, balanced)

20 kW (balanced)

10 kW (unbalanced)
Input sensitivity (nominal power output, 1 kHz) 1 V
Damping factor (100 Hz / 1 kHz, 8 W) > 400
Signal-to-noise ratio (SNR) 105 dB (A-weighted)
Protective circuits Thermal, short circuit, limiter
Cooling from front to back
Mains power supply

230 V (AC), 50/60 Hz
Power consumption

see Ä Chapter 6 ‘Current consumption’ on page 24
Dimensions (W × H × D) 485 × 97 × 370 mm (19.09 × 3.28 × 14.57 inches)
Weight 10.4 kg (22.9 lbs)

Technical data

power amplifier

32

TSA 4000

Load impedance

8 W 4 W 2 W
Nominal power output (THD = 1 %, 1 kHz) 2 × 1000 W 2 × 1500 –
Max. power output, bridged mode

(THD = 1 %, 1 kHz)

2 × 2865 W – –

Max. voltage increase (RMS) (THD = 1 %, 1 kHz) 89 V
Slew rate (1 kHz)

50 V/ms
Total harmonic distortion (THD)

< 0,1 %
IMD-SMPTE (60 Hz, 7 kHz)

< 0,35 %
DIM 30 (3.15 kHz, 15 kHz)

< 0,35 %
Crosstalk (at 1 kHz, 10 % nominal power)

< –80 dB
Frequency response (at 1 kHz) 20 Hz … 20 kHz (0 – 2 dB)

Technical data

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

33

Input impedance (20 Hz – 20 kHz, balanced)

20 kW (balanced)

10 kW (unbalanced)
Input sensitivity (nominal power output, 1 kHz) 1 V
Damping factor (100 Hz / 1 kHz, 8 W) > 450
Signal-to-noise ratio (SNR) 106 dB (A-weighted)
Protective circuits Thermal, short circuit, limiter
Cooling from front to back
Mains power supply

230 V (AC), 50/60 Hz
Power consumption

see Ä Chapter 6 ‘Current consumption’ on page 24
Dimensions (W × H × D) 483 × 88 × 420 mm (19.02 × 3.46 × 1.53 inches)
Weight 12 kg (26.5 lbs)

Technical data

power amplifier

34

8

Protecting the environment

For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.

Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that

they are collected for recycling. Please follow the notes and markings on the packaging.

This device is subject to the European directive 2002/96/EC.
Do not dispose of the device with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste

facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.

Disposal of the packaging mate‐
rial

Disposal of your old device

Protecting the environment

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

35

Notes

power amplifier

36

Notes

TSA 4–700, TSA 1400, TSA 2200, TSA 4000

37

Notes

power amplifier

38

Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de
