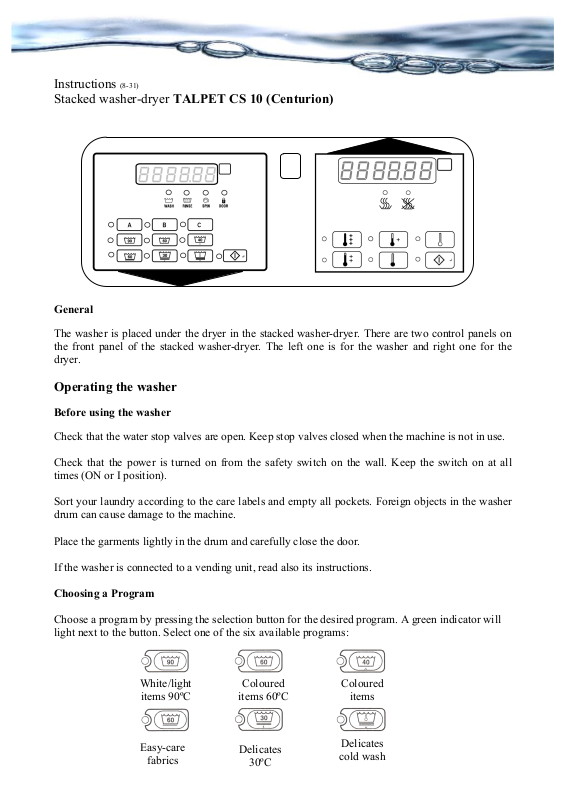

Instructions (8-31)
Stacked washer-dryer TALPET CS 10 (Centurion)
General
The washer is placed under the dryer in the stacked washer-dryer. There are two control panels on
the front panel of the stacked washer-dryer. The left one is for the washer and right one for the
dryer.
Operating the washer
Before using the washer
Check that the water stop valves are open. Keep stop valves closed when the machine is not in use.
Check that the power is turned on from the safety switch on the wall. Keep the switch on at all
times (ON or I position).
Sort your laundry according to the care labels and empty all pockets. Foreign objects in the washer
drum can cause damage to the machine.
Place the garments lightly in the drum and carefully close the door.
If the washer is connected to a vending unit, read also its instructions.
Choosing a Program
Choose a program by pressing the selection button for the desired program. A green indicator will
light next to the button. Select one of the six available programs:
White/light
items 90ºC
Coloured
items 60ºC
Coloured
items
Easy-care
fabrics
Delicates
30ºC
Delicates
cold wash
Choosing the washing power according to the laundry soil level
Choose the washing power according to the laundry soil level with the A, B or C buttons.
The light next to the button indicates your choice. The default program A is normal wash.
You can choose from the following three alternatives:
Normal wash
Heavily soiled items
Heavily soiled items, extra rinse
Pre-wash
X
Wash
X X X
Extra rinse X
X
Rinse cycles (3)
X X X
Maximum load for regular laundry is 10 kg and for delicate items max 5 kg.
Dosing the detergent
Carefully pull open the detergent dispenser drawer and dose the detergent
into compartment 1, fabric softener into compartment 3, and if needed,
bleach into compartment 2. For pre-wash put the detergent into compartment
4 or directly into the washer drum by using a detergent dosing ball. Follow the
washing agent manufacturers’ instructions.
Starting the washer
Start the machine by pressing the button. The following lights
indicate the progress of the program and the washer door lock status:
When a program is running the display shows the remaining program duration, but during the
heating sequence the display shows “ – = ≡ ”.
Do not wash carpets or similar items in this machine.
After using the washer
When the program has finished and the washer door lock sign has turned off, the door can
be opened by pulling lightly. Leave the washer door open and clean the machine for the next user.
Wash
Rinse
Spin
Door locked
Operating the dryer
Preparing measures
Switch the power on using the safety switch.
Close the door pressing it gently.
Choosing the program and the temperature
Choose a program by pressing the selection button for the desired program. A green indicator will
light next to the button. Select one of the five available programs:
Starting the dryer
Start the machine by pressing the button.
The following lights indicate the functioning of the heater:
After the use
Leave the door open and the dryer clean for the next user.
Never put into the dryer textiles that have been cleaned with inflammable or toxic chemicals.
Do not leave dry laundry in the drum, as there is the danger of fire.
Do not clean the machine under running water.
White/light
items
Coloured
items
Easy-care
fabrics
Delicates
Heat
No heat
Open the door and clean the filters. In all models there is a fluff
filter on the lower part of the door, and the filter can easily be
cleaned when the door is open. In TALPET CS 10 C and CS 10
LPU models there is a separate labelled filter for air condensing
and thermostat unit. For cleaning these filters must be removed by
lifting and pulling the filters. It is important to place the filters
properly before using the tumble-dryer. CS 10 LPU model does
not start up if the filter is not properly placed.
