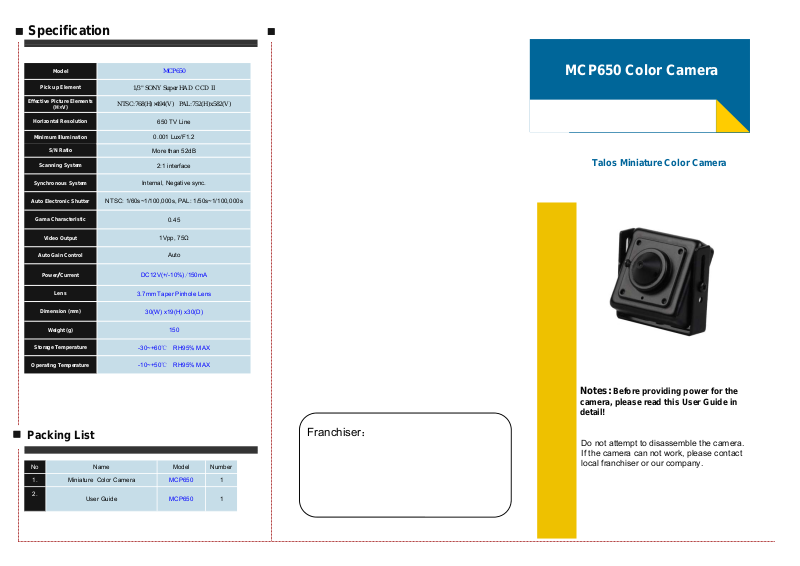

Talos Security MCP650 User Manual

Specification

Model

Pick up Element

Effective Picture Elements

(H×V)

Horizontal Resolution

Minimum Illumination

S/N Ratio

Scanning System

Synchronous System

Auto Electronic Shutter

NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s

MCP650

1/3" SONY Super HAD CCD II

NTSC:768(H)×494(V) PAL:752(H)x582(V)

650 TV Line

0.001 Lux/F1.2

More than 52dB

2:1 interface

Internal, Negative sync.

MCP650 Color Camera

Talos Miniature Color Camera

Gama Characteristic

Video Output

Auto Gain Control

Power/Current

Lens

Dimension (mm)

Weight (g)

Storage Temperature

Operating Temperature

3.7mm Taper Pinhole Lens

-30~+60℃ RH95% MAX

-10~+50℃ RH95% MAX

0.45

1Vpp, 75Ω

Auto

DC12V(+/-10%)/150mA

30(W) x19(H) x30(D)

150

Packing List

No Name Model Number

1. Miniature Color Camera MCP650 1

2.

User Guide MCP650 1

Franchiser：

Notes:Before providing power for the

camera, please read this User Guide in
detail!

Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.

BRIEF OF PRODUCT

CONNECTING

INTRODUCTION

* Sensor (CCD)

Adopt SONY 1/3" CCD Sensor.
* Auto Gain Control (AGC)

Built-in auto gain control (AGC) circuit. The color camera

can get high definition picture in low Lux condition.

* Scanning Mode
NTSC or PAL mode.

* OSD SETTING

LENS MANUAL/DC/VIDEO

SHUTTER

OSD

SET

EXPO-

SURE

WHITE

BACK

LIGHT

DAY &
NIGHT

CIAL

RESET

AGC

D-WDR OFF/ON(LEVEL:0-63)

BAL

DPC

SPE-

ATW/AWB/AWC-SET/ANTI.CRL/MANUAL:(INDOOR、

BLC:AREA SEL/AREA STATE/GAIN/HEIGHT/LEFT/RIGHT/TOP/

HLC:LEVEL(0-255)/ MODE(ALL DAY/NIGHT ONLY)

COLOR

B/W

AUTO D-N(LEVEL/DELAY) /N-D(LEVEL/DELAY)

EXT

CAM

TITLE

MOTION

OFF/ON

PRIVACY

OFF/ON

PARK.LIN

E


ADJ

COMM

ADJ

LAN-

GUAGE

AUTO,FLK,1/50,1/250,1/500,1/2000,1/40000,

1/5000,1/10000,1/100000

LOW/MIDDLE/HIGH/OFF

OUTDOOR、MANUAL)

OFF

BOTTOM

BURST(OFF/ON)/IR SMART(OFF/ON:IR GAIN/HEIGHT/

WIDTH/LEFT/RIGHT/TOP/ BOTTOM)/IR LEVEL(HIGH/

D→N DELAY/N→D DELAY

COVER THE LENS THEN PRESS ENTER KRY

HEIGHT/WIDTH/LEFT/RIGHT/TOP/BOTTOM /DEGREE/

HEIGHT/WIDTH/LEFT/RIGHT/TOP/BOTTOM /COLOR

OFF/ON(LT/LB/RT/RB/F/N/T/V1/V2/V3)

FONT COLOR:FONT(0-15)/ID&TITLE(0-15)

CONTRAST:0-255 SHARPNESS:0-31 NEG.IMAGE:OFF/

DISPLAY:CRT(PED LEVEL:0-63/COLOR GAIN:0-255)/

LCD(GAMMA:0-1/PED LEVEL:0-63/COLOR:0-255)/

USER(GAMMA:0-1/PED LEVEL:0-63/COLOR:0-255)

CAM ID(0-255)/BAUD RATE/PROTOCOL/DISPLAY ID/

CHINESE/ENGLISH/ESPANYOL/PYCCKNN/DEUTSCH/

PORTUGUES/FRANCAIS/JAP

FACTORY RESET

LOW)

ON/OFF

AREA SEL:AREA1-4
AREA STATE:OFF/ON

VIEW
AREA SEL:AREA1-8
AREA STATE:OFF/ON

LENS SHAD:OFF/ON

2DNR:OFF/ON

MIRROR:OFF/ON

ON

ID POS

LEFT

KEY BOARD

UP

DOWN

Monitor

RIGHT

MENU

MCP650

Link wire rule：

Video

Power

PRESS

DC12V Power Supply

Video

DC12V

TROUBLE AND SOLUTION

1. No Picture after providing power

. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.

. Please check all the connecting cable and monitors whether be connected
correctly or not.

2. The picture level direction have flowing interference ripples

. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.

. Check the monitor and peripheral equipments used.

3. The picture background color changes continuously

. The fluorescent lamp’s electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.

4. The picture smear too mass

. The power supply’s voltage unstable.
. Connecting cables not connect correctly or have high impedance.

Notes：

●The power supply must through safe attestation. Its output voltage,

current, voltage polarity and operating temperature must match the
camera’s requirement.

●When using the camera in the thunderbolt condition,please note to
mount Anti-thunder device or put off the power supply plug and cable.

●In order to capture high quality pictures, the power supply’s cable and
video output cable should not be too long.

Congratulations on your purchase of this product.
This User Guide suits MCP650 product. We adopt the
latest SONY technical of sensor and driver. The most at­tractive characteristics are small and easy hidden, suits
the elevator and corridor. In addition, it owns the charac­ters of high definition and stability, strong anti-jamming,
rich and real color. Fixing and using this model are con­venient too. It is very good for you to apply to your CCTV
system.

Please read this instruction manual carefully to en­sure proper use of the product.

To prevent fire or shock hazarded. Do not expose the unit

to rain or moisture.

The symbol is intended to alert the user to the presence of

important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.

The symbol is intended to alert the user to the presence of

uninsulated ‘dangerous voltage’ within the product’s

enclosure that may be of sufficient Magnitude to constitute
a risk of electric shock to persons.

RISK OF ELECTRIC. DO NOT OPEN

SHOCK
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING

CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF

FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.

Note:

● Please note the camera’s operating temperature and its using

● Never make the camera face the sun or bright object. Other-

● Do not mount the camera near by the radiator or heater.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

environment
too low temperatures. The operating temperature is -30~+60℃.
(Recommendatory operating temperature is -10~+50℃.)

wise, it will damage the CCD.

requirement. Avoid using the camera at too high or

CAUTION:
