Talos Security DRMX, DRMXU User Manual

RMS

User Manual

1. Introduction

1.1 Introduce

This SW can manage and control several DVRs from Remote site through network at the
same time.
This SW provides live image monitoring, Playback and DVR configuration.

1.2 Features

The SW can manage 16CH devices and support 16Ch live view simultaneously.
Supported functions are

z 2way Audio
z Relay control
z PTZ control
z Preset configuration and movement.
z Focus control of camera.
z DVR configuration
z Remote Playback

Remote Playback will handle 1 system at a time, and provide Forward , Backward, Fast play
mode and Frame by Frame mode.

(LIVE) (PLAYBACK) (Remote Configuration)

2. Installation

2.1 System Requirement

Below is the minimum requirement of PC specification to run the SW properly.

System Minimum requirement
CPU Intel Core2Duo 2.0GHz or higher
Memory 2GB or higher
VGA memory 128MB or higher
VGA display 1024 * 768 (With 32bit color) or higher
HDD 80GB or higher
OS Windows XP SP2 or higher
others Direct X 9.0 or higher

2.2 Steps to install

1. Insert a provided CD to CD or DVD rom.

2. Click ‘Setup.exe’ file to start installation.

3. Select a Language

4. Select a proper folder for install the SW.

5. Press ‘Next’ button to complete copy and install the SW.

3. How to use

3.1 Register site

After Run the SW, User must register devices that want to control from this SW.

3.1.1 Steps to register devices

1. Select

2. Server manager window will be appeared.

3. User can Add, Modify and delete servers.

4. Press [Add] button.

5. Input proper information.

buttons then select ‘Server manager’ item

Server Name: Site name for SW.
Description: information or note for Site.
Connection Address: IP address of DVR.
Port: Port number for remote connection.
Camera Count: Number of camera for site.
User name: User ID for remote connection of device.
Password: Password for remote connection of device.

6. Press [Modify] to modify site information.

7. Press [Delete] to discard site information.

3.2 Register Group

A Group function allows user to select several camera from different DVR and assign one
screen.
This Group can contain maximum 16 different cameras.

3.2.1 Steps to register group

1. Select

2. Group manager window will be appeared.

3. Press [Add] button.

4. Input Group name and Description.

5. Select screen mode between 4, 9 and 16 channel mode.

buttons then select ‘Group manager’ item

6. Drag and Drop a camera from List of Left window then positioned camera at

Right panel window.

7. Press [Save] button when complete set position all cameras.

8. User can modify and delete register group through Group manager window.

9. Press

button to select a group or device from the list.

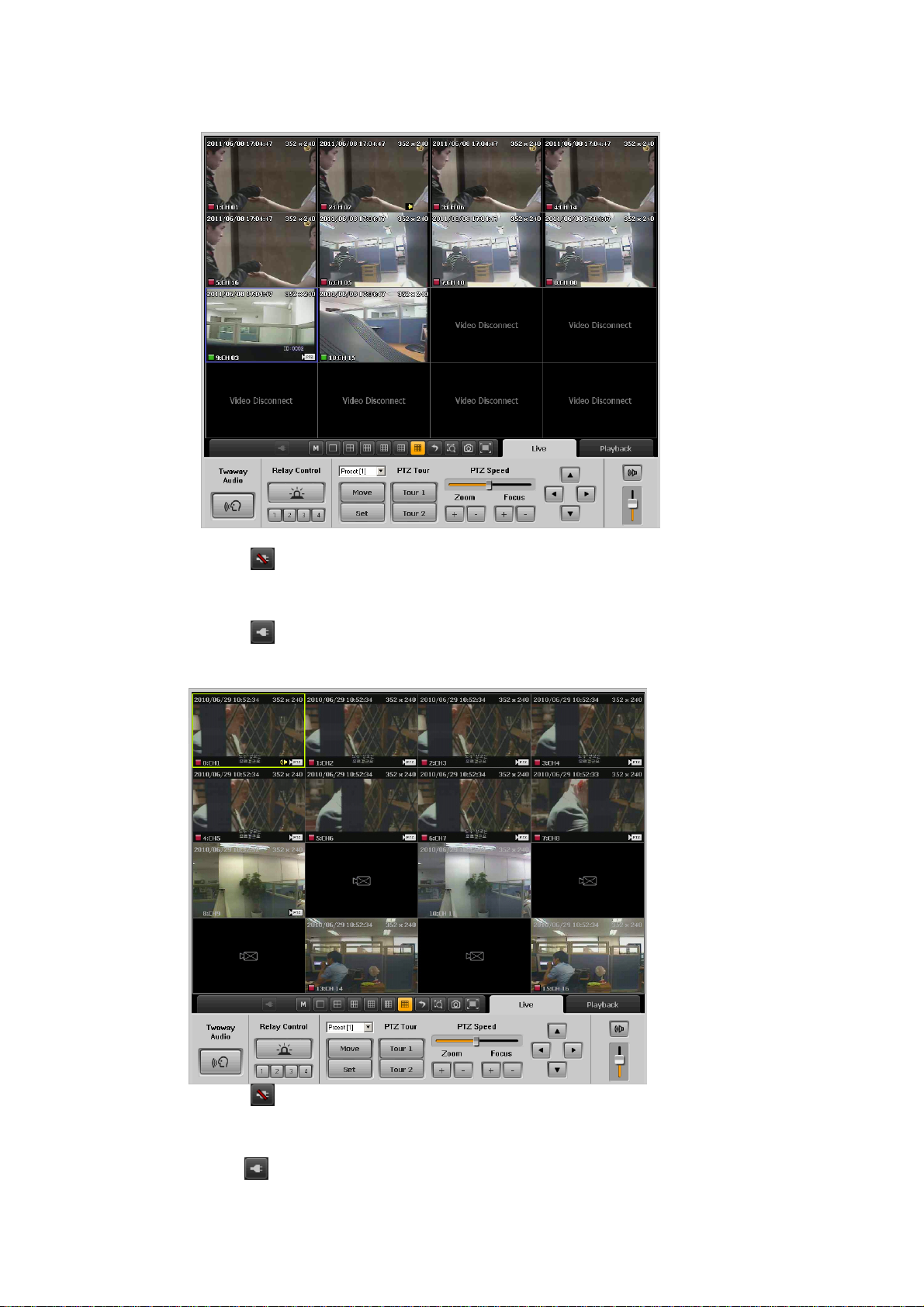

3.3 Connect device.

User can connect devices one by one or Group device.
Maximum 16 DVR can be connected simultaneously.

3.3.1 Connect from the server list.

1. Press

2. Select a DVR from the list that want to connect.

3. Start to live image display

buttons and select [Sever list]
