Talos Security DRH412 User Manual

DRH Series

Digital Video Recorder

User Manual

DRH412 / DRH408 / DRH404 / DRH103

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence

of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of

electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and Maintenance (servicing) instructions in the literature accompanying the product.

COMPLIANCE NOTICE OF FCC:

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGEY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION

MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS

EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE

FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCECAUSING EQUIPMENT REGULATIONS.

The information in this manual is believed to be accurate as of the date of publication. The

information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.

1

IMPORTANT SAFEY INFORMATION

1. Read Instructions

All the safety and operating instructions should be read before the device is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Cleaning

Unplug this equipment from the wall outlet before cleaning it. Do not Use liquid aerosol cleaners. Use a damp soft cloth for cleaning.

4. Attachments

Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

5. Water and/or Moisture

Do not use this equipment near water or in contact with water.

6. Accessories

Do not place this equipment on an unstable cart, stand or table. The equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer.

7. Power Sources

This equipment should be operated only from the type of power source Indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer or local power company.

8. Power Cords

Operator or installer must remove power and TNT connections before handling the equipment.

9. Lightning

For added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment due to lightning and power-line surges.

10. Overloading

Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

11. Objects and Liquids

Never push objects of any kind through openings of this equipment as They may touch dangerous voltage points or short out parts that could Result in a fire or electric shock. Never spill liquid of any kind on the Equipment.

12. Servicing

Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.

13. Damage requiring Service

Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or the plug has been damaged. B. If liquid is spilled, or objects have fallen into the equipment. C. If the equipment has been exposed to rain or water. D. If the equipment does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the equipment to its normal operation. E. If the equipment has been dropped, or the cabinet damaged. F. When the equipment exhibits a distinct change in performance — this indicates a need for service.

14. Replacement Parts

When replacement parts are required, be sure the service technician

has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

15. Safety Check

Upon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to determine that the equipment is in proper operating condition.

16. Field Installation

This installation should be made by a qualified service person and should conform to all local codes.

17. Correct Batteries

Warning: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

18. Tmra

A manufacturer’s maximum recommended ambient temperature (Tmra) for the equipment must be specified so that the customer and installer may determine a suitable maximum operating environment for the equipment.

19. Elevated Operating Ambient Temperature

If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than

room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

20. Reduced Air Flow

Installation of the equipment in the rack should be such that the

amount of airflow required for safe operation of the equipment is not compromised.

21. Mechanical Loading

Mounting of the equipment in the rack should be such that a

hazardous condition is not caused by uneven mechanical loading.

22. Circuit Overloading

Consideration should be given to connection of the equipment to supply circuit and the effect that overloading of circuits might have on over current protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

23. Reliable Earthling (Grounding)

Reliable grounding of rack mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g., use of power strips).

2

INDEX

1. SAFETY

1.1 Power Source

1.2 Installation

1.3 Cleaning and Usage

2. LAYOUT

2.1 Functions

2.2 System Connections

---------------------------------------------------------

-----------------------------------------------------------

---------------------------------------------------------

3. DVR CONTROLS

3.1 Front Panel

3.2 Real Panel

3.2.1 DRD Series

3.2.2 DRM Series

3.3 Remote Controller

4. LIVE

- - - - - - - - - - - - - - - -- - - - - - - - - - -- -- - - - - - - - - - - - - - - - - - - - - - - - -

---------------------------------------------------------

----------------------------------------------

-------------------------------------------------

----- - ------- - - ------ - ------ - - ------ - - ------ - -

-- ------- ------- ------- --- ------- ------- -------

----------------------------------------------

------------------------------------------------------

----------------------------------------------------

6 6

6 7

8 8

9 10

10

13 13

14 15

16

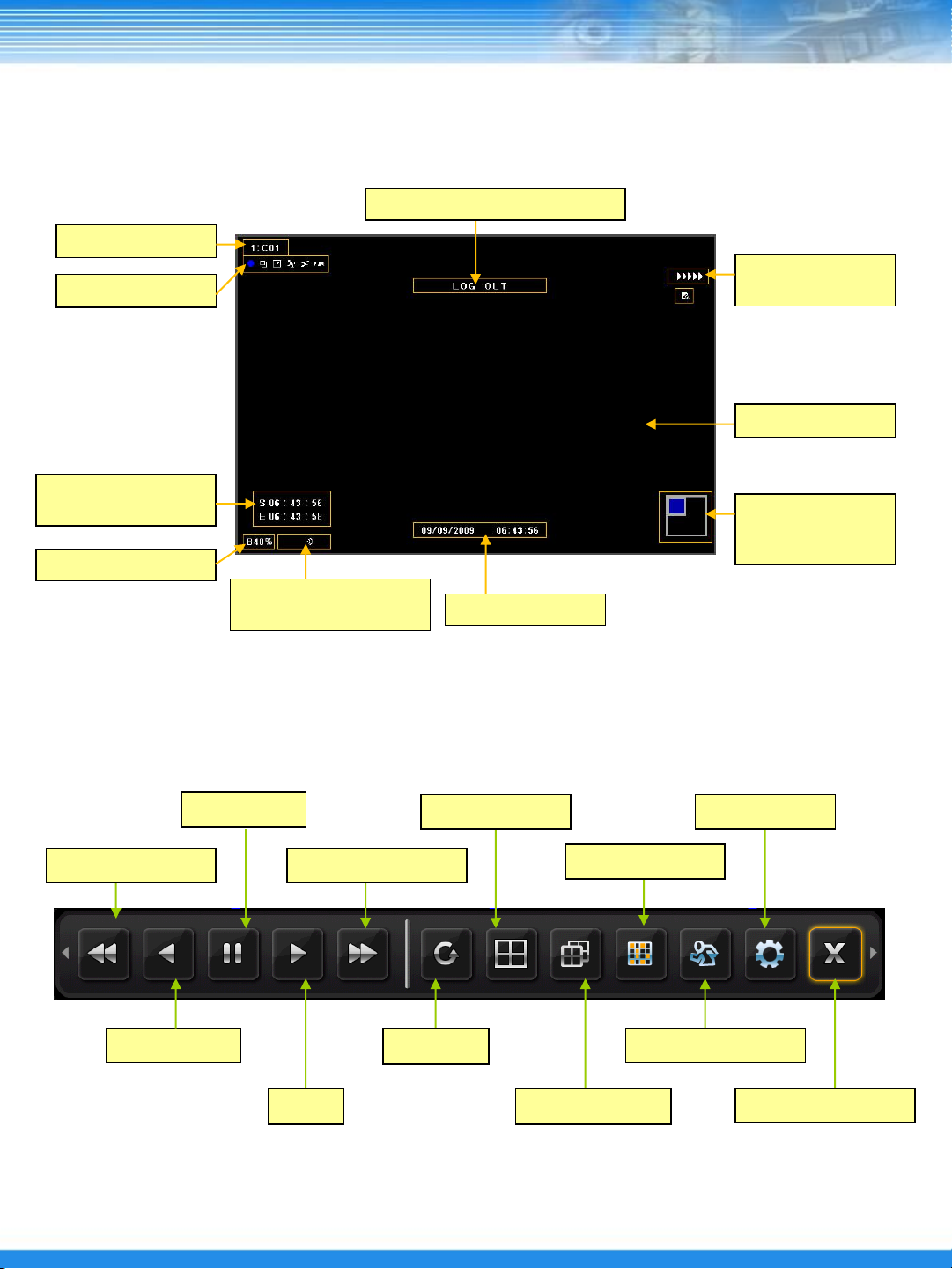

4.1 Live Screen

4.1.1 Top Menu

4.1.2 Bottom Menu

4.1.3 CAMEO Menu

5. SETUP

5.1 GENERAL SETUP

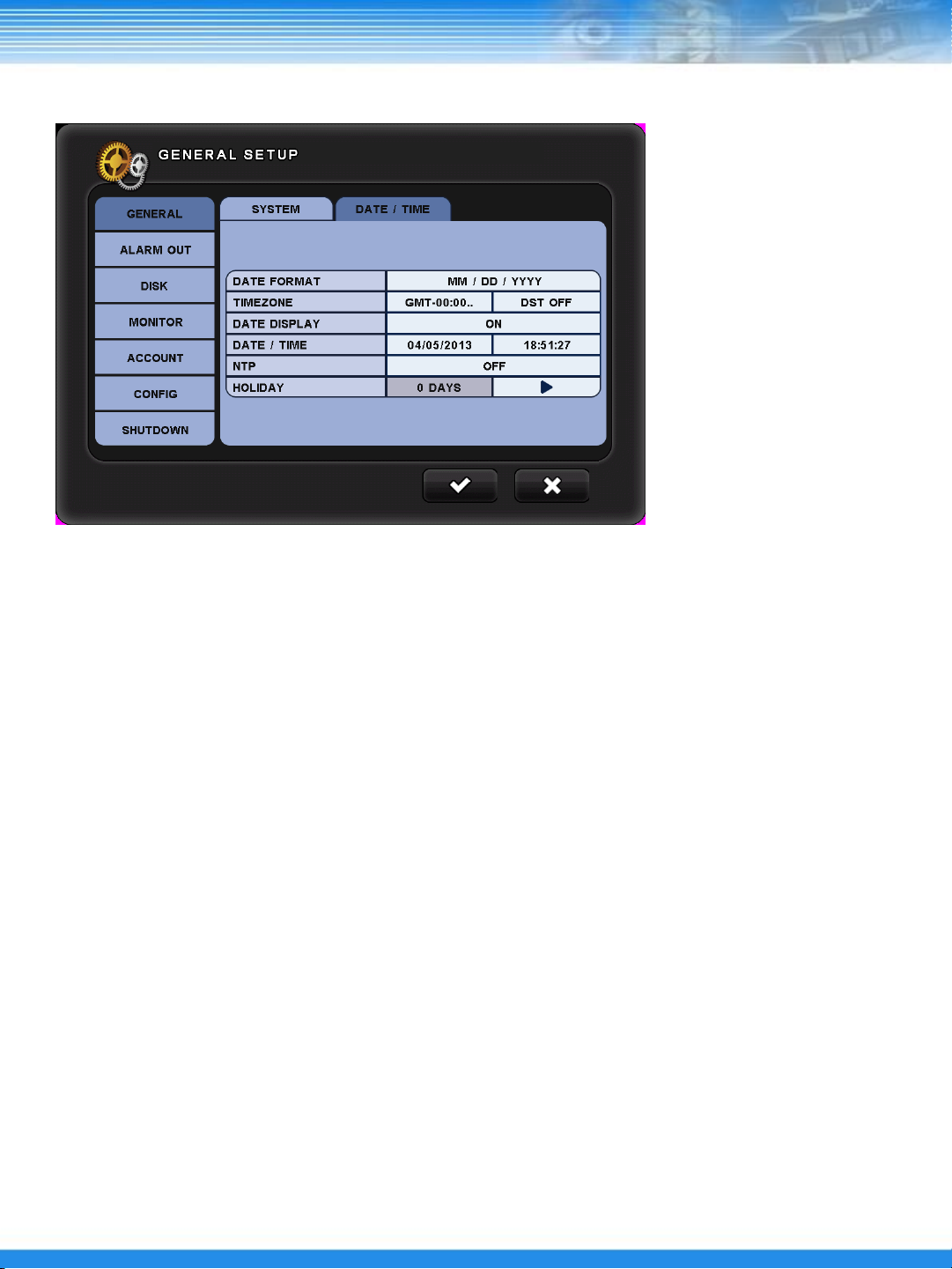

5.1.1 GENERAL

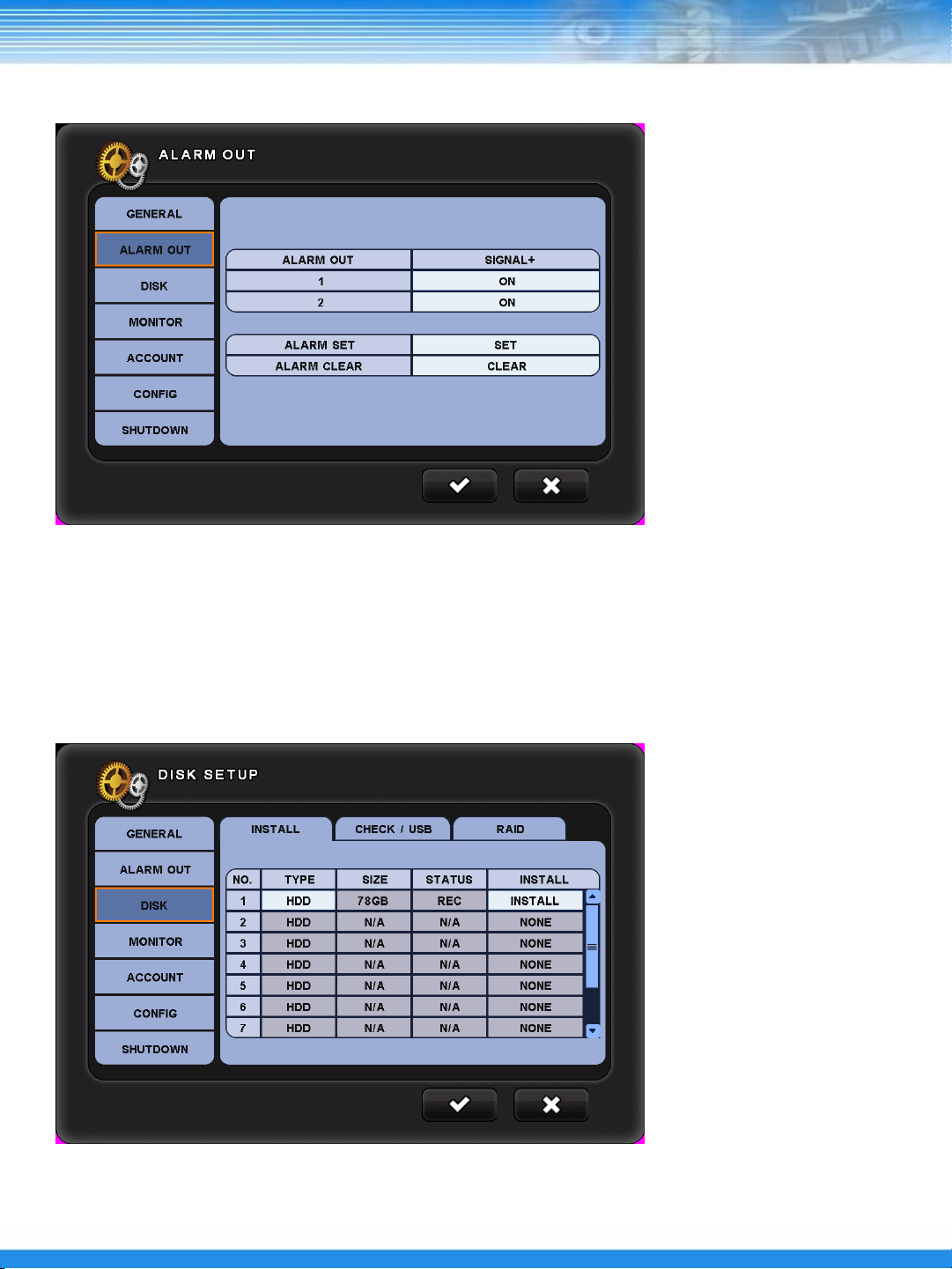

5.1.2 ALARM OUT

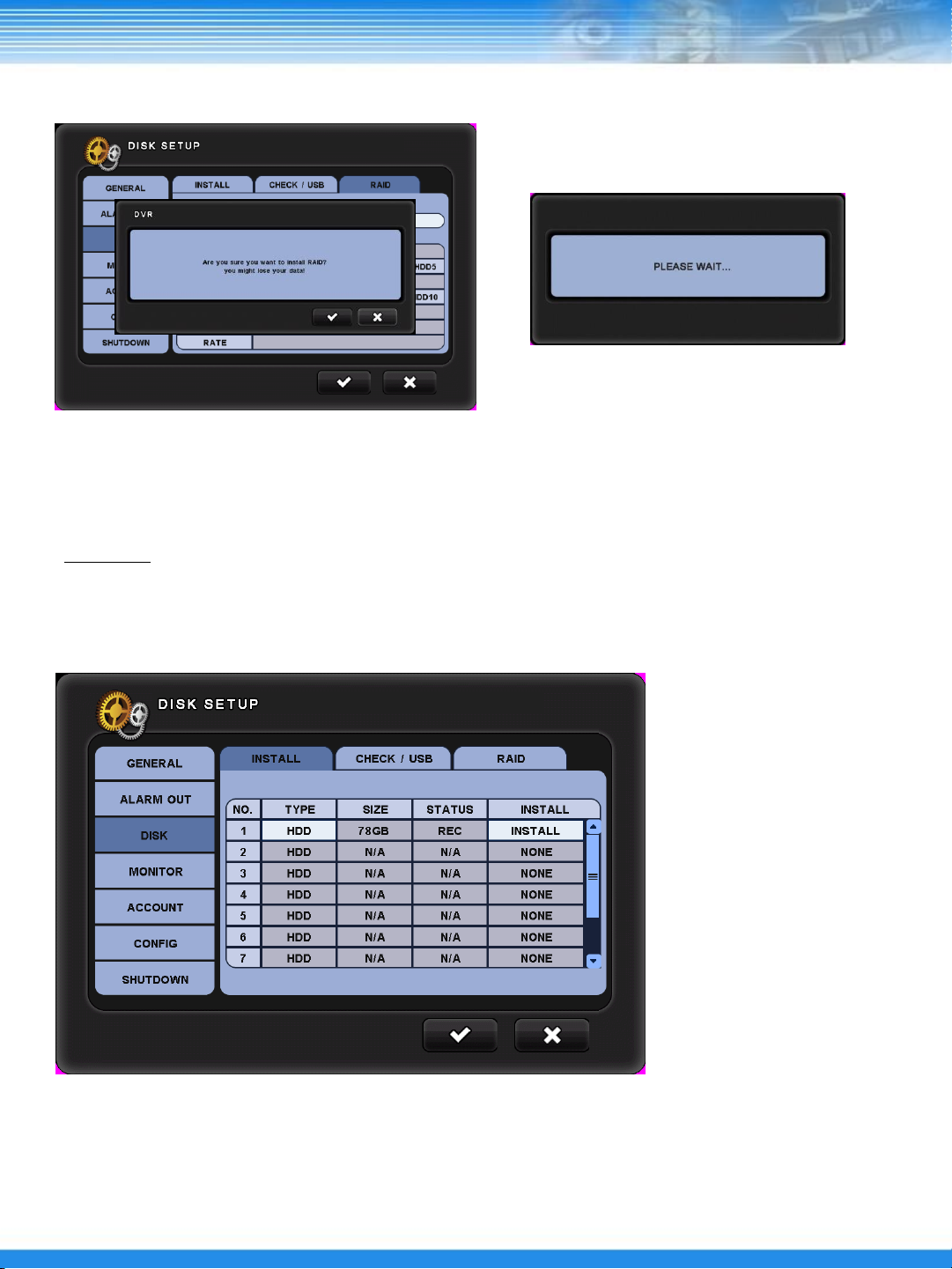

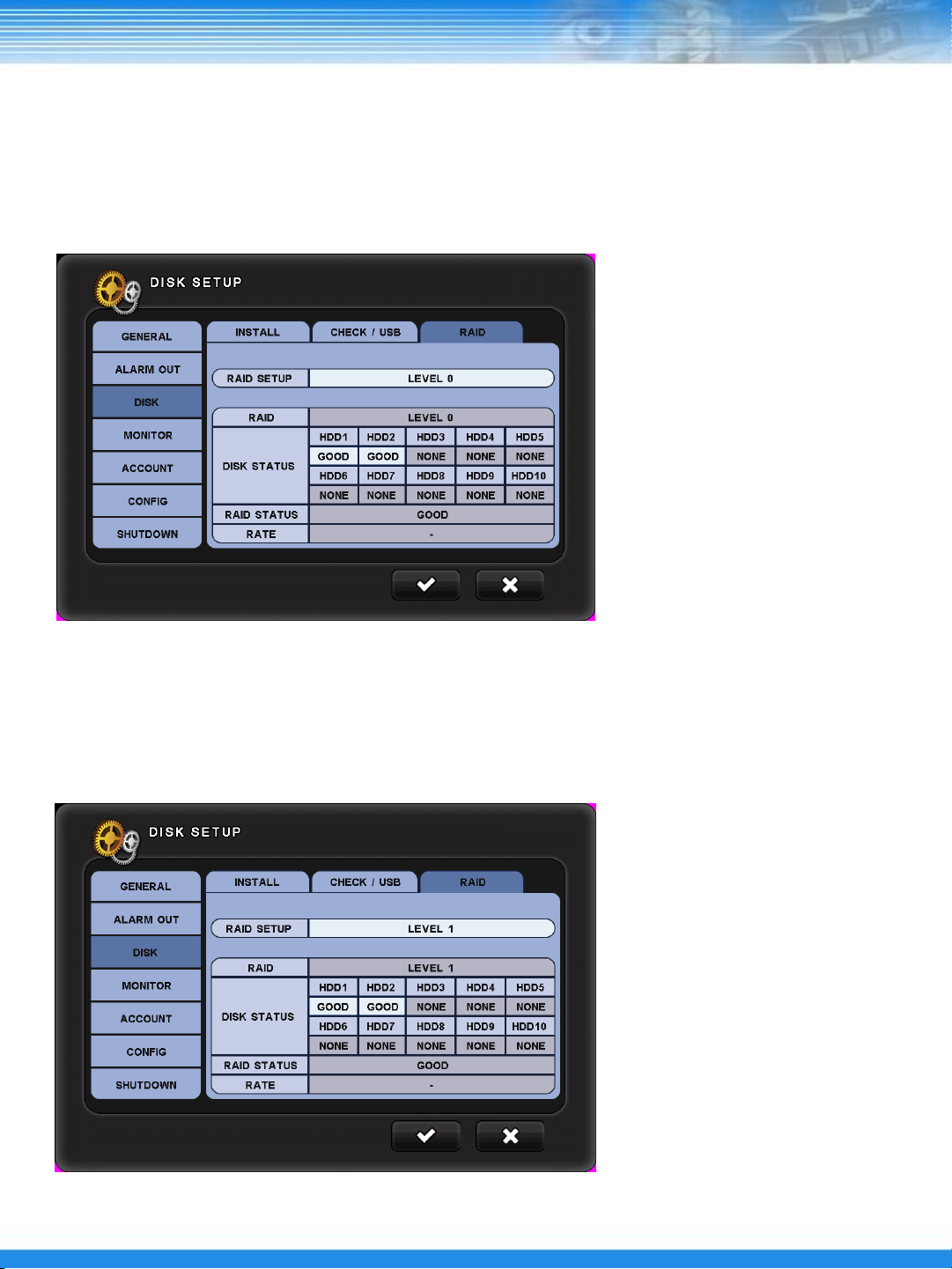

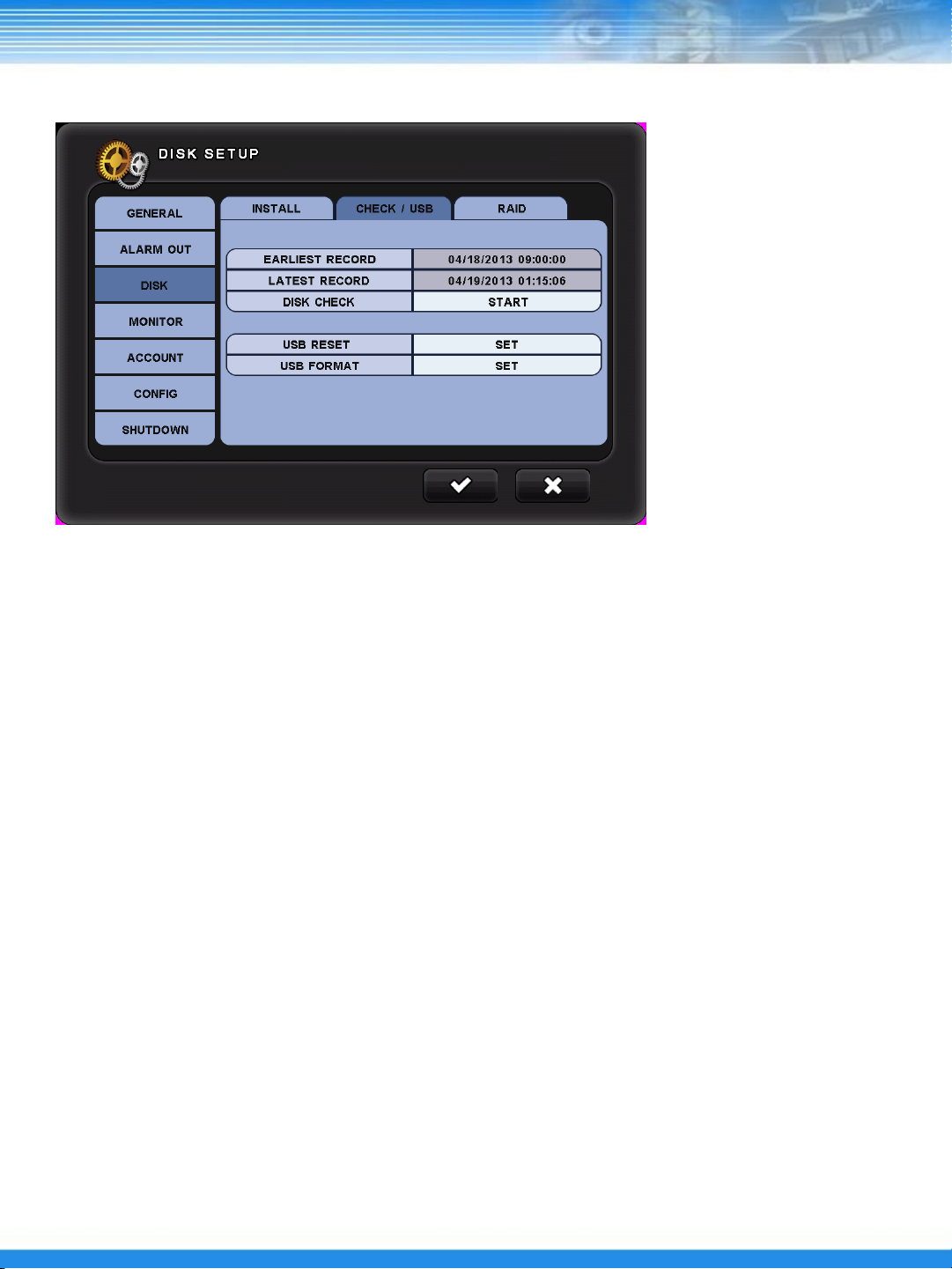

5.1.3 DISK

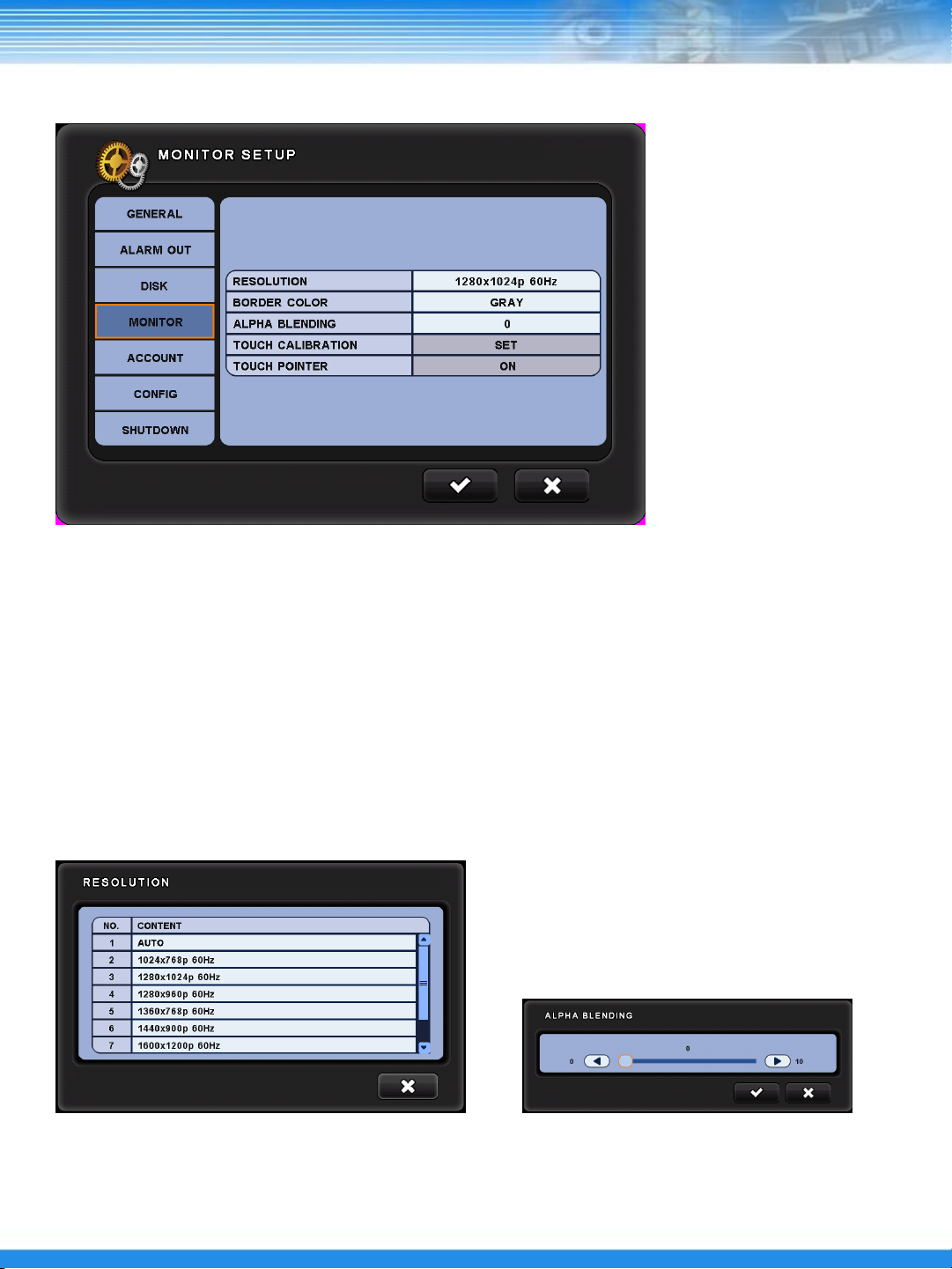

5.1.4 MONITOR

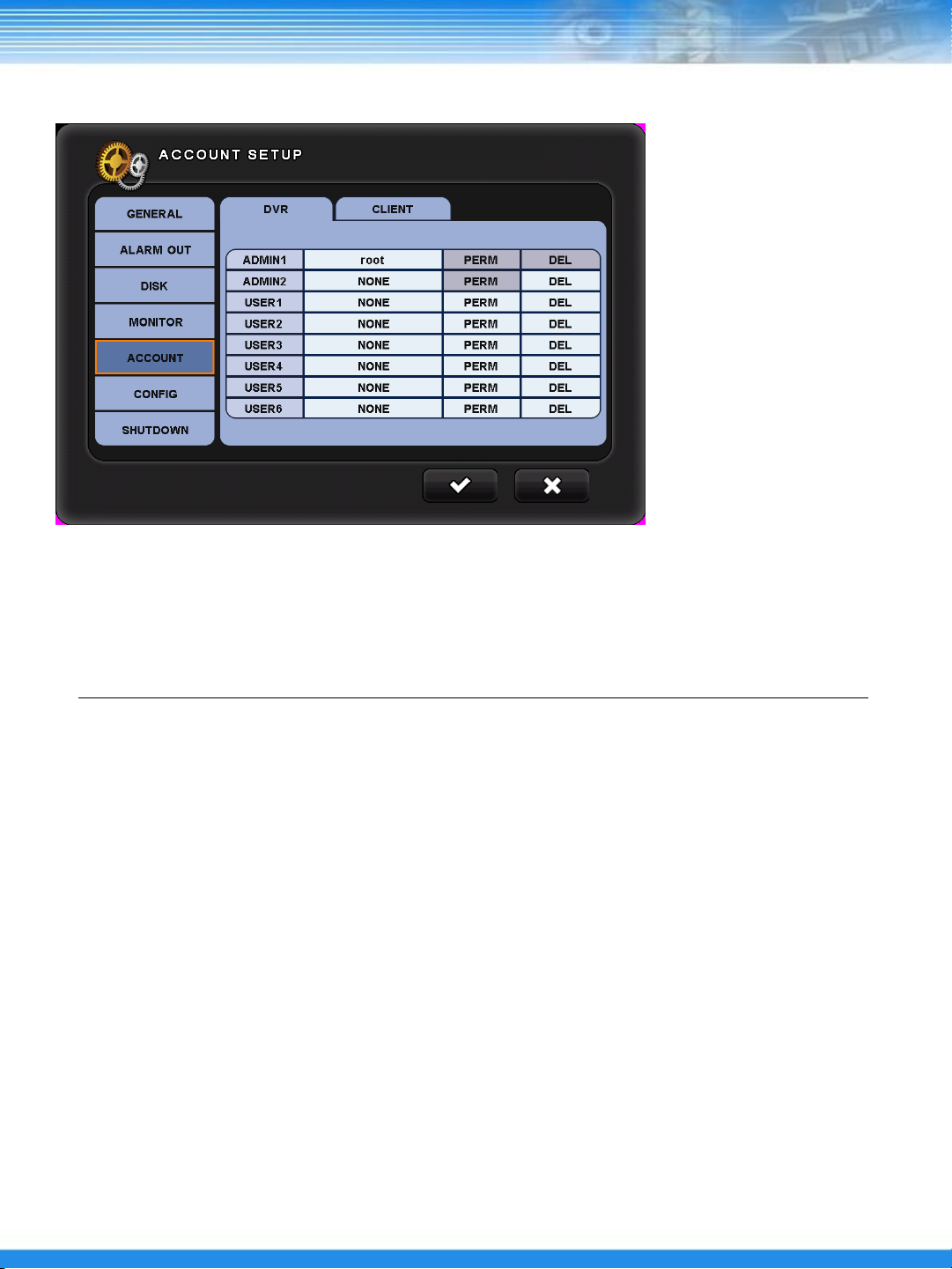

5.1.5 ACCOUT

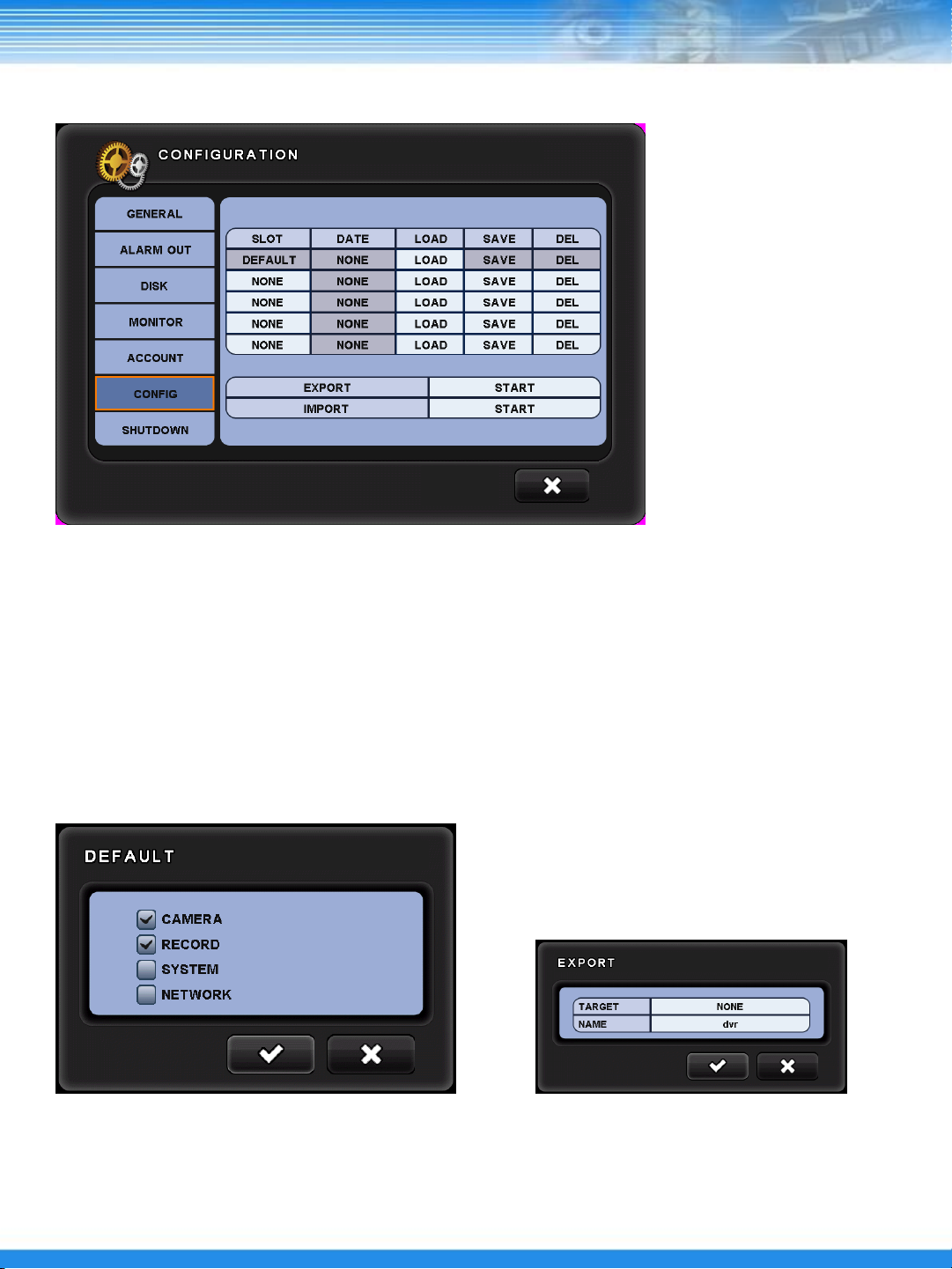

5.1.6 CONFIG

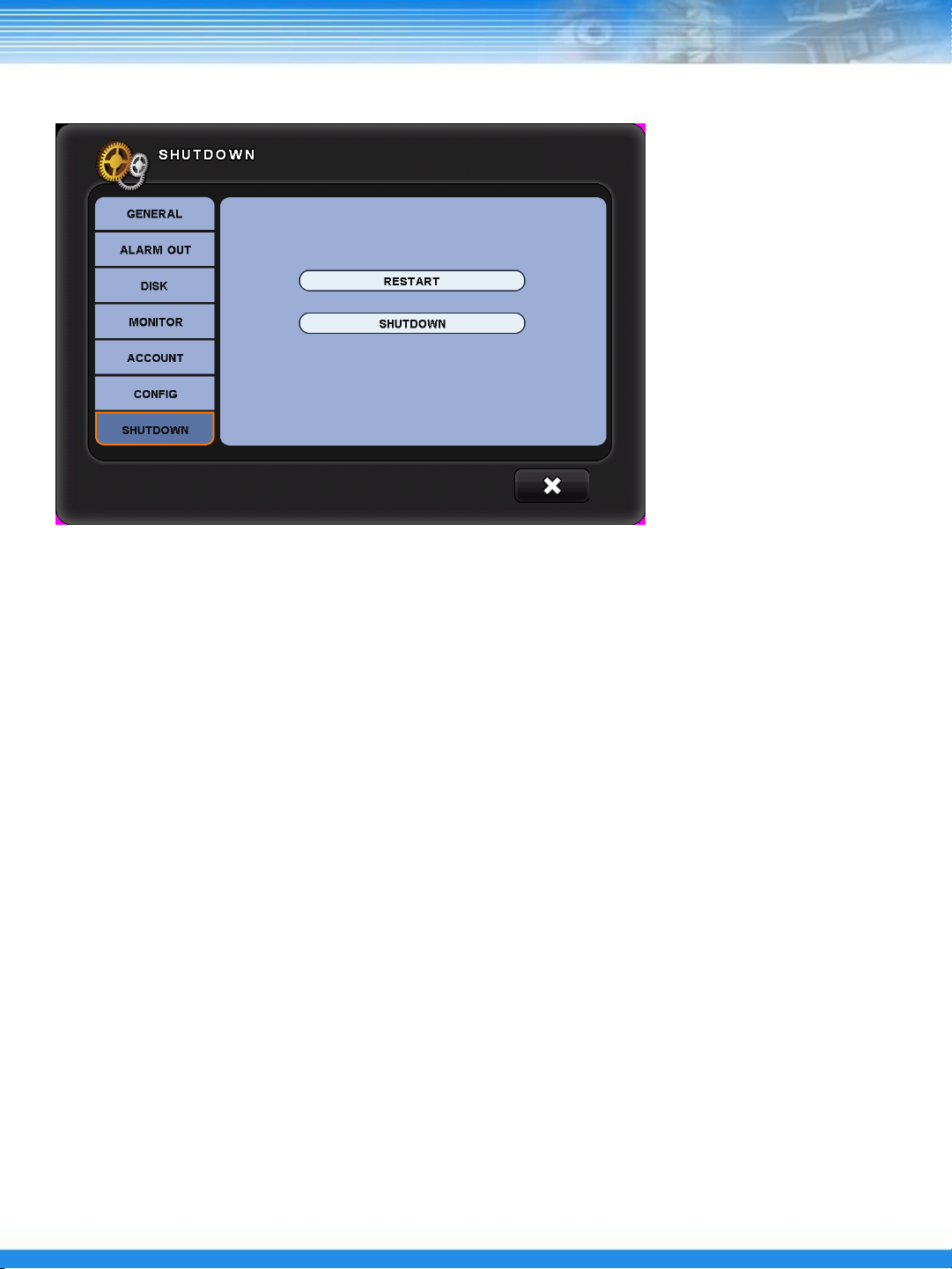

5.1.7 SHUTDOWN

--------------------------------------------------------------

--------------------------------------------------------

----------------------------------------------------

-------------------------------------------------

----------------------------------------------------

------------------------------------------------------

----------------------------------------------------

---------------------------------------------------------

------------------------------------------------------

----------------------------------------------------

16 17 17 18

21

21 22 24 24 30 31 32 33

3

INDEX

5.2 CAMERA SETUP

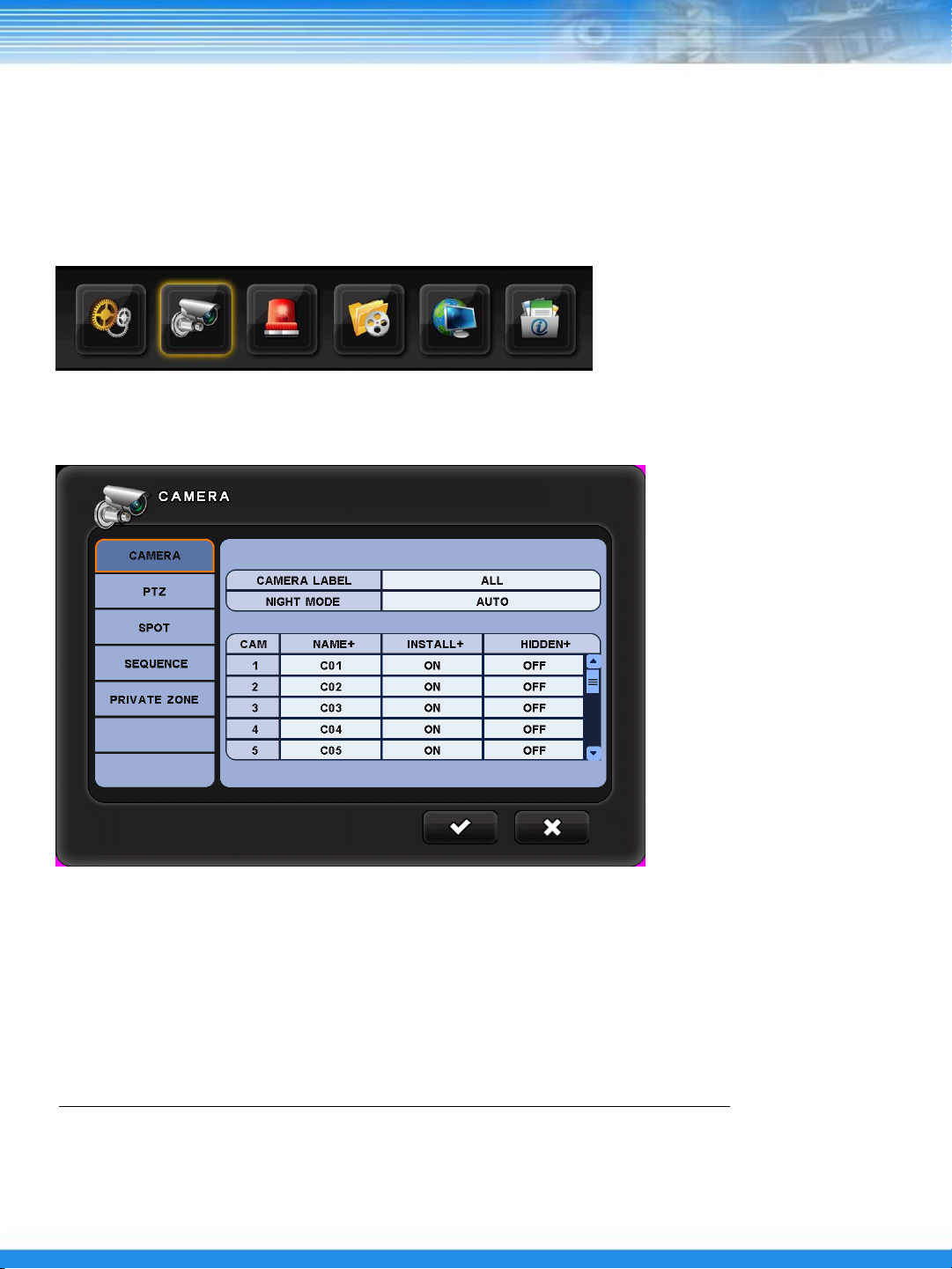

5.2.1 CAMERA

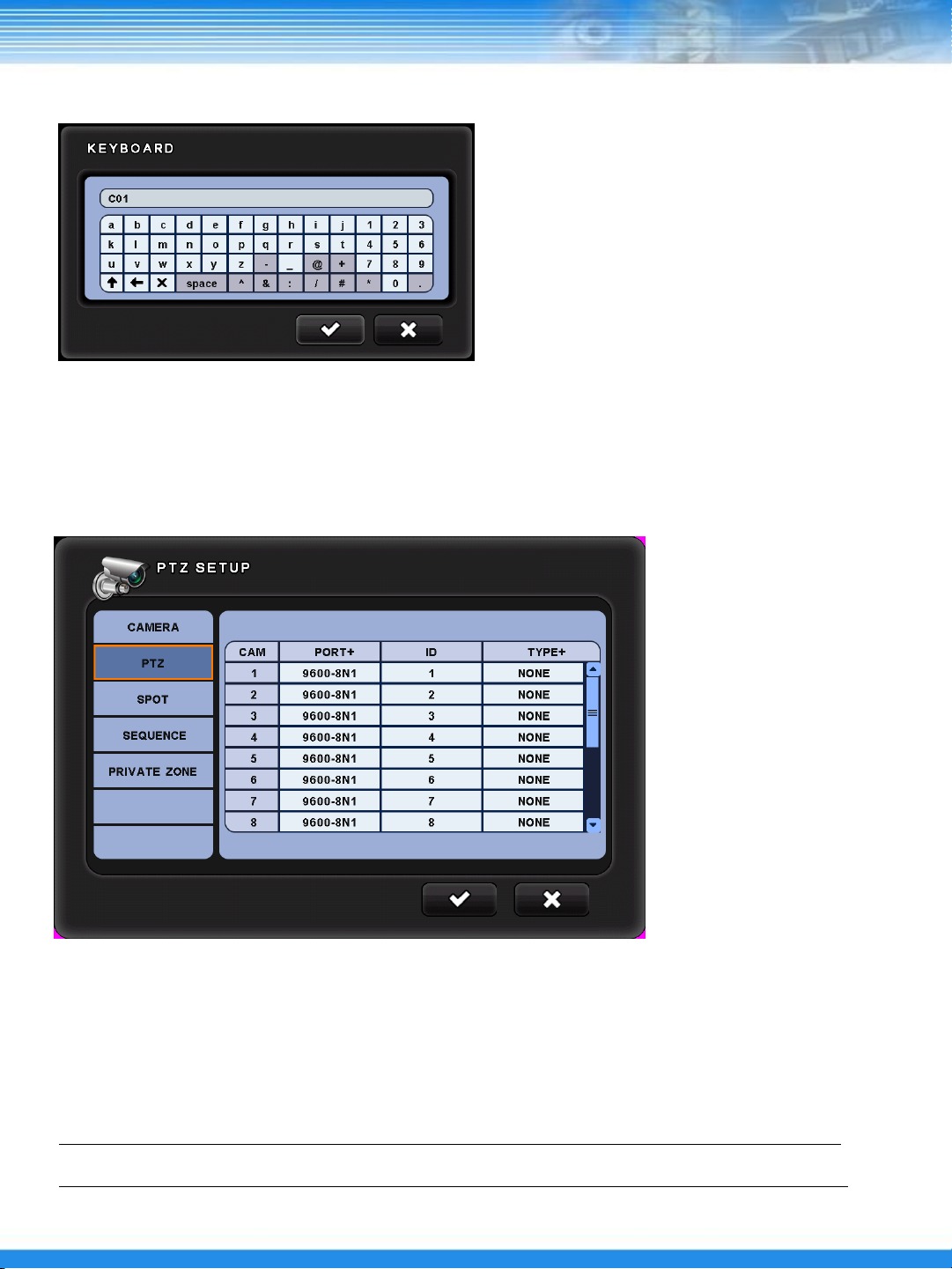

3.2.2 PTZ

5.2.3 SPOT

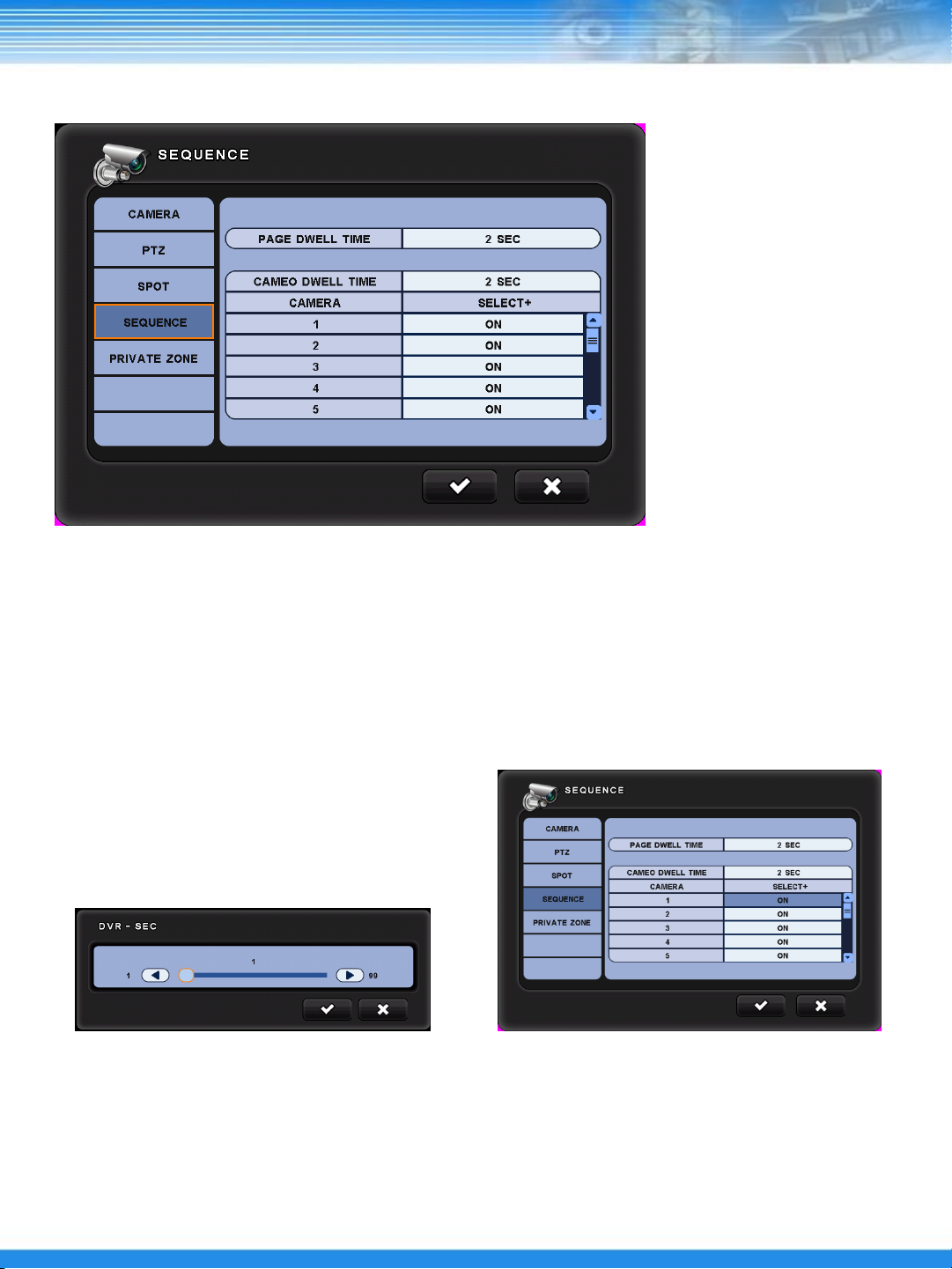

5.2.4 SEQUENCE

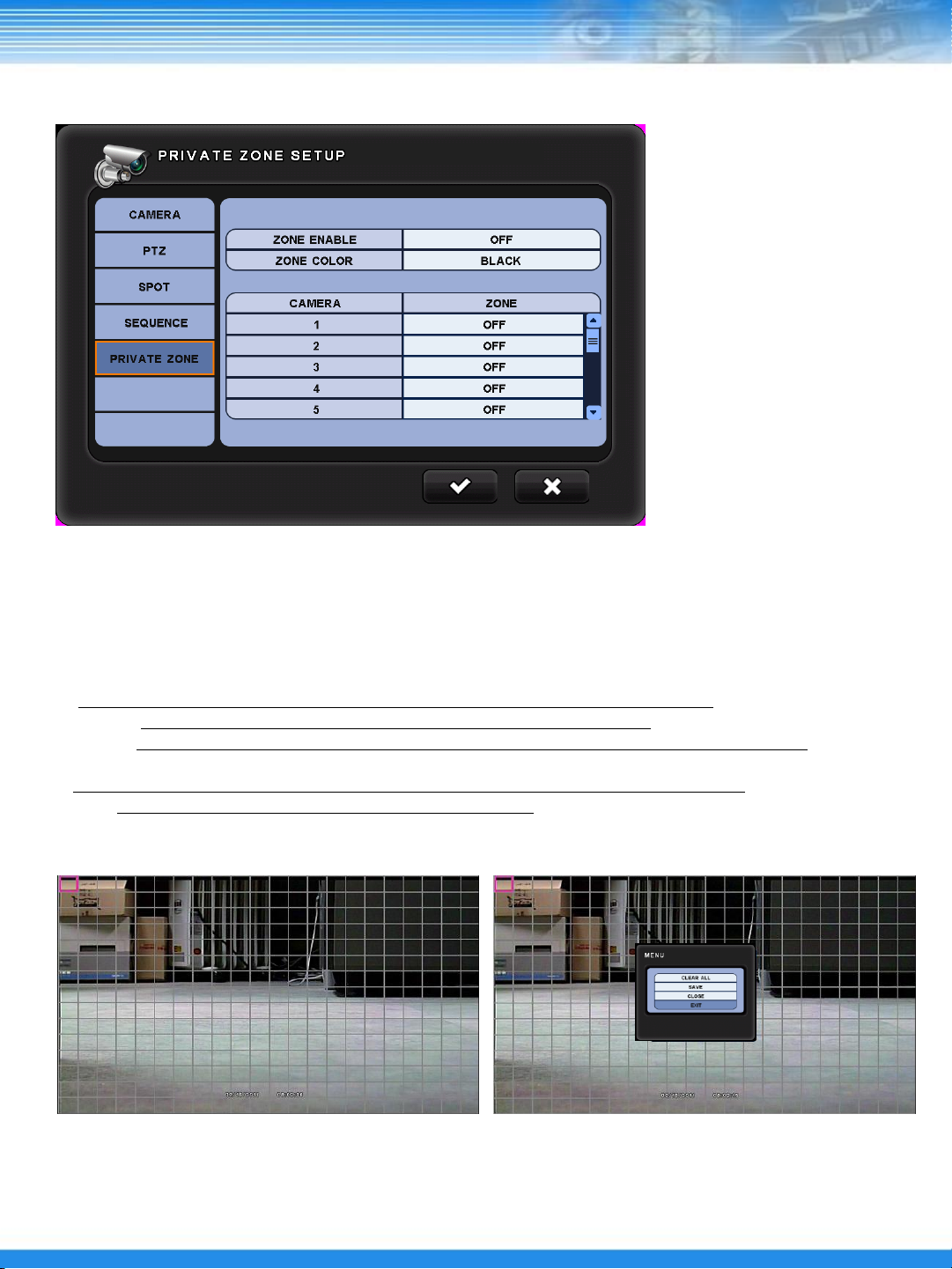

5.2.5 PRIVATE ZONE

5.3 EVENT SETUP

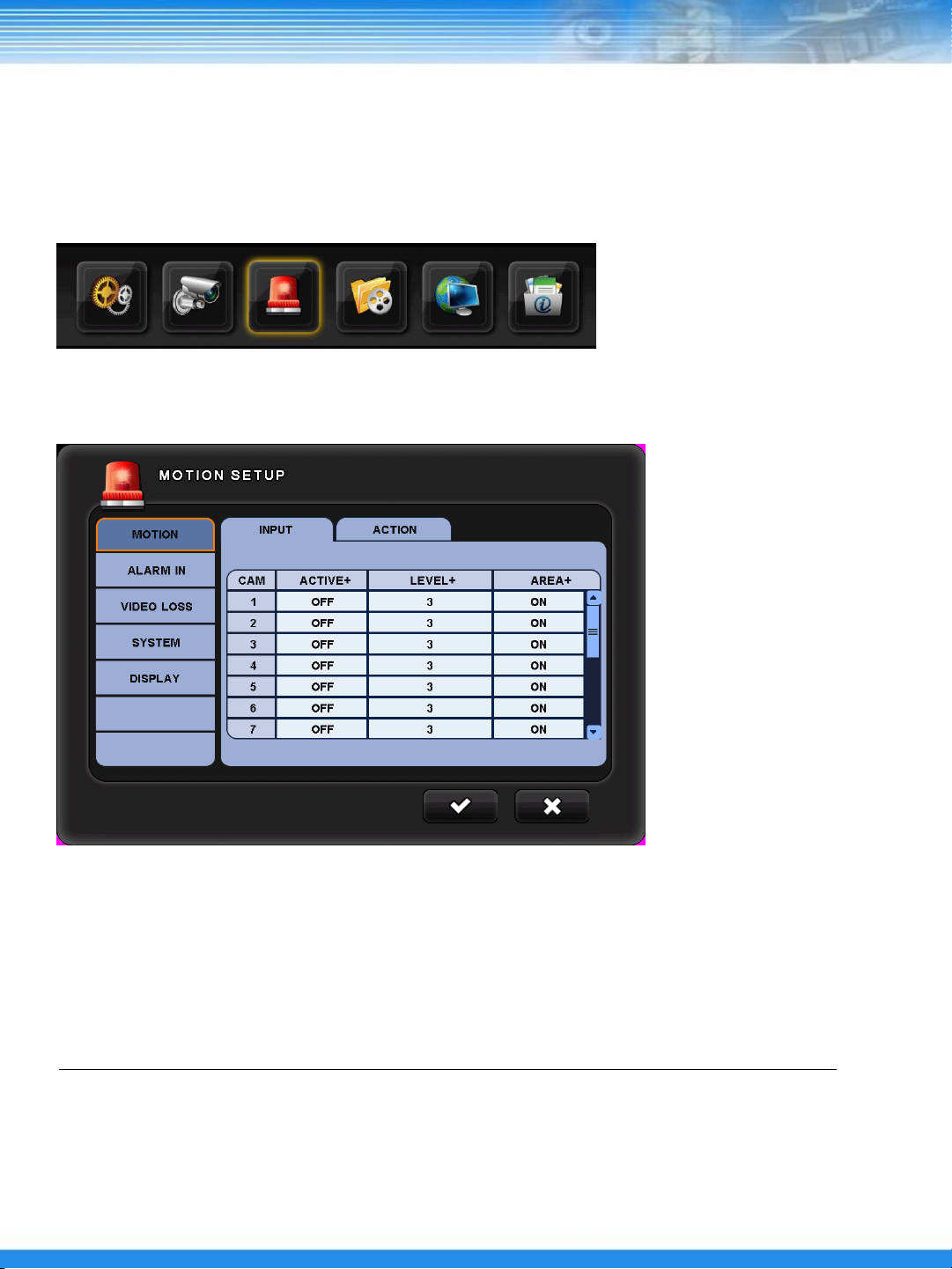

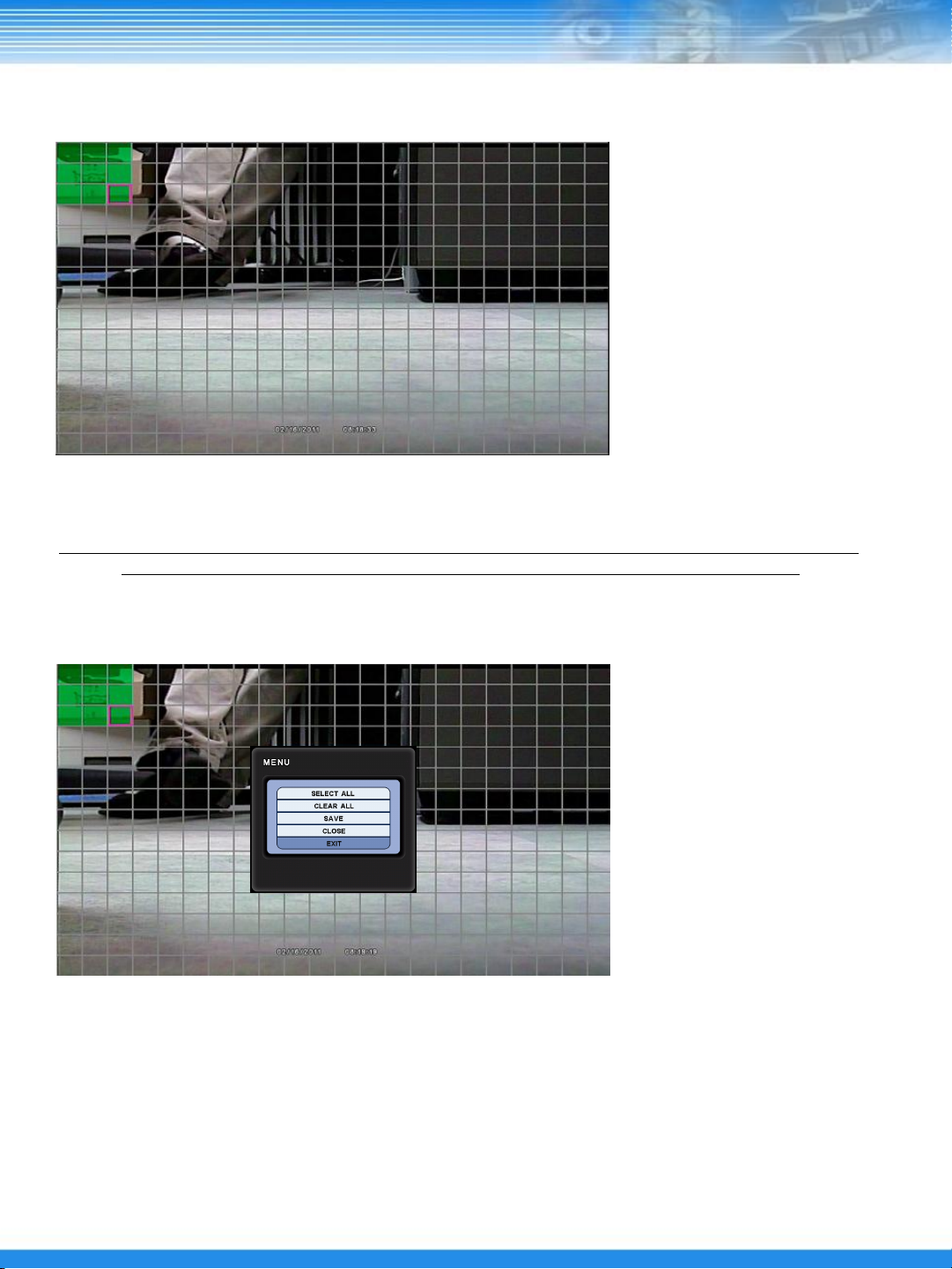

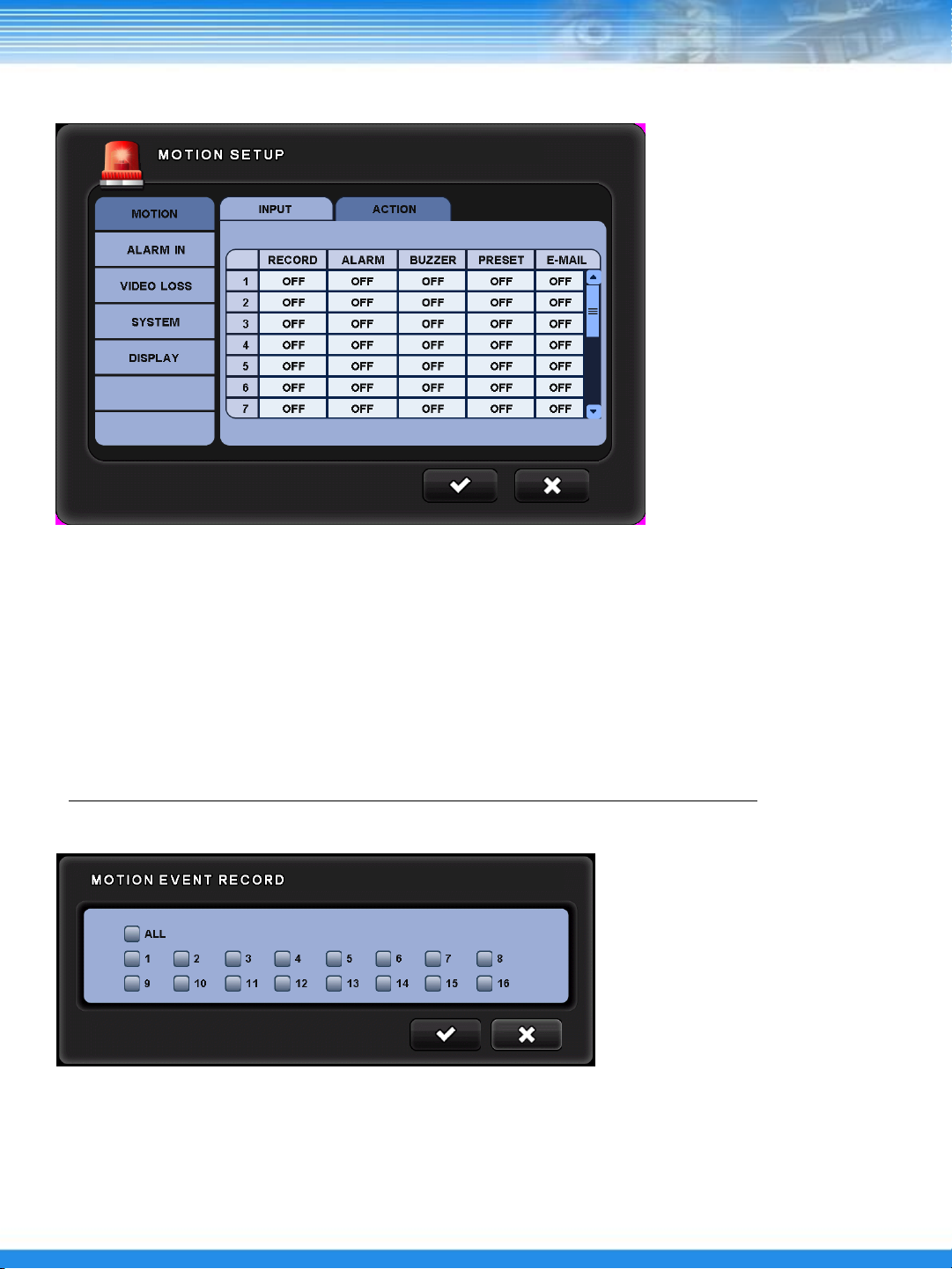

5.3.1 MOTION

5.3.2 ALARM IN

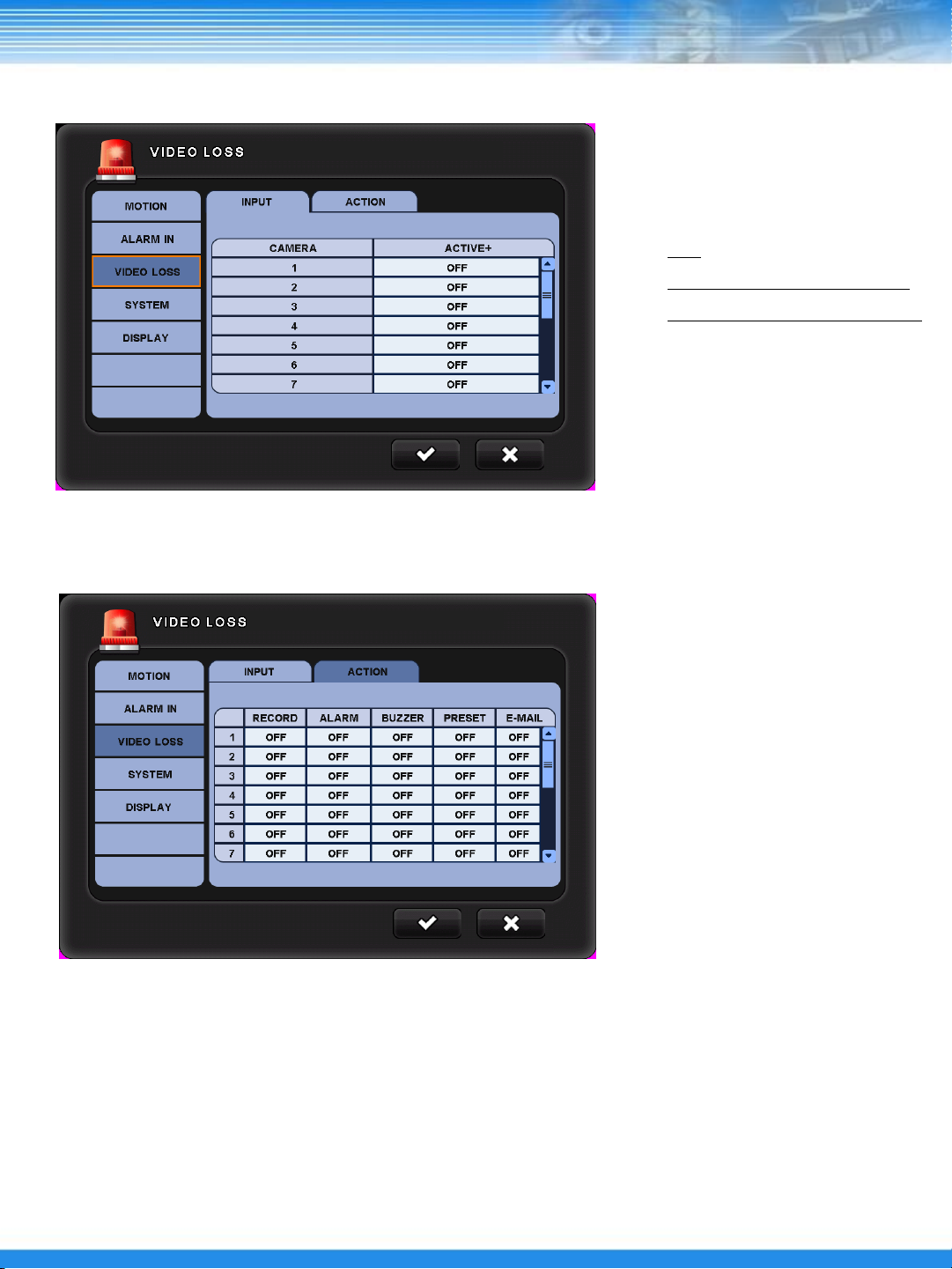

5.3.3 VIDEO LOSS

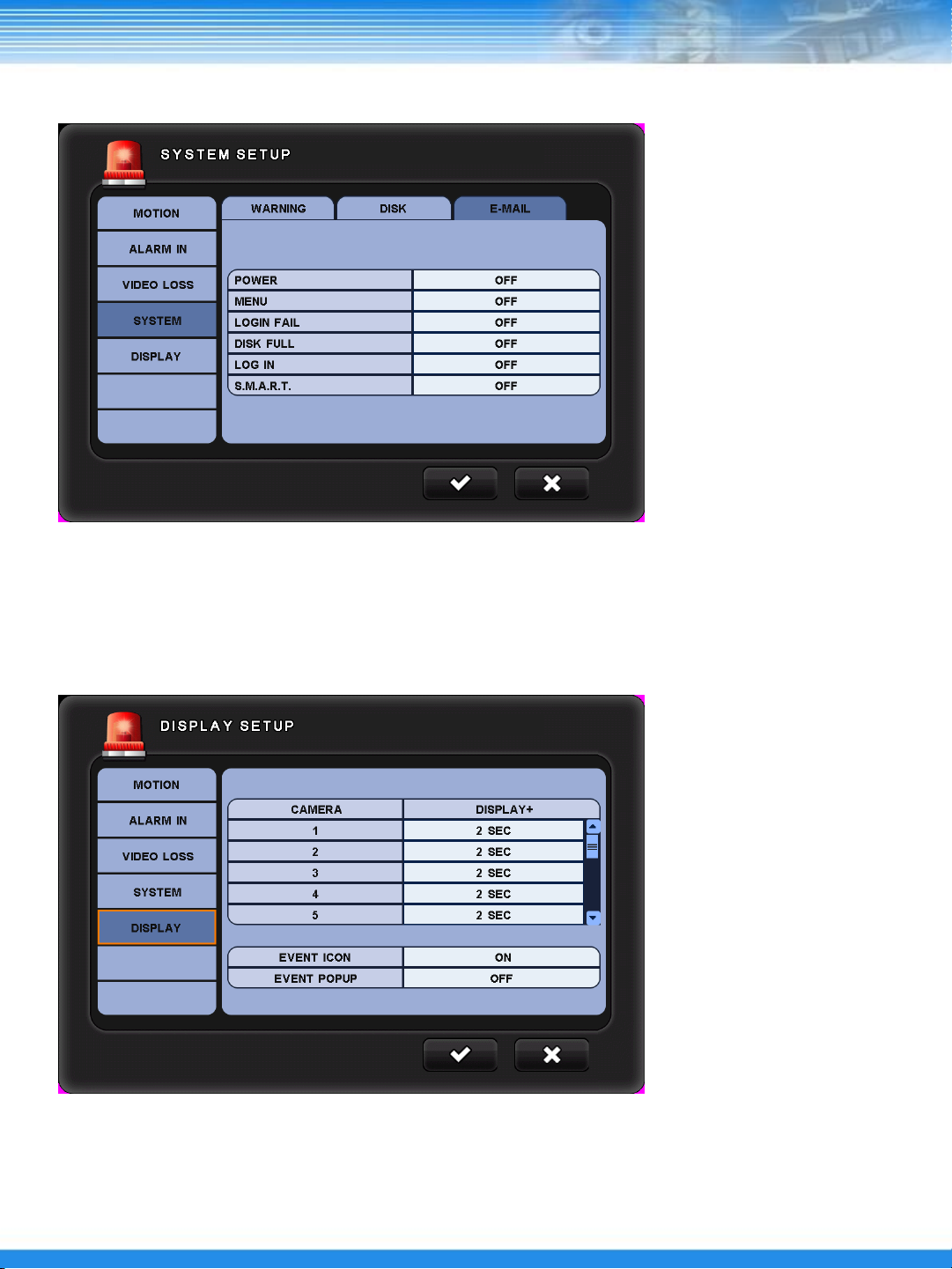

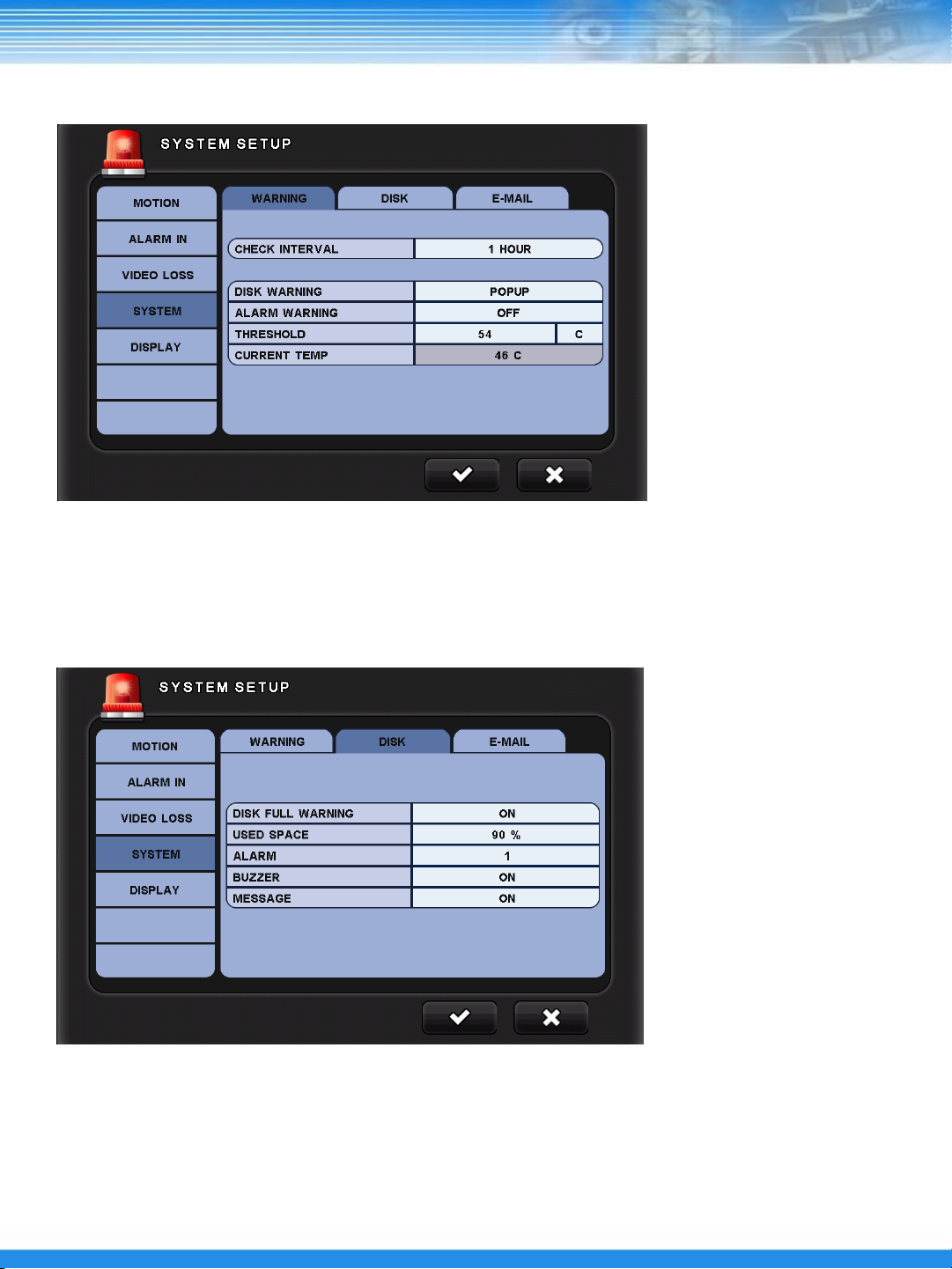

5.3.4 SYSTEM

5.3.5 DISPLAY

5.4 RECORD SETUP

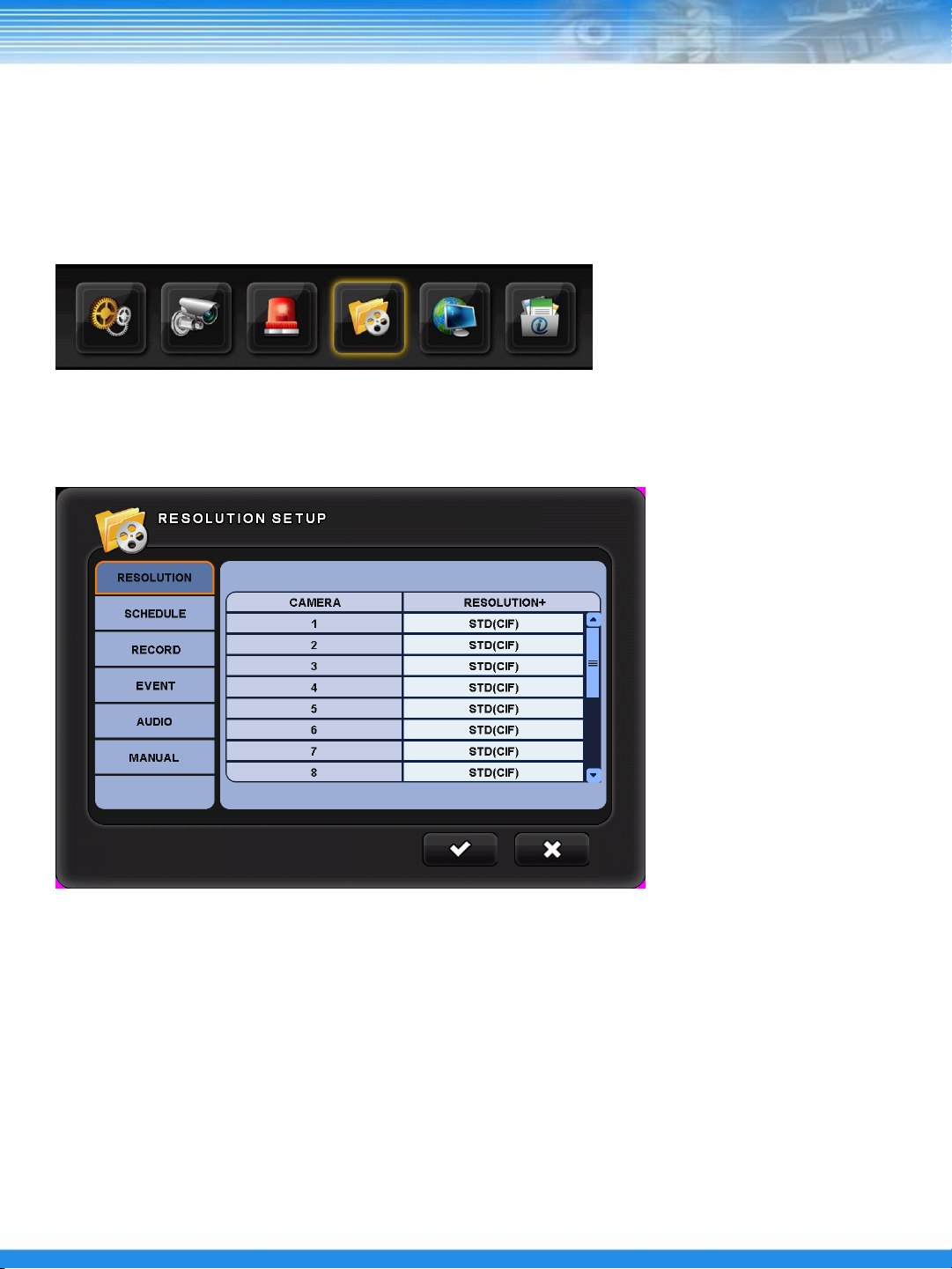

5.4.1 RESOLUTION

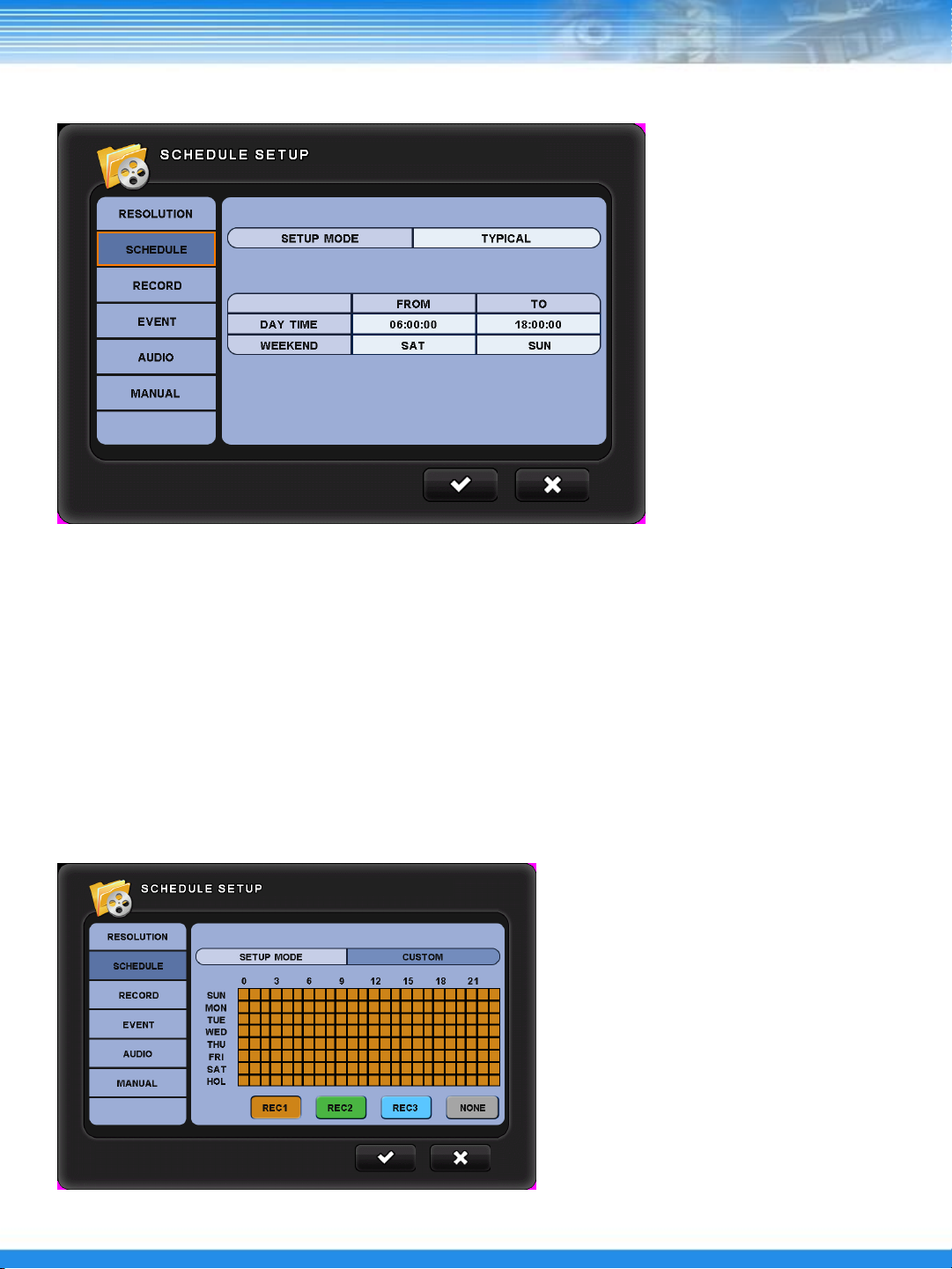

5.4.2 SCHEDULE

-----------------------------------------------------------

----------------------------------------------------------

-----------------------------------------------------

-------------------------------------------------------

-----------------------------------------------------

--------------------------------------------------

-------------------------------------------------------

----------------------------------------------------

-------------------------------------------------------

----------------------------------------------------

-----------------------------------------------------

34 34

35 36 37 38

39

42 43 44 46

47 47

48

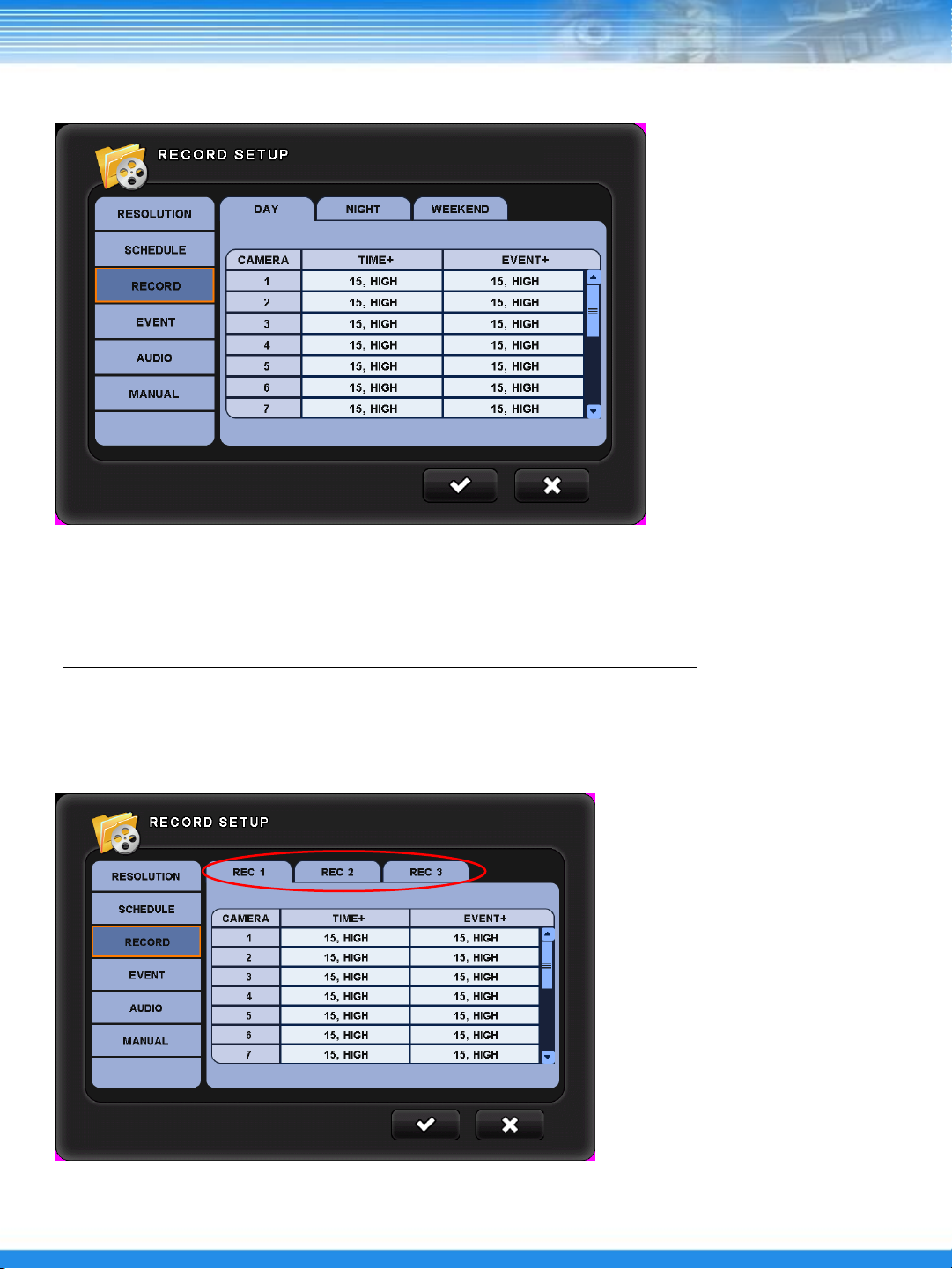

5.4.3 RECORD

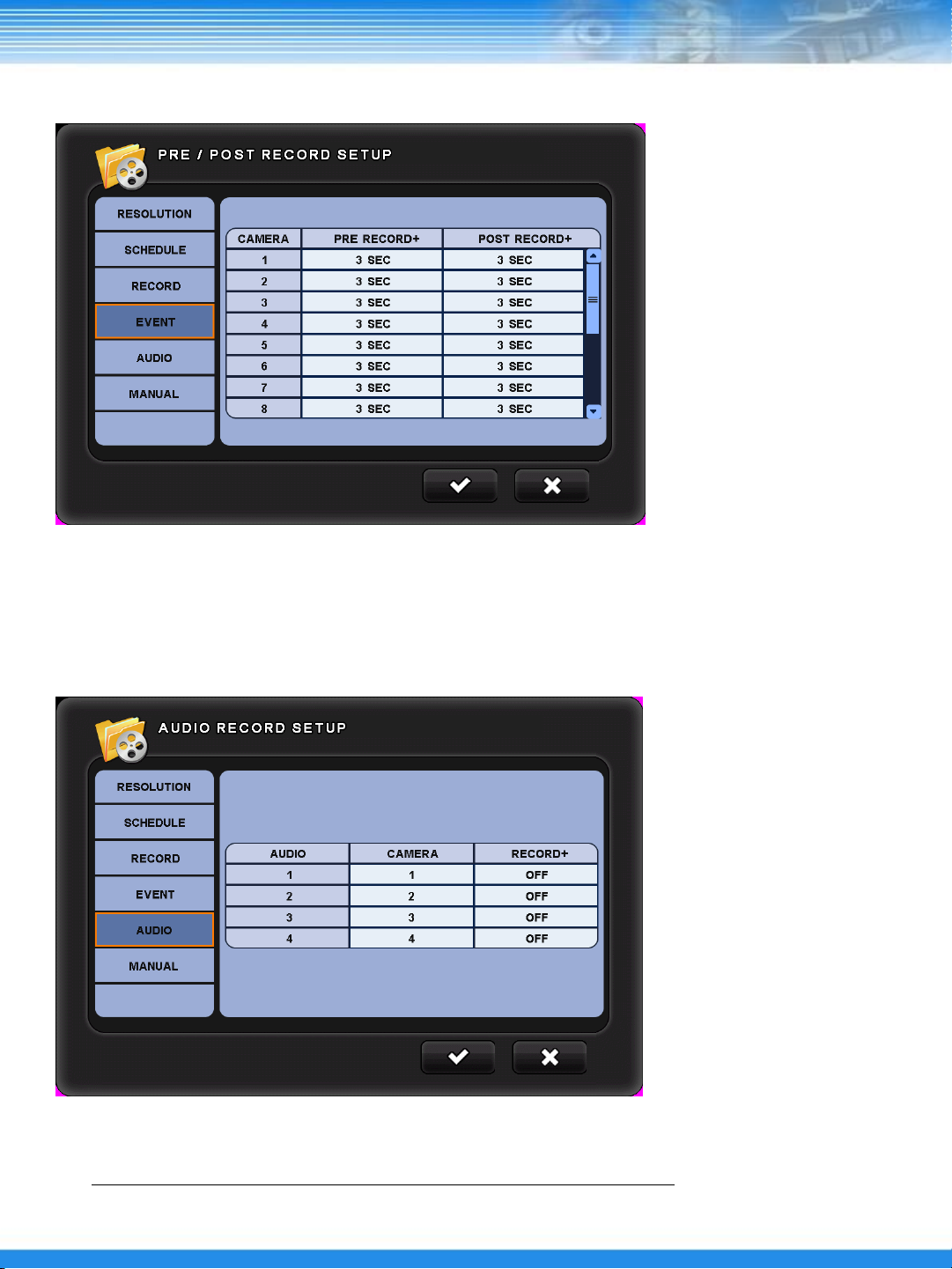

5.4.4 EVENT

5.4.5 AUDIO

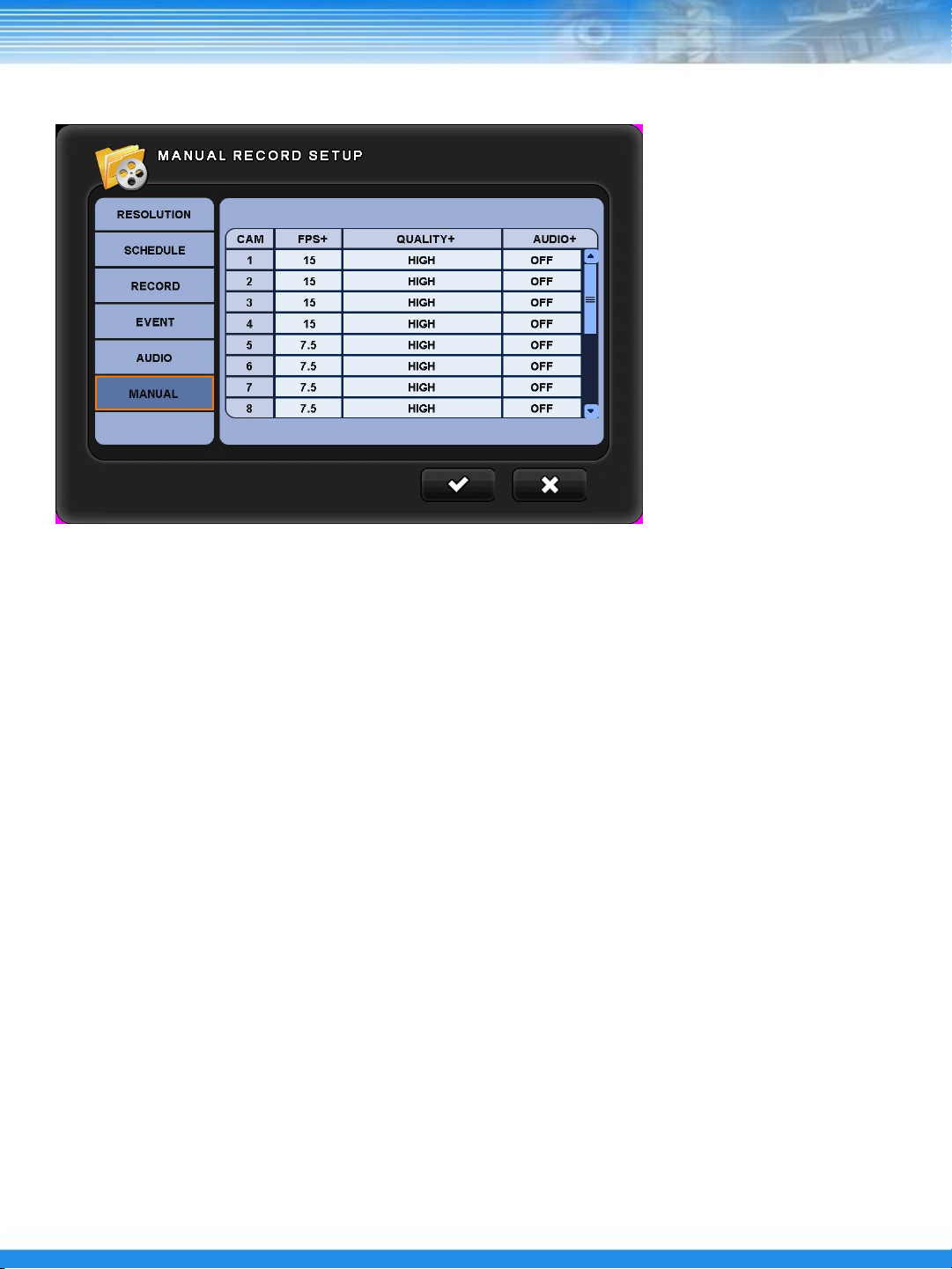

5.4.6 MANUAL

5.5 ETHERNET SETUP

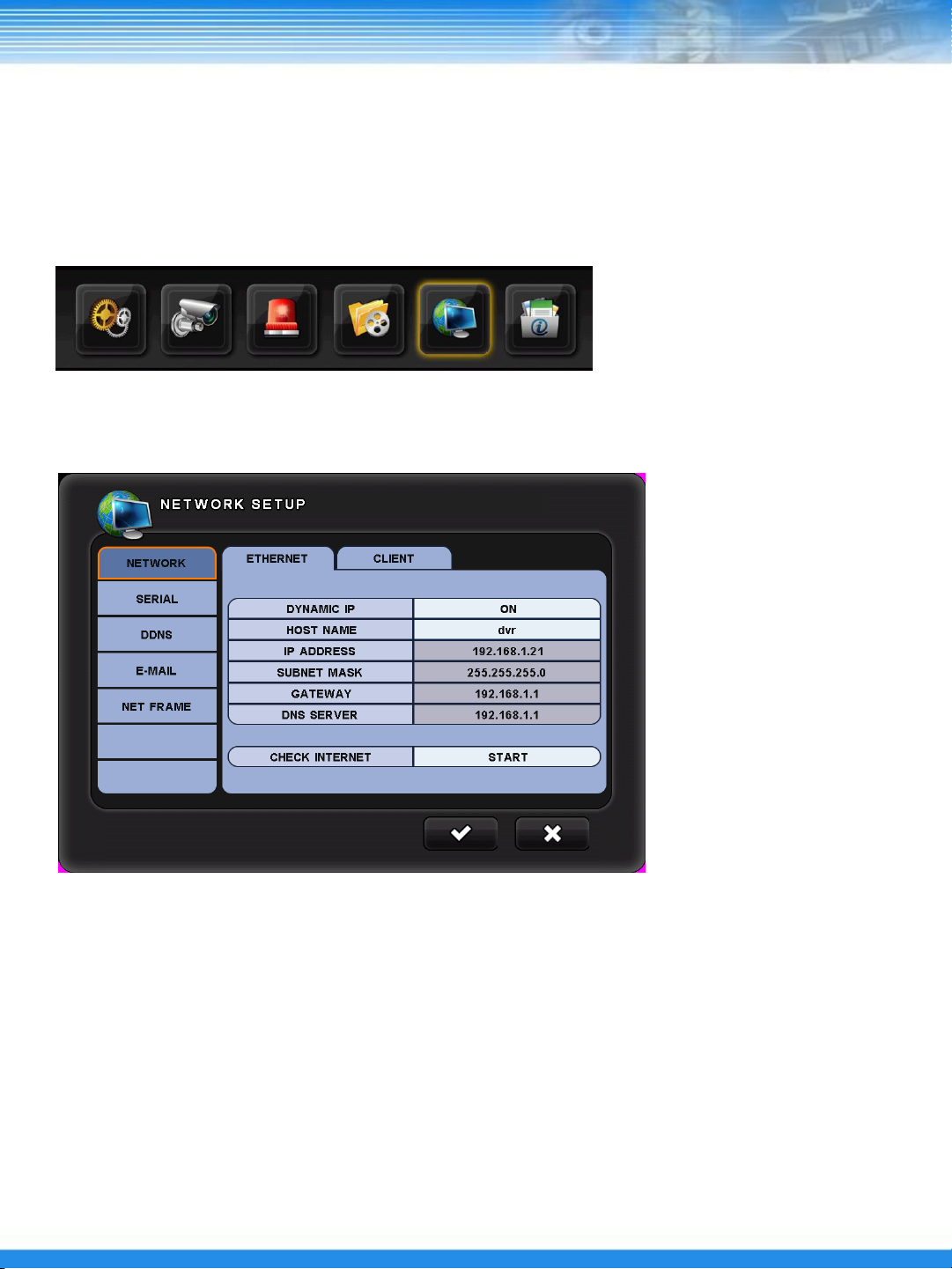

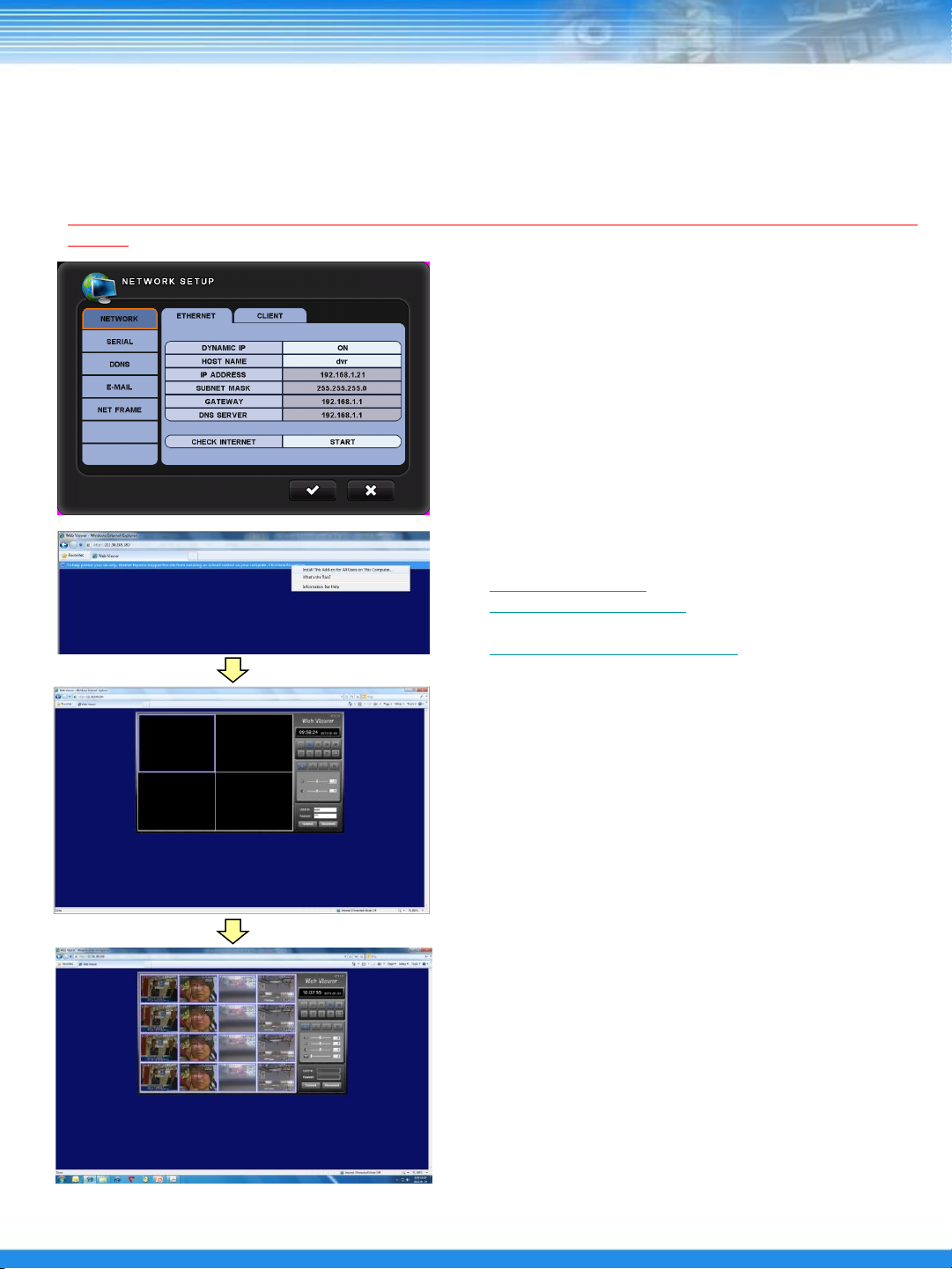

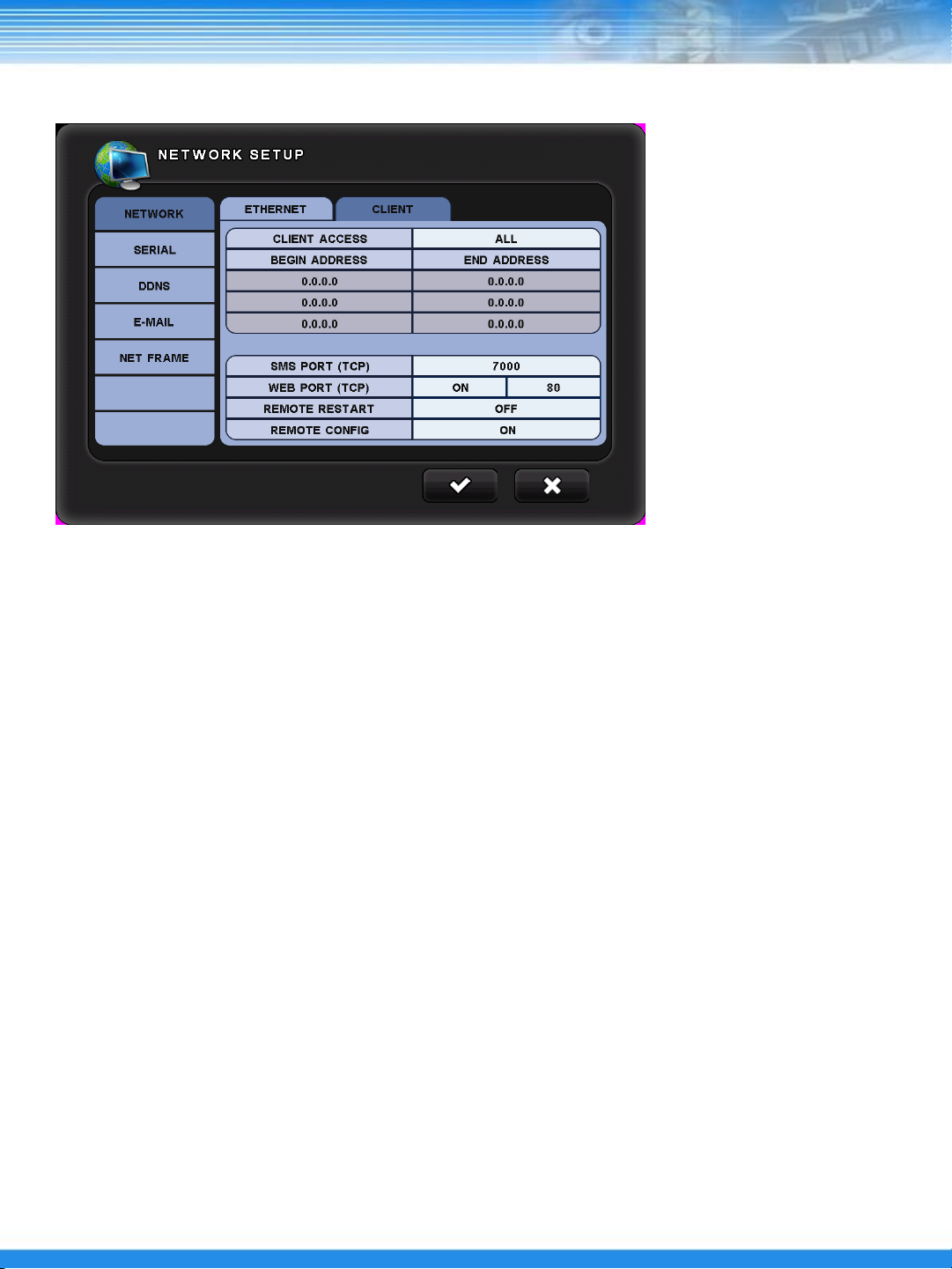

5.5.1 NETWORK

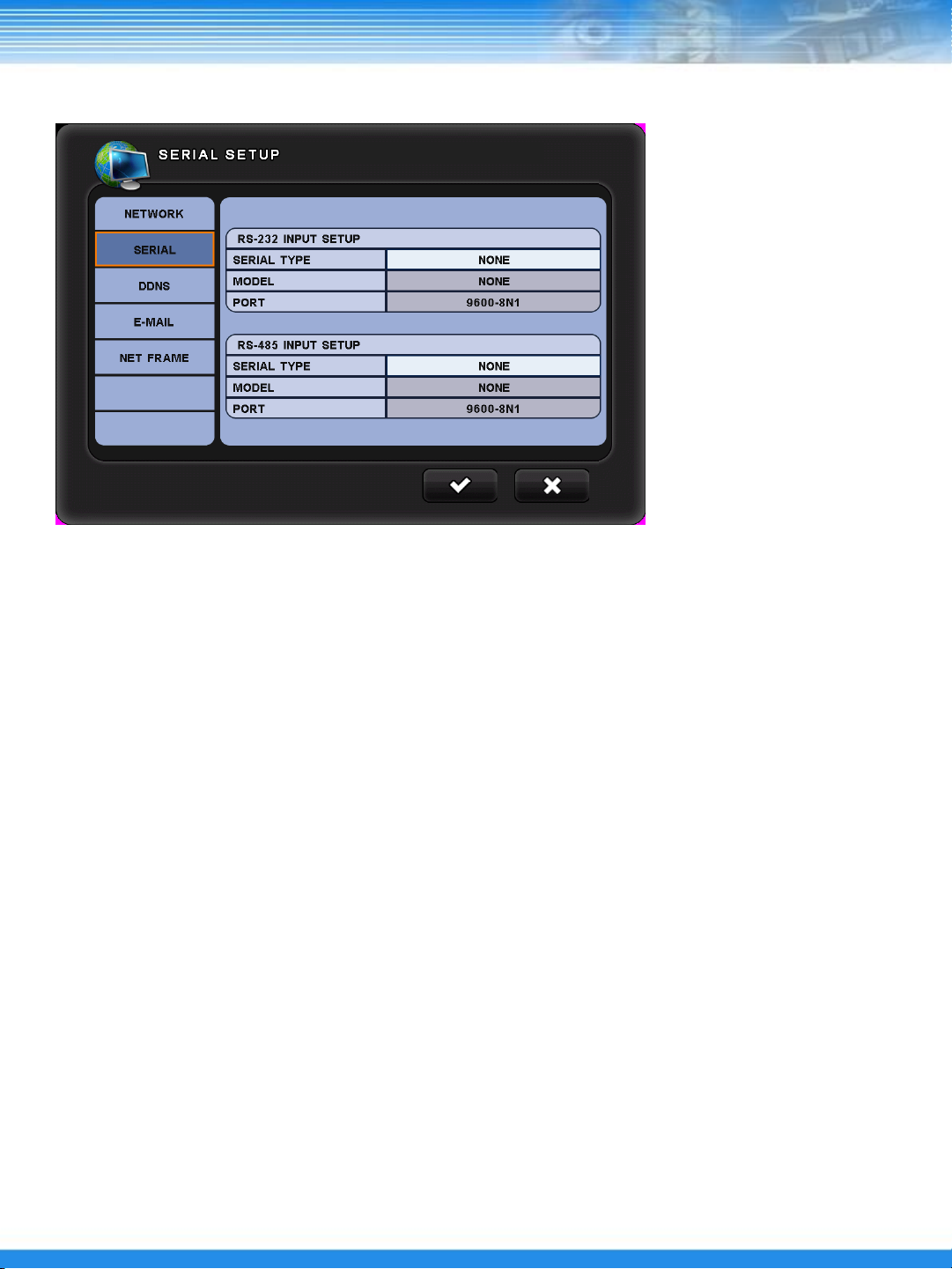

5.5.2 SERIAL

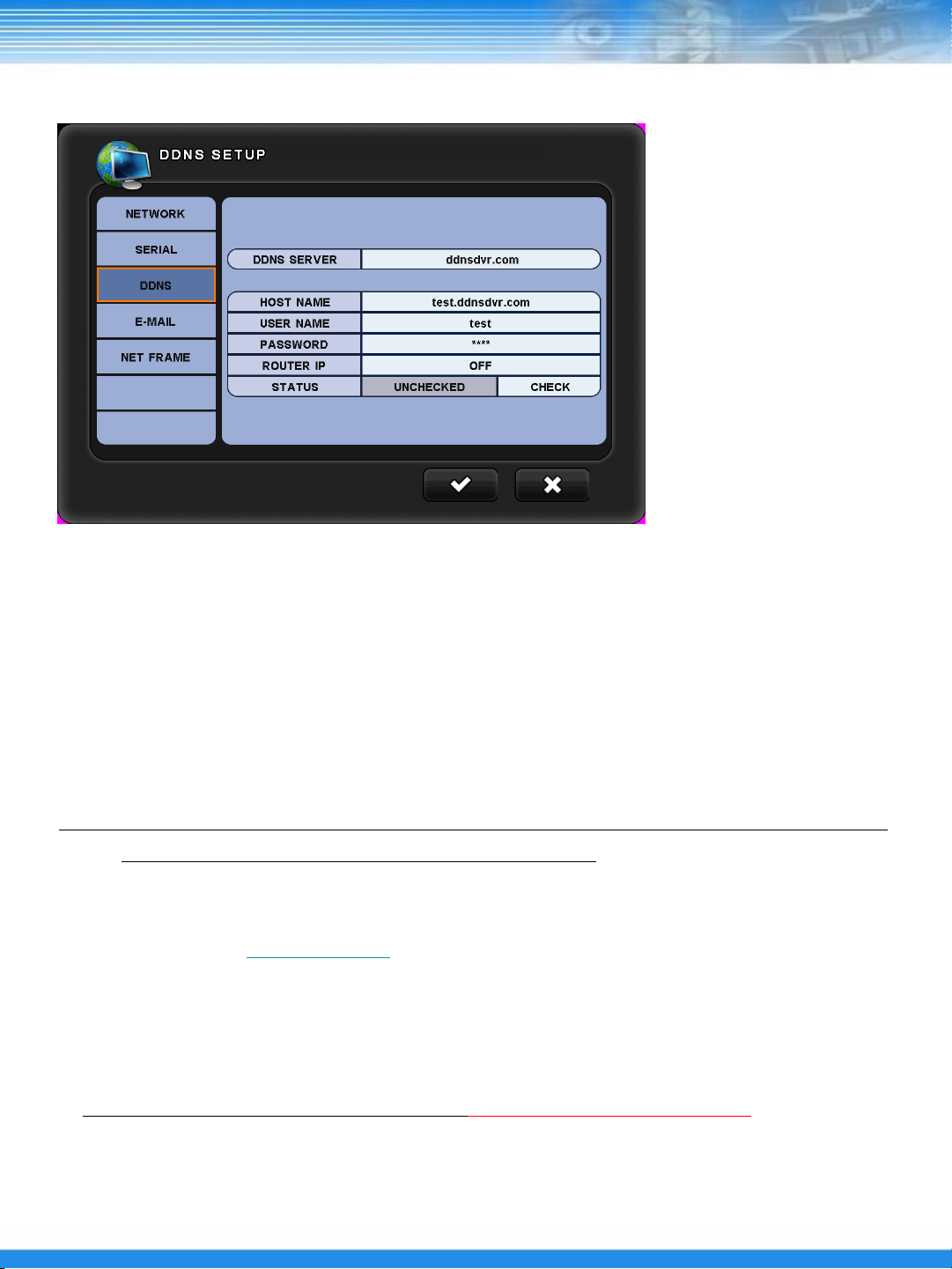

5.5.3 DDNS

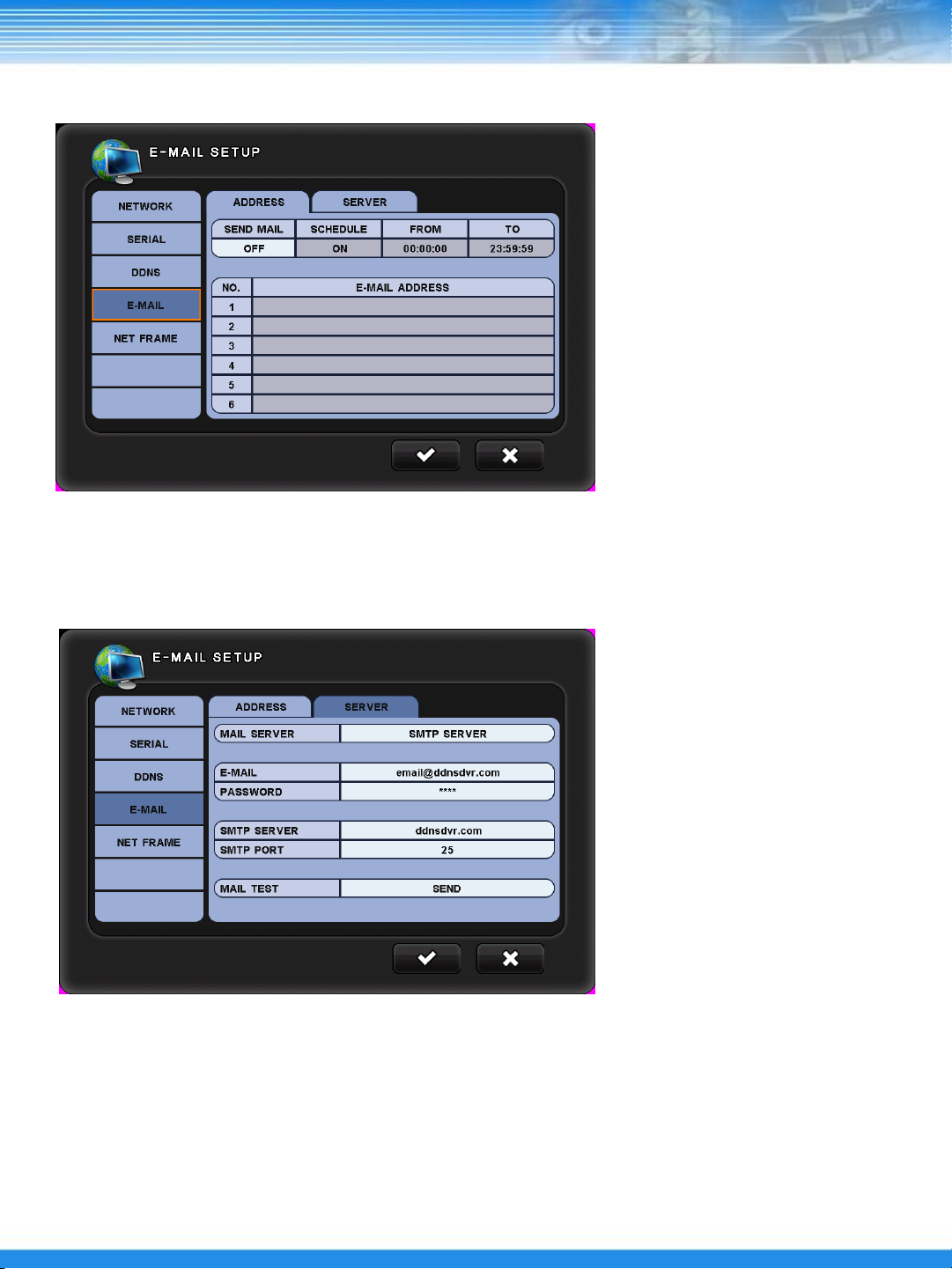

5.5.4 E-MAIL

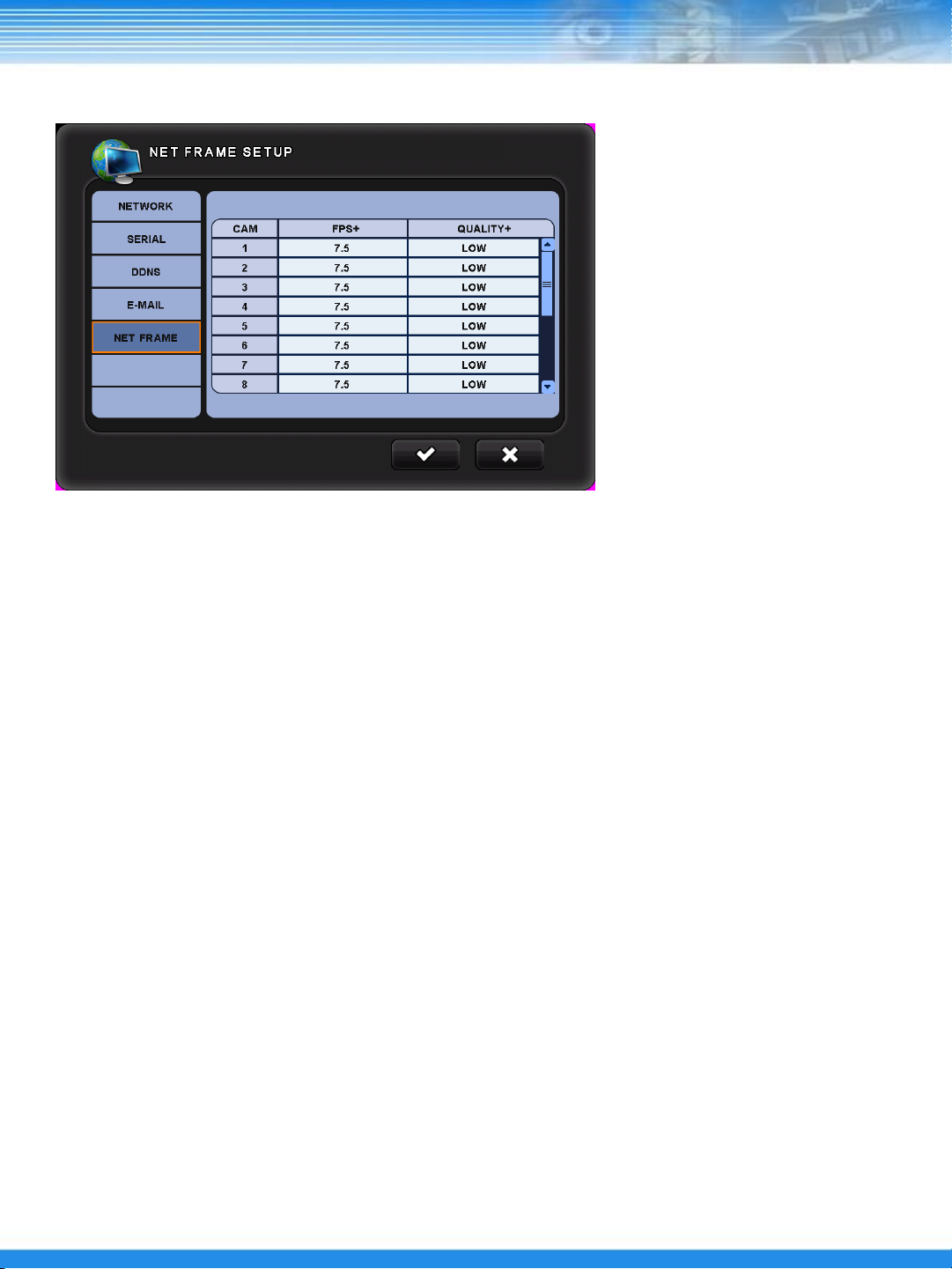

5.5.5 NET FRAME

5.6 SYSTEM SETUP

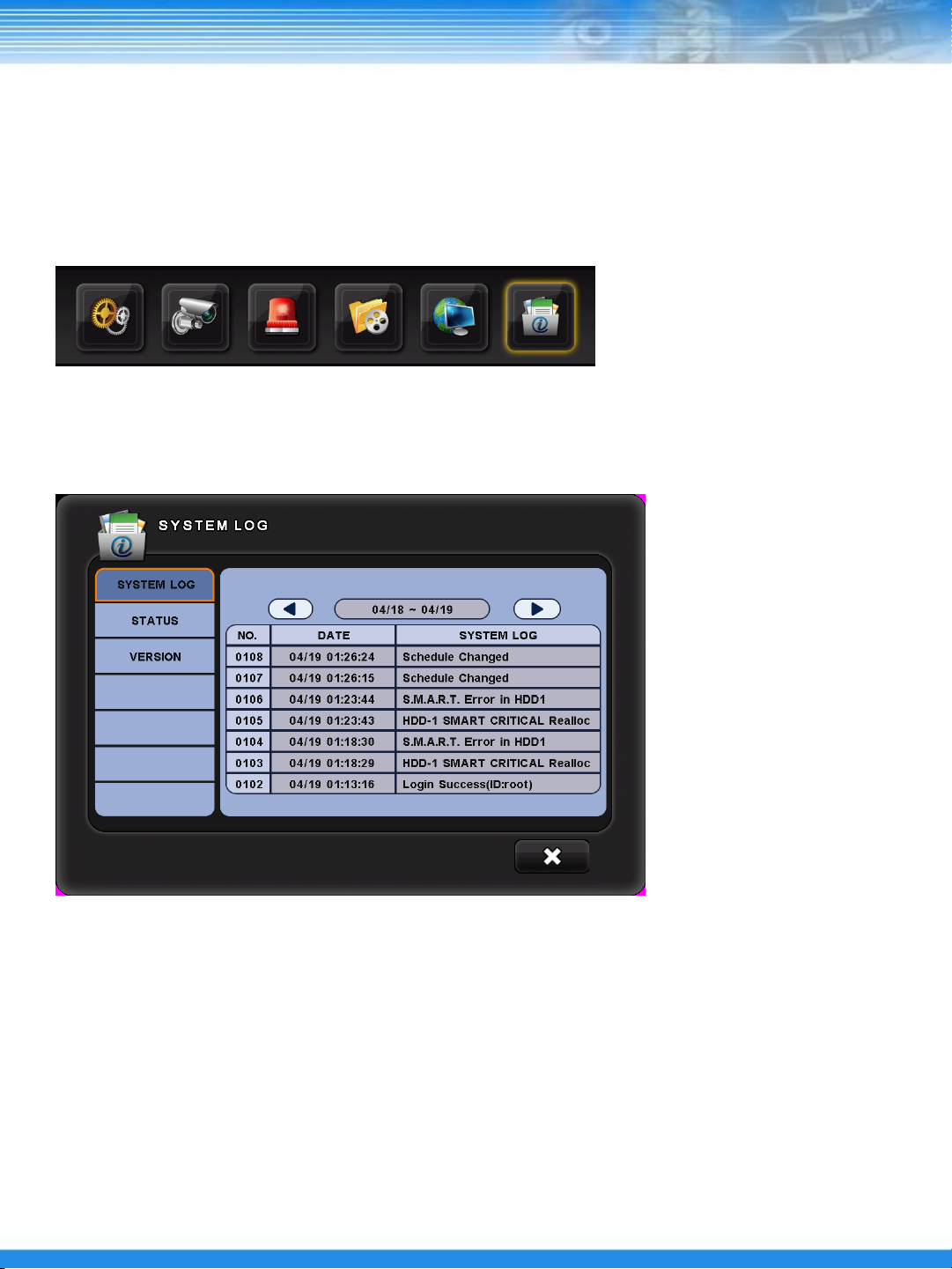

5.6.1 SYSTEM LOG

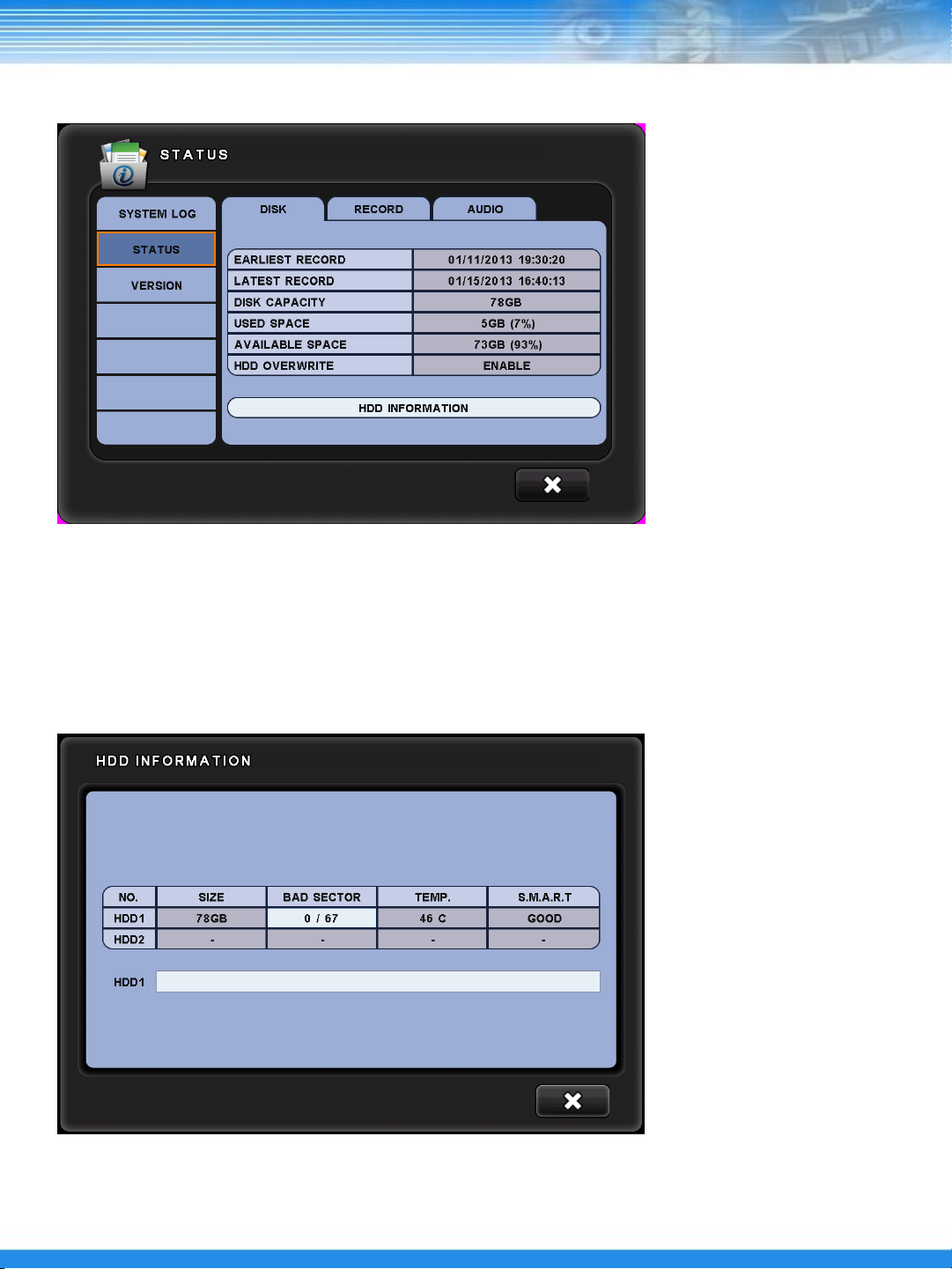

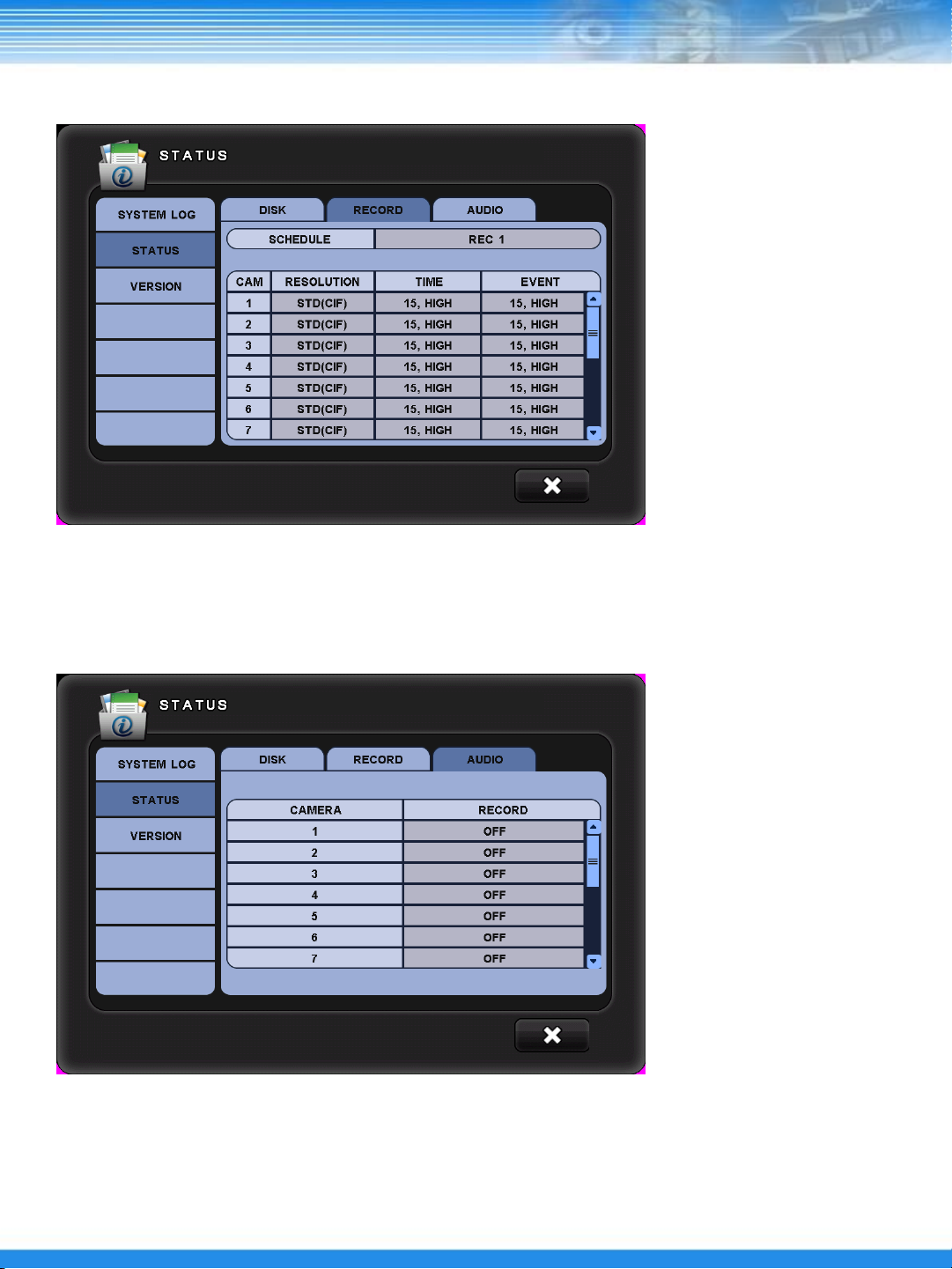

5.6.2 STATUS

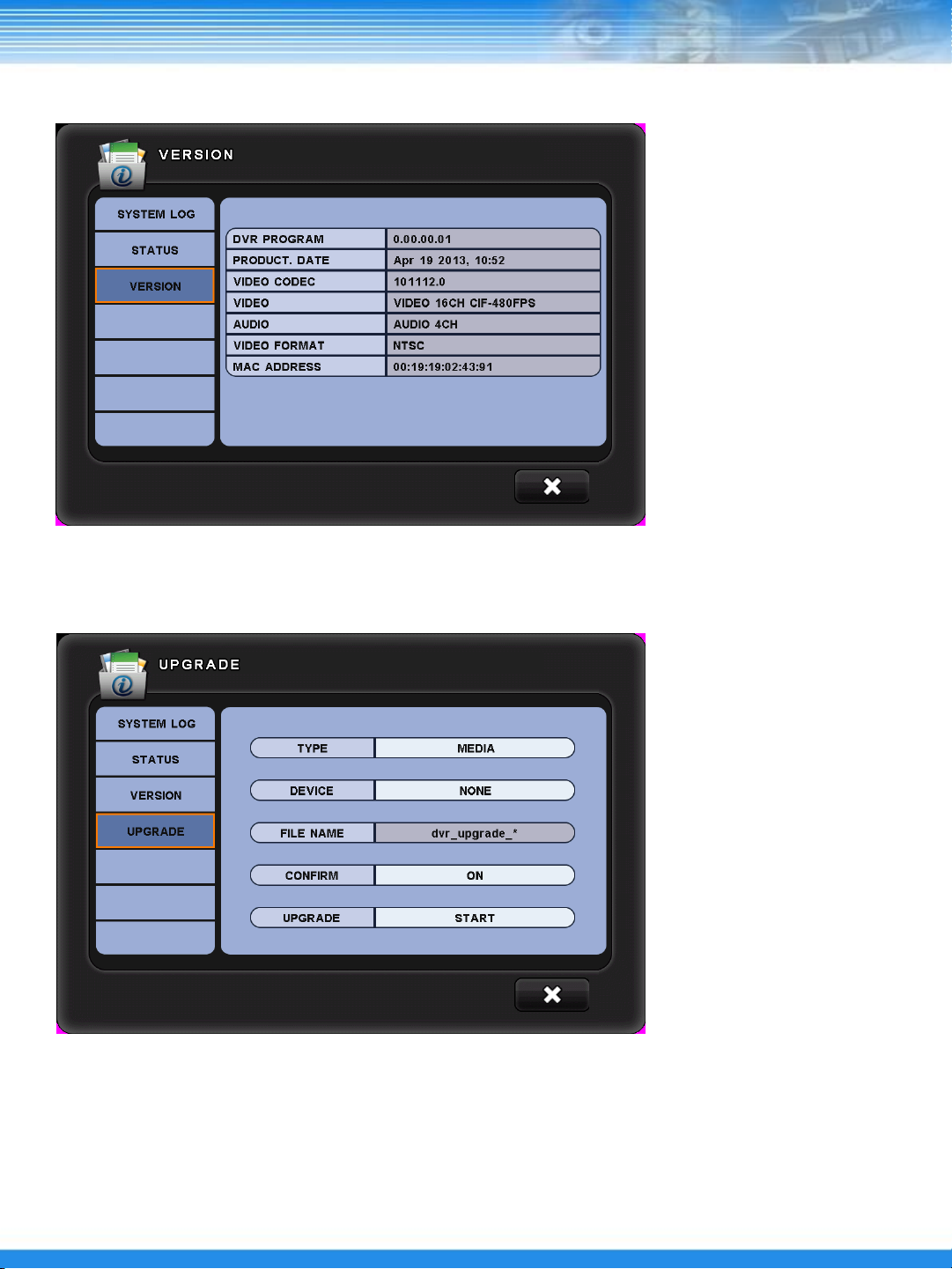

5.6.3 VERSION

5.6.4 UPGRADE

--------------------------------------------------------

----------------------------------------------------------

--------------------------------------------------------

-------------------------------------------------------

----------------------------------------------------

-----------------------------------------------------

----------------------------------------------------

-------------------------------------------------------

49

50

50 51

52 52

54 55 56 57

58 58

59 61 61

4

INDEX

6. SEARCH

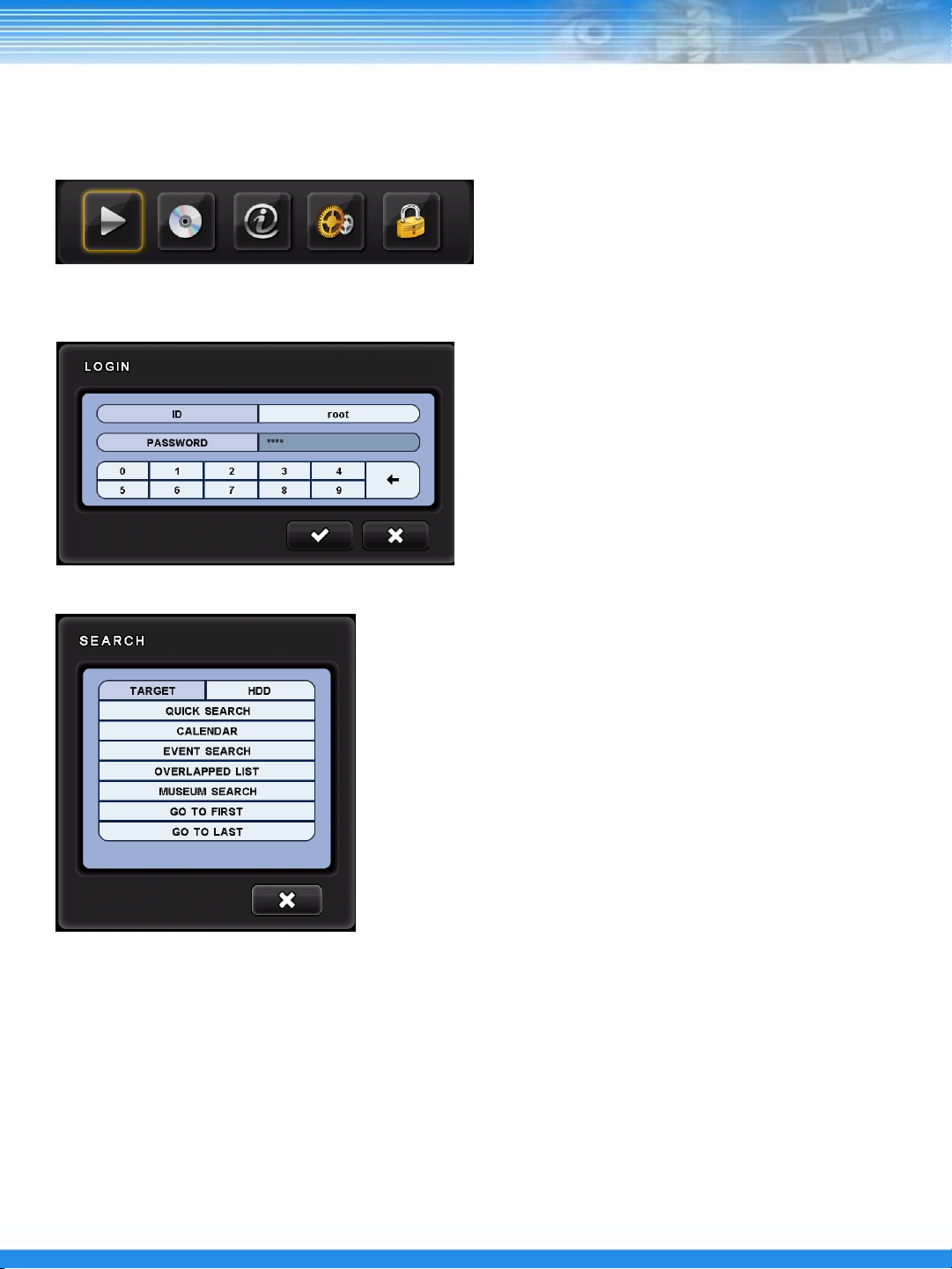

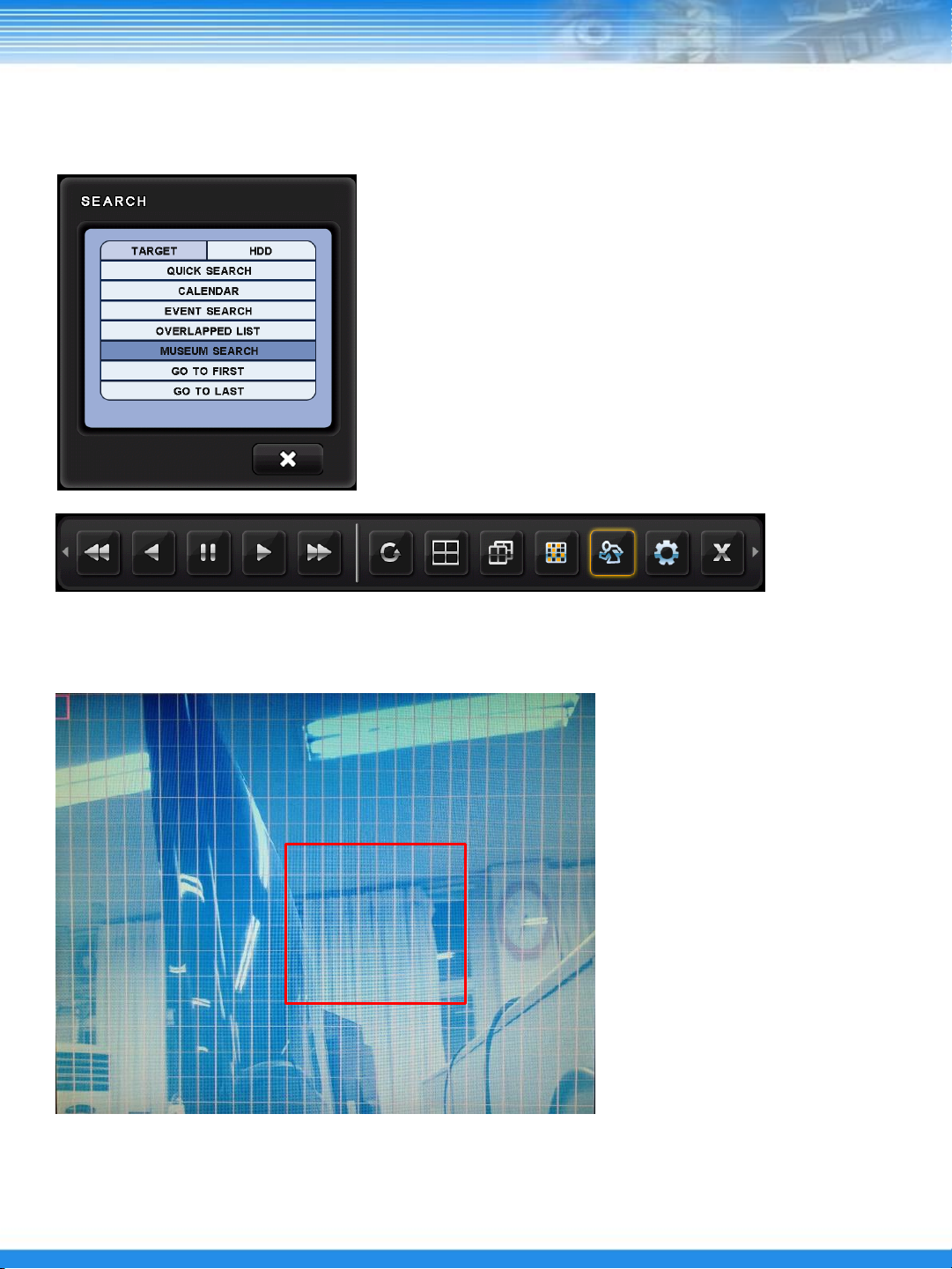

6.1 Search Screen

6.1.1 Search Menu

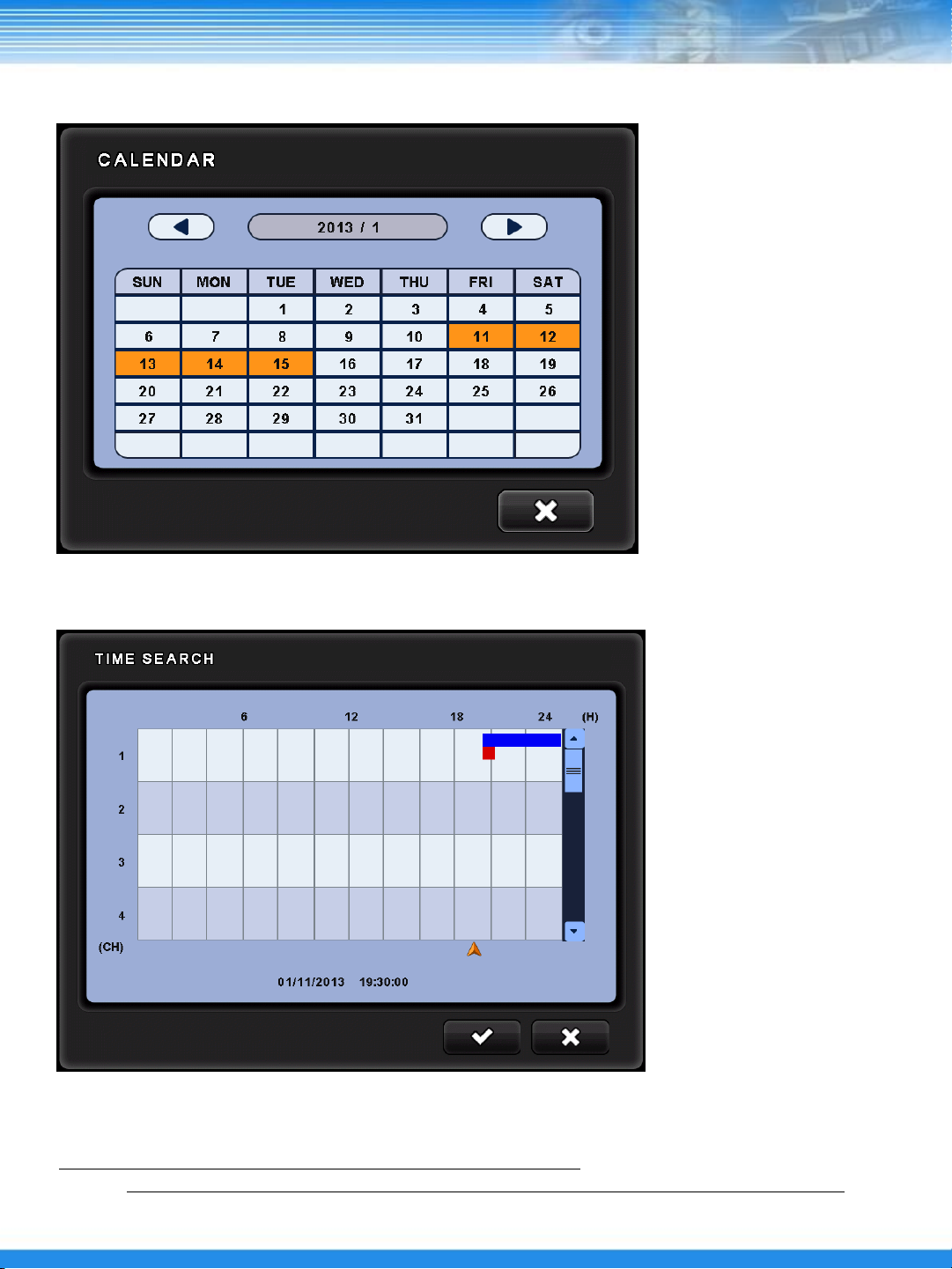

6.1.2 Calendar Search

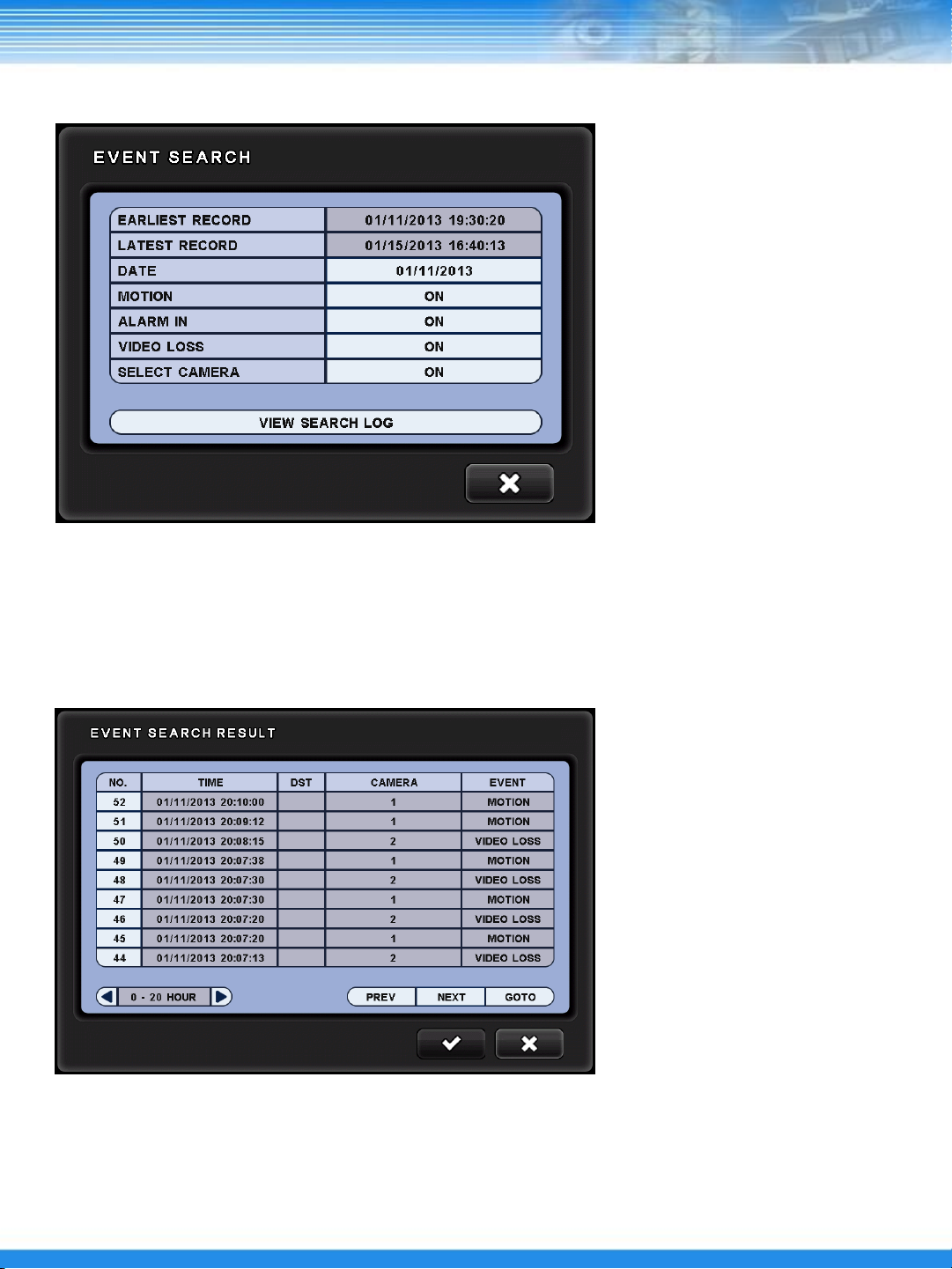

6.1.3 Event Search

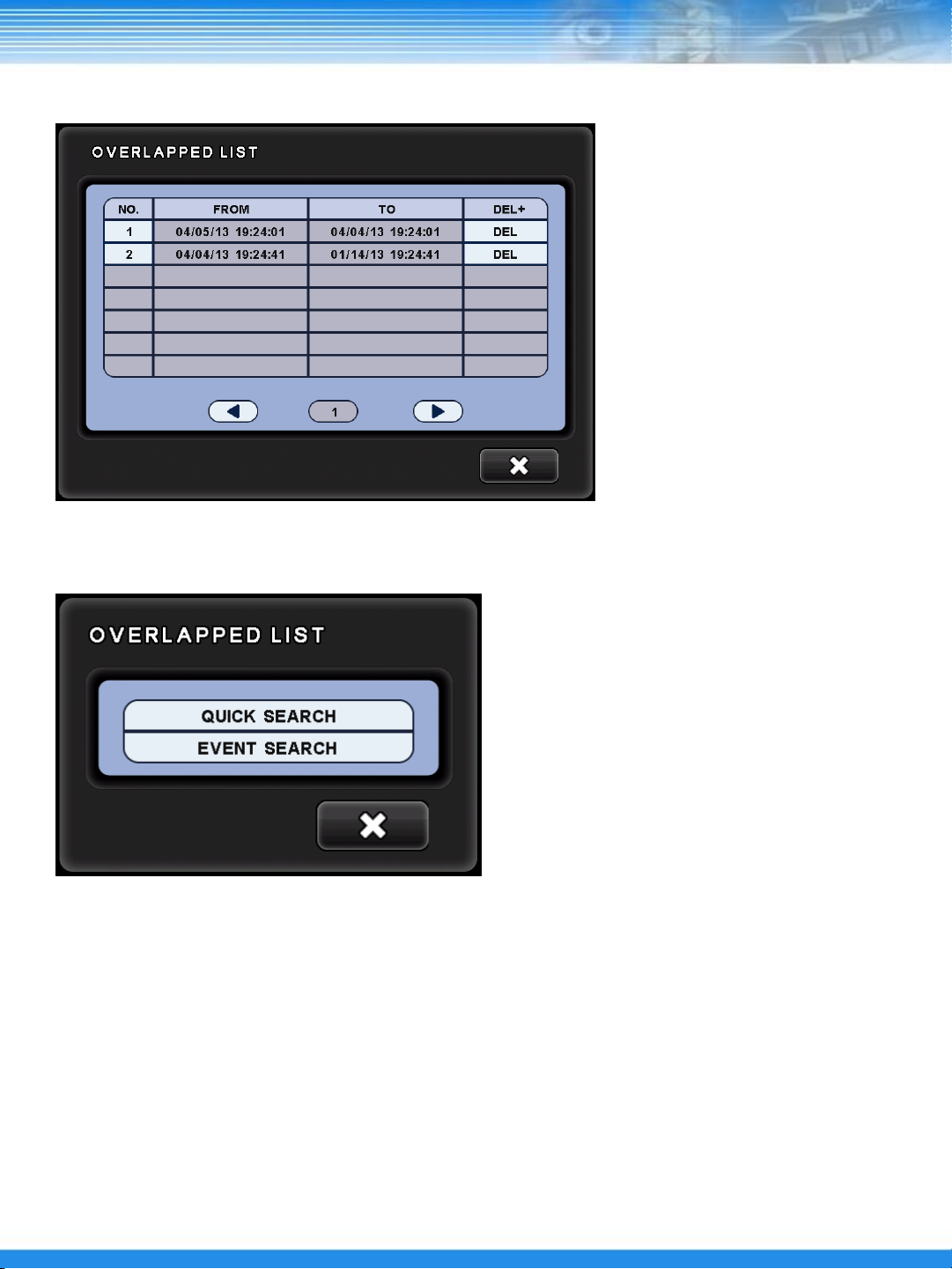

6.1.4 Overlapped List

6.1.5 Panorama Search

6.1.6 Section Repeat Search

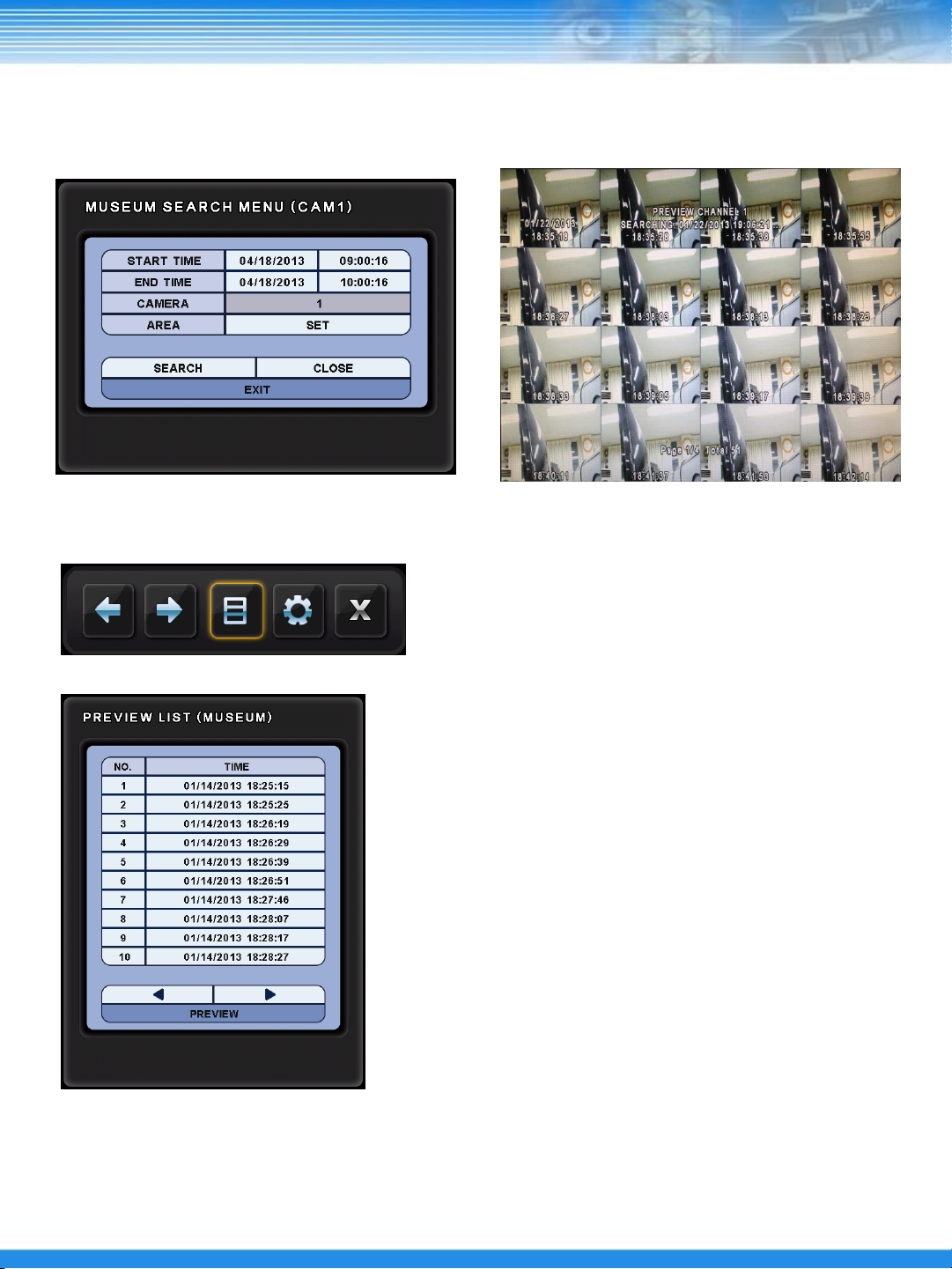

6.1.7 Museum Search

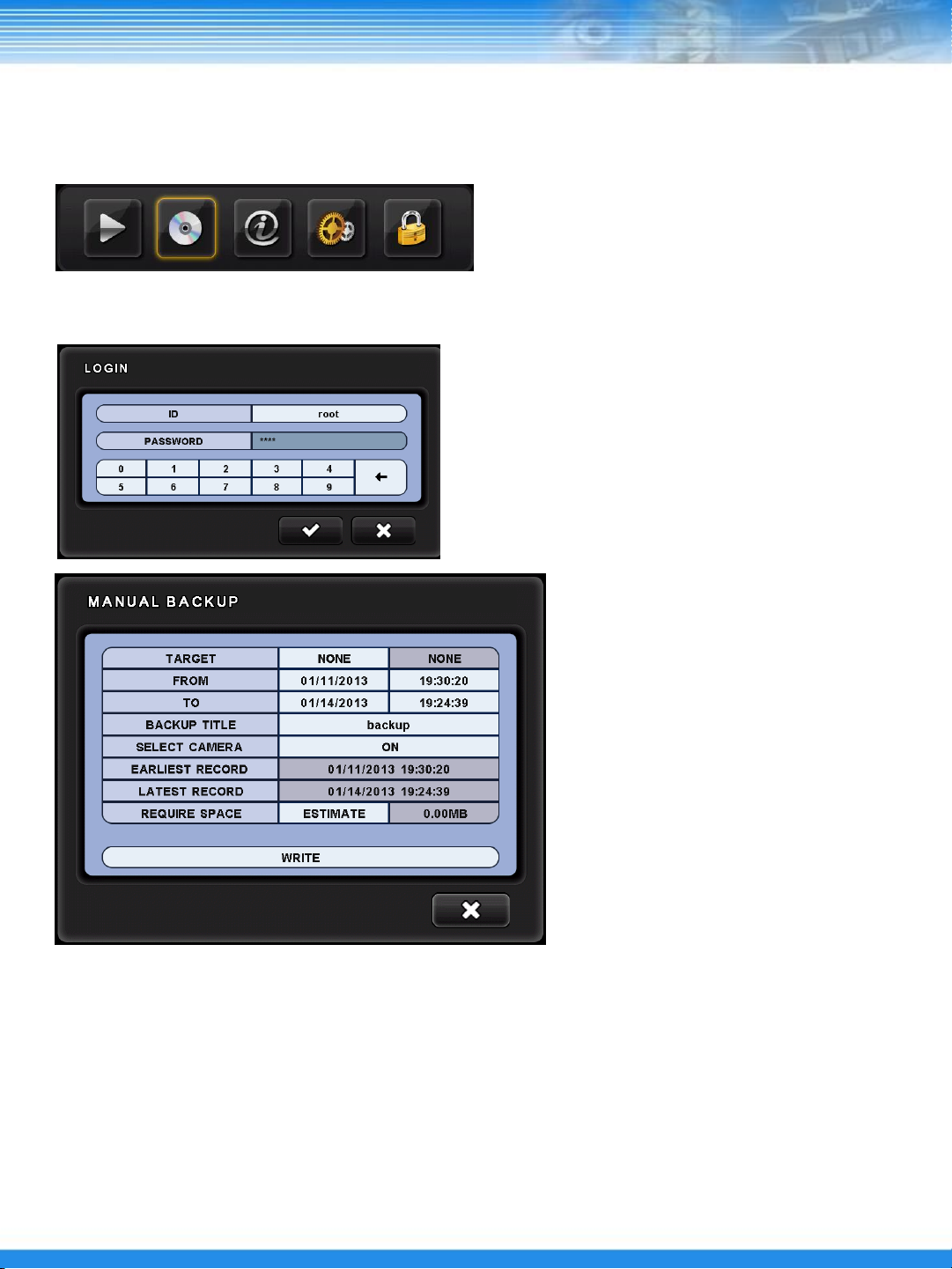

7. BACKUP

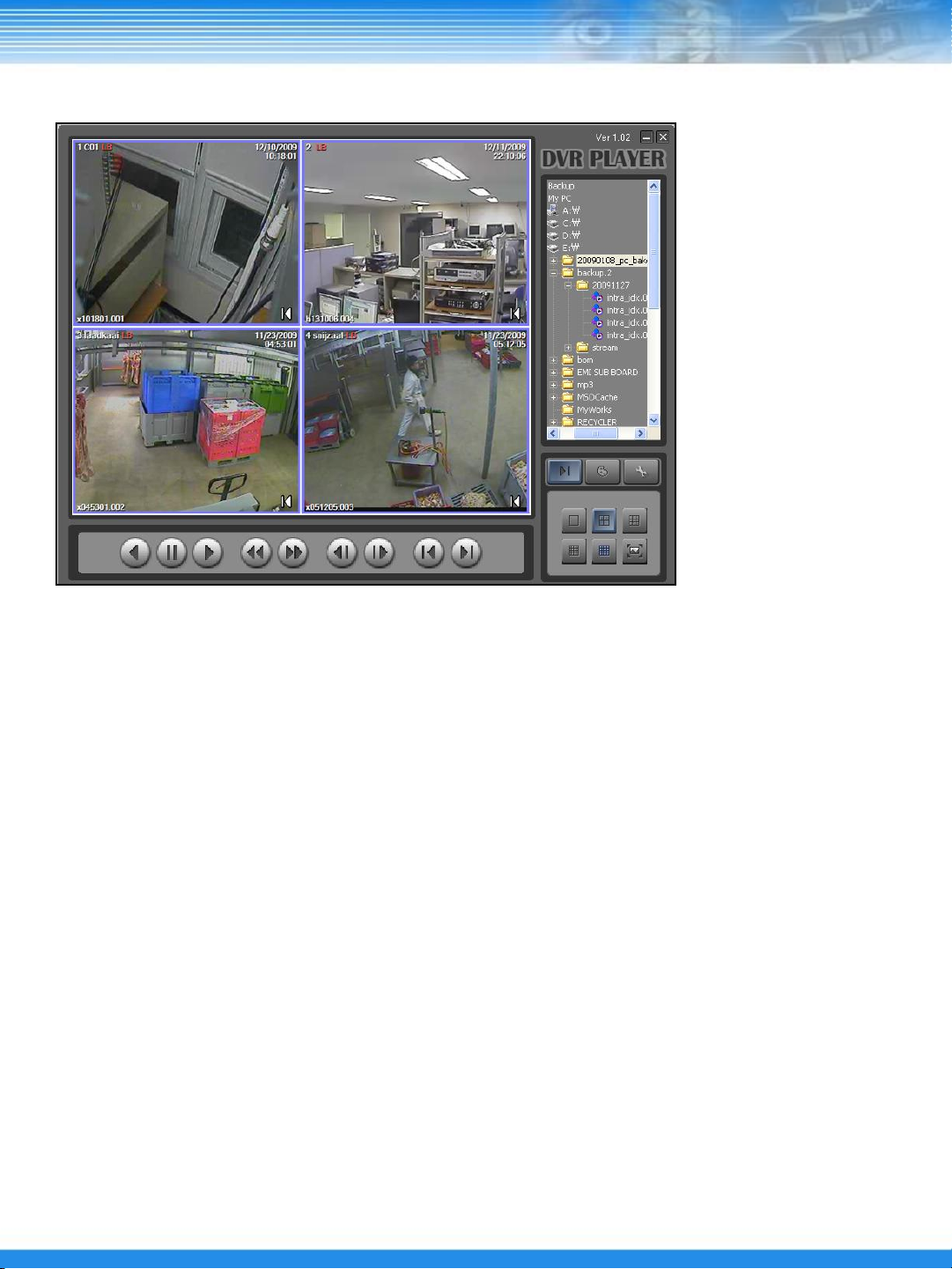

7.1 Play with backup data

-------------------------------------------------------------

8. APPENDIX

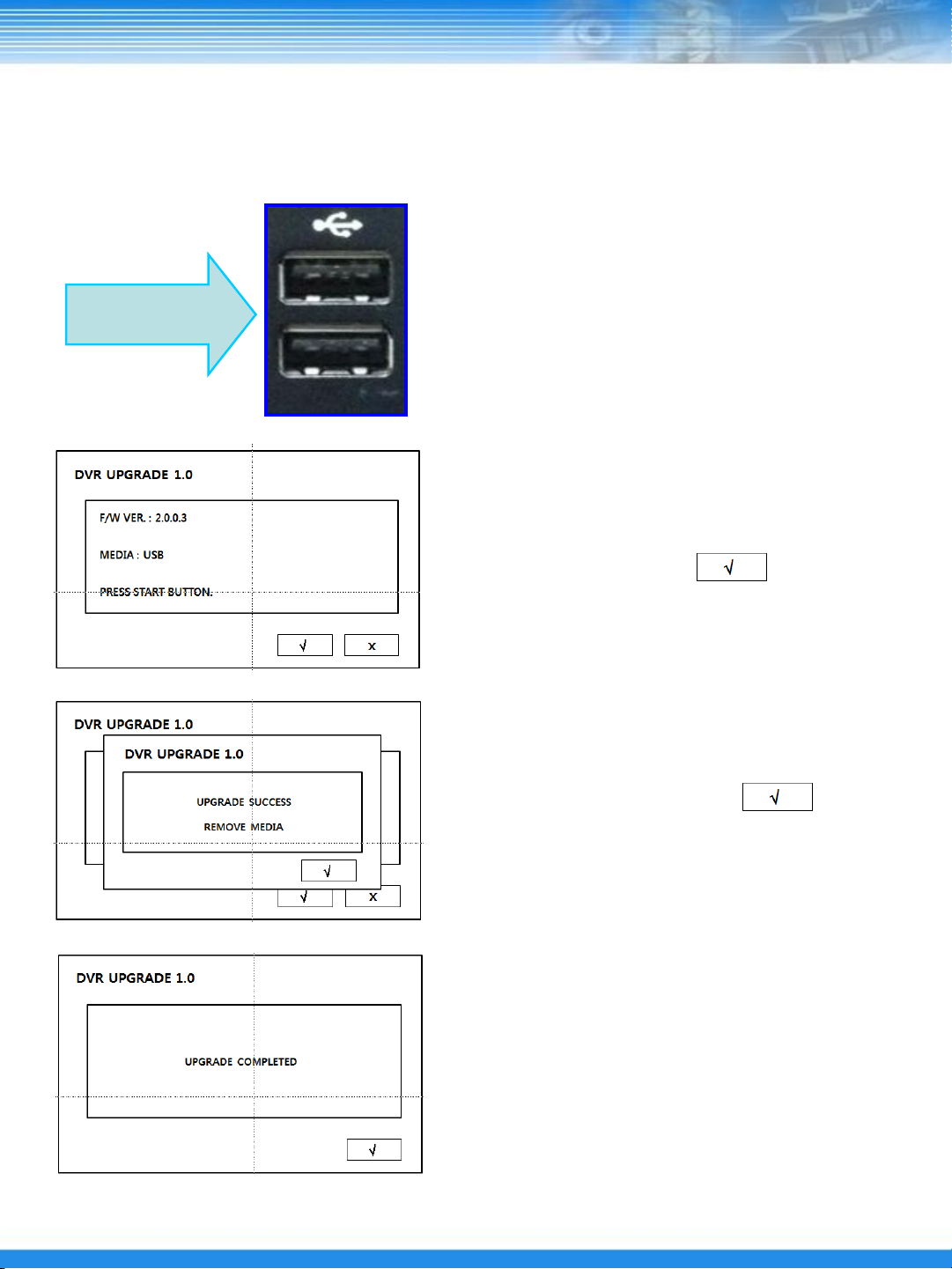

8.1 Firmware Upgrade

-------------------------------------------------------

----------------------------------------------------

--------------------------------------------------

----------------------------------------------------

--------------------------------------------------

------------------------------------------------

---------------------------------------------

--- - ------ - ------ - - ------ ------ - - ------ ------

------------------------------------------------

-----------------------------------------------------------

-----------------------------------------------------

62

63

63 64 65 66 67 67 68 71 72

73 73

8.2 Web Client

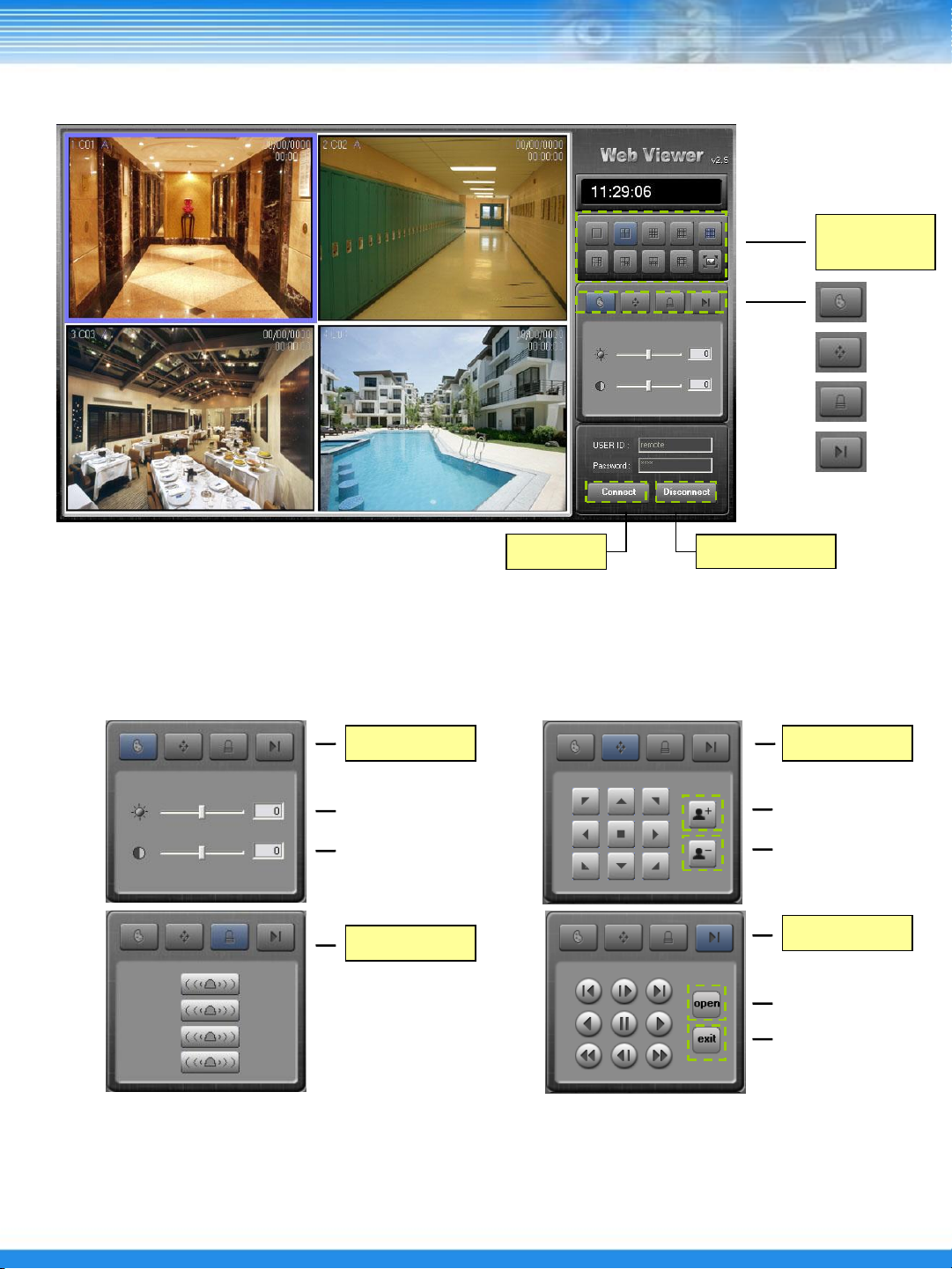

8.2.1 Web Viewer Functions

8.3 Specification – DRD Series

8.4 Specification – DRM Series

8.5 Trouble Shooting

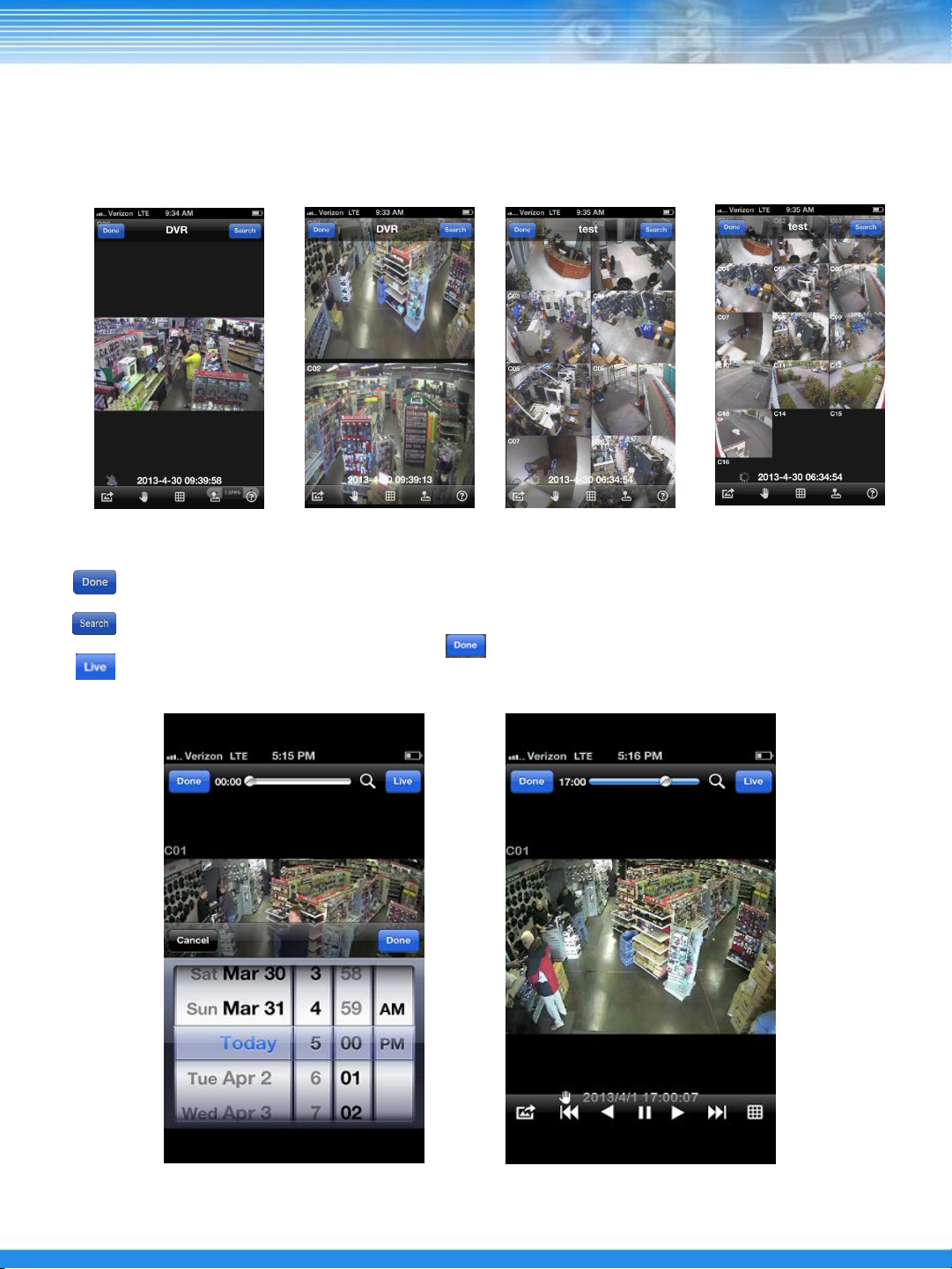

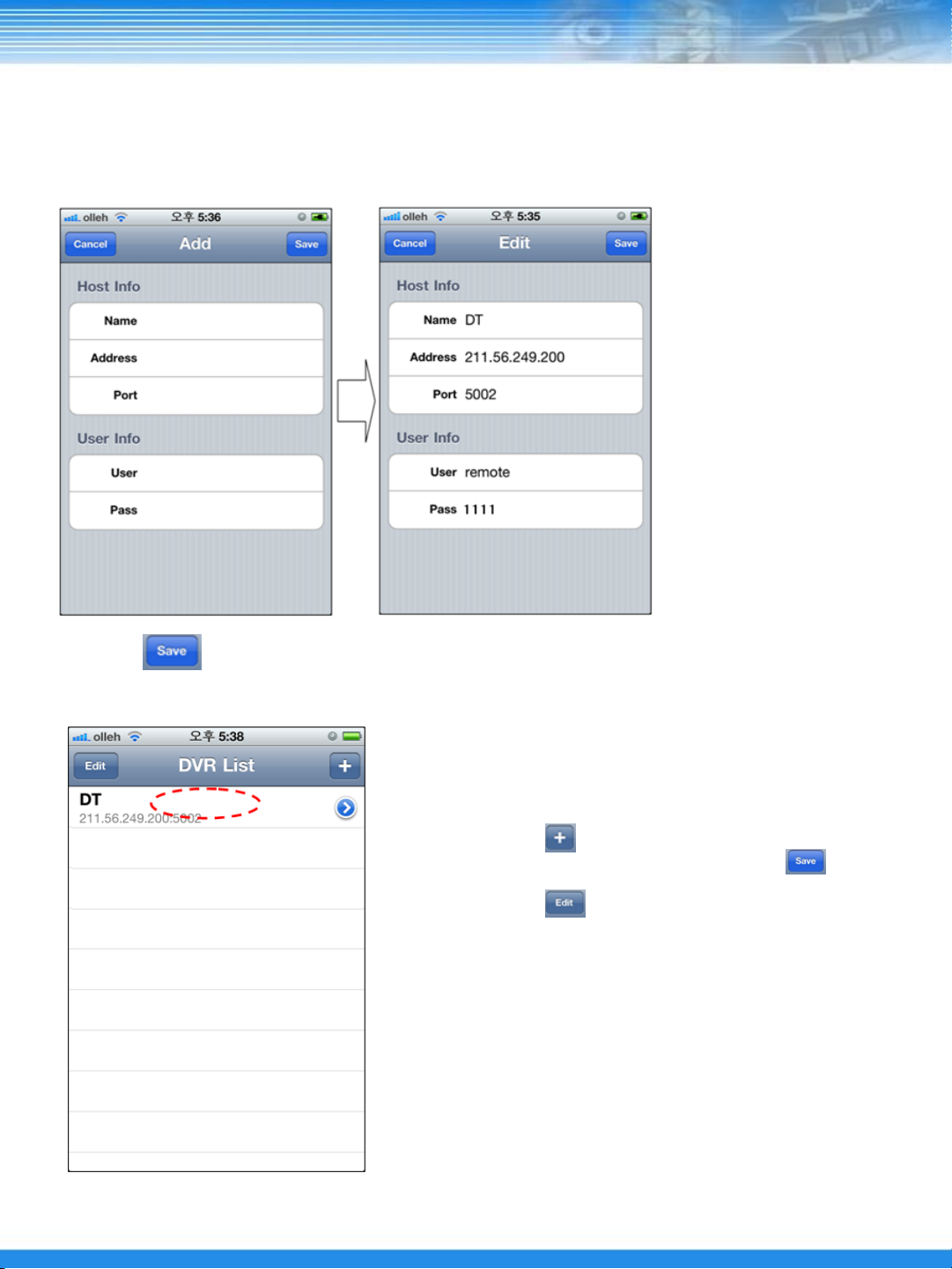

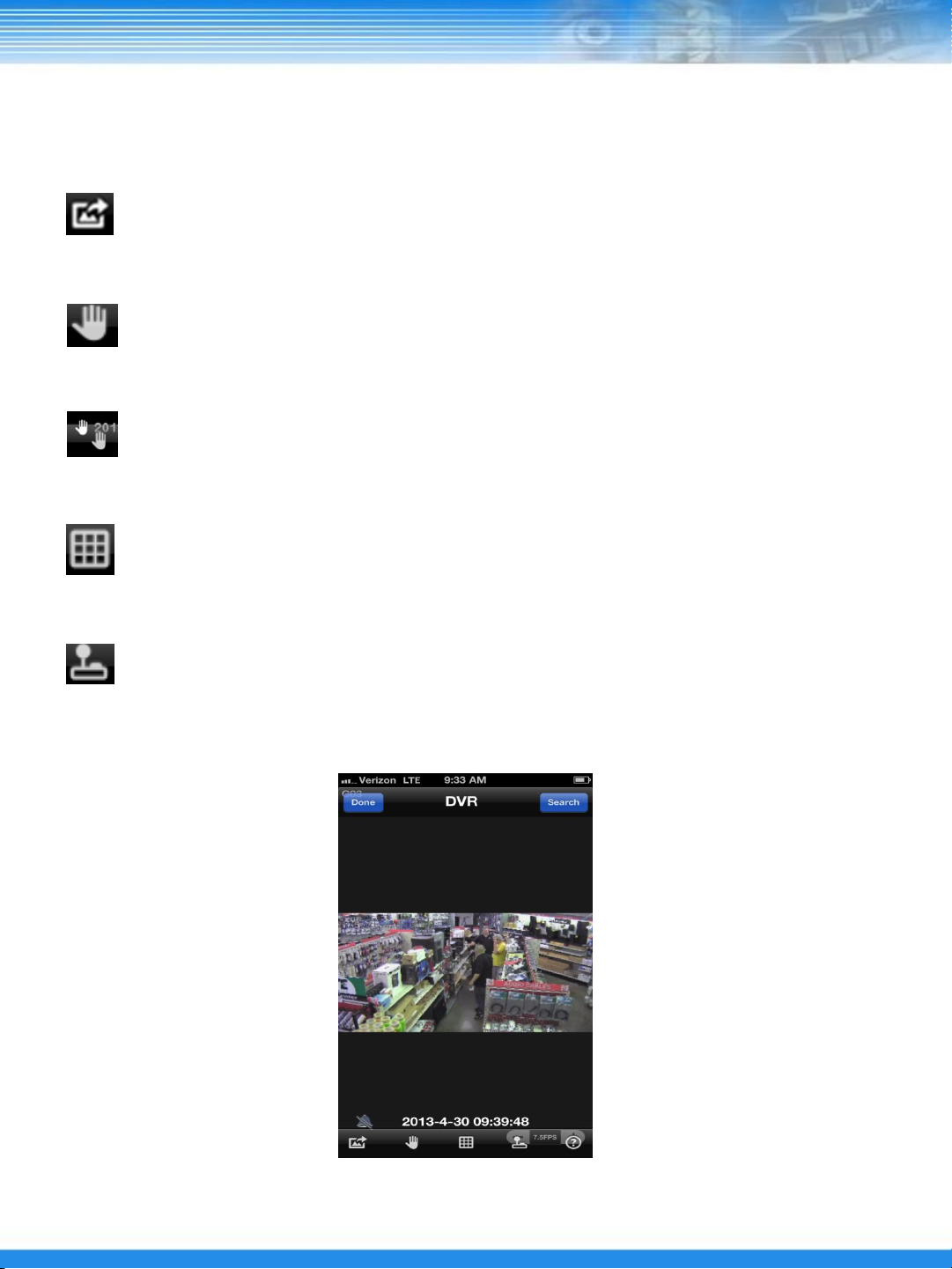

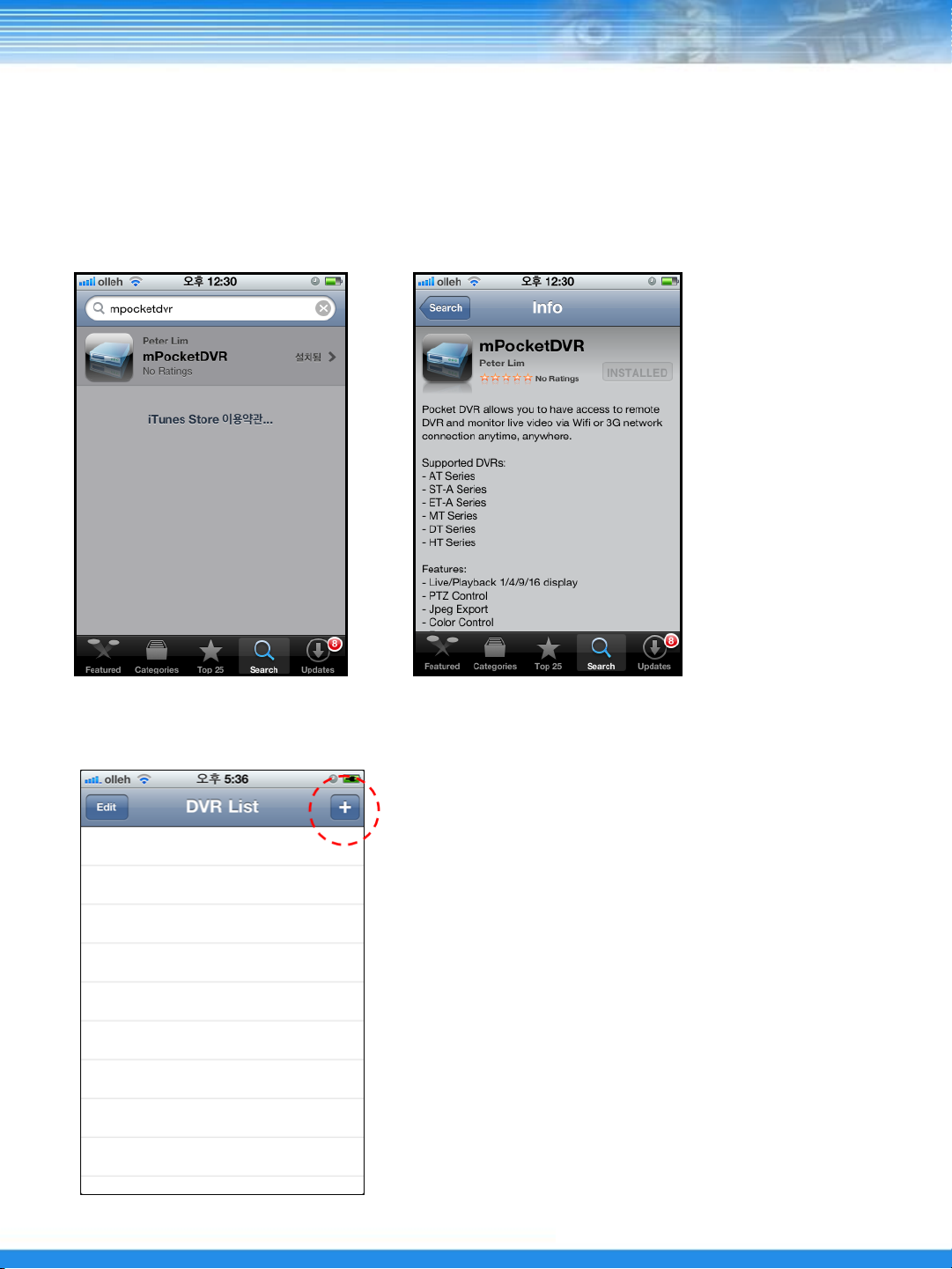

8.6 Mobile Viewer

----------------------------------------------------------

-----------------------------------------------------

---------------------------------------------

-----------------------------------------------

74 75 76

77 78 80

5

1. SAFETY CAUTIONS

※ Follow these instructions to keep the user safe and prevent property damage. Read them carefully before the use of the product. The responsibility falls on the user to install and use the product properly.

1.1 Power Source-related

① Insert the power plug fully and firmly into the power source.

- Unstable connection may cause fire.

② Do not use a damaged power cord, plug or loose outlet.

- It may cause electric shock or fire.

③ Do not plug several devices exceeding the rated capacity into a single outlet.

- Abnormal heat generation at the outlet may

cause fire.

④ Do not bend nor pull the power cord. Do not place a heavy object on top of it.

- It may cause electric shock or fire.

⑤ When unplugging the power cord, do not pull it out by touching the cord area or do not touch it with a wet hand.

- It may cause electric shock or fire.

1.2 Installation-related

① Do not place candlelight or cigarette light on top of the product or do n ot install the product near heating devices.

- It may cause fire.

② Do not place the power cord near heating devices.

- The exterior of the cord may peeled off, causing electric shock or fire.

③ Do not install the product in a place where a large amount of oil, smoke or moisture exists. Do not install the product in a vehicle or a place where water is present.

- It may cause electric shock or fire.

④ Do not place the product on top of an unstable cart, stand or table. Do not block the air ventilation with table cloth or curtain.

- Internal temperature rise may cause fire.

⑤ Do not install the product in a confined area. Keep

the product in area with plenty of air flow.

- Internal temperature rise may cause fire.

6 6

1.3 Cleaning and Usage-related

① U n p l u g the p o wer pl u g du r i n g light n i n g , thunderstorm or when not in use for long periods of time.

- It may cause electric shock or fire.

② When taking the battery out from the remote control, keep them away from children to prevent

from swallowing incidents.

Keep the battery away from babies. – If a child swallowed the battery, immediately consult a doctor.

③ Do not place the container or base filled with water, liquids, chemicals, small piece of metal and heavy object on the product.

- If liquid flows into the product, it may cause electric shock or fire. A heavy object may drop from the top of the product, causing injury.

④ Do not use or store the product near combustible sprays and other flammable substances.

- It may cause explosion or fire.

⑤ If dust or water is present at the power plug’s pin and contact area, wipe out the area.

- may cause electric shock or fire.

⑥ When cleaning the product, unplug the power cord and gently wipe using a soft cloth. Do not directly spray water on the product or do not use benzene, thinner or alcohol when cleaning.

- It may cause electric shock or fire.

⑦ When replacing the battery, be sure to check the

correctness of the polarity (+,-).

- If the battery polarity is wrong, generation of abnormal

heat or leakage of internal liquid may cause fire, injury or contamination in the surrounding area.

⑧ In case the product was dropped or the case was damaged, switch off the product and unplug the power cord. Have a technician repair the product.

- If the damaged product is used without repair, it may

cause electric shock.

⑨ Do not repair or disassemble the product by yourself or do not connect other connection devices without the manufacturer’s approval.

- If repair is required, contact the reseller. Failure to follow this instruction may cause electric shock or fire.

7 7

2. OUTLINE

2.1 Functions

This DVR provides superior video image quality, reliability, and performance.

• Pentaplex Operation Performance (Live, Recording, Playback, Backup, Network)

• Up to maximum 16 channel composite inputs depending on model (4/8/16)

• Various Recording modes (Manual / Schedule / Event)

• Various Search functions (Date/Hour search, Calendar search, Event Search, Museum Search)

• Various Playback functions (Normal / Fast / Slow / Step / Reverse / Panorama / Repeat)

• Overwrite Recording function (FIFO)

• The DVR menu uses a simple and easy to understand graphical user interface (GUI).

• Supports up to 16 channel Audio

• Supports Mouse control

• E-mail function (Alarm, Motion detection, Video loss, HDD failure, etc.)

8

2.2 System Organization

SMS CAMERA

MAIN/SPOT

MONITOR

LCD/VGA

MONITOR

SIREN

Video out

Alarm

Out

Network

Sensors Input

SENSOR

PTZ KEYBOARD

Video input

MIC

Audio Input

Audio Output

PTZ

SPEAKER

9

3. DVR ORGANIZATION

3.1 Front Panel Description

NOTE: Turn on the DVR after connecting the power cord, camera input and monitor completely

USB PORT

Front LED

Record

Network

Number Buttons Display/Record Menu / ESC Direction Buttons

Enter Button

Remote

Control Sensor

ROTATE/Backup Search/Pause

Fast Reverse Play

Button/PTZ

Fast Play Button/

REPLAY

※ Front LED

Recording LED

Recording LED is turned on when DVR is recording.

Network LED

Network LED is turned on when DVR is connected by network.

10

- Front Button

The front panel of DVR is similar as normal VCR or Multiplexer and the functions are also similar. Front panel controls can used for all DVR functions. Please refer to the following controls and descriptions:

NUMBER buttons (0 ~ 9)

Displayed selected camera number to full screen. And also these buttons are used to enter a password.

NOTE: If user want to use over than 10 channel, use the +10 button. Ex) 10 + 1 = 11, 10 + 6 = 16

DISPLAY button

Display split screens 1, 4, 7, 9, 10, 13, 16.

REC button

Start recording when this button is pressed in live mode.

MENU button

Enters Setup menu user will need Admin access permission. Return to previous screen if this button is pressed again.

ESC button

Exit current screen or return to previous screen.

ROTATE button (Preset)

Display next channel if this button is pressed. In PTZ mode It is used as a Preset function button.

BACKUP button (Zoom)

Enter Backup menu or return to previous screen if this button is pressed again. In PTZ mode it is used as Zoom function button.

SEARCH button (Focus)

Enter Search menu, password is required for search function. Returns to previous screen if this button is pressed again. In PTZ menu it is used as Focus function button.

PAUSE button (IRIS)

In Search mode used to pause playback. In PTZ mode it is used for IRIS function button.

11

Direction buttons (▲, ▼, ◀, ▶ )

These buttons are used to move to another menu or change the position of the screen. In PTZ mode, buttons are used for PAN/TILT function.

▲ : In Playback mode Panorama search function button. In PTZ mode used to move the camera up. ▼ : In Playback mode Smart search function button. In PTZ mode to move the camera to down.

◀ : In Playback mode reverses playback and when playback is paused

the control is now a manual frame advance. In PTZ mode to move the camera to left. ▶ : In Playback mode forward playback and when playback is paused the control is now a manual frame advance. In PTZ mode to move camera to right.

NOTE: For the Smart search function, recording data should be Event type recording. Otherwise playback with Smart search returns to live mode.

ENTER button

Executes the selected button or save the setup value.

FAST REVERSE PLAY button (PTZ)

Playback with fast reverse. Playback speed is changed if this button is pressed repeatedly. (◀, ◀◀, ◀◀◀, ◀◀◀◀, ◀◀◀◀◀). In PTZ mode used as Zoom out function.

In live mode button turns on PTZ function.

FAST FORWARD PLAY button (PLAY)

Playback with fast forward. Playback speed is changed if this button is pressed repeatedly. (▶, ▶▶, ▶▶▶, ▶▶▶▶, ▶▶▶▶▶). In PTZ mode used as Zoom in function.

In live mode button plays back the previous 30 seconds of recorded video.

12

3.2 Real Panel ▪ DRL400

2 3 4 1 5 6

1 3 4 2

6

4 Sensor Input

Power on

CVBS Monitor

PTZ

RS-485

HDMI Monitor

1 Alarm Out

Network

Audio In / Out

5

Camera Input

13

3.2 Real Panel

▪ DRH412

▪ DRH408

▪ DRH404

▪ DRH103

14

3.2 Real Panel

1

2

1 2 3

Analog Camera

Input

Analog Camera

Loop out

3 4 5

7

6

1 Mic In

1 Speaker Out

8

10

9

4

DC +12V / 5A

Adaptor

Power On

Network

9

HD-SDI Camera

Input

6

E-SATA

10

8 Alarm In

2 Alarm Out

15

7

HDMI Out

3 Audio In

8 5

RS-485 for PTZ

VGA out

3.3 Remote Controller

ID

DISPLAY

ROTATE

NUMBER

RECORD

ESC

MENU

LOCK(LOG-OUT)/ REPEAT

▲ Direction Key /Panorama Play

◀ Direction Key /

Reverse Play

Fast Reverse Play/

PTZ

PAUSE

BACKUP

PTZ ZOOM

PTZ FOCUS

ENTER

▶ Direction Key / Play

▼ Direction Key /Smart Play

Fast Forward Play / PLAY

SEARCH

PTZ PRESET

PTZ IRIS

※ How to set ID ① Before setting up IR remote ID, Enter the GENERAL SETUP and select the unit ID. (Default is 0) ② While pressing and holding the ID button, enter the unit address of the DVR. ③ If the unit address is a single digit, enter two digit number by adding the number 0 as the first digit.

( Example – If the unit address is 1, the input value is 01.)

※ A single remote controller can change ID from 0 to 19 and independently control up to 20 DVRs.

16

4. LIVE

4.1 Live Screen

Camera Name

Record Status

Icon

PTZ Control

Information

Backup Progress

Status(%)

Execution Information Message

Live Screen

Screen

Expand/Reduction

Window

Current Channel

Information Icon

Sequence Icon

- Record Icon (Red) When record in live screen.

- Time Icon When record by designated time.

- Motion Icon When motion is occurred.

- Sensor Icon When sensor is occurred.

Current Date and

Time

17

Current Event Information

Icon

- Video-loss Icon When there is no video input.

- Audio Icon When sound is generated in live mode.

- Freeze Icon When live is paused.

- Sequence Icon When screen is rotated continuously.

4.1.1 Top Menu

In live screen, if ▲ button of the remote controller or front panel is pressed, or if the mouse cursor is placed over the top area of the screen this menu will appear.

Search

Backup Status Setup Log-out

4.1.2 Bottom Menu

In Live screen, if ▼ button of the remote controller or front panel is pressed, or if the mouse cursor is placed over the bottom area of the screen this menu will appear.

1 4 7 9 10 13 16

18

4.1.3 CAMEO Menu

In live screen, if the ENTER button of the remote control or front panel is pressed, a blue square cursor will appear. If the ENTER button is pressed again, the CAMERA menu will appear.

▪ CAMEO CHANGE : The live camera view can be moved to a different camera channel. Select the camera change channel to move the live view to the new channel

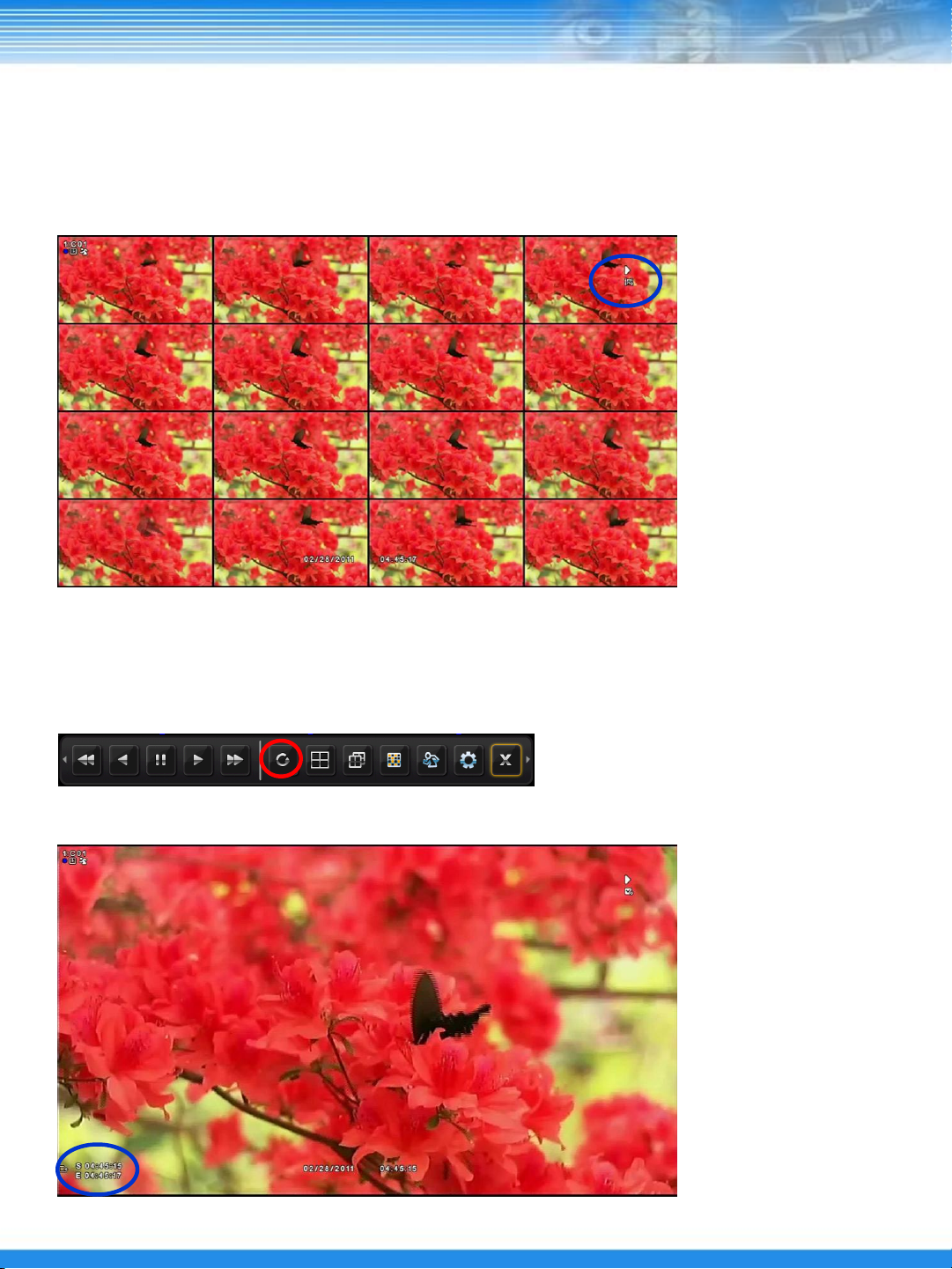

▪ PLAYBACK : Playback on selected channel. (replays last15~20 seconds) ▪ FREEZE : Live screen of the selected channel can be paused. ▪ FREEZE ALL : Live screen of the all channels can be paused. ▪ SEQUENCE : Live screen is rotated.

19

▪ PTZ : PTZ Camera should be installed otherwise the PTZ menu can not be activated. The following GUI will appear when the PTZ menu is selected [MENU] button.

※ Using Mouse : For the above menu click the right mouse button to control functions Zoom, Focus and Iris functions.

Menu

Z+ / Z- : Zoom In / Zoom Out

F+ / F- : Focus In / Focus Out I+ / I- : Iris In / Iris Out

※ Using Remote Controller or Front Key : The below PTZ Hot Key menu is available.

- Press the ENTER button on PTZ Camera channel.

- Press the ENTER button again then the CAMEO menu will be appeared.

- Select PTZ menu on the Live CAMEO menu.

- Press the ENTER button again, the above PTZ menu screen will be appeared.

- Zoom Control : In PTZ mode, press the Zoom (Back) button. Zoom in - Fast reverse play button / Zoom out - The fast forward play button.

- Focus Control : In PTZ mode, press the Focus (Search) button. (+) - Fast reverse play button / (-) – Fast forward play button.

- Iris Control : In PTZ mode, press the Iris (Pause) button. (+) – Fast reverse play button / (-) – Fast forward play button.

20

- SPEED SETUP : Set the PTZ camera speed (1 to 8) NOTE: If the mouse is used to move the PTZ camera, the movement speed depends on the position

of the mouse. As the mouse pointer moves away from the center the speed becomes faster.

- PRESET SETUP : Set the preset position. If the position setup is saved, PTZ camera can be directed to the preset position.

- PRESET TOUR : 6 different preset list can be created. If the created preset lists are set to “ON”, movement is made with preset tour.

- PATTERN SETUP : Pattern can be created by movement, zoom, focus and iris. After pressing the BEGIN button, adjust the PTZ camera position or zoom and then press the END button. All directions (up, down, left and right), zoom and iris settings are recorded.

- PATTERN TOUR : PTZ camera moves according to the saved pattern.

- AUTO FOCUS / POWER / LIGHT : Auto focus, power and light functions can be turned on/off.

- OSD MENU : Turn on/off the OSD menu.

▪ ZOOM X2 : Digital Zoom in x2.

▪ ZOOM X4 : Digital Zoom in x4.

▪ ADUIO ON : Turn on/off Audio.

21

5. SETUP

Settings-General, Camera, Event, Schedule, Ethernet and System Information.

On the Top menu, select the [SETUP] menu.

After menu is selected the following Log-in window will appear.

Enter the password by the key buttons and press the ENTER button. (The default password : 1111)

5.1 GENERAL SETUP

General, Alarm, Disk, Monitor, Account, Configuration setup and Shutdown.

Select the [GENERAL] menu.

22

5.1.1 GENERAL

[SYSTEM]

▪ VIDEO FORMAT : Set the Camera Type (NTSC / PAL)

If select AUTO menu, DVR recognize camera type automatically. NOTE: If NTSC and PAL cameras are connected simultaneously error may occur. ▪ LANGUAGE : Select the language.

(English, Germany, French, Spanish, Japanese, Chinese, Italian, Russian, Dutch and Korean)

▪ KEY TONE : Turn on/off the buzzer sound of key. ▪ UNIT ADDRESS : Sets the DVR ID.

This ID can be used to control multiple DVR’s with one IR remote control.

▪ BASE CAMERA NO. : Sets the beginning number of camera. Used when multiple DVR’s are in use for one installation

▪ MENU TIMEOUT : Sets the auto logout timer of the system. ▪ PLAYBACK PROTECT : Prohibits the recording of more than the selected number of days.

(Select 0 to 99 days. If set 3 days, can not playback the data older than 3 days.

▪ BACKUP CONFIRM : Confirms the backup process. ▪ HDD OVERWRITE : Select on/off to overwrite data on Hard disk.

NOTE: If set to [OFF], recording will be stopped automatically when disk is full.

▪ PLAYBACK MODE : This is playback quality option if the resolution is set D1. [FRAME] : Played with original video. [FIELD] : Played with de-interlace feature.

23

Talos Security DRH412 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
