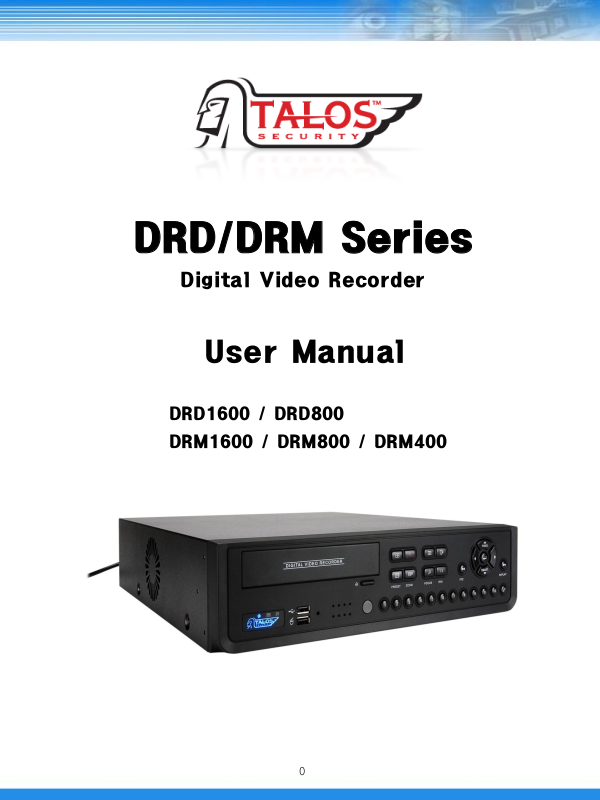

Talos Security DRD800 User Manual

DRD/DRM Series
Digital Video Recorder
User Manual
DRD1600 / DRD800
DRM1600 / DRM800 / DRM400
0
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence
of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and Maintenance (servicing) instructions in the literature accompanying the product.
COMPLIANCE NOTICE OF FCC:
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGEY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION
MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS
EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE
FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE­CAUSING EQUIPMENT REGULATIONS.
The information in this manual is believed to be accurate as of the date of publication. The
information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.
1
IMPORTANT SAFEY INFORMATION
1. Read Instructions
All the safety and operating instructions should be read before the device is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do not Use liquid aerosol cleaners. Use a damp soft cloth for cleaning.
4. Attachments
Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.
5. Water and/or Moisture
Do not use this equipment near water or in contact with water.
6. Accessories
Do not place this equipment on an unstable cart, stand or table. The equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer.
7. Power Sources
This equipment should be operated only from the type of power source Indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer or local power company.
8. Power Cords
Operator or installer must remove power and TNT connections before handling the equipment.
9. Lightning
For added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment due to lightning and power-line surges.
10. Overloading
Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.
11. Objects and Liquids
Never push objects of any kind through openings of this equipment as They may touch dangerous voltage points or short out parts that could Result in a fire or electric shock. Never spill liquid of any kind on the Equipment.
12. Servicing
Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.
13. Damage requiring Service
Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or the plug has been damaged. B. If liquid is spilled, or objects have fallen into the equipment. C. If the equipment has been exposed to rain or water. D. If the equipment does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the equipment to its normal operation. E. If the equipment has been dropped, or the cabinet damaged. F. When the equipment exhibits a distinct change in performance this indicates a need for service.
14. Replacement Parts
When replacement parts are required, be sure the service technician
has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
15. Safety Check
Upon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to determine that the equipment is in proper operating condition.
16. Field Installation
This installation should be made by a qualified service person and should conform to all local codes.
17. Correct Batteries
Warning: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
18. Tmra
A manufacturer’s maximum recommended ambient temperature (Tmra) for the equipment must be specified so that the customer and installer may determine a suitable maximum operating environment for the equipment.
19. Elevated Operating Ambient Temperature
If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than
room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).
20. Reduced Air Flow
Installation of the equipment in the rack should be such that the
amount of airflow required for safe operation of the equipment is not compromised.
21. Mechanical Loading
Mounting of the equipment in the rack should be such that a
hazardous condition is not caused by uneven mechanical loading.
22. Circuit Overloading
Consideration should be given to connection of the equipment to supply circuit and the effect that overloading of circuits might have on over current protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
23. Reliable Earthling (Grounding)
Reliable grounding of rack mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g., use of power strips).
2
INDEX
1. SAFETY
1.1 Power Source
1.2 Installation
1.3 Cleaning and Usage
2. DVR
2.1 Functions
2.2 System Connections
---------------------------------------------------------
-----------------------------------------------------------
---------------------------------------------------------
3. DVR CONTROLS
3.1 Front Panel
3.2 Real Panel
3.2.1 DRD Series
3.2.2 DRM Series
3.3 Remote Controller
4. LIVE
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - -
---------------------------------------------------------
---------------------------------------------------------
----------------------------------------------
-------------------------------------------------
--- - - ---- - - ---- - -- ---- - ---- - ---- - - - ---- - ---- - -
-- - - -- -- ------------------------------ - - - - - - -- -
----------------------------------------------
------------------------------------------------------
------------------------------------------------------
----------------------------------------------------
6 6
6 7
8 8
9 10
10
13 13
14 15
16
4.1 Live Screen
4.1.1 Top Menu
4.1.2 Bottom Menu
4.1.3 CAMEO Menu
5. SETUP
5.1 GENERAL SETUP
5.1.1 GENERAL
5.1.2 ALARM OUT
5.1.3 DISK
5.1.4 MONITOR
5.1.5 ACCOUT
5.1.6 CONFIG
5.1.7 SHUTDOWN
--------------------------------------------------------------
--------------------------------------------------------
----------------------------------------------------
-------------------------------------------------
-------------------------------------------------
----------------------------------------------------
------------------------------------------------------
----------------------------------------------------
---------------------------------------------------------
------------------------------------------------------
------------------------------------------------------
------------------------------------------------------
----------------------------------------------------
16 17 17 18
21
21 22 24 24 30 31 32 33
3
INDEX
5.2 CAMERA SETUP
5.2.1 CAMERA
3.2.2 PTZ
5.2.3 SPOT
5.2.4 SEQUENCE
5.2.5 PRIVATE ZONE
5.3 EVENT SETUP
5.3.1 MOTION
5.3.2 ALARM IN
5.3.3 VIDEO LOSS
5.3.4 SYSTEM
5.3.5 DISPLAY
5.4 RECORD SETUP
5.4.1 RESOLUTION
5.4.2 SCHEDULE
-----------------------------------------------------------
----------------------------------------------------------
-----------------------------------------------------
-------------------------------------------------------
-----------------------------------------------------
--------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
----------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
----------------------------------------------------
----------------------------------------------------
-----------------------------------------------------
34 34
35 36 37 38
39
39
42 43 44 46
47 47
48
5.4.3 RECORD
5.4.4 EVENT
5.4.5 AUDIO
5.4.6 MANUAL
5.5 ETHERNET SETUP
5.5.1 NETWORK
5.5.2 SERIAL
5.5.3 DDNS
5.5.4 E-MAIL
5.5.5 NET FRAME
5.6 SYSTEM SETUP
5.6.1 SYSTEM LOG
5.6.2 STATUS
5.6.3 VERSION
5.6.4 UPGRADE
--------------------------------------------------------
--------------------------------------------------------
--------------------------------------------------------
----------------------------------------------------------
--------------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
----------------------------------------------------
-----------------------------------------------------
-----------------------------------------------------
-----------------------------------------------------
----------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
49
50
50 51
52 52
54 55 56 57
58 58
59 61 61
4
INDEX
6. SEARCH
6.1 Search Screen
6.1.1 Search Menu
6.1.2 Calendar Search
6.1.3 Event Search
6.1.4 Overlapped List
6.1.5 Panorama Search
6.1.6 Section Repeat Search
6.1.7 Museum Search
7. BACKUP
7.1 Play with backup data
-------------------------------------------------------------
-------------------------------------------------------------
8. APPENDIX
8.1 Firmware Upgrade
-------------------------------------------------------
----------------------------------------------------
--------------------------------------------------
----------------------------------------------------
--------------------------------------------------
------------------------------------------------
---------------------------------------------
----- - -- ---- - ------ - ----- - - ---- - - ----- - ------
------------------------------------------------
-----------------------------------------------------------
-----------------------------------------------------
62
63
63 64 65 66 67 67 68 71 72
73 73
8.2 Web Client
8.2.1 Web Viewer Functions
8.3 Specification – DRD Series
8.4 Specification – DRM Series
8.5 Trouble Shooting
8.6 Mobile Viewer
----------------------------------------------------------
-----------------------------------------------------
-----------------------------------------------------
---------------------------------------------
-----------------------------------------------
-----------------------------------------------
74 75 76
77 78 80
5
1. SAFETY CAUTIONS
※ Follow these instructions to keep the user safe and prevent property damage. Read them carefully before the use of the product. The responsibility falls on the user to install and use the product properly.
1.1 Power Source-related
Insert the power plug fully and firmly into the power source.
- Unstable connection may cause fire.
Do not use a damaged power cord, plug or loose outlet.
- It may cause electric shock or fire.
Do not plug several devices exceeding the rated capacity into a single outlet.
- Abn ormal heat generation at the outlet may
cause fire.
Do not bend nor pull the power cord. Do not place a heavy object on top of it.
- It may cause electric shock or fire.
When unplugging the power cord, do not pull it out by touching the cord area or do not touch it with a wet hand.
- It may cause electric shock or fire.
1.2 Installation-related
Do not place candlelight or cigarette light on top of the product or do not install the product near heating devices.
- It may cause fire.
Do not place the power cord near heating devices.
- The exterior of the cord may peeled off, causing electric shock or fire.
Do not install the product in a place where a large amount of oil, smoke or moisture exists. Do not install the product in a vehicle or a place where water is present.
- It may cause electric shock or fire.
Do not place the product on top of an unstable cart, stand or table. Do not block the air ventilation with table cloth or curtain.
- Internal temperature rise may cause fire.
Do not install the product in a confined area. Keep
the product in area with plenty of air flow.
- Internal temperature rise may cause fire.
6 6
1.3 Cleaning and Usage-related
Un plu g th e po wer pl u g du rin g li g htn i ng , thunderstorm or when not in use for long periods of time.
- It may cause electric shock or fire.
When taking the battery out from the remote control, keep them away from children to prevent
from swallowing incidents.
Keep the battery away from babies. – If a child swallowed the battery, immediately consult a doctor.
Do not place the container or base filled with water, liquids, chemicals, small piece of metal and heavy object on the product.
- If liquid flows into the product, it may cause electric shock or fire. A heavy object may drop from the top of the product, causing injury.
Do not use or store the product near combustible sprays and other flammable substances.
- It may cause explosion or fire.
If dust or water is present at the power plug’s pin and contact area, wipe out the area.
- may cause electric shock or fire.
When cleaning the product, unplug the power cord and gently wipe using a soft cloth. Do not directly spray water on the product or do not use benzene, thinner or alcohol when cleaning.
- It may cause electric shock or fire.
When replacing the battery, be sure to check the
correctness of the polarity (+,-).
- If the battery polarity is wrong, generation of abnormal
heat or leakage of internal liquid may cause fire, injury or contamination in the surrounding area.
In case the product was dropped or the case was damaged, switch off the product and unplug the power cord. Have a technician repair the product.
- If the damaged product is used without repair, it may
cause electric shock.
Do not repair or disassemble the product by yourself or do not connect other connection devices without the manufacturers approval.
- If repair is required, contact the reseller. Failure to follow this instruction may cause electric shock or fire.
7 7
2. OUTLINE
2.1 Functions
*Some Functions May Not Be Supported By All Models
This DVR provides superior video image quality, reliability, and performance.
• Pentaplex Operation Performance (Live, Recording, Playback, Backup, Network)
• Up to maximum 16 channel composite inputs depending on model (4/8/16)
• Various Recording modes (Manual / Schedule / Event)
• Various Search functions (Date/Hour search, Calendar search, Event Search, Museum Search)
• Various Playback functions (Normal / Fast / Slow / Step / Reverse / Panorama / Repeat)
• Overwrite Recording function (FIFO)
The DVR menu uses a simple and easy to understand graphical user interface (GUI).
• Supports up to 16 channel Audio
• Supports Mouse control
• E-mail function (Alarm, Motion detection, Video loss, HDD failure, etc.)
8
2.2 System Connections
SMS CAMERA
MAIN/SPOT
MONITOR
LCD/VGA MONITOR
SIREN
Video out
Alarm
Out
Network
Sensors Input
SENSOR
PTZ KEYBOARD
Video input
MIC
Audio Input
Audio Output
PTZ
SPEAKER
9
3. DVR CONTROLS
3.1 Front Panel Description
NOTE: Turn on the DVR after connecting the power cord, camera input and monitor
DRD- Series / DRM- Series Front panel
Display/Recording Menu/ESC
USB PORT
Rotate/Backup Search/Pause PRESET/ZOOM FOCUS/IRIS
Direction Key / Panorama playback
Direction Key / Smart playback
Enter button
Status window Buzzer
Remote
controller IR
Front LED
Recording LED
Recording LED is on when DVR is recording.
Network LED
Network LED is on when DVR is connected to a network.
10
Number button
Fast reverse play / PTZ
Fast play /
REPLAY
Lock / Repeat
- Front Button
The front panel of DVR is similar as normal VCR or Multiplexer and the functions are also similar. Front panel controls can used for all DVR functions. Please refer to the following controls and descriptions:
NUMBER buttons (0 ~ 9)
Displayed selected camera number to full screen. And also these buttons are used to enter a password.
NOTE: If user want to use over than 10 channel, use the +10 button. Ex) 10 + 1 = 11, 10 + 6 = 16
DISPLAY button
Display split screens 1, 4, 7, 9, 10, 13, 16.
REC button
Start recording when this button is pressed in live mode.
MENU button
Enters Setup menu user will need Admin access permission. Return to previous screen if this button is pressed again.
ESC button
Exit current screen or return to previous screen.
ROTATE button (Preset)
Display next channel if this button is pressed. In PTZ mode It is used as a Preset function button.
BACKUP button (Zoom)
Enter Backup menu or return to previous screen if this button is pressed again. In PTZ mode it is used as Zoom function button.
SEARCH button (Focus)
Enter Search menu, password is required for search function. Returns to previous screen if this button is pressed again. In PTZ menu it is used as Focus function button.
PAUSE button (IRIS)
In Search mode used to pause playback. In PTZ mode it is used for IRIS function button.
11
Direction buttons (▲, , , )
These buttons are used to move to another menu or change the position of the screen. In PTZ mode, buttons are used for PAN/TILT function.
: In Playback mode Panorama search function button. In PTZ mode used to move the camera up. : In Playback mode Smart search function button. In PTZ mode to move the camera to down.
: In Playback mode reverses playback and when playback is paused
the control is now a manual frame advance. In PTZ mode to move the camera to left. : In Playback mode forward playback and when playback is paused the control is now a manual frame advance. In PTZ mode to move camera to right.
NOTE: For the Smart search function, recording data should be Event type recording. Otherwise playback with Smart search returns to live mode.
ENTER button
Executes the selected button or save the setup value.
FAST REVERSE PLAY button (PTZ)
Playback with fast reverse. Playback speed is changed if this button is pressed repeatedly. (◀, ◀◀, ◀◀◀, ◀◀◀◀, ◀◀◀◀◀). In PTZ mode used as Zoom out function.
In live mode button turns on PTZ function.
FAST FORWARD PLAY button (PLAY)
Playback with fast forward. Playback speed is changed if this button is pressed repeatedly. (▶, ▶▶, ▶▶▶, ▶▶▶▶, ▶▶▶▶▶). In PTZ mode used as Zoom in function.
In live mode button plays back the previous 30 seconds of recorded video.
12
3.2 Real Panel
3.2.1 DRD Series
1
2 3 4 5
6 7 8 9 10 11 12 13 14
1 2 3
1 Main out 3 Spot out
Analog camera
Input
16 Loop out
4 5
RS-232
RS-485
6
Power On/off
Switch
7 8 9 10
AC Inlet
4 Alarm out
11 12 13 14
HDMI Monitor
VGA out
1 e-SATA
13
16 Audio in
1 Audio out
Network
16 Sensor Input
3.2.2 DRM Series
1
8 9
1 3
1 Main out 2 Spot out
2 3 4 7
10
Analog camera
Input
11
16 Loop out
5 6
12 13
4 2
RS-232
PTZ
5
RS-485
6
Audio In / Out
11
VGA out (Option)
7
4 Alarm out
12
HDMI Monitor
8
Power On/off
Switch
13
16 Sensor Input
14
9
AC Inlet
10
Network
3.3 Remote Controller
ID
DISPLAY
ROTATE
NUMBER
RECORD
ESC
MENU
LOCK(LOG-OUT)/ REPEAT
Direction Key /Panorama Play
Direction Key /
Reverse Play
Fast Reverse Play/
PTZ
PAUSE
BACKUP
PTZ ZOOM
PTZ FOCUS
ENTER
Direction Key / Play
Direction Key /Smart Play
Fast Forward Play / PLAY
SEARCH
PTZ PRESET
PTZ IRIS
How to set ID Before setting up IR remote ID, Enter the GENERAL SETUP and select the unit ID. (Default is 0) While pressing and holding the ID button, enter the unit address of the DVR. If the unit address is a single digit, enter two digit number by adding the number 0 as the first digit.
( Example – If the unit address is 1, the input value is 01.)
A single remote controller can change ID from 0 to 19 and independently control up to 20 DVRs.
15
4. LIVE
4.1 Live Screen
Camera Name
Record Status
Icon
PTZ Control
Information
Backup Progress
Status(%)
Execution Information Message
Live Screen
Screen
Expand/Reduction
Window
Current Channel
Information Icon
Sequence Icon
- Record Icon (Red) When record in live screen.
- Time Icon When record by designated time.
- Motion Icon When motion is occurred.
- Sensor Icon When sensor is occurred.
Current Date and
Time
16
Current Event Information
Icon
- Video-loss Icon When there is no video input.
- Audio Icon When sound is generated in live mode.
- Freeze Icon When live is paused.
- Sequence Icon When screen is rotated continuously.
4.1.1 Top Menu
In live screen, if button of the remote controller or front panel is pressed, or if the mouse cursor is placed over the top area of the screen this menu will appear.
Search
Backup Status Setup Log-out
4.1.2 Bottom Menu
In Live screen, if button of the remote controller or front panel is pressed, or if the mouse cursor is placed over the bottom area of the screen this menu will appear.
1 4 7 9 10 13 16
17
4.1.3 CAMEO Menu
In live screen, if the ENTER button of the remote control or front panel is pressed, a blue square cursor will appear. If the ENTER button is pressed again, the CAMERA menu will appear.
CAMEO CHANGE : The live camera view can be moved to a different camera channel. Select the camera change channel to move the live view to the new channel
PLAYBACK : Playback on selected channel. (replays last15~20 seconds) FREEZE : Live screen of the selected channel can be paused. FREEZE ALL : Live screen of the all channels can be paused. SEQUENCE : Live screen is rotated.
18
PTZ : PTZ Camera should be installed otherwise the PTZ menu can not be activated. The following GUI will appear when the PTZ menu is selected [MENU] button.
Using Mouse : For the above menu click the right mouse button to control functions Zoom, Focus and Iris functions.
Menu
Z+ / Z- : Zoom In / Zoom Out
F+ / F- : Focus In / Focus Out I+ / I- : Iris In / Iris Out
Using Remote Controller or Front Key : The below PTZ Hot Key menu is available.
- Press the ENTER button on PTZ Camera channel.
- Press the ENTER button again then the CAMEO menu will be appeared.
- Select PTZ menu on the Live CAMEO menu.
- Press the ENTER button again, the above PTZ menu screen will be appeared.
- Zoom Control : In PTZ mode, press the Zoom (Back) button. Zoom in - Fast reverse play button / Zoom out - The fast forward play button.
- Focus Control : In PTZ mode, press the Focus (Search) button. (+) - Fast reverse play button / (-) – Fast forward play button.
- Iris Control : In PTZ mode, press the Iris (Pause) button. (+) – Fast reverse play button / (-) – Fast forward play button.
19
- SPEED SETUP : Set the PTZ camera speed (1 to 8) NOTE: If the mouse is used to move the PTZ camera, the movement speed depends on the position
of the mouse. As the mouse pointer moves away from the center the speed becomes faster.
- PRESET SETUP : Set the preset position. If the position setup is saved, PTZ camera can be directed to the preset position.
- PRESET TOUR : 6 different preset list can be created. If the created preset lists are set to “ON”, movement is made with preset tour.
- PATTERN SETUP : Pattern can be created by movement, zoom, focus and iris. After pressing the BEGIN button, adjust the PTZ camera position or zoom and then press the END button. All directions (up, down, left and right), zoom and iris settings are recorded.
- PATTERN TOUR : PTZ camera moves according to the saved pattern.
- AUTO FOCUS / POWER / LIGHT : Auto focus, power and light functions can be turned on/off.
- OSD MENU : Turn on/off the OSD menu.
ZOOM X2 : Digital Zoom in x2.
ZOOM X4 : Digital Zoom in x4.
ADUIO ON : Turn on/off Audio.
20
5. SETUP
Settings-General, Camera, Event, Schedule, Ethernet and System Information.
On the Top menu, select the [SETUP] menu.
After menu is selected the following Log-in window will appear.
Enter the password by the key buttons and press the ENTER button. (The default password : 1111)
5.1 GENERAL SETUP
General, Alarm, Disk, Monitor, Account, Configuration setup and Shutdown.
Select the [GENERAL] menu.
21
5.1.1 GENERAL
[SYSTEM]
VIDEO FORMAT : Set the Camera Type (NTSC / PAL)
If select AUTO menu, DVR recognize camera type automatically. NOTE: If NTSC and PAL cameras are connected simultaneously error may occur. LANGUAGE : Select the language.
(English, Germany, French, Spanish, Japanese, Chinese, Italian, Russian, Dutch and Korean)
KEY TONE : Turn on/off the buzzer sound of key. UNIT ADDRESS : Sets the DVR ID.
This ID can be used to control multiple DVR’s with one IR remote control.
BASE CAMERA NO. : Sets the beginning number of camera. Used when multiple DVR’s are in use for one installation
MENU TIMEOUT : Sets the auto logout timer of the system. PLAYBACK PROTECT : Prohibits the recording of more than the selected number of days.
(Select 0 to 99 days. If set 3 days, can not playback the data older than 3 days.
BACKUP CONFIRM : Confirms the backup process. HDD OVERWRITE : Select on/off to overwrite data on Hard disk.
NOTE: If set to [OFF], recording will be stopped automatically when disk is full.
PLAYBACK MODE : This is playback quality option if the resolution is set D1. [FRAME] : Played with original video. [FIELD] : Played with de-interlace feature.
22
5.1.1 GENERAL
[DATE / TIME]
DATE FORMAT : Select the data format. (YY/MM/DD) / (MM/DD/YY) / (DD/MM/YY)
TIMEZONE : Select the time zone and DST.
The city which don’t use DST is set to [OFF] automatically.
DATE DISPLAY : Display date on live screen or not. DATE / TIME : Change date and time. NTP : Select the usage of NTP setting.
DVR time is synchronized with NTP server for date and time. The default server is [pool.ntp.org] and user can input other server.
[Sync now] : Synchronize immediately.
[Auto Sync] : Synchronize every day automatically. HOLIDAY : Add or delete holiday schedule.
23
5.1.2 ALARM OUT
SIGNAL : Select on/off to use alarm by channel. ALARM SET : Check the alarm connection to ensure it is working properly.
Press the [SET] button then alarm device will be activated.
ALARM CLEAR : Press the [CLEAR] button then alarm will be cleared.
5.1.3 DISK
[HDD] - When HDD is selected under [TYPE], HDD information will be displayed. [INSTALL] - Formats HDD.
24
[CHECK / USB]
EARLIEST RECORD : Display the earliest recorded data information. LATEST RECORD : Display the latest recorded data information. DISK CHECK : Check the data from the earliest recorded to the latest recorded. USB RESET : Reset the USB connection. USB FORMAT : Format the USB device or media.
25
Loading...
+ 58 hidden pages
