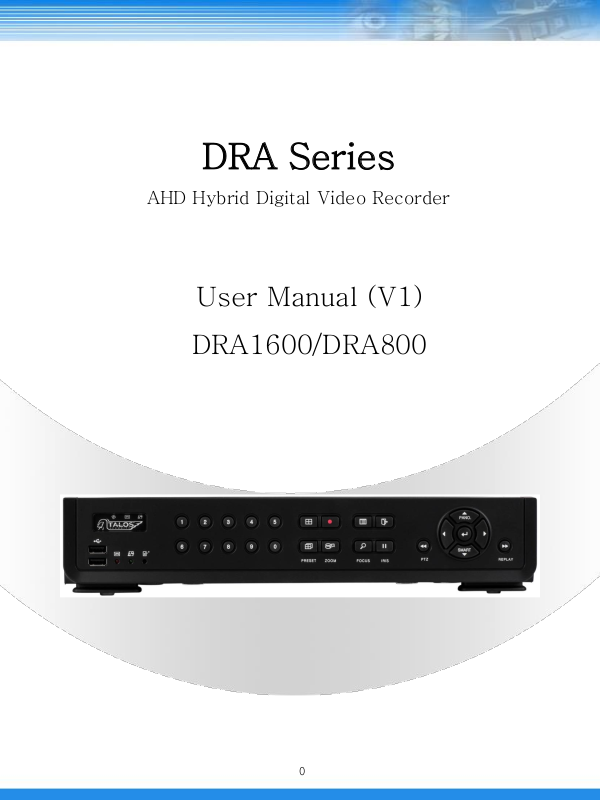

DRA Series
AHD Hybrid Digital Video Recorder
User Manual (V1)
DRA1600/DRA800
0
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and
Maintenance (servicing) instructions in the literature accompanying the appliance.
COMPLIANCE NOTICE OF FCC:
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL
DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE
REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED
IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO
FREQUENCY ENERGEY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION
MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS
EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE
USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE
FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCECAUSING EQUIPMENT REGULATIONS.
The information in this manual is believed to be accurate as of the date of publication. The
information contained herein is subject to change without notice. Revisions or new editions to this
publication may be issued to incorporate such changes.
1
IMPORTANT SAFECUARDS
1. Read Instructions
All the safety and operating instructions should be read before the
appliance is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future
reference.
3. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do not
Use liquid aerosol cleaners. Use a damp soft cloth for cleaning.
4. Attachments
Never add any attachments and/or equipment without the approval of
The manufacturer as such additions may result in the risk of fire,
electric shock or other personal injury.
5. Water and/or Moisture
Do not use this equipment near water or in contact with water.
6. Accessories
Do not place this equipment on an unstable cart, stand or table. The
equipment may fall, causing serious injury to a child or adult, and
serious damage to the equipment. Wall or shelf mounting should
follow the manufacturer’s instructions, and should use a mounting kit
approved by the manufacturer.
7. Power Sources
This equipment should be operated only from the type of power source
Indicated on the marking label. If you are not sure of the type of power,
please contact your equipment dealer or local power company.
8. Power Cords
Operator or installer must remove power and TNT connections before
handling the equipment.
9. Lightning
For added protection for this equipment during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the antenna or cable system. This
will prevent damage to the equipment due to lightning and power-line
surges.
10. Overloading
Do not overload wall outlets and extension cords as this can result in
the risk of fire or electric shock.
11. Objects and Liquids
Never push objects of any kind through openings of this equipment as
They may touch dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the
Equipment.
12. Servicing
Do not attempt to service this equipment yourself. Refer all servicing
to qualified service personnel.
13. Damage requiring Service
Unplug this equipment from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. When the power-supply cord or the plug has been damaged.
B. If liquid is spilled, or objects have fallen into the equipment.
C. If the equipment has been exposed to rain or water.
D. If the equipment does not operate normally by following the
operating instructions, adjust only those controls that are covered by
the operating instructions as an improper adjustment of other
controls may result in damage and will often require extensive work
by a qualified technician to restore the equipment to its normal
operation.
E. If the equipment has been dropped, or the cabinet damaged.
F. When the equipment exhibits a distinct change in performance —
this indicates a need for service.
14. Replacement Parts
When replacement parts are required, be sure the service technician
has
used replacement parts specified by the manufacturer or that have the
same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock or other hazards.
15. Safety Check
Upon completion of any service or repairs to this equipment, ask the
service technician to perform safety checks to determine that the
equipment is in proper operating condition.
16. Field Installation
This installation should be made by a qualified service person and
should conform to all local codes.
17. Correct Batteries
Warning: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
18. Tmra
A manufacturer’s maximum recommended ambient temperature
(Tmra) for the equipment must be specified so that the customer and
installer may determine a suitable maximum operating environment
for the equipment.
19. Elevated Operating Ambient Temperature
If installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than
room
ambient. Therefore, consideration should be given to installing the
equipment in an environment compatible with the manufacturer’s
maximum rated ambient temperature (Tmra).
20. Reduced Air Flow
Installation of the equipment in the rack should be such that the
amount
of airflow required for safe operation of the equipment is not
compromised.
21. Mechanical Loading
Mounting of the equipment in the rack should be such that a
hazardous
condition is not caused by uneven mechanical loading.
22. Circuit Overloading
Consideration should be given to connection of the equipment to
supply circuit and the effect that overloading of circuits might have on
over current protection and supply wiring. Appropriate consideration
of equipment nameplate ratings should be used when addressing this
concern.
23. Reliable Earthing (Grounding)
Reliable grounding of rack mounted equipment should be maintained.
Particular attention should be given to supply connections other than
direct connections to the branch circuit (e.g., use of power strips).
2
INDEX
1. SAFETY CAUTIONS
1.1 Power Source
1.2 Installation
1.3 Cleaning and Usage
2. OUTLINE
2.1 Functions
2.2 System Organization
-----------------------------------------------------------
-------------------------------------------------
---------------------------------------------------------
---------------------------------------------------------
3. DVR ORGANIZATION
3.1 Front Panel
3.2 Real Panel
3.3 Remote Controller
4. LIVE
4.1 Live Screen
---------------------------------------------------------------
4.1.1 Top Menu
---------------------------------------------------------
---------------------------------------------------------
--------------------------------------------------------
----------------------------------------------
--- - - ---- - - ---- - -- ---- - ---- - ---- - - - ---- - ---- - -
-- - - -- -- ----------------------------- - - - - -- ----
----------------------------------------------
----------------------------------------------------
----------------------------------------------------
6
6
6
7
8
8
9
10
10
14
16
17
17
18
4.1.2 Bottom Menu
4.1.3 CAMEO Menu
5. SETUP
5.1 GENERAL SETUP
5.1.1 GENERAL
5.1.2 ALARM OUT
5.1.3 DISK
5.1.4 MONITOR
5.1.5 ACCOUT
5.1.6 CONFIG
5.1.7 SHUTDOWN
--------------------------------------------------------------
-------------------------------------------------
-------------------------------------------------
----------------------------------------------------
------------------------------------------------------
----------------------------------------------------
---------------------------------------------------------
------------------------------------------------------
------------------------------------------------------
------------------------------------------------------
----------------------------------------------------
18
19
22
22
23
25
25
27
28
29
30
3
INDEX
5.2 CAMERA SETUP
5.2.1 CAMERA
3.2.2 PTZ
5.2.3 SPOT
5.2.4 SEQUENCE
5.2.5 PRIVATE ZONE
5.3 EVENT SETUP
5.3.1 MOTION
5.3.2 ALARM IN
5.3.3 VIDEO LOSS
5.3.4 SYSTEM
5.3.5 DISPLAY
5.4 RECORD SETUP
5.4.1 RESOLUTION
5.4.2 SCHEDULE
-----------------------------------------------------------
----------------------------------------------------------
-----------------------------------------------------
-------------------------------------------------------
-----------------------------------------------------
--------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
----------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
----------------------------------------------------
----------------------------------------------------
-----------------------------------------------------
31
31
32
33
34
35
36
36
39
40
41
42
43
43
44
5.4.3 RECORD
5.4.4 EVENT
5.4.5 AUDIO
5.4.6 MANUAL
5.5 ETHERNET SETUP
5.5.1 NETWORK
5.5.2 SERIAL
5.5.3 DDNS
5.5.4 E-MAIL
5.5.5 NET FRAME
5.6 SYSTEM SETUP
5.6.1 SYSTEM LOG
5.6.2 STATUS
5.6.3 VERSION
--------------------------------------------------------
----------------------------------------------------------
--------------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
----------------------------------------------------
-----------------------------------------------------
-----------------------------------------------------
-----------------------------------------------------
----------------------------------------------------
-------------------------------------------------------
-------------------------------------------------------
45
46
46
47
48
48
50
51
52
53
54
54
55
57
4
INDEX
6. SEARCH
6.1 Search Screen
6.1.1 Search Menu
6.1.2 Calendar Search
6.1.3 Event Search
6.1.4 Overlapped List
6.1.5 Panorama Search
6.1.6 Section Repeat Search
6.1.7 Museum Search
7. BACKUP
7.1 Play with backup data
8. APPENDIX
8.1 Firmware Upgrade
-------------------------------------------------------------
-------------------------------------------------------------
-----------------------------------------------------------
-------------------------------------------------------
--------------------------------------------------
--------------------------------------------------
--------------------------------------------------
--------------------------------------------------
------------------------------------------------
-------------------------------------------
------ - - ----- - - ----- - - ----- - - ----- - - ------- - -
------------------------------------------------
-----------------------------------------------------
58
59
59
60
61
62
63
63
64
67
68
69
69
8.2 Web Client
8.2.1 Web Viewer Functions
8.3 Specification
8.4 Trouble Shooting
8.5 Mobile Viewer
----------------------------------------------------------
- - - - - - - - - - - - -- - -- - - - - - - - - - - - - - - - -- - - - - -- - -- - - - -
---------------------------------------------
-----------------------------------------------------
-----------------------------------------------------
70
71
72
73
75
5
1. SAFETY CAUTIONS
※ Follow these instructions to keep the user safe and prevent property damage.
Read them carefully before the use of the product.
The responsibility falls on the user to install and use the product properly.
1.1 Power Source-related
① Insert the power plug fully and firmly into the
power source.
- Unstable connection may cause fire.
② Do not use a damaged power cord, plug or loose
outlet.
- It may cause electric shock or fire.
③ Do not plug several devices exceeding the rated
capacity into a single outlet.
- Abn ormal heat generation at the outlet may
cause fire.
④ Do not bend nor pull the power cord. Do not
place a heavy object on top of it.
- It may cause electric shock or fire.
⑤ When unplugging the power cord, do not pull it
out by touching the cord area or do not touch it
with a wet hand.
- It may cause electric shock or fire.
1.2 Installation-related
① Do not place candlelight or cigarette light on top of
the product or do not install the product near
heating devices.
- It may cause fire.
② Do not place the power cord near heating devices.
- The exterior of the cord may peeled off, causing
electric shock or fire.
③ Do not install the product in a place where a large
amount of oil, smoke or moisture exists. Do not
install the product in a vehicle or a place where
water is present.
- It may cause electric shock or fire.
④ Do not place the product on top of an unstable cart,
stand or table. Do not block the air ventilation with
table cloth or curtain.
- Internal temperature rise may cause fire.
⑤ Do not install the product in a confined area. Keep
the product in area with plenty of air flow.
- Internal temperature rise may cause fire.
6 6
1.3 Cleaning and Usage-related
① Un plu g th e po wer pl u g du rin g li g htn i ng ,
thunderstorm or when not in use for long periods
of time.
- It may cause electric shock or fire.
② When taking the battery out from the remote
control, keep them away from children to prevent
from swallowing incidents.
Keep the battery away from babies.
– If a child swallowed the battery, immediately
consuAA a doctor.
③ Do not place the container or base filled with
water, liquids, chemicals, small piece of metal
and heavy object on the product.
- If liquid flows into the product, it may cause
electric shock or fire. A heavy object may drop
from the top of the product, causing injury.
④ Do not use or store the product near combustible
sprays and other flammable substances.
- It may cause explosion or fire.
⑤ If dust or water is present at the power plug’s pin
and contact area, wipe out the area.
- may cause electric shock or fire.
⑥ When cleaning the product, unplug the power
cord and gently wipe using a soft cloth. Do not
directly spray water on the product or do not use
benzene, thinner or alcohol when cleaning.
- It may cause electric shock or fire.
⑦ When replacing the battery, be sure to check the
correctness of the polarity (+,-).
- If the battery polarity is wrong, generation of abnormal
heat or leakage of internal liquid may cause fire, injury
or contamination in the surrounding area.
⑧ In case the product was dropped or the case was
damaged, switch off the product and unplug the
power cord. Have a technician repair the product.
- If the damaged product is used without repair, it may
cause electric shock.
⑨ Do not repair or disassemble the product by
yourself or do not connect other connection
devices without the manufacturer’s approval.
- If repair is required, contact the reseller. Failure to
follow this instruction may cause electric shock or fire.
7 7
2. OUTLINE
2.1 Functions
This DVR provide superior video image quality on Live view and Playback.
• Pentaplex Operation Performance (Live, Recording, Playback, Backup, Network)
• 960H Analog or AHD 720P recording Resolution
• Various Recording mode. (Manual / Schedule / Event)
• Various Search functions. (Date/Hour search, Calendar search, Event Search)
• Various Playback functions. (Normal / Fast / Slow / Step / Reverse / Museum / Panorama / Repeat)
• Overwrite Recording function.
• The DVR menu structure and on screen display is presented in a simple to use and logical GUI format.
• Support USB mouse control.
• E-mail function (Alarm, Motion detection, Video loss, HDD fail end etc.)
8
2.2 System Organization
SMS CAMERA
MAIN/SPOT
MONITOR
LCD/VGA
MONITOR
SIREN
Video out
Alarm
Out
Network
Sensors
Input
SENSOR
PTZ KEYBOARD
Video
input
MIC
Audio Input
Audio
Output
PTZ
SPEAKER
9
3. DVR ORGANIZATION
3.1 Front Panel Description
NOTE: Turn on the DVR after connecting the power cord, camera input and monitor completely
USB PORT
Front LED
Record
Network
Number Buttons Display/Record Menu / ESC Direction Buttons
Enter Button
Remote
Control
Sensor
ROTATE/Backup Search/Pause
Fast Reverse Play
Button/PTZ
Fast Play Button/
REPLAY
※ Front LED
Recording LED
Recording LED is turned on when DVR is recording.
Network LED
Network LED is turned on when DVR is connected by network.
10
3. DVR ORGANIZATION
3.1 Front Panel Description
NOTE: Turn on the DVR after connecting the power cord, camera input and monitor completely
USB PORT
Front LED
Record
Network
Number Buttons Display/Record Menu / ESC Direction Buttons
Enter Button
Remote
Control
Sensor
ROTATE/Backup Search/Pause
Fast Reverse Play
Button/PTZ
Fast Play Button/
REPLAY
※ Front LED
Recording LED
Recording LED is turned on when DVR is recording.
Network LED
Network LED is turned on when DVR is connected by network.
11
※ Front Button
The front panel of DVR is similar as normal VCR or Multiplexer and the functions are also similar .
Front buttons have various functions and are used for DVR initial setting and others.
Please refer to the below explanation.
NUMBER buttons (0 ~ 9)
Displayed selected camera number to full screen.
And also these buttons are used to enter a password.
NOTE: If user want to use over than 10 channel, use the +10 button.
Ex) 10 + 1 = 11, 10 + 6 = 16
DISPLAY button
Display split screens 1, 4, 7, 9, 10, 13, 16.
REC button
Start recording when this button is pressed in live mode.
MENU button
Enter Setup menu. User need to Admin access permission.
Return to previous screen if this button is pressed again.
ESC button
Exit current screen or return to previous screen.
ROTATE button (Preset)
Display next channel if this button is pressed.
In PTZ mode, It is used Preset function button.
BACKUP button (Zoom)
Enter Backup menu. Return to previous screen if this button is pressed again.
In PTZ mode, it is used Zoom function button.
SEARCH button (Focus)
Enter Search menu. The password is required for search.
Return to previous screen if this button is pressed again.
In PTZ menu, it is used Focus function button.
PAUSE button (IRIS)
In Search mode, playback is paused by this button.
In PTZ mode, it is used IRIS function button.
12
3.2 Real Panel
▪ AA-400
1
Camera Input
1
2
BNC
Main Output
2 4
3 5 6 7 8
3
Main Output
HDMI
4
9
10 11
Audio In
5
Audio Out
6
Main Output
11
4 Sensor Input
VGA
7
11
1 Alarm Out
Network
8 9
(1 Front USB)
1 USB
13
PTZ
RS-485
10
Power on
3.2 Real Panel
▪ AA-800
1
Audio In
(3ch~8ch)
1
3
4
2
Camera Input
3
BNC
Main Output
6
7
Audio In
(1ch~2ch)
5
8 9 10 11 12
5 2 4
4 Sensor Input /
1 Alarm Out
6
Audio Out
11
RS-485
PTZ
7
Main Output
12
HDMI
Power on
8
Main Output
VGA
14
9
Network
10
(1 Front USB)
1 USB
3.2 Real Panel
▪ AA-1600
1
Audio In
(2ch~16ch)
1
2 8 9 10
Camera Input
3
BNC
Main Output
3
6
4
7
Audio In
(1ch)
5
11 12
5 2 4
4 Sensor Input /
1 Alarm Out
6
Main Output
11
HDMI
PTZ
RS-485
7
Audio Out
12
Power on
8
Main Output
VGA
15
9
Network
10
(1 Front USB)
1 USB
3.3 Remote Controller
ID
DISPLAY
ROTATE
NUMBER
RECORD
ESC
MENU
LOCK(LOG-OUT)/ REPEAT
▲ Direction Key /Panorama Play
◀ Direction Key /
Reverse Play
Fast Reverse Play/
PTZ
PAUSE
BACKUP
PTZ ZOOM
PTZ FOCUS
ENTER
▶ Direction Key / Play
▼ Direction Key /Smart Play
Fast Forward Play / PLAY
SEARCH
PTZ PRESET
PTZ IRIS
※ How to set ID
① Before setup the ID, Enter to the GENERAL SETUP and set the ID first. (Default is 0)
② While pressing and holding the ID button, enter the unit address of the DVR by two-digit.
③ If the unit address is a single digit, enter two digit number by adding the number 0 as the first digit.
( Example – If the unit address is 1, the input value is 01.)
※ A single remote controller can change ID from 0 to 19 and independently control up to 20 DVRs.
16
4. LIVE
4.1 Live Screen
Camera Name
Record Status
Icon
PTZ Control
Information
Backup Progress
Status(%)
Execution Information Message
Live Screen
Screen
Expand/Reduction
Window
Current Channel
Information Icon
Sequence Icon
- Record Icon (Red)
When record in live screen.
- Time Icon
When record by designated time.
- Motion Icon
When motion is occurred.
- Sensor Icon
When sensor is occurred.
Current Date and
Time
17
Current Event Information
Icon
- Video-loss Icon
When there is no video input.
- Audio Icon
When sound is generated in live mode.
- Freeze Icon
When live is paused.
- Sequence Icon
When screen is rotated continuously.
4.1.1 Top Menu
In live screen, if ▲ button of the remote controller or front panel is pressed, or if the mouse cursor
is placed over the end of the top area, the top menu is appeared.
Search
Backup Status Setup Log-out
4.1.2 Bottom Menu
In Live screen, if ▼ button of the remote controller or front panel is pressed, or if the mouse cursor is placed
over the end of the bottom area, the bottom menu is appeared.
1 4 7 9 10 13 16
18
4.1.3 CAMEO Menu
In live screen, if the ENTER button of the remote controller or front panel is pressed, a blue square cursor
will be appeared. If the ENTER button is pressed again, the CAMERA menu will be appeared.
▪ ADJUSTMENT : Adjust the selected camera color setting.
▪ CAMEO CHANGE : The live camera can be changed to the selected channel.
If the camera number is selected at the pop-up menu shown below, the camera
is changed to the selected channel.
▪ PLAYBACK : Playback with previous recording image (about 20 seconds )
▪ FREEZE : Live screen of the selected channel can be paused.
▪ FREEZE ALL : Live screen of the all channels can be paused.
▪ SEQUENCE : Live screen is rotated.
19
▪ PTZ : PTZ Camera should be installed otherwise the PTZ menu is not activated.
The following picture will be appeared when select PTZ menu.
※ Using Mouse : On the above menu, when click the right button of mouse, the control screen for Menu,
Zoom, Focus and Iris will be appeared.
메뉴
Z+ / Z- : Zoom In / Zoom Out
F+ / F- : Focus In / Focus Out
I+ / I- : Iris In / Iris Out
※ Using Remote Controller or Front Key : The below Hot Key is available.
- Press the ENTER button on PTZ Camera channel.
- Press the ENTER button again then the CAMEO menu will be appeared.
- Select PTZ menu on the Live CAMEO menu.
- Press the ENTER button again, the above PTZ menu screen will be appeared.
- Zoom Control : In PTZ mode, press the Zoom (Back) button.
Zoom in - Fast reverse play button / Zoom out - The fast forward play button.
- Focus Control : In PTZ mode, press the Focus (Search) button.
(+) - Fast reverse play button / (-) – Fast forward play button.
- Iris Control : In PTZ mode, press the Iris (Pause) button.
(+) – Fast reverse play button / (-) – Fast forward play button.
20
- SPEED SETUP : Set the PTZ camera speed. ( 1 to 8)
NOTE: If the mouse is used to move the PTZ camera, the movement speed depends on the position
of the mouse. As the mouse pointer moves away from the center, speed becomes faster.
- PRESET SETUP :
Set the preset position. If the position setup is saved, PTZ camera will be directed to the set position by
preset number.
- PTESET TOUR :
6 different preset list can be created. If the created preset lists are set to “ON”, recording is made with
preset tour.
- PATTERN SETUP :
Pattern can be created by movement, zoom, focus and iris. After pressing the BEGIN button, adjust the
PTZ camera position or zoom and then press the END button. All directions (up, down, left and right),
zoom and iris settings are recorded.
- PATTERN TOUR : PTZ camera moves according to the saved pattern.
- AUTO FOCUS / POWER / LIGHT :
Auto focus, power and light functions can be turned on/off on each category.
- OSD MENU : Turn on/off the OSD menu.
▪ ZOOM X2 : Zoom in x2.
▪ ZOOM X4 : Zoom in x4.
▪ ADUIO ON : Turn on/off Audio.
21
5. SETUP
In this category, there are General, Camera, Event, Schedule, Ethernet and System Information.
On the Top menu, select the [SETUP] menu.
After select the menu, the following Log-in window will be appeared.
Enter the password by the key buttons and press
the ENTER button.
(The default password : 1111)
5.1 GENERAL SETUP
In this category, there are General, Alarm, Disk, Monitor, Account, Configuration setup and Shutdown.
Select the [GENERAL] menu.
22
5.1.1 GENERAL
[SYSTEM]
▪ VIDEO FORMAT : Set the Camera Type (NTSC / PAL)
If select AUTO menu, DVR recognize camera type automatically.
NOTE: If NTSC and PAL cameras are connected simultaneously, error may occur.
▪ LANGUAGE : Select the language.
(English, Germany, French, Spanish, Japanese, Chinese, Italian, Russian, Dutch and Korean)
▪ KEY TONE : Turn on/off the buzzer sound of key.
▪ UNIT ADDRESS : Set the DVR ID.
This ID can be used when use multiple DVRs are in same installation.
▪ BASE CAMERA NO. : Set the beginning number of camera.
If set this value to 17, the camera number start with 17.
▪ MENU TIMEOUT : Keep the Menu screen for this value then escape from Menu.
▪ PLAYBACK PROTECT : Prohibit the playback of passed data.
(Select 0 to 99 days. If set 3 days, can not playback the data that elapsed 3 days.
▪ BACKUP CONFIRM : Confirm the backup process.( Log-in process)
▪ HDD OVERWRITE : Select on/off to overwrite data on Hard disk.
NOTE: If set to [OFF], recording will be stopped automatically when disk is full.
▪ PLAYBACK MODE : This is playback quality option if the resolution is set D1.
[FRAME] : Played by original.
[FIELD] : Played by Deinterlace.
23
5.1.1 GENERAL
[DATE / TIME]
▪ DATE FROMAT : Select the data format.
(YY/MM/DD) / (MM/DD/YY) / (DD/MM/YY)
▪ TIMEZONE : Select the time zone and DST.
The city which don’t use DST is set to [OFF] automatically.
▪ DATE DISPLAY : Display date on live screen or not.
▪ DATE / TIME : Change date and time.
▪ NTP : Select the usage of NTP setting.
DVR time is synchronized with NTP server and get the standard time.
The default server is [pool.ntp.org] and User can input other server.
[Sync now] : Synchronize immediately.
[Auto Sync] : Synchronize every day automatically.
▪ HOLIDAY : Add or delete holiday.
24
5.1.2 ALARM OUT
▪ SIGNAL : Select on/off to use alarm by channel.
▪ ALARM SET : Check the alarm connection whether it works properly or not.
Press the [SET] button then alarm device will be operated.
▪ ALARM CLEAR : Press the [CLEAR] button then alarm device will not be operated.
5.1.3 DISK
[INSTALL] - Display initial HDD install and information.
25
※ NOTE :
When install HDD first time,
after install HDD, should
format by the [INSTALL]
button.

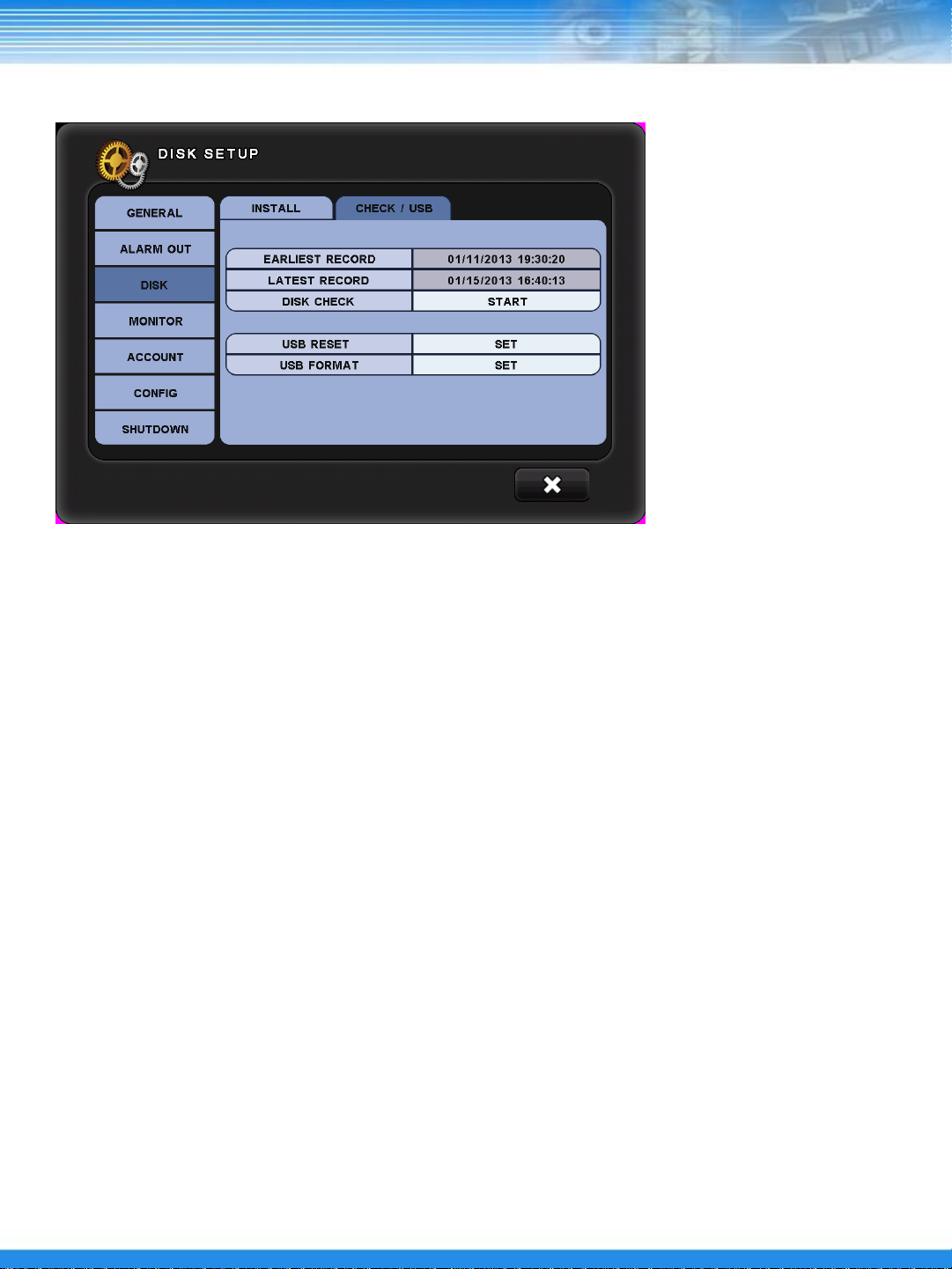

5.1.3 DISK
[CHECK / USB]
▪ EARLIEST RECORD : Display the earliest recorded data information.
▪ LATEST RECORD : Display the latest recorded data information.
▪ DISK CHECK : Check the data from the earliest recorded to the latest recorded.
▪ USB RESET : Reset the USB connection.
▪ USB FORMAT : Format the connected USB.
26
5.1.4 MONITOR
▪ RESOLUTION : Select the resolution for connected monitor.
▪ BORDER COLOR : Change the border color.
▪ ALPHA BLENDING : Set the transparency of menu.
(Set 1 to 20 and 20 is closer to the more transparent.)
[RESOLUTION selected screen] [ALPHA BLENDING selected screen]
27
5.1.5 ACCOUNT
※ Add / delete any user and give permission freely.
※ When add new user, have to input new password.
When delete use, confirm again.
NOTE: ( Default ADMIN password is 1111 ), Initial user name can be modified but can not delete.
CAUTION:
Default Admin account must not be deleted before add new user.
If delete default Admin user before add new Admin user, can not access on [SETUP] menu.
※ By the [PERM] menu, can give permission to each ID.
28
5.1.6 CONFIG
▪ SLOT : Select the slot to load or save on DVR memory.
※ DEFAUAA : Change factory default setting.
▪ DATE : Display the latest saved date.
▪ LOAD : Load the saved data.
▪ SAVE : Save the set data.
▪ DEL : Delete the saved data on Slot.
▪ EXPORT : Export the set data to USB or DVD.
▪ IMPORT : Import the set data to USB or DVD.
[DEFAUAA selected screen] [EXPORT selected screen]
29
5.1.7 SHUTDOWN
▪ RESTART : Restart the DVR.
▪ SHUTDOWN : Shutdown the DVR.
30
5.2 CAMERA SETUP
In this category, there are Camera, PTZ, Spot, Sequence and Private Zone setting.
Select the [CAMERA] Menu.
5.2.1 CAMERA
▪ CAMERA LABEL : Select the camera label of live screen.
(ALL / NUMBER / NAME / OFF)
▪ NAME : Change the camera name. ( If select the camera name, the virtual keyboard will be appeared.)
▪ INSTALL : Select On/Off button to use camera.
▪ HIDDEN : Select On/Off button to hide camera on live view. ( Record operate correctly.)
NOTE: If select [INSTALL] – [OFF], Camera name and number are not displayed.
31
5.2.1 CAMERA
[Virtual Keyboard]
5.2.2 PTZ
If select the camera name, the virtual keyboard will
be appeared. Max camera name should be less than
11 character.
[PTZ]
▪ PORT : Select the Baud Rate for using PTZ camera.
▪ ID : Select the ID for using PTZ camera.
▪ TYPE : Show the PTZ protocol list.
NOTE : baud rate, data bit, parity, stop bit, ID and protocol depend on PTZ camera for using.
CAUTION : When connect the camera on the RS-485 port, refer to the manual of camera manufacture.
32
5.2.3 SPOT
CAMERA : Select the camera for display on spot monitor.
DEFAUAA : Select the camera for display on spot monitor when sequence is off.
SEQUENCE : Select On/Off for sequence screen.
INTERVAL : Select the interval time to move next channel. The max value is 256 sec.
POPUP : Select On/Off for pop-up screen when event is occurred.
NOTE: Same channel image can not be displayed on each spot monitor.
[CAMERA selection screen] [INTERVAL selection screen]
33
5.2.4 SEQUENCE
PAGE DWELL TIME : Select the dwell time to move next channel.
CAMEO DWELL TIME : Select the dwell time for CAMEO sequence.
NOTE: CAMEO sequence means selected camera is rotated in select cameo of division screen.
Camera image which is shown on the other CAMEO of division screen is not included in
CAMEO sequence.
[DWELL-TIME selected screen] [CAMERA SELECT 선택화면]
34
5.2.5 PRIVATE ZONE
▪ ZONE ENABLE : Select On/Off to use. (LIVE mode/ SEARCH mode)
▪ ZONE COLOR : Select the color to hide.
▪ ZONE : Select the zone to hide.
(When select the ZONE button, the camera image will be appeared.
NOTE : Move the blue dot to a desired location and press the OK button.
Drag and move it to include the desired area and press the OK button.
TIP : On the screen, click the right button of mouse, a menu will appear.
Using this menu, a selected area can be delete or saved, or returned previous menu.
[ZONE selected screen] [Mouse right button selected screen]
35
5.3 EVENT SETUP
In this menu, there are Motion, Alarm in, Video Loss, System and Display setup.
Select the [EVENT] menu.
5.3.1 MOTION
[INPUT]
▪ ACTIVE : Select On/Off to activate motion.
▪ LEVEL : Select the sensitive for motion trigger. (Select 1 to 5 level)
▪ AREA : Select the motion area.
TIP: If select the ACTIVE+ / LEVEL+ / AREA+ menu, can change all settings at once.
36
▪ AREA SETUP
In the Area setup, the Red square is shown at the left top side of the screen. If select the OK button, the dot
color will be changed to Green. A motion area can be selected by the direction buttons.
NOTE : When the status is Red square, can move any direction to select.
When the status is Green color, can select motion area or cancel the set area.
After set the motion area, if select the MENU button, the following screen will be appeared.
▪ SELECT ALL : Select all motion area.
▪ CLEAR ALL : Clear all motion area.
▪ SAVE : Save the changed setting.
▪ CLOSE : Close the pop-up screen.
▪ EXIT : Exit the motion area setup.
37
[ACTION]
▪ RECORD : Select the channel for record.
▪ ALARM : Select On/Off for alarm.
▪ BUZZER : Select On/Off for buzzer.
▪ PRESET : Set the preset number.
(When motion is triggered, the PTZ camera move to the set preset number position)
▪ E-MAIL : Select On/Off for e-mail notification.
TIP: If select to the [DEFAUAA], only record the channel which is occurred event.
38
5.3.2 ALARM IN
[INPUT]
▪ ACTIVE : Select On/Off to activate alarm.
▪ NAME : Type any name.
TIP:
If select the ACTIVE+ / TYPE+
menu, can change all settings
at once.
▪ TYPE : Select the alarm type. (NO : Normal Open / NC : Normal Close)
[ACTION]
▪ RECORD : Select the channel for record.
▪ ALARM : Select On/Off for alarm.
▪ BUZZER : Select On/Off for buzzer.
▪ PRESET : Set the preset number.
(When motion is triggered, the PTZ camera move to the set preset number position)
▪ E-MAIL : Select On/Off for e-mail notification.
39
5.3.3 VIDEO LOSS
[INPUT]
▪ ACTIVE : Select On/Off to activate.
TIP:
If select the ACTIVE+ menu,
can change all setting at once.
[ACTION]
▪ RECORD : Select On/Off for record.
▪ ALARM : Select On/Off for alarm.
▪ BUZZER : Select On/Off for buzzer.
▪ PRESET : Set the preset number.
(When motion is triggered, the PTZ camera move to the set preset number position)
▪ E-MAIL : Select On/Off for e-mail notification.
40
5.3.4 SYSTEM
[WARNING]
▪ CHECK INTERVAL : Select the check interval time. (Select 1 hour to 24 hour)
▪ DISK WARNING : Select the option for smart warning. (POPUP + BUZZER / POPUP / OFF)
▪ ALARM WARNING : Select the alarm out channel for Alarm warning.
▪ THRESHOLD : Select the warning temperature. (C: 0 to 100 / F : 32 to 212)
▪ CURRENT TEMP : Display current temperature.
[DISK]
▪ DISK FULL WARNING : Select On/Off to disk full warning.
▪ USED SPACE : Display the used space.
▪ ALARM : Select the channel for alarm out.
▪ BUZZER : Select On/Off for buzzer.
▪ MESSAGE : Select On/Off for message.
41
[MAIL] – Select option On/Off for e-mail notification.
▪ POWER / MENU / LOGIN FAIL / DISK FULL / LOG IN / SMART
[E-MAIL]
▪ Select On/Off to send e-mail notification with each item.
(POWER On & Off, Menu Change, Login Fail, Disk Full, Log in and SMART information.
5.3.5 DISPLAY
▪ DISPLAY : Select display time by second. (Select 0 to 100)
▪ EVENT ICON : Select On/Off to display event icon.
▪ EVENT POPUP : Select On/Off to pop-up.
42
5.4 RECORD SETUP
In this menu, there are Resolution, Schedule, Record, Audio, Manual, Filter setup.
Select the [RECORD] menu.
5.4.1 RESOLUTION
▪ RESOLUTION : Select the resolution by each channel.
(STD=CIF / HIGH=Half D1 / HIGHEST=D1)
43
5.4.2 SCHEDULE
▪ SETUP MODE : Select the record schedule. (TYPICAL / CUSTOM)
[TYPICAL]
▪ DAY TIME : Select the day time. (The night time is changed automatically according to the day time zone)
▪ WEEKEND : Set the weekend zone.
[CUSTOM]
▪ Set 3 different recording setup by day and time. (REC0, REC1, REC2)
This is related with [RECORD] menu so [CUSTOM] mode should be matched with [RECORD] menu.
TIP : For REC0, REC1, REC2 recording, change the setting [SETUP MODE] to [TYPICAL] and enter to
the [RECORD] menu then change the setting.
[CUSTOM selected screen]
44
5.4.3 RECORD
[DAY] / [NIGHT] / [WEEKEND]
▪ TIME : Set the recording frame and resolution by channel.
▪ EVENT : Set the event recording. (Frame / Resolution / Post recording time [5 to 100 second])
TIP : The frame can be set by the direction button in setup screen.
If set to [Typical] in [SCHEDULE] menu, the DAY / NIGHT / WEEKEND menu will be changed to REC1/
REC2 / REC3. Also set the frame and resolution.
45
[RECORD] screen after select
[TYPICAL] menu
5.4.4 EVENT
▪ PRE RECORD : Select the pre recording time by second. (0 ~ 60 SEC)
▪ POST RECORD : Select the post recording time by second. (0 ~ 100 SEC)
5.4.5 AUDIO
▪ RECORD : Select On/Off for audio recording by channel.
TIP: If select the RECORD+ menu, can change all setting at once.
46
5.4.6 MANUAL
▪ SPEED : Select the recording frame by each channel.
▪ Quality : Select the resolution by each channel.
▪ AUDIO : Select On/Off for audio recording by each channel.
47
5.5 ETHERNET SETUP
In this menu, there are Network, Serial, DDNS, E-mail setup.
Select the [ETHERNET] menu.
5.5.1 NETWORK
[ETHERNET]
▪ DYNAMIC IP : Select On/Off for dynamic IP.
If Dynamic IP is OFF, DVR get IP address from router automatically.
▪ HOST NAME : Type any Host name.
▪ IP ADDRESS : Type IP address. (Available when DYNAMIC IP is OFF)
▪ SUBNET MASK : Type Subnet mask. (Available when DYNAMIC IP is OFF)
▪ GATEWAY : Type Gateway. (Available when DYNAMIC IP is OFF)
▪ DNS SERVER : Type DNS server. (Available when DYNAMIC IP is OFF)
▪ CHECK INTERNET : Check internet status for use.
48
5.5.1 NETWORK
[CLIENT]
▪ CLIENT ACCESS : Select client access options. ( ALL / RANGE )
▪ BEGIN ADDRESS / END ADDRESS (When select RANGE option, type the IP address to accept)
: Input the acceptable IP address.
▪ SMS PORT (TCP) : Select SMS port.
▪ WEB PORT (TCP) : Select Web port.
▪ REMOTE RESTART : Select On/Off to restart DVR at remote.
▪ REMOTE CONFIG : Select On/Off to change configuration.
49
5.5.2 SERIAL
[RS-485 INPUT SETUP]
▪ SERIAL TYPE : Select external device.
▪ MODEL : Select the protocol to use.
▪ PORT : Select the Baud Rate / DATA bit / Parity / Stop Bit.
50
5.5.3 DDNS
▪ DDNS SERVER : Select DDNS server. (Ddnsdvr.com / Dyndns.com / ChangeIP.com)
▪ HOST NAME : Input the host name from the registered on DDNS server.
▪ USER NAME : Input the user name from the registered on DDNS server.
▪ PASSWORD : Input the password from the registered on DDNS server.
▪ ROUTHER IP : Select On/Off for sending IP information to the DDNS server.
If use any router, this setting should be [ON].
▪ STATUS : Check the connection status.
NOTE : For using DDNS server, firstly connect the DDNS server and register Host name, User name
password then input those information on above menu.
Example for DDNSDVR
a. In web browser, visit www.ddnsdvr.com
b. Click the [New Account] menu on the left menu.
c. Input the User / Email / Password that user wants.
d. Click the [Log In] menu on the left menu and log in by the created new account.
e. Click the [New hostnames] and make new host name.
In DVR menu, should be inputted full host name such as [peterlim-astel.ddnsdvr.com]
f. Click the [List hostnames] and check the created hostname.
51
5.5.4 E-MAIL
[ADDRESS]
▪ SEND E-MAIL : Select On/Off for use.
▪ SCHEDULE : Set the usage time. (From : Start time / To : End time)
▪ E-MAIL ADDRESS : Input the E-mail address to receive.
[SERVER]
▪ MAIL SERVER : Select the mail server to send. (SMTP server / DVR System)
▪ PASSWORD : Input the SMTP server password.
▪ E-MAIL : Input the e-mail address to receive.
▪ SMTP SERVER : Input the SMTP server address.
▪ SMTP PORT : Input the SMTP server port.
▪ MAIL TEST : Check and send a test e-mail.
52
5.5.5 NET FRAME
▪ FPS : Select the frame for the network transmission.
▪ QUALITY : Select the image quality for the network transmission.
53
5.6 SYSTEM SETUP
In this menu, there are System Log, Status, Version.
Select the [SYSTEM] menu.
5.6.1 SYSTEM LOG
▪ Check the system log by the left, right direction button.
54
5.6.2 STATUS
[DISK]
▪ Display HDD Status.
▪ HDD INFORMATION : Display the HDD status.
: DVR check the HDD bad sector automatically and if there is bad sector, skip the bad sector then record
continuously.
55
5.6.2 STATUS
[RECORD]
▪ Display RECORD Status.
[AUDIO]
▪ Display AUDIO Status.
56 56
5.6.3 VERSION
▪ Display DVR version and information.
57
6. SEARCH
On the Top menu, select the [SEARCH] menu.
After select the menu, the following Log-in window will be appeared.
Enter the password by the key buttons and press
the ENTER button.
(The default password : 1111)
▪ QUICK SEARCH : Search by selecting exact date and time.
▪ CALENDAR : Search by date and time with Calendar.
▪ EVENT SERARCH : Search by event.
▪ OVERLAPPED LIST : Search the overlapped data by changing time.
▪ MUSEUM SEARCH : Search by specific area.
▪ GO TO FIRST : Search with initial saved data.
▪ GO TO LAST : Search with the latest saved data.
58
6.1 Search Screen Configuration
Execution Information Message
Camera Name
Search Icon
Repeat Time
Information
Backup Progress (%)
Search Information
Icon
Search Screen
Screen
Expand/Reduction
Window
Recorded Audio
Information Icon
Search Date/Time
6.1.1 Search Menu
When mouse cursor is placed over on the bottom side, the Search menu is appeared.
Fast reverse play
Reverse play
Pause
Fast forward play
Division Screen
Repeat
Setup menu
Preview mode
Select motion area
Play Rotate screen
※ As in the live screen, the top menu can be used in the search screen.
59
Exit Search mode
6.1.2 CALENDAR SEARCH
a. Select the data by the direction button.
- Recorded data is displayed the orange color.
b. Select the time by the direction button.
- After select hour, minutes will be appeared.
NOTE: The time graph color is different by the recording mode.
Continuous Recording = Blue, Audio Recording = Light Blue, Event Recording = Red.
60
6.1.3 EVENT SEARCH
▪ DATA : Select Date to search.
▪ MOTION : Select On/Off event for search.
▪ ALARM IN : Select On/Off event for search.
▪ VIDEO LOSS : Select On/Off event for search.
▪ SELECT CAMERA : Select the camera for search.
▪ VIEW SEARCH LOG : Display selected event log.
▪ HOUR : Select time period to see.
▪ PREV : Display previous page.
▪ NEXT : Display next page.
▪ GOTO : Display the image by selected event.
61
6.1.4 OVERLAPPED LIST
▪ If user change the time or applied DST (Daylight Saving Time), there will be overlapped data.
▪ After select the list, if select the [PLAY] button, can search [QUICK SEARCH] or [EVENT SEARCH].
62
6.1.5 PANORAMA SEARCH
▪ During normal search, press the [PANORAMA] button.
▪ By mouse, click the right mouse button and click the [PANORAMA] Search.
▪ Playback with frame by frame.
6.1.6 SECTION REPEAT SEARCH
▪ During normal search, press the [LOCK] button or Click the below red circle button by mouse.
When press one time, the start position is set, press one more time, the end position is set.
▪ In search screen, display the following mark.
63
6.1.7 MUSEUM SEARCH
▪ Select [MUSEUM SEARCH] menu by cameo function or playback bottom menu.
▪ Select the Museum search area.
64
6.1.7 MUSEUM SEARCH
▪ Select the Start time and End time to search then select SEARCH button.
- By playback bottom menu, displayed event list.
- Select the event then playback with selected event.
65
※ Button Explanation in Search mode
▪ Remote Controller or Front button
Button Explanation
SEARCH Display the [SEARCH] menu.
ESC Cancel the Search mode or return to the live screen.
ENTER Select the CAMEO menu.
FAST REVERSE When reverse play, up and down play speed.
FAST FORWARD When forward play, up and down play speed.
PAUSE Pause the playback.
FORWARD PLAY Playback the data.
REVEERSE PLAY Reverse Play the data.
DISPLAY Display division screen. (1,4,7,9,10,13,16)
66
7. BACKUP
On the Top menu, select the [BACKUP] menu.
After select the menu, the following Log-in window will be appeared.
Enter the password by the key buttons and press
the ENTER button.
(The default password : 1111)
▪ TARGET : Select the device to backup. (USB / DVD)
▪ FROM : Select the start date and time.
▪ TO : Select the end date and time.
▪ BACKUP TITLE : Type any title.
▪ SELECT CAMERA : Select the camera for backup
▪ EARLIEST RECORD : Display the earliest record.
▪ LATEST RECORD : Display the earliest record.
▪ REQUIRE SPACE : Display the data capacity for selected data.
▪ WRITE : Start the backup.
67
7.1 Play with backup data
▪ After backup, the DVR Player is copied with data.
▪ Backup data only can be played on DVR Player at PC.
▪ Can export to JPEG still shot.
68
8. APPENDIX
8.1 Firmware Upgrade
Memory Stick
① Copy the firmware on USB and connect on the
USB.
② For upgrade, restart the DVR.
③ After restart, when upgrade window is appeared,
select the START button.
⑤ After upgrade, remove the USB and select OK button.
Then DVR is restarted.
※ If select OK button without removing USB,
DVR upgrade is started again after restart.
⑥ After restart DVR, can check that upgrade is finished.
69
8. APPENDIX
8.2 Web Client
※How to connect
For using web connection through internet, 7000 and 80 ports should be set as port forwarding at the
Router.
1. To connect Web viewer, the [Ethernet] setup on DVR
is required firstly.
2. Input the IP address or Domain name of DVR
• http://210.58.xx.xx.
• http://test.ddnsdvr.com
• In case of other Web port, input the address as
http://test.ddnsdvr.com:XXXX
( ‘XXXX’ is assigned web port number)
3. User Have to allow download ActiveX
* In case of Windows not allow to download the
ActiveX, Go to the Security Tab on IE and check all
ActiveX to Enable.
4. Install the ActiveX
5. Input ID & Password then click the Connect button.
70
8.2.1 Web viewer Functions
Division
screen
①
②
③
④
Connect
Control
① ②
Brightness control
Contrast control
③ ④
ALARM
Disconnect
PTZ
Zoom In
Zoom Out
SEARCH
Open data
Exit Search
71
8. APPENDIX
8.3 Specification
Model DRA-1600 DRA-800 DRA-400
Performance PENTAPLEX
Display Speed (NTSC / PAL) 480 / 400 fps 240 / 200 fps 120 / 100 fps
Recording
Speed
(NTSC / PAL)
Video In
Video Out
Audio Input / output 4 / 1 4 / 1 1 / 1
Alarm Input / output 8 / 2 8 / 2 4 / 1
Details
Screen
Video
Storage
Connectors USB port USB port * 2
Function
Live Display
Motion
System
Event
Record
Search
Backup file format / Media DVR Format / DVD or USB device
Network
Environment
Operating Temperature / Humidity 0~40℃ / 20~80% RH
Dimension / Weight 350(W) X 258(D) X 70(H) / 6Kg (without HDD) 295(W) X 182(D) X 35(H) / 1.2Kg
Power Requirement / Consumption AC 100V – 220V (50Hz-60Hz) / 120W AC 100V – 220V (50Hz-60Hz) / 40W
D1(704*480)/(704*576) 120 / 100 fps 120 / 100 fps 120 / 100 fps
2CIF(704*240)/(704*288) 240 / 200 fps 240 / 200 fps 120 / 100 fps
CIF (352*240)/(352*288) 480 / 400 fps 240 / 200 fps 120 / 100 fps
Signal Level
Channel 16 Ch (BNC) 8 Ch (BNC) 4 Ch (BNC)
Main Display HDMI, VGA, Composite(CVBS)
Main Display Resolution 1920x1080p, 1920x1080i, 1440x900 60Hz, 1280x1024 60Hz
Spot 1 1 -
Display Split 1, 4, 7, 9, 10, 13, 16 1, 4, 7, 9 1, 4
Interface Graphic User Interface
Format NTSC / PAL Auto detection
Codec H.264 Advanced
Recording type Schedule / Continuous / Event (Motion, Alarm)
Interface type SATA II
HDD / Capacity Up to 2 HDD’s 1 HDD
OSD On / Off
Border Color/ Digital Zoom Selectable / Up to 4X
Cameo Camera Adjustment / Camera position change / Freeze / Audio on
Area Adjustable GRID (22 X 15)
Sensitivity 5 Level motion detection
Hidden Video Video is hidden in Live view but it is recorded
Private Zone Block the private zone in live camera view
Auto Time Synch By NTP (Network Time Protocol)
Firmware Update Via USB & Auto firmware upgrade via Network
SMART Alarm Auto Detect & Monitoring HDD’s problem
Source Motion / Alarm In / Video loss
Action E-Mail notification, Log Send message to Remote, Buzzer, Pop Up, Alarm out, PTZ preset
Pre/Post Alarm Yes (Up to 60 sec / Up to 100 sec)
Resolution By each camera for different resolution setting (CIF/2CIF/D1)
Quality 4 Levels ( Low / Normal / High / Highest )
Quick / Event search Search by time with calendar / Search by event
Repeat search Select specific time period and playback repeatedly
Panorama search Frame by frame
Smart search Search only event and playback without interval
CAMEO Live monitoring during playback, Playback camera change, Freeze and Digital zoom
Protocol Static IP, DHCP, DDNS
Physical / Mac Layer RJ45 (10/100 Mbps), Ethernet
Browser SMS, Web Viewer, Smart Phone Viewer (Android, I-phone)
1.0 Vpp Composite (±10%)
72
8. APPENDIX
8.5 Trouble Shooting
Symptoms Action
No power
No Camera Image
If the power LED is not illuminated, check the items below.
- Check the power cord connection to the wall outlet.
- Check to power cord connection to the DVR.
- Check video cable connection to the DVR.
- Check the monitor connection to the DVR.
- Check the camera power connection.
- Restart the DVR in case of possible boot error .
- Restore default configuration settings.
※ How to restore default configuration settings.
1. Main Menu > Configuration > Load default > O.K > O.K
!! Caution: DVR will be set to factory default, back up any important
configuration settings before restoring default settings.
No mouse control
No recording
No network connection
- USB mouse (USB 2.0 Supported)
- Mouse should be connected to mouse USB port.
- Reset USB device in settings menu.
If the recording LED does not flicker, check the below items.
- HDD could be full.
- Reformat HDD or change the HDD OVERWRITE setting to ON.
- Check the recording setup.
- Replace the HDD due to failure.
If the network LED does not flicker, check the below items.
- Check the connected hub or router.
- Check the network cable and connection.
- Check the network setup.
73
No IR remote control
No live audio
No audio playback
No smart search
- Check the battery installation.
- Check the ID of the IR remote control.
- Point the IR remote control at the DVR system.
- Use the remote controller within 15 feet of DVR.
- Install new batteries.
- Check the microphone and audio cable connections.
- Check the audio output connections.
- Turn on the Live Audio for the individual camera channel.
※ Individual camera menu will be appear with right click of mouse.
- Set to audio to ON
Although the record icon appears if there is no audio input
no audio source will be recorded or played back.
※ Check all audio source connections
- For smart search, event record should be set.
- If event record is not setup when using smart search function the
system will return to the live screen from search mode.
74
8. APPENDIX
8.4 Mobile Viewer (Apple & Android)
- Download the Talos Connect App for iPhone or iPad (Free software)
- Download the Talos Connect App on Google Play. (Free software)
- Execute the [Talos Connect or ] then appears the below screen.
Press the [+] button and move to next step.
-. Enter the DVR information for connection.
- After enter the DVR information, press the button.
- On the DVR list, press the below red circle area then connections is started.
- ADD : Press the button for other DVR.
After enter DVR information, press the button.
- EDIT : Press the button and modify the DVR information.
(Delete or modify)
- Support 1,2,8,16 split screen.
- By the screen touch, change 1 screen or multi screen.
- Horizontal view, Vertical view are supported.
- : Exit application.
- : Playback by date / time.
After select date and time, press the button for playback.
- : Return to live mode.
- Explanation of each button.
Image capture
: In 1 screen mode, save JPEG image by this button.
Pause
: In live view, image is paused by this button.
Paused Icon
: Press this button again, Pause is stopped by this button.
Screen Split
: Change to 2,8, 16 split screen by this button. For 1 screen view, double touch on the channel.
PTZ
: Control PTZ camera by this button.
Camera position is changed by the direction mark.
Loading...
