Talos Security DK1400 User Manual
H.264 Networking
Surveillance System
USER MANUAL
We highly encourage our customers to bench test their system prior t o
installation. Bench testing will confirm all components are operating
properly and will help familiarize you with the system prior to
installation.
Lay your system components out on a large surface such as a test bench
or kitchen table and inventory items.
Connect cameras to the DVR video inputs, a monitor or TV to the DVR
video output, and then connect power to the cameras.
Turn the DVR on; the cameras will be visible on the DVR live view
screen.
Turn DVR power off to install the hard drive in to the DVR, turn on the
DVR and familiarize yourself with the DVR menus and functions.
Permanently install the cameras, cables, power supplies, and DVR.
Follow the guide below for more details about the DVR.
2
INDEX
1 INTRODUCTION_____________________________________________________________ 4
Specifications ________________________________________________________________________ 4
2 INSTALLATION _____________________________________________________________ 6
Product Overview ________ ___ __ ________________________________ ___ __ ___________________6
Hard Drive Installation _________________________________________________________________7
3 OPERATION________________________________________________________________ 9
Mouse Operation______________________________________________________________________9
IR Remote Control Operation ___________________________________________________________10
Menu Tree ___________________________________________________________________________ 11
Starting the system____________________________________________________________________ 12
GUI Operation ________________________________________________________________________ 13
Display______________________________________________________________________ 13
Color _______________________________________________________________________14
Record Setup ________________________________________________________________14
Network Setup________________________________________________________________ 15

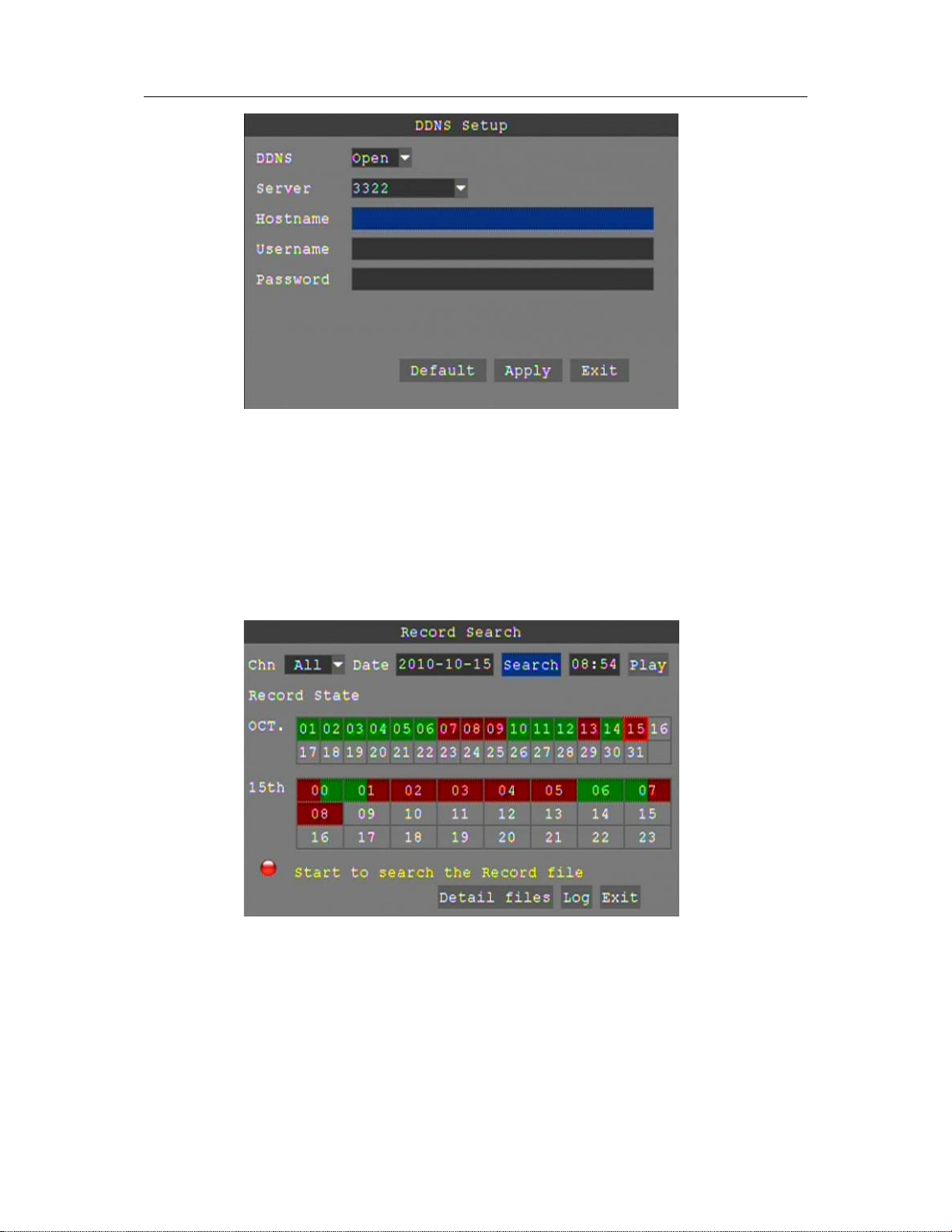

Search ______________________________________________________________________17

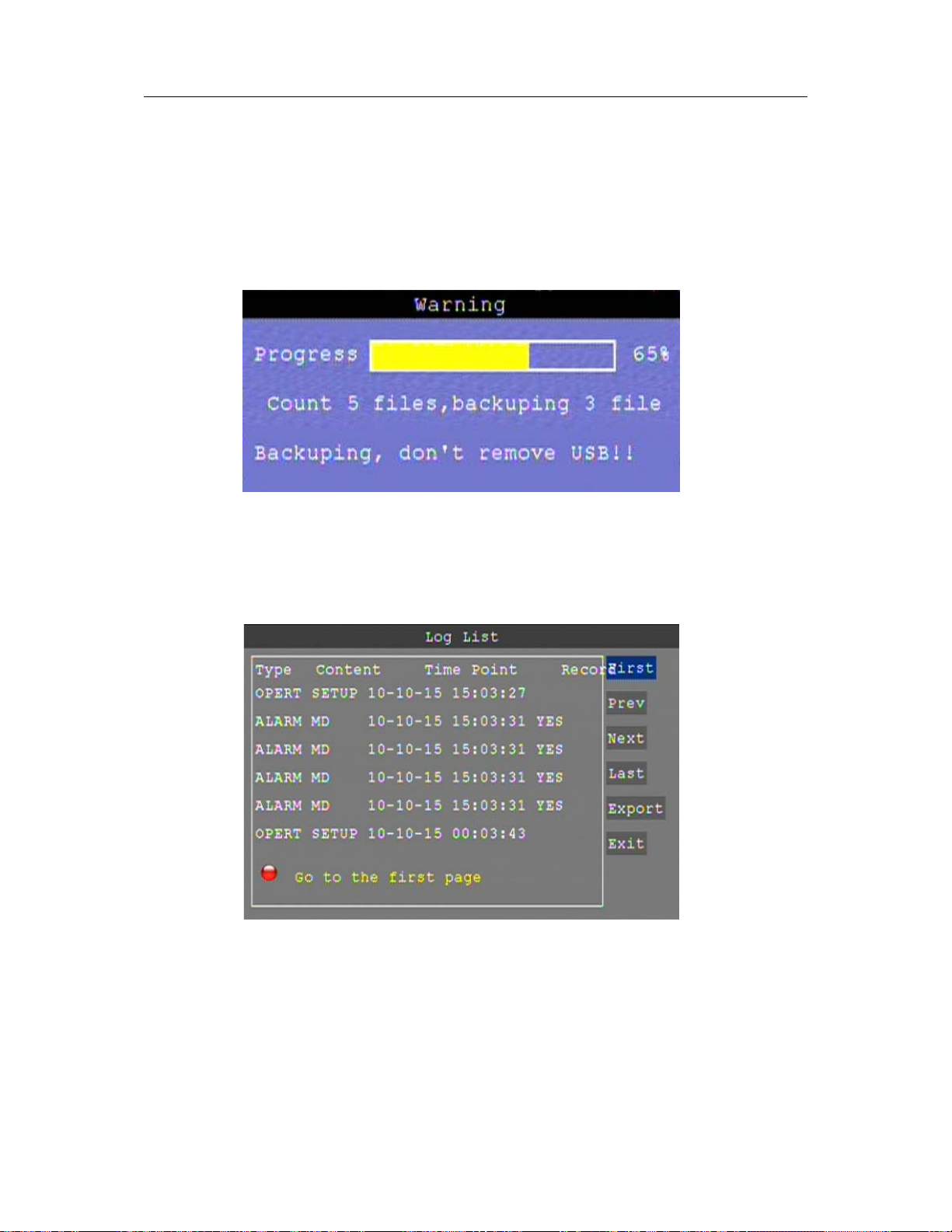

Backup______________________________________________________________________19
Device Setup _________________________________________________________________________20

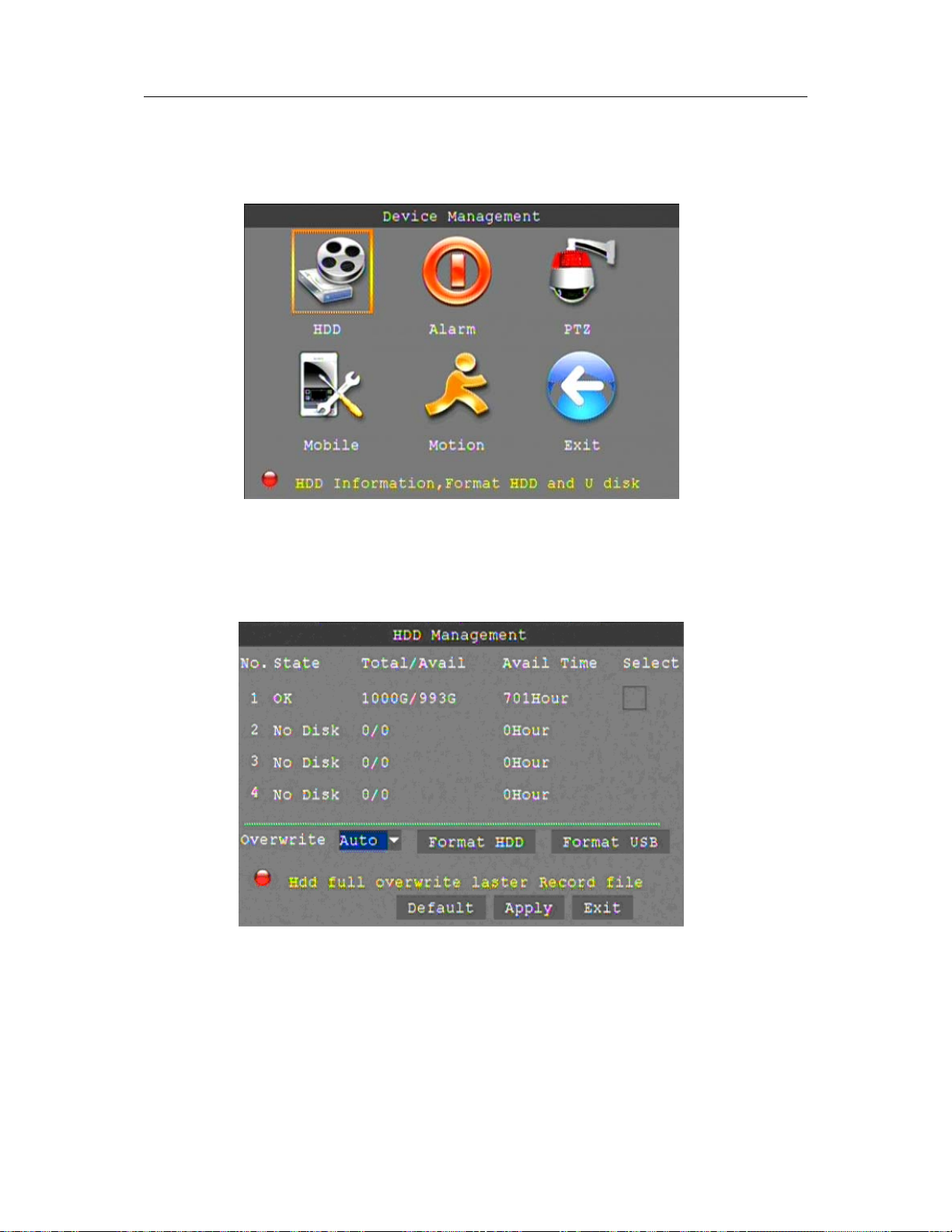

Hard Drive Management________________________________________________________ 20

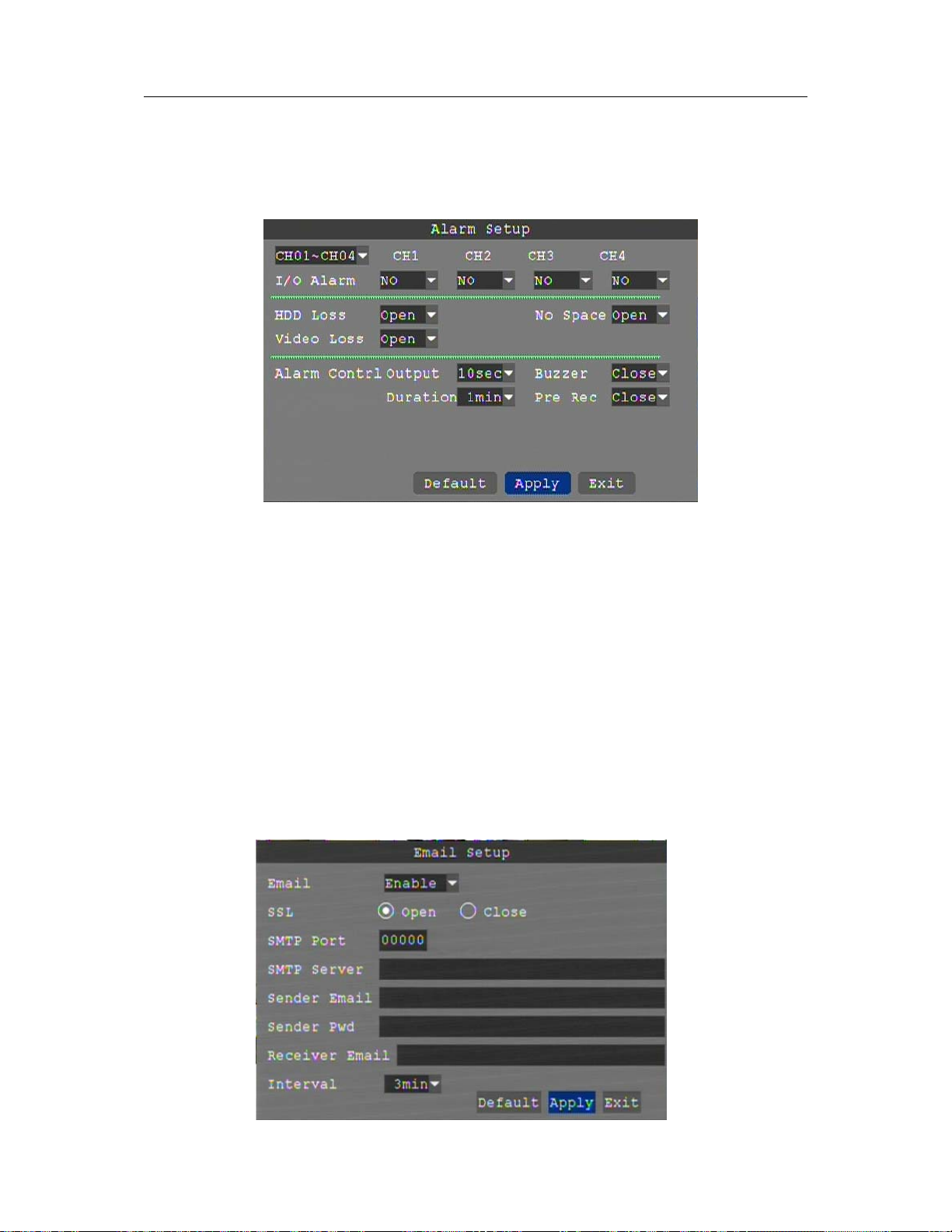

Alarm Setup__________________________________________________________________ 21
E-mail Setup _________________________________________________________________ 21

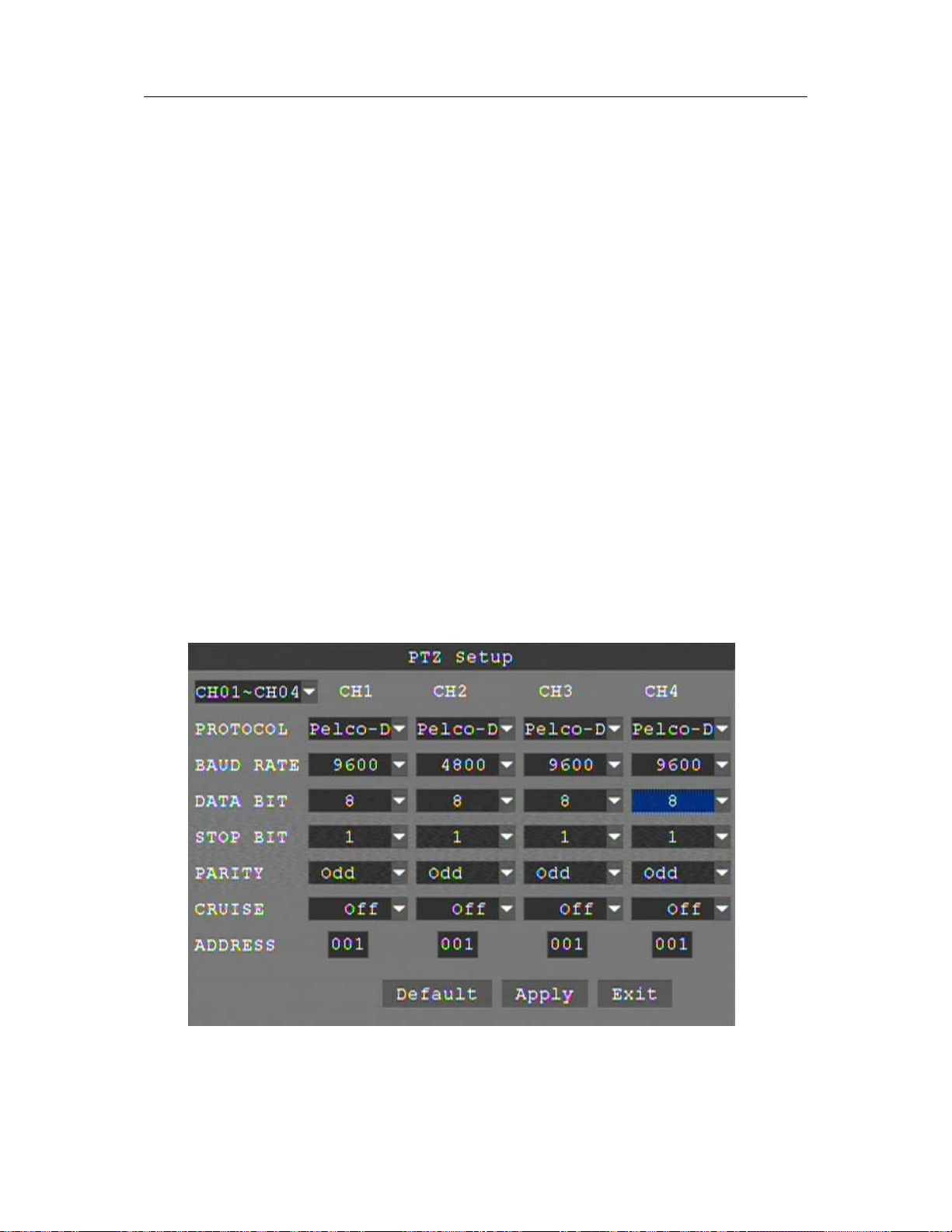

PTZ Setup ___________________________________________________________________ 22

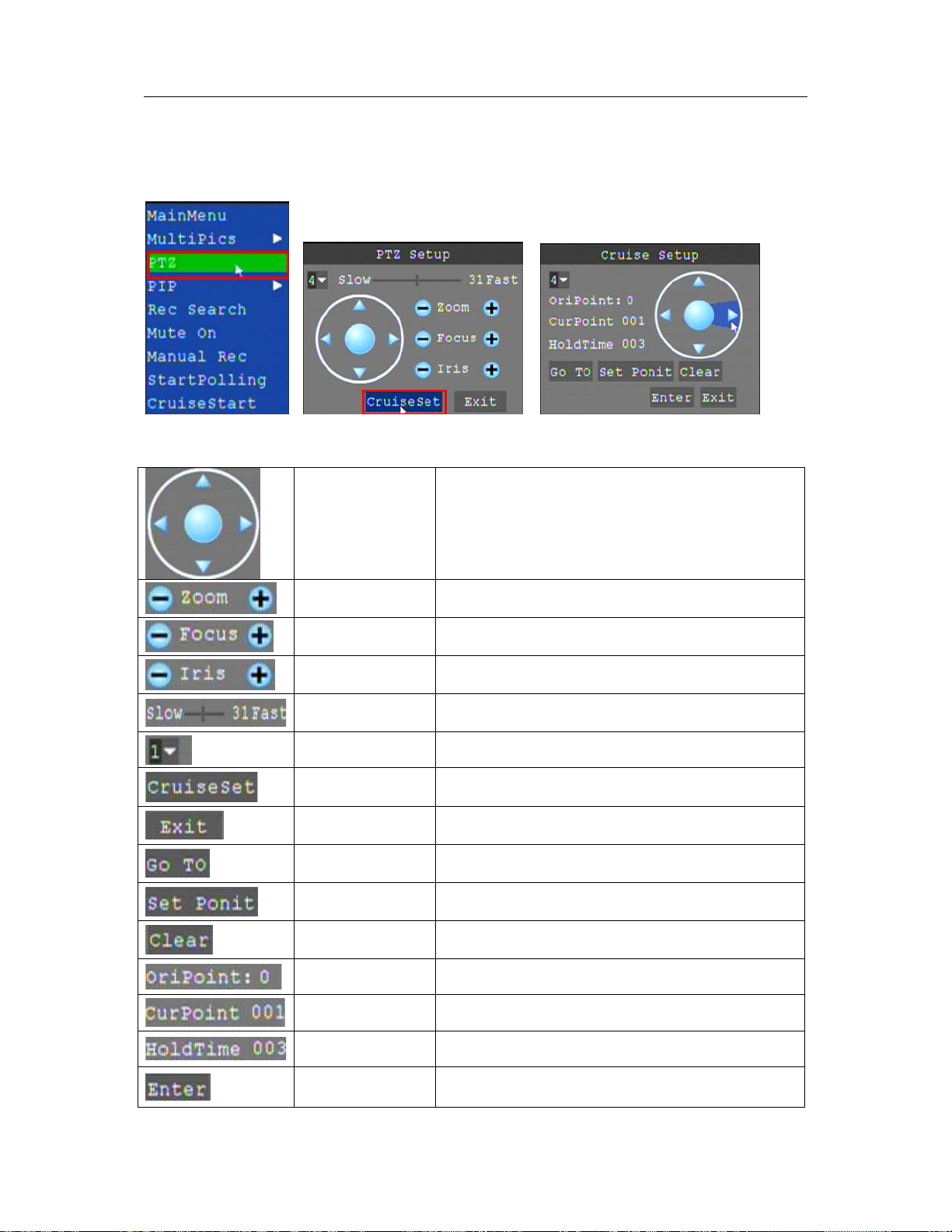

PTZ Control__________________________________________________________________23

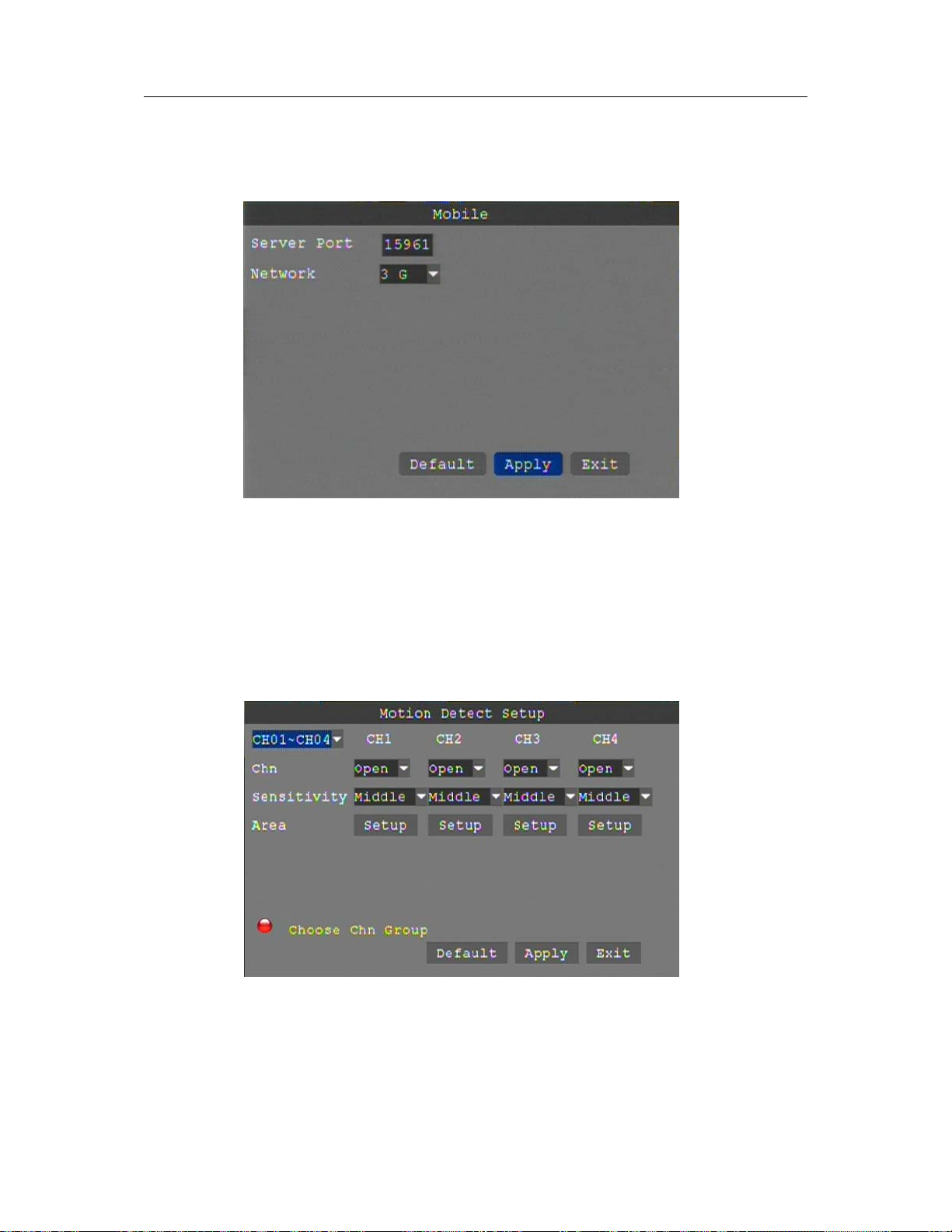

Mobile Device Setup___________________________________________________________ 24
Motion Detect ________________________________________________________________ 24
System Setup ________________________________________________________________________25
Date/Time setup ______________________________________________________________26
Password setup ______________________________________________________________26

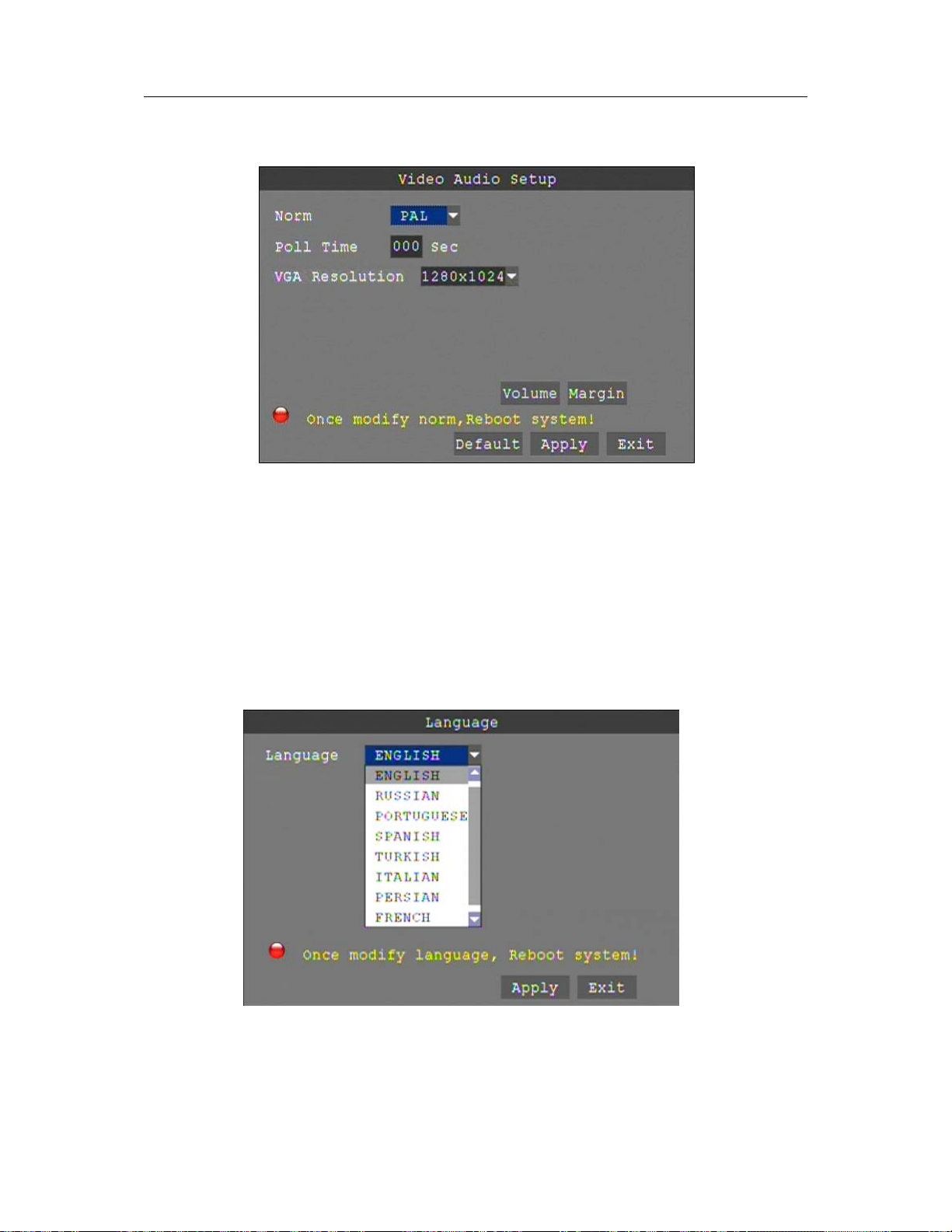

Video Setup__________________________________________________________________ 27
Language Setup ______________________________________________________________27

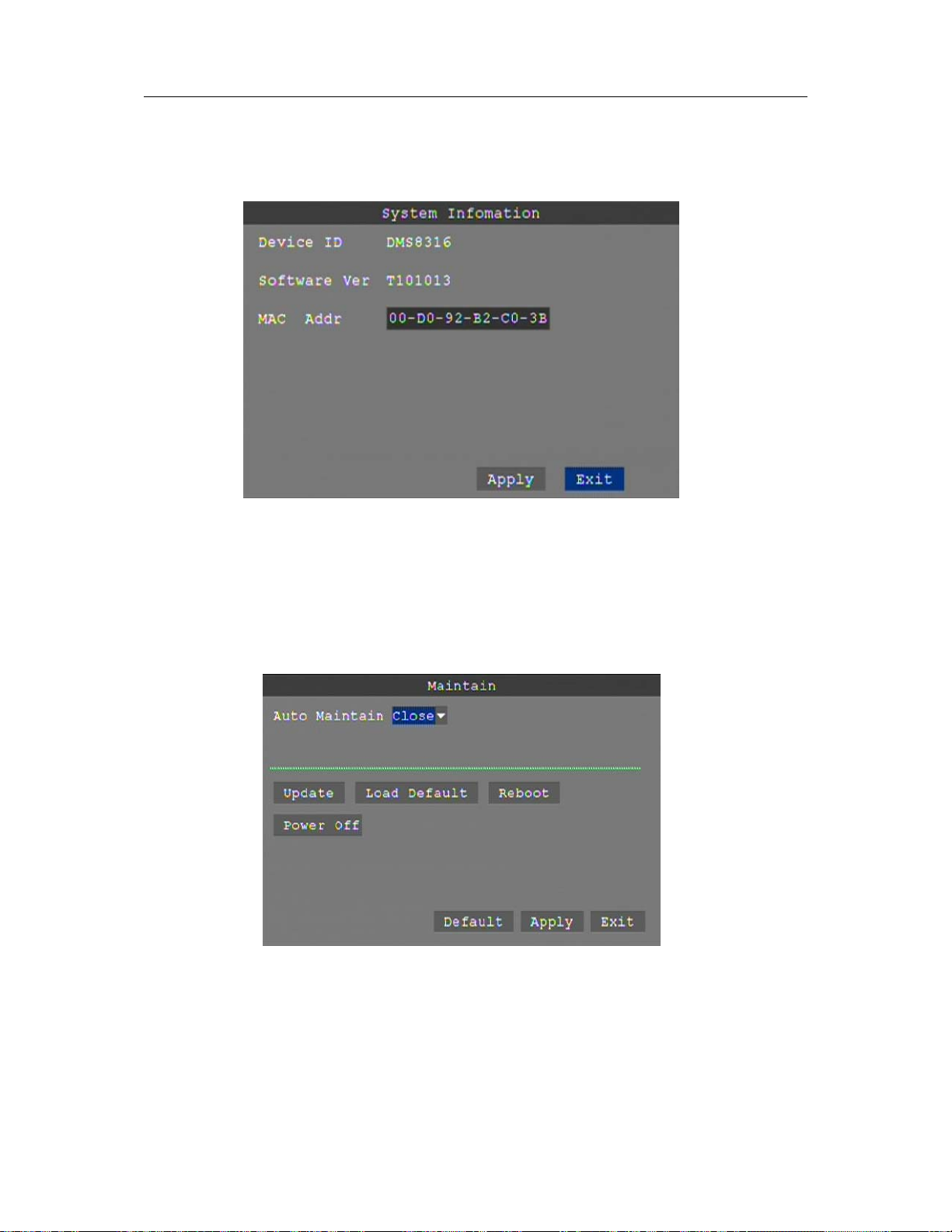

System Information ___________________________________________________________________28
System Maintenance __________________________________________________________________ 28
4 NETWORK OPERATION ______________________________________________________ 29

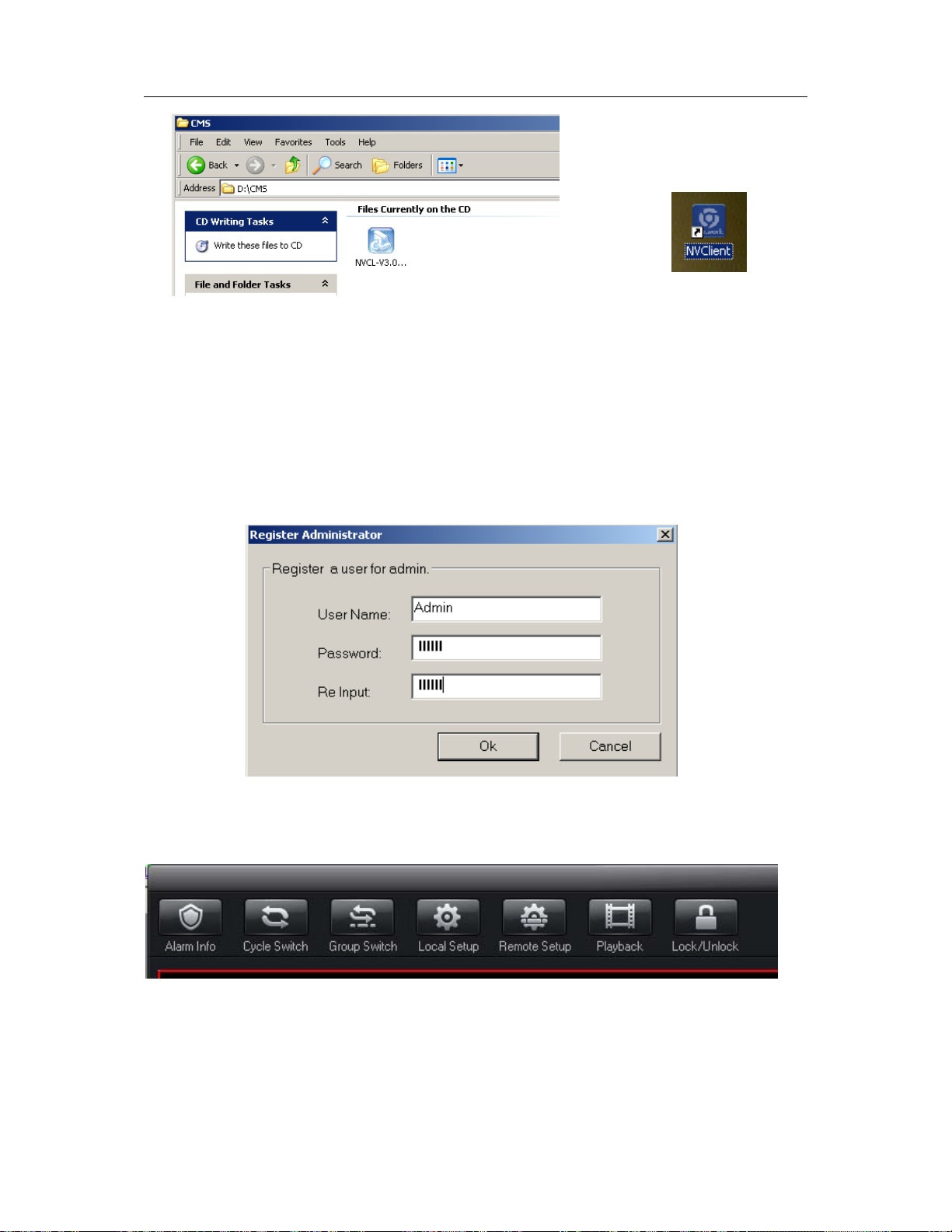

Installing Client Viewer Software ________________________________________________________ 29
Log into Client Viewer Software _________________________________________________________ 30
Client Viewer Local Setup ______________________________________________________________ 30

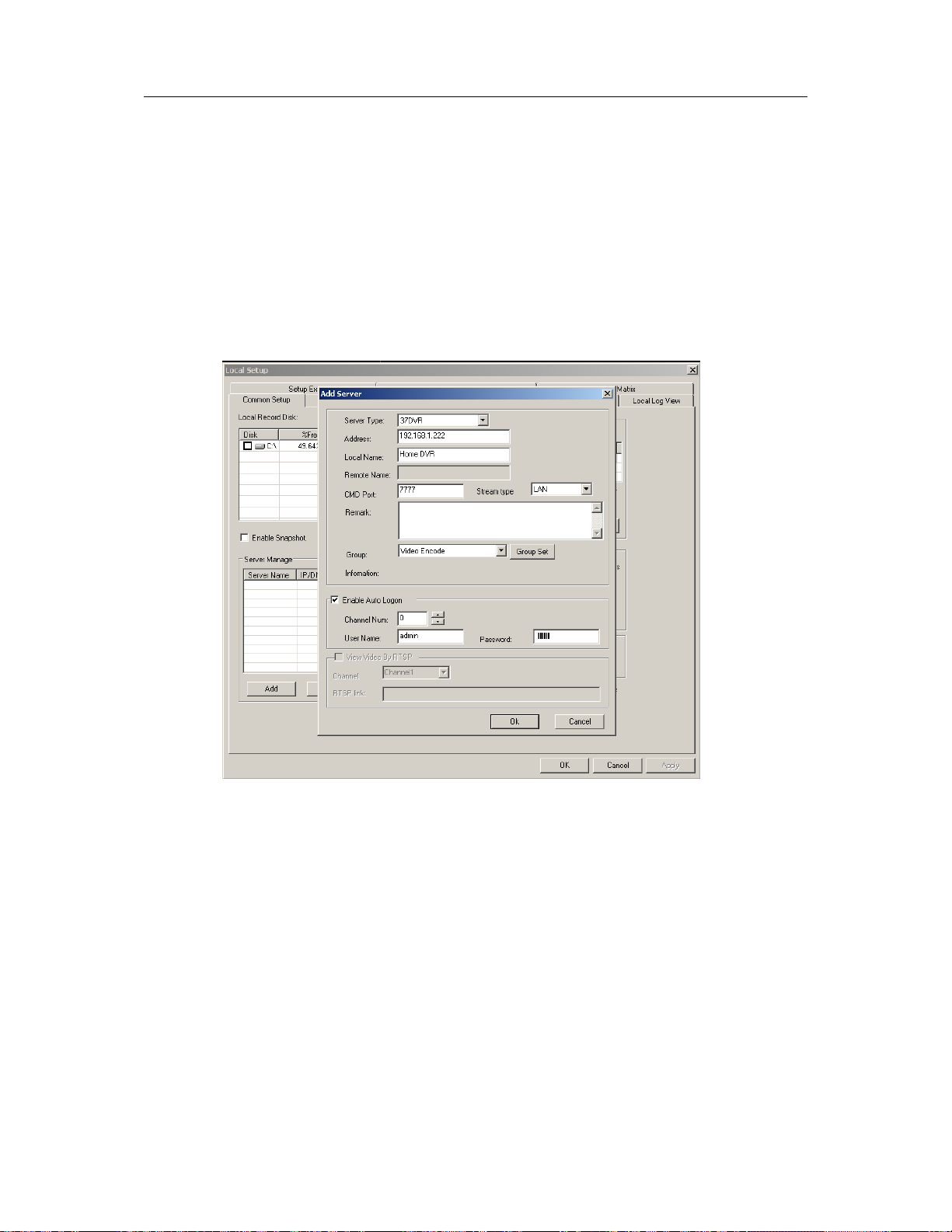

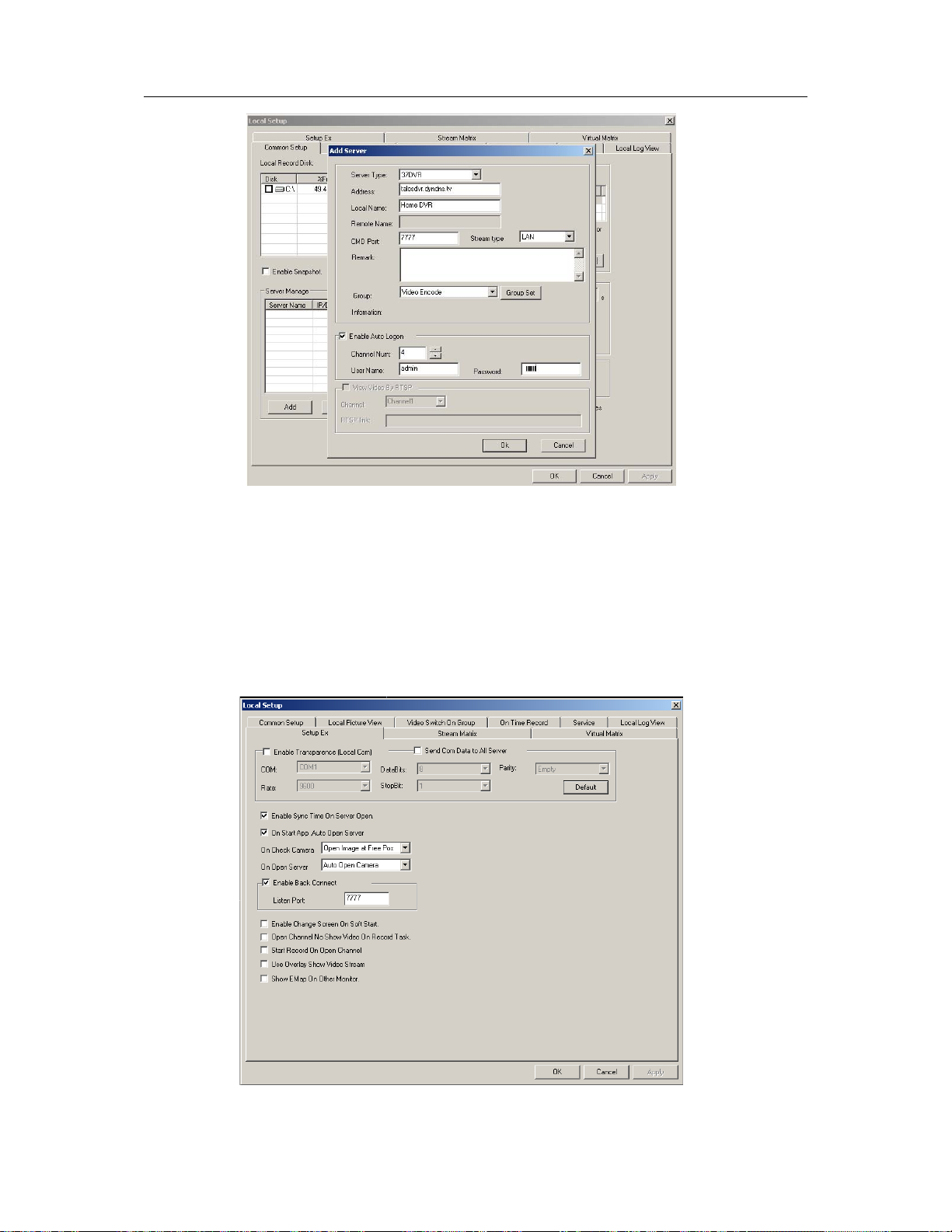

Add DVR/Server to Client Viewer ________________________________________________31
Client Viewer Remote Setup ____________________________________________________________32

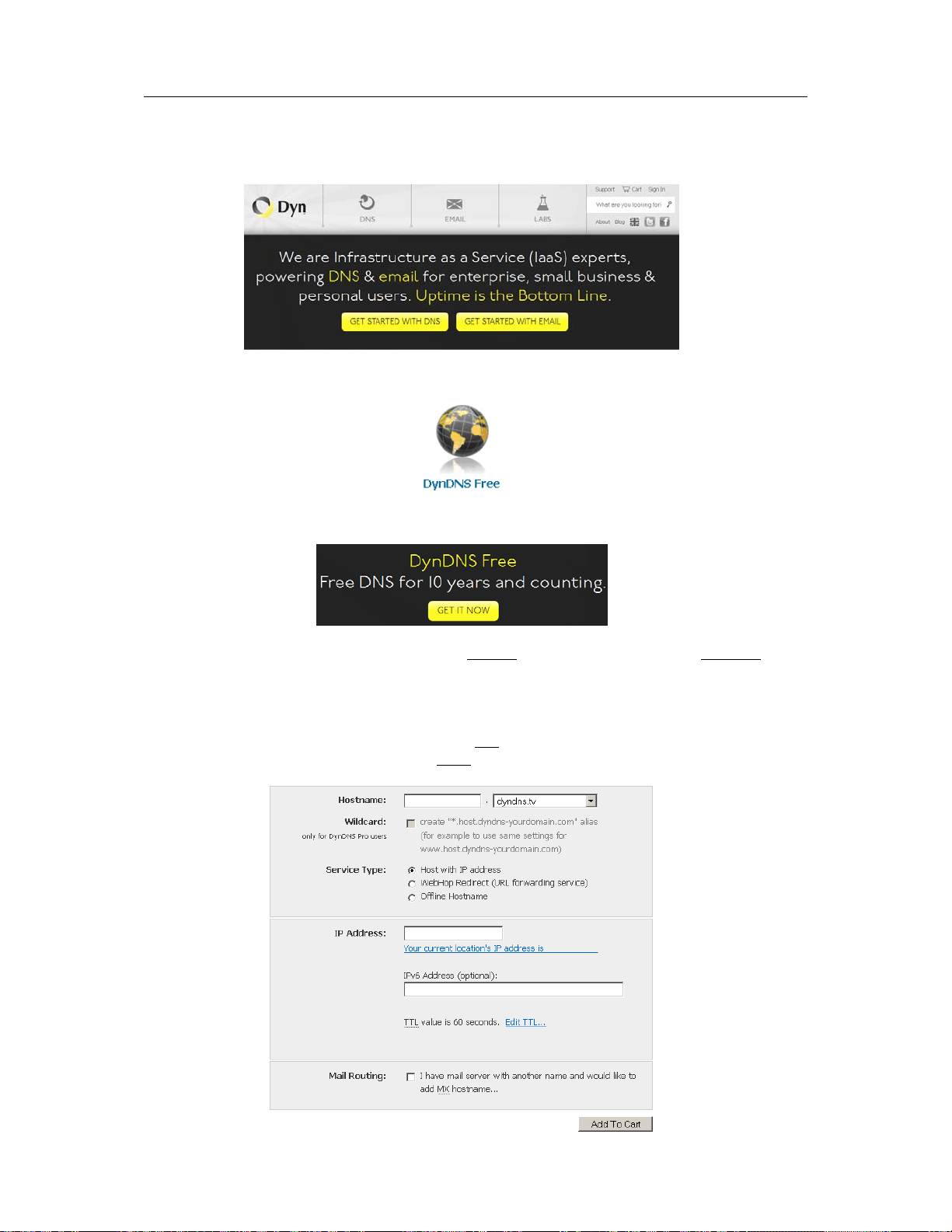

Dynamic Domain Name Service (DDNS) __________________________________________33

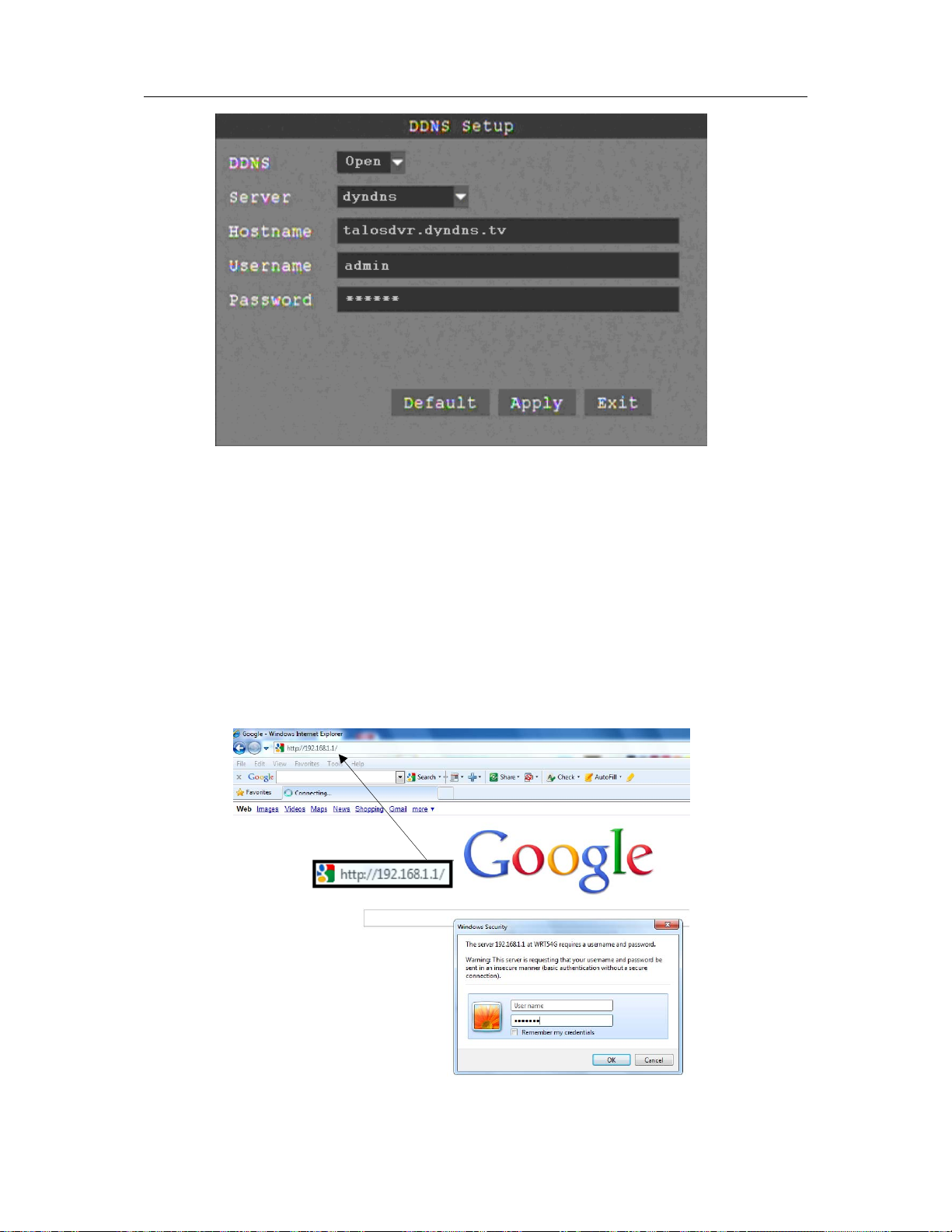

DVR Network Settings (DDNS) __________________________________________________34

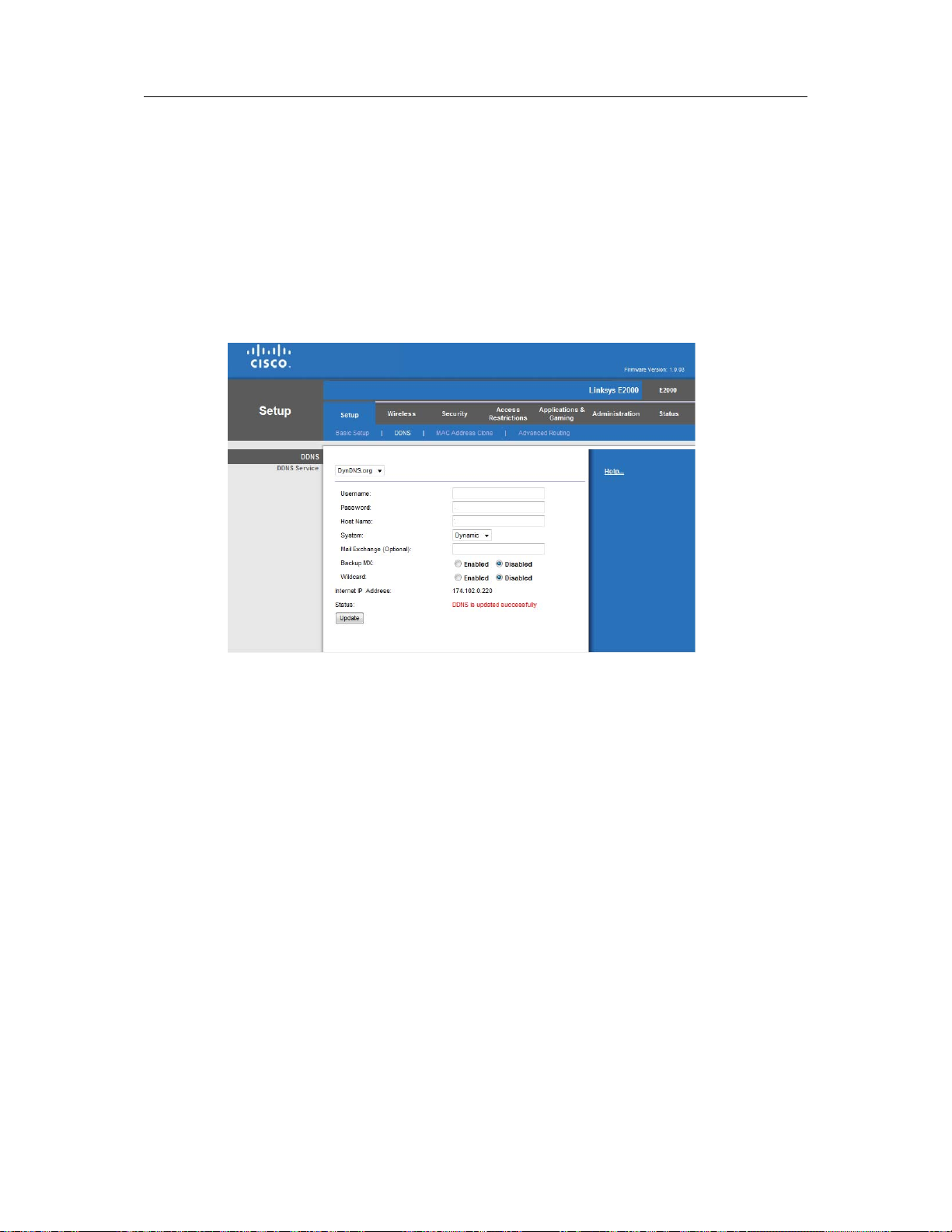

Router setup _________________________________________________________________ 35
Port Forwarding ______________________________________________________________ 36
Client Viewer Settings (DDNS) __________________________________________________37

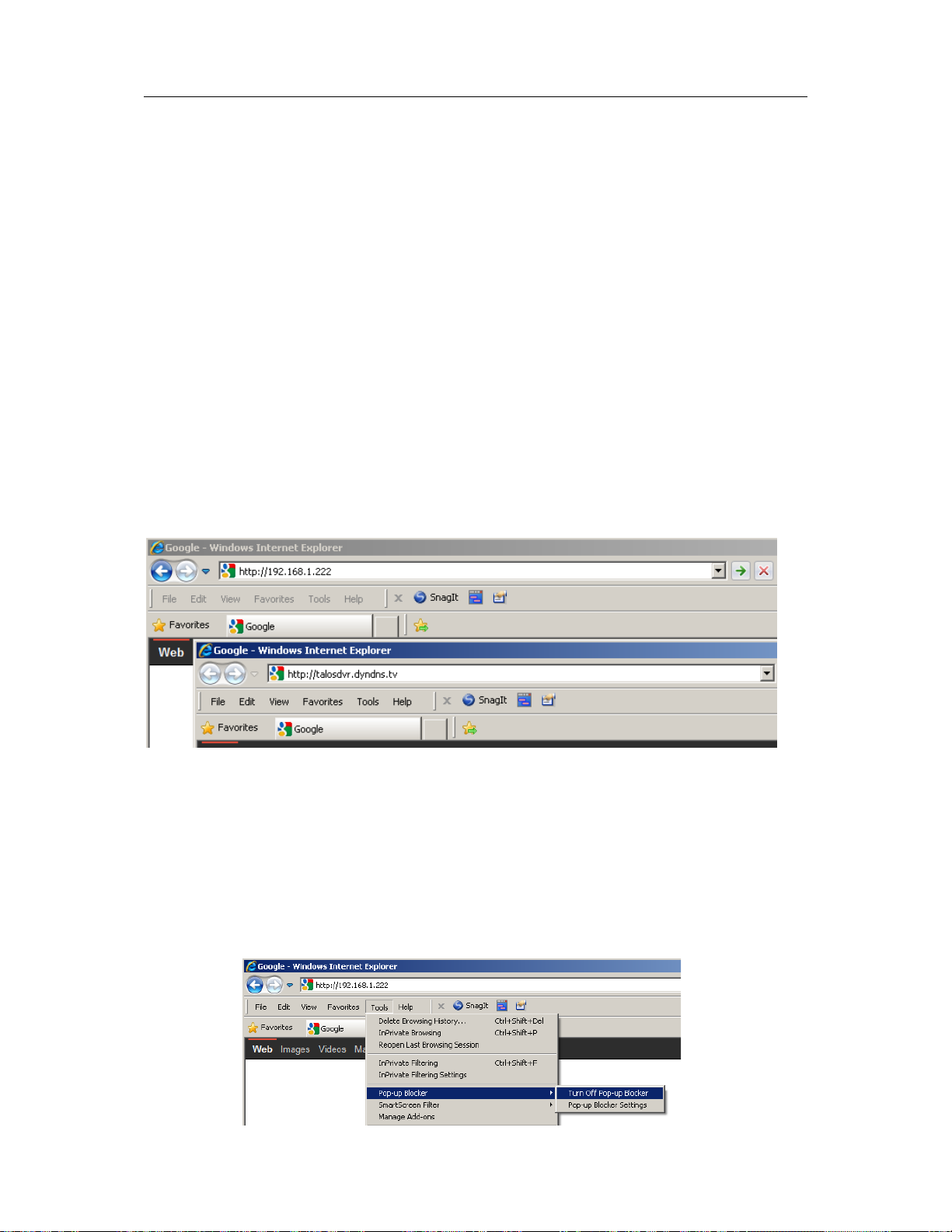

Internet Explorer Access _______________________________________________________________ 39

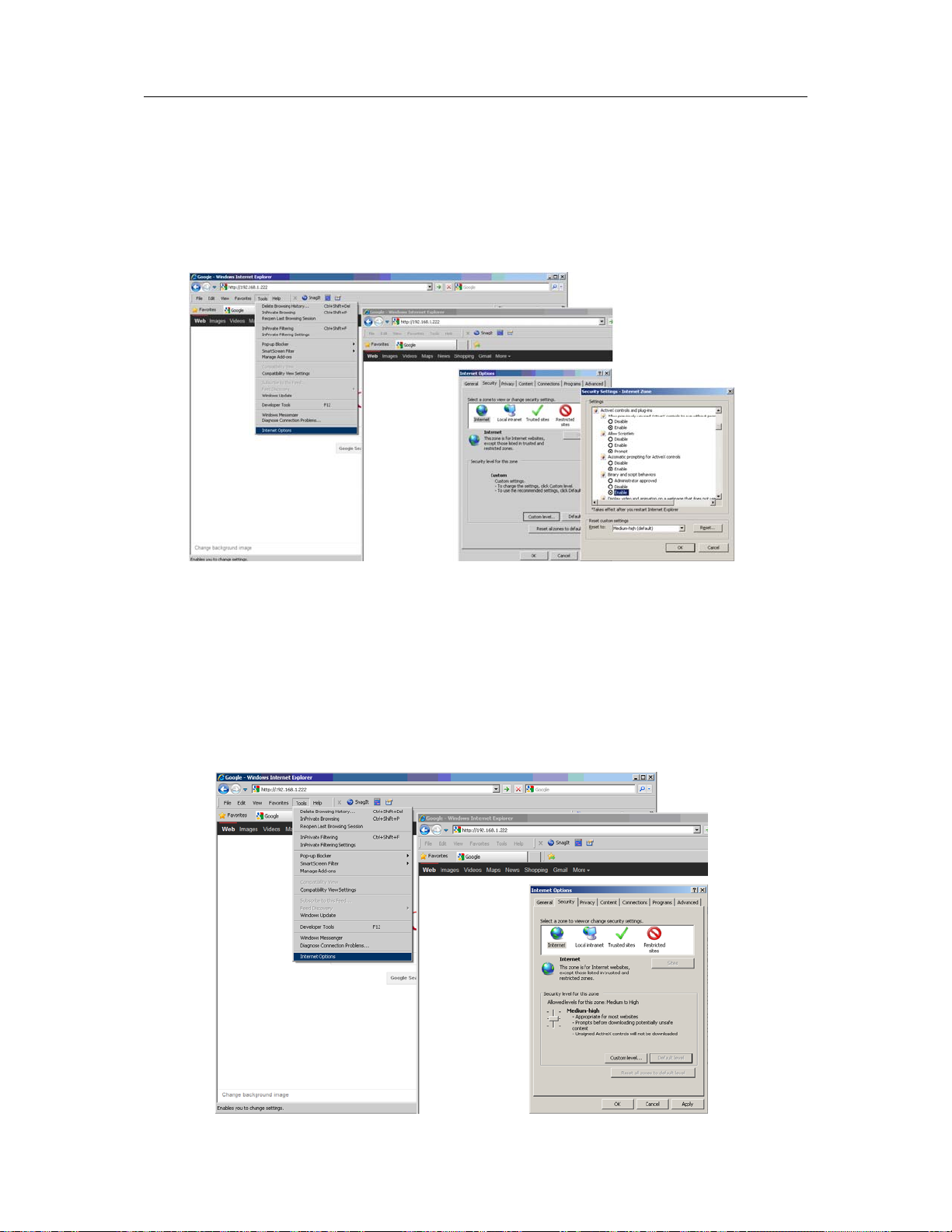

IE Settings___________________________________________________________________39
Security _____________________________________________________________________ 40
ActiveX______________________________________________________________________ 40
Login using Internet Explorer ___________________________________________________ 41
Web Server Interface __________________________________________________________________42
Live View ____________________________________________________________________42

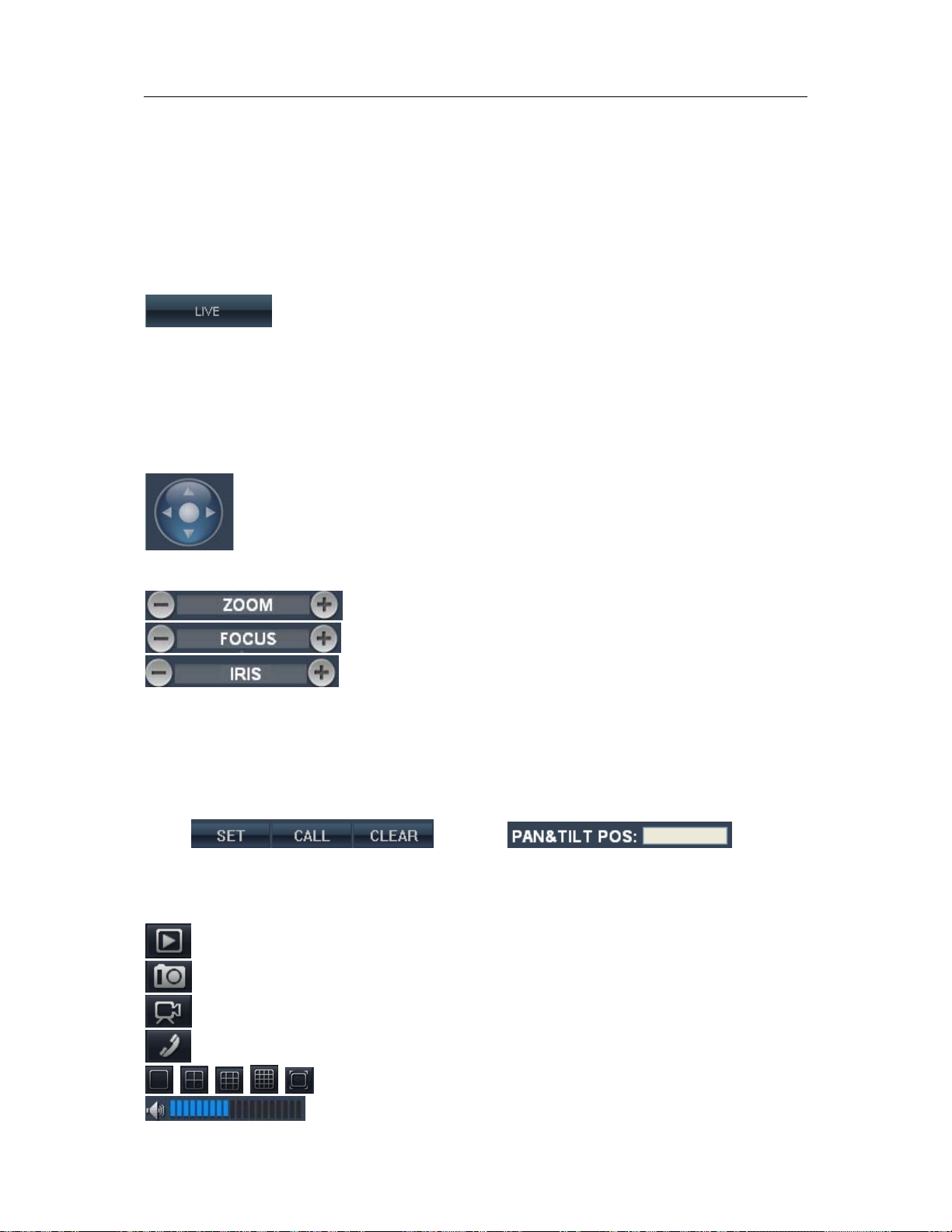

PTZ Control (GUI)_____________________________________________________________42

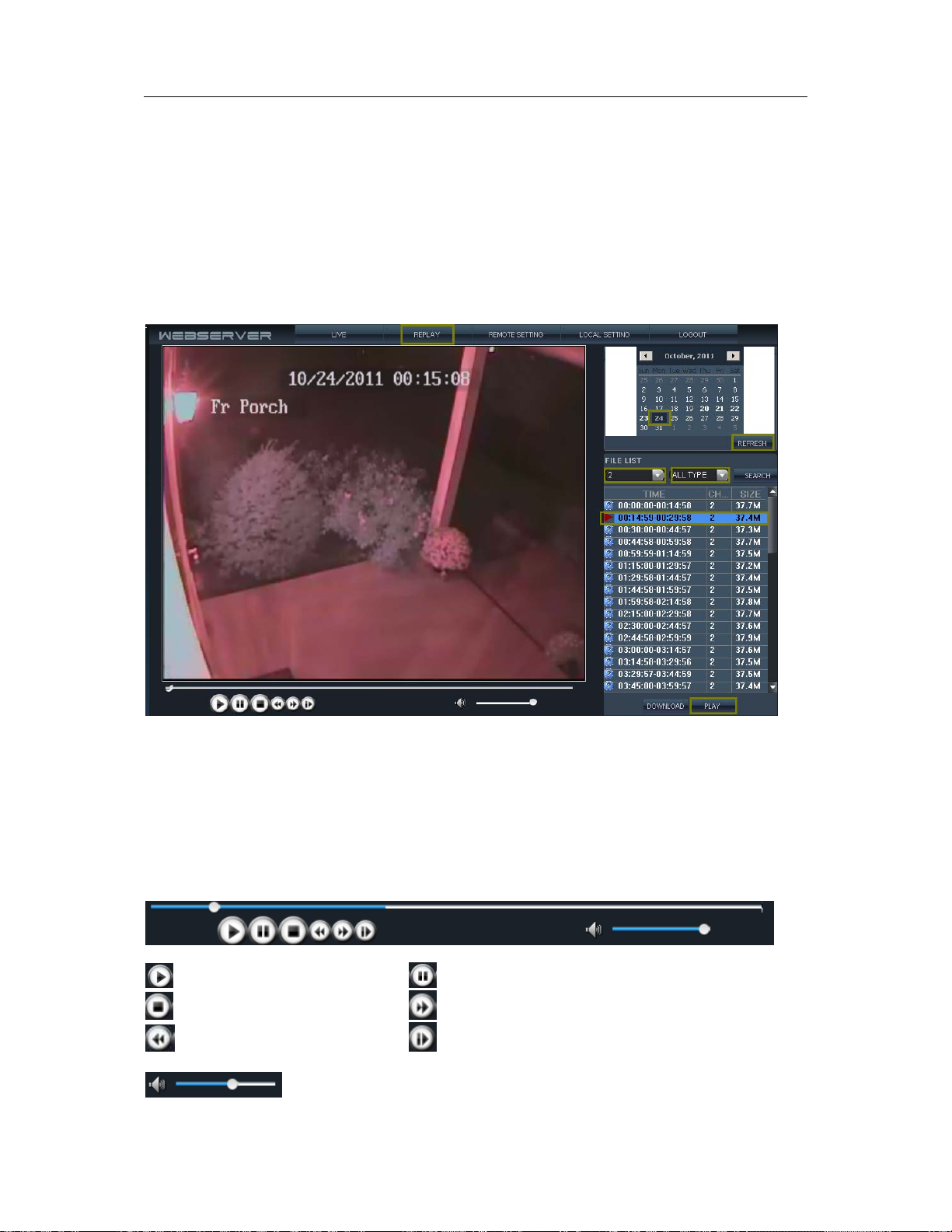

Replay / Playback _____________________________________________________________43
Remote Settings ______________________________________________________________44
Record Settings ______________________________________________________________45
Alarm Settings _______________________________________________________________46
PTZ Setting __________________________________________________________________47

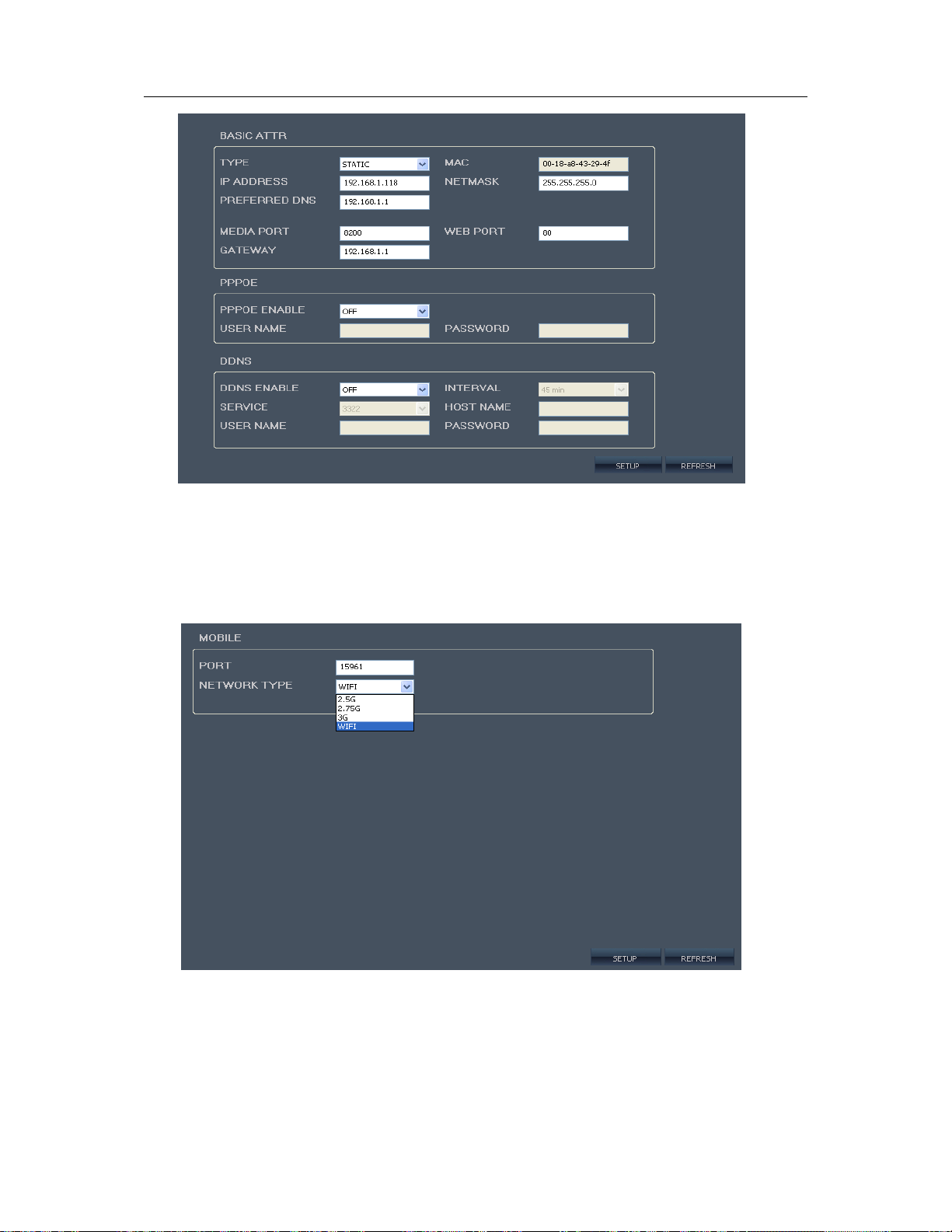

Network Settings _____________________________________________________________47
Mobile Settings_______________________________________________________________48
Advanced Settings ____________________________________________________________________ 49
Language____________________________________________________________________49
Video Format Mode ___________________________________________________________49
Time and Date________________________________________________________________ 49

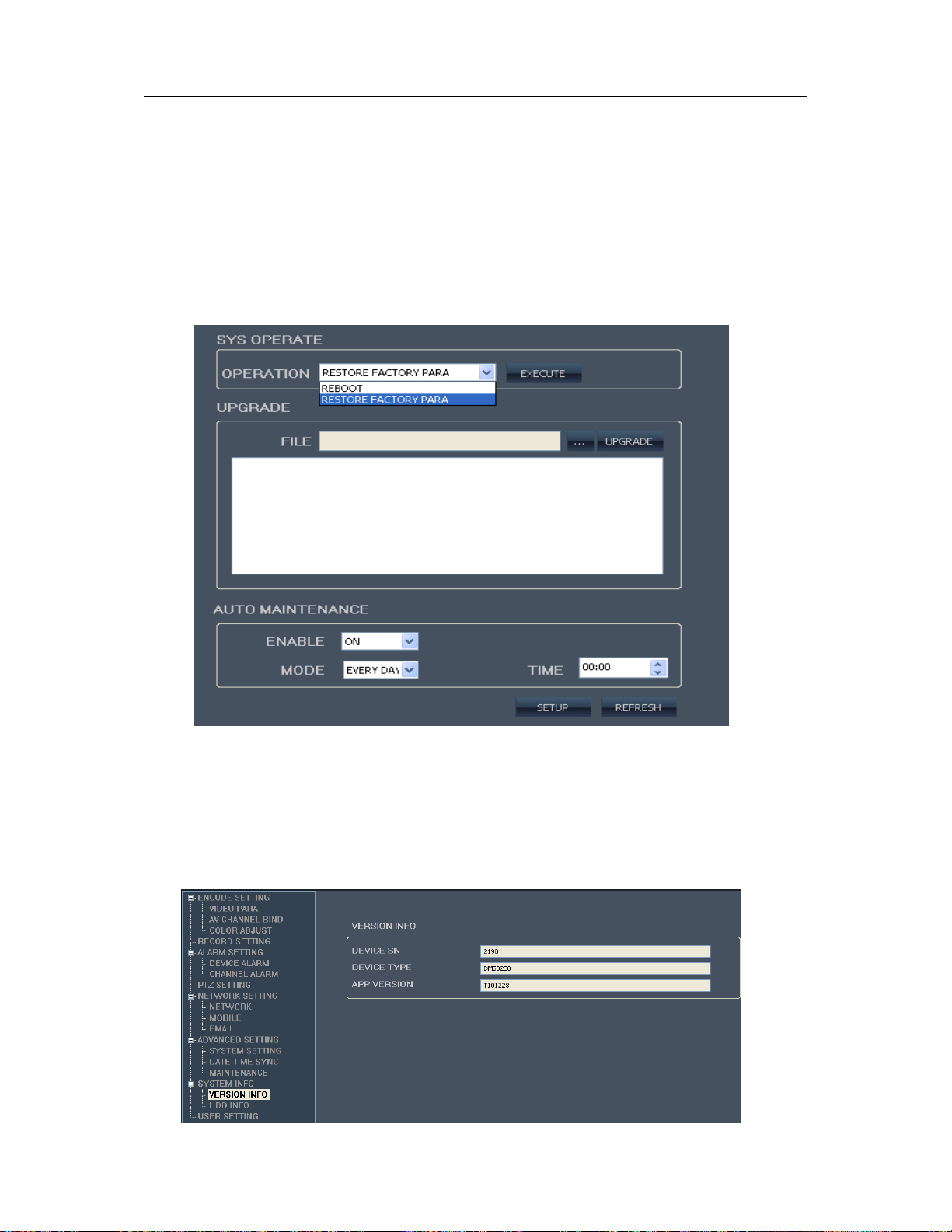

Maintenance _________________________________________________________________ 50
System Information ___________________________________________________________50
Hard Drive Information_________________________________________________________51
User Accounts _______________________________________________________________51

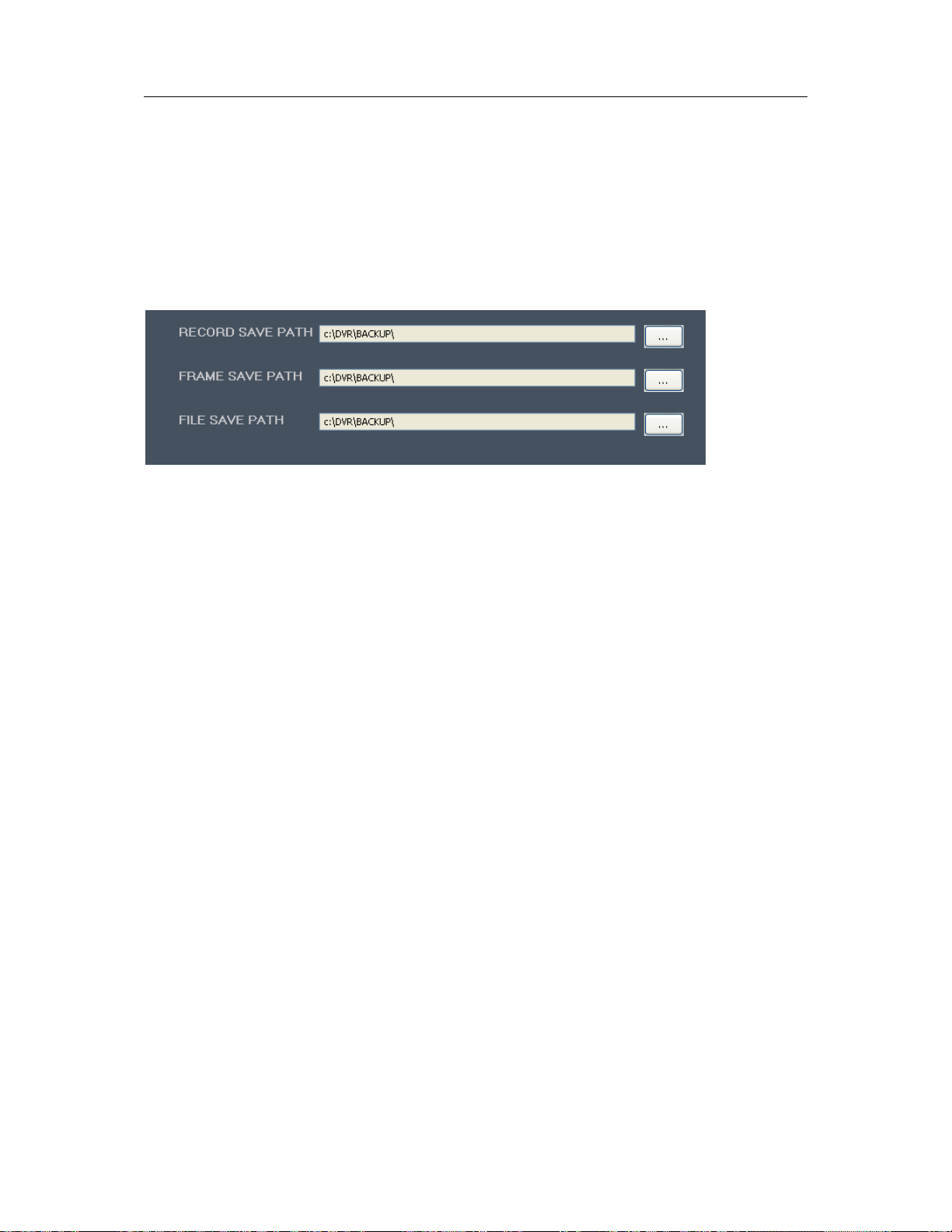

Local PC Storage Settings ____________________________________________________ 52
3
1 INTRODUCTION
1.1 PRODUCT INTRODUCTION
This compact DVR has all the functionality you desire. H.264 video compression ensures maximum
recording time, while preserving the quality of the recorded video. Ethernet connection provides access
from any computer on your home network and even remotely over the Internet or your Smartphone. An
intuitive onscreen GUI eases system setup and exporting recorded video. Video motion detection saves
hard drive space and alerts you to movement in an observed area. Other features include local recording,
playback, support triple mode remote network surveillance, data backup, parameter setting, motion
detection, I/O alarm setting, PTZ, USB mouse, USB2.0 backup, IE browser and back up etc.
1.2 PRODUCT FEATURE
H.264 compression
Two USB interface, USB 2.0 for data backup, USB 2.0 for mouse operation
Support one 3.5" SATA HDD
Special file system for security
16 bit color translucent user-friendly GUI, with notes for selected menu items
Optimized four channel simultaneous playback
Two level user management
Support live view, parameter setting and copy/playback via network
1.2.1 SPECIFICATION
Description
Compression H.264
Video in
Video out
Resolution
Frame Rate Non-real time; Max NTSC :120 Fps (CIF), PAL 100 Fps (CIF)
Audio input RCA×1
Audio output RCA×1
Audio codec ADPCM
Alarm input/output N/A
Video mode Manual recording, Scheduled recording, Video motion detection
1.0Vp-p/75Ω，BNC×4
1.0Vp-p/75Ω，BNC×1；VGA×1
Record：1CH D1, 3CH CIF
4CH
Live：D1
Network interface RJ45,100M/1000M
PTZ Supported (Pelco-D, Pelco-P)
4
PTZ interface RS485 × 1; + / -
Data storage Support 1 SATA HDD; 300GB-2TB
Mouse USB Mouse
Remote control IR remote included
Voltage input 12V/3A
Appearance Half-chassis
1.3 ENVIRONMENTAL
Safety precautions should be employed while installing and using this DVR. To prolong life of this
device please pay attention to the following:
• When installing this device, please comply with all the electrical product safety criteria
• Do not drop liquid on DVR or insert any objects
• Use soft dry cloth to clean DVR; do not use chemical cleaners
• Please disconnect this device from the power if not used for long duration
1.4 PACKAGE CONTENTS
QTY DESCRIPTION
1 4-Channel DVR
4 600 TVL Bullet Cameras
4 Camera Power Supplies
4 60 ft. Camera/Power Cables
4 Camera mounts with hardware
1 Mouse
1 IR Remote Control
1 DVR Power Supply
5
2 INSTALLATION
2.1 PRODUCT OVERVIEW
2.1.1 Front Panel Indicators
2 31
4
NO. NAME Function
1 Power Indicator Shows the DVR is turned ON
2
3
4 IR
Record
Indicator
Network
Indicator
Shows the DVR is in RECORD mode
Show the DVR is connected to and communicating with the local
area network
Remote control receiver
3 4 5 6 7
9
2
1
8
2.1.2
Connectors on Rear Panel
NO. Name Function
1 VGA Connect a VGA monitor for high resolution viewing
2 Video input 4 BNC; composite video camera inputs
3 Video output 1 BNC; composite video output
4 Audio input / out 2 x RCA; line level audio input / output
5 Network Connect the DVR to a local area network
6 USB 2 x USB ports; mouse port / flash-drive for file backup
7 RS485 RS485+ / RS485- for PTZ camera control
8 Power jack Connect 12Vdc power supply
9 Power switch Master power switch
6
2.2 HDD INSTALLATION
Follow the steps below to install the hard drive into the DVR.
1）Remove the cover from the DVR and locate the four screw holes and ventilation slots.
2）Remove the four screws and foam isolation pads from the accessory box; see photo below.
3）Remove the paper backing and place the isolation pads over the screw holes.
7
4）Place the hard drive over the screw holes and isolation pads as shown below.
5）Insert the screws through the bottom of the chassis, through the isolation pads and into
the mounting screw holes of the hard drive.
NOTE: After installation the new hard drive must be formatted.
8
3 DEVICE OPERATION
3.1 MOUSE OPERATION
The mouse is the primary input device for navigating system menus.
NOTE: Unless otherwise noted, all functions described in this manual use mouse input.
To use a mouse with the system connect the mouse to the U SB MOUSE port on rear of the DVR.
NOTE: The USB ports are exclusive to the device intended. The top USB port is for data backup to a
USB flash drive, the bottom port is for connecting a USB mouse.
Figure 1.0 Connect a USB mouse to the bottom USB port on the rear panel
1) The mouse buttons perform the following:
• Left-Button: Click to select a menu option;
during live viewing in split-screen, double-click
on a channel to view the selected channel in
full-screen.; double-click the channel again to
return to split-screen view
• Right-Button: Click to open a Sub-Menu
• Scroll-Wheel: No function.
Figure 1.1 Mouse button operation
2) Virtual Keyboard (Mouse)
When using the mouse, input values using the onscreen virtual keyboard. You will need to use the
Virtual Keyboard when entering your User ID and Password.
To use the Virtual Keyboard:
1. Click on an option or field, such as the User ID and
Password fields.
2. Click 0~9 to key-in the desired digit.
3. Click
to switch between numerals, upper
and lowercase letters, and other characters.
4. Click
5. Click
to Backspace/Delete.
to enter/confirm and close the Virtual
Keyboard.
• The Virtual Keyboard buttons will turn from orange to white when selected with the mouse.
9
3.2 REMOTE CONTROL OPERATION
The remote control is the secondary device for navigating the system’s
interface.
1. STANDBY: Press to turn on/off standby mode.
2. LOGIN/LOCK: If "Security" has been enabled in the
setup menu, press to open the user login screen.
3. Number/Channel buttons: While in menus
buttons enter values; during live viewing, press to
view channels in full-screen.
4.
: Press to switch between quad and split-screen.
5. MENU: Opens the main menu.
6. PTZ: Opens the PTZ control interface.
7. EXIT: Close menu windows.
8. Navigation/OK:
•
: Move cursor in menus up, Channel up.
•
: Move cursor in menus right, Channel up, During
playback increases forward playback speed.
•
: Move cursor in menus left, Channel down, During
playback increase reverse playback speed.
•
: Move cursor in menus down, Channel down.
• OK: In menus, press to confirm selections.
9. +/ - : In menus, press to adjust values.
10. RECORD: Press to start manual recording.
11. STOP: Press to stop manual recording.
12. EXTRA: Not applicable.
13. Playback controls:
•
: Increase reverse playback speed 2X, 4X, 8X,16X,32X.
: Press to start playback.
•
: Press to increase forward playback speed 2X,4X,
•
8X,16X,32X.
•
: Press to slow playback speed by 1/2, 1/4, 1/8, 1/16,1/32.
: Press to freeze playback, press again to advance
•
frame-by-frame.
14.AUDIO/MUTE: Allows control of live and recorded sound.
TIP: When using the remote control to
enter password and camera titles,
select the field using the navigation
buttons press ENTER, and then press
the number buttons.
3.2.1 Use Remote control to select the device number:
You can control several DVRs using one remote control. Press the "LOGIN/LOCK" key, and enter
the device number to control a specific DVR. The device number is set in "PASSWORD" setup menu.
For example to select the device with number "000001".
Press "LOGIN/LOCK" + "1" for the remote to control DVR as device 1.
NOTE:
1. The remote is set to control a DVR with device number "000000" as the default.
2. Press "LOGIN/LOCK" + "0" for the remote to control and DVR with any device code.
3. The number assigned to a DVR must be lower than 000255.
10
3.3 MENU TREE
Use the mouse to control the DVR and navigate the menus. The tree diagram below is a quick
reference to help keep track of menu levels and functions. The menu functions are explained on the
following pages.
11
3.4 SYSTEM OPERATION
3.4.1 USER LOGIN
3.4.1.1 STARTING THE SYSTEM
To power the system ON/OFF connect the power cable to the DC 12V port on the rear panel. At
startup, the system performs a basic system check and runs an initial loading sequence. After a few
moments, the system loads a live display view.
1) If there is no HDD in the device, the device can't read the HDD, or the HDD isn't formatted it will
display an "H" in the video on the screen.
2) You must format the HDD in the DVR before first use. The steps as follows: MainMenu >
Device>HDD management > format. When HDD format is complete, the system will restart.
3.4.1.2 SYSTEM LOGIN
By default, passwords are disabled on the system; you do not need to enter a password when
accessing any system menus. However, for security purposes it is highly recommended to enable
passwords on the system using the Password Menu.

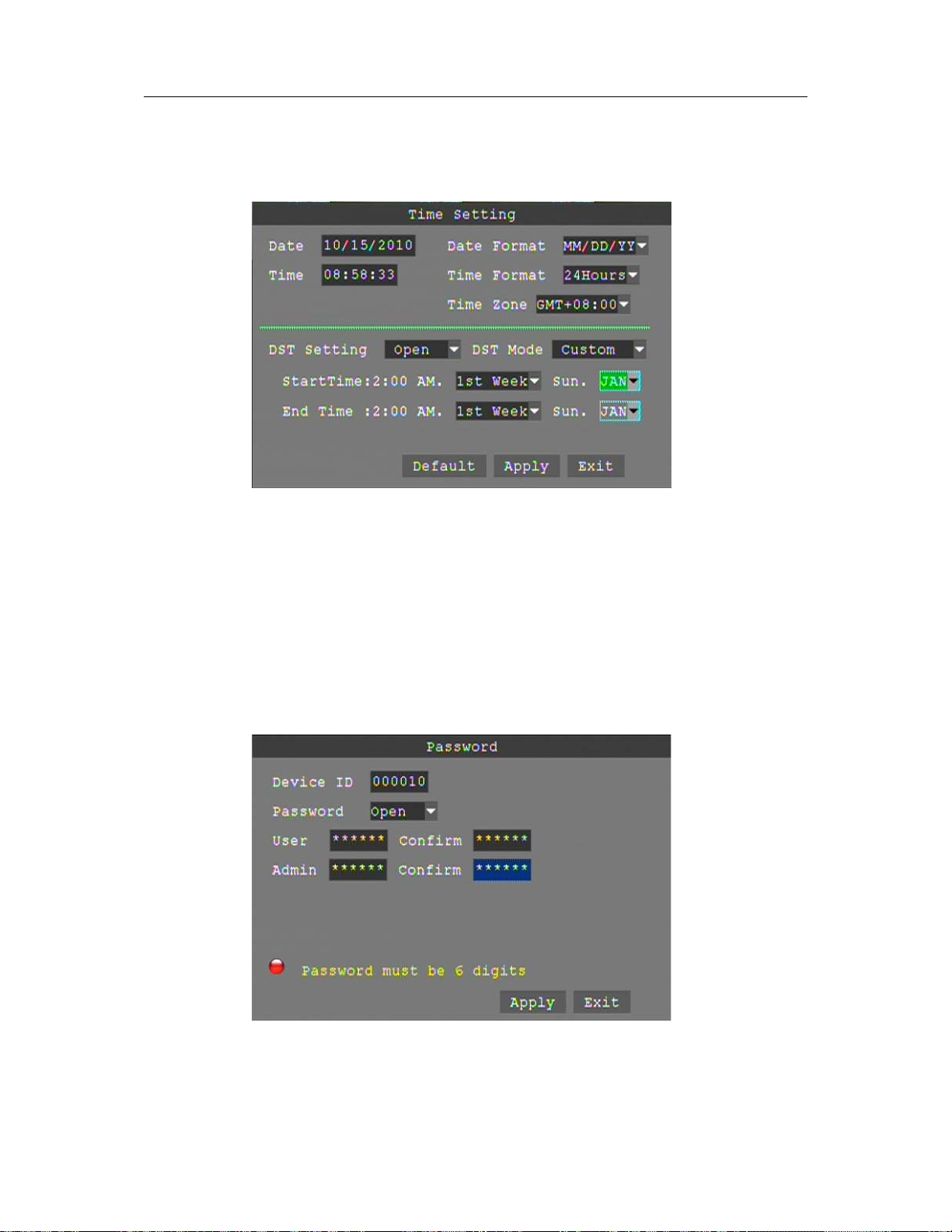

If you have enabled password and set up user accounts you will see the following screen when you log
into the DVR. Input device ID and user password and press "Apply" to access the main menu.
NOTE: Default device ID is: 000000. Default Admin password is 519070. Default User password is
000000. To manage the device more conveniently, setup the user passwords and change the device ID
in the base setup. Administrator has full device authority; User has limited authority; view and
playback.
DEVICE ID: Enter the unit ID (000000 ~ 000255)
PASSWORD: Enter the Admin password or User password
12
3.4.2 GUI OPERATION
The main menu; "DISPLAY", "RECORD", "NETWORK", "SEARCH", "DEVICES", and
"SYSTEM".
Note: The menu will display the sub-menu functions when you mouse over the menu icon.
3.4.2.1 DISPLAY
Click
"DISPLAY" on the main menu to enter the display settings interface.
CH01 ~ CH04: Click to select the channel to change settings.
CHN NAME: Click to enter channel description names into the system.
POSITION: Click to switch name location; there are 5 options.
COLOR: Click to enter camera setting interface as follows. See below for detailed information.
LIVE: Click to select; Open the view of the camera, Close the view of the camera.
LIVE TIME: Display time while in live view; Open: Yes, Close: No.
RECORD TIME: Display time while recording; Open: Yes, Close: No.
13
Click and drag the cursor to adjust settings. Click "APPLY" to save the parameters
3.4.2.2 RECORD SETUP
"RECORD" on the main menu to enter into the record settings interface.
Click
CH01~CH04: Click to select the channel to change settings.
RECORD: Open: Channel recoding enabled, Close: Channel recording disabled.
BITRATE: Click to select the bitrate for best data compression.
RESOLUTION: Click to select the resolution of recorded video: D1; 720 x 480, Half D1; 720 x 240,
CIF; 352 x 288
FRAME RATE: Click to select the recoded frame rate.
AUDIO: Not applicable
MODE: Always: DVR will begin recording at startup, Schedule: DVR will record by a set schedule.
PACK TIME: Four options; 15min, 30min, 45min, 60min, this breaks video recoding into more
manageable chapters.
SCHEDULE SETUP: See below for detailed information.
14

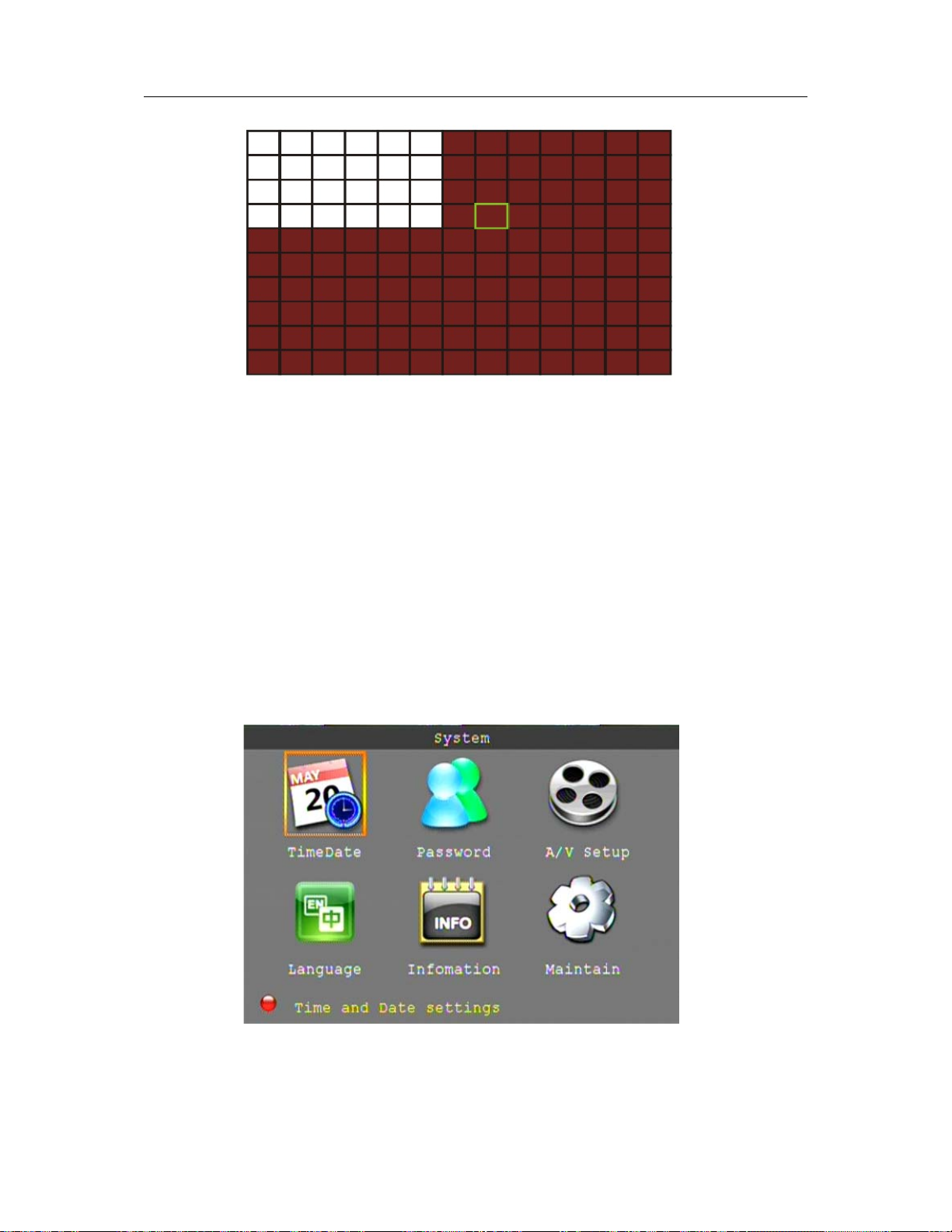

CHANNEL: Click to select all channels or just one channel for schedule recording.
WEEKLY: Setup each channel as desired, there are three modes; ALARM, NORMAL, NO REC, the
selected mode will display a "check mark". You can copy a daily setting to other days. Different
colors indicate different record mode: Red for alarm record, green for normal record, blank for no
record.
Click APPLY then Enter to save new settings.
3.4.2.3 NETWORK SETUP

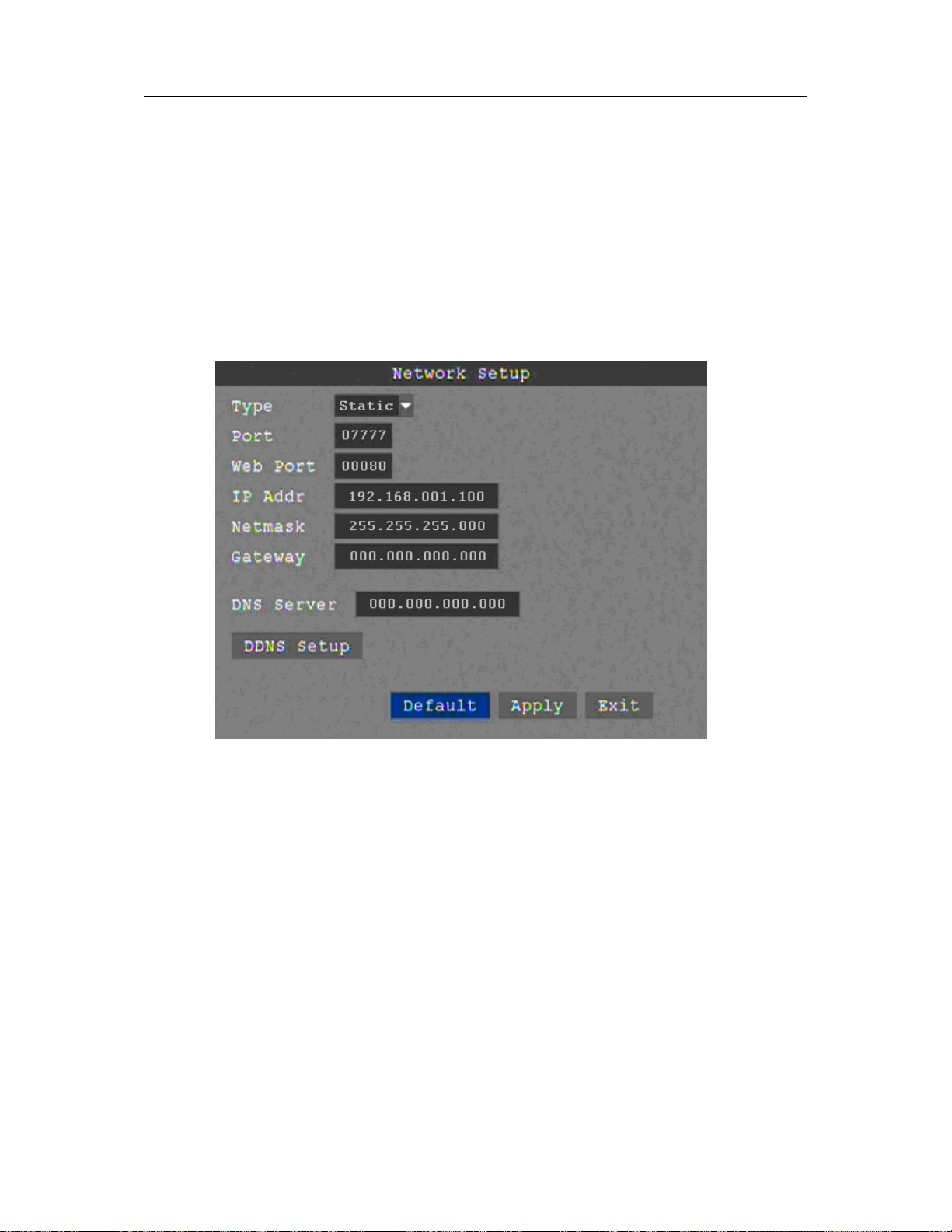

Click the "NETWORK" to enter network settings interface.
TYPE: Two options; DHCP and Static IP address.
STATIC
TYPE: Select "Static" to set your preferred DVR IP address on your network.
PORT: This is the out-bound port for video transmission.
WEB PORT: This is the in-bound contact port for HTTP.
IP ADDRESS: Set an IP address and press "Enter". Address should not conflict with automatically
assigned addresses (DHCP) from the router.
NETMASK: Enter the Netmask settings; this is normally a default setting.
GATEWAY: Enter the Gateway settings; this is the address of your router on your network.
15
DHCP
Select "DHCP" for the DVR to automatically negotiate an IP address from the router.
PORT: This is the out-bound port for video transmission.
WEB PORT: This is the in-bound contact port for HTTP.
DDNS
Select "Open" if you are using DDNS or "Close" if you are not using DDNS service with your DVR.
SERVICE: The DVR supports 3 DDNS services; 3322, dyndns, and perfecteyes.
HOST NAME: Input the host name you created when you opened your DDNS account.
USERNAME: Input the user name you created when you opened your DDNS account.
PASSWORD: Input the password you created when you opened your DDNS account.
Click "Apply" then "Exit" then reboot your DVR for changes to take effect.
16
Loading...
