Talos Security DC960V User Manual

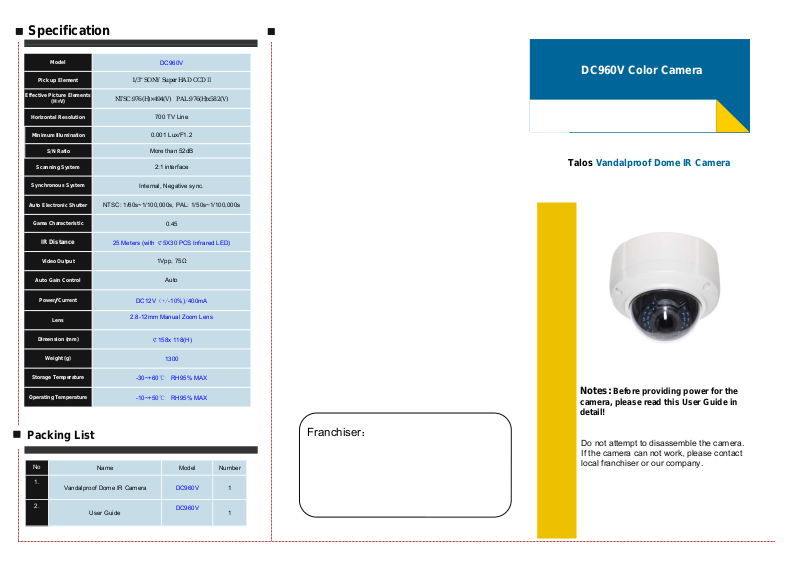

Specification
Model
Pick up Element
Effective Picture Elements
(H×V)
Horizontal Resolution
Minimum Illumination
S/N Ratio
Scanning System
Synchronous System
Auto Electronic Shutter
Gama Characteristic
IR Distance
Video Output
Auto Gain Control
Power/Current
Lens
Dimension (mm)
DC960V
1/3" SONY Super HAD CCD II
NTSC:976(H)×494(V) PAL:976(H)x582(V)
700 TV Line
0.001 Lux/F1.2
More than 52dB
2:1 interface
Internal, Negative sync.
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
0.45
25 Meters (with ￠5X30 PCS Infrared LED)
1Vpp, 75Ω
Auto
DC12V（+/-10%)/400mA
2.8-12mm Manual Zoom Lens
￠158x 118(H)
DC960V Color Camera
Talos Vandalproof Dome IR Camera
Weight (g)
Storage Temperature
Operating Temperature
Packing List
No
1.
2.
Vandalproof Dome IR Camera DC960V 1
User Guide
1300
-30~+60℃ RH95% MAX
-10~+50℃ RH95% MAX
Name Model Number
DC960V
1
Franchiser：
Notes:Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
BRIEF OF PRODUCT
CONNECTING
INTRODUCTION
* Sensor (CCD)
Adopt SONY 1/3" CCD Sensor.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
* Scanning Mode
NTSC or PAL mode.
* Support UTC function
With UTC Remote Controller for the convenience of OSD menu
setting.
* OSD SETTING
MANUAL
LENS
SHUTTER/
AGC
WHITE BAL
BACK LIGHT OFF/BLC/HLC
PICT AD-
JUST
OSD SET
ATR
MOTION
DET
PRIVACY
DAY/NIGHT
CAMERA ID OFF/ON
SYNC INT
LANGUAGE
AUTO
HIGH LUMINANCE MODE:SHUT+AUTO IRIS/AUTO
AUTO
MANUAL
MORROR/BRIGHTNESS/CONTRAST/SHARPNESS/HUE/GAIN
COLOR
NR NR MODE:Y/C,OFF,Y,C
SHUTTER:1/50,1/120,1/250,1/500,1/1000,1/2000,
ATW SPEED/DELAY CNT/ATW FRAME/ENVIRONMENT
PUSH/ANTI CR/PUSH LOCK/USER1/USER2/MANUL
OFF
ON LUMINANCE/CONTRAST
OFF
DETECT SENCE/BLOCK DISP/MONITOR AREA/
ON
OFF
ON
B/W BURST:OFF/ON
AUTO
ENGLISH/CHINESS/JAPANESS/ESPANOL/PORTUGUES/
CAMERA RESET/BACK/EXIT/SAVE ALL
MODE:CLOSE/AUTO/OPEN SPEED:0-255
AREA SEL/TOP/BOTTOM/LEFT/RIGHT
AREA SEL/TOP/BOTTOM/ LEFT/RIGHT/
PYCCKNN/FRANCAIS/DEUISCH
TYPE:DC/VIDEO
IRIS
BRIGHTNESS:0-255
LOW LUMINANCE MODE:OFF/AGC
BRIGHTNESS: ×0.25, ×0.5, ×0.75, ×1
MODE:SHUT+AGC
1/4000,1/10000
AGC:6,12,18,24,30,36,42,44.8
COLOR/TRANSP/MOSAIC
BURST:OFF/ON
DELAY CNT/DAY-NIGHT/NIGHT-DAY
LEFT
KEY BOARD
UP
DOWN
Monitor
RIGHT
DC960V
MENU
Link wire rule：
Video
Power
PRESS
DC12V Power Supply
Video
DC12V
TROUBLE AND SOLUTION
1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be connected
correctly or not.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
. The fluorescent lamp’s electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.
4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect correctly or have high impedance.
Notes：
●The power supply must through safe attestation. Its output voltage,
current, voltage polarity and operating temperature must match the
camera’s requirement.
●When using the camera in the thunderbolt condition,please note to
mount Anti-thunder device or put off the power supply plug and cable.
●In order to capture high quality pictures, the power supply’s cable and
video output cable should not be too long.
Congratulations on your purchase of this product.
This User Guide suits DC960V product. We adopt the
latest SONY technical of sensor and driver. The most attractive characteristics are small and easy hidden, suits
the elevator and corridor. In addition, it owns the characters of high definition and stability, strong anti-jamming,
rich and real color. Fixing and using this model are convenient too. It is very good for you to apply to your CCTV
system.
Please read this instruction manual carefully to en-
sure proper use of the product.
To prevent fire or shock hazarded. Do not expose the unit
to rain or moisture.
The symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
The symbol is intended to alert the user to the presence of
uninsulated ‘dangerous voltage’ within the product’s
enclosure that may be of sufficient Magnitude to constitute
a risk of electric shock to persons.
RISK OF ELECTRIC. DO NOT OPEN
SHOCK
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
Note:
● Please note the camera’s operating temperature and its using
● Never make the camera face the sun or bright object. Other-
● Do not mount the camera near by the radiator or heater.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
environment
too low temperatures. The operating temperature is -30~+60℃.
(Recommendatory operating temperature is -10~+50℃.)
wise, it will damage the CCD.
requirement. Avoid using the camera at too high or
CAUTION:
