1，Safety Information
1.1 Precaution before using the tester
A. Make sure to read the user’s manual before using the product.
B. Make sure to check the input and output range of voltage or current at every input and
output ports before connecting to prevent system overloading.
C. The following operational environment should be maintained constantly:
• Temperature: -22°F–+158°F (-30°C–+70°C)
• Relative humidity: 30% ~ 90%
• Recharging voltage: DC5V
1.2 Precautions when using the tester
A. Do not use the tester in damp humidity or leaking gas environments.
B. Do not touch the tester with wet hands.
C. Be mindful not to shock or shake the tester while in use to avoid damage.
D. Avoid the places of strong magnetism or electric wave, which could cause
incorrect measuring.
E. Be careful not to expose the ports or joints to dirt or liquid.
F. Do not disassemble the tester.
CCTV Tester User’s Manual
1.3 Precautions for battery charging and usage
A. Use only original chargeable battery; when charging the batteries, please use the
original power adapter.
B. Make sure not to disorient the polarization of batteries.
C. Do not short circuit or disassemble batteries.
2，Introduction
2.1 Features and function
A. Video test
The video signal and the quality of picture can be tested.
B. PTZ controlling
It has the basic operational test of PTZ products, function include pan/tilt, zoom
in/out, preset setting and operation, speed adjustment etc; support multiprotocol
and baud rate, communication via RS232, RS422 simplex and RS485 port.
RS485 protocol include: Pelco D,P, Samsung, Panasonic, Molynx. Additional
Protocols may be added as per customer requests.
3
CCTV Tester User’s Manual
Baud rate include: 2400, 4800, 9600, 19200.
C. Power to camera
The tester can output DC12V power to camera which is helpful if power supply is not
available when testing a camera.
D. Digital multimeter
The tester can detect the AC/DC voltage and resistance; high testing range and
precision can help installer find out the circuit problem.
E. Video signal attenuation analyzing
The tester can help installer to analyze the video signal attenuation by catching the
video signal parameters.
F. UTP cable test
The wiring condition (disconnected, short of UTP cable) can be tested and clearly
shown on the screen.
G. Video signal generating
It can output Green, white Black and Blue screen to allow technician to inspect video
monitor or DVR. The generating signal support PAL or NTSC (don’t support both
meanwhile) format.
H. RS485 data test
It can test the RS485 data sent from controlling device and display the hexadecimal
data content for engineer to analyze.
2.2 Standard items
UTP cable tester
BNC connect cable
Multimeter cables
DC12V power cable
Item Quantity
CCTV tester
Battery
Power adapter
Test lead set
Necklace
2 (only for some Models)
User manual
1
1
1
1
1
1
1
1
1
4
CCTV Tester User’s Manual

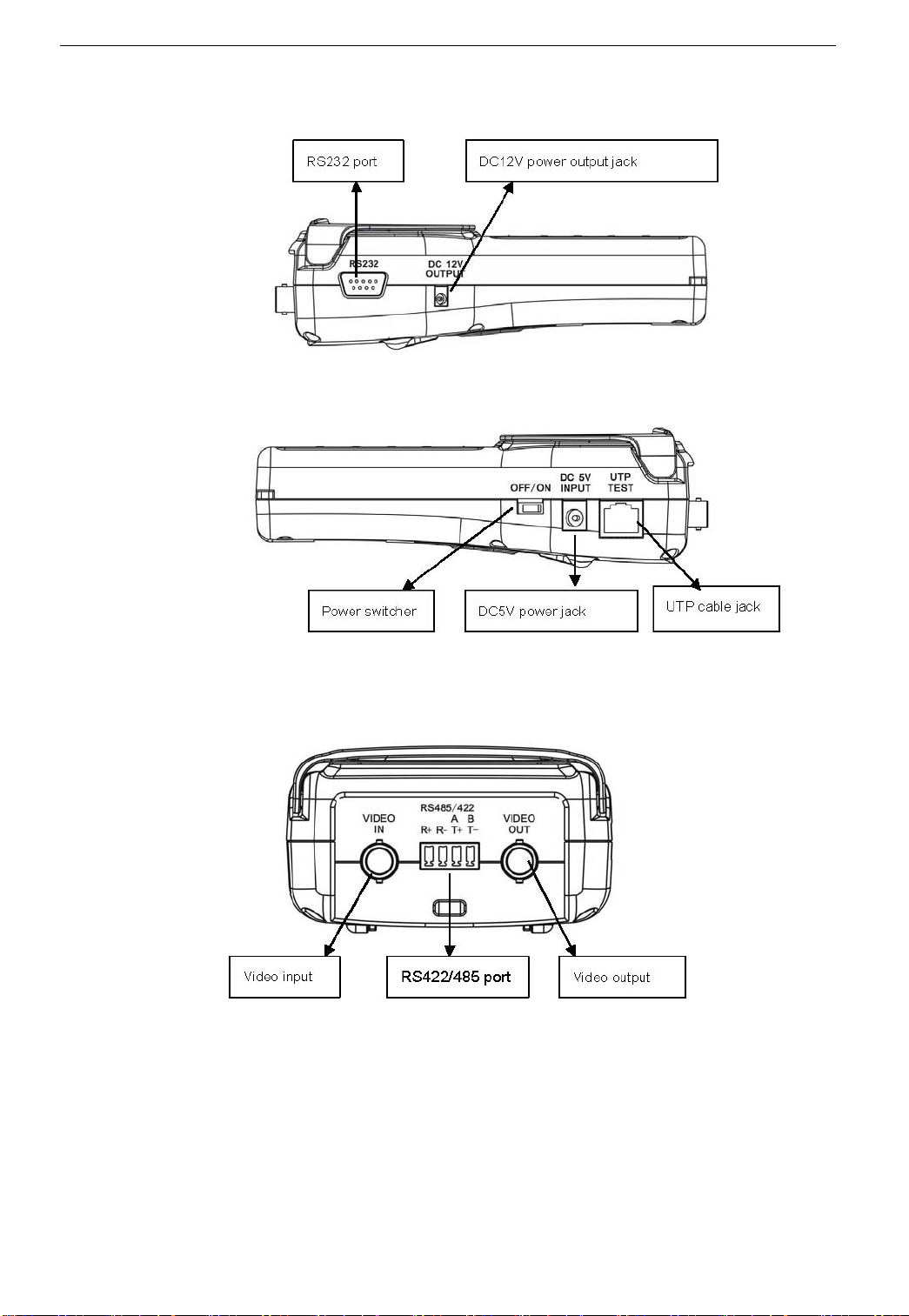

2.3 Function of each part
5
