Talos Security BC960 User Manual

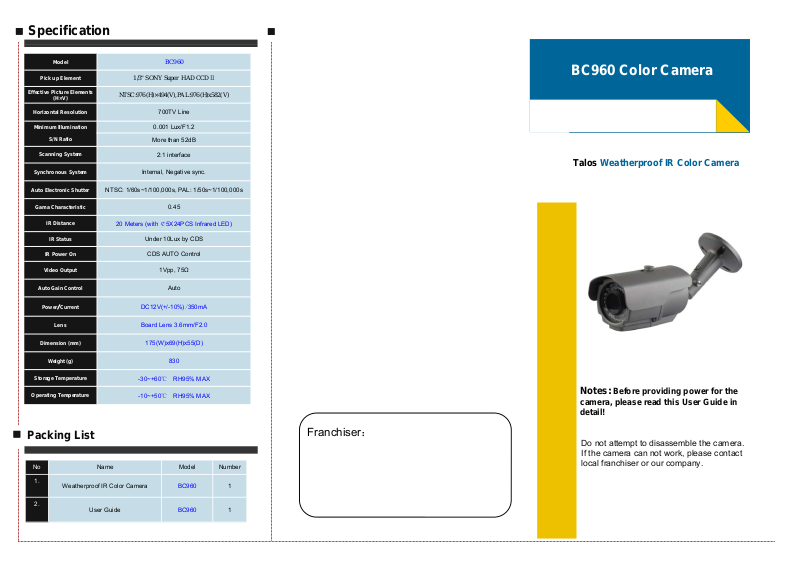

Specification

Model

Pick up Element

Effective Picture Elements

(H×V)

Horizontal Resolution

Minimum Illumination

S/N Ratio

Scanning System

Synchronous System

Auto Electronic Shutter

Gama Characteristic

IR Distance

IR Status

IR Power On

Video Output

Auto Gain Control

Power/Current

Lens

BC960

1/3" SONY Super HAD CCD II

NTSC:976(H)×494(V),PAL:976(H)x582(V)

700TV Line

0.001 Lux/F1.2

More than 52dB

2:1 interface

Internal, Negative sync.

NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s

0.45

20 Meters (with ￠5X24PCS Infrared LED)

Under 10Lux by CDS

CDS AUTO Control

1Vpp, 75Ω

Auto

DC12V(+/-10%)/350mA

Board Lens 3.6mm/F2.0

BC960 Color Camera

Talos Weatherproof IR Color Camera

Dimension (mm)

Weight (g)

Storage Temperature

Operating Temperature

Packing List

Weatherproof IR Color Camera BC960 1

User Guide BC960 1

175(W)x69(H)x55(D)

830

-30~+60℃ RH95% MAX

-10~+50℃ RH95% MAX

Name Model Number

Franchiser：

Notes:Before providing power for the

camera, please read this User Guide in detail!

Do not attempt to disassemble the camera. If the camera can not work, please contact local franchiser or our company.

BRIEF OF PRODUCT

CONNECTING

INTRODUCTION

* Sensor (CCD)

Adopt SONY 1/3" CCD Sensor. * Auto Gain Control (AGC)

Built-in auto gain control (AGC) circuit. The color camera can get high definition picture in low Lux condition.

* Scanning Mode NTSC or PAL mode.

* Water Resistance

IP66. * Support UTC function

With UTC Remote Controller for the convenience of OSD menu setting.

* OSD SETTING

MANUAL

OSD SET

LENS

SHUTTER/

AGC

WHITE BAL

BACK LIGHT OFF/BLC/HLC

PICT AD-

JUST

ATR

MOTION DET

PRIVACY

DAY/NIGHT

CAMERA ID OFF/ON

SYNC INT

LANGUAGE

AUTO

MANUAL

ATW SPEED/DELAY CNT/ATW FRAME/ENVIRONMENT

MORROR/BRIGHTNESS/CONTRAST/SHARPNESS/HUE/GAIN

OFF

ON LUMINANCE/CONTRAST

OFF

COLOR

B/W BURST:OFF/ON

AUTO

NR NR MODE:Y/C,OFF,Y,C

ENGLISH/CHINESS/JAPANESS/ESPANOL/PORTUGUES/

MODE:CLOSE/AUTO/OPEN SPEED:0-255

HIGH LUMINANCE MODE:SHUT+AUTO IRIS/AUTO

SHUTTER:1/50,1/120,1/250,1/500,1/1000,1/2000,

PUSH/ANTI CR/PUSH LOCK/USER1/USER2/MANUL

DETECT SENCE/BLOCK DISP/MONITOR AREA/AREA

AREA SEL/TOP/BOTTOM/ LEFT/RIGHT/

PYCCKNN/FRANCAIS/DEUISCH

CAMERA RESET/BACK/EXIT/SAVE ALL

TYPE:DC/VIDEO

IRIS

BRIGHTNESS:0-255

LOW LUMINANCE MODE:OFF/AGC

BRIGHTNESS: ×0.25, ×0.5, ×0.75, ×1

MODE:SHUT+AGC

1/4000,1/10000

AGC:6,12,18,24,30,36,42,44.8

SEL/TOP/BOTTOM/LE FT/RIGHT

COLOR/TRANSP/MOSAIC

BURST:OFF/ON

DELAY CNT/DAY-NIGHT/NIGHT-DAY

LEFT

KEY BOARD

DOWN

Monitor

RIGHT

PRESS

BC960

Link wire rule：

Video

Power

DC12V Power Supply

Video

DC12V

TROUBLE AND SOLUTION

1. No Picture after providing power

. May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude.

. Please check all the connecting cable and monitors whether be connected correctly or not.

2. The picture level direction have flowing interference ripples

. May be caused by the power supply AC ripples, it need filter the wave of the power supply.

. Check the monitor and peripheral equipments used.

3. The picture background color changes continuously

. The fluorescent lamp’s electromagnetic field cause color roll. This is proper phenomenon of the cameras. . Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can improve it. . Use power supply external sync. camera can solve it.

4. The picture smear too mass

. The power supply’s voltage unstable. . Connecting cables not connect correctly or have high impedance.

Notes：

●The power supply must through safe attestation. Its output voltage,

current, voltage polarity and operating temperature must match the camera’s requirement.

●When using the camera in the thunderbolt condition,please note to mount Anti-thunder device or put off the power supply plug and cable.

●In order to capture high quality pictures, the power supply’s cable and video output cable should not be too long.

Congratulations on your purchase of this product.

This User Guide suits BC960 product. We adopt the latest SONY technical of sensor and driver. The most attractive characteristics are small and easy hidden, suits the elevator and corridor. In addition, it owns the characters of high definition and stability, strong anti-jamming, rich and real color. Fixing and using this model are convenient too. It is very good for you to apply to your CCTV system.

Please read this instruction manual carefully to en-

sure proper use of the product.

The symbol is intended to alert the user to the presence of

important operating and maintenance (servicing) Instructions in the literature accompanying the appliance.

The symbol is intended to alert the user to the presence of

uninsulated ‘dangerous voltage’ within the product’s

enclosure that may be of sufficient Magnitude to constitute a risk of electric shock to persons.

RISK OF ELECTRIC. DO NOT OPEN

SHOCK DO NOT REMOVE COVER OR BACK NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING

CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF

FIRE HAZARDS, DO NOT USE OTHER THAN SPECIFIED POWER SOURCE.

Note:

● Please note the camera’s operating temperature and its using

● Never make the camera face the sun or bright object. Other-

● Do not mount the camera near by the radiator or heater.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

environment too low temperatures. The operating temperature is -30~+60℃. (Recommendatory operating temperature is -10~+50℃.)

wise, it will damage the CCD.

requirement. Avoid using the camera at too high or

CAUTION:
