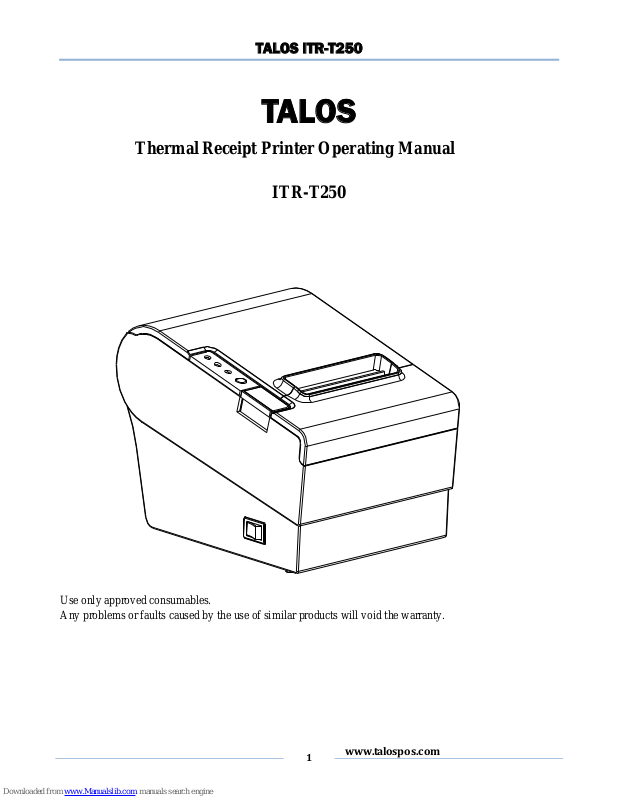

TALOS ITR-T250
1
www.talospos.com
TALOS
Thermal Receipt Printer Operating Manual
ITR-T250
Use only approved consumables.
Any problems or faults caused by the use of similar products will void the warranty.
TALOS ITR-T250
2
www.talospos.com
Safety Warning:
In order to operate our printer correctly and prevent any danger or damage, please be sure to follow
instructions while operating our products:
Do not simultaneously connect power plugs of
different products on one power bar.
May cause heat or fire. Dangerous
Once the power plug is stained with foreign
body or water, please use it after cleaning.
When the port of power socket is loose,
please do not plug in.
Use standard products for multiple port
sockets.
When detected suspicious smells, smokes or sound,
please shut off the power at once and then take the
following measures:
1. Be sure to unplug the power from the socket.
2. Confirming no smoke and then get help from the
purchase place for processing warranty.
Do not pull the power soft wire when unplugging.
Pulling may crack the soft wire and cause
fire or faults.
Do not plug in or pull out plug with wet hands.
Danger of electric shock
Keep the drying agent out of the reach of children.
Children may be poisoned if intake the
drying agent.
Keep the poly bag out of reach of children.
Children may be suffocated if misplaced the
poly bag on their head.
Do not overly bend or place heavy load on the
power soft wire as it may cause fire.
Use only supplied products for adaptor.
It is dangerous to use other adaptors.
Warning
Violating the instructions below may cause severe injury or death.
Use only supplied
adaptors.
TALOS ITR-T250
3
www.talospos.com
Do not take apart, repair or transform the products.
Use only approved accessories or it may
cause damage. Please consult with the place
of purchase.
Don't touch the thermal head with hand.
That may cause burn or influence of
printing quality.
Do not let water or foreign object get inside the
printer.
If happens, switch off the printer, unplug the
power and then contact the place of purchase.
Place the product on a stable place
Falling may make breakage and cause
injury.
Do not operate the printer when it breaks down, as it may cause fire or electric shock.
Close switch power at once, unplug the power and then contact the place of purchase.
Warning
Violating the instructions below may cause severe injury or death.
Thermal head
TALOS ITR-T250
4
www.talospos.com
Notice
Electronic products such as printers are susceptible to static damage.
To avoid this kind of damage, please power off the printer before connecting or switching off behind cable.
Once static damage happens, please contact the nearest maintenance center.
Product Introduction
ITR-T250 printer is compatible with electronic instrument, such as ECR、POS、cash register、receipt bill、
computer peripheral equipment etc.
Main Features of the Printer:
1. High Speed: 250mm/s.
2. Low noise thermal printing.
3. Support Parallel port, CENTRONIC, and Serial Port (RS_232).
4. Data buffer built-in (Able to receive printer data while printing).
5. Equip with circuit driving peripheral to control external device such as cash box.
6. Command support ESC/POS、select different printing density, i.e. adjust dial switch.
7. Support NV bitmap download and printing.
ITR-T250 features NV bitmap download Flash 64kb.
**Read the manual carefully before usage.
Directory
Chapter 1. Printer Setup and Operation
Contents in the Package.......................................................................................................................05
Connect Cable......................................................................................................................................05
Load and Replace Paper Roll...............................................................................................................06
Paper Roll Recommendation................................................................................................................07
Connect to computer.............................................................................................................................07
Connect to Cash Drawer.......................................................................................................................08
Connect to Power..................................................................................................................................08
Printer Control Panel.............................................................................................................................09
Setting Printer Mode.............................................................................................................................09
Chapter 2. Printer Management
Self-Checking........................................................................................................................................10
Printer Maintenance...............................................................................................................................10

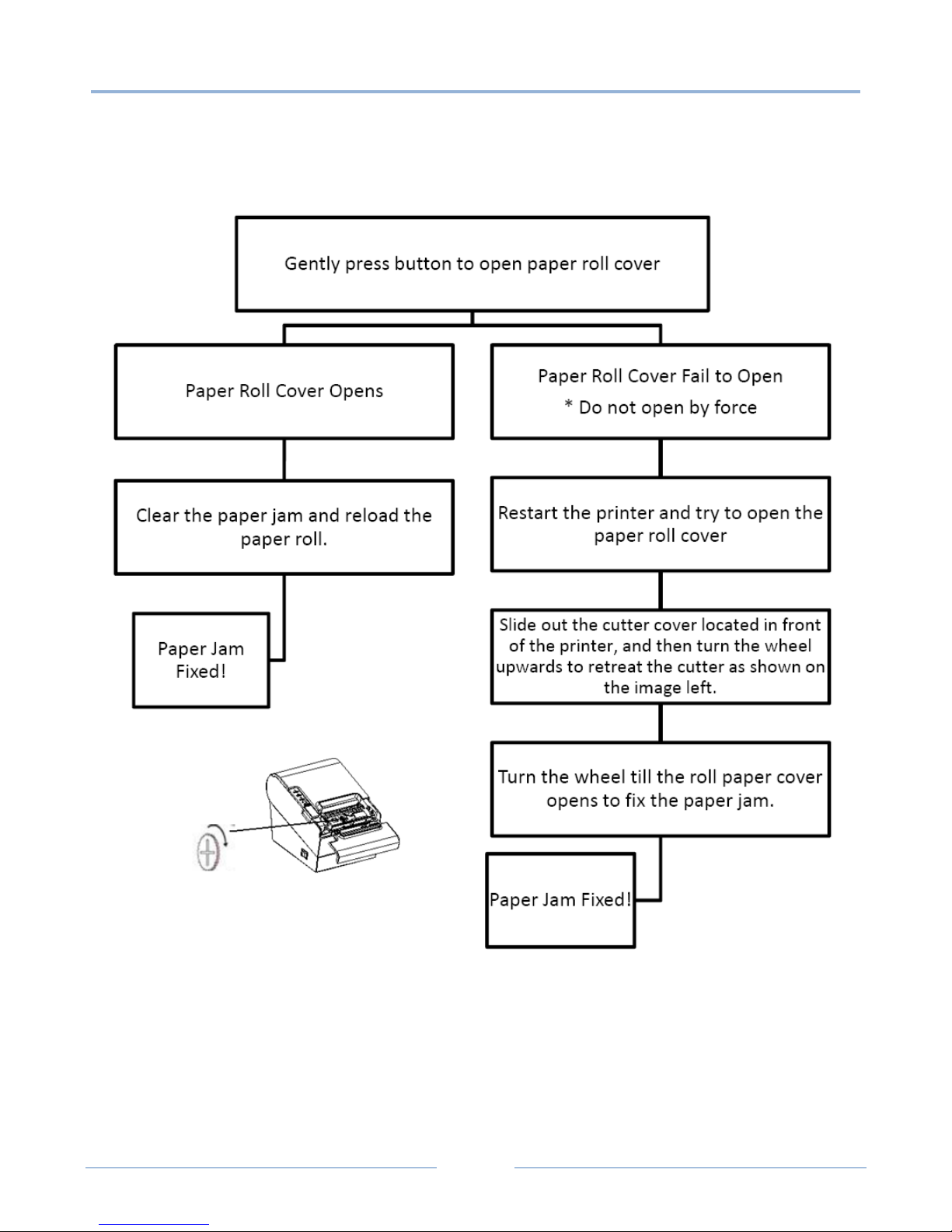

Fix Paper Jam.........................................................................................................................................11
Chapter 3. Appendix and Product Specification
Specification...........................................................................................................................................12
